Panasonic CS-E24JKES User manual

F566698
Operating Instructions
Air Conditioner
ENGLISH
ENGLISH
2 ~ 7
2 ~ 7
Before operating the unit, read these
Before operating the unit, read these
operating instructions thoroughly and
operating instructions thoroughly and
keep them for future reference.
keep them for future reference.
FRANÇAIS
8 ~ 13
8 ~ 13
Avant d’utiliser l’appareil, lisez ce mode
d’emploi dans son intégralité et conservez-le
pour toute référence ultérieure.
ESPAÑOL
14 ~ 19
14 ~ 19
Antes de utilizar la unidad, sírvase leer
atentamente estas instrucciones de
funcionamiento y conservarlas como
futuro elemento de consulta.
DEUTSCH
20 ~ 25
20 ~ 25
Bevor Sie das Gerät in Betrieb nehmen,
lesen Sie bitte diese Bedienungsanleitung
aufmerksam durch und bewahren Sie sie
für die künftige Verwendung auf.
ITALIANO
26 ~ 31
26 ~ 31
Prima di utilizzare l’unità si prega di leggere
attentamente le istruzioni e di conservare
questo opuscolo per potervi fare riferimento
in futuro.
NEDERLANDS
32 ~ 37
32 ~ 37
Lees voor u het apparaat gebruikt deze
gebruiksinstructies grondig en bewaar ze
voor toekomstig gebruik.
PORTUGUÊS 38 ~ 43
Antes de ligar a unidade, leia
cuidadosamente este manual de
utilização e guarde-o para futura
referência.
EΛΛΗΝΙΚΆ 44 ~ 49
Προτού θέσετε τη μονάδα σε λειτουργία,
διαβάστε προσεκτικά αυτές τις οδηγίες
χρήσης και φυλάξτε τις για μελλοντική
αναφορά.
БЪЛГАРСКИ 50 ~ 55
Преди да задействате климатика,
прочетете внимателно инструкциите
за употреба иги запазете за бъдещи
справки.
QUICK GUIDE / GUIDE RAPIDE
QUICK GUIDE / GUIDE RAPIDE
GUÍA RÁPIDA / KURZANLEITUNG
GUÍA RÁPIDA / KURZANLEITUNG
GUIDA RAPIDA / SNELLE GIDS
GUIDA RAPIDA / SNELLE GIDS
GUΙA RÁPIDO / ΣYNTOMOΣO∆HГOΣ
GUΙA RÁPIDO / ΣYNTOMOΣO∆HГOΣ
БЪРЗ СПРАВОЧНИК
БЪРЗ СПРАВОЧНИК
© Panasonic HA Air-Conditioning (M) Sdn. Bhd. 2008.
Unauthorized copying and distribution is a violation
of law.
Indoor Unit Outdoor Unit
CS-E24JKES CU-E24JKE
CS-E28JKES CU-E28JKE

2
SAFETY PRECAUTIONSSAFETY PRECAUTIONS
Power Supply
• Do not share the same power outlet with
other equipment.
• Do not modify power cords.
• Do not use extension cords.
• Do not operate with wet hands.
• Use the specified supply cord.
• If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualified persons in
order to avoid a hazard.
• This equipment must be earthed and
strongly recommended to be installed
with Earth Leakage Circuit Breaker
(ELCB) or Residual Current Device
(RCD). Otherwise, it may cause electrical
shock or fire in case of malfunction.
• In case of emergency or abnormal
conditions (burnt smell, etc), turn off
the power supply, and please consult
authorized dealer.
Power Supply
• Switch off the power supply
before cleaning or servicing.
• Turn off the power supply if the
unit is not used for a long period
of time.
• This air conditioner is equipped
with a built-in surge protective
device. However, in order
to further protect your air
conditioner from being damaged
by abnormally strong lightning
activity, you may want to
disconnect it from the power
supply. Do not touch the air
conditioner during lightning, it
may cause electric shock.
Air inlet
Air inlet
Air
Air
outlet
outlet
Air outlet
Air inlet
Air
inlet
Remote Control
• Do not use rechargeable
(Ni-Cd) batteries.
• Do not allow infants and
small children to play
with the remote control
to prevent them from
accidentally swallowing the
batteries.
• Remove the batteries if the
unit is not going to be used
for a long period of time.
• New batteries of the same
type must be inserted
following the polarity stated
to prevent malfunction of
the remote control.
Outdoor Unit
• Do not sit or step on the unit, you
may fall down accidentally.
• Do not touch the sharp aluminium
fin, sharp parts may cause injury.
• Ensure that the drainage pipe is
connected properly. Otherwise,
leakage may occur.
• After long periods of use, make
sure the installation rack is not
damaged.
Indoor Unit
• Do not install, remove and
reinstall the unit by yourself;
improper installation will
cause leakage, electric
shock or fire. Please consult
authorized dealer or specialist
for the installation work.
• Do not insert your fingers or
other objects into the unit,
rotating parts may cause
injury.
• Do not attempt to repair the
unit by yourself.
Indoor Unit
• Do not install the unit in a
potentially explosive atmosphere.
• Do not wash the unit with water,
benzene, thinner or scouring
powder.
• Do not use for other purposes
such as preservation of food.
• Do not use any combustible
equipment in front of the airflow
outlet.
• Do not expose directly to cold air
for a long period.
• Ensure that the drainage pipe is
connected properly. Otherwise,
leakage may occur.
• Aerate the room regularly.
DEFINITION
The instructions to be followed are classified by the following symbols:
This symbol denotes an action
that is PROHIBITED.
These symbols denote actions
that are COMPULSORY.
To prevent personal injury, injury to others, or property damage, please observe the following.
Incorrect operation due to failure to follow instructions may cause harm or damage, the seriousness of which is classified as below:
Warning
This sign warns of death or serious injury.
Caution
This sign warns of
injury or damage
to property.
Outdoor Unit
• Do not insert your fingers or other objects
into the unit, rotating parts may cause
injury.

3
ENGLISH
REGULATORY INFORMATIONREGULATORY INFORMATION Thank you for purchasing
Panasonic Air Conditioner
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety. Children should be supervised to
ensure that they do not play with the appliance.
TABLE OF CONTENTS
TABLE OF CONTENTS
NOTE :
NOTE :
The illustrations in this manual are
for explanation purposes only and
may differ from the actual unit. It is
subjected to change without notice
for future improvement.
Information for Users on Collection and Disposal of Old Equipment and Used Batteries
Pb
These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic
products and batteries should not be mixed with general household waste.
For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection
points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC.
By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential
negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.
For more information about collection and recycling of old products and batteries, please contact your local municipality, your
waste disposal service or the point of sale where you purchased the items.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.
[Information on Disposal in other Countries outside the European Union]
These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or
dealer and ask for the correct method of disposal.
Note for the battery symbol (bottom two symbol examples):
This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the
Directive for the chemical involved.
• Do not switch ON the unit when waxing the floor. After waxing, aerate the room properly before operating the unit.
• Do not install the unit in oily and smoky areas.
SAFETY PRECAUTIONS
2
REGULATORY INFORMATION
3
PRODUCT OVERVIEW &
OPERATIONS
4~5
CARE & CLEANING
6
TROUBLESHOOTING
7
QUICK GUIDE
BACK COVER
Use this air conditioner under the following temperature range
Temperature (°C) Indoor Outdoor
*DBT *WBT *DBT *WBT
COOLING Maximum 32 23 43 26
Minimum 16 11 16 11
HEATING Maximum 30 - 24 18
Minimum 16 - -5 -6
NOTICE: • This model is not suitable for 24 hours non-stopping operation in
heating mode below -5°C. When the outdoor temperature is below -5°C
and you use this model out of above conditions, the outdoor unit might
be frozen up and stop operation for protection control.
* DBT: Dry bulb temperature
* WBT: Wet bulb temperature
OPERATION CONDITION
OPERATION CONDITION

4
PRODUCT OVERVIEW & OPERATIONSPRODUCT OVERVIEW & OPERATIONS
Remote control
display
Front panel
Receiver
e-ion AIR PURIFYING SYSTEM
Do not touch during operation
e-ion filters e-ion charging wire Active e-ion Generator
Airflow direction
louver
• Do not adjust
by hand.
Maximum distances: 8m
INDICATOR
(Blue)
(Green)
(Orange)
(Orange)
(Orange)
(Blue)
(Blue)
Auto OFF/ON button
• Used when remote control is misplaced or
malfunction.
Action Mode
Press once. Auto
Press and hold until 1 beep is
heard, then release. Cooling
Press and hold until 1 beep is
heard, then release.
Press again until 2 beeps, then
release.
Heating
Press the button to turn off.
TO TURN ON OR OFF THE UNIT
• Please be aware of the OFF indication on the remote
control display to prevent the unit from starting/
stopping improperly.
TO SET TEMPERATURE
• Selection range: 16°C ~ 30°C.
• Operating the unit within the recommended
temperature could induce energy saving.
HEAT mode : 20°C ~ 24°C.
COOL mode : 26°C ~ 28°C.
DRY mode : 1°C ~ 2°C lower than room temperature.
TO SELECT OPERATION MODE
AUTO mode - For your convenience
• During operation mode selection the power indicator
blinks.
• Unit selects operation mode every 30 minutes
according to temperature setting, outdoor and room
temperature.
HEAT mode - To enjoy warm air
• Unit takes a while to warm up. The power indicator
blinks during this operation.
COOL mode - To enjoy cool air
DRY mode - To dehumidify the environment
• Unit operates at low fan speed to give a gentle cooling
operation.

5
ENGLISH
TO SELECT FAN SPEED
(5 OPTIONS)
• For AUTO, the indoor fan speed is automatically
adjusted according to the operation mode.
TO ADJUST AIRFLOW DIRECTION
(5 OPTIONS)
• Keeps the room ventilated.
• If AUTO is set, the louvers swing left/right and
up/down automatically.
• In heat mode, the air blows horizontally for a while,
then starts to blow downwards and the airflow louvers
start to swing left/right after the temperature rises.
TO ENJOY CLEAN &
FRESH AIR
• Generates negative ions to produce fresh air effect
and attract dust which will then be captured at the
positively charged e-ion filters.
TO MONITOR AIR QUALITY
• Patrol sensor detects air quality.
• When the air quality is unsatisfactory, e-ion operation
will start automatically.
TO IMPROVE HUMIDITY
AND MOISTURE LEVEL
• This operation reduces air dryness and provides you
with a comfortable living environment.
• When vertical airflow direction is set to AUTO, it stops
at lower position to avoid cold air contact. However,
you can adjust the louver direction manually.
TO ENJOY QUIET
ENVIRONMENT
• This operation reduces airflow noise.
TO ACHIEVE
TEMPERATURE QUICKLY
• , , and can be activated
in all modes and can be cancelled by pressing the
respective button again.
• only can be activated in COOL mode and can
be cancelled by pressing the button again.
• and or , and can
not be selected at the same time.
• and can be activated even when the
unit is turned off. In this condition, fan speed and air
swing can not be adjusted.
OPTIONAL SETTINGS
OPTIONAL SETTINGS
Patrol starts automatically with the unit
switched on with .
Press and hold for 5 seconds, then release
to disable or restore this setting.
Press and hold for 5 seconds to dim or
restore the unit’s indicator brightness.
Press and hold for approximately 10
seconds to show temperature setting in °C
or °F.
Press and hold for approximately 5 seconds
to show 12-hour (am/pm) or 24-hour time
indication.
Press to restore the remote control’s default
setting.
, Not used in normal operations.
Use curtains to screen off sunlight and outdoor heat to
reduce power consumption during cool mode.
TO SET THE TIMER
TO SET THE TIMER
• To turn ON or OFF the unit at a preset time.
Select ON or
OFF timer. Set the time. Confirm.
• To cancel ON or OFF timer, press or then
press .
• When ON Timer is set, the unit may start earlier (up
to 30 minutes) before the actual set time in order to
achieve the desired temperature on time.
• Timer operation is based on the clock set in the remote
control and repeats daily once set. For clock setting,
please refer to Remote Control Preparation at back
cover.
• If timer is cancelled manually or due to power failure,
you can restore the previous setting (once power is
resumed) by pressing .

6
Remove
Remove

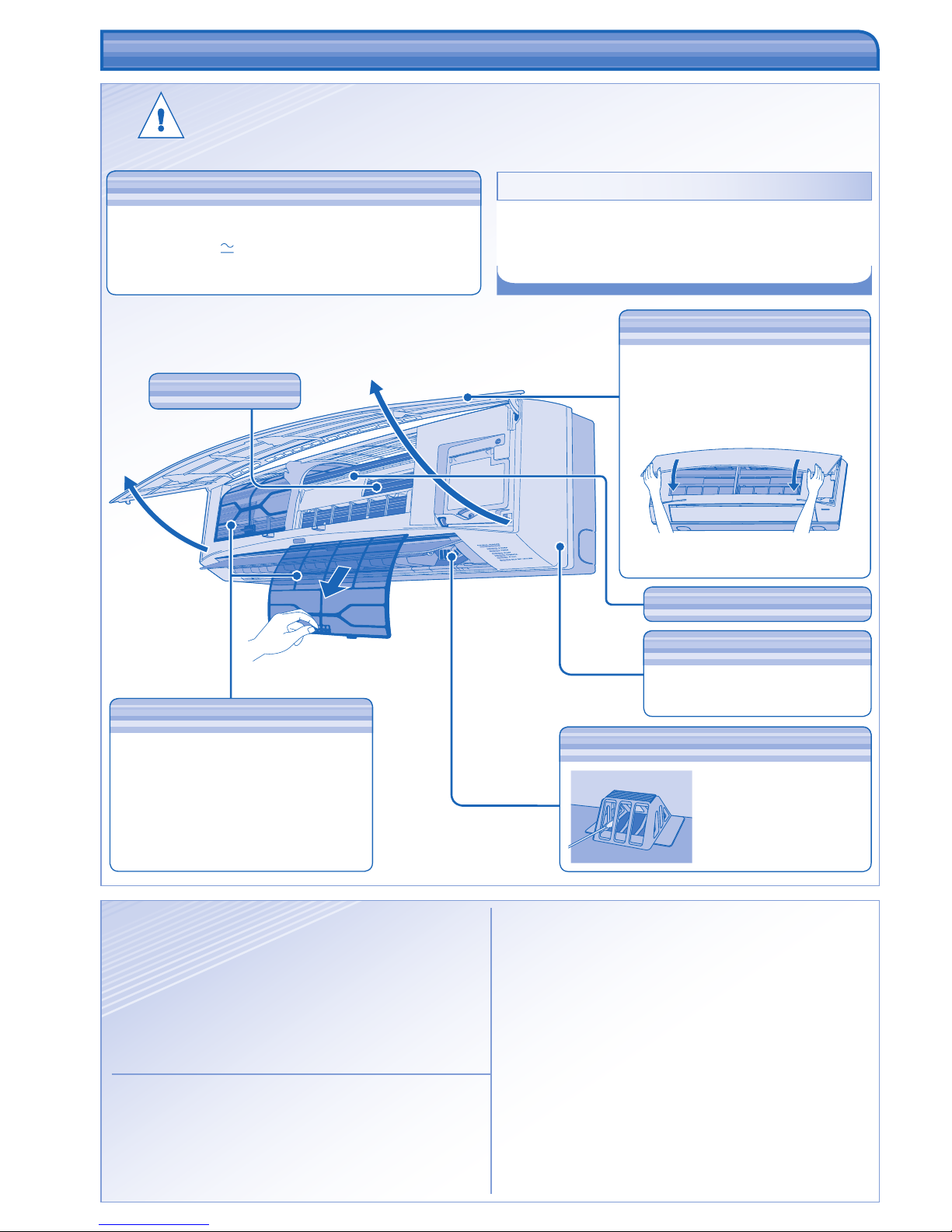

CARE & CLEANINGCARE & CLEANING
WASHING INSTRUCTIONS
WASHING INSTRUCTIONS
• Do not use benzene, thinner or scouring powder.
• Use only soap ( pH7) or neutral household detergent.
• Do not use water hotter than 40°C.
HINT
HINT
• To ensure optimal performance of the unit, cleaning
maintenance have to be carried out at regular intervals.
Dirty unit may caused malfunction and you may retrieve
error code “H99”. Please consult authorized dealer.
FOR SEASONAL INSPECTION AFTER EXTENDED
FOR SEASONAL INSPECTION AFTER EXTENDED
NON-USE
NON-USE
• Checking of remote control batteries.
• No obstruction at air inlet and air outlet vents.
• Use Auto OFF/ON button to select Cooling/Heating operation,
after 15 minutes of operation, it is normal to have the following
temperature difference between air inlet and air outlet vents:
Cooling: ≥8°C Heating: ≥14°C
NON SERVICEABLE CRITERIAS
NON SERVICEABLE CRITERIAS
TURN OFF POWER SUPPLY then please consult
authorized dealer under the following conditions:
• Abnormal noise during operation.
• Water/foreign particles have entered the remote control.
• Water leaks from Indoor unit.
• Circuit breaker switches off frequently.
• Power cord becomes unnaturally warm.
• Switches or buttons are not functioning properly.
FOR EXTENDED NON-USE
FOR EXTENDED NON-USE
• Activate Heat mode for 2~3 hours to remove moisture left in
the internal parts thoroughly.
• Turn off the power supply.
• Remove the remote control batteries.
ALUMINIUM FIN
ALUMINIUM FIN
• Clean the filters regularly.
• Wash/rinse the filters gently with water
to avoid damage to the filter surface.
• Dry the filters thoroughly under
the shade, away from fire or direct
sunlight.
• Replace any damage filter.
e-ion FILTERS
e-ion FILTERS
Clean with dry cotton bud.
• Active e-ion
generator cleaning is
recommended every 6
months.
ACTIVE e-ion GENERATOR
ACTIVE e-ion GENERATOR
CAUTION
•Switch off the power supply before cleaning.
•Do not touch the aluminium fin, sharp parts may cause injury.
FRONT PANEL
FRONT PANEL
Remove Front Panel
• Raise and pull to remove the front
panel.
• Wash gently and dry.
Close Front Panel
• Press down both ends of the front
panel to close it securely.
Wipe the unit gently with a soft,
dry cloth.
INDOOR UNIT
INDOOR UNIT
e-ion
e-ion
CHARGING WIRE
CHARGING WIRE

7
ENGLISH
TROUBLESHOOTINGTROUBLESHOOTING
Symptom
Symptom
Cause
Cause
Mist emerges from indoor unit. • Condensation effect due to cooling process.
Water flowing sound during operation. • Refrigerant flow inside the unit.
The room has a peculiar odour. • This may due to damp smell emitted by the wall, carpet, furniture or clothing.
Indoor fan stops occasionally during automatic
fan speed setting. • This helps to remove the surrounding odours.
Airflow continues even after operation has
stopped. • Extraction of remaining heat from the indoor unit (maximum 30 seconds).
Operation is delayed a few minutes after restart. • The delay is a protection to the unit’s compressor.
Outdoor unit emits water/steam. • Condensation or evaporation occurs on pipes.
Timer indicator is always on. • The timer setting repeats daily once set.
Power indicator blinks during operation and the
indoor fan is stopped. • The unit is in defrost mode, and the melted frost is drained from the outdoor unit.
Indoor fan stops occasionally during heating
operation. • To avoid unintended cooling effect.
Power indicator blinks before the unit is switched
on. • This is a preliminary step in preparation for the operation when the ON timer has been set.
Cracking sound during operation. • Changes of temperature cause the expansion/contraction of the unit.
The following symptoms do not indicate malfunction.
The following symptoms do not indicate malfunction.
Symptom
Symptom
Check
Check
Heating/Cooling operation is not working
efficiently. • Set the temperature correctly. • Close all doors and windows.
• Clean or replace the filters.
• Clear any obstruction at the air inlet and air outlet vents.
Noisy during operation. • Check if the unit has been installed at an incline.
• Close the front panel properly.
Remote control does not work.
(Display is dim or transmission signal is weak.) • Insert the batteries correctly. • Replace weak batteries.
The unit does not work. • Check if the circuit breaker is tripped.
• Check if timers have been set.
The unit does not receive the signal from the
remote control. • Make sure the receiver not obstructed. • Certain fluorescent lights may interfere with signal transmitter. Please consult
authorized dealer.
PATROL operation does not work. • Press and hold for 15 seconds until beep sound is heard, press
again.
Patrol sensor or e-ion indicator on the indoor unit
is blinking. • Press or twice. If the patrol sensor or e-ion indicator still blinking,
please consult authorized dealer.
Check the following before calling for servicing.
Check the following before calling for servicing.
The unit stops and the timer indicator blinks.
The unit stops and the timer indicator blinks.
Use remote control to retrieve error code.
1Press for 5
seconds.
3Press for 5
seconds to
quit checking.
2Press until you hear
beep sound, then jot
down the error code.
4Turn the unit off and reveal the error code to authorized dealer.
Note:
• For certain error, you may
restart the unit with limited
operation with 4 beeps
during operation starts.

12
3
456
F566698 Printed in Malaysia OFTH0812-02
1
AUTO HEAT
DRY COOL
Select the desired mode.
Sélectionnez le mode de fonctionnement souhaité.
Seleccione el modo deseado.
Wählen Sie die gewünschte Betriebsart aus.
Selezionare la modalità desiderata.
Selecteer de gewenste stand.
Seleccione o modo de funcionamento pretendido.
     .
     .
2
Start/stop the operation.
Mettez l’appareil sous/hors tension.
Inicie/detenga el funcionamiento.
Schalten Sie das Gerät ein bzw. aus.
Avviare/arrestare l’apparecchio.
Start/stop het apparaat.
Ligue/Desligue a unidade.
/  .
/.
3
Select the desired temperature.
Sélectionnez la température souhaitée.
Seleccione la temperature deseada.
Stellen Sie die gewünschte Temperatur ein.
Selezionare la temperatura desiderata.
Stel de gewenste temperatuur in.
Programe a temperatura desejada.
   .
   .
QUICK GUIDE/GUIDE RAPIDE/GUÍA RÁPIDA/
KURZANLEITUNG/GUIDA RAPIDA/SNELLE
GIDS/GUIA RÁPIDO/ΣΥΝΤΟΜΟΣ Ο∆ΗΓΟΣ/БЪРЗ
СПРАВОЧНИК
QUICK GUIDE/GUIDE RAPIDE/GUÍA RÁPIDA/
KURZANLEITUNG/GUIDA RAPIDA/SNELLE
GIDS/GUIA RÁPIDO/ΣΥΝΤΟΜΟΣ Ο∆ΗΓΟΣ/БЪРЗ
СПРАВОЧНИК
Remote Control Preparation • Préparation De La Télécommande • Preparación Del Mando ADistancia •
Remote Control Preparation • Préparation De La Télécommande • Preparación Del Mando A Distancia •
Vorbereitung Der Fernbedienung • Telecomando: Operazioni Preliminari • DeAfstandsbediening Gereedmaken
Vorbereitung Der Fernbedienung • Telecomando: Operazioni Preliminari • De Afstandsbediening Gereedmaken
• Preparação Do Controlo Remoto • Προετοιμασία Τηλεχειριστήριου • Подготвяне На Дистанционното
• Preparação Do Controlo Remoto • Προετοιμασία Τηλεχειριστήριου • Подготвяне На Дистанционното
Управление
Управление 1
Pull out • Retirez • Quite • Nach unten ziehen • Estrarre • Verwijderen • Retire •   • 
2
Insert AAA or R03 batteries (can be used ~ 1 year) •
Placez des piles AAA ou R03 (valables environ 1 an) •
Inserte pilas AAA o R03 (puede ser usado ~ 1 año) •
Batterien einlegen (AAA oder R03) (Betriebsdauer etwa ein Jahr) •
Inserire batterie AAA o R03 (può essere utilizzato per circa 1 anno) •
Plaats AAA- of R03-batterijen (kan ~ 1 jaar gebruikt worden) •
Introduza pilhas AAA ou R03 (pode ser utilizado ~ 1 ano) •
  AAA R03 (   ~ 1 )•
 AAA  R03  (      )
3
Close the cover • Fermez le couvercle • Cierre la tapa • Batteriefach schließen • Chiudere il coperchio • Sluit
het deksel • Feche a tampa •    •  
4
Press CLOCK • Appuyez sur CLOCK • Presione CLOCK • CLOCK drücken • Premere CLOCK • Druk op
CLOCK • Prima CLOCK •  CLOCK •  CLOCK
5
Set time • Réglez l’heure • Ajuste la hora • Uhrzeit einstellen • Impostare l’ora • Tijd instellen • Configurar a
hora •    •  
6
Confirm • Confirmez • Confirmar • Bestätigen • Confermare • Bevestig • Confirmar •  •

Pursuant to at the directive 2004/108/EC, article 9(2)
Panasonic Testing Centre
Panasonic Service Europe, a division of
Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, F.R. Germany
Panasonic Corporation
Website: http://panasonic.net/
