Panasonic AJHVF21G - HD EVF - MULTI-LANG User manual

ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOL
2-inch Electronic HD View Finder/2-Zoll Elektronischer HD-Sucher
HD Viseur électronique de 2 pouce/HD Mirino Elettronico da 2 pollici
HD Visor Electrónico de 2 pulgadas
2 型 HD ビューファインダー
Operating Instructions/Bedienungsanleitung
Mode d’emploi/Istruzioni per l’uso
Instrucciones de funcionamiento
取扱説明書
VQT0X77-1
F0406T1088 -F @
Printed in Japan
Before operating this product, please read the instructions carefully and save this manual for
future use.
Bitte lesen Sie diese Bedienungsanleitung vor der Inbetriebnahme dieses Produkts
aufmerksam durch, und bewahren Sie sie für späteres Nachschlagen auf.
Avant d’utiliser l’appareil, lire attentivement ce mode d’emploi, et le conserver à des fins de
référence ultérieure.
Prima di far funzionare questo prodotto, leggere attentamente le istruzioni e conservare questo
manuale per riferimenti futuri.
Antes de utilizar este producto, lea cuidadosamente las instrucciones y guarde este manual
por si tiene que utilizarlo en el futuro.
このたびは、パナソニック製品をお買い上げいただき、まことにありがとうございます。
O取扱説明書をよくお読みのうえ、正しく安全にお使いください。
Oごご使使用用前前にに「「安安全全上上ののごご注注意意」」（（22〜〜55ペペーージジ））をを必必ずずおお読読みみくくだだささいい。。
O保証書は「お買い上げ日・販売店名」などの記入を確かめ、取扱説明書とともに大切に保管し
てください。
日
本
語
Model No. AJ-HVF21G
Model No. AJ-HVF27BG
01.21G/27G英(17)08.8.2217:40ページ1

Precautions for Use (For USA)
E-1
Caution:
OThe interior of this product contains high-voltage components. Do not disassemble the
product.
ODo not point the eyepiece directly at the sun.
Operating precaution
Operation near any appliance which generates strong magnetic fields may give rise
to noise in the video and audio signals. If this should be the case, deal with the
situation by, for instance, moving the source of the magnetic fields away from the
unit before operation.
indicates safety information.
Precautions for Use (General)
WARNING:
• TO REDUCE THE RISK OF FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS
EQUIPMENT TO RAIN OR MOISTURE.
• TO REDUCE THE RISK OF FIRE OR SHOCK HAZARD, KEEP THIS EQUIPMENT AWAY
FROM ALL LIQUIDS. USE AND STORE ONLY IN LOCATIONS WHICH ARE NOT
EXPOSED TO THE RISK OF DRIPPING OR SPLASHING LIQUIDS, AND DO NOT PLACE
ANY LIQUID CONTAINERS ON TOP OF THE EQUIPMENT.
FCC Note:
This equipment has been tested and found to comply with the limits for a class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy, and if
not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to correct the interference
at his own expense.
Warning:
To assure continued FCC emission limit compliance, the user must use only shielded interface
cables when connecting to external units. Also, any unauthorized changes or modifications to
this equipment could void the user’s authority to operate it.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
01.21G/27G英(17)06.4.611:50ページ1

E-2
ENGLISH
Notice (U.S.A.only):
This product utilizes both a Cathode Ray Tube (CRT) and other components
that contain lead.
Disposal of these materials may be regulated in your community due to
environmental considerations.
For disposal or recycling information, please contact your local authorities, or
the Electronics Industries Alliance:
<http://www.eiae.org.>
Contents
Features . . . . . . . . . . . . . . . . . . . . . . . . . 3
Parts and Their Functions . . . . . . . . . . 3
For cameras compatible with the
standard slide rail . . . . . . . . . . . . . . . . . 6
Mounting the Viewfinder . . . . . . . . . . . 6
Adjusting the viewfinder’s left-right
position . . . . . . . . . . . . . . . . . . . . . . . . 7
Adjusting the viewfinder’s front-back
position . . . . . . . . . . . . . . . . . . . . . . . . 7
Detaching the Viewfinder . . . . . . . . . . 8
For cameras compatible with the
mounting unit . . . . . . . . . . . . . . . . . . . . . 9
Mounting the Viewfinder . . . . . . . . . . 10
Detaching the Viewfinder . . . . . . . . . 10
Position Adjustment . . . . . . . . . . . . . 11
Diopter Adjustment . . . . . . . . . . . . . . . 12
Screen Adjustment . . . . . . . . . . . . . . . 12
Detaching the Eyepiece . . . . . . . . . . . 13
Mounting the Microphone . . . . . . . . . . 14
Specifications . . . . . . . . . . . . . . . . . . . 15
indicates safety information.
Precautions for Use (For USA)
Notice (For Canada)
THIS CLASS A DIGITAL APPRATUS COMPLIES WITH CANADIAN ICES-003.
01.21G/27G英(17)06.4.611:50ページ2

E-3

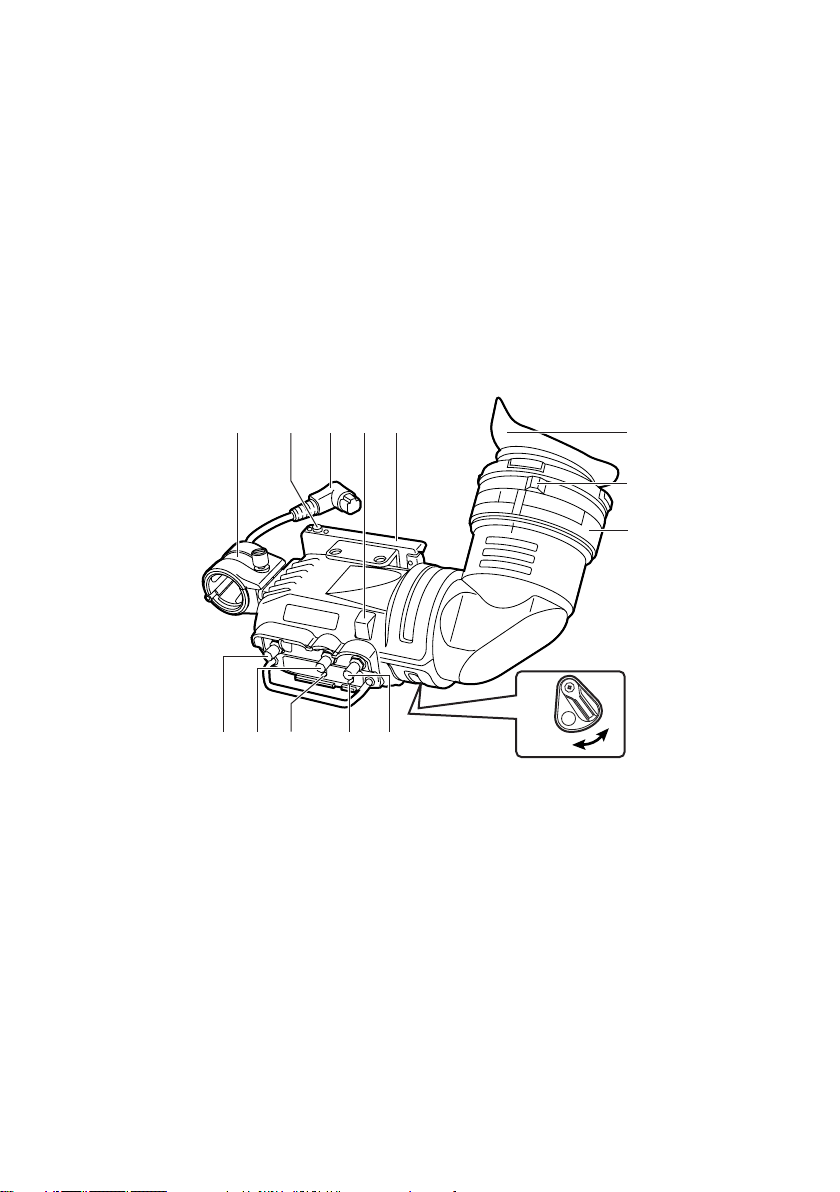

Parts and Their Functions
Displays a zebra pattern inside the viewfinder.
ON: Displays a zebra pattern.
OFF: No zebra pattern displayed.
The details of the display, such as the type of zebra pattern, will differ depending
on the camera used with the viewfinder. Refer to the instruction manual of the
camera for details.
ZEBRA (Zebra Pattern) Switch
1
Controls the front tally lamp.
HIGH: Makes the front tally lamp brighter.
OFF: Turns the front tally lamp off.
LOW: Makes the front tally lamp dimmer.
TALLY Switch
2
Features
OThe high-resolution CRT delivers superb picture sharpness, making focusing easier.
OThe low-flare CRT makes the screen clear and easy on the eyes.
OThe large eyepiece aperture makes it possible to see the screen even when holding the
viewfinder at some distance from your eye.
OThe eyepiece is easily detachable.
OThe image system can be switched between 1080/60 fields and 1080/50 fields
depending on the control signal from the camera. (AJ-HVF21G only)
ON
OFF
1
9
6 >;=
<
:
8
2 53 4
7
01.21G/27G英(17)06.4.611:50ページ3

E-4
ENGLISH
Lights when the camera is shooting and the TALLY switch is set to HIGH or LOW.
Also, flashes on and off as a warning indication, in the same manner as the REC lamp,
inside the viewfinder.
The brightness of the front tally lamp is controlled by the setting of the TALLY switch
(HIGH or LOW).
Front Tally Lamp
6
This is used to attach and remove the viewfinder.
Viewfinder stopper
7
Lights when the camera is shooting. Also, flashes on and off as a warning indication, in
the same manner as the REC lamp inside the viewfinder.
The back tally lamp is hidden when the lever is in the OFF position.
Back Tally Lamp
9
Adjust this control to match the vision of the person using the camera so that the image
on the screen in the viewfinder is as clear as possible.
Diopter Adjustment Ring
:
Connection Plug
;
Lock Ring
<
Microphone Holder
=
Slide rail
>
Eyepiece
8

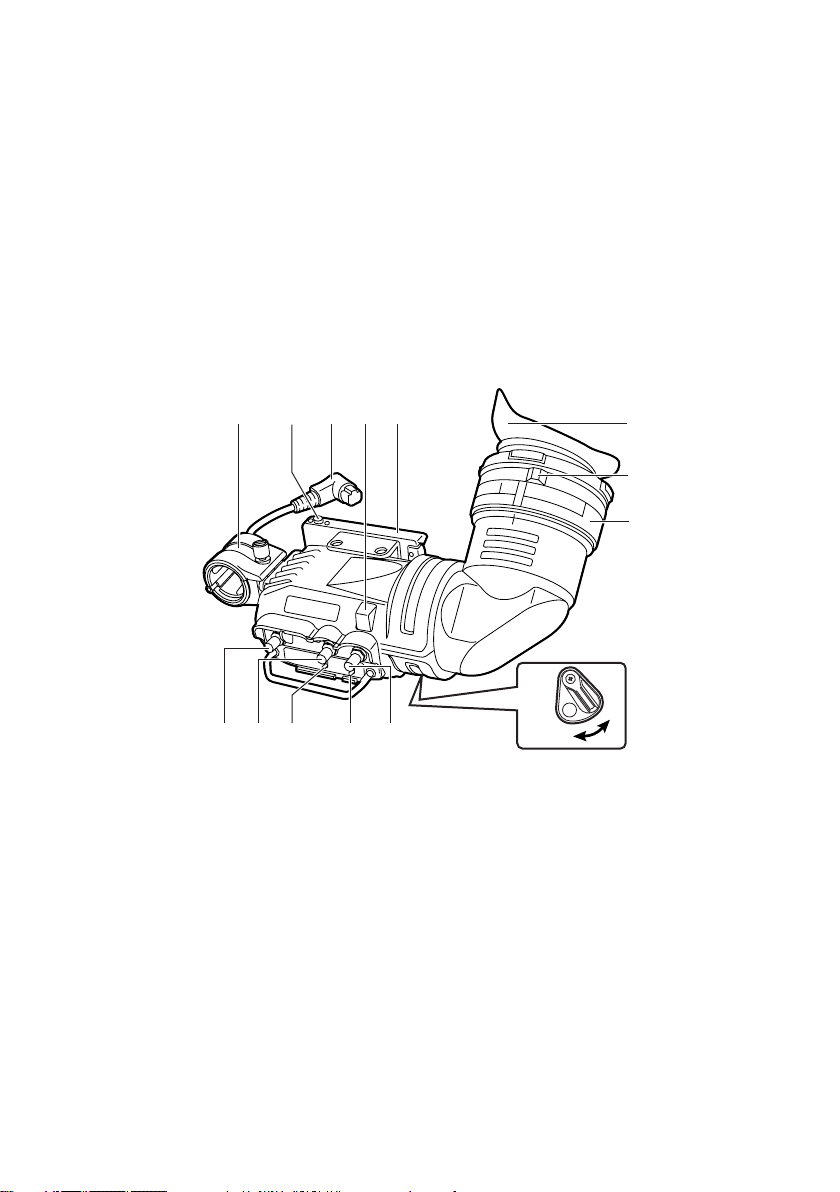

Parts and Their Functions
Adjusts the brightness of the screen inside the viewfinder. The setting of this control has
no effect on the output signal of the camera.
BRIGHT (Brightness) Knob
5
Adjusts the outlines of the images in the viewfinder to make focusing easier. The setting
of this control has no effect on the output signal of the camera.
PEAKING Knob
3
Adjusts the contrast of the screen inside the viewfinder. The setting of this control has
no effect on the output signal of the camera.
CONTRAST Knob
4
01.21G/27G英(17)06.4.611:50ページ4

E-5
Parts and Their Functions
The lamp and picture tube indications will differ depending on the camera used with the
viewfinder.
Refer to the instruction manual of the camera for details.
Internal LEDs
TALLY / REC
BATT
SAVE
01.21G/27G英(17)06.4.611:50ページ5

E-6
ENGLISH
Camera model numberViewfinder model number
For cameras compatible with the standard slide rail
AJ-HVF21G AJ-HDX400
AJ-HDX400P
AJ-HVF27BG
AJ-HDC27H
AJ-HDC27HP
AJ-HDC27HE
AJ-HDC27HMC
Mounting the Viewfinder
3. Loosen the viewfinder left-right position anchoring ring.
4. While pulling up the viewfinder stopper, attach the viewfinder by sliding it in the
direction of the arrow.
2. Insert the plug into the connection jack of the viewfinder.
<Note>
Be sure to insert the plug all the way into the connection jack.
1. Confirm that the POWER switch of the camera is “OFF”.
Viewfinder stopper
Loosen the ring.
5. Tighten the viewfinder left-right position anchoring ring.
The following cameras support the standard slide rail.
01.21G/27G英(17)06.4.611:50ページ6

E-7
For cameras compatible with the standard slide rail

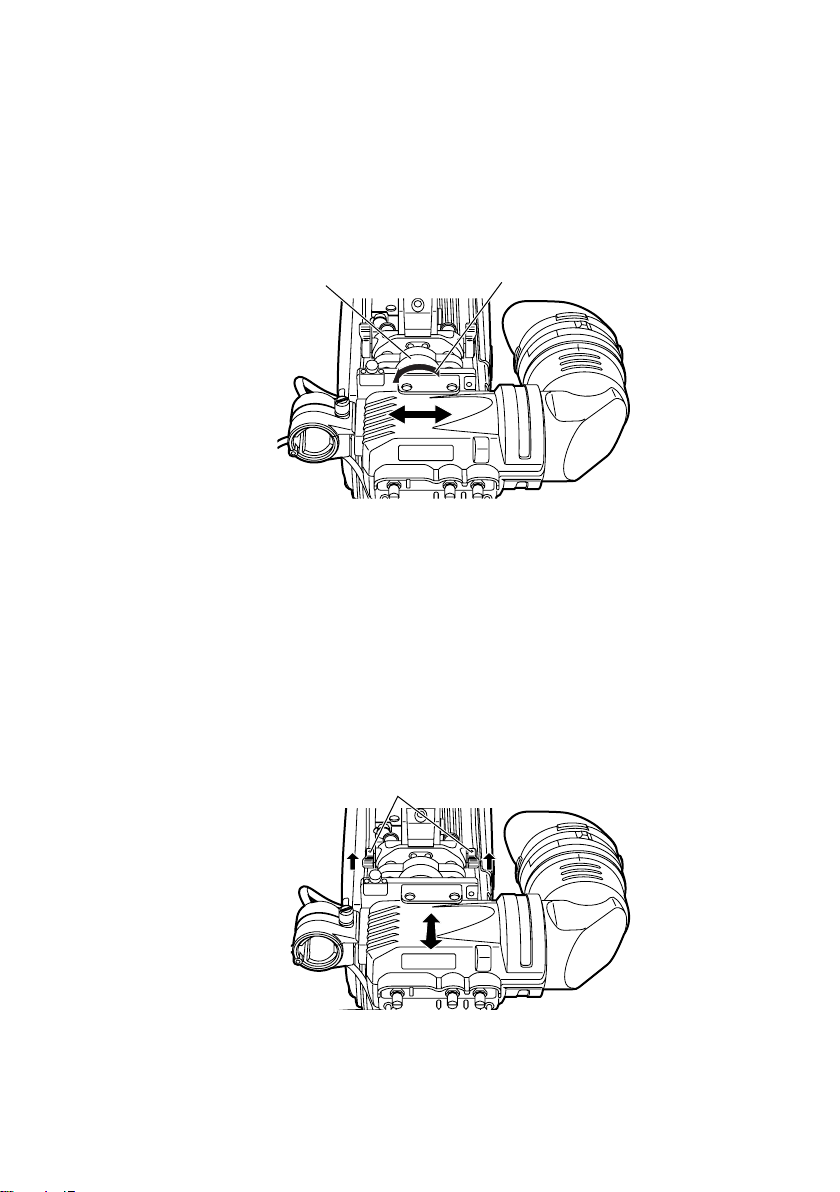

Adjusting the viewfinder’s left-right position
3. Tighten the viewfinder left-right position anchoring ring.
2. Slide the viewfinder to the left or right, and adjust it to a position that allows easy
viewing.
1. Loosen the viewfinder left-right position anchoring ring.
Viewfinder left-right
position anchoring ring Tighten the ring.
Adjusting the viewfinder’s front-back position
3. Tighten the viewfinder front-back position anchoring ring.
2. Slide the viewfinder to the front or back, and adjust it to a position that allows easy
viewing.
1. Loosen the viewfinder front-back position anchoring ring.
Viewfinder front-back position anchoring ring
01.21G/27G英(17)06.4.611:50ページ7

E-8
ENGLISH
For cameras compatible with the standard slide rail

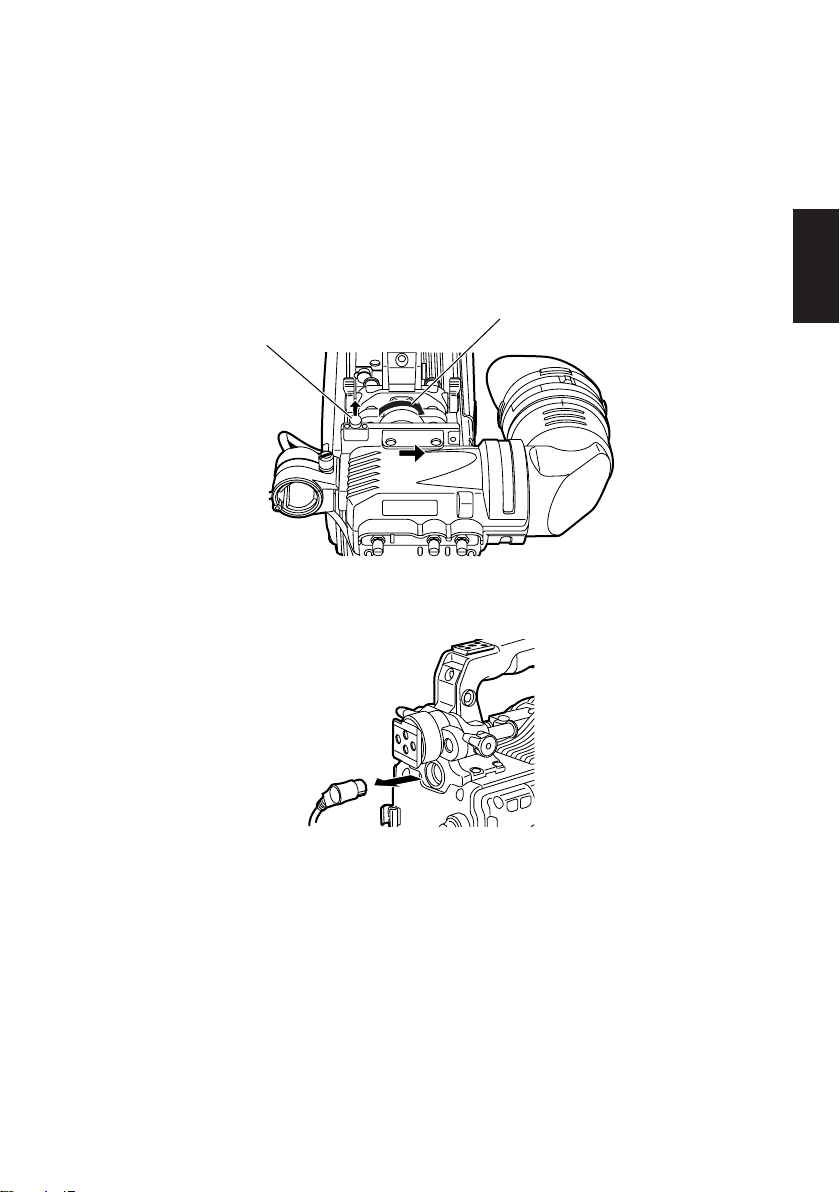

Detaching the Viewfinder
3. While pulling up the viewfinder stopper, remove the viewfinder by sliding it in the
direction of the arrow.
4. Release the viewfinder cable and mic cable from the cable clamps, and disconnect
the cables.
2. Loosen the viewfinder left-right position anchoring ring.
1. Confirm that the POWER switch of the camera is “OFF”.
Viewfinder stopper
Tighten the ring.
01.21G/27G英(17)06.4.611:50ページ8

E-9

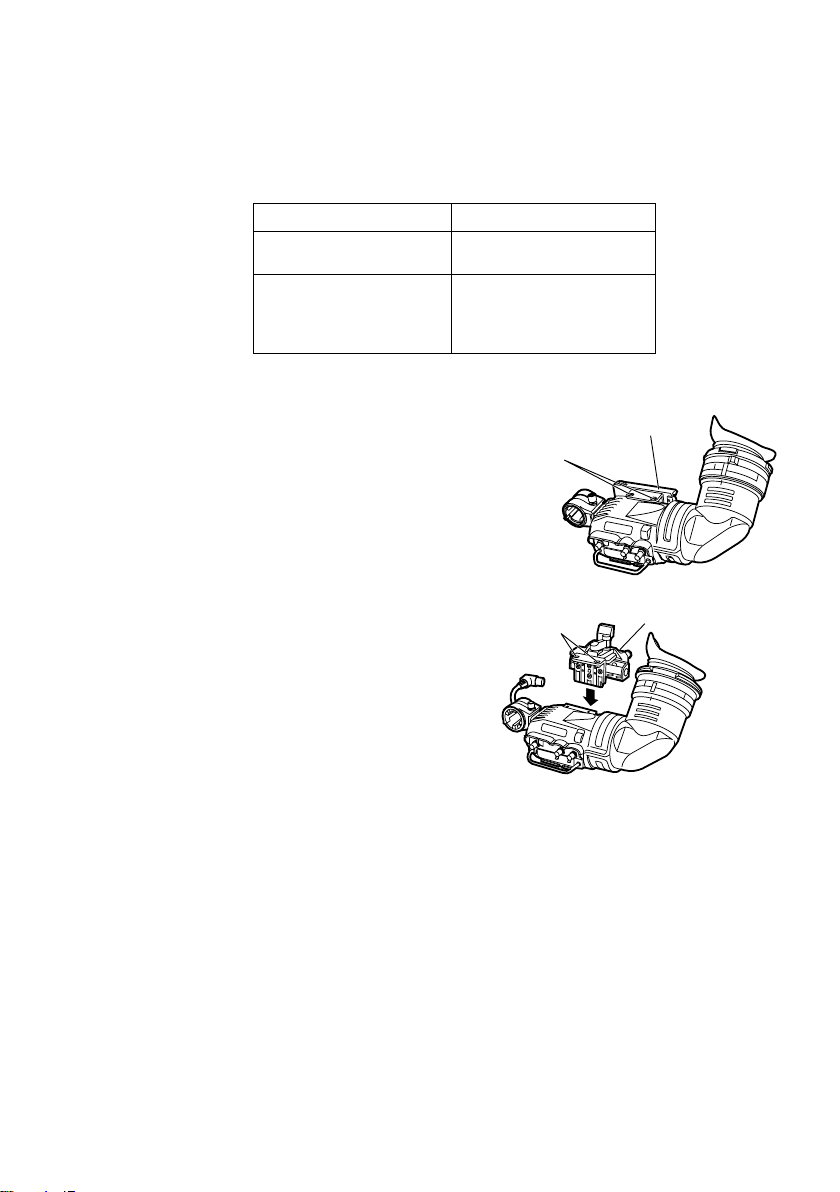

OChanging from the slide rail to the mounting unit
1. Detach the two screws, then detach the
standard slide rail.
2. Secure the mounting unit in place with the two
screws.
For cameras compatible with the mounting unit
Slide rail
Screws
Screws Mounting unit
Camera model numberViewfinder model number
AJ-HVF21G AJ-HDC20A
AJ-HDC20AP
AJ-HVF27BG
AJ-HDC27F
AJ-HDC27FP
AJ-HDC27FE
AJ-HDC27FMC
The standard slide rail can be removed and replaced with the mounting unit (VYQ1818).
To purchase the mounting unit, consult your dealer while bearing in mind that this unit is a
repair part.
The following cameras support the mounting unit.
01.21G/27G英(17)06.4.611:50ページ9

E-10
ENGLISH
For cameras compatible with the mounting unit

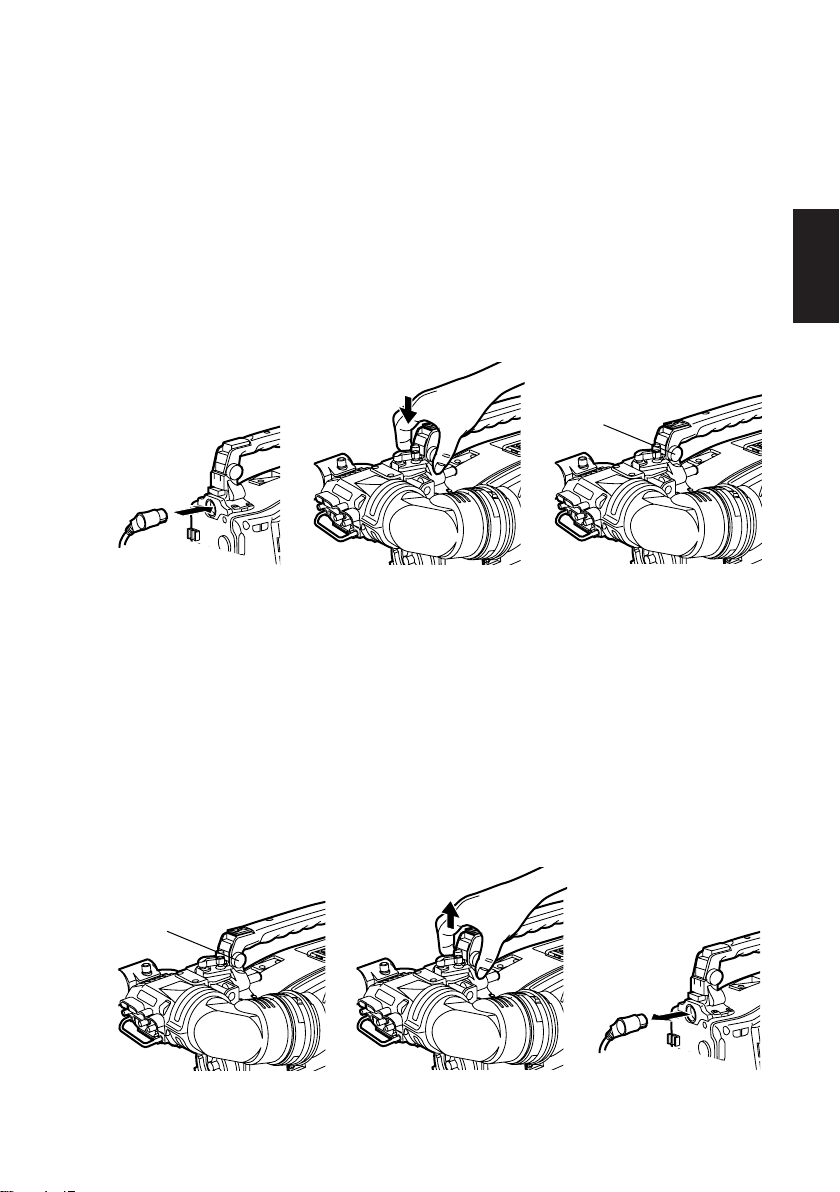

Mounting the Viewfinder
Stopper screw
Detaching the Viewfinder
Stopper screw
3. Push the viewfinder down into place.
4. Tighten the stopper screw firmly.
2. Insert the plug into the connection jack of the viewfinder.
<Note>
Be sure to insert the plug all the way into the connection jack.
1. Confirm that the POWER switch of the camera is “OFF”.
3. Disconnect the connection jack from the viewfinder cable connector.
2. Loosen the stopper screw and detach the viewfinder by pulling it straight up.
<Note>
Use both hands to detach the viewfinder. The viewfinder may not detach smoothly
with one hand, resulting in damage to the viewfinder.
1. Confirm that the POWER switch of the camera is “OFF”.
01.21G/27G英(17)06.4.611:50ページ10

E-11
For cameras compatible with the mounting unit
Position Adjustment
Lever
Viewfinder
1. Lift up the viewfinder forward-backward/left-right position clamp lever to disengage
the lock.
3. Adjust the position of the viewfinder by moving it forward, backward, left or right.
2. Loosen the viewfinder forward-backward/left-right position clamp lever.
4. Return the viewfinder forward-backward/left-right position clamp lever to the locked
position.
01.21G/27G英(17)06.4.611:50ページ11

E-12
ENGLISH
Diopter Adjustment

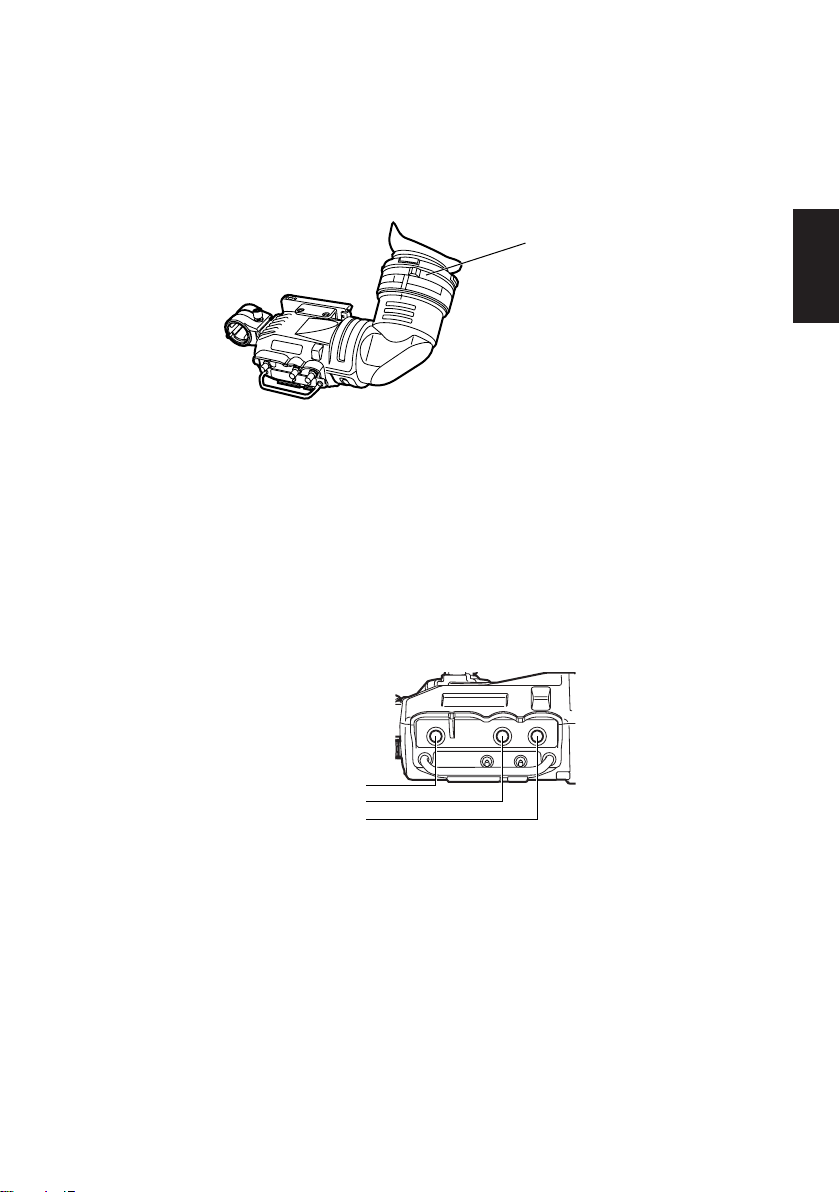

Screen Adjustment
Adjust the condition of the viewfinder screen.
Brightness:Adjust the BRIGHT control.
Contrast: Adjust the CONTRAST control.
Contour: Adjust the PEAKING control.
PEAKING control
CONTRAST control
BRIGHT control
PEAKING CONTRAST BRIGHT
1. Set the POWER switch of the camera to “ON”. A picture will appear in the
viewfinder.
1. Set the POWER switch of the camera to “ON”.
2. Set the OUTPUT switch of the camera to “BAR”.
3. Turn the viewfinder BRIGHT and CONTRAST controls to adjust the picture
brightness and contrast.
Turning the PEAKING control makes the picture appear sharper.
A sharper picture facilitates focusing the lens.
2. Turn the diopter adjustment ring to adjust the diopter so that the viewfinder picture
can be clearly seen.
Diopter Adjustment Ring
01.21G/27G英(17)06.4.611:50ページ12

E-13
Detaching the Eyepiece
If dust has adhered to the CRT screen or mirror, detach the eyepiece and remove it.
<Note>
Do not wipe the mirror surface under any circumstances as it has been specially treated.
Dust which has adhered to the mirror should be blown away with a blower, etc.
1. Turn the lock ring as far as possible in
the clockwise and counterclockwise
directions to line up the alignment
marks on the lock ring and viewfinder
barrel.
2. Detach the eyepiece.
Remounting the Eyepiece
1. Line up the alignment marks on the lock ring and the viewfinder barrel and slide the
eyepiece back into place.
2. Turn the lock ring clockwise as far as the position.
LOCK
Eyepiece
Lock ring
Alignment marks
01.21G/27G英(17)06.4.611:50ページ13

E-14
ENGLISH
Mounting the Microphone
Follow the steps below to install the AJ-MC700P or the AJ-MC900G microphone kit (sold
separately).
MIC IN jack
1. Open the microphone holder.
2. Mount the microphone.
3. Plug the microphone connector cable into the MIC IN jack.
Viewfinder
Microphone
holder
01.21G/27G英(17)06.4.611:50ページ14

E-15
Power supply: DC 12 V (supplied by camera)
Power consumption: 3.8 W (AJ-HVF21G)
4.1 W (AJ-HVF27BG)
Specifications
Picture tube:
2-inch high-resolution monochrome picture tube
Image system:
1080 lines, 50/60 fields selectable (AJ-HVF21G)
720 lines, 60 fields (AJ-HVF27BG)
External adjustment controls:
Controls (BRIGHT, CONTRAST, PEAKING)
Switches (TALLY HIGH/OFF/LOW, ZEBRA ON/OFF)
Allowable temperature range:
0°C to 40°C (32°F to 104°F)
Allowable humidity range:
85% or less (no condensation)
External dimensions (WaHaD):
240 mma80 mma206 mm (9 1/2inchesa3 3/16 inchesa8 1/8inches)
Weight:
750 g (1.65 lb)
indicates safety information.
Weight and dimentions when shown are approximately.
Specifications are subject to change without notice.
T
f
01.21G/27G英(17)06.4.611:50ページ15

E-16
ENGLISH
Information on Disposal for Users of Waste Electrical &
Electronic Equipment (private households)
This symbol on the products and/or accompanying documents
means that used electrical and electronic products should not be
mixed with general household waste.
For proper treatment, recovery and recycling, please take these
products to designated collection points, where they will be accepted
on a free of charge basis. Alternatively, in some countries you may
be able to return your products to your local retailer upon the
purchase of an equivalent new product.
Disposing of this product correctly will help to save valuable resources and prevent any
potential negative effects on human health and the environment which could otherwise
arise from inappropriate waste handling. Please contact your local authority for further
details of your nearest designated collection point.
Penalties may be applicable for incorrect disposal of this waste, in accordance with
national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or
supplier for further information.
Information on Disposal in other Countries outside the European Union
This symbol is only valid in the European Union.
If you wish to discard this product, please contact your local authorities or dealer and ask
for the correct method of disposal.
01.21G/27G英(17)06.4.611:50ページ16

G-1
Vorsicht:
OIm Inneren dieses Produktes befinden sich unter Hochspannung stehende Teile.
Versuchen Sie nicht, das Produkt zu zerlegen.
ORichten Sie das Okular nicht direkt auf die Sonne.
Vorsichtshinweis zum Betrieb
Bei Betrieb in der Nähe von Elektrogeräten, die starke Magnetfelder
erzeugen, können die Video- und Audiosignale durch Rauscheinstreuungen
beinträchtigt werden. In einem solchen Fall empfiehlt es sich, das störende
Gerät vor dem Betrieb in größerer Entfernung aufzustellen.
ist die Sicherheitsinformation.
Vorsichtsmaßnahmen
WARNUNG:
• ZUR REDUZIERUNG DER GEFAHR VON BRAND UND ELEKTRISCHEM
SCHLAG DIESES GERÄT WEDER NÄSSE NOCH FEUCHTIGKEIT
AUSSETZEN.
• UM BRAND- ODER STROMSCHLAGGEFAHR ZU REDUZIEREN, MUSS
DIESES GERÄT VON ALLEN FLÜSSIGKEITEN FERNGEHALTEN WERDEN.
VERMEIDEN SIE GEBRAUCH UND LAGERUNG DES GERÄTES AN ORTEN,
AN DENEN DIE GEFAHR BESTEHT, DASS ES MIT FLÜSSIGKEITEN
BETROPFT ODER BESPRITZT WIRD, UND STELLEN SIE KEINE
FLÜSSIGKEITSBEHÄLTER AUF DAS GERÄT.
02.21G/27G独(16)06.3.2713:49ページ1

G-2
DEUTSCH
Inhalt
Merkmale . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Teile und ihre Funktionen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Für Kameras, die mit der Standard-Gleitschiene kompatibel sind . . . . . . . . . . . . . . . 6
Anbringen des Suchers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Einstellen der Querposition des Suchers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Einstellen der Längsposition des Suchers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Abnehmen des Suchers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Für Kameras, die mit der Montageeinheit kompatibel sind . . . . . . . . . . . . . . . . . . . . . 9
Anbringen des Suchers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Abnehmen des Suchers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Positionseinstellung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Dioptrieneinstellung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Sucherschirmeinstellung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Abnehmen des Okulars . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Anbringen des Mikrofons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Technische Daten . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
02.21G/27G独(16)06.3.2713:49ページ2

G-3
Teile und ihre Funktionen
Dient zum Anzeigen eines Zebramusters im Sucher.
ON: Ein Zebramuster wird angezeigt.
OFF: Kein Zebramuster wird angezeigt.
Die Details der Anzeige, z.B. die Art des Zebramusters, hängen von der mit dem
Sucher verwendeten Kamera ab. Einzelheiten sind der Bedienungsanleitung der
Kamera zu entnehmen.
Zebramusterschalter [ZEBRA]
1
Dient zur Beeinflussung der vorderen Signallampe.
HIGH: Erhöht die Helligkeit der vorderen Signallampe.
OFF: Schaltet die vordere Signallampe aus.
LOW: Verringert die Helligkeit der vorderen Signallampe.
Signallampenschalter [TALLY]
2
ON
OFF
1
9
6 >;=
<
:
8
2 53 4
7
Merkmale
ODie hochauflösende Kathodenstrahlröhre liefert eine überragende Bildschärfe und
erleichtert die Scharfeinstellung.
ODie geringe Elektronenstreuung der Kathodenstrahlröhre sorgt für ein scharfes Bild zur
ermüdungsfreien Betrachtung.
ODie große Okularöffnung ermöglicht die Betrachtung des Sucherschirms selbst aus
größerer Entfernung vom Auge.
ODas Okular läßt sich leicht abnehmen.
ODas Bildsystem kann, abhängig vom Steuersignal der Kamera, zwischen 1080/60
Halbbilder und 1080/50 Halbbilder umgeschaltet werden. (Nur AJ-HVF21G)
02.21G/27G独(16)06.3.2713:49ページ3
