Panasonic SH-PD10 - Digital Player Docking Station User manual

Operating Instructions
Instrucciones de functionamiento
Instrukcja obsługi
Návod k obsluze
Universal Dock for iPod
Soporte Universal para iPod
Uniwersalna stacja dokująca
do urządzenia iPod
Univerzální dokovací stanice pro iPod
Model No. SH-PD10
Before connecting, operating or adjusting this product, please read the
instructions completely.
Please keep this manual for future reference.
Antes de conectar, operar o ajustar este producto, sírvase leer estas
instrucciones completamente.
Guarde este manual para su consulta en el futuro.
Przed podłączeniem, obsługą lub regulacją sprzętu prosimy o dokładne
zapoznanie się z treścią niniejszej instrukcji.
Prosimy o zachowanie niniejszej instrukcji obsługi.
Niniejsza instrukcja została opracowana na podstawie oryginalnej publikacji
firmy MATSUSHITA ELECTRIC INDUSTRIAL CO., LTD.
Urządzenie może się nieznacznie różnić od przedstawionego na ilustracji.
Dříve než začnete jakékoli zapojování, provoz nebo nastavování tohoto výrobku,
prostudujte si prosím celý tento návod.
Uschovejte si prosím tento návod k obsluze.
This device is to be used only with Panasonic DVD Home Theater Sound-System or CD Stereo
System. The warranty terms & conditions of the main unit are fully applicable.
Este dispositivo se ha de utilizar únicamente con el sistema teatro en casa Panasonic DVD o
el su sistema estéreo de CD. Los términos de garantía y las condiciones de la unidad principal
son totalmente aplicables.
To urządzenie przeznaczone jest do stosowania wyłącznie z Zestawem kina domowego
DVD lub Zestawem stereo z CD firmy Panasonic. Jest objęte warunkami gwarancyjnymi
dotyczącymi urządzenia głównego.
Toto zařízení je určeno pouze pro použití se systémem domácího kina DVD nebo stereo CD
systému Panasonic. Záruční podmínky hladní jednotky jsou platné v celém rozsahu.
RQTV0223-E
E
RQTV0223-E_01-28_newlayout.indd 1 1/15/07 9:44:55 AM

RQTV0223
2
INTRODUCTION
Introducing you to a world of sheer visual and audio enjoyment stored on
your iPod by connecting to Panasonic’s Universal Dock for iPod, which
is then connected to Panasonic DVD Home Theater Sound System or
CD Stereo System.
This unit is compatible with the following types of iPod:
Name Memory size
iPod nano 2nd generation (aluminium) 2GB, 4GB, 8GB
iPod 5th generation (video) 60GB, 80GB
iPod 5th generation (video) 30GB
iPod nano 1st generation 1GB, 2GB, 4GB
iPod 4th generation (color display) 40GB, 60GB
iPod 4th generation (color display) 20GB, 30GB
iPod 4th generation 40GB
iPod 4th generation 20GB
iPod mini 4GB, 6GB
Note:
Compatibility depands on the software version of your iPod.
iPod is a trademark of Apple computer, Inc., registered in the U.S. and
other countries.
Dear customer
Thank you for purchasing this product.
For optimum performance and safety, please read these instructions carefully.
PRECAUTIONS
• Install this unit in a cool, dry and clean place away from direct sunlight, high
temperatures, high humidity, and excessive vibration.
• Do not attempt to repair this unit by yourself. Electric shock or damage to
the unit can occur if the unit is repaired, disassembled or reconstructed by
unqualified persons.
Contact your dealer or an authorized service center.
Panasonic shall not be held liable for any accident caused by improper
placement or installation of this unit.
ENGLISH
2
RQTV0223-E_01-28_newlayout.indd 2 1/15/07 9:44:55 AM

RQTV0223
3
ENGLISH

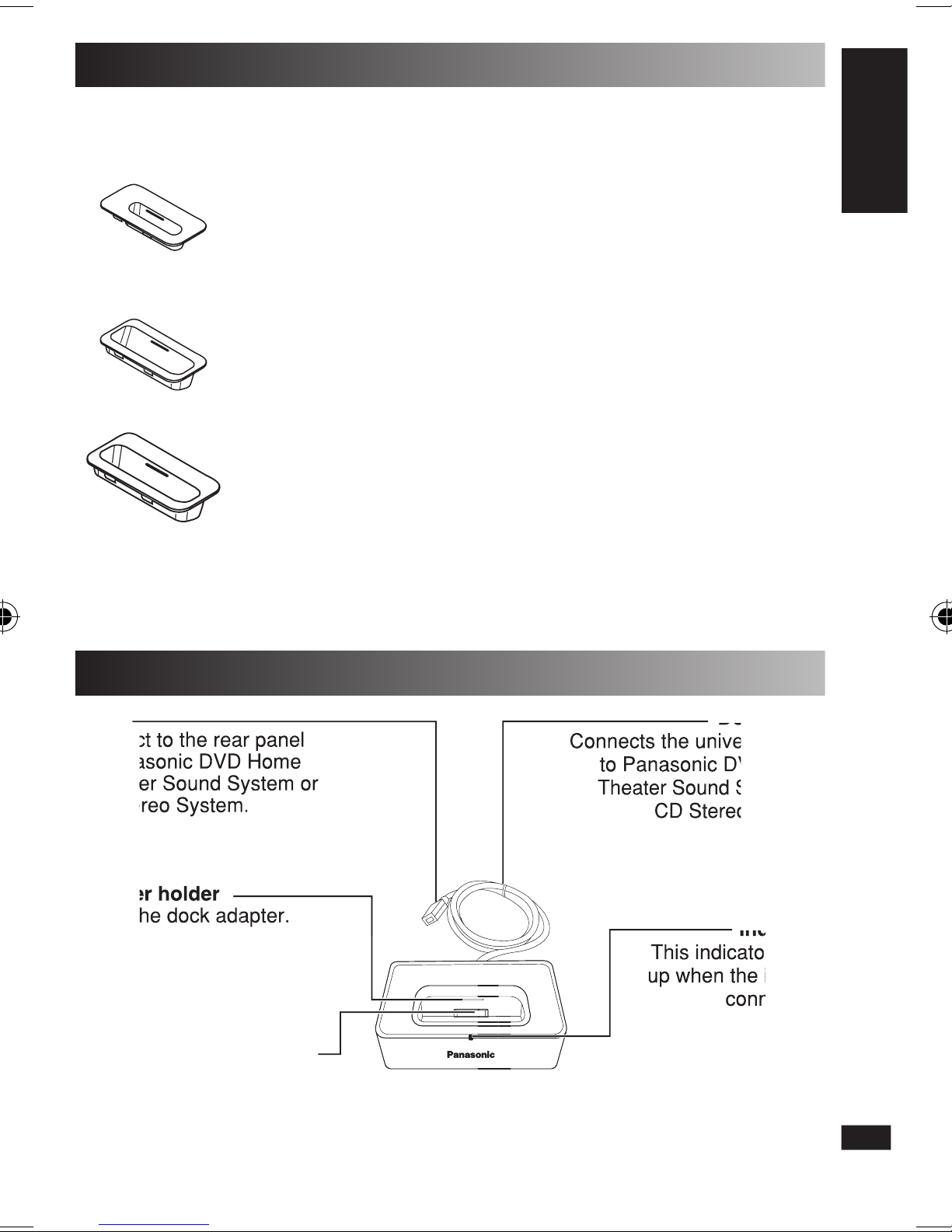

SUPPLIED ACCESSORIES
˛Please check and identify the supplied accessories.
®Dock adapters
!
Dock adapter for iPod nano 2nd generation (aluminium)
(2GB, 4GB, 8GB)
0
Dock adapter for iPod 5th generation (video) (60GB, 80GB)
9
Dock adapter for iPod 5th generation (video) (30GB)
The mark !, 0or 9is shown on the back of each dock adapter.
Note:
• For other types of iPod, you can use the dock adapters which are sold separately.
• For details, please refer to Apple website.
OVERVIEW OF CONTROLS AND BASIC FUNCTIONS
Adapter holder
Holds the dock adapter.
Dock cable
Connects the universal dock
to Panasonic DVD Home
Theater Sound System or
CD Stereo System.
iPod connector terminal
Connects your iPod.
Indicator
This indicator lights
up when the iPod is
connected.
Dock cable
Connects the universal dock
to Panasonic DVD
Theater Sound System or
CD Stereo System.
Plug
Connect to the rear panel
of Panasonic DVD Home
Theather Sound System or
CD Stereo System.
Adapter holder
Holds the dock adapter.
Connect to the rear panel
of Panasonic DVD Home
Theather Sound System or
CD Stereo System.
Holds the dock adapter.
Holds the dock adapter.
Indicator
Indicator
This indicator lights
up when the iPod is
connected.
Indicator
This indicator lights
up when the iPod is
connected.
3
RQTV0223-E_01-28_newlayout.indd 3 1/15/07 9:44:58 AM

RQTV0223
4
SETTING UP THE UNIVERSAL DOCK FOR iPod
Insert the dock adapter into the slot of the universal dock according
to the type of iPod you wish to connect (➜page 2).
Insert the dock adapter until it snaps into slot.
Slot
Holds the dock adapter.
Slit
When you wish to remove the dock
adapter from the universal dock, insert
one of your fingernails into the slit and
pull it out.
CONNECTING THE UNIVERSAL DOCK FOR iPod
Preparation
Ensure that the power of the Panasonic DVD Home Theater Sound
System or CD Stereo System is switched off before you connect the
universal dock.
Connect the plug of the universal dock to the OPTION port terminal
of Panasonic DVD Home Theater Sound System or CD Stereo
System.
Example of the rear panel of Panasonic DVD Home Theater Sound System
To the universal dock
ENGLISH
4
RQTV0223-E_01-28_newlayout.indd 4 1/15/07 9:44:58 AM

RQTV0223
5
CONNECTING YOUR iPod
Insert your iPod into the connector’s terminal of this universal
dock.
Note:
• Make sure that the volume level of Panasonic DVD Home Theater Sound
System or CD Stereo System is set to minimum.
• Do not twist or sway back and forth your iPod when inserting or taking it off from
this universal dock, and be careful not to knock over this unit when your iPod is
inserted.
• Use this universal dock with the dock adapter, which is appropriate for your
iPod. If you use this unit without using an appropriate dock adapter, loose
connection may result.
• Do not take off your iPod from this universal dock when you play back your iPod
with the Panasonic DVD Home Theater Sound System or CD Stereo System.
• It is recommended that you update your iPod software before using it with this
universal dock. The updater for the iPod software is available at the Apple
website.
iPod
(not included)
The indicator lights up when
the iPod is inserted, and
charging begins.
PLAYING YOUR iPod
You can playback music in your iPod by operating iPod directly and/or
by using the remote control of the connected Panasonic DVD Home
Theater Sound System or CD Stereo System.
Available function depends on the connected Panasonic DVD Home
Theater Sound System or CD Stereo System.
Refer to the operating instructions of Panasonic DVD Home Theater
Sound System or CD Stereo System.
The battery for iPod will charge during playback or while the
connected Panasonic DVD Home Theater Sound System or CD
Stereo System is in standby mode.
ENGLISH
5
RQTV0223-E_01-28_newlayout.indd 5 1/15/07 9:44:59 AM

RQTV0223
6
DISCONNECT THE UNIVERSAL DOCK FOR iPod
Preparation
Switch off the power of the Panasonic DVD Home Theater Sound
System or CD Stereo System.
1Switch off the iPod.
2Pull out the plug of the universal dock from the OPTION port
terminal of the Panasonic DVD Home Theater Sound System or
CD Stereo System.

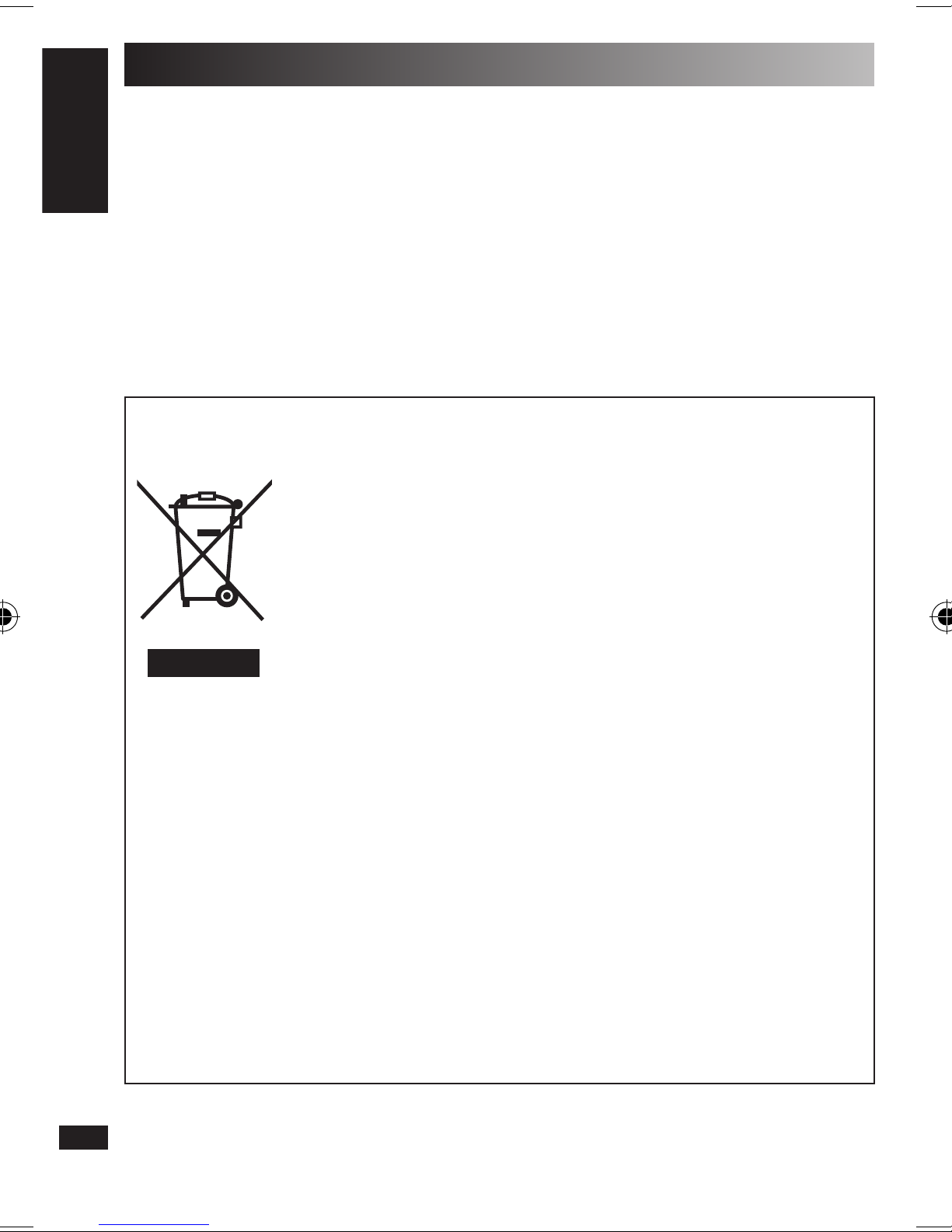

-If you see this symbol-
Information on Disposal for Users of Waste Electrical &
Electronic Equipment (private households)
This symbol on the products and/or accompanying
documents means that used electrical and electronic
products should not be mixed with general household
waste.
For proper treatment, recovery and recycling, please
take these products to designated collection points,
where they will be accepted on a free of charge basis.
Alternatively, in some countries you may be able to
return your products to your local retailer upon the
purchase of an equivalent new product.
Disposing of this product correctly will help to save valuable resources
and prevent any potential negative effects on human health and the
environment which could otherwise arise from inappropriate waste
handling. Please contact your local authority for further details of your
nearest designated collection point.
Penalties may be applicable for incorrect disposal of this waste, in
accordance with national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please
contact your dealer or supplier for further information.
Information on Disposal in other Countries outside the European
Union
This symbol is only valid in the European Union.
If you wish to discard this product, please contact your local authorities
or dealer and ask for the correct method of disposal.
ENGLISH
6
RQTV0223-E_01-28_newlayout.indd 6 1/15/07 9:44:59 AM

RQTV0223
7
TROUBLESHOOTING GUIDE
Before requesting service, make the following checks. If you are in doubt
about some of the checkpoints, or if the solutions indicated in the chart
do not solve the problem, refer to the operating instructions of the iPod
or the Panasonic DVD Home Theater Sound System or CD Stereo System.
There is no sound from
Panasonic DVD Home
Theater Sound System or
CD Stereo System during
iPod playback.
Connect your iPod firmly to the universal dock.
Disconnect and connect the iPod to the universal dock.
Connect the universal dock firmly to Panasonic DVD
Home Theater Sound System or CD Stereo System.
Refer to the operating instructions of Panasonic DVD
Home Theater Sound System or CD Stereo System.
The iPod does not respond
to the remote control of
Panasonic DVD Home
Theater Sound System or
CD Stereo System.
The indicator does not light
up.
Once charging has completed while in standby mode
of Panasonic DVD Home Theater Sound System or CD
Stereo System, the indicator turns off.
Connect your iPod firmly to the universal dock.
Connect the universal dock firmly to Panasonic DVD
Home Theater Sound System or CD Stereo System.
Refer to the operating instructions of Panasonic DVD
Home Theater Sound System or CD Stereo System.
iPod does not charge. Connect your iPod firmly to the universal dock.
Disconnect and connect the iPod to the universal dock.
Connect the universal dock firmly to Panasonic DVD
Home Theater Sound System or CD Stereo System.
Refer to the operating instructions of Panasonic DVD
Home Theater Sound System or CD Stereo System.
Refer to the operating manual of your iPod.
SPECIFICATIONS
DC In 5 V, 500 mA (MAX)
DC Out 5 V, 500 mA (MAX)
Dimensions (W x H x D)
Universal dock only MAX Shape (with cable) 110 x 28.8 x (85) mm
MAX Cabinet 110 x 27 x 67 mm
Cable length approx. 1 m
Mass
Universal dock only (without adapter) approx. 0.2 k(without adapter) approx. 0.2 kapprox. 0.2 kkg
Specifications are subject to change without notice.
Mass and dimensions are approximate.
ENGLISH
7
RQTV0223-E_01-28_newlayout.indd 7 1/15/07 9:45:00 AM

RQTV0223
8
PRESENTACIÓN
Le introduce a un mundo de puro placer visual y disfrute auditivo
almacenado en su iPod conectándose al soporte universal de Panasonic
para iPod, que se conecta al sistema de sonido teatro en casa
Panasonic DVD o su sistema estéreo de CD.
Esta unidad es compatible con los siguientes tipos de iPod:
Nombre Memoria
iPod nano 2ageneración (aluminio) 2GB, 4GB, 8GB
iPod 5ageneración (vídeo) 60GB, 80GB
iPod 5ageneración (vídeo) 30GB
iPod nano 1ageneración 1GB, 2GB, 4GB
iPod 4ageneración (pantalla de color) 40GB, 60GB
iPod 4ageneración (pantalla de color) 20GB, 30GB
iPod 4ageneración 40GB
iPod 4ageneración 20GB
iPod mini 4GB, 6GB
Nota:
La compatibilidad depende de la versión del software de su iPod.
iPod es una marca de Apple computer, Inc., registrada en EUA y otros
países.
Estimado cliente
Muchísimas gracias por haber adquirido este aparato.
Lea con atención estas instrucciones para obtener las máximas
prestaciones y seguridad.
PRECAUCIONES
• Instale esta unidad en un sitio frío, seco y limpio, alejado de la luz solar
directa, las altas temperaturas, la alta humedad, y la excesiva vibración.
• No intente reparar esta unidad usted mismo. Si cualquier persona no
calificada intenta reparar, desmontar o montar la unidad, podrían producirse
daños o electrocuciones.
Contacte su vendedor o un centro de servicio autorizado.
Panasonic no se responsabiliza por cualquier accidente causado por una
instalación o colocación incorrecta de esta unidad.
ESPAÑOL
2
RQTV0223-E_01-28_newlayout.indd 8 1/15/07 9:45:00 AM

RQTV0223
9
ESPAÑOL

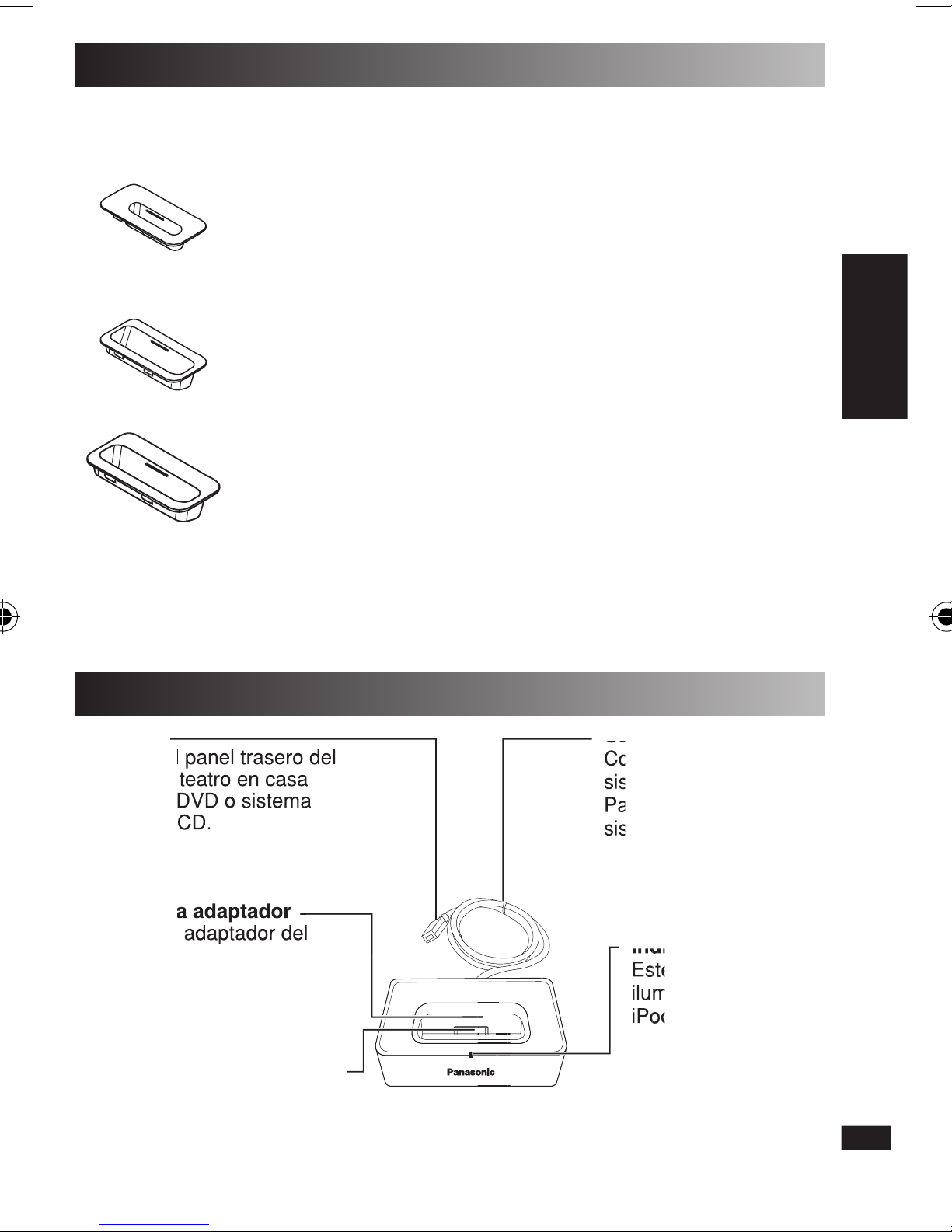

ACCESORIOS SUMINISTRADOS
˛Por favor, verifique e identifique los accesorios suministrados.
®Adaptadores de puerto
!
Adaptador de soporte para iPod nano de 2ageneración (aluminio)
(2GB, 4GB, 8GB)
0
Adaptador de soporte para iPod de 5
a
generación (vídeo)
(60GB, 80GB)
9
Adaptador de soporte para iPod de 5ageneración (vídeo) (30GB)
La marca !, 0o 9se encuentra en la parte de detrás de cada adaptador.
Nota:
• Para otros tipos de iPod puede utilizar adaptadores de Soporte que se venden por
separado.
• Para ver los detalles, consulte la página web de Apple.
VISTA RÁPIDA DE CONTROLES Y FUNCIONES BÁSICAS
Apoyo para adaptador
Contiene el adaptador del
puerto.
Cable para el soporte
Conecte el soporte al
sistema teatro en casa
Panasonic DVD o a su
sistema estéreo de CD.
Terminal del conector iPod
Conecta su iPod.
Indicador
Este indicador se
ilumina cuando el
iPod está conectado.
Cable para el soporte
Conecte el soporte al
sistema teatro en casa
Panasonic DVD o a su
sistema estéreo de CD.
Enchufe
Conectar al panel trasero del
sistema de teatro en casa
Panasonic DVD o sistema
estéreo de CD.
Apoyo para adaptador
Contiene el adaptador del
Conectar al panel trasero del
sistema de teatro en casa
Panasonic DVD o sistema
estéreo de CD.
Contiene el adaptador del
Indicador
Este indicador se
ilumina cuando el
iPod está conectado.
Indicador
Este indicador se
ilumina cuando el
iPod está conectado.
3
RQTV0223-E_01-28_newlayout.indd 9 1/15/07 9:45:02 AM

RQTV0223
10
CONFIGURAR EL SOPORTE UNIVERSAL DE SU iPod
Introduzca el adaptador de puerto en la ranura del puerto universal
según el tipo de iPod que desee conectar (➜página 2).
Introduzca el adaptador de soporte hasta que oiga un pequeño
sonido.
Ranura
Contiene el adaptador del puerto.
Raja
Cuando desee retirar el adaptador de
puerto de la unidad principal, introduzca
una uña en la raja y sáquelo.
CONECTAR EL SOPORTE UNIVERSAL PARA iPod
Preparación
Asegúrese de que su sistema de sonido teatro en casa Panasonic DVD
o su sistema estéreo CD está desconectado antes de conectar el soporte
universal.
Conecte el enchufe del soporte universal al puerto terminal
OPTION del sistema de sonido teatro en casa Panasonic DVD o su
sistema estéreo de CD.
Ejemplo del panel trasero del sistema de sonido teatro en casa DVD
Panasonic
Al Puerto universal
ESPAÑOL
4
RQTV0223-E_01-28_newlayout.indd 10 1/15/07 9:45:03 AM
