Panasonic EcoVent FV-07VBA1 User manual

EcoVent Ventilation Fans
FV-07VBA1 – Fan Housing
FV-07VBB1 – Motor/Grille Assembly
FV-07VBA1 + FV-07VBB1
Universal-Can (U-Can) Contractor Pack
nIdeal for new residential construction
n 70 CFM, cost effective ENERGY STAR solution – 1.1 sones at 0.1" w.g.
(56 CFM/1.4 sones @ 0.25" w.g.)
n Unique Veri-Boost™integral switch ensures the fan meets designed
airow requirements
n Provides Ventilation Verication Assurance: ≥50 CFM Installed
Performance
n Small grille design complements the aesthetics of your bathroom,
powder room or laundry room
n Housing and motor/grille packaged separately; reduces risk of parts
being lost or damaged onsite
FV-07VBA1 + FV-07VBB1
4" Duct
Veri-Boost
™
Activated
Standard
Setting
FV-07VBA1 + FV-07VBB1
7-7/8"
9-1/2"
4-3/4"
4"
7-7/8"
9-1/2"

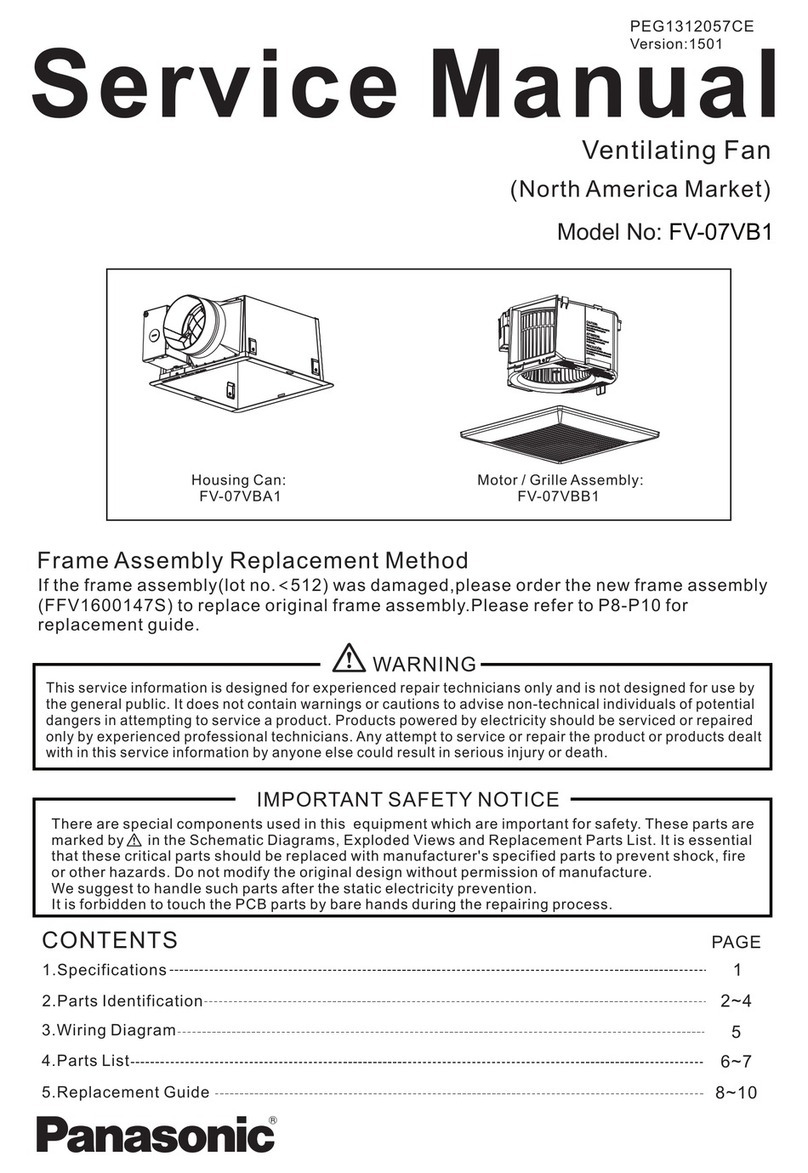

FV-07VB1
FV-07VBA1 + FV-07VBB1
ADJUSTABLE AIRFLOW FOR
MAXIMUM PERFORMANCE
EcoVent
SPECIFICATIONS FV-07VBA1 + FV-07VBB1
Characteristics
(HVI tested data
for 0.1" S.P.)
Fan Setting Standard Veri-Boost™Activated
Static Pressure in inches w.g. 0.1 0.25 0.1 0.25
Air Volume (CFM) 70 56 90 75
Noise (sones) 1.1 1.4 1.5 2.0
Power Consumption (watts) 20.0 20.0 24.0 24.0
Energy Efciency (CFM/Watt) 3.5 2.8 3.8 3.1
Speed (RPM) 907 1200 1019 1266
Current (amps) 0.15 0.14 0.19 0.18
MAX. Current(amps) 0.25
Power Rating (V/Hz) 120/60
Specications
Motor Type AC
Type of Motor Bearing Ball
Thermal Fuse Protection Yes
Blower Wheel Type Sirocco
ENERGY STAR Qualied Ye s
Installation
Duct Diameter (Inches) 4
Mounting Opening (Inches sq.) 7-7/8
Grille Size (Inches sq.) 9-1/2
Housing Depth (Inches sq.) 4-3/4
Shipping Gross Weight (lbs) 5.7
Approved Code/
Standard/Regulation
UL tub/Shower Enclosure Yes
Washington VIAQ Code Ye s
California Title 24 Compliant Yes
Mfg in ISO 9001 Certied Facility Yes
NOTE: 0.25" w.g. = Installed Performance
VF14003SS - February 2014Design and specications subject to change without notice.
Panasonic Eco Solutions of North America
Eco Products Division
Two Riverfront Plaza
Newark, NJ 07102
us.panasonic.com/ventfans
For Order Information
PHONE: [phone]
FAX: [phone]
[email protected]
ADDITIONAL BENEFITS • 4" duct adaptor
• Built-in metal ange provides blocking for penetrations through drywall as
an air barrier, and assists with the decrease in leakage in the building envelope
during blower door testing
• UL listed for tub/shower enclosure when used with a GFCI protected circuit
• Can be used to comply with ASHRAE 62.2, LEED and ENERGY STAR for
Homes 3.0
• 3 year warranty

4 Measured ventilation rate is within 100-120% of HVAC contractor design value
4Rater shall measure ventilation and exhaust air ow using a ow hood, ow grid,
anemometer or substantially equivalent method in accordance with AABC, NEBB
or ASHRAE procedures
4Intermittent bath fan measured air ow requirement ≥50 CFM
4Continuous supply and exhaust fans rated at 1.0 sones or less
4Exhaust-only whole-house mechanical ventilation system must be veried that
the fan turns on automatically, without homeowner intervention
4All ventilation fans must be veried as ENERGY STAR certied
ENERGY STAR 3.0
HVAC System
Quality Installation
Rater Checklist:
Static Pressure
Graph
Veri-Boost™Integral Switch
Raters are now verifying the airow of installed ventilation fans prior to certifying that they meet
ASHRAE 62.2, ENERGY STAR 3.0 for Homes, LEED for Homes, CA Title 24, CalGreen and most
Green Building programs. With so many fans on the market failing to deliver designed airow,
you need to spare yourself the hassle of having to rip out an under-performing fan and replace it.
EcoVent’s built-in Veri-Boost™switch provides a 20 CFM boost, which helps ensure the fan meets
designed airow requirements and provides Ventilation Verication Assurance: ≥50 CFM Installed
Performance. Need to bump up the CFM output to meet code? Just ip the Veri-Boost™Switch
and you’re good to go.
One of the most robust solutions for delivering Ventilation Verication Assurance.
EcoVent
™
with Veri-Boost
™
is the perfect solution for home builders looking for a cost effective, ENERGY STAR
®
rated fan that not only
delivers strong performance, but peace of mind during verication testing. So choose the powerful, eco-friendly solution that delivers the
installed performance you need, from a company who sets the standard for quality and value.
Small Grille Design
The EcoVent grille is a smaller footprint (roughly 46% smaller) than comparable ESTAR fans. This design complements the aesthetics of your
room by minimizing visual clutter on the ceiling. This makes EcoVent™an ideal solution for the bathroom, powder room or laundry room area.
Built-in Veri-Boost™Switch
Balometer used to verify installed performance
EcoVent Ventilation Fan
PANASONIC HIGH PERFORMANCE SOLUTIONS PROVIDE
VENTILATION VERIFICATION ASSURANCE
It is all about Measured Performance
Compliance with ASHRAE 62.2, the national ventilation standard, is now required for
ENERGY STAR
®
for Homes 3.0
Universal Can (U-Can) Contractor Packs
EcoVent
™
is offered in contractor packs, whereby the housing and motor/grille
assembly are packaged separately. This easy to manage package design allows
contractors to store the components separately without the fear of parts getting
lost or damaged on site.
IT’S ALL ABOUT MEASURED PERFORMANCE.
EcoVent U-Can Contractor Packs
Model # Description Contents Master
Pack*
FV-07VBA1 Universal Housing Can Housing Can, Duct Adaptor & Junction Box 4
FV-07VBB1 Motor/Grille Assembly Motor & Grille 4
4" Duct, 70 CFM with Veri-Boost™
(Fits in 2" x 6" construction)
*Must order in quantities of 4, shipment will contain 1 box with 4 pieces of each item.
Static Pressure (Resistance)
Air Flow (CFM)
Closed or Blocked Duct Work – A closed or blocked exhaust port results
in highest static pressure and zero air ow
Extended Duct Work – Long duct length and elbows
increase static pressure and reduce air ow
Duct Work – Duct increases static pressure and
reduces air ow
Short Duct Work – Short duct allows low
static pressure and higher air ow
No Duct Work – No duct
equals zero static pressure
and maximum air ow
