Panasonic F-480Z2 User manual

Service Manual
PEG0603007CE
Version:0603
SPECIFICATIONS
Ceiling Fan
F-480Z2
F-560Z2
F-600Z2
CONTENTS
1. Parts Identification
2. Wiring Diagram
3. Parts List
PAGE
3
4~7
1~2
Voltage Frequency Input Voltage Frequency Input
(V~) (Hz) (W) (V~) (Hz) (W)
220 50/60 44/55 220 50/60 64/80
110~120 50/60 37/52 110~120 50/60 53/78
220~230 50 46~50 220~230 50 72~78
240 50 51 240 50 79
127 50/60 47/54 127 50/60 64/79
220 50/60 62/79 220~230 50 70~75
110~120 50/60 52/78 240 50 76
230 60 83 127 50/60 62/79
TYPE
F-480Z2 F-600Z2
F-560Z2
*Insulation class E
F-560Z2
TYPE
WARNING
This service information is designed for experienced repair technicians only and is not designed for use by
the general public. It does not contain warnings or cautions to advise non-technical individuals of potential
dangers in attempting to service a product. Products powered by electricity should be serviced or repaired
only by experienced professional technicians. Any attempt to service or repair the product or products dealt
with in this service information by anyone else could result in serious injury or death.
IMPORTANT SAFETY NOTICE
There are special components used in this equipment which are important for safety. These parts are
marked by in the Schematic Diagrams, Exploded Views and Replacement Parts List. It is essential
that these critical parts should by replaced with manufacturer s specified parts to prevent shock, fire
or other hazards. Do not modify the original design without permission of manufacture.

1. Parts Identification
1
F-480/560/600Z2
1
2
3
4
5
678
9
13
(12)
12
14
16
(15)
(15)
17
(16) (16)
(16)
(17)
(17)
18(6pcs)
For Fixing Blade Set
19
22
20
21
23 24
26
27
28
29
30
34
32
25(2pcs)
31
15
33
1400 mm
56 in.
MFD FOR MATSUSHITA ELECTRIC
INDUSTRIAL CO., LTD. OSAKA JAPAN
220 V~ 50/60 Hz 62/79 W
F-560Z2
MFD FOR MATSUSHITA ELECTRIC INDUSTRIAL CO., LTD. OSAKA JAPAN
TYPE
220 V~ 50/60 Hz 62/79 W
1400 mm
F-560Z2
56 in.
()
T
SPEED REGULATOR
CEILING FAN ELECTRIC FAN
MFD BY PANASONIC ECOLOGY SYSTEMS CO., LTD. GUANGDONG CHINA MADE IN CHINAGUANGDONG
MFD FOR MATSUSHITA ELECTRIC INDUSTRIAL CO., LTD.
TYPE
220 V~ 50/60 Hz 62/79 W
1400 mm
F-560Z2
56 in.
()
T
SPEED REGULATOR
CEILING FAN ELECTRIC FAN
11
1400 mm
56 in.
MFD BY PANASONIC ECOLOGY SYSTEMS
CO., LTD. GUANGDONG CHINA MADE IN CHINA
GUANGDONG
MFD FOR MATSUSHITA ELECTRIC
INDUSTRIAL CO., LTD.
220 V~ 50/60 Hz 62/79 W
F-560Z2
37
1
2
3
Label Affixed To Item 19
35
(35)
36
The Fan suspension system
shall be examined regularly
but at least once in every
two years.
NOTICE
Regulator Name Plate
For Regulator Assy. A Type
Regulator Name Plate
For Regulator Assy. B Type
For Differentiating Item 11
Remark: The labels display above are only for style reference, when you order the service parts,
please according to the label style and the parts list remark item.the model,
Name Plate A
Name Plate B
10
38
Installation State
(For Reference)
(26)
(31)
(21)

1. Parts Identification(Packing Details)
2
MFD FOR MATSUSHITA ELECTRIC INDUSTRIAL CO.,LTD.OSAKA JAPAN
F-560Z2
Electric Fan
(Ceiling Fan)
MFD FOR MATSUSHITA ELECTRIC INDUSTRIAL CO.,LTD.
MFD BY PANASONIC ECOLOGY SYSTEMS GUANGDONG CO.,LTD.GUANGDONG CHINA
MADEINCHINA
F-560Z2
Electric Fan
(Ceiling Fan)
For Differentiating Item 48/54
Packing Identification(For Case A Type)
Packing Identification(For Case B Type)
F-480/560/600Z2
Remark: The packing identification display above are only for style reference, when you order
the service parts, please according to the identification style and the parts
list remark item.
the model,
(3 Sets Packing)
(46)
39
(1 Set Packing)
49
50
51
52
(39)
54
53
(46)
(45)
55
56
42
41
43
40
44
45
(45)
46
(46)
47
48
Main Packing Materials
Poly Cover

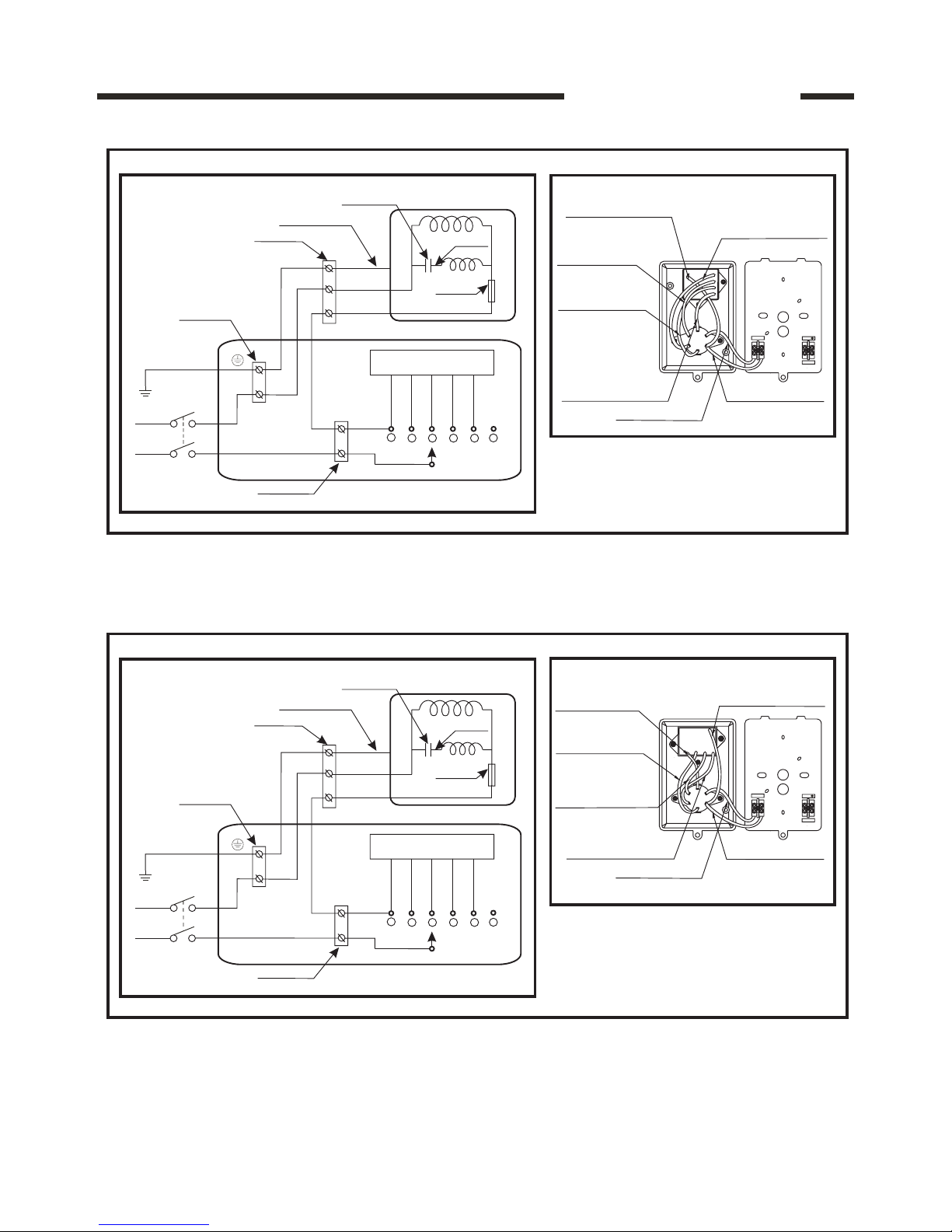

2. Wiring Diagram
3
Black
Red
White
Blue
Yellow
Capacitor
0
3
Speed Regulator
Source
Terminal
N
L
1
2
3
N
L
Brown
Red
Terminal 1
Terminal 2
Yellow/Green
~
2
1
3
Details of Regulator Wiring Diagram
For AA(220V,50/60Hz),TB(220~230V,50Hz),VB(240V,50Hz),EC(230V,60Hz)
Black Wire Connect
To Terminal 5
Yellow Wire Connect
To Terminal 1
Red Wire Connect
To Terminal 4
Lead Wire(Brown)
Lead Wire(Red)
White Wire Connect
To Terminal 3
Blue Wire Connect
To Terminal 2
1
L
5
4
3
2
L1N
23
Capacitor
White
Black
Motor
Fuse
145 C
Red
o
F-480/560/600Z2
Details of Regulator Wiring Diagram
For LA(110~120V,50/60HZ),XA(127V,50/60Hz)
Black Wire Connect
To Terminal 5
Yellow Wire Connect
To Terminal 1
Red Wire Connect
To Terminal 4
Lead Wire(Brown)
Lead Wire(Red)
White Wire Connect
To Terminal 3
Blue Wire Connect
To Terminal 2
1
L
5
4
3
2
L1N
23
21 4
5
Black
Red
White
Blue
Yellow
Capacitor
0
3
Speed Regulator
Source
Terminal
N
L
1
2
3
N
L
Brown
Red
Terminal 1
Terminal 2
Yellow/Green
~
2
1
3
Capacitor
White
Black
Motor
Fuse
145 C
Red
o
21 4
5

3. Parts List
4
F-480/560/600Z2
No. Part No. Part Name Q'ty Remark
1 FFE16109803H Pulley Assy. 1 In Accessory Set
2 FFE17500601S Upper Canopy Assy. 1 With Panasonic Mark
3 XTN4+8CFJ Upper Canopy Screw 1 M4*8L,In Accessory Set
4 FFE17090601S Pipe Set 1 Pipe Length 207mm,With 1pcs Safety Wire Screw
(4) FFE17120601S Pipe Set 1 Pipe Length 267mm,With 1pcs Safety Wire Screw
(4) FFE17160601S Pipe Set 1 Pipe Length 377mm,With 1pcs Safety Wire Screw
(4) FFE17180601S Pipe Set 1 Pipe Length 417mm,With 1pcs Safety Wire Screw
(4) FFE17220601S Pipe Set 1 Pipe Length 507mm,With 1pcs Safety Wire Screw
5 XPD25Y14FJ Split Pin 1 2.5*14L,In Accessory Set
6 XNG8FFJ Hexagon Nut 1 M8,In Accessory Set
7 XWA8BFJ Spring Washer 1 In Accessory Set
8 XWE8HFJ Plain Washer 1 In Accessory Set
9 FFE16068681H Bolt 1 In Accessory Set
10 FFE03860501S Lead Wire Spring 1 In Accessory Set
11 FFE10000633S Regulator Assy. A 1 For AA,220V,50/60Hz,For F-480Z2
11 FFE10000634S Regulator Assy. A 1 For TB,220~230V,50Hz,For F-480Z2
11 FFE10000635S Regulator Assy. A 1 For VB,240V,50Hz,For F-480Z2
11 FFE10000636S Regulator Assy. A 1 For XA,127V,50/60Hz,For F-480Z2
11 FFE10000637S Regulator Assy. A 1 For LA,110~120V,50/60Hz,For F-480Z2
11 FFE10000638S Regulator Assy. A 1 For AA,220V,50/60Hz,For F-560Z2
11 FFE10000639S Regulator Assy .A 1 For TB,220~230V,50Hz,For F-560Z2
11 FFE10000640S Regulator Assy. A 1 For VB,240V,50Hz,For F-560Z2
11 FFE10000641S Regulator Assy. A 1 For XA,127V,50/60Hz,For F-560Z2
11 FFE10000642S Regulator Assy. A 1 For LA,110~120V,50/60Hz,For F-560Z2
11 FFE10000643S Regulator Assy. A 1 For EC,230V,60Hz,For F-560Z2
11 FFE10000644S Regulator Assy. A 1 For AA,220V,50/60Hz,For F-600Z2
11 FFE10000645S Regulator Assy. A 1 For TB,220~230V,50Hz,For F-600Z2
11 FFE10000646S Regulator Assy. A 1 For VB,240V,50Hz,For F-600Z2
11 FFE10000647S Regulator Assy. A 1 For XA,127V,50/60Hz,For F-600Z2
11 FFE10000648S Regulator Assy. A 1 For LA,110~120V,50/60Hz,For F-600Z2
(11) FFE10000649S Regulator Assy. B 1 For AA,220V,50/60Hz,For F-480Z2
(11) FFE10000650S Regulator Assy. B 1 For TB,220~230V,50Hz,For F-480Z2
(11) FFE10000651S Regulator Assy. B 1 For VB,240V,50Hz,For F-480Z2
(11) FFE10000652S Regulator Assy. B 1 For XA,127V,50/60Hz,For F-480Z2
(11) FFE10000653S Regulator Assy. B 1 For LA,110~120V,50/60Hz,For F-480Z2
(11) FFE10000654S Regulator Assy. B 1 For AA,220V,50/60Hz,For F-560Z2
(11) FFE10000655S Regulator Assy. B 1 For TB,220~230V,50Hz,For F-560Z2
(11) FFE10000656S Regulator Assy. B 1 For VB,240V,50Hz,For F-560Z2
(11) FFE10000657S Regulator Assy. B 1 For XA,127V,50/60Hz,For F-560Z2
(11) FFE10000658S Regulator Assy. B 1 For LA,110~120V,50/60Hz,For F-560Z2
(11) FFE10000659S Regulator Assy. B 1 For EC,230V,60Hz,For F-560Z2
(11) FFE10000660S Regulator Assy. B 1 For AA,220V,50/60Hz,For F-600Z2
(11) FFE10000661S Regulator Assy. B 1 For TB,220~230V,50Hz,For F-600Z2
(11) FFE10000662S Regulator Assy. B 1 For VB,240V,50Hz,For F-600Z2
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!

3. Parts List
5
F-480/560/600Z2
No. Part No. Part Name Q'ty Remark
(11) FFE10000663S Regulator Assy. B 1 For XA,127V,50/60Hz,For F-600Z2
(11) FFE10000664S Regulator Assy. B 1 For LA,110~120V,50/60Hz,For F-600Z2
12 FFE38300601S Lower Canopy Screw 2 M3*8L,In Accessory Set
13 FFE15560601S Lower Canopy 1
14 FFE07058271H Cap 1 In Accessory Set
15 FFE08100603S Blade Set 3 For F-480Z2
(15) FFE08100604S Blade Set 3 For F-560Z2
(15) FFE08100605S Blade Set 3 For F-600Z2
16 XTN4+16CFJ Pan Tap Screw 4 M4*16L, For Fixing Front Motor Cover
17 XSB4+10FJ Bind Screw 3 M4*10L, For Fixing Rear Motor Cover
18 XYN5+12FJ Pan Screw 6 M5*12L, (With S. Washer) For Fixing Blade Set
19 FFE02210601S Rear Motor Cover 1
20 FFE15950601S Safety Wire 1 For 207mm Pipe Length
(20) FFE15960601S Safety Wire 1 For 267mm Pipe Length
(20) FFE15970601S Safety Wire 1 For 377mm Pipe Length
(20) FFE15980601S Safety Wire 1 For 417mm Pipe Length
(20) FFE15990601S Safety Wire 1 For 507mm Pipe Length
21 FFE15880301S Safety Wire Screw 1 For Fixing Safety Wire
22 FFE02000605S Motor Assy. 1 For AA,220V,50/60Hz,For F-480Z2
(22) FFE02000606S Motor Assy. 1 For TB,220~230V,50Hz,For F-480Z2
(22) FFE02000607S Motor Assy. 1 For VB,240V,50Hz,For F-480Z2
(22) FFE02000608S Motor Assy. 1 For XA,127V,50/60Hz,For F-480Z2
(22) FFE02000609S Motor Assy. 1 For LA,110~120V,50/60Hz,For F-480Z2
(22) FFE02100603S Motor Assy. 1 For AA,220V,50/60Hz,For F-560Z2
(22) FFE02100602S Motor Assy. 1 For TB,220~230V,50Hz,For F-560Z2
(22) FFE02100604S Motor Assy. 1 For VB,240V,50Hz,For F-560Z2
(22) FFE02100605S Motor Assy. 1 For XA,127V,50/60Hz,For F-560Z2
(22) FFE02100606S Motor Assy. 1 For LA,110~120V,50/60Hz,For F-560Z2
(22) FFE02100607S Motor Assy. 1 For EC,230V,60Hz,For F-560Z2
(22) FFE02000601S Motor Assy. 1 For AA,220V,50/60Hz,For F-600Z2
(22) FFE02000602S Motor Assy. 1 For TB,220~230V,50Hz,For F-600Z2
(22) FFE02000603S Motor Assy. 1 For VB,240V,50Hz,For F-600Z2
(22) FFE02000604S Motor Assy. 1 For XA,127V,50/60Hz,For F-600Z2
(22) FFE02000610S Motor Assy. 1 For LA,110~120V,50/60Hz,For F-600Z2
23 FFE02059801H Earth Lead Assy. 1 For Earth
24 XYN4+F8FJ Earth Lead Screw 1 For Fixing Earth Lead Assy.
25 FFE01040601S Shrinkage Tube 2 For Capacitor Wiring Insulation
26 FFE03920601S Capacitor 1 200V Class,For AA(220V,50/60Hz )
(26) FFE03920302S Capacitor 1 200V Class,For TB(220~230V,50Hz )
(26) FFE03920602S Capacitor 1 200V Class,For VB(240V,50Hz)
(26) FFE03910602S Capacitor 1 100V Class,For XA(127V,50/60Hz)
(26) FFE03910601S Capacitor 1 100V Class,For LA(110~120V,50/60Hz)
(26) FFE03920604S Capacitor 1 200V Class,For EC(230V,60Hz)
27 FFE15110601S Terminal Base 1
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!

3. Parts List
6
F-480/560/600Z2
No. Part No. Part Name Q'ty Remark
28 XWC4BFJ Toothed Lock Washer 1
29 XST4+10FJ Truss Screw 1 M4*10L,For Fixing Capacitor
30 FFE10120601S Insulation Sheet 1
31 FFE12100601S Terminal 1
32 FFE01200601S Insulock Tie 1 For Fixing Terminal
33 FFE02030601S Single Core Cord 1 Connect to Capacitor and Terminal
34 FFE08000603S Front Motor Cover Assy. 1 With Panasonic Mark
35 FFE00500617S Name Plate A 1 For AA,220V,50/60Hz,For F-480Z2
35 FFE00500618S Name Plate A 1 For TB,220~230V,50Hz,For F-480Z2
35 FFE00500619S Name Plate A 1 For VB,240V,50Hz,For F-480Z2
35 FFE00500620S Name Plate A 1 For XA,127V,50/60Hz,For F-480Z2
35 FFE00500621S Name Plate A 1 For LA,110~120V,50/60Hz,For F-480Z2
35 FFE00500622S Name Plate A 1 For AA,220V,50/60Hz,For F-560Z2
35 FFE00500623S Name Plate A 1 For TB,220~230V,50Hz,For F-560Z2
35 FFE00500624S Name Plate A 1 For VB,240V,50Hz,For F-560Z2
35 FFE00500625S Name Plate A 1 For XA,127V,50/60Hz,For F-560Z2
35 FFE00500626S Name Plate A 1 For LA,110~120V,50/60Hz,For F-560Z2
35 FFE00500627S Name Plate A 1 For EC,230V,60Hz,For F-560Z2
35 FFE00500628S Name Plate A 1 For AA,220V,50/60Hz,For F-600Z2
35 FFE00500629S Name Plate A 1 For TB,220~230V,50Hz,For F-600Z2
35 FFE00500630S Name Plate A 1 For VB,240V,50Hz,For F-600Z2
35 FFE00500631S Name Plate A 1 For XA,127V,50/60Hz,For F-600Z2
35 FFE00500632S Name Plate A 1 For LA,110~120V,50/60Hz,For F-600Z2
(35) FFE00510617S Name Plate B 1 For AA,220V,50/60Hz,For F-480Z2
(35) FFE00510618S Name Plate B 1 For TB,220~230V,50Hz,For F-480Z2
(35) FFE00510619S Name Plate B 1 For VB,240V,50Hz,For F-480Z2
(35) FFE00510620S Name Plate B 1 For XA,127V,50/60Hz,For F-480Z2
(35) FFE00510621S Name Plate B 1 For LA,110~120V,50/60Hz,For F-480Z2
(35) FFE00510622S Name Plate B 1 For AA,220V,50/60Hz,For F-560Z2
(35) FFE00510623S Name Plate B 1 For TB,220~230V,50Hz,For F-560Z2
(35) FFE00510624S Name Plate B 1 For VB,240V,50Hz,For F-560Z2
(35) FFE00510625S Name Plate B 1 For XA,127V,50/60Hz,For F-560Z2
(35) FFE00510626S Name Plate B 1 For LA,110~120V,50/60Hz,For F-560Z2
(35) FFE00510627S Name Plate B 1 For EC,230V,60Hz,For F-560Z2
(35) FFE00510628S Name Plate B 1 For AA,220V,50/60Hz,For F-600Z2
(35) FFE00510629S Name Plate B 1 For TB,220~230V,50Hz,For F-600Z2
(35) FFE00510630S Name Plate B 1 For VB,240V,50Hz,For F-600Z2
(35) FFE00510631S Name Plate B 1 For XA,127V,50/60Hz,For F-600Z2
(35) FFE00510632S Name Plate B 1 For LA,110~120V,50/60Hz,For F-600Z2
36 FFE00620602S Notice Label 1
37 FFE00590602S Terminal Label A 1
38 FFE00020601S Insulock Tie 1 Fasten the Cord & Safety Wire,In Accessory Set
39 FFE82050601S Frame Holder 43pcs For 3 Sets Packing,1pcs For 1 Set Packing
40 FFE89090601S Pipe Pad 1 For 207mm Pipe Length,For 3 Sets Packing
!
!

3. Parts List
F-480/560/600Z2
7
No. Part No. Part Name Q'ty Remark
(40) FFE89120601S Pipe Pad 1 For 267mm Pipe Length,For 3 Sets Packing
(40) FFE89160601S Pipe Pad 1 For 377mm Pipe Length,For 3 Sets Packing
(40) FFE89180601S Pipe Pad 1 For 417mm Pipe Length,For 3 Sets Packing
(40) FFE89220601S Pipe Pad 1 For 507mm Pipe Length,For 3 Sets Packing
41 FFE80310601S Pipe Stopper 1 For 3 Sets Packing,For F-480/560/600Z2
42 FFE80180602S Blade Pack 1 For 3 Sets Packing,For F-480/560Z2
(42) FFE80180605S Blade Pack 1 For 3 Sets Packing,For F-600Z2
43 FFE80260602S Spacer 1 For 3 Sets Packing,For F-480Z2
44 FFE80220602S Blade Pack Cover 1 For 3 Sets Packing
45 FFE80160602S Motor Pack (A) 3 2pcs For 3 Sets Packing,1pcs For 1 Set Packing
46 FFE80190601S Motor Pack (C) 4 3pcs For 3 Sets Packing,1pcs For 1 Set Packing
47 FFE80170602S Motor Pack (B) 1 1pcs For 3 Sets Packing
48 FFE80490609S Case A 1 For 3 Sets Packing,For F-480Z2
(48) FFE80490610S Case A 1 For 3 Sets Packing,For F-560Z2
(48) FFE80490611S Case A 1 For 3 Sets Packing,For F-600Z2
(48) FFE80490612S Case B 1 For 3 Sets Packing,For F-480Z2
(48) FFE80490613S Case B 1 For 3 Sets Packing,For F-560Z2
(48) FFE80490614S Case B 1 For 3 Sets Packing,For F-600Z2
49 FFE81660601S Pad 1 For 1 Set Packing,For F-480Z2
(49) FFE81660603S Pad 1 For 1 Set Packing,For F-560Z2
(49) FFE81660602S Pad 1 For 1 Set Packing,For F-600Z2
50 FFE81530603S Blade Spacer 1 For 1 Set Packing,For F-480Z2
(50) FFE81530605S Blade Spacer 1 For 1 Set Packing,For F-560Z2
(50) FFE81530604S Blade Spacer 1 For 1 Set Packing,For F-600Z2
51 FFE81540601S Blade Holder A 1 For 1 Set Packing
52 FFE81500601S Blade Pillow 1 For 1 Set Packing
53 FFE81550601S Blade Holder B 1 For 1 Set Packing
54 FFE81030610S Case A 1 For 1 Set Packing,For F-480Z2
(54) FFE81030611S Case A 1 For 1 Set Packing,For F-560Z2
(54) FFE81030612S Case A 1 For 1 Set Packing,For F-600Z2
(54) FFE81030613S Case B 1 For 1 Set Packing,For F-480Z2
(54) FFE81030614S Case B 1 For 1 Set Packing,For F-560Z2
(54) FFE81030615S Case B 1 For 1 Set Packing,For F-600Z2
55 FFE82110602S Accessory Set 1 Contain Main Installation Parts,1 Set For 1 Machine
56 FFE89910603S Operating Instruction 1 1 Set For 1 Machine
