Panasonic Panaboard UB-7325 User manual

Electronic Board
Installation Manual
(for qualified service personnel)
Model No. UB-7325
English . . . . . . . . . . . . . . . . . 1- 16
Français . . . . . . . . . . . . . . . . 17- 32
Deutsch . . . . . . . . . . . . . . . . 33- 48
Español . . . . . . . . . . . . . . . . 49- 64
Italiano . . . . . . . . . . . . . . . . . 65- 80
Nederlands. . . . . . . . . . . . . . .81- 96
Svenska . . . . . . . . . . . . . . . . .97-112
中 文 . . . . . . . . . . . . . . . . . .113-128
Русский . . . . . . . . . . . . . . . .129-144
Stand and Wall-mounting kit are optional.
[Stand (option)] [Wall-mounting (option)]
English
Français
Deutsch
Español
Italiano
Nederlands
Svenska
中 文
Русский
• Please ask your dealer regarding assembly of the electronic board and instruction for wall-mounting.
Before installing this set, please read this manual completely.
Cover_EN.fm 1 ページ ２００９年１月９日 金曜日 午後４時４０分

2
Before installing this set, please read this manual completely.
CLASS 1 LED PRODUCT
WARNING
Have the unit installed, removed and disposed of only by qualified
service personnel.
Safety check must be done by qualified service personnel after
installing this option.
Table of Contents
page
Assembling the Electronic Board . . . . . . . . . . . . . . . . . . . . . . . . 3
●Accessories for assembling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
●Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Electronic Board Operations Check. . . . . . . . . . . . . . . . . . . . . . 7
Repacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Assembling the Optional Stand (KX-B061) . . . . . . . . . . . . . . . . 9
●Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
●Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Optional Wall-mounting Kit (KX-B063). . . . . . . . . . . . . . . . . . . 13
●Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
●Wall-mounting procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
●Attaching the wall-mounting fixtures. . . . . . . . . . . . . . . . . . . . . . . . . 15
UB-7325_IM.book 2 ページ ２００８年１月９日 水曜日 午前１１時３分

3
English
Assembling the Electronic Board
■Accessories for assembling
The package includes the parts for setting up the electronic board shown below. Make sure that all of these parts
are included in the package before proceeding.
No. Part Name Illustration Q’ty Remarks
Power cord
1
Wall-mounting
template
1 For wall-mounting
UB-7325_IM.book 3 ページ ２００８年１月９日 水曜日 午前１１時３分

Assembling the Electronic Board
4
■Assembly
1Assemble the optional stand or wall-mounting kit.
■If you are using a stand, refer to page 9.
■If you are using a wall-mounting kit, refer to page 13.
2Remove the electronic board from the shipping box.
Remove the joints, then remove the electronic board from the shipping box.
• Do not touch the screen film surface, as this may damage it.
• The shipping box, cushioning material, and other packing material will be necessary if you ever need to
repackage the electronic board, so do not throw them away.
Eraser
Thermal transfer film
Manuals, CD-ROM
Power cord
Markers
Joints
Joints
Joints
Joints
Joints
Joints
Electronic board
Shipping box
Shipping box
Caution
UB-7325_IM.book 4 ページ ２００８年１月９日 水曜日 午前１１時３分

Assembling the Electronic Board
5
English

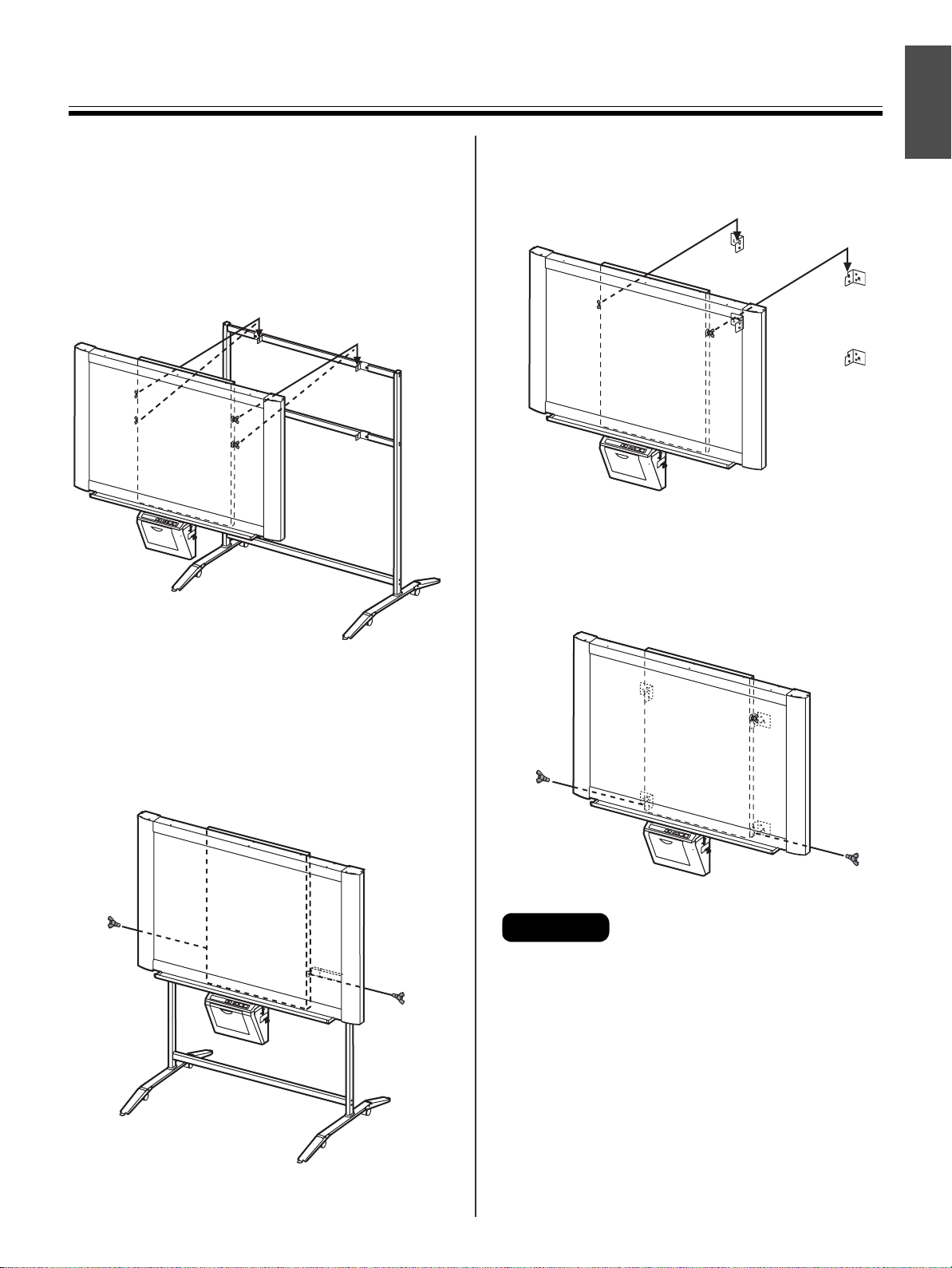

3Install the electronic board.
Install the electronic board using the stand (option)
or wall-mounting kit (option).
■Using the stand (option)
1) Hang the electronic board on the optional
stand.
• The electronic board can be mounted
200 mm (7 7/8”) higher than hang position A
by hanging it with the wing bolts B.
2) Secure the stand fixture to the electronic
board using the two wing-bolts [M5 x 12 mm
(15/32”)] provided with the stand (option).
■Using the wall-mounting kit (option)
1) Hang the electronic board on the optional wall-
mounting fixtures.
2) Secure the wall-mounting fixture to the
electronic board using the two wing-bolts [M5
x 12 mm (15/32”)] provided with the wall-
mounting kit (option).
• When mounting the electronic board, avoid banging
it. Such impact may break the internal light or cause
other damage.
• After mounting the electronic board, gradually apply
weight to it to make sure that the wall is strong
enough to support it.
A
B
Caution
UB-7325_IM.book 5 ページ ２００８年１月９日 水曜日 午前１１時３分

Assembling the Electronic Board
6
4Connect the power cord.
1) Securely fit the supplied power cord into the
AC inlet on the printer unit.
2) Fit the power cord into the cable holder.
5Wipe the screen film surface.
Soak a soft cloth with water, wring well, and
wipe the screen film surface.
• Do not wipe the screen film surface with paint
thinner, benzene, or cleaners that contain abrasives.
Doing so may cause discoloration.
• Do not wipe the screen film surface with a dry cloth.
Doing so may create static electricity.
6Check operations.
Refer to “Electronic Board Operations
Check” on page 7.
Cable holder
Caution
UB-7325_IM.book 6 ページ ２００８年１月９日 水曜日 午前１１時３分

7
English
Electronic Board Operations Check
After assembling the electronic board, perform the procedures presented in the following table to make sure it
functions properly.
*1Contact the store or dealer from which the unit was purchased.
Step
Points to Check
Symptom Solutions
1Turn on the power switch. “ ” flashes after “ ” lights up. (Normal operation)
(If not) Check power cord. (See step
4 on page 6.)
2Open the printer door and attach the
accessory thermal transfer film, then
close the printer door.
• Installing Thermal Transfer Film
procedure (refer to the Operating
Instructions on page 10)
“ ” flashes. (Normal operation)
(If not) Check thermal transfer film.
3Open the paper cover and insert
ordinary Letter test paper, then close
the paper cover.
• Loading Copy Paper procedure
(refer to the Operating
Instructions on page 11)
“ ” lights up. (Normal operation)
(If not) Check copy paper.
4Open the printer door. “ ” flashes. (Normal operation)
(If not) *1
5Close the printer door. “ ” lights up. (Normal operation)
(If not) *1
6Press .
Press .
Screen is fed. (Normal operation)
The screen film surface is not fed
smoothly. *1
There are strange noises.
7Use the accessory marker to draw
a large filling the entire
copyable area of the screen film
surface.
• Copyable area (refer to the
Operating Instructions on
page 7)
Press twice.
Press .
“ ” lights up and three copies are
made.
(Normal operation)
Three copies are not made. *1
The entire readable area is not
printed.
There are strange noises or paper
jams during the copying process.
Multiple sheets of paper are fed
through at the same time.
8Press to move the screen
film surface. Write letters, etc. with
the marker.
Press once.
Press .
The contrast/Remaining Film
indicator light is turned on and one
copy is made.
(Normal operation)
The Contrast/Remaining Film
indicator light is not turned on.
*1
The image is not copied properly.
There are strange markings on the
copy sheet
(e.g., stripes or lines).
9Press once.
The contrast/Remaining Film
indicator light is turned off.
(Normal operation)
(If not) *1
UB-7325_IM.book 7 ページ ２００８年１月９日 水曜日 午前１１時３分

8

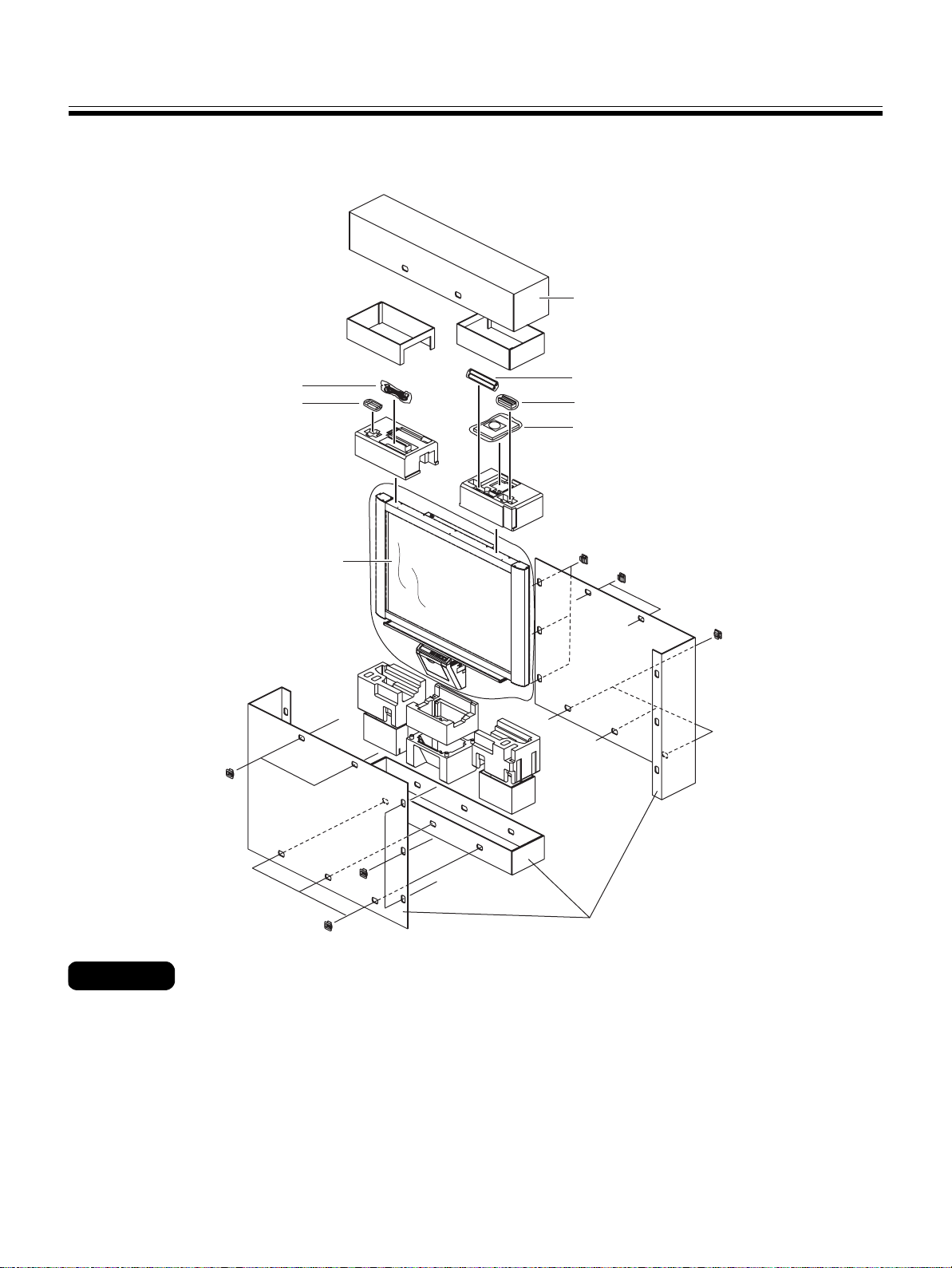

Repacking
Perform Assembly Steps 2 through 4 on pages 4 - 6 in reverse to repack the electronic board and accessories. Use
the joints to fasten the shipping box.
• Do not touch the screen film surface, as this may damage it.
Eraser
Thermal transfer film
Manuals, CD-ROM
Power cord
Markers
Joints
Joints
Joints
Joints
Joints
Joints
Electronic board
Shipping box
Shipping box
Caution
UB-7325_IM.book 8 ページ ２００８年１月９日 水曜日 午前１１時３分

9
English
Assembling the Optional Stand (KX-B061)
■Accessories
The package box for the optional stand includes the parts noted below; please confirm that all parts are present
before beginning installation
.
*1The accessory wrench is required to fasten or loosen the screws , ; please store it carefully for future use.
*2These are used for other models.
●Before assembly, be sure to lock the casters.
No. Part name Illustration Q’ty No. Part name Illustration Q’ty
Stand base 2 Wing bolt
M5 x 12 mm (15/32”)
6
Pipe 2 Support
bracket 2
Cover 2
Fall-preven-
tion extension
leg
4
Side bar (A) 2 Screw
M6 x 60 mm (2 3/8”)
4
Side bar (B) 1 Nut 4
Screw
M8 x 45 mm (1 25/32”)
12 Wrench
*1
1
Fixture
(left) 2Wing bolt
(Not use*2)M4 x 8 mm (5/16”)
8
Fixture
(right) 2
Screen holder
bracket
(Not use*2)
4
Locking the casters
(Push this side)
Releasing the lock
UB-7325_IM.book 9 ページ ２００８年１月９日 水曜日 午前１１時３分

Assembling the Optional Stand (KX-B061)
10
■Assembly
1Assembling the stand
■Assembling the fall-prevention extension legs
The fall-prevention extension legs increase the safety of the electronic board.
• Install and always set the fall-prevention legs when using the stand.
• When tightening the screw , hold the nut with pliers.
Note
• When folding back the fall-prevention extension legs to release the lock, perform as follows.
■Inserting the covers to the pipes
Fall-prevention extension legs
• Caster locks are attached to
the back side.
Caution
1
12
UB-7325_IM.book 10 ページ ２００８年１月９日 水曜日 午前１１時３分

Assembling the Optional Stand (KX-B061)
11
English
■Assembling the stand
Note
*1 Do not tighten the screw too much. This may deform the pipes.
Assemble with the holes
toward the front.
Locking
casters side
(rear)
Pull the fall-prevention extension legs
down (fall-prevention extension legs
will be fixed by the lock pin.)
1
1
1
2
Locking casters side
(rear)
UB-7325_IM.book 11 ページ ２００８年１月９日 水曜日 午前１１時３分

Assembling the Optional Stand (KX-B061)
12
2Attach the fixtures with the four wing-bolts.
3Assemble and install the electronic board.
Refer to page 4.
UB-7325_IM.book 12 ページ ２００８年１月９日 水曜日 午前１１時３分

13
English
Optional Wall-mounting Kit (KX-B063)
Before attempting installation of this wall-mounting kit, we strongly recommend consulting with the building manager,
engineer, or architect. The installer needs to know the type of construction used for the wall intended for this
installation and the location of wall studs. Selection of hardware is critical for safe wall-mounting, and depends on the
nature of wall construction. Installation should not occur until this consultation takes place.
• Do not attach the electronic board to mortared walls. Accidental electric leakage from the wall-mounting
fixture bolts to metal laths or wire laths can cause heat, smoke or a fire.
1. Tools required:
A minimum of eight (8) pieces of appropriate wall-support hardware (molley, toggle, etc.)
NOTE: THIS HARDWARE MUST BE LOCALLY PROCURED, IT IS NOT INCLUDED IN THE KIT.
Drill (and drill bit of correct size) for hardware installation
Screw driver (Both phillips (+) and slotted (–) will be required.)
Tape measure
Tape or thumb-tacks (2 pcs)
Bubble type level
2. Pre-requisites
1. Before installation, make sure that the wall intended for installation is capable of supporting flush-
mounted.
UB-7325 is 215 kgf (474 lbs.).
2. The position of the intended installation is of adequate size for the selected Panaboard.
UB-7325 is 1,516 mm (H) ×1,648 mm (W) [5'(H) ×5'5"(W)].
3. An outlet is within 3 m (9'101/8"), and not located behind the Panaboard.

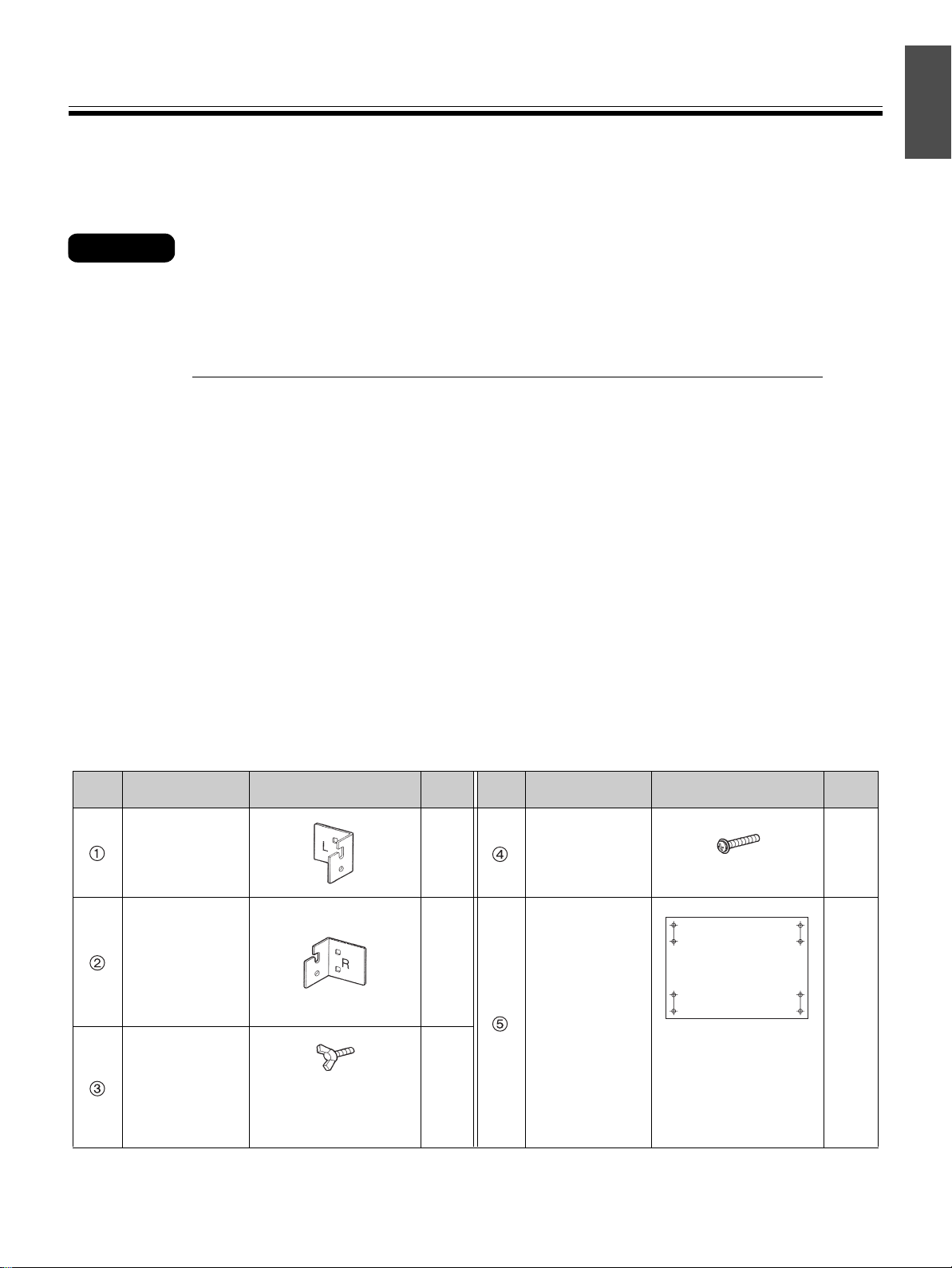

■Accessories
The package box for the optional wall-mounting kit includes the parts noted below; please confirm that all parts are
present before beginning installation. Eight screws for mounting the fixtures on the wall are not provided. Please
purchase the appropriate wall-mounting hardware (sold in stores). Refer to page 15.
*These are used for other models.
No. Part name Illustration Q’ty No. Part name Illustration Q’ty
Wall-mounting
fixture L 2Screw
(Not use*)
M4 x 16 mm (20/32”)
4
Wall-mounting
fixture R 2
Wall-mounting
template
(Not use*)
1
Wing bolt M5 x 12 mm (15/32”)
(For mounting of the
electronic board)
2
Use the wall-
mounting template
provided with
UB-7325.
Caution
UB-7325_IM.book 13 ページ ２００８年１月９日 水曜日 午前１１時３分

Optional Wall-mounting Kit (KX-B063)
14

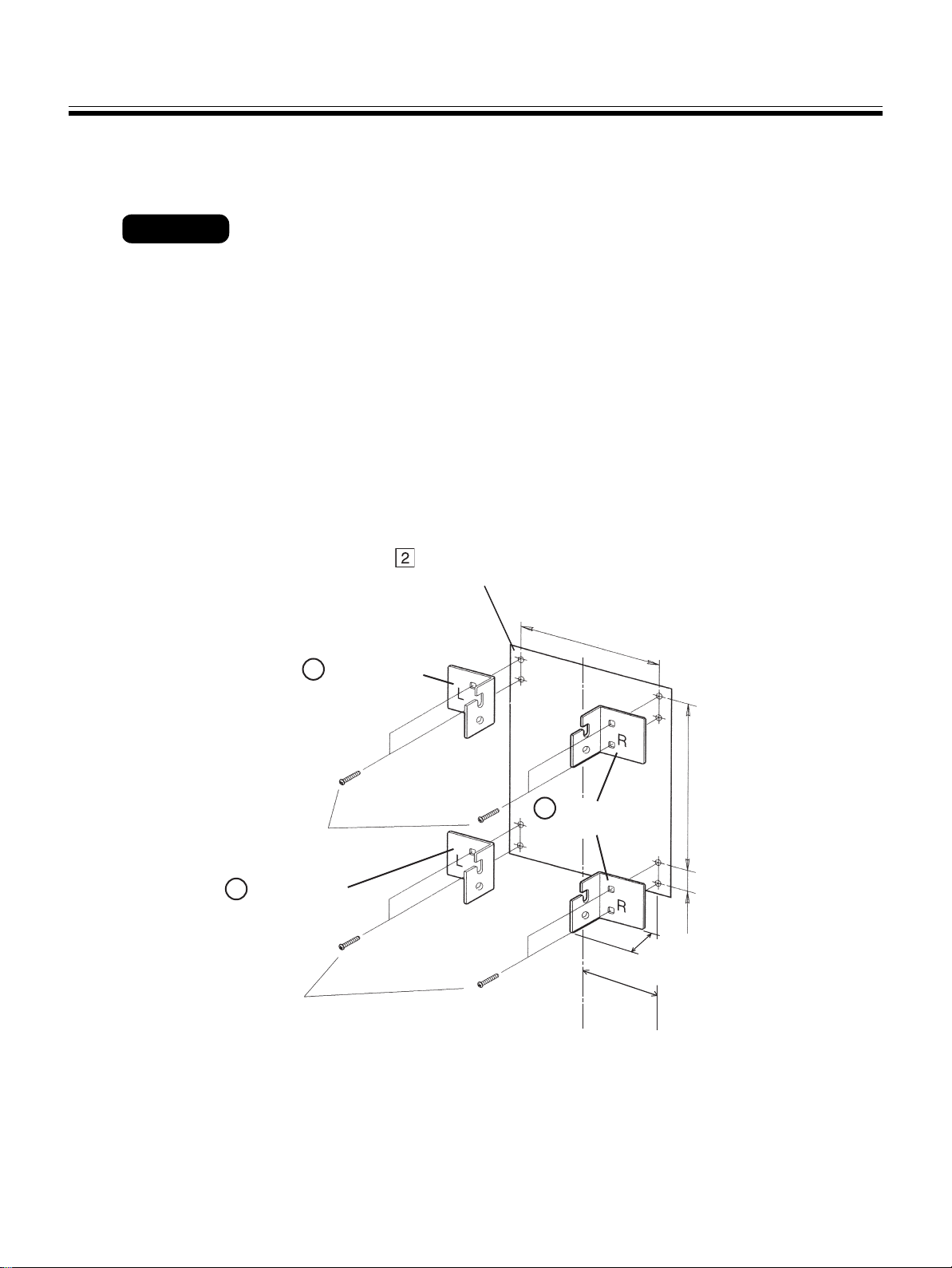

■Wall-mounting procedure
1Confirm that the wall is strong enough to support the weight of the electronic board.
The wall must be capable of supporting at least
2,108N [215 kgf (474 lbs.)] for UB-7325.
2Tape the Wall-mounting template on the wall.
• Do not use the template included in the wall-mounting kit (KX-B063), but rather the one included with
the electronic board (UB-7325).
• When taping the template on the wall, make sure it is level.
31) Drill holes in the wall for the wall-mounting fixtures (8 holes total).
• Holes on the wall-mounting fixture are 7 mm (1/4") in diameter.
2) After removing the wall-mounting template, attach the wall-mounting fixtures
with the appropriate wall-mounting hardware (two screws in each fixture).
* This hardware must be locally procured, it is not included in the kit.
• Refer to the section “Attaching the wall-mounting fixtures” (page 15) for drilling in the wall and attaching the
mounting fixtures.
• Refer to step 3 on page 5 for mounting the electronic board.
Caution
Wall-mounting
fixture L
Wall-mounting template
(provided with UB-7325)
Wall-mounting
hardware*
Wall-mounting
hardware*
Wall-mounting
fixture R
812.8 m
m
(
2'
8")
7
6
2mm(
2
'
6
")
50 mm
(
1 31/32"
)
70 mm
(2
3
/
4
")
2
1
Wall-mounting
fixture L
1
406.4 mm
(16")
Center of the
electronic board
(See page 3.)
UB-7325_IM.book 14 ページ ２００８年１月９日 水曜日 午前１１時３分

Optional Wall-mounting Kit (KX-B063)
15
English
■Attaching the wall-mounting fixtures
The electronic board must be mounted with the method most suited to the material of the wall.
Three methods are presented here.
(Other options may be available in your area.)
●Attaching to metal or concrete walls
Stud plugs (sold in stores) are needed.
Drill eight holes in the wall.
For the correct hole size, refer
to the instructions for the
particular stud plugs used.
Insert each bolt through a hole
in the wall-mounting fixture and
tighten until the wall-mounting
fixture is securely fixed to the
wall.
Drill bit
Metal or concrete
wall
Stud plug
Insert a stud plug in each hole.
Wall-mounting
fixture
Bolt
UB-7325_IM.book 15 ページ ２００８年１月９日 水曜日 午前１１時３分

Optional Wall-mounting Kit (KX-B063)
16
●Attaching to plasterboard walls
Split-wing toggles (sold in stores) are needed.
●Attaching to wooden walls
Use wood screws (sold in stores).
Insert each bolt through a hole
in the wall-mounting fixture and
into the hole in the wall beneath
so that the arms of the split-
wing toggle are horizontal. For
the correct hole size, refer to the
instructions for the particular
split-wing toggles used.
After the arms expand, pull the
wall-mounting fixture out until
the arms of the split-wing toggle
grip firmly into the wall.
Tighten each bolt until the wall-
mounting fixture is securely
fixed to the wall.
Plasterboard
Split-wing toggle
Wall-mounting
fixture
Bolt
Arms
Arms
For the correct hole size, refer
to the instructions for the
particular wood screws used.
Wall-mounting fixture
Wood screw
Wooden wall
UB-7325_IM.book 16 ページ ２００８年１月９日 水曜日 午前１１時３分
