Panasonic Panaboard UB-8325 User manual

Operating Instructions
With Installation Manual
(for qualified service personnel)
Electronic Board
(Interactive Panaboard)
Model No. UB-8325
•To assemble this unit, please refer to the Installation manual on page 83 through 99.
•Before operating this unit, please read these instructions completely and keep them carefully for future
reference.
•Because of the nature of the print film, all the printed text will remain on the film.
•This unit is designed for installation by a qualified servicing dealer.
Installation performed by non-authorized individuals could cause safety-related problems with the operation of
this equipment.
For U.S.A. only:
•To locate the closest authorized dealer in your area, please call 1-800-449-8989.

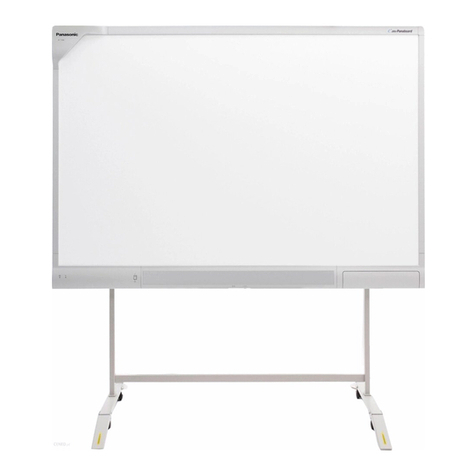

Panaboard
Stand is optional.

2
Thank you for purchasing the Panasonic Electronic Board.
For optimum performance and safety, please read these instructions carefully.
Q’ty
•Thermal transfer film . . . . . . . . . . . . . . 1
•Markers (Black, Red, Blue-big) . . . . . . 1 each
•Eraser . . . . . . . . . . . . . . . . . . . . . . 1
•Pen holder . . . . . . . . . . . . . . . . . . . . 2
•Markers for interactive
(Black, Red, Blue, Green-small) . . . . . 1 each
•Electronic Eraser . . . . . . . . . . . . . . . . 1
•Eraser cloth (for Electronic Eraser) . . . . . . . 2
Q’ty
•Batteries (LR03 “AAA”) . . . . . . . . . . . . . 6
•Power cord . . . . . . . . . . . . . . . . . . . 1
•USB cable [5 m (16’ 5 3/8”)] . . . . . . . . . . . 1
•A4 (Letter*1) size copy paper . . . . . . . . . 20
•Software CD-ROM . . . . . . . . . . . . . . . 1
•Operating Instructions . . . . . . . . . . . . . . 1
•Wall-mounting template . . . . . . . . . . . . . 1
•Warranty card*2. . . . . . . . . . . . . . . . . 1
*1Letter size is for U.S.A. and Canada models.
*2for U.S.A. model only.
* The markers (big) and the eraser are used for other than the interactive function.
* The markers for interactive (small) are used while inserted in the pen holder.
In this manual, the pen holder with a marker for interactive (small) is called the Electronic Pen.
The Electronic Pen and the Electronic Eraser are used with the interactive function.
* The stand and wall-mounting kit are optional. By way of example, this manual describes an Electronic Board which is
used with the stand.
For your future reference
Date of purchase: _________________________ Serial number: ____________________________
Dealer’s name and address: ______________________________________________________________
Attach your sales receipt here
Things you should keep a record of
Accessories
Tel:
Warning about saving data
When the system storage device or any of its optional storage device is adversely effected by operational
errors, static electricity, electrical noise, vibration, dust or when the power has been cut off due to malfunction,
repair or inadvertently, the memory contents may be lost or changed. Before operating the system, make a
point of reading the precautionary notes in the Operating Instructions and the help information, and observe
them during operation.
Please observe carefully the following precaution:
•Make absolutely sure that all important data is saved by back-up or the original is saved.
The manufacturer hereby declares that it cannot be held accountable for any loss or change in any data
stored on floppy disks, hard disks, optical disks, or other memory devices.

3
Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required to correct the interference at
his own expense.
•Microsoft, Windows, PowerPoint and CalliGrapher are either registered trademarks or trademarks of Microsoft
Corporation in the United States and/or other countries.
•IBM is a trademark of International Business Machines Corporation in the United States, other countries, or both.
•Pentium is a trademark or registered trademark of Intel Corporation or its subsidiaries in the United States and
other countries.
•Adobe, Acrobat, Acrobat Reader and Reader are either registered trademarks or trademarks of Adobe Systems
Incorporated in the United States and/or other countries.
•SANFORD and EXPO are registered ® U.S. trademarks of SANFORD or its Affiliates.
•All trademarks referred to in this manual are property of their respective companies.
The information given in this Operating Instructions is subject to change without notice.
FCC Warning: To assure continued FCC compliance, the user must use only the provided power supply cord.
Also, any unauthorized changes or modifications to this equipment would void the user’s authority
to operate this device.
Federal Communications Commission Requirements

4
The UB-8325 is equipped with two interactive functions; Projector mode and Whiteboard mode, in addition to a
regular electronic board that utilizes plain paper. It is possible to use this unit as follows.
■Electronic Board Functions
•Allows copying up to 9 copies per screen
•Allows printing in 2 level contrast (Normal / Dark)
•Allows printing of 2-screens at the time by compressing them into a single sheet of paper
■Projector Mode (Interactive Function)
Connect the Interactive Panaboard to a computer that is connected to a projector and use the projector to project the
image onto the Interactive Panaboard.
This is called the Projector mode.
In this mode, the following operations are possible:
•Operating the computer using the Electronic Pen with its cap on as a mouse
•Drawing handwritten lines or erasing it using the Electronic Pen or Electronic Eraser with its cap on in the projected
•Saving the projected image to an image file and printing the projected image
•Recording the operations of drawing and erasing handwritten lines, playing back and editing the recorded
operations later
In Projector mode, the projected computer image on the screen of the Interactive Panaboard can be operated by
using the Electronic Pen as a mouse. You can execute the application and electronically write or erase notes. The
electronically handwritten or partially erased computer image can be stored into an image file. This will help make
your presentation more impressive to the attendants.
Features

5
■Whiteboard Mode (Interactive Function)
By connecting the Interactive Panaboard to a computer, the information written on the Interactive Panaboard is
displayed on the computer in real-time.
This is called the Whiteboard mode.
In this mode, the following operations are possible:
•The information written on the Interactive Panaboard using the Electronic Pen with its cap off will be displayed on
the computer screen at the same time.
•The information erased using the Electronic Eraser will be erased in the computer as well.
•You can save drawings and notes into a file which can later be printed.
•Allows the user to record the information being written or erased in a file that can be played back as a movie and it
can be edited if needed.
■Computer Interfacing
Panasonic Document Management System (hereafter referred to as Panasonic-DMS) has the following functions.
About the Panasonic-DMS, refer to the Document Management System operating instructions in the CD-ROM.
•Panasonic-DMS uses the TWAIN driver to scan monochrome images drawn on the UB-8325.
•Panasonic-DMS has a capability of managing documents (image files).
•The printer driver allows the printer of the UB-8325 to print documents from a computer.

6
For Your Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
•For Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
•For users in the United Kingdom only . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
•CD-ROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Part Names and Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
•Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
•Electronic Pen and Eraser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Installing the Thermal Transfer Film. . . . . . . . . . . . . . . . . . . . . . . 18
Loading Copy Paper. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Making Copies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
•Copy Types and Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Replacing the Thermal Transfer Film . . . . . . . . . . . . . . . . . . . . . . 22
Paper Jams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Setting the Electronic Pen and Eraser . . . . . . . . . . . . . . . . . . . . . 25
•Setting the Electronic Pen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
•Setting the Electronic Eraser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
•Replacing the Eraser Cloth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Installing Drivers and Software. . . . . . . . . . . . . . . . . . . . . . . . . . . 27
•System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
•Contents of CD-ROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
•Installing Drivers / Interactive Panaboard Software . . . . . . . . . . . . . . . . . . . . . 28
•Installing the Panasonic-DMS Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
•Removing Drivers / Interactive Panaboard Software . . . . . . . . . . . . . . . . . . . . 31
•Removing the Panasonic-DMS Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Using the Panaboard in Projector Mode . . . . . . . . . . . . . . . . . . . 32
•Precautions When Using a Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
•Starting the Interactive Panaboard Software . . . . . . . . . . . . . . . . . . . . . . . . . . 33
•Pop-up Menu Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
•Basic Operation in Projector Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
•Using the Desktop Drawing Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Using the Panaboard in Whiteboard Mode . . . . . . . . . . . . . . . . . 49
•Starting the Interactive Panaboard Software . . . . . . . . . . . . . . . . . . . . . . . . . . 49
•Pop-up Menu Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
•Basic Operation in Whiteboard Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Using the View Window or Whiteboard Window. . . . . . . . . . . . . 53
•About View Window / Whiteboard Window . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
•Managing IPB Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Before You Start
Using
Page
Table of Contents

7
Before You Start Using Help Installation
Using the Panasonic-DMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
•Scanning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
•Panaboard Operation Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
•Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Daily Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
•Cleaning the Screen and the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
•Caring for the Eraser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
•Cleaning the Printer Head, Platen Roller and Pick-up Roller. . . . . . . . . . . . . . 75
•Replacing the Batteries in the Electronic Pen and the Electronic Eraser. . . . . 77
•Replacing the Cloth of the Electronic Eraser . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
•Meanings of Error Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
•Optional and Separately Available Items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Installation Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Help
Installation

For Your Safety
8
To prevent severe injury and loss of life, read this
section carefully before using the unit to ensure proper
and safe operation of your unit.
The following graphic symbols are used in this
Operating Instructions manual.
Power and Ground Connection
The power source voltage of this unit is
listed on the nameplate. Only plug the unit
into an AC outlet with the proper voltage.
If you use a cord with an unspecified current
rating, the unit or plug may emit smoke or
become hot to the touch.
When you operate this product, the power
outlet should be near the product and easily
accessible.
To ensure safe operation the power cord
supplied must be inserted into a standard
three-prong AC outlet which is effectively
grounded (earthed) through the normal
wiring.
The fact that the equipment operates
satisfactorily does not imply that the power
point is grounded (earthed) and that the
installation is completely safe. For your
safety, if in any doubt about the effective
grounding (earthing) of the power point,
consult a qualified electrician.
If the plug cannot be inserted into the AC
outlet, contact a licensed electrician to
replace the AC outlet with a properly
grounded (earthed) one.
Do not defeat the purpose of the grounding
(earthing) plug (ex. do not use a conversion
plug).
Plug the power cord firmly into an AC outlet.
Otherwise, it can cause fire or electric
shock.
Do not pull, bend, rest objects on, or chafe
the power cord and plug. Damage to the
power cord or plug can cause fire or electric
shock.
Do not attempt to repair the power cord or
plug. If the power cord or plug is damaged or
frayed, contact an authorized service
representative for a replacement.
Ensure that the plug connection is free of
dust. In a damp environment, a
contaminated connector can draw a
significant amount of current that can
generate heat and eventually cause fire if
left unattended over an extended period of
time.
Never touch the plug with wet hands.
Danger of electric shock exists.
For Your Safety
CLASS 1 LED PRODUCT
Denotes a potential
hazard that could
result in serious
injury or death.
Denotes hazards
that could result in
minor injury or
damage to the unit.
These symbols are used to
alert operators to a specific
operating procedure that must
not be performed.
These symbols are used to
alert operators to a specific
operating procedure that must
be emphasized in order to
operate the unit safely.
For Users
WARNING
CAUTION
WARNING
Before You Start

For Your Safety
9
Before You Start
Stop operation immediately if your unit emits
smoke, excessive heat, abnormal smell or
unusual noise. These conditions can cause
fire or electric shock. Immediately turn the
unit off and unplug the power cord, and
contact your dealer for service.
When disconnecting the unit, grasp the plug
instead of the cord. Pulling on a cord forcibly
can damage it and cause fire or electric
shock.
The unit should be used only with the power
cord that is supplied by the manufacturer.
•(220–240 V equipment)
A certified power supply cord has to be
used with this equipment. The relevant
national installation and/or equipment
regulations shall be considered. A certified
power supply cord is not lighter than
ordinary polyvinyl chloride flexible cord
according to IEC 60227 (designation
H05VV-F 3G 1.0 mm2).
Installation and Relocation
To prevent fire or shock hazard, do not
expose this unit to rain or any type of
moisture.
Operating Safeguards
If metal fragments or water gets into the unit,
turn the unit off and unplug the unit
immediately. Contact your dealer for service.
Operating the contaminated unit can cause
fire or electric shock.
Never open or remove unit covers that are
screwed with screws unless specifically
instructed in the “Operating Instructions”. A
high-voltage component can cause electric
shock.
Do not alter the unit or modify any parts.
Alteration or modification can cause fire or
electric shock.
Keep the marker’s cap or battery out of
reach of children to prevent swallowing.
Battery
Be sure to use the specified type of batteries
only. Using incorrect type of batteries can
burn or leak.
Ensure that batteries are installed with
correct polarity. Incorrectly installed batteries
can burst or leak, resulting in spillage or
injuries.
Be sure to take out batteries worn away from
the unit. The battery worn away can leak.
Be sure that a battery should not be
charged, shorted, heated, broken or thrown
into fire. Using wrong can leak generate
heat or burst.
Power
When the unit is not used over an extended
period of time, switch it Off and unplug it. If
an unused unit is left connected to a power
source for a long period, degraded insulation
may cause electric shock, current leakage or
fire.
Installation and Relocation
Do not position the unit in a location where it
is unstable.
Do not place the unit in a hot humid or dusty
environment.
Prolonged exposure to these adverse
conditions may cause fire or electric shock.
When moving the unit, be sure to unplug the
power cord from the AC outlet. If the unit is
moved with the power cord attached, it can
cause damage to the cord which could result
in fire or electric shock.
CAUTION

For Your Safety
10
Do not install the unit except by a qualified
service personnel.
After installing or moving the electronic
board, lock the casters and set the fall-
prevention extension legs.
Operating Safeguards
If the unit is fallen down or damaged, turn
the unit off and unplug the power cord.
Otherwise, it may cause fire or electric
shock.
Do not put drinks, other liquids or heavy
items on the tray or screen. Accidental
spillage of liquid into the unit may cause
severe damage. If this occurs, turn the unit
off, unplug the power cord and contact your
dealer for service.
Do not lean against the screen or on the
cover (lower), even if the electronic board is
mounted on the wall.
Battery
When the unit is not used over an extended
period of time, take the batteries out of the
unit. Otherwise, the batteries may leak. Do
not use the leaked batteries.
Safety Information
This appliance is supplied with a moulded three pin
mains plug for your safety and convenience.
A 5 amp. fuse is fitted in this plug. Should the fuse need
to be replaced please ensure that the replacement fuse
has a rating of 5 amps. and that it is approved by ASTA
or BSI to BS1362. Check for the ASTA mark or the
BSI mark on the body of the fuse. If the plug
contains a removable fuse cover you must ensure that it
is refitted when the fuse is replaced. If you lose the fuse
cover the plug must not be used until a replacement
cover is obtained. A replacement fuse cover can be
purchased from your local Panasonic Dealer.
If the fitted moulded plug is unsuitable for the socket
outlet in your home then the fuse should be removed
and the plug cut off and disposed of safely.
There is a danger of severe electrical shock if the cut off
plug is inserted into any 13 amp. socket.
If a new plug is to be fitted please observe the wiring
code as shown below. If in any doubt please consult a
qualified electrician.
WARNING: This appliance must be earthed.
IMPORTANT: The wires in this mains lead are coloured
in accordance with the following code.
Green-and-Yellow: Earth
Blue: Neutral
Brown: Live
As the colours of the wire in the mains lead of this
appliance may not correspond with the coloured
markings identifying the terminals in your plug, proceed
as follows.
The wire which is coloured Green-and-Yellow must be
connected to the terminal in the plug which is marked
with the letter E or by the Earth symbol or coloured
Green or Green-and-Yellow.
The wire which is coloured Blue must be connected to
the terminal in the plug which is marked with the letter N
or coloured Black.
The wire which is coloured Brown must be connected to
the terminal in the plug which is marked with the letter L
or coloured Red.
L
ocking the casters
(
Push this side)
Push to lock
For users in the United
Kingdom only
How to replace the fuse:
Open the fuse
compartment with a
screwdriver and replace
the fuse.

Precautions
11
Before You Start
Precautions
Installation •Do not install the unit where it may be exposed to direct sunlight, near heating equipment, or
near air-conditioning vents as this may cause stretching and/or discoloration of the screen.
•Do not install the unit in strong sunlight or strong lighting. Proper copying may become
impossible.
•Do not install the unit in locations where the temperature may change suddenly as this may
disable the unit’s ability to make copies.
Screen Film •Make thick and dark lines inside the copying area.
Note that any writing inside the shaded area (on
right) cannot be copied.
•Do not allow writing to remain on the screen for an
extended period of time as it will become harder to
erase.
•Do not erase with an overly dirty eraser (see page
75).
•Periodically wipe the screen film gently with a
water-dampened cloth that has been thoroughly wrung. (See page 75.)
•Use a commercially available white board cleaner for hard-to-erase stains.
(SANFORD® EXPO® white board cleaner etc.)
•Do not touch the screen, write with markers, or erase while the screen is moving as this may
result in damage to the unit.
•Do not attach chart paper to the screen film for copying as this may result in damage to the
unit.
Markers,
Erasers and
Thermal
Transfer Film
•Use only the included or designated markers, erasers and thermal transfer film. (See page
82.)
Use of accessories other than those included or designated (such as oil-based
markers) may damage the screen or result in hard-to-erase markings.
•Copy quality increases with the thickness of the drawn line. To ensure quality copies, please
use the markers (big).
•The markers for interactive (small) draw thin lines. The quality of the copies may be reduced
when these markers are used.
•Do not store the thermal transfer film in a location subject to extreme changes in
temperature (such as near air conditioning or heating equipment) as this may cause
condensation on the thermal transfer film and result in poor print quality and/or paper jams.
•Store markers horizontally as vertical storage may stop the ink from coming out.
•The length of one roll of designated thermal transfer film (Replacement film: UG-6001) is
approximately 50 meters (164 ft.). One roll of thermal transfer film can make approximately
150 sheets of copies.
Note that the total number of copies may differ depending on the operating conditions.
Also note that the length of the thermal transfer film supplied with the unit is shorter
than the replacement film roll and is only approximately 10 meters (32.8 ft.).
Power Cord
and USB
Cable
•When moving the unit, disconnect the power cord from the electrical power socket and from
the printer’s power connector, and disconnect the USB cable from the printer’s USB
connector and a computer. Then coil them for transportation as stepping on the power cord
and USB cable or having them catch on something during movement may result in damage
to the cord and cable.
•If you connect the electronic board to a USB hub, it is not guaranteed to work.
•Do not connect two or more Panasonic electronic boards to a computer. It may cause the
computer operation to become unstable.
25 mm (1 " )
35 mm
25 mm (1
" )
(1 3/8
" ) (1 3/8
" )
35 mm
Copying area

Precautions
12
Replacing
the Thermal
Transfer Film
•Dispose of the used thermal transfer film in a trash receptacle for burnable trash.
•A negative of the copied image will remain on the thermal transfer film. (To protect the
security of your information, we recommend cutting up the used thermal transfer film with
scissors or shredder before disposing of it.)
Electronic
Pen and
Electronic
Eraser
•Do not cover the transmitter with your hand while using an interactive function as this may
cause the position of the Electronic Pen or the Electronic Eraser not to be normally
detected.
•Press down firmly with the point of the Electronic Pen or the eraser cloth of the Electronic
Eraser on the screen film until you hear a buzzing sound, and then move it slowly.
However, do not press down the point of the Electronic Pen too much strongly as this may
make a dent in the screen back panel.
•Do not use two or more the Electronic Pens or the Electronic Eraser at the same time as this
may cause the position of the Electronic Pen or the Electronic Eraser not to be normally
detected.
•For precise positioning, keep the Electronic Pen and Electronic Eraser perpendicularly to
the screen during use.
•Since ultrasonic is used to detect the position of the Electronic Pen and Electronic Eraser
when they are being used, you may hear a buzzing sound, but this is not harmful to the
human body or peripheral hardware. It will also not result in an electric shock.
Transmitter
NG OK

Precautions
13
Before You Start
Battery If batteries are used improperly, batteries may leak, causing corrosion of the unit, or they may
burst. To prevent this, always follow the precautions given below.
•Always remove batteries from the Electronic Pen and Electronic Eraser if they are not to be
used for an extended period of time.
•Use the same type of batteries. Do not mix different types.
•Do not mix old and new batteries.
•Always insert batteries with their polarity properly oriented as indicated on the Electronic
Pen or Electronic Eraser.
•If the Electronic Pen or Electronic Eraser ceases to function because batteries have run out,
remove them immediately and dispose of them according to local regulations.
Leaving drained batteries in the Electronic Pen or Electronic Eraser may result in leakage.
•Do not disassemble batteries or place them in a fire.
•Do not short batteries.
•Alkaline batteries cannot be recharged. Never attempt to recharge alkaline batteries.
Projector •Light from the projector may enter the eye when using a projector to project images for the
purpose of making presentations and so on. Be very careful as direct projector light may
hurt the eyes.
Após o uso as pilhas / baterias contidas neste produto
poderão ser dispostas em lixo doméstico.
For Brasil
For Taiwan (台灣 )

Precautions
14
To prevent the CD-ROMs from accidental damages:
CD-ROM
Do not touch or write on the surface
of the disc.
Do not leave the disc out of the
protective case.
Do not leave the disc in direct
sunlight or near heat sources.
Do not place heavy objects on the
disc case or drop the case.
To clean the disc, hold the disc by
its edges and wipe it from the
center to the edges with a dry, soft
cloth.

Part Names and Functions
15
Before You Start
Part Names and Functions
ON
OFF
Screen
AC Inlet
Power Switch
Tray
Power Cord
Output Port
This port holds up to 10
sheets of output paper.
Paper Cover
Open this cover to
load copy paper.
Printer Door
Open this door to load a
thermal transfer film or to
remove jammed paper.
(See pages 18, 22, 23.)
Printer Open Lever
Push down this lever to
open the printer door.
Control Panel
(See page 16 for
details.)
USB Connector
(See page 27.)
Cord Holder
Printer
Electronic Pen /
Electronic Eraser
Position Receiver
Electronic Pen /
Electronic Eraser
Position Receiver
Scanner

Part Names and Functions
16
l
Control Panel
Panel Name Description
Contrast/
Remaining
Film
Indicator
This lamp indicator notifies the user when the time to replace the thermal transfer
film is approaching (estimated) and of the printing contrast used during copying.
Indicator off: Normal printing contrast
Indicator on: Darker than normal printing contrast
Indicator flashing*: Almost time to replace the thermal transfer film
(Note that only about 15 more sheets may be
copied when this indicator starts flashing.)
Replacement film (UG-6001) is separately available
from the dealer where you purchased your unit.
* The flashing indicator will go out after the power is turned off, or the
printer has been opened and closed. (When copying is performed, this
indicator will begin flashing again.)
Contrast
Key
Each time this key is pressed, the unit will alternate between normal and dark
contrast modes (Normal/Dark).
2-Screen
Copy Key
This key causes the front and back of the screen to be copied on a single
sheet of paper.
Multi-Copy/
Error
Indicator
This indicator displays the number of copies to be made. The display changes
each time the Multi-Copy/Stop Key is pressed.
Example: 1 → 2 → ··· → 9→ 1 → ···
When an error occurred, a flashing symbol will appear on this display to
indicate the error status. (See page 80.)
Multi-Copy/
Stop Key
When making multiple copies, press this key until the desired number of
copies is displayed on the Multi-Copy/Error Indicator.
This key can also be pressed to stop copying while executing multiple copies.
•The display changes as shown below each time the screen is copied. After
reaching 0, the display will reset to 1.
Example for multiple copies:
5 → 4 → 3 → 2 → 1 → 0 → 1 (Number is counted down.)
Copy Key This key causes the screen to be copied.
Advance
Key Pressing this key advances the screen from right to left.
Contrast/Remaining Film
Indicator
Advance Key
Multi-Copy/Error Indicator
Multi-Copy/Stop Key
Copy Key
Contrast Key
2-Screen Copy Key

Part Names and Functions
17
Before You Start
■Electronic Pen (see page 25)
* When using the projector mode to operate the computer screen on the Interactive Panaboard screen and operating
the pen while holding down the pen button achieves the same function as pressing the right mouse button.
■Electronic Eraser (see page 26)
Electronic Pen and Eraser
Pen holder lever
Pen button*
Eraser cloth
Eraser cover

Installing the Thermal Transfer Film
18
Install the thermal transfer film in the printer.
1Set the power switch to on ( I ).
•“ ” will flash on the Multi-Copy/Error
Indicator when the thermal transfer film has
run out.
•The screen will move to home position and
stop.
2Push down the printer open lever and open
the printer door.
3Install the thermal transfer film.
1) Set the thermal transfer film, with the blue
gear in front, on the right.
2) Insert the blue shaft into the front left hole.
3) Place the blue gear on the front right groove.
4) Place the white shaft on both sides of the back
grooves.
Installing the Thermal
Transfer Film
ON
OFF
Printer door
Blue gear
Blue shaft
Blue gear
White shaft
Using

Loading Copy Paper
19
Using
4Tighten the film, then close the printer door.
1) Rotate the blue gear in the direction of the
arrow to take up the slack on the film.
•If a slack remains, perform step 3-2) through
4-1) again.
2) Securely close the printer door by using both
hands until a click is heard.
•“ ” flashing on the Multi-Copy/Error
Indicator will go out.
Note
•If “ ” is still flashing after closing the printer
door, make sure that the thermal transfer film
has been installed properly and tightened.
•The printer door should be closed to make
copies properly. Confirm both latches are
locked.
It is possible to load up to 40 sheets of A4 (Letter*)
size copy paper [assuming a paper weight of 80 g/m2
(20 lb.)].
Note that only A4 (Letter*) size paper may be used.
When the unit is first used or when “ ” flashes on the
Multi-Copy/Error Indicator to indicate that the unit is
out of paper, load copy paper as described below.
* Letter size is for U.S.A. and Canada models.
Notes on Loading Copy Paper
Follow the guidelines below to ensure smooth and
accurate printing by the unit.
•Only use A4 (Letter) size copy paper having a
weight of 60 g/m2(16 lb.) to 90 g/m2(24 lb.) as the
copy paper for this unit.
•Do not simultaneously load paper of varying type
and thickness as this may result in paper jams.
•Before adding copy paper, be sure to remove all the
copy paper remaining inside the unit’s paper cover.
(Note that copy paper will slightly resist being
removed, but may be pulled out without problems.)
After removing the copy paper, stack the removed
paper together with the new paper, fan it thoroughly,
square it and reload.
•Extremely smooth or glossy paper
•Coated paper
•Thermal paper
•Paper that is printed on one side
•Wrinkled paper, creased paper, etc.
1Set the power switch to on ( I ).
•“ ” will flash on the Multi-Copy/Error
Indicator when copy paper has run out.
•The screen will move to home position and
stop.
Blue gear
L
atches
Loading Copy Paper
DO NOT USE THE FOLLOWING TYPES
OF PAPER
ON
OFF

Loading Copy Paper
20
2Pull the paper cover forward as shown in the
figure.
3To prevent paper jams such as those caused
by multiple sheets feeding at once, fan the
paper thoroughly, square it, align it with the
guide inside, and insert as far as it will go.
Note
•Only use A4 (Letter*) size copying paper
having a weight of 60 g/m2(16 lb.) to 90 g/m2
(24 lb.) as the copy paper for this unit.
* Letter size is for U.S.A and Canada models.
•Do not stack more copy paper in the unit
than the maximum paper limit indicated by
the guide (see the above figure) as this may
result in paper jams. [Note that the unit can
hold about 40 sheets of paper having a
weight of 80 g/m2(20 lb.).]
4Close the paper cover until a click is heard.
Note
•Close the paper cover, or the unit will not
work properly.
•The paper cover should be closed to make
copies properly. Confirm the both latches are
locked.
Maximum paper limit
Guide
