Panasonic CQ-C3203U User manual

ORDERNO.ACED060111C7
C4
AUTOMOTIVE AFTERMARKET
CQ-C3203U / CQ-C3103U
MP3 CD Player/Receiver
SPECIFICATIONS
Specifications*
1

General
Power Supply DC 12V (11V - 16V),
Test Voltage14.4V
NegativeGround
Current Consumption Less than2.1A(CD mode; 0.5W
4-channels)
MaximumPower Output 50W×4ch(at 1kHz)
Volume control maximum
ToneAdjustment Range Bass ; ±12dB at 100Hz
Treble; ±12dB at 10kHz
Speaker Impedance 4-8
Pre-AmpOutput Voltage 2.5V (CD mode; 1kHz, 0dB)
Pre-AmpOutput Impedance 200
Front AUX Input
Input Impedance 10k
AllowableExternal Input 2.0V
Connector 3.5mm Stereomini-pin
FM StereoRadio
FrequencyRange 87.9MHz - 107.9MHz
UsableSensitivity 10.2dBf. (0.9 V,75 )
50dB quieting Sensitivity 15.2dBf. (1.6 V,75 )
FrequencyResponse 30Hz-15kHz (±3dB)
AlternateChannel Selectivity 75dB
StereoSeparation 35dB (1kHz)
ImageRejection Ratio 55dB
IFRejection Ratio 100dB
Signal toNoise Ratio 62dB
AM Radio
FrequencyRange 530kHz - 1,710kHz
UsableSensitivity 27dB/ V (22 V, S/N 20dB)
CD Player
Sampling Frequency 8 Times Oversampling
DAConverter 1bit DAC System
Pick-UpType Astigma 3-beam
Light Source SemiconductorLaser
WaveLength 790nm
FrequencyResponse 20Hz to20kHz (±1dB)
Signal toNoise Ratio 93dB
Total HarmonicDistortion 0.01%(1kHz)
Wowand Flutter Belowmeasurablelimits
Channel Separation 75dB
Dimensions** 7”×1-15/16”×6-5/16”
(178×50×160mm)
Weight** 3lbs1oz (1.4kg)
2

*Specificationsand thedesign are subject topossible
modification without notice duetoimprovements.
** Dimensionsand Weight shownare approximate.
-Abovespecificationscomplywith EIAstandards.
2006 Matsushita ElectricIndustrial Co., Ltd. All rights reserved.
Unauthorized copying and distribution isaviolation of law.
3

1. ABOUT LEAD FREE SOLDER (PbF)
Distinction of PbF PCB:
PCBs (manufactured) using leadfree solderwill have a PbF stampon the PCB.
Caution :
-Pb free solder has ahigher melting point than standard solder;
Typicallythe melting point is50 -70°F (30 -40°C)higher. Please
use asoldering iron with temperature control and adjust itto 700 ±
20°F (370 ± 10°C). Incase of using high temperature soldering
iron, please be careful not to heat too long.
-Pb free solder will tend to splash when heated too high (about
1100°F/600°C)
-Thislead free solder will be used for the products after serial No.
1,000,001.

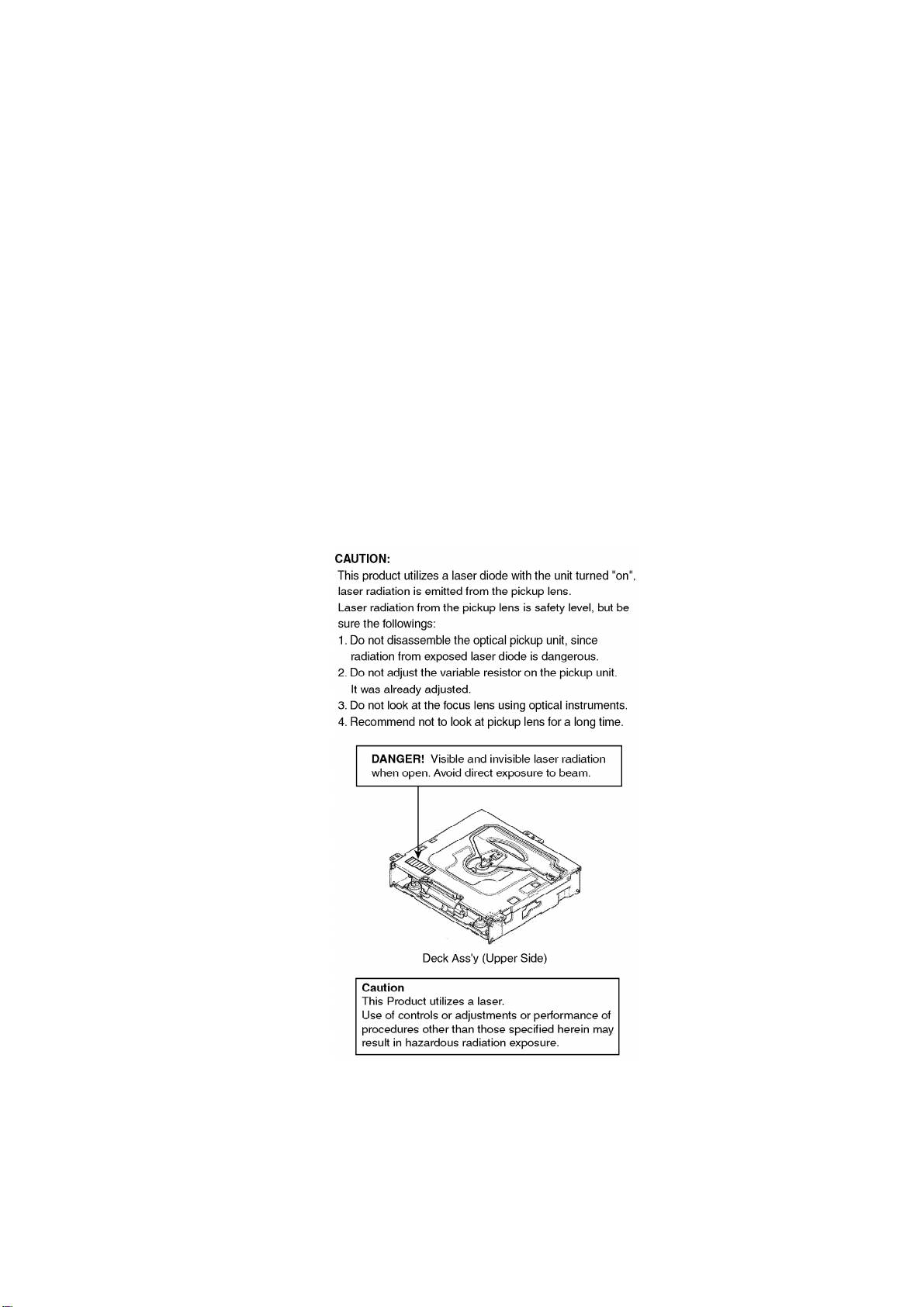

2. LASER PRODUCTS
3. FEATUERS
-Large-sized volume control.
-SQ (Sound Quality).
4

-The AUXinput terminal isequipped on the front panel.
-Thismanual isfor 2modelsCQ-C3203Uand CQ-C3103U. The
following tabledescribes the differences among 2models.
4. REPLACING THE FUSE
Use fuses of the same specifiedrating (15amps). Using different substitutes orfuses with
higherratings, orconnecting the product directlywithout a fuse, couldcause fire ordamage to
the stereounit.
5. MAINTENANCE
Yourproduct is designedand manufacturedtoensure a minimumof maintenance. Use a dry, a
soft clothforroutine exteriorcleaning. Neveruse benzine, thinnerorothersolvents.
6. NOTES
[RADIO BLOCK]
Donot align the AM/FM package block. Whenthe package block is necessary, it will be supplied
alreadyalignedat the factory.
[CD DECK BLOCK]
This model has no servoalignment points because microcomputercontrols the servocircuit.
7. DIMENSIONS
8. WIRING CONNECTION
5

9. TERMINALS DESCRIPTION
9.1. MainBlock
IC601 : YESAM350
6

Pin
No. Port Description I/O (V)
FM AM CD
1 XIN Crystal oscillator I 2.5 2.5 2.5
2TEST2 Ground I 0 0 0
3VREG Bypass condenser
connected. O2.9 2.9 2.9
4VSSCPUGround - 0 0 0
5NC - - - - -
6 NC - - - - -
7 NC - - - - -
8 NC - - - - -
9LCD
DO LCD data output I 5 5 5
10 LCD DI LCD data input O 4.9 5 4.9
11 LCD
CLK LCD clock O 5.1 5.1 5.1
12 LCD CE LCD chipenable
output O 0 0 0.3
13 CD DO CD data output I 5.1 5.2 4
14 CD DI CD data input O 0 0 4.6
15 CD
CLK CD clock O 4.9 49 4.9
16 CD CE CD chipenable O 0 0 1
17 CD LM
(+) CD loading motor control O 0 0 0
18 CD LM
(-) CD loading motor control O 0 0 0
19 CD S/L CD spindle motor
control O5.1 5.1 5.1
20 SUB
READY Sub CPU ready signal I 0 0 5
21 CD
INSW1 CD insert SW input I 0 0 0
22 CD
SW2 CD mechanism SW2 I 5.1 5.1 0
23 CD
LIMIT
SW
CD limit SW I 0.2 0.2 5.1
24 CD
MUTE CD Mute signal I 5.1 5.1 5.1
25 CD RST CD reset O 5.1 5.1 5.1
26 CD
DMUTE CD mute O 0 0 5.1
27 LOW
BATT Batterylowlevel detect I 5.1 5.1 0
28 NC - - - - -
29
PANEL
Panel
detect
switch
I
0
0
0
7

29
PANEL
Panel
detect
switch
I
0
0
0
Pin
No. Port Description I/O (V)
FM AM CD
30 NC - - - - -
31 NC - - - - -
32 NC - - - - -
33 NC - - - - -
34 NC - - - - -
35 NC - - - - -
36 NC - - - - -
37 NC - - - - -
38 NC - - - - -
39 VDD
PORT Powersupply(+5V) - 5.1 5.1 5.1
40 VSS
PORT Ground - 0 0 0
41 NC - - - - -
42 NC - - - - -
43 NC - - - - -
44 NC - - - - -
45 NC - - - - -
46 NC - - - - -
47 NC - - - - -
48 NC - - - - -
49 PWR
CNT Poweron control O 4.9 5 5
50 AMP
CNT Ampcontrol signal O 5.1 5.1 5.1
51 AMP
MUTE PowerIC mute signal O 5.1 5.1 5.1
52 STBY PowerIC standby
control O5.1 5.1 5.1
53 SSC Tunersearch
sensitivitychange O 0 0 5.1
54 AF
MUTE AFmute O 5.1 5.1 5.1
55 I2C
DATA Electronic VOL data O 5.1 5.1 5.1
56 I2C
CLK Electronic VOL clock O 5.1 5.1 5.1
57 NC - - - - -
58 POWER
LED PowerLED O 0 0 0
59 NC - - - - -
60 NC - - - - -
61 NC - - - - -
62 NC - - - - -
8

Pin
No. Port Description I/O (V)
FM AM CD
63 OP/CL Panel open/close
signal I - - -
64 EJECT Eject switchsignal I 5.1 5.1 5.1
65 EJ ILL Eject LED drive
control O5.1 5.1 5.1
66 TEL
MUTE Telephone mute signal I 5.1 5.1 5.1
67 BATT Batterydetection I 5.1 5.1 5.1
68 MODE
BRotaryencoder input B I 5 5 5
69 NC - - - - -
70 RM
DATA Remote control data I - - -
71 MODE
ARotaryencoder input A I 5 5 5.1
72 NC - - - - -
73 NC - - - - -
74 NC - - - - -
75 AM
MODE RadioAM mode control O8.2 0 8.2
76 FM
MODE RadioFM mode control O 0 8.2 0
77 LEVEL Audiosignal input
forlevel meter I 0 0 1.5
78 INITC Initial setting port I 0 0 0
79 INITB Initial setting port I - - -
80 INITA Initial setting port I 5 5 5
81 VSSADCGround - 0 0 0
82 NC - - - - -
83 ST FM stereosignal I 5.1 5.2 5.2
84 SD FM/
AM Radiosignal strength I 0 0 0
85 NC Ground I 0 0 0
86 RESET Reset signal I 5 5 5
87 ACC ACC signal input I 5.3 5.3 5.3
88 NC Ground I 0 0 0
89 NC Ground I 0 0 0
90 FM/AM
IFC FM/AM IFinput I 1.4 1.3 1.3
91 NC - - - - -
92 NC - - - - -
93 VDDPLLPowersupplyof
PLL -5.1 5.1 5.1
94 NC - - - - -
9

Pin
No. Port Description I/O (V)
FM AM CD
95 OSC
FM/AM FM/AM osc input I 1.4 1.3 1.3
96 VSSPLLGround - 0 0 0
97 NC - - - - -
98 EO1 PLL phase
comparison error
output
O2.2 2.1 2.3
99 TEST1 Ground I 0 0 0
100 XOUT Crystal oscillator O 2.6 2.6 2.6
9.2. DisplayBlock
IC901 : C0HBA0000195
Pin
No. Port Description I/O (V)
1 GREEN
CNT LED control (Green) O 0
2RED CNT LED control (Red) O 4.9
3 -39 SEG3 -39 LCD segment data O 2.5
40 -43 COM1 -4 LCD common O 2.5
44, 45 SEG40,
41 LCD segment data O 2.5
46 -49 KS3-6 Keyscan O 5.0
50 -54 Kl1-5 Keydata I 0
55 TEST (Connecting toground) - 0
56 VDD +5V powersupply - 5.0
57 VDD1 VDD1 filterterminal - 3.3
58 VDD2 VDD2 filterterminal - 1.7
59 VSS Ground - 0
60 OSC Oscillatorterminal - 3.8
61 DO Keydata output O 5.0
62 CE LCD driverchipenable I 0.3
63 CLK LCD clock I 5.1
64 DI LCD data I 4.9
10. PACKAGE AND IC BLOCK DIAGRAM
10.1. MainBlock PA051 : YESAP387
10

IC201 : YESAM293
IC231 : YESAM320
IC751 : YESAM349
11

IC271 : C1EA00000041
IC802 : YESAM352
10.2. DisplayBlock IC905 : YESAM264
12

13

14

11. PACKING PARTS LIST
-Item numbers listed below shouldnot order regular spare parts.
(not available)
15

Item
No. Part No. Part Name & Description Q'ty Remarks
1—InnerCarton 1 Not available
2—Packing Pad(Front) 1 Not available
3—Packing Pad(Rear) 1 Not available
4—Instruction Kit 1 Not available
—Operating Instructions (1) Not available
—Installation Instructions (1) Not available
—Owners Information Card (1) Not available
5 YEFA131839 Removable Face Plate Case 1
6 EUR7641010 Remote Control Unit (includes
a battery) 1
—CR2025/1F LithiumBattery 1
7YEFC051011 TrimPlate 1
8 YGAJ021012 PowerConnector 1
9YEFX0217263 Mounting Collar 1
10 YEP0FZ5698 Installation Kit 1
—Lock Cancel Plate (2) Not available
—Mounting Bolt (1) Not available
—RubberBushing (1) Not available
12. REPLACEMENT PARTS LIST [CQ-C3203U]
Notes :
1. Besure to make your orders of replacement parts according to
thislist.
2. Important safetynotice: Components, identified bymark have
special characteristics important for safety. When replacing any
of these components, use onlymanufacturer's specified parts.
3. Location keysinthe remarks column indicates the general
location of the parts showninthe exploded drawing, as inaroad
map.
4. The marking (RTL) indicates that Retention Time islimited for this
item. After the discontinuation of assemblyinproduction, the item
will continue to be availablefor aspecificperiod of time. The
retention period of availabilityisdependent on the type of
assembly, and inaccordance with the lawsgoverning part and
product retention. After the end of thisperiod, the assemblywill
no longer be available.
16

-Order intake period isbasicallysixmonths after the first
shipment.
5. Reference materialsof parts with the “TSN“mark inthe remarks
column are uploaded inthe TSN(Technical Service Navigation)
system website. Please download from that website for references.
Ref. No. PartNo. PartName& Description Remarks
[7222-02-11] MAIN BLOCK
IC's and TRANSISTORs
IC201 YESAM293 IC
IC231 YESAM320 IC
IC271 C1EA00000041 IC
IC601 YESAM350 IC
IC751 YESAM349 IC
IC801 YESAM351 IC
IC802 YESAM352 IC
PA051 YESAP387 Tuner Pack
Q052 YESAN117 Transistor
Q055 YESAN117 Transistor
Q261 YESAN121 Transistor
Q262 YESAN121 Transistor
Q265 YESAN125 Transistor
Q361 YESAN121 Transistor
Q362 YESAN121 Transistor
Q365 YESAN125 Transistor
Q401 B1CBGF000005 FET
Q660 YESAN128 Transistor
Q661 YESAN127 Transistor
Q671 YESAN120 Transistor
Q672 YESAN118 Transistor
Q701 YESAN126 Transistor
Q702 YESAN129 Transistor
Q704 YESAN123 Transistor
Q752 YESAN115 FET
Q770 YESAN087 Transistor
Q851 B1BCCF000017 Transistor
Q871 YESAN113 Transistor
DIODEs
D053 YESAD119 Zener Diode
D231 YESAD143 Diode
D232 YESAD144 Diode
D233 YESAD119 Zener Diode
D270 YESAD146 Diode
D271 YESAD146 Diode
D272 YESAD146 Diode
D273 YESAD146 Diode
D274 YESAD146 Diode
D275 YESAD146 Diode
D276 YESAD146 Diode
17

Ref. No. PartNo. PartName& Description Remarks
D277 YESAD146 Diode
D677 YESAD147 Zener Diode
D691 YESAD155 Diode
D701 YESAD139 Diode
D702 YESAD153 Zener Diode
D704 YESAD143 Diode
D705 YESAD146 Diode
D751 YESAD141 Diode
D770 YESAD123 Zener Diode
D791 B0ACCK000005 Diode
D792 B0ACCK000005 Diode
CAPACITORs
C61 YESCC318 Ceramic, 0.027 F 50WV
C62 YESCC318 Ceramic, 0.027 F 50WV
C051 YECUS1H470JC Ceramic, 47pF 50WV
C053 YESCC482 Ceramic, 0.01 F 50WV
C055 YESCC482 Ceramic, 0.01 F 50WV
C058 YESCC482 Ceramic, 0.01 F 50WV
C065 YESCC481 Ceramic, 0.001 F 50WV
C067 YESCC482 Ceramic, 0.01 F 50WV
C071 YESCC559 Ceramic, 0.012 F 50WV
C201 YESCC529 Ceramic, 0.22 F 16WV
C202 YESCC550 Electrolytic, 3.3 F 50WV
C204 YESCC452 Ceramic, 1 F 16WV
C206 YESCC549 Electrolytic, 2.2 F 50WV
C207 YESCC452 Ceramic, 1 F 16WV
C208 YESCC483 Ceramic, 0.1 F 50WV
C231 YESCC483 Ceramic, 0.1 F 50WV
C232 YESCC483 Ceramic, 0.1 F 50WV
C233 YESCC481 Ceramic, 0.001 F 50WV
C234 YESCC563 Ceramic, 2.2 F
C235 YESCC545 Electrolytic, 22 F 10WV
C236 YESCC563 Ceramic, 2.2 F
C251 YESCC226 Ceramic, 470pF 50WV
C261 YESCC372 Electrolytic, 4.7 F 25WV
C262 YESCC372 Electrolytic, 4.7 F 25WV
C263 YESCC487 Ceramic, 0.47 F 16WV
C267 YESCC487 Ceramic, 0.47 F 16WV
C268 YESCC487 Ceramic, 0.47 F 16WV
C269 YESCC487 Ceramic, 0.47 F 16WV
C271 YESCC486 Ceramic, 0.0047 F 50WV
18

Ref. No. PartNo. PartName& Description Remarks
C272 YESCC486 Ceramic, 0.0047 F 50WV
C276 YESCC548 Electrolytic, 47 F 16WV
C277 YESCC452 Ceramic, 1 F 16WV
C278 YESCC483 Ceramic, 0.1 F 50WV
C279 YESCC368 Electrolytic, 2200 F 16WV
C280 YESCC563 Ceramic, 2.2 F
C281 YESCC563 Ceramic, 2.2 F
C291 YESCC482 Ceramic, 0.01 F 50WV
C292 F1J1H101A667 Ceramic, 100pF 50WV
C301 YESCC529 Ceramic, 0.22 F 16WV
C302 YESCC550 Electrolytic, 3.3 F 50WV
C304 YESCC452 Ceramic, 1 F 16WV
C306 YESCC549 Electrolytic, 2.2 F 50WV
C307 YESCC546 Electrolytic, 10 F 16WV
C308 YESCC539 Electrolytic, 120 F 10WV
C351 YESCC226 Ceramic, 470pF 50WV
C361 YESCC372 Electrolytic, 4.7 F 25WV
C362 YESCC372 Electrolytic, 4.7 F 25WV
C363 YESCC487 Ceramic, 0.47 F 16WV
C367 YESCC487 Ceramic, 0.47 F 16WV
C368 YESCC487 Ceramic, 0.47 F 16WV
C369 YESCC487 Ceramic, 0.47 F 16WV
C371 YESCC486 Ceramic, 0.0047 F 50WV
C372 YESCC486 Ceramic, 0.0047 F 50WV
C375 YESCC404 Electrolytic, 10 F 16WV
C378 YESCC483 Ceramic, 0.1 F 50WV
C401 YESCC543 Electrolytic, 680 F 10WV
C402 ECQV1H683JL2 Plastic, 0.068 F 50WV
C403 YESCC562 Ceramic, 0.0068 F 50WV
C404 YESCC482 Ceramic, 0.01 F 50WV
C421 F1J1H101A667 Ceramic, 100pF 50WV
C430 YESCC313 Electrolytic, 220 F 10WV
C601 YECUS1H220JC Ceramic, 22pF 50WV
C602 YECUS1H220JC Ceramic, 22pF 50WV
C603 YESCC452 Ceramic, 1 F 16WV
C604 YESCC482 Ceramic, 0.01 F 50WV
C605 YESCC482 Ceramic, 0.01 F 50WV
C606 YESCC397 Electrolytic, 1000 F 6.3WV
C608 F1J1H101A667 Ceramic, 100pF 50WV
C609 YESCC452 Ceramic, 1 F 16WV
19

Ref. No. PartNo. PartName& Description Remarks
C610 YESCC482 Ceramic, 0.01 F 50WV
C611 YESCC482 Ceramic, 0.01 F 50WV
C612 YESCC482 Ceramic, 0.01 F 50WV
C642 YESCC487 Ceramic, 0.47 F 16WV
C660 YESCC549 Electrolytic, 2.2 F 50WV
C701 YESCC483 Ceramic, 0.1 F 50WV
C702 YESCC483 Ceramic, 0.1 F 50WV
C751 YESCC396 Electrolytic, 470 F 16WV
C752 YESCC483 Ceramic, 0.1 F 50WV
C753 YESCC539 Electrolytic, 120 F 10WV
C754 YESCC539 Electrolytic, 120 F 10WV
C755 YESCC482 Ceramic, 0.01 F 50WV
C756 YESCC482 Ceramic, 0.01 F 50WV
C757 YESCC482 Ceramic, 0.01 F 50WV
C758 YESCC483 Ceramic, 0.1 F 50WV
C759 YESCC482 Ceramic, 0.01 F 50WV
C760 YESCC482 Ceramic, 0.01 F 50WV
C770 YESCC547 Electrolytic, 100 F 16WV
C801 YESCC486 Ceramic, 0.0047 F 50WV
C802 YESCC482 Ceramic, 0.01 F 50WV
C803 YESCC560 Ceramic, 0.047 F 50WV
C804 YESCC561 Ceramic, 0.056 F 50WV
C805 YESCC482 Ceramic, 0.01 F 50WV
C806 YESCC481 Ceramic, 0.001 F 50WV
C807 YESCC561 Ceramic, 0.056 F 50WV
C808 YESCC482 Ceramic, 0.01 F 50WV
C809 YESCC483 Ceramic, 0.1 F 50WV
C810 YESCC424 Electrolytic, 100 F 6.3WV
C811 YESCC452 Ceramic, 1 F 16WV
C812 YESCC560 Ceramic, 0.047 F 50WV
C813 YESCC483 Ceramic, 0.1 F 50WV
C814 YESCC483 Ceramic, 0.1 F 50WV
C815 YESCC483 Ceramic, 0.1 F 50WV
C816 YESCC544 Electrolytic, 100 F 6.3WV
C817 YESCC483 Ceramic, 0.1 F 50WV
C818 YESCC544 Electrolytic, 100 F 6.3WV
C819 YESCC483 Ceramic, 0.1 F 50WV
C820 YESCC271 Ceramic, 68pF 50WV
C821 YESCC271 Ceramic, 68pF 50WV
20
