Panasonic KX-TDE100 User manual

Pure IP-PBX
Getting Started
for Physical Cards
Model No. KX-TDE100
KX-TDE200
Thank you for purchasing a Panasonic Pure IP-PBX.
Please read this manual carefully before using this product and save this manual for future use.
KX-TDE100/KX-TDE200: PMMPR Software File Version 7.0000 or later
WWW.ERTEBATGROUP.COM
WWW.ERTEBATGROUP.COM

Table of Contents
1 Before Installation ....................................................................................3
1.1 Safety Notices ...................................................................................................................4
1.2 System Connection Diagram ...........................................................................................5
1.3 Unpacking ..........................................................................................................................6
2 Installation ................................................................................................9
2.1 Opening/Closing the Front Cover ..................................................................................10
2.2 Inserting the SD Memory Card to the IPCMPR Card ....................................................11
2.3 Installing the Option Units .............................................................................................12
2.4 Installing the Trunk Cards ..............................................................................................14
2.5 Installing the Extension Cards (DLC8/DLC16/DHLC8/MSLC16/SLC8/SLC16/
CSLC16) ...........................................................................................................................17
2.6 Connecting Extensions ..................................................................................................17
2.7 Frame Earth Connection ................................................................................................18
3 Before Programming .............................................................................19
3.1 Starting the PBX ..............................................................................................................20
3.2 Connecting the PC ..........................................................................................................21
3.3 Installing the Maintenance Console ..............................................................................22
4 Programming ..........................................................................................23
4.1 Programming the PBX ....................................................................................................24
5 Confirming the Connection ...................................................................29
5.1 Making and Receiving Calls ...........................................................................................30
2 Getting Started for Physical Cards
Table of Contents
WWW.ERTEBATGROUP.COM
WWW.ERTEBATGROUP.COM

Section 1
Before Installation
Getting Started for Physical Cards 3
WWW.ERTEBATGROUP.COM
WWW.ERTEBATGROUP.COM

1.1 Safety Notices
Please observe the safety notices in this manual in order to avoid danger to users or other people, and prevent
damage to property.
The notices are classified as follows, according to the severity of injury or damage:
WARNING
This notice means that misuse could result in death or serious injury.
CAUTION
This notice means that misuse could result in injury or damage to
property.
4 Getting Started for Physical Cards
1.1 Safety Notices
WWW.ERTEBATGROUP.COM
WWW.ERTEBATGROUP.COM

1.2 System Connection Diagram
MSLC16
(KX-TDA0175)
SLC8
(KX-TDA0173)
EXT-CID
(KX-TDA0168)
SLC16
(KX-TDA0174)
E1
(KX-TDA0188)
IP-GW4E
(KX-TDA0484)
IP-GW16
(KX-TDA0490)
PRI30
(KX-TDA0290CE/
KX-TDA0290CJ)
PRI23
(KX-TDA0290)
BRI4
(KX-TDA0284)
BRI8
(KX-TDA0288)
T1
(KX-TDA0187)
E&M8
(KX-TDA0184)
DID8
(KX-TDA0182)
PSU-S/
PSU-M/
PSU-L
(KX-TDA0108/
KX-TDA0104/
KX-TDA0103)
DLC16
(KX-TDA0172)
DLC8
(KX-TDA0171)
DHLC8
(KX-TDA0170)
LCOT4
(KX-TDA0183)
LCOT16
(KX-TDA0181)
LCOT8
(KX-TDA0180)
CID/PAY8
(KX-TDA0189)
CID8
(KX-TDA0193)
CSLC16
(KX-TDA0177)
SLT
Fax
Machine
SLT
(DHLC only) Wireless Phone
(DHLC only)
APT
(DHLC only)
DPT
Voice
Processing
System
DSS
Console
PT-interface CS PS
Radio
Amplifier Pager/Speaker
CSIF4
(KX-TDA0143)
CSIF8
(KX-TDA0144) CS PS
Private
IP Network
Station Message Detail
Recording (SMDR)
Router
Batteries
IP-EXT16
(KX-TDA0470)
OPB3
(KX-TDA0190)
DPH4
(KX-TDA0161)
DPH2
(KX-TDA0162)
ECHO16
(KX-TDA0166)
EIO4
(KX-TDA0164)
MSG4
(KX-TDA0191)
Doorphone & Door Opener
IP-PT
LAN
External Sensor/
External Relay Device
IP Softphone
ISDN BRI Line
ISDN BRI Line
(Digital Trunk)
(Digital Trunk)
ISDN BRI Line
(Digital Trunk)
ISDN PRI Line
ISDN PRI Line
(Digital Trunk)
(Digital Trunk)
ISDN PRI Line
(Digital Trunk)
T1 Line
T1 Line
(Digital Trunk)
(Digital Trunk)
T1 Line
(Digital Trunk)
Analogue
Analogue
Trunk
Trunk
Analogue
Trunk
E & M Line
E & M Line
E & M Line
E1 Line
E1 Line
(Digital Trunk)
(Digital Trunk)
E1 Line
(Digital Trunk)
Telephone
Company
Router
PC
IP Softphone,
CA
*3
Client PC
LAN
CTI Server
IPCMPR
(Installed by default)
IP-PT SIP Extension
V-SIPGW16
V-IPGW16
Virtual
Trunk Slot
Private IP
Network
Mountable Equipment
PC
ITSP*1
Network
DCE*2
(e.g., ADSL
Modem)
Router
WAN
DSP16
(KX-TDE0110)
DSP64
(KX-TDE0111)
RMT
(KX-TDA0196)
ESVM2
(KX-TDA0192)
ESVM4
(KX-TDA0194)
KX-DT300/
KX-T7600
DPT
KX-DT300/
KX-T7600
DPT
PC
KX-DT346/
KX-DT343/
KX-T7636/
KX-T7633 DPT
IP-CS PS
V-SIPEXT32
V-IPEXT32
Virtual
Extension Slot
V-IPCS4
IPCMEC
(KX-TDE0105)
*1 ITSP: Internet Telephony Service Provider
*2 DCE: Data Circuit Terminating Equipment
*3 CA: Communication Assistant
Getting Started for Physical Cards 5
1.2 System Connection Diagram
WWW.ERTEBATGROUP.COM
WWW.ERTEBATGROUP.COM

1.3 Unpacking
Check the package contents.

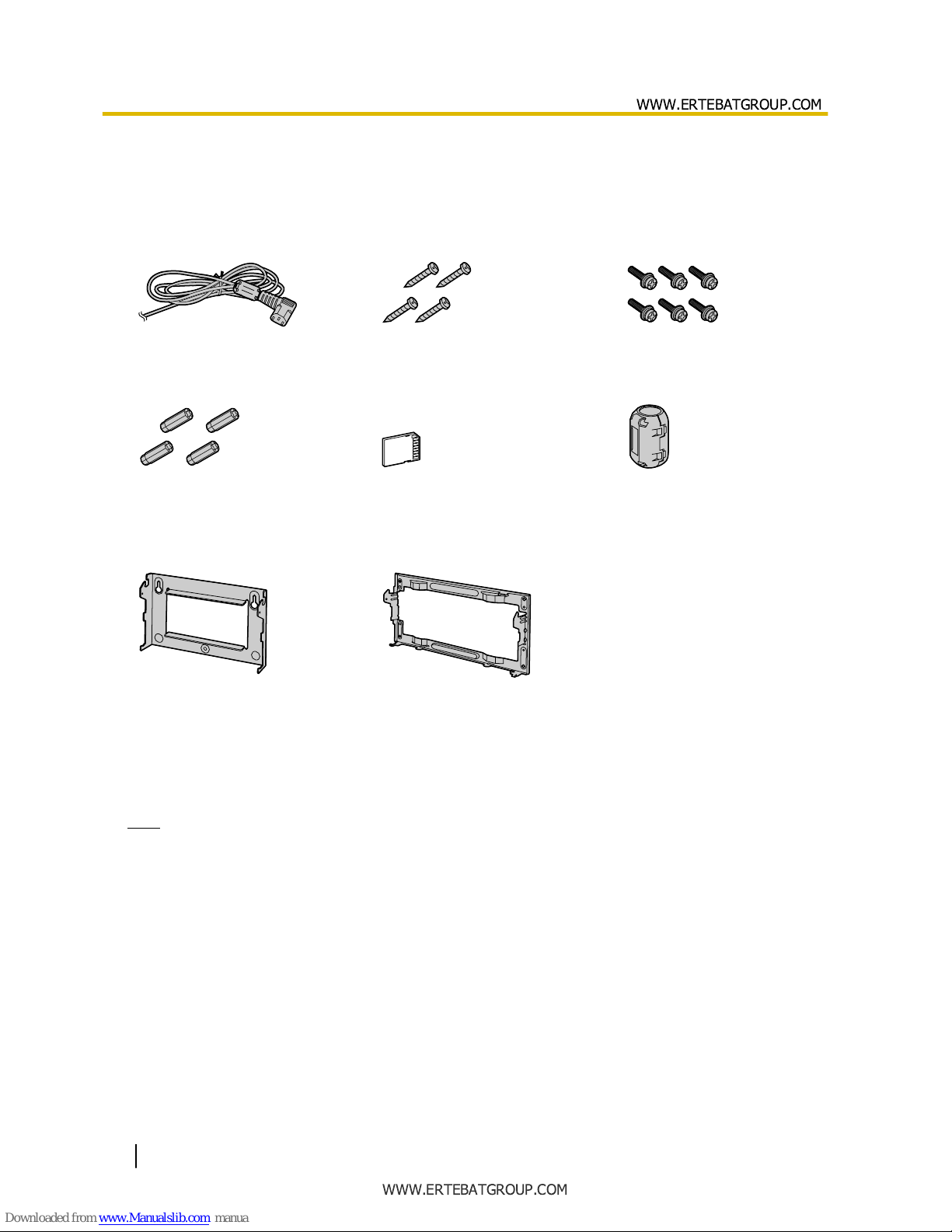

Main Unit ´ 1
CD-ROM (including manuals, etc.) ´ 1
AC Cord*1 ´ 1 Screw A
´ 3 (KX-TDE100)
´ 4 (KX-TDE200)
Screw B (Black)
´ 2 (KX-TDE100)
´ 6 (KX-TDE200)
Anchor Plug
´ 3 (KX-TDE100)
´ 4 (KX-TDE200)
SD Memory Card ´ 1 Ferrite Core (for the IPCMPR
card) ´ 2
for KX-TDE100 for KX-TDE200
Metal Bracket ´ 1
*1 The type of the AC cord may vary depending on the country/area of use.
The KX-TDE100BX/KX-TDE200BX is supplied with 2 types of AC cord. Please use whichever is appropriate for the country/area.
In Canada, there is no ferrite core attached to the AC cord.
Note
In this manual, the suffix of each model number (e.g., KX-TDE100NE) is omitted unless necessary.
6 Getting Started for Physical Cards
1.3 Unpacking
WWW.ERTEBATGROUP.COM
WWW.ERTEBATGROUP.COM

Necessary items (not supplied):
ü Telephone cable for extension connection:
Diameter of cable
(ø 0.4 mm to ø 0.6 mm) Maximum length of cable
ø 0.5 mm 1128 m for SLT
ø 0.5 mm 720 m for KX-DT300/KX-T7600 series
ø 0.5 mm 229 m for other DPT, APT and DSS Console
The maximum length of the cable may vary depending on the type of cable and installation conditions.
ü An RS-232C cross cable or Ethernet straight cable for PC connection
ü Connectors (Amphenol/RJ45/BNC) for trunk and extension connections
Note
•The Ethernet straight cable should be a 10BASE-T/100BASE-TX CAT 5 (Category 5) or higher cable.
•Use a shielded twisted pair cable for the Amphenol connector.
•Use a twisted pair cable for the RJ45 connector.
Getting Started for Physical Cards 7
1.3 Unpacking
WWW.ERTEBATGROUP.COM
WWW.ERTEBATGROUP.COM

8 Getting Started for Physical Cards
1.3 Unpacking
WWW.ERTEBATGROUP.COM
WWW.ERTEBATGROUP.COM

Section 2
Installation
Getting Started for Physical Cards 9
WWW.ERTEBATGROUP.COM
WWW.ERTEBATGROUP.COM

2.1 Opening/Closing the Front Cover
Opening the Front Cover
1. Insert a flathead screwdriver into the opening (on the left of the screw cover) and unlatch the screw cover.
Turn the screw anticlockwise to loosen.
2. Slide the front cover to the right until it stops, then lift the front cover.
Closing the Front Cover
1. Hook the front cover onto the shelf (line up the protrusions on the cover with the receptacles on the shelf),
then slide the front cover to the left until it locks.
2. Turn the screw clockwise to tighten, then secure the screw cover.
2
1
10 Getting Started for Physical Cards
2.1 Opening/Closing the Front Cover
WWW.ERTEBATGROUP.COM
WWW.ERTEBATGROUP.COM

2.2 Inserting the SD Memory Card to the IPCMPR
Card
The SD Memory Card contains software for all the processes of the PBX and all the customer data.
The SD Memory Card must be inserted before startup.
Example: KX-TDE200
IPCMPR Card
SD
CARD
2
SD
CARD
45
SD
CARD
SD
Memory
Card
3
1
CAUTION
Do not remove the SD Memory Card while power is supplied to the PBX. Doing so may cause the PBX to
fail to start when you try to restart the system.
Getting Started for Physical Cards 11
2.2 Inserting the SD Memory Card to the IPCMPR Card
WWW.ERTEBATGROUP.COM
WWW.ERTEBATGROUP.COM

2.3 Installing the Option Units
Slot Position
Install the power supply unit (PSU) into the PSU slot, and optional service cards into free slots.
KX-TDE100 KX-TDE200
PSU Slot
Null Slot*1
Free Slots
IPCMPR Card
*1 Null slot is not available for any optional service card.
CAUTION
To protect the back board from static electricity, do not touch parts on the back board in the main unit,
PSU, and on the optional service cards. To discharge static electricity, touch ground or wear an earthing
strap. Make sure the screws are tightened to earth the card securely.
Installing the Power Supply Unit
1. Insert the PSU along the guide rails.
2. Push the release lever in the direction of the arrow, so that the PSU engages securely with the connector
on the back board.
12 Getting Started for Physical Cards
2.3 Installing the Option Units
WWW.ERTEBATGROUP.COM
WWW.ERTEBATGROUP.COM

3. Turn the 4 screws clockwise, in the order indicated by the numbers 1 to 4, to fix the PSU.
Guide Rail
Back Board
Release Lever
Screws
1
32
4
Installing the Trunk/Extension Cards
1. Insert the card along the guide rails.
2. Holding the card as shown below, push the release lever in the direction of the arrow so that the card
engages securely with the connector on the back board.
3. Turn the 2 screws clockwise to fix the card in place.
Guide Rail
Release
Lever
Back Board
Screws
Be sure to cover each slot in which no optional service card is installed by using a Blank Slot Cover. For details,
refer to "Covering the Blank Slots" in "3.2.7 Installing/Removing the Optional Service Cards" of the Installation
Manual.
Getting Started for Physical Cards 13
2.3 Installing the Option Units
WWW.ERTEBATGROUP.COM
WWW.ERTEBATGROUP.COM

2.4 Installing the Trunk Cards
LCOT4/LCOT8/LCOT16 Card
Example: LCOT 16 Card
Amphenol
To trunk
Accessories (included): Screws ´ 2
User-supplied (not included): Amphenol connector
14 Getting Started for Physical Cards
2.4 Installing the Trunk Cards
WWW.ERTEBATGROUP.COM
WWW.ERTEBATGROUP.COM

BRI4/BRI8 Card
Example: BRI8 Card To attach the ferrite core
To NT1
LINE 1 to
LINE 8
RJ45
TX2(-)
RX1(-)
RX2(+)
TX1(+)
When using 1 or 2 cables:
When using 3 or 4 cables:
•For every 4 cables, use 1 ferrite core; a
ferrite core holds a maximum of 4 cables.
•Attach the ferrite core as close to the
card’s connector as possible.
Accessories (included): Ferrite core(s) ´ 1 (BRI4 card) or 2 (BRI8 card)
User-supplied (not included): RJ45 connector
CAUTION
Connect these optional service cards to the trunk through an NT1; do not connect to the U interface of the
trunk directly.
Notice
When connecting the RJ45 connector, attach the included ferrite core.
Note
•LINE 5 to LINE 8 are for BRI8 card only.
•These optional service cards have 100 W of terminal resistance. For use in point to multi-point
connection, the cards must be placed at the end of the bus.
Getting Started for Physical Cards 15
2.4 Installing the Trunk Cards
WWW.ERTEBATGROUP.COM
WWW.ERTEBATGROUP.COM

PRI30/PRI23 Card
Example: PRI30 Card To attach the ferrite core
To NT1
To NT1
TX-
RX-
RX+
RJ45
TX+
TX+
TX-
BNC (TX)
RX-
RX+
BNC (RX)
For RJ45
120Ω
75Ω
120Ω
75Ω
OR
For BNC
5 cm
Accessories (included): Ferrite core ´ 1
User-supplied (not included): RJ45 or BNC connectors
CAUTION
Connect these optional service cards to the trunk through an NT1; do not connect to the U interface of the
trunk directly.
Notice
When connecting the RJ45 connector, attach the included ferrite core (except in Canada, where the ferrite
core is not necessarily required).
Note
•In some countries/areas, the PRI30 card must not be connected to the Public Switched Telephone
Network.
•Use only 1 type of connector (RJ45 or BNC) for connection of PRI30 card; RJ45 and BNC cannot be
used simultaneously. Set the termination switch to 120 W (default) or 75 W for connector type to be
used.
16 Getting Started for Physical Cards
2.4 Installing the Trunk Cards
WWW.ERTEBATGROUP.COM
WWW.ERTEBATGROUP.COM

2.5 Installing the Extension Cards (DLC8/DLC16/
DHLC8/MSLC16/SLC8/SLC16/CSLC16)
Example: DHLC8 Card To attach the ferrite core
Amphenol
To extensions
3 cm
Accessories (included): Screws ´ 2, Ferrite core ´ 1
User-supplied (not included): Amphenol connector
Note
Attach the included ferrite core to the cable.
2.6 Connecting Extensions
Example: KX-T7600 Series DPT Pin Assignments
To extension card
RJ11
TO MAIN UNIT
/ PABX
DPT and DSS Console
KX-T7000 Series SLT
H L
T R
APT
HTRL
H L
Getting Started for Physical Cards 17
2.6 Connecting Extensions
WWW.ERTEBATGROUP.COM
WWW.ERTEBATGROUP.COM

2.7 Frame Earth Connection
1. Loosen the screw.
2. Insert an earthing wire (user-supplied).
3. Tighten the screw.
4. Connect the earthing wire to earth.
To earth
Earthing
wire
Screw
WARNING
•Proper earthing (connection to earth) is very important to reduce the risk to the user of
electrocution or to protect the PBX from the bad effects of external noise in the case of a
lightning strike.
•The earthing wire of the AC cable has an effect against external noise and lightning strikes, but
it may not be enough to protect the PBX. A permanent connection between earth and the earth
terminal of the PBX must be made.
CAUTION
For earthing wire, green-and-yellow insulation is required, and the cross-sectional area of the conductor
must be more than 0.75 mm2 or 18 AWG.
18 Getting Started for Physical Cards
2.7 Frame Earth Connection
WWW.ERTEBATGROUP.COM
WWW.ERTEBATGROUP.COM

Section 3
Before Programming
Getting Started for Physical Cards 19
WWW.ERTEBATGROUP.COM
WWW.ERTEBATGROUP.COM

3.1 Starting the PBX
CAUTION
•Use only the AC power cord included with the PBX for the PSU.
•Before touching the System Initialise Switch, discharge static electricity by touching ground or wearing
an earthing strap.
•Once you have started the PBX and if you unplug the PBX, do not perform the following procedures
to start the PBX again. Otherwise, your programmed data will be cleared.
•The power supply cord is used as the main disconnect device. Ensure that the AC outlet is located
near the equipment and is easily accessible.
Notice
The SD Memory Card must be inserted in the SD Memory Card slot of the IPCMPR card before startup.
Note
The PBX will continue to be powered even if the power switch is turned "OFF".
1. Slide the System Initialise Switch to the "SYSTEM INITIALIZE" position.
System Initialise Switch
SYSTEM
INITIALIZE
NORMAL
Power
Supply Unit
RUN Indicator
To AC
Outlet
2. Plug the AC power cord into the PBX and an AC outlet, and turn on the PBX. The RUN indicator will flash.
3. While the RUN indicator is flashing, slide the System Initialise Switch back to the "NORMAL" position.
Depending on the configuration, initialisation takes about 1 min to 3 min. If successfully executed, the
RUN indicator will stop flashing and stay lit.
All data will be cleared and the PBX will be initialised to the default values. The DPTs should show the time
as 01:00.
20 Getting Started for Physical Cards
3.1 Starting the PBX
WWW.ERTEBATGROUP.COM
WWW.ERTEBATGROUP.COM
