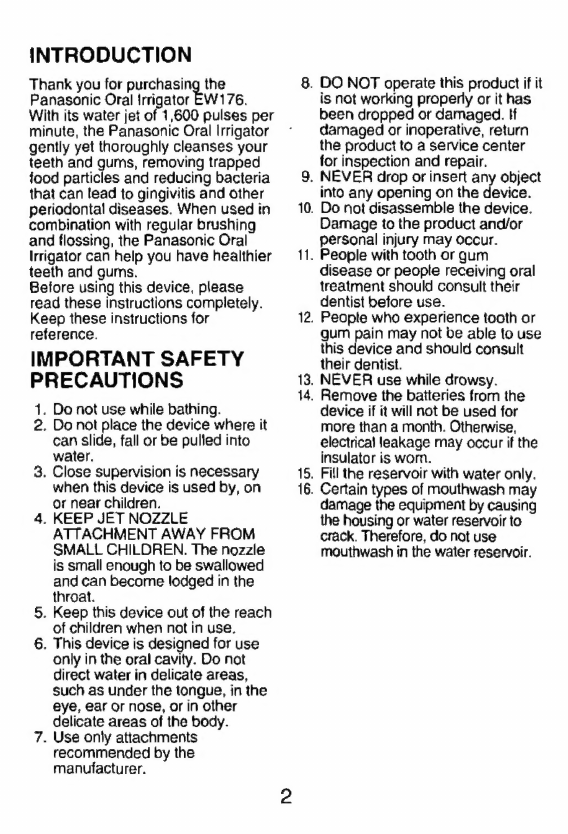

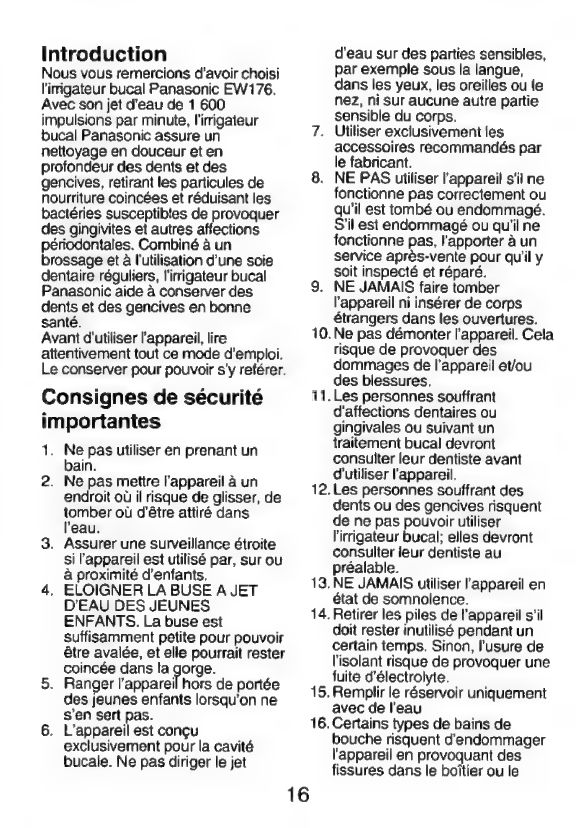

INTRODUCTION
Thank you for pe
Panasonic Oral irrigator
W176.
With its water jet of 1,600 pulses per
minute, the Panasonic Oral Irrigator
gently yet thoroughly cleanses your
teeth and gums, removing trapped
food particles and reducing bacteria
that can lead to gingivitis and other
periodontal diseases. When used in
combination with regular brushing
and flossing, the Panasonic Oral
Irrigator can help you have healthier
teeth and gums.
Before using this device, please
read these instructions completely.
Keep these instructions for
reference.
IMPORTANT SAFETY
PRECAUTIONS
1.
2.
Do not use while bathing.
Do not place the device where it
can slide, fall or be pulled into
water.
. Close supervision is necessary
when this device is used by, on
or near children.
. KEEP JET NOZZLE
ATTACHMENT AWAY FROM
SMALL CHILDREN. The nozzle
is small enough to be swallowed
and can become lodged in the
throat.
. Keep this device out of the reach
of children when not in use.
. This device is designed for use
only in the oral cavity. Do not
direct water in delicate areas,
such as under the tongue, in the
eye, ear or nose, or in other
delicate areas of the body.
. Use only attachments
recommended by the
manufacturer.
8.
10.
12.
13.
14.
15.
16.
DO NOT operate this product if it
is not working properly or it has
been dropped or damaged. If
damaged or inoperative, return
the product to a service center
for inspection and repair.
. NEVER drop or insert any object
into any opening on the device.
Do not disassemble the device.
Damage to the product and/or
personal injury may occur.
. People with tooth or gum
disease or people receiving oral
treatment should consult their
dentist before use.
Peopte who experience tooth or
gum pain may not be able to use
this device and should consult
their dentist.
NEVER use while drowsy.
Remove the batteries frorn the
device if it will not be used for
more than a month. Otherwise,
electrical leakage may occur if the
insulator is worn.
Fill the reservoir with water only.
Certain types of mouthwash may
damage the equipment by causing
the housing or water reservoir to
crack. Therefore, do not use
mouthwash in the water reservoir.

Index
ENGLISH 2
ESPANOL 10
FRANCAIS 16

PARTS IDENTIFICATION
(1) Nozzle insertion hole
(3) Battery cover
(4) Nozzle release button
(5) Lock button
(6) Switch
(7) Nozzle compartment
(8) Water reservoir
@ There may be moisture inside
the water reservoir and suction
hose. This is moisture left from
the distilled water used for
product testing at the factory
and is hygienically safe.
(8) Water reservoir lid
Accessory
dd Nozzle (1)
BEFORE USE
Loading Batteries
@ Be sure to wipe the unit before
installing the batteries so that no
water enters the battery
compartment.
1. Align the cap with the mark on
the unit as shown in Fig. 2 and
remove the cap.
2. Twist the battery cover to the
OPEN position and open it (Fig. 3}.
3. Insert two 1.5-V alkaline (AA/LR6)
batteries, ensuring correct “+” and
“— polarity.
@The device can be used
approximately 60 times (with
one full reservoir of water per
use) with a fresh set of
Panasonic alkaline batteries.
e With rechargeable batteries
(Panasonic Super Ni-Cd 1000/
DC 1.2-V, P-3SPS) installed, the
device can be used
approximately 60 times.
@ Do not mix old and new
batteries.
4. Twist the battery cover to the
CLOSE position and close it.
5. Replace the cap, aligning the mark
on the unit as shown in Fig. 4.
Note: |
The batteries’ power output is
impaired at low temperatures.
CAUTION:
Do not throw batteries into a fire.
Doing so may result in an accident or
explosion.
USING YOUR ORAL
IRRIGATOR (Figs. 5 & 6)
e Rinsing your mouth with
mouthwash is not a substitute for
proper dental care. Brush your
teeth or dental prosthesis for at
least five minutes immediately after
every meal, then use the device,
. Turn the cap to align its hole with
the unit's nozzle insertion hole.
2. Remove the nozzle from its
compartment and insert firmly into
the nozzle insertion hole until the
nozzle clicks into piace.
3. Twist the water reservoir section
to the left and pull it downward to
the water reservoir usable line.
4. Open the water reservoir lid and fill
the reservoir with cold or warm
water, not warmer than 104°F (40°C).
@ Do not put any toothpaste,
powder or other chemicals
into the water reservoir.
e Certain types of mouthwash
may damage the unit by
causing the housing or reservoir
to crack. Therefore, use only
water in the water reservoir.
.

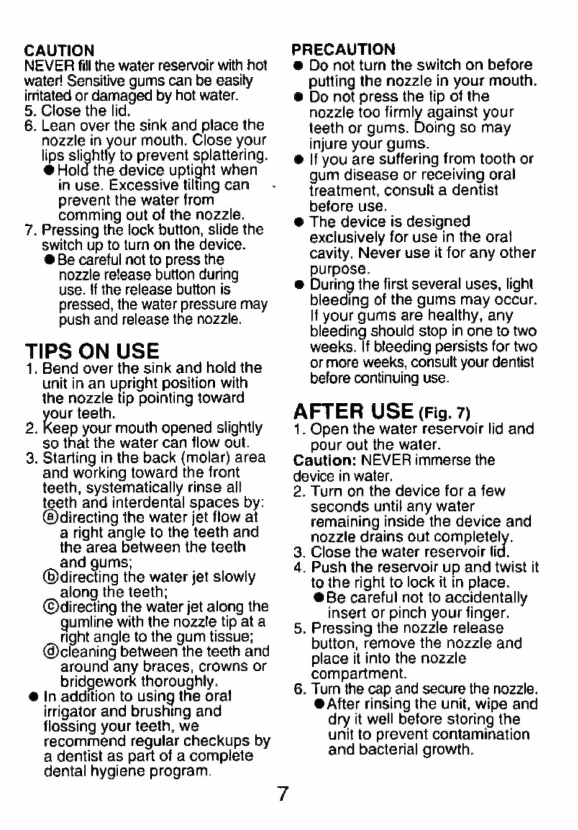

CAUTION
NEVER fill the water reservoir with hot
water! Sensitive gums can be easily
irritated or damaged by hot water.
5. Close the lid.
6. Lean over the sink and place the
nozzle in your mouth. Close your
lips se to prevent splattering.
@ Hold the device uptight when
in use. Excessive tilting can
prevent the water from
comming out of the nozzle.
7. Pressing the lock button, slide the
switch up to turn on the device.
6 Be careful not to press the
nozzle release button during
use. if the release button is
pressed, the water pressure may
push and release the nozzle.
TIPS ON USE
1. Bend over the sink and hold the
unit in an upright position with
the nozzle tip pointing toward
our teeth.
2. Keep your mouth opened slightly
so that the water can flow out.
3. Starting in the back {molar) area
and working toward the front
teeth, systematically rinse all
teeth and interdental spaces by:
@)directing the water jet flow at
a right angle to the teeth and
the area between the teeth
and gums;
®directing the water jet slowly
along the teeth;
©directing the water jet along the
gumline with the nozzle tip at a
right angle to the gum tissue;
@cieaning between the teeth and
around any braces, crowns or
bridgework thoroughly.
@ In addition to using the oral
irrigator and brushing and
flossing your teeth, we
recommend regular checkups by
a dentist as part of a complete
dental hygiene program.
PRECAUTION
ə Do not turn the switch on before
putting the nozzle in your mouth.
e Do not press the tip of the
nozzle too firmly against your
teeth or gums. Doing so may
injure your gums.
e If you are suffering from tooth or
gum disease or receiving oral
treatment, consult a dentist
before use.
ə The device is designed
exclusively for use in the oral
cavity. Never use it for any other
purpose.
e During the first several uses, light
bleeding of the gums may occur.
If your gums are healthy, any
bleeding shouid stop in one to two
weeks. If bleeding persists for two
or more weeks, consult your dentist
before continuing use.
AFTER USE (Fig. 7)
1. Open the water reservoir lid and
pour out the water.
Caution: NEVER immerse the
device in water.
2. Turn on the device for a few
seconds until any water
remaining inside the device and
nozzle drains out completely.
3. Close the water reservoir id.
4. Push the reservoir up and twist it
to the right to lock it in place.
© Be careful not to accidentally
insert or pinch your finger.
5. Pressing the nozzle release
button, remove the nozzle and
place it into the nozzle
compartment.
6. Turn the cap and secure the nozzle.
@ After rinsing the unit, wipe and
dry it well before storing the
unit to prevent contamination
and bacterial growth.

MAINTENANCE
@Nozzle
Remove the nozzle from the
device qə pressing the nozzle
release button. Rinse with water
and wipe with a dry cloth.
ap
Remove the cap from the device
by aligning the mark as shown in
Fig. 8-a. Rinse with water and
wipe with a dry cloth.
@Main unit
Clean the main unit by wiping it
with a cloth lightly dampene
with liquid soap.
@ Use only water or a neutral
cleaning agent to clean the
main unit. Never use caustic or
abrasive agents (e.g., vinegar
or lime-scale remover) because
they may damage the device.

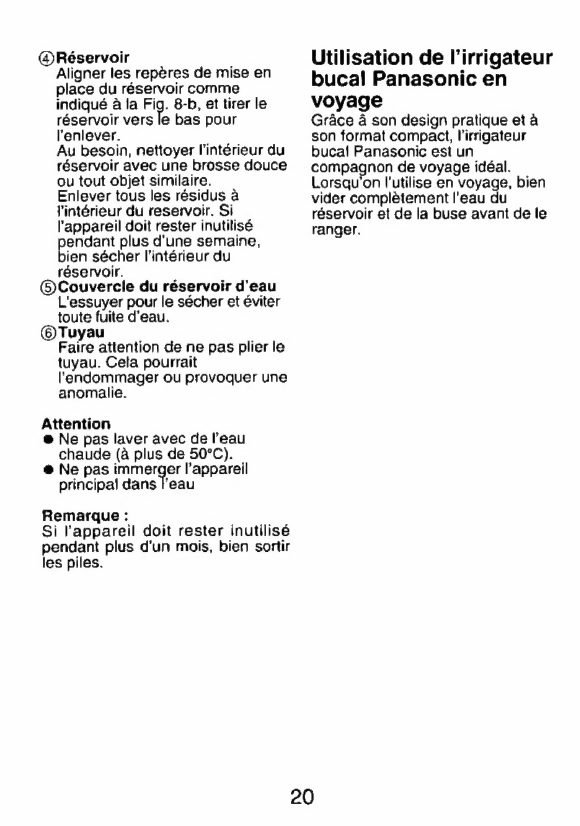

@ Reservoir
Align the reservoir replacing
marks as shown in Fig. 8-b and
pull the reservoir down to
remove it.
Clean the inside with a soft
brush or similar object if necessary.
Wipe off any residue inside the
reservoir. If the device will not
be used for more than a week,
be sure to dry the inside of the
reservoir.
G)Water reservoir lid
Wipe off to prevent water leakage.
Hose .
Be careful not to bend the hose.
Doing so may damage the hose
and result in a malfunction.
CAUTION
e Do not wash with hot water
exceeding 122°F or 50°C).
ə Do not immerse the main unit in
water.
Note:
If the device will not be used for
more than a month, be sure to
remove the batteries.
TRAVELING WITH THE
PANASONIC
ORAL IRRIGATOR
Thanks to its handy shape and
compact size, the Panasonic Oral
Irrigator is an ideal traveling
companion. When using itona
trip, be sure to completely drain the
reservoir and nozzle before putting
the device away.

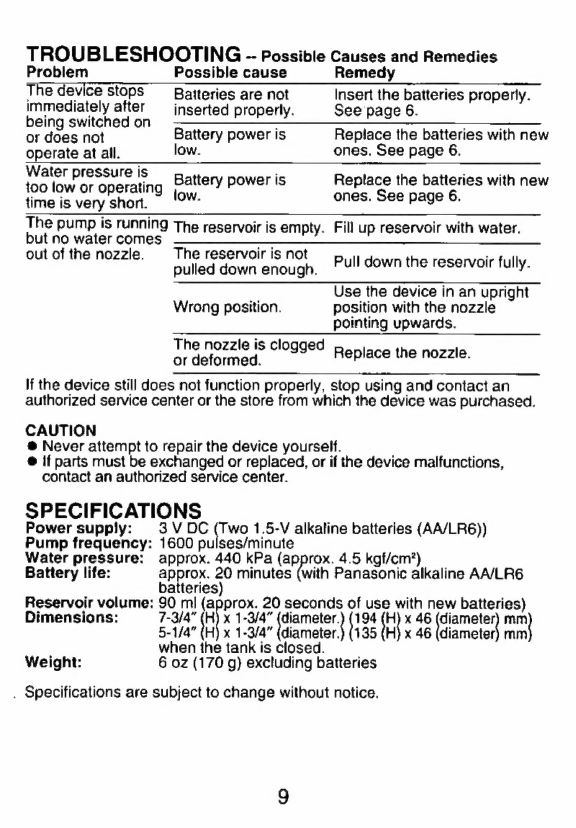

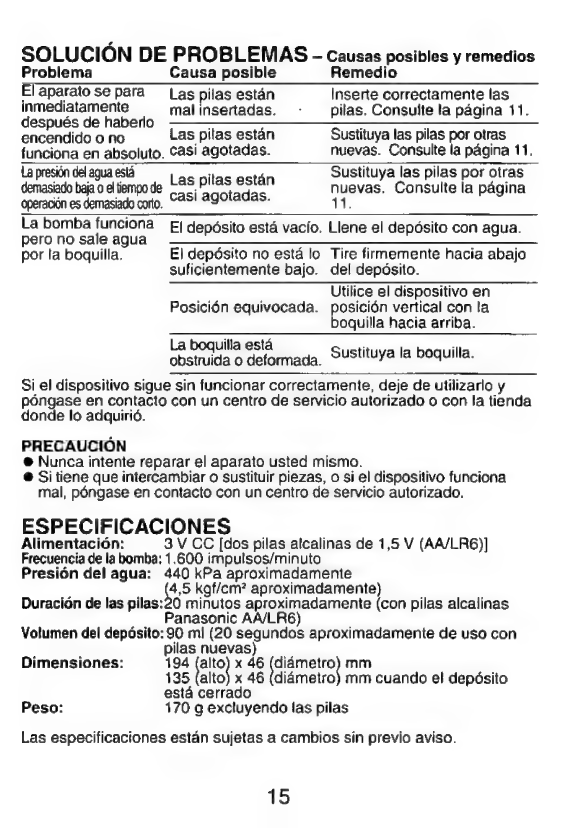

TROUBLESHOOTING -- Possible Causes and Remedies
Problem Possible cause Remedy
The device stops Batteries are not Insert the batteries properly.
immediately after inserted properly. See page 6.
being
switched
on
-—
—
—-—--—
o
—
or does
not
Battery
povver
is
Replace
the
batteries
with
new
operate
at all.
low.
ones.
See
page
6.
Water pressure is
too low or operating
time is very short.
The pump is ae The reservoir is empty. Fill up reservoir with water.
but no water comes —— 8989808000
out of the nozzle. The reservoir is not
pulled down enough.
Battery power is Replace the batteries with new
low. ones. See page 6.
Pull down the reservoir fully.
Use the device in an upright
Wrong position. position with the nozzle
pointing upwards.
The nozzle is clogged
or deformed. Replace the nozzle.
If the device still does not function properly, stop using and contact an
authorized service center or the store from which the device was purchased.
CAUTION
ə Never attempt to repair the device yourself.
© if parts must be exchanged or replaced, or if the device malfunctions,
contact an authorized service center.
SPECIFICATIONS
Power supply: 3VDC 7 1.5-V alkaline batteries (AA/LR6))
Pump frequency: 1600 pulses/minute
Water pressure: approx. 440 kPa (approx. 4.5 kgf/cm?)
Battery life: a ete a minutes (with Panasonic alkaline AA/LR6
atteries
Reservoir volume: 90 ml (approx. 20 seconds of use with new batteries}
Dimensions: 7-3/4" tH x 1-3/4” damı, 194 Hi 46 diameter) mm
5-1/4” (H) x 1-3/4” (diameter.) (135 (H) x 46 (diameter) mm
when the tank is closed.
Weight: 6 oz (170 g} excluding batteries
. Specifications are subject to change without notice.

INTRODUCCION
Muchisimas gracias por haber
adquirido el irrigador oral portätil
EW176. Con su chorro de agua de
1.600 pulsaciones por minuto, el
irrigador oral portatil limpia sus
dientes y encias de forma suave
pero concienzuda, eliminando las
particulas de comida atrapadas y
reduciendo las bacterias que
pueden causar gingivitis y otras
enfermedades periodontales.
Cuando se utilice en combinación
con cepillo de dientes e hilo dental,
el irrigador oral portátil le ayudará a
tener unos dientes y encías más
sanos.
Antes de utilizar este aparato, lea
completamente estas instrucciones
y guárdelas para utilizadas como
referencia en el futuro.
PRECAUCIONES DE
SEGURIDAD
IMPORTANTES
1.
2.
No lo utilice mientras se baña.
No ponga el aparato donde
pueda deslizarse, caerse o
introducirse en el agua.
Cuando este aparato sea
utilizado por un niño, con un niño
o cerca de él deberá realizarse
una supervisión cuidadosa.
MANTENGA LA BOQUILLA
DEL CHORRO DE AGUA
ALEJADA DE LOS NINOS
PEQUENOS. La boquilla es muy
pequeña y puede ser tragada y
quedarse alojada en la garganta.
Mantenga este aparato fuera del
alcance de los niños cuando no
lo utilice.
. Este aparato ha sido diseñado
para ser utilizado solamente en
10
la cavidad oral. No dirija el
agua a zonas delicadas tales
como debajo de la lengua, los
ojos, la nariz u otras partes
delicadas del cuerpo.
Utilice solamente los accesorios
recomendados por el fabricante.
NO utilice este aparato si no
funciona correctamente o si se
ha caído o estropeado.
Si se ha estropeado y no
funciona, devuelva el producto a
un centro de servicio para
inspeccionarlo y repararlo.
. NUNCA deje caer el aparato ni
inserte ningún objeto extraño por
cualquiera de sus aberturas.
10.No desmonte el aparato. Se
pueden producir daños en el
producto y/o lesiones
personales.
11.Las personas con enfermedades
de los dientes o encías, o las
que estén recibiendo tratamiento
oral deberán consultar a sus
dentistas antes de utilizar este
aparato.
12. Las personas con dolores de
dientes o encías no deberán
utilizar este aparato, y deberán
consultar a sus dentistas.
13. NUNCA utilice este aparato
teniendo sueño.
14, Quite las pilas del aparato si no
va a utilizarlo durante más de un
mes. De lo contrario pueden
producirse fugas eléctricas si el
aislador está desgastado.
15. Llene el depósito de agua sólo
con agua.
16, Ciertos tipos de enjuagues
pueden estropear el aparato
haciendo que su caja o depósito
de agua se agrieten. Por fo
tanto, no utilice enjuagues en el
depósito de agua.
