Operating Instructions
Wireless Remote Controller
Model No. CZ-RWSU2N CZ-RWSC3 CZ-RWSD2
CZ-RWST3N CZ-RWSL2N CZ-RWSK2
00OI303000.indb100OI303000.indb1 2015/02/2016:22:582015/02/2016:22:58

2
1
2
3
4
5
6
7
8
9
10
12
11
13
14
15
16

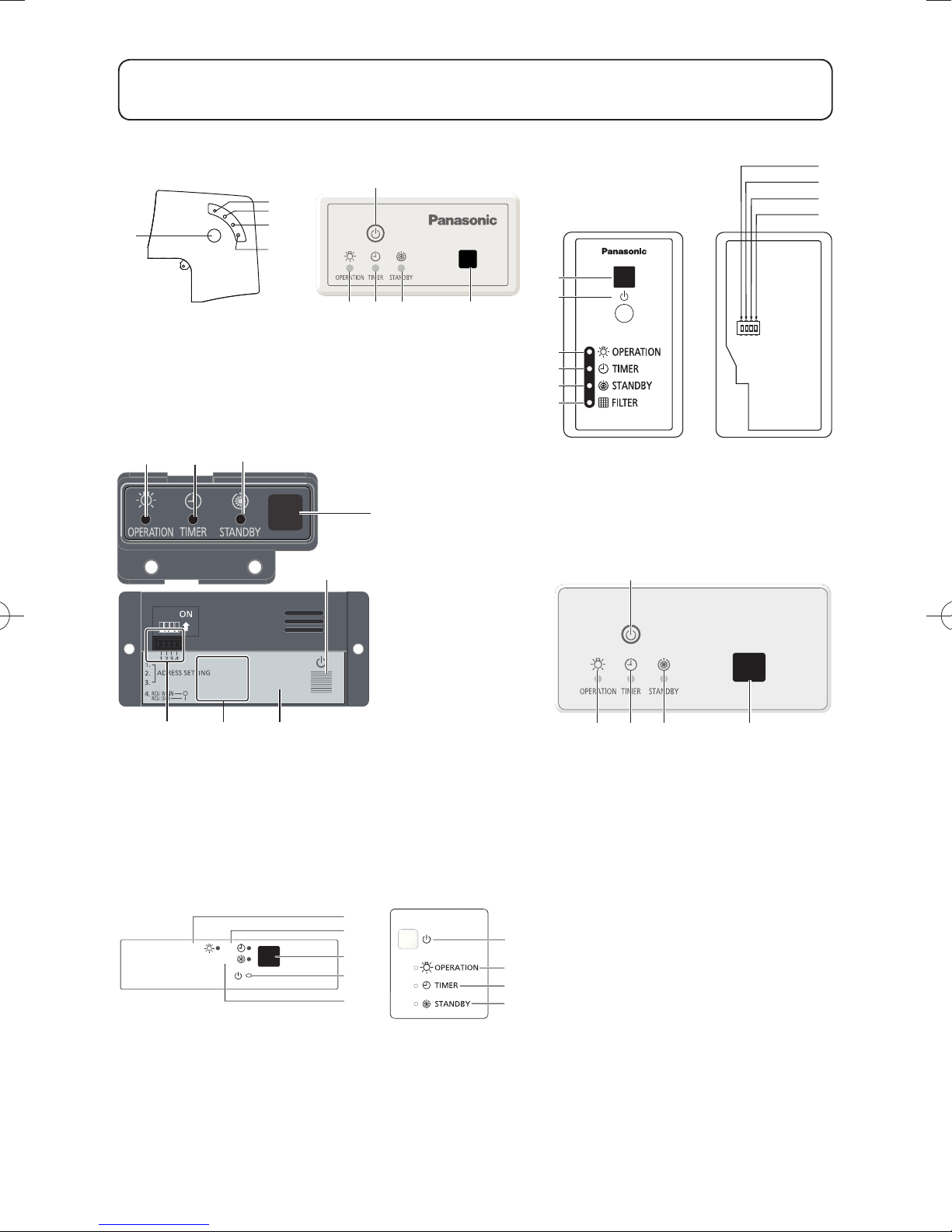

REMOTE CONTROLLER / TÉLÉCOMMANDE / CONTROL REMOTO /
FERNBEDIENUNG / TELECOMANDO / TELECOMANDO /
ΤΗΛΕΧΕΙΡΙΣΤΗΡΙΟ / UZAKTAN KUMANDA / ПУЛЬТ ДИСТАНЦИОННОГО
УПРАВЛЕНИЯ / ПУЛЬТ ДИСТАНЦІЙНОГО КЕРУВАННЯ
00OI303000.indbEN-200OI303000.indbEN-2 2015/02/2016:22:592015/02/2016:22:59

3
Receiver / Récepteur / Receptor / Empfänger / Ricevitore / Receptor / Δέκτης / Alıcı/
Приёмник / Приймач
1
2
3
4
5
6
ADDRESS 1
ADDRESS 2
ADDRESS 3
REM SUB/MAIN
1234
CZ-RWSC3
1543
2
CZ-RWSD2CZ-RWSU2N





Front side Rear side
Display / Affichage/
Visor / Display / Display
Visor / Οθόνη / Ekran
Дисплей / Дисплей
CZ-RWSL2N
345
1
2
7
89
Operation Panel / Panneau de commande
Panel de operaciones / Bedienfeld / Pannello
di Comando
Painel de comando / Πλαίσιο λειτουργίας /
İşletme Paneli
Панель управления / Панель керування
TIMEROPERATION
STANDBY
1
2
2
3
3
4
4
5
5
For wall mounted type indoor unit (CZ-RWSK2) / Pour montage mural type appareil intérieur (CZ-RWSK2) /
Unidad interior de tipo montaje en pared (CZ-RWSK2) / Für Wandgeräte (CZ-RWSK2) / Per apparecchio interno
di tipo da muro (CZ-RWSK2) / Para unidade interior do tipo de parede (CZ-RWSK2) / Για επιτοίχια εσωτερική
μονάδα (CZ-RWSK2) / Duvar tipi iç ünite için (CZ-RWSK2) / Для устанавливаемый на стене внутреннего
блока(CZ-RWSK2) / для внутрішнього блоку монтаж на стіні (CZ-RWSK2)
1543
2
CZ-RWST3N
00OI303000.indbEN-300OI303000.indbEN-3 2015/02/2016:22:592015/02/2016:22:59

4(EN)
Note:
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
• Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the distributor or an experienced radio/TV
technician for help.
FCC Caution: To assure continued compliance, follow
the attached installation instructions. Any changes
or modifications not expressly approved by the party
responsible for compliance could void the user’s authority
to operate this equipment.
Safety Precautions
00OI303000.indb400OI303000.indb4 2015/02/2016:23:002015/02/2016:23:00

5
(EN)
ENGLISH
Safety Precautions
CAUTIONS
This appliance is intended to be used by expert or
trained users in shops, in light industry and on farms, or
for commercial use by lay persons.
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
WARNING
Do not use this appliance in a potentially explosive
atmosphere.
• Do not operate with wet hands.
• Do not wash with water.
In case of malfunction of this appliance, do not repair
by yourself. Contact the sales or service distributor for
repair.
In case of emergency, remove the power plug
from the socket or switch off the circuit breaker
or the means by which the system is isolated
from the mains power.
WARNING CAUTION
This symbol refers to a hazard or unsafe
practice which can result in severe personal
injury or death.
This symbol refers to a hazard or unsafe
practice which can result in personal injury or
product or property damage.
Matters to be observed Prohibited matters
00OI303000.indb500OI303000.indb5 2015/02/2016:23:002015/02/2016:23:00

6(EN)
Contents
1. Important Safety Instructions ................................................7
2. Names and Operations.........................................................8
3. Installing Batteries...............................................................10
4. Setting the Current Time.....................................................11
5. Operation ............................................................................12
6. Timer Operation ..................................................................14
7. Adjusting the Wind Direction...............................................16
8. Operating Multiple In/Outdoor Units Simultaneously ..........17
9. Using the Remote Controller...............................................18
10. For Best Results .................................................................18
11. Addresses...........................................................................19
12. Emergency Operation.........................................................21
13. Miscellaneous Settings .......................................................22
14. Before Requesting Service .................................................23
15. Specifications......................................................................24
NOTICE
The English text is the original instructions.
Other languages are translation of the original instructions.
00OI303000.indb600OI303000.indb6 2015/02/2016:23:012015/02/2016:23:01

1. Important Safety Instructions
7
(EN)
ENGLISH
Before using the system, be sure to
read these “Important Safety
Instructions”.
After reading this manual, save it in a
convenient place.
Warning
Installation Precautions
• Do not install this equipment
yourself.
Installation should always be
performed by your distributor or a
professional service provider.
Electric shock or fire may result if
an inexperienced person performs
any installation or wiring
procedures incorrectly.
• Use only specified air conditioners.
Always use only air conditions
specified by the distributor.
Precautions for Use
• Do not touch switches with wet
hands.
Electric shock and damage to the
system can result.
• Protect the remote controller from
water because it may cause
damage to the system.
• Stop the system and turn the
power off if you notice unusual
smells or other irregularities.
Continuing operation when the
system is out of order can result in
electric shock, fire, and damage to
the system. Contact your
distributor.
• Do not swallow the battery.
Moving and Repair
Precautions
• Do not repair.
Never repair the system yourself.
• Contact your distributor before
moving the system.
Contact your distributor or a
professional service provider about
moving and reinstalling the system.
Electric shock or fire may result if
an inexperienced person performs
any installation procedures
incorrectly.
00OI303000.indb700OI303000.indb7 2015/02/2016:23:012015/02/2016:23:01

2. Names and Operations
8(EN)

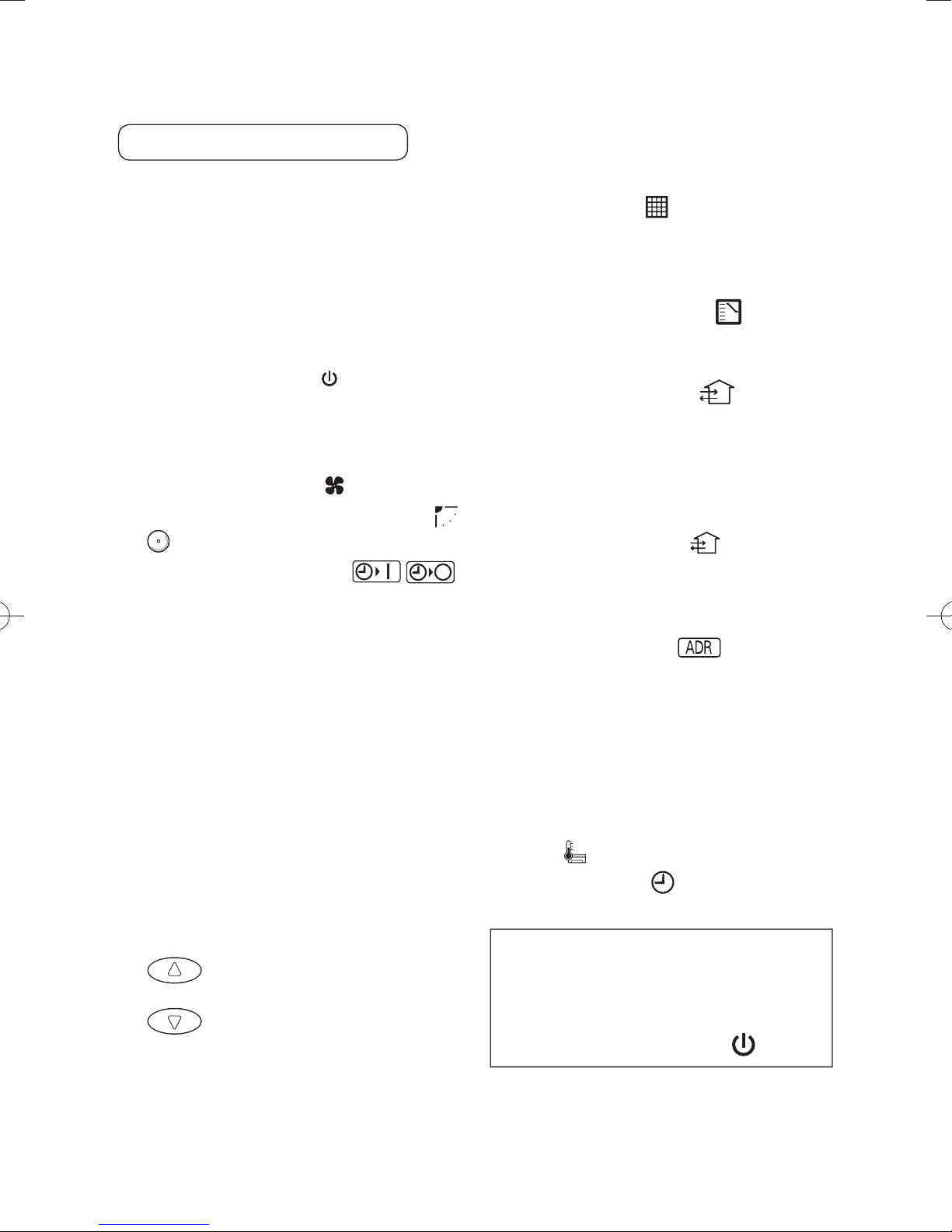

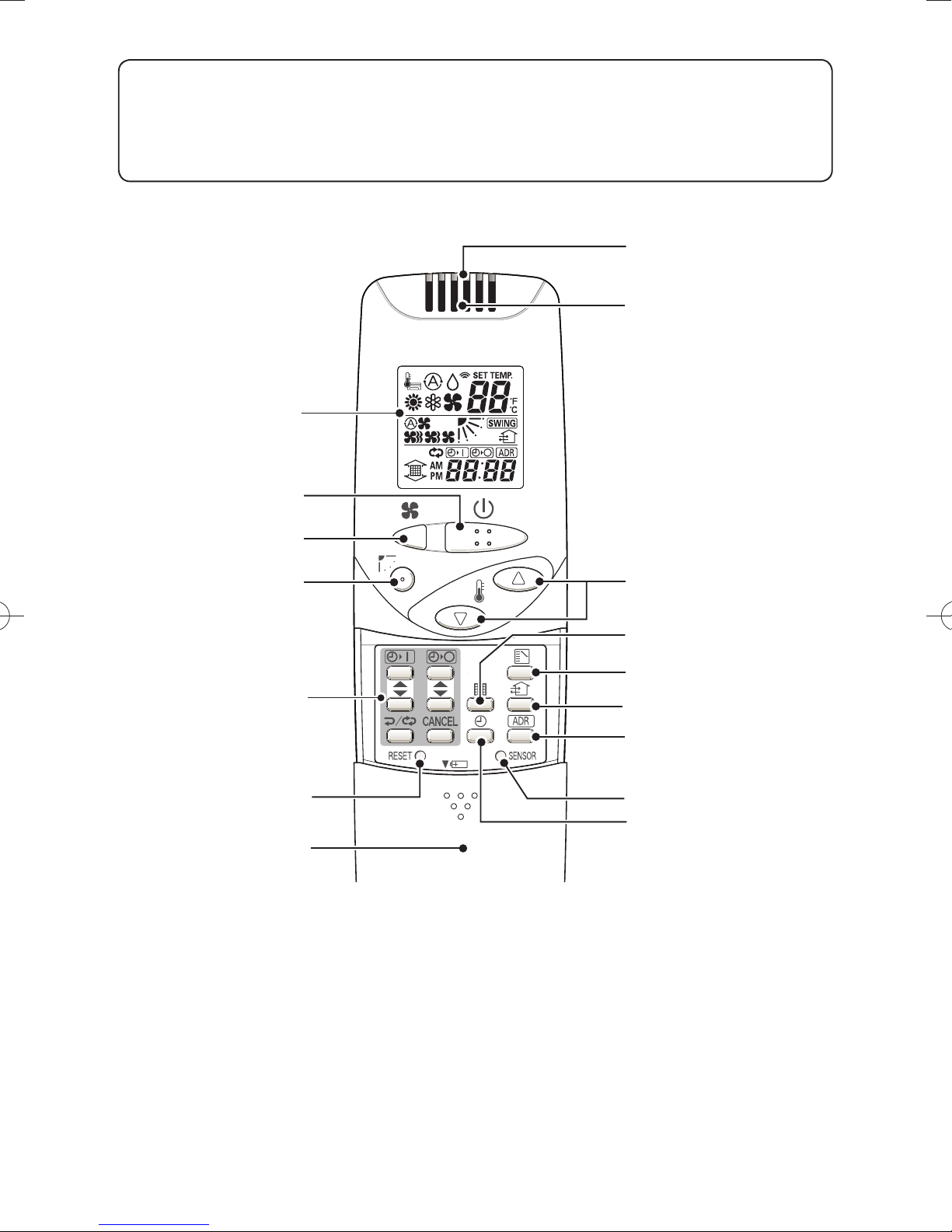

REMOTE CONTROLLER
One remote controller can control a group of
up to eight indoor units. (See page 17)
1. Operation Display
Displays the operation status.
(The figure shows all the
statuses.)
• The auto-flap display may be
different, depending on the
installed unit. (See page 16.)
2. Start/Stop button
Pressing this button once starts
and pressing again stops the
operation.
3. Fan speed button
4. Swing/Wind Direction button
5. Timer setting button
Use for operating with a timer.
6. Reset button
Use this button after changing the
batteries.
7. Cover
Press at the top center and then
slide down.
8. Transmitter
9. Remote control sensor
Detects the temperature at the
remote controller when detection
has been switched to the remote
controller by the sensor button.
10.Temperature setting buttons
raises the temperature
setting 1 °C at a time.
lowers the temperature
setting 1 °C at a time.
11.Filter button
CZ-RWSC3
Press to turn off the filter lamp on
the receiver.
12.Mode Select button
Press to switch the operation
mode.
13.Ventilation button
Use this when connected to an
aftermarket fan. Pressing this
button starts and stops the fan.
When the air conditioner is started
or stopped, the fan starts or stops
at the same time. ( appears on
the display of the remote
controller when the fan is
operating.)
14.Address button
15.Sensor button
Used this to activate the
temperature sensor on the remote
controller instead of the one on
the indoor unit. The temperature
sensor on the indoor unit is
selected before shipment. At this
time is shown on the display.
16.Clock button
Use this to set the clock.
From this page, the names of
remote controller’s buttons will be
indicated with the above
illustrations.
E.g.: Start/Stop button 
00OI303000.indb800OI303000.indb8 2015/02/2016:23:012015/02/2016:23:01

ENGLISH
9
(EN)
1. Receiver
Receives the signal sent from the
remote controller.
2. Emergency operation button
Indicator lamps
When an error occurs, one of the lamps
flashes. When an indicator lamp is
flashing, refer to “14. Before Requesting
Service”.
3. OPERATION lamp
Lights up when the unit is
operating.
4. TIMER lamp
Lights up when the timer is set.
5. STANDBY lamp
• The lamp in the HEAT mode
lights up at the following times:
during the startup, during the
thermostat operation, and during
the defrosting.
• The lamp flashes when an error
occurs.
6. FILTER lamp
This lamp is for notifying you
when the filter needs to be
cleaned.
7. Address switch
See “11. Addresses”.
Note
• If non-cooling/heating free type is
being used, it will beep twice and the
operating lamp will light up on the
display; if the timer and standby lamps
blink alternately, a conflict between the
heating and cooling exists, so the unit
cannot operate in the desired mode.
(On models that do not have an Auto
function, even if Auto is selected, it
works in the same way.)
• When the local operation is disabled
by centralized control or similar cause,
and if the Start/Stop , Mode or
Temperature setting button
is pressed, the unit will beep five times
and the change will not be made.
2. Names and Operations (Cont.)
Receiver
00OI303000.indb900OI303000.indb9 2015/02/2016:23:022015/02/2016:23:02

3. Installing Batteries
10 (EN)
1. Remove the cover.
2. Insert two LR03 size batteries.
Put the batteries in with the polarity [+/–]
as shown in the figure.
3. Gently insert one end of an
unfolded paper clip (or a similar
object that can fit) into the Reset
hole and press the Reset button
inside the hole, then put the cover
back on.
Notes
• Change the batteries when the display of the
remote controller gets weak, or if it will not work
unless close to the receiver.
(Alkaline batteries generally last about one year.)
• When changing batteries, always use two fresh batteries of the same make.
• If the remote controller will not be used for a long period of time, remove the batteries.
• Please dispose of batteries appropriately.
• After changing the batteries, follow the procedures on the next page to reset the
current time.
How to Remove Batteries
1. Remove the cover.
2. Press the battery toward the
negative end and lift it out by
its positive end. (See the
figure on the right.)
3. Remove the other battery in
the same way.
Note
• Dispose of the used batteries at the designated location in compliance with the
applicable local ordinances.
Warning
• Do not swallow the battery.
•
After removing the battery from remote controller, keep it out of the reach of children.
The battery can cause death by suffocation if swallowed.
• When inserting the battery, make sure the polarities (+ and -) are correct.
Reset hole
Cover
00OI303000.indb1000OI303000.indb10 2015/02/2016:23:022015/02/2016:23:02

4. Setting the Current Time
11
(EN)
ENGLISH
After changing the batteries and pressing the Reset
button, be sure to reset the current time.
(When the Reset button is pressed, the current time
reverts to [ ].)
1. Press for two seconds or more.
Once the clock displays starts blinking, the clock
can be set.
2. Set the hour with / of the .
If you press and hold the button, the time changes
quickly.
3. Set the minutes with / of the .
If you press and hold the button, the time changes
quickly.
4. Pressing completes the time setting.
• While you are setting the current time, the time
display flashes and the colon lights up.
• If the buttons are not pressed for three minutes
while setting the current time, it is set to the
displayed time.
Note
• When the Reset button is pressed, the timer settings are canceled.
2 1, 4
3
00OI303000.indb1100OI303000.indb11 2015/02/2016:23:022015/02/2016:23:02

5. Operation
12 (EN)
Power: Turn on the circuit breaker
beforehand, referring to the
operating instructions for the
unit.
1. Press .
2. Press and select from among Auto
,Heat ,Dry , Cool and Fan .
3. Press and select the desired speed.
If set to Auto , the fan speed switches
automatically. (Auto does not work in Fan
mode.)
4. Press one of the buttons
and set the desired temperature.
Temperature settings cannot be made in
Fan mode.
MAX (°C) MIN (°C)
Auto 27 17
Heat 30 16
Dry / Cool 30 18
Stop: Press .
When the unit is stopped with the remote controller, the fan on the outdoor
unit may continue to run for a while, even though the compressor of the
outdoor unit stops.
Auto , Heat , Dry , Cool , Fan
Models that only provide the cooling function cannot operate in the auto or
heating mode.
1
4
2
3
00OI303000.indb1200OI303000.indb12 2015/02/2016:23:032015/02/2016:23:03

ENGLISH
13
(EN)
If the unit is not heating very effectively with a Low fan speed , switch
the fan speed to High or Medium .
Depending on the indoor unit being used, it may indicate a function that it
does not have. (The fan speed is constant.)
If you cannot turn the air conditioner off in the normal way
Disconnect the power to the indoor unit and contact the distributor where the
product was purchased.
<Auto operation>
Only when identical refrigerant system inside all the indoor units or cooling/
heating free-type are under control as one group. It heats or cools
automatically via the differences between the set temperature and the room
temperature.
<Dry operation>
• Depending on the indoor unit used, the remote controller may have a [Dry]
indicator on its display even though the unit does not have the Dry
function. (Same as cooler operation)
• When the room temperature approaches the temperature setting, the unit
continues to start up or stop automatically.
• When the drying mode stops operating, the indoor unit’s fan blows a gentle
breeze in order to keep the moisture from returning to the room at a
minimum.
• Depending on the indoor unit used, and/or the temperature in the room, the
fan speed may not be adjustable.
• Depending on the unit used, when the outside air temperature is 15 °C or
less, the dry function will not operate.
5. Operation (Cont.)
00OI303000.indb1300OI303000.indb13 2015/02/2016:23:042015/02/2016:23:04

6. Timer Operation
14 (EN)
• When setting the timer, make sure the current time on the remote controller
is accurate.
• The timer’s clock can only be set when the display of the remote controller
is ON.
• After setting the timer, put the remote controller for in a place where its
signal will reach the receiver of the indoor unit. (When the time set for the
timer is reached, a signal is sent from the remote controller to start or stop
the unit.)
Using the Timer
1. Press either / of the or , and
while the time is being displayed, if you
press / again, a scheduled time can
be set.
The time last set on the timer is displayed.
“--:--” indicates time to change the batteries.
2. Press either / of the or and
set the timer to the desired time.
Every time you press /, the time changes in
10 minute increments. If you press and hold the
button, the time changes quickly.
3. After setting the timer, if you press , the
time you set changes to a steady display,
indicating settings are complete.
After the timer setting is displayed for three seconds,
the display reverts to the current time. 1, 23
00OI303000.indb1400OI303000.indb14 2015/02/2016:23:042015/02/2016:23:04

ENGLISH
15
(EN)
Combining ON and OFF Timers
• The ON and OFF timers can be set respectively.
Checking the timer setting
• If you press either / for the or the , the scheduled time is
displayed for four seconds.
• When no timer setting has been made, it displays --:--. (Initial setting)
Changing a timer setting
• Press / for the or the , and then when the timer setting is
displayed, press / for the timer again.
Canceling a timer setting
• If you press [CANCEL], the timer setting is canceled.
• If you wish to cancel the setting for either the or the timer,
press / , and long-press [CANCEL] while the scheduled time is
displayed.
Using the same timer setting every day
• If you press for 2 or more seconds, “ ” is displayed and the ON
timer or the OFF timer will operate repeatedly every day.
• If you press again for two seconds or more, “ ” goes off and the
timer operates only one time.
6. Timer Operation (Cont.)
00OI303000.indb1500OI303000.indb15 2015/02/2016:23:052015/02/2016:23:05

7. Adjusting the Wind Direction
16 (EN)
• Never try to manually move the flap (up-down wind direction plate) that is
operated by the remote controller.
• When the unit stops, the flap (up-down wind direction plate) automatically
faces downwards.
• When the unit is in heating standby, the flap (up-down wind direction plate)
faces upwards. Also, bear in mind that the flap starts swinging after the
heating standby mode is released, but the display on the remote controller
indicates Auto Flap during standby heating as well.
CZ-RWSU2N/CZ-RWSD2/
CZ-RWSL2N/For wall mounted
type indoor unit (CZ-RWSK2)/
CZ-RWST3N
Setting the Wind Direction
While the unit is operating, every time
you press , the direction the flap
faces changes.
Setting Flap to Swing
If you press to set the flap (up-
down wind direction plate) in its most
downward facing position, and then
press again, is displayed
and the flap swings automatically up
and down.
Stopping Flap Swing
If you press again while the flap
is swinging, you can stop the flap from
swinging and set it in place as
desired. Thereafter, if you press ,
you can set the wind direction starting
from the most upward position.
• When the unit is in the Cool or Dry
mode, the flap cannot stop facing
downwards. If you try to stop the
flap from swinging while it is facing
downwards, it will continue moving
until it is in the third position from
the top.
In the Heat Mode
Please face the flap
(up-down wind
direction plate)
downwards. If it faces
upwards, the warm air
will not reach the floor level.
In the Cool or Dry Mode
Please face the flap
(up-down wind
direction plate)
upwards. If the plate
faces downwards,
condensation may
form and drip from
around the air outlet.
In the Fan Mode
Initial setting
In All Modes
Moves constantly
Displays with Swing Stopped
Fan/Heat
modes
Cool/Dry
modes
Initial setting

Initial setting
00OI303000.indb1600OI303000.indb16 2015/02/2016:23:052015/02/2016:23:05

ENGLISH
17
(EN)
CZ-RWSC3
The available functions differ depending on the indoor unit being used. The
wind direction cannot be set via remote controller for any models other than
those noted below. For more information, please refer to the Operating
Instructions that came with your indoor unit.
4-WAY Cassette Models, 2-WAY Cassette Models, 1-WAY Cassette
Models (High Ceiling),Ceiling Models, Wall Mounted Models
Please refer to Setting the Wind Direction and Stopping Flap Swing.
8. Operating Multiple In/Outdoor Units Simultaneously
Group control works well for providing
air conditioning to one
large room with more than
one air conditioning units.
• One remote controller can
operate up to eight indoor
units.
• All the indoor units have
identical settings.
• Set temperature sensing
to the indoor unit (Main
sensor). (See page 2.)
(Group control)
7. Adjusting the Wind Direction (Cont.)
Outdoor unit
Indoor unit
Signal line
Receiver
Wireless remote controller
00OI303000.indb1700OI303000.indb17 2015/02/2016:23:062015/02/2016:23:06

9. Using the Remote Controller
18 (EN)
• Point the transmitter of the remote controller at the receiver. When the
signal is received properly, it will beep one time. (It only beeps two times
when the unit starts operating.)
• The signal can be received at a distance of up to about 6 meters. This
distance should be used only as a guide. It depends on battery strength.
• Make sure nothing is between the remote controller and the receiver that
could block the signal.
• Do not leave the remote controller in direct sunlight, where the wind from
the air conditioner can blow directly on it, or near any other heat source.
• Take care not to drop, throw, or wash the remote controller with water.
• The signal from the remote controller may not be received in rooms with
rapid start fluorescent lighting, inverter lights, plasma displays, LCD
televisions (monitor), etc. For more information, please contact the
distributor where the product was purchased.
Wall Mount Use
• Press from the location
you wish to mount the remote
controller and make sure the
signal is received properly.
• Pull the remote controller
forward to remove it.
10. For Best Results
Don’t get the remote controller too far away from the receiver.
This may cause a malfunction.
Be sure to keep the remote controller in the same room as the receiver.
Point the remote controller at the receiver.
When the signal is received properly, it will beep one time.
Avoid locating the remote controller where it is covered, such as
behind a curtain.
Keep it out in the open.
Remote control
holder

1
2
Fasten the remote
control holder with
screws.
Fitting the remote
controller in the
holder
Push
Fit in
00OI303000.indb1800OI303000.indb18 2015/02/2016:23:062015/02/2016:23:06

11. Addresses
19
(EN)
ENGLISH
In both multi and single unit installations, when more than one indoor units
are installed in the same room with a compatible wireless remote controller,
addresses can be set up to avoid crosstalk.
By setting the address switches on the receivers and matching them with the
number of addresses on the remote controller, up to six indoor units can be
controlled separately with the remote controller. (When using units in a flexible
combination or operating multiple units simultaneously, they cannot be
controlled individually as they are operated at the same time.)
There are separate address settings: receiver addresses for the receivers*1,
and transmitter addresses for the remote controller.
For more information, please contact the distributor where the product was
purchased.
• The setting procedure is different for indoor unit (CZ-RWSK2). (See page 20.)
• These settings are saved in nonvolatile memory in the remote controller, so
even when its batteries are changed, the settings do not have to be made
again.
*1CZ-RWSD2N/CZ-RWST3N is of receivers (inside the indoor unit); CZ-
RWSL2N is of an operation panel (inside the indoor unit).
Checking Addresses
When you press on the remote controller, its current address appears on
the display. If this address corresponds to the address of a receiver*2, the
buzzer sounds. (If it is on ALL, the buzzer will always sound.)
If it is on ALL, it can be operated regardless of receiver addresses. Point the
remote controller at the receiver you wish to operate and transmit.
*2CZ-RWSL2N is an operation panel (indoor unit).
Matching Up Addresses
Setting Remote Controller Addresses
1. If you press and at the same time, will blink.
2. While holding down, every time you press , it cycles
from ALL123…6ALL.
Set it to the receiver address switch of the indoor unit you wish to operate.
3. When you release , the address that was displayed is set.
When you do this, if it corresponds to the receiver’s address setting, the
buzzer sounds.
00OI303000.indb1900OI303000.indb19 2015/02/2016:23:062015/02/2016:23:06

20 (EN)
Wireless
remote
controller
address
display
•••••
Address
switch
position
Address Address Address Address Address Address Address
ALL 123456
Receiving is
possible at all
address
positions
䠍䠎䠏䠐
㻻㻲㻲
㻻㻺
䠍䠎䠏䠐
㻻㻲㻲
㻻㻺
䠍䠎䠏䠐
㻻㻲㻲
㻻㻺
䠍䠎䠏䠐
㻻㻲㻲
㻻㻺
䠍䠎䠏䠐
㻻㻲㻲
㻻㻺
䠍䠎䠏䠐
㻻㻲㻲
㻻㻺
Setting Addresses (CZ-RWSK2)
(Setting the address of the indoor unit)
1. Set the address for the remote controller following the
procedure under the section “Setting Remote Controller
Addresses” (see page 19).
2. Press [Emergency Operation] of the indoor unit for four
seconds or longer.
When you do this, the lamps of the display will blink one after another.
3. Press on the remote controller.
4. The buzzer will sound and the address of the indoor unit will
change to the address displayed on the remote controller.
5. If you press [Emergency Operation] of the indoor unit once,
the lamps on the indoor unit’s display will turn off.
Notes
• Please do not hold the [Emergency Operation] button of the indoor unit down
while the indoor unit’s display lamps are blinking one after another.
• Make sure to operate while the indoor unit is stopped.
• The address of indoor unit is set to "ALL" at the time of the shipment.
11. Addresses (Cont.)
ON
OFF
Interruptor
ON/OFF
00OI303000.indb2000OI303000.indb20 2015/02/2016:23:072015/02/2016:23:07
