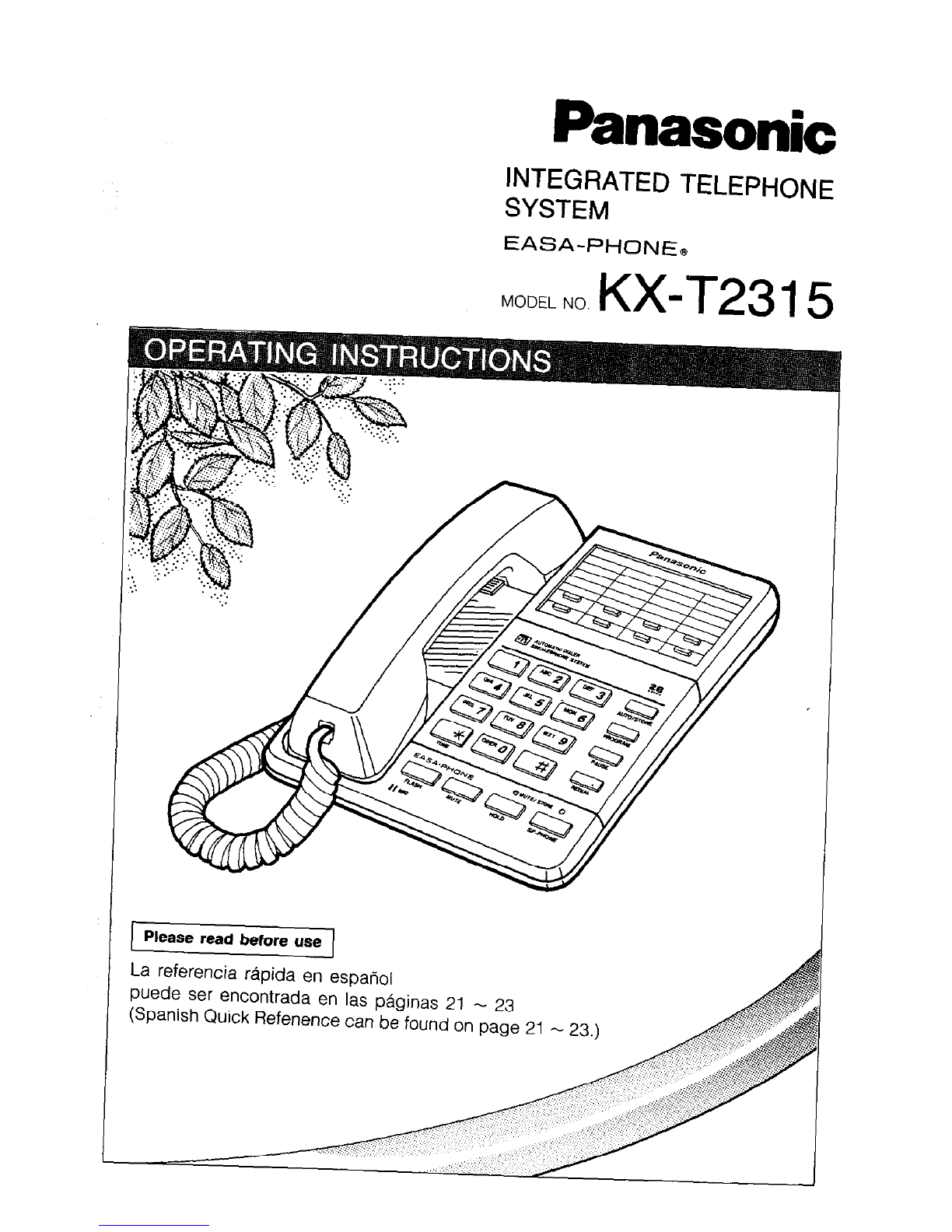

Panasonic EASA-PHONE KX-T2315 User manual

Panasonic
INTEGRATED TELEPHONE
SYSTEM
EASA-PHONEe
MODEL NO. KX-T23 15
Please read before use
La referencia rapida en espariol
puede ser encontrada en las paginas 21 - 23
(Spanish Quick Refenence can be found on page 21 - 23.)

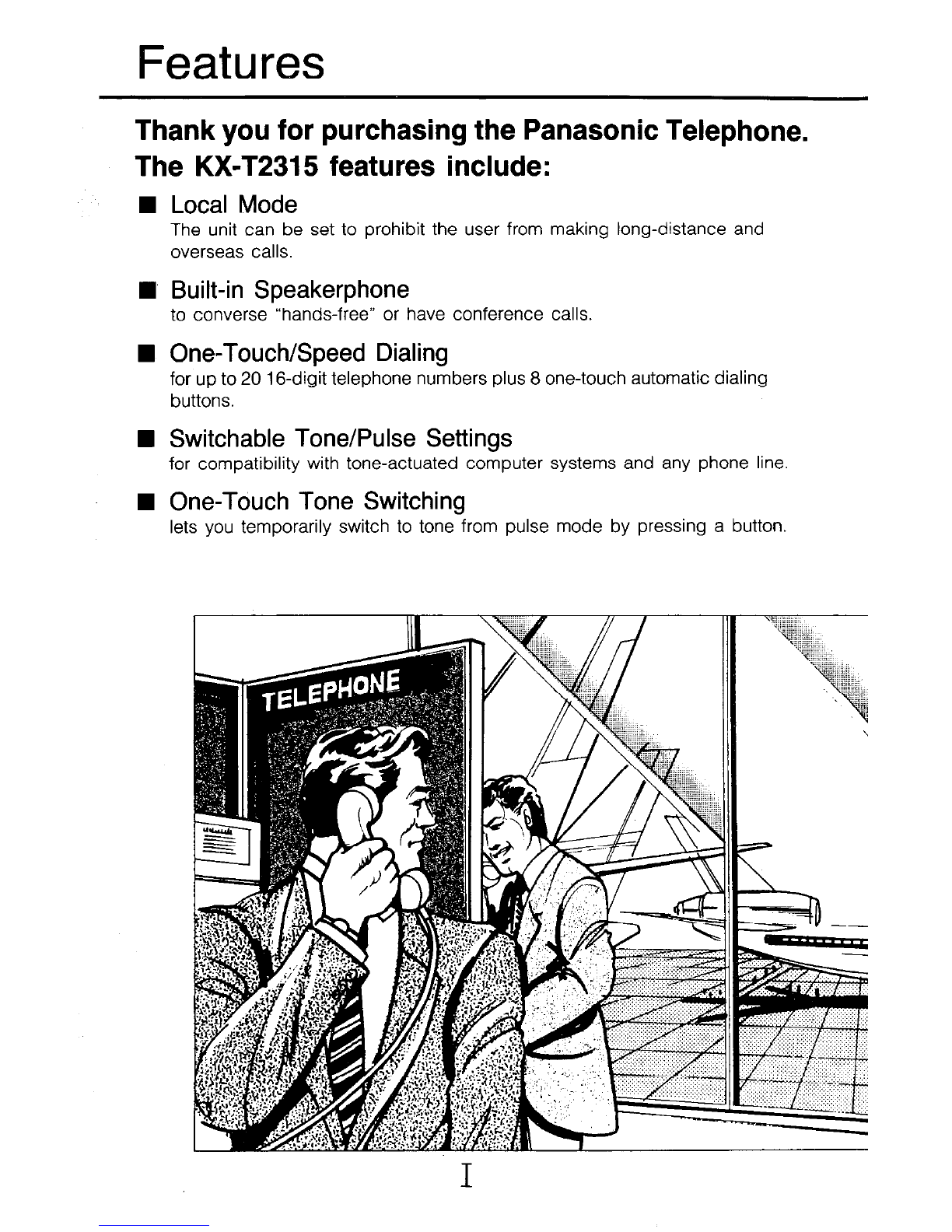

Features
Thank you for purchasing the Panasonic Telephone.
The KX-T2315 features include:
n
n
n
n
n
Local Mode
The unit can be set to prohibit the user from making long-distance and
overseas calls.
Built-in Speakerphone
to converse “hands-free” or have conference calls.
One-Touch/Speed Dialing
for up to 20 16-digit telephone numbers plus 8 one-touch automatic dialing
buttons
Switchable Tone/Pulse Settings
for compatibility with tone-actuated computer systems and any phone line.
One-Touch Tone Switching
lets you temporarily switch to tone from pulse mode by pressing a button.

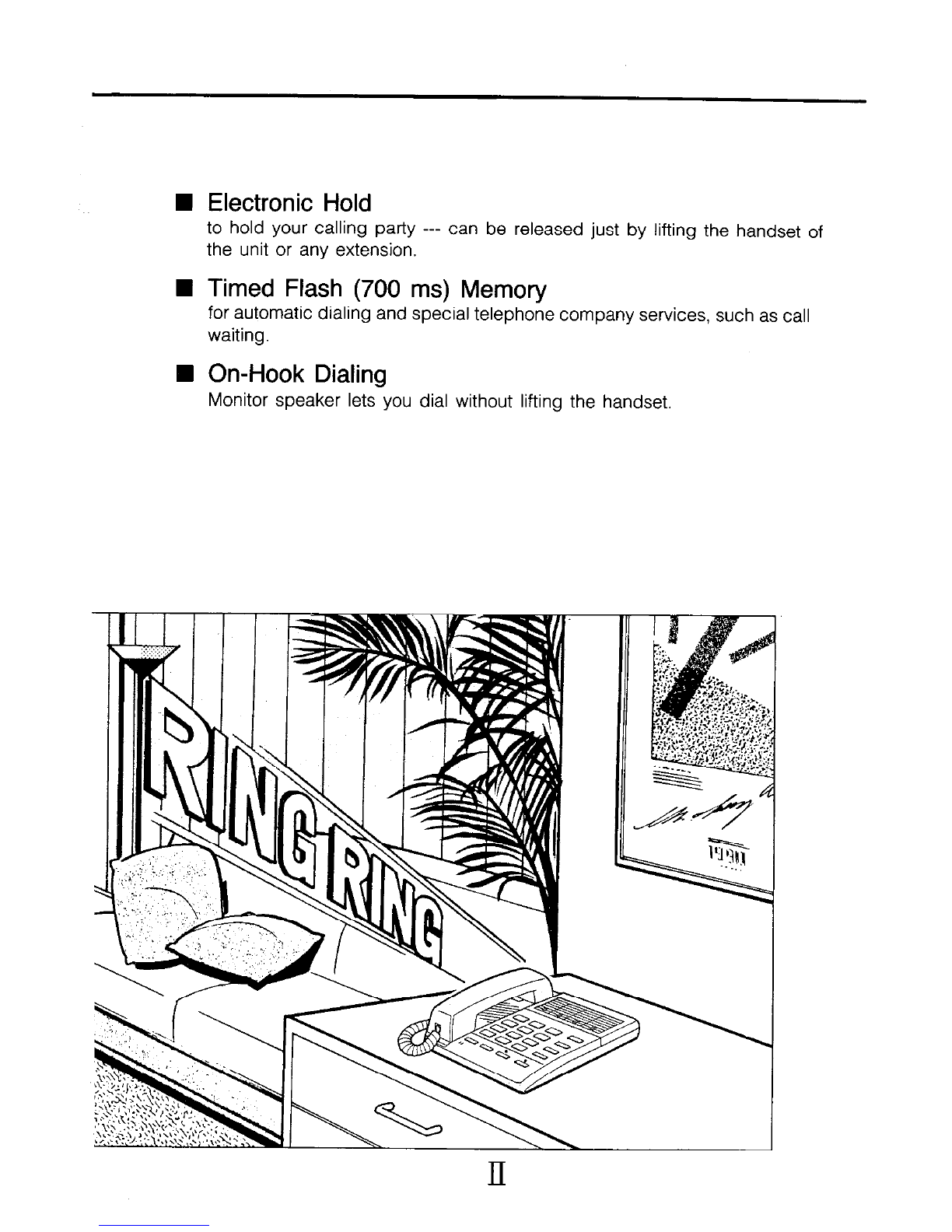

W Electronic Hold
to hold your calling party --- can be released just by lifting the handset of
the unit or any extension.
n Timed Flash (700 ms) Memory
for automatic dialing and special telephone company services, such as call
waiting.
q On-Hook Dialing
Monitor speaker lets you dial without lifting the handset.

Precautions
Before using this unit, please read these
operating instructions carefully.
Take special care to follow the warning
indicated on the unit itself as well as the
safety suggestions listed below.
Installations
Environment
1)
2)
Water and Moisture: Do not use this
unit near water - for example, near
a bath tub, washbowl, swimming
pool, or the like. Damp basements
should also be avoided.
Heat: The unit should be situated
away from heat sources such as
radiators and the like. It also should
not be placed in temperatures less
than 41 “F (5°C) or greater than 104°F
(40°C).
Placement
1)
2)
3)
4)
Foreign Material: Care should be
taken so that objects do not fall into
and liquids are not spilled into the
unit. Do not subject this unit to
excessive smoke, dust, mechanical
vibration, or shock.
Magnetism: The unit should be
situated away from equipment or
devices that generate a strong
magnetic field.
Stacking: Do not place heavy objects
on top of this unit.
Surface: Place the unit on a flat level
surface.
If there is any trouble, disconnect the
unit from the telephone line and connect
a known working phone. If the known
working phone operates properly, have
your Panasonic phone repaired by one
of the specified Panasonic Factory
Service Centers. If the known working
telephone does not operate properly,
consult with your telephone company.

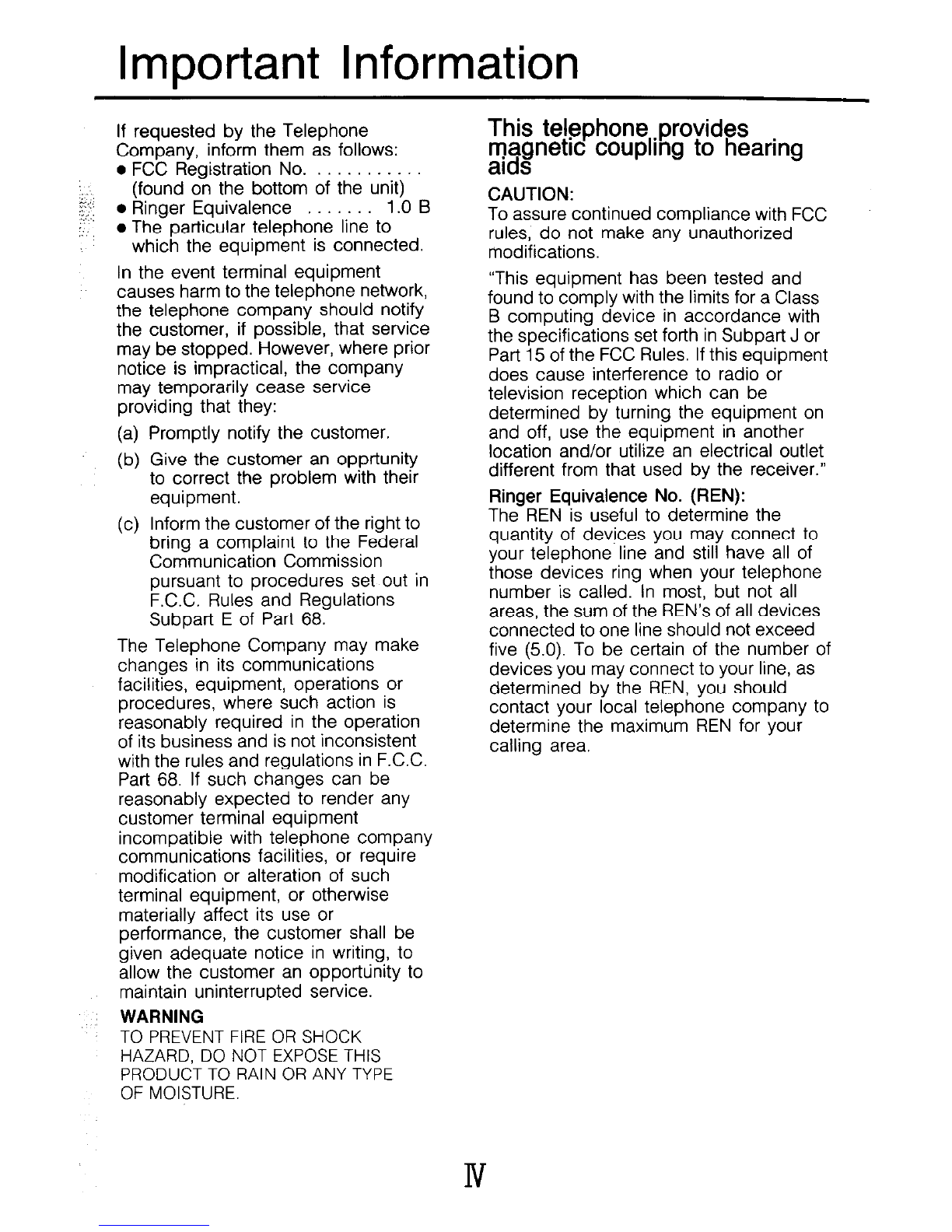

Important Information
The Telephone Company may make
changes in its communications
facilities, equipment, operations or
procedures, where such action is
reasonably required in the operation
of its business and is not inconsistent
with the rules and regulations in F.C.C.
Part 68. If such changes can be
reasonably expected to render any
customer terminal equipment
incompatible with telephone company
communications facilities, or require
modification or alteration of such
terminal equipment, or otherwise
materially affect its use or
performance, the customer shall be
given adequate notice in writing, to
allow the customer an opportunity to
maintain uninterrupted service.
WARNING
TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR ANY TYPE
OF MOISTURE.
If requested by the Telephone
Company, inform them as follows:
l FCC Registration No.
$ (found on the bottom of the unit) l Ringer Equivalence 1 .O B
: l The particular telephone line to
which the equipment is connected.
In the event terminal equipment
causes harm to the telephone network,
the telephone company should notify
the customer, if possible, that service
may be stopped. However, where prior
notice is impractical, the company
may temporarily cease service
providing that they:
(4
(b)
(cl
Promptly notify the customer.
Give the customer an oppt-tunity
to correct the problem with their
equipment.
Inform the customer of the right to
bring a complaint to the Federal
Communication Commission
pursuant to procedures set out in
F.C.C. Rules and Regulations
Subpart E of Part 68.
This telephone *provides
magnetic coupling to hearing
aids
CAUTION:
To assure continued compliance with FCC
rules, do not make any unauthorized
modifications.
“This equipment has been tested and
found to comply with the limits for a Class
B computing device in accordance with
the specifications set forth in Subpart J or
Part 15 of the FCC Rules. If this equipment
does cause interference to radio or
television reception which can be
determined by turning the equipment on
and off, use the equipment in another
location and/or utilize an electrical outlet
different from that used by the receiver.”
Ringer Equivalence No. (REN):
The REN is useful to determine the
quantity of devices you may connect to
your telephone line and still have all of
those devices ring when your telephone
number is called. In most, but not all
areas, the sum of the REN’s of all devices
connected to one line should not exceed
five (5.0). To be certain of the number of
devices you may connect to your line, as
determined by the REN, you should
contact your local telephone company to
determine the maximum REN for your
calling area.
Iv

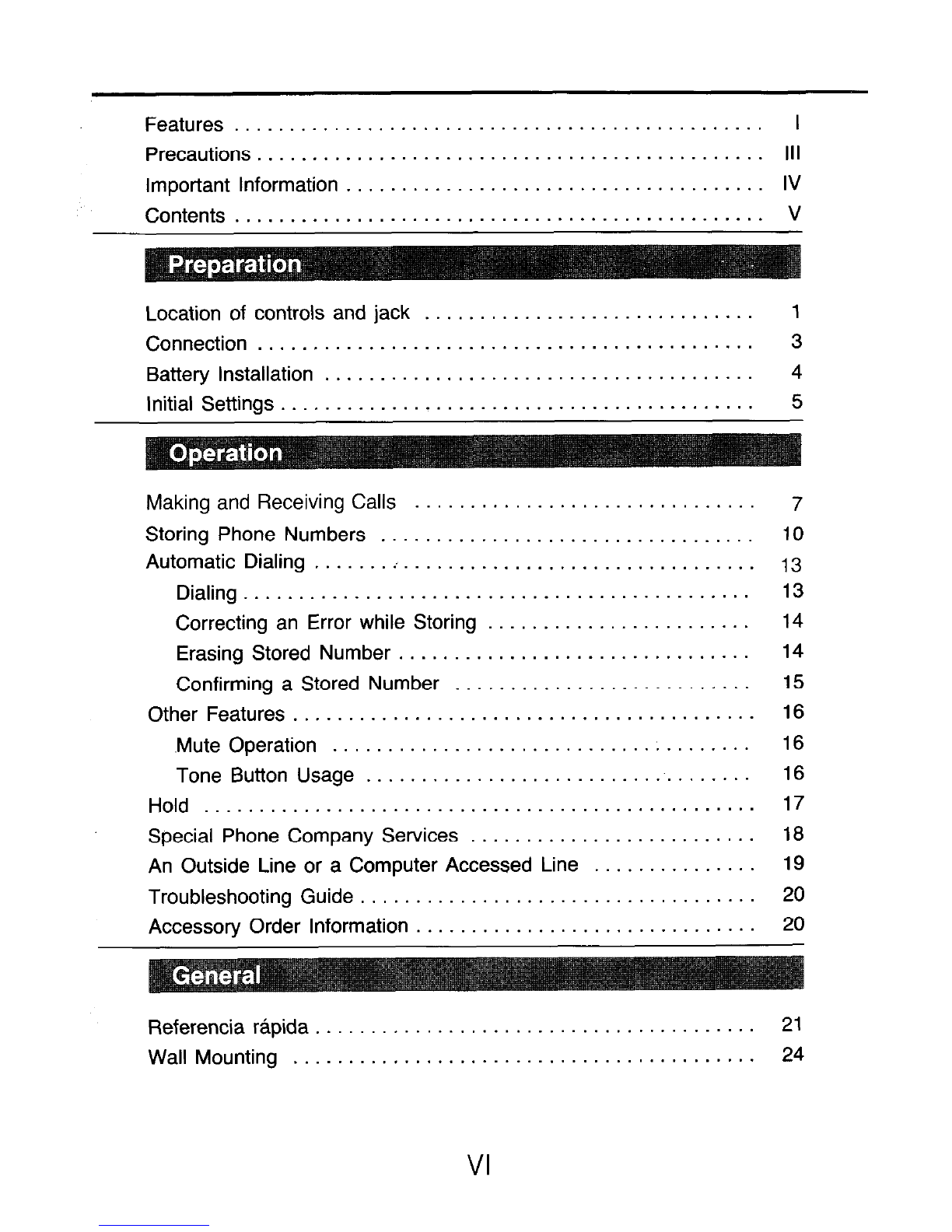

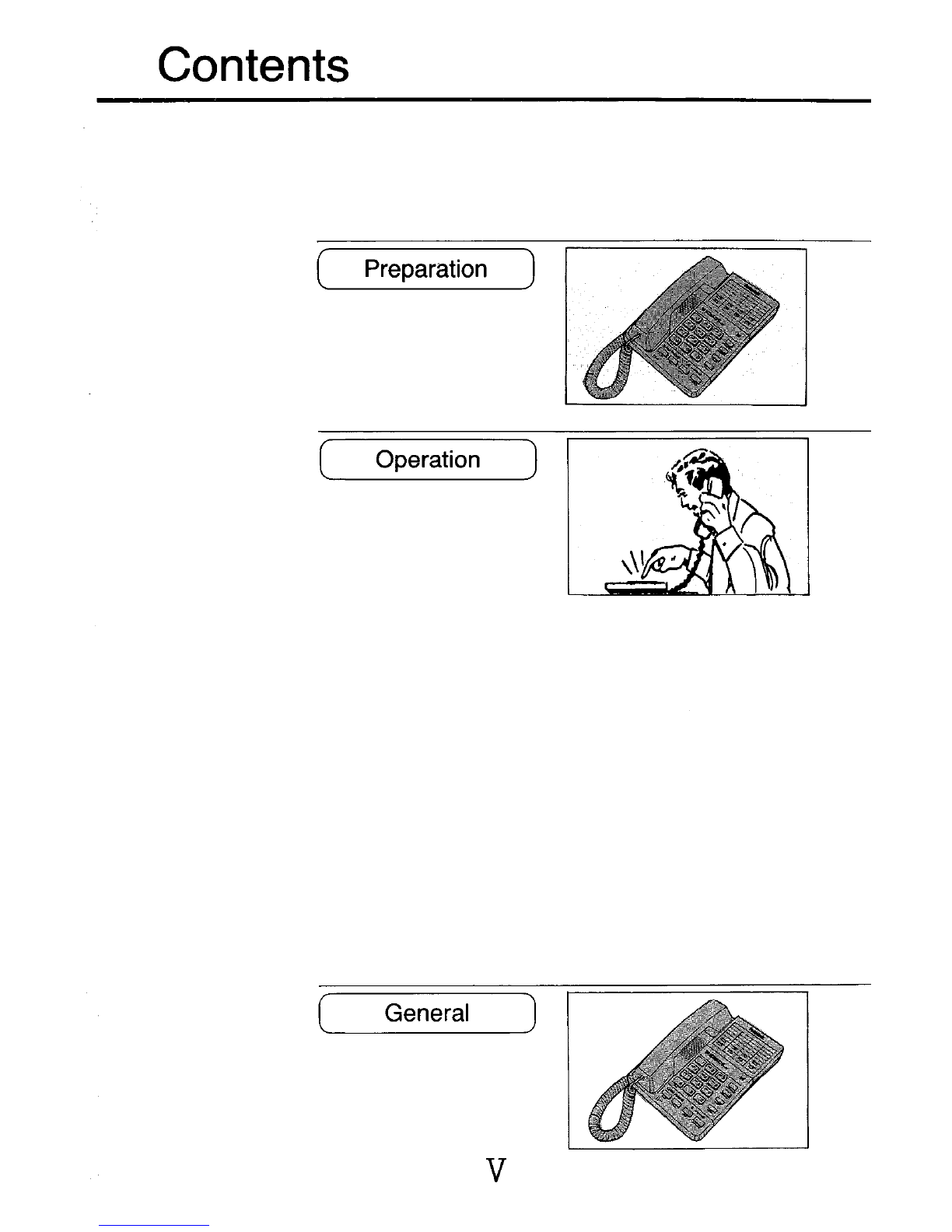

Contents
C
Preparation 3
Operation
(
General

Features ................................................ I
Precautions .............................................. III
Important Information ...................................... IV
Contents ................................................ V
Location of controls and jack .............................. 1
Connection ............................................. 3
Battery Installation ....................................... 4
Initial Settings ........................................... 5
Making and Receiving Calls ...............................
Storing Phone Numbers ..................................
Automatic Dialing .........................................
Dialing ..............................................
Correcting an Error while Storing ........................
Erasing Stored Number ................................
Confirming a Stored Number ...........................
Other Features.. ........................................
Mute Operation ......................................
Tone Button Usage ...................................
Hold ..................................................
Special Phone Company Services ..........................
An Outside Line or a Computer Accessed Line ...............
Troubleshooting Guide ....................................
Accessory Order Information ...............................
7
10
13
13
14
14
15
16
16
16
17
18
19
20
20
Referencia rapida ........................................ 21
Walt Mounting .......................................... 24
VI

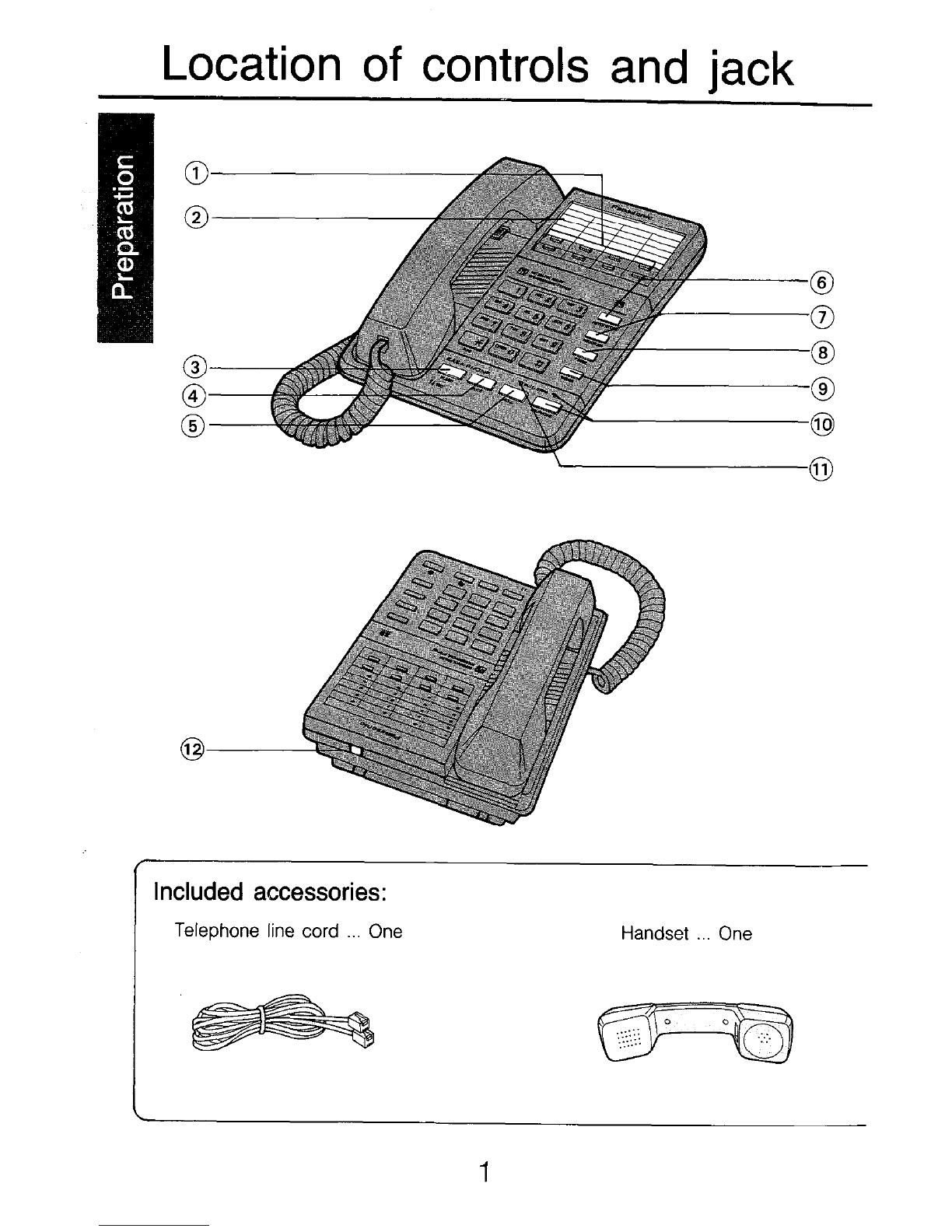

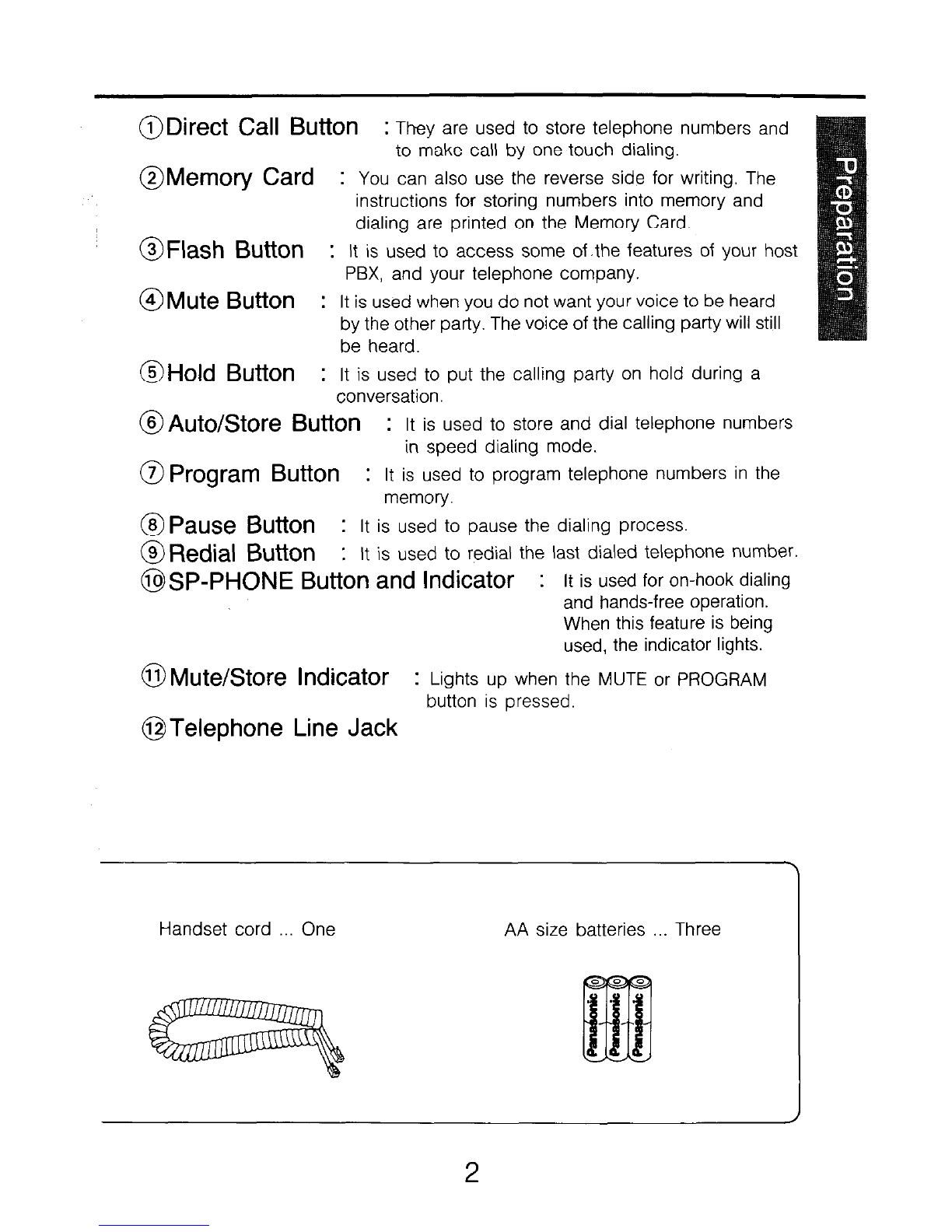

Location of controls and jack
,
Included accessories:
Telephone line cord One Handset One
1

@Direct Call Button
: They are used to store telephone numbers and
to make call by one-touch dialing.
@Memory Card
1 You can also use the reverse side for writing. The
instructions for storing numbers into memory and
dialing are printed on the Memory Card.
@Flash Button
: It is used to access some of.the features of your host
PBX, and your telephone company.
@Mute Button
: It is used when you do not want your voice to be heard
by the other party. The voice of the calling party will still
be heard.
@Hold Button
: It is used to put the calling party on hold during a
conversation.
@Auto/Store Button
: It is used to store and dial telephone numbers
in speed dialing mode.
@ Program Button
: It is used to program telephone numbers in the
memory.
@ Pause Button
: It is used to pause the dialing process.
@ Redial Button
: It is used to redial the last dialed telephone number
@SP-PHONE Button and Indicator
: It is used for on-hook dialing
and hands-free operation.
When this feature is being
used, the indicator lights.
@Mute/Store Indicator : Lights up when the MUTE or PROGRAM
button is pressed.
@Telephone Line Jack
Handset cord One AA size batteries Three
2

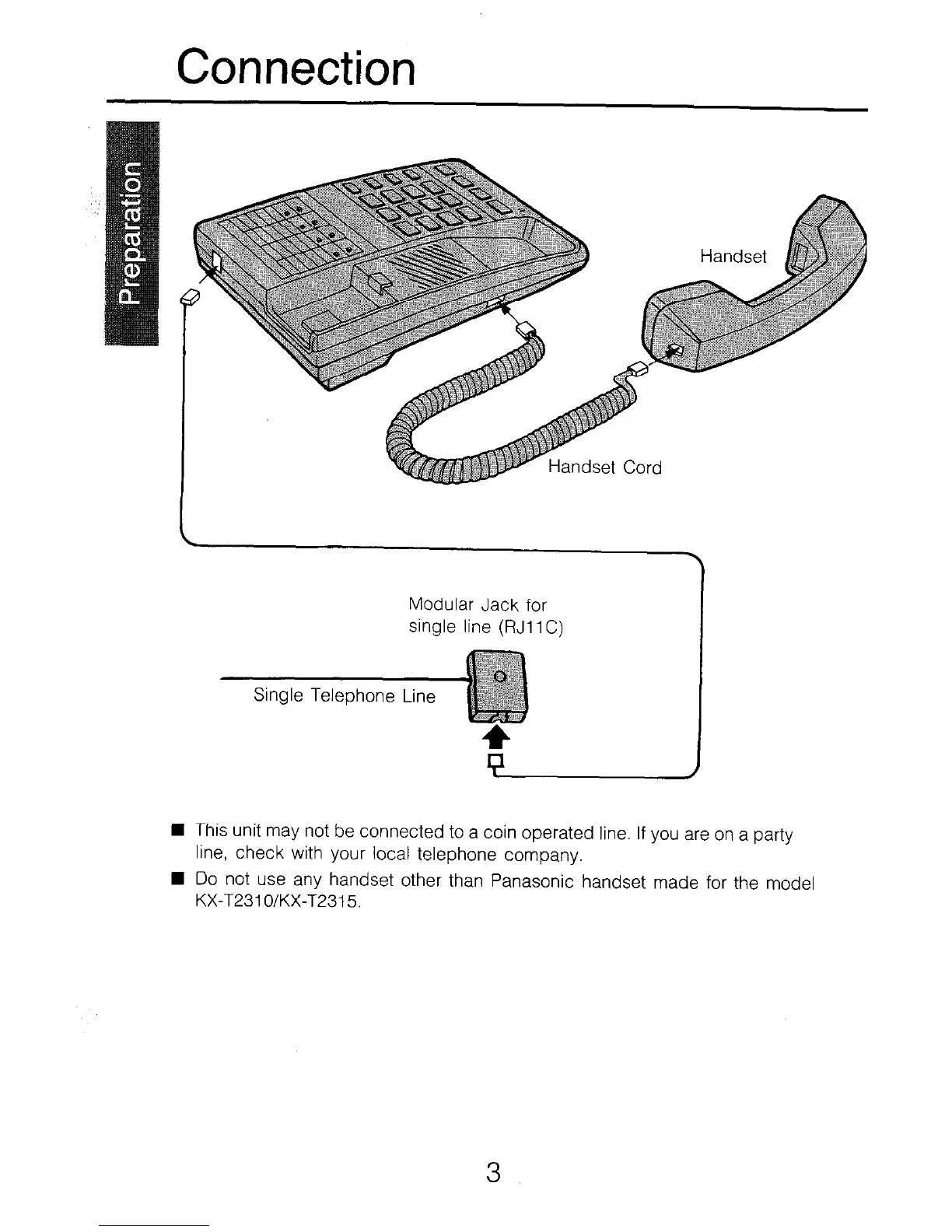

Connection
Modular Jack for
single line (RJll C)
W This unit may not be connected to a coin operated line. If you are on a party
line, check with your local telephone company.
W Do not use any handset other than Panasonic handset made for the model
KX-T231 O/KX-T2315.
3

Battery Installation
Three AA size batteries (UM-3) serve as the power source to retain the stored
telephone numbers in memory.
Remove the wall mount adaptor.
Open the battery compartment
cover.
Insert the three AA size batteries
observing the correct polarity.
Replace the adaptor.
NOTE:
n To prevent loss of the stored telephone numbers, replace the batteries within
10 minutes after removing the old ones.
W Disconnect the telephone cord before opening the battery compartment
cover.
n Replace all the batteries once a year, or misoperation may occur.
n Do not use Nickel-Cadmium batteries.
BATTERY PRECAUTIONS: The batteries should be used correctly, otherwise,
the unit may be damaged due to battery leakage.
q Do not mix different types of batteries.
q Do not charge, short-circuit, disassemble, heat or dispose in fire.
n Remove all the batteries when replacing.
4

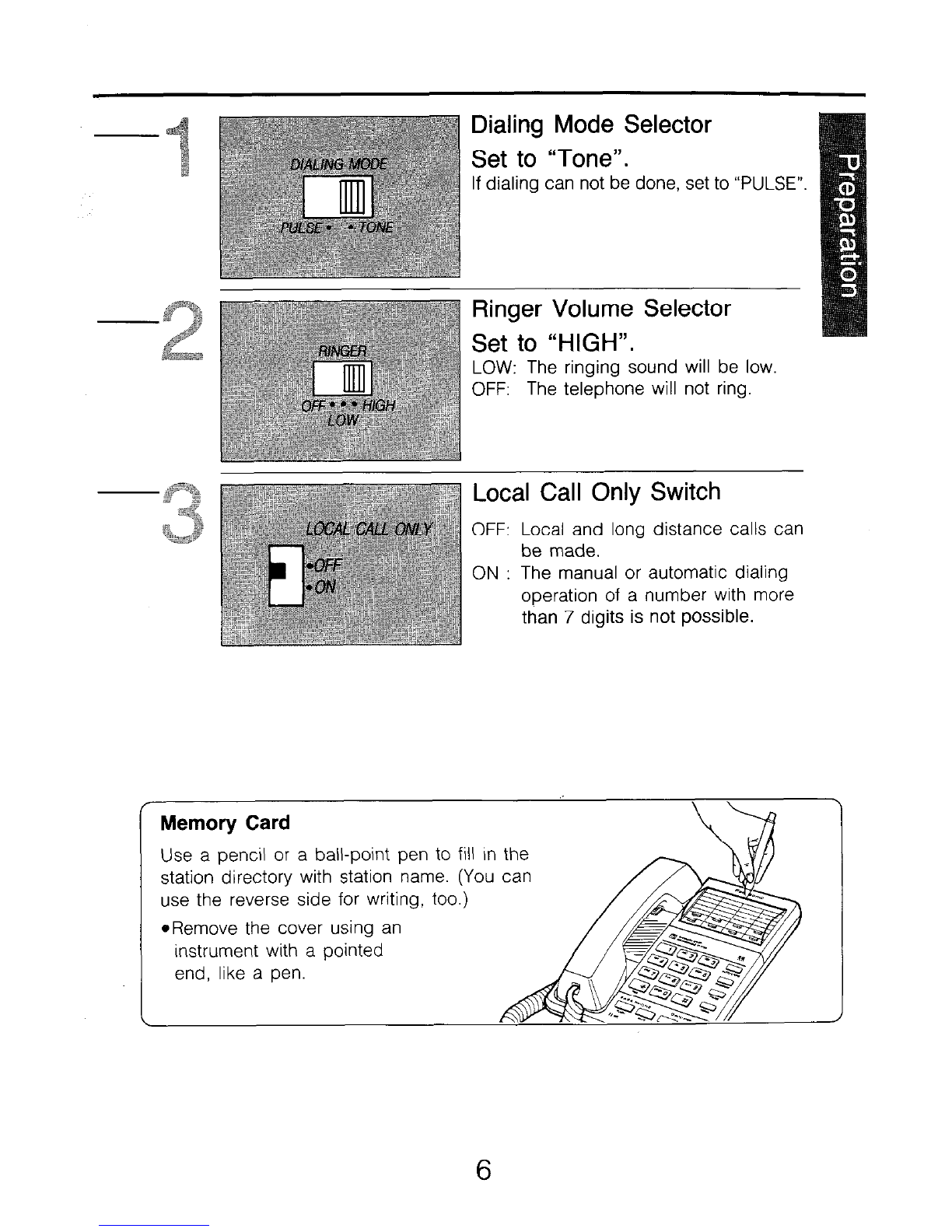

Initial Settings
5

Dialing Mode Selector
Set to “Tone”.
If dialing can not be done, set to “PULSE”.
Ringer Volume Selector
Set to “HIGH”.
LOW: The ringing sound will be low.
OFF: The telephone will not ring.
Local Call Only Switch
OFF: Local and long distance calls can
be made.
ON : The manual or automatic dialing
operation of a number with more
than 7 digits is not possible.
Use a pencil or a bail-point pen to fill In the
station directory with station name. (You can
use the reverse side for writing, too.)
ORemove the cover using an
instrument with a pointed
end, like a pen.
6

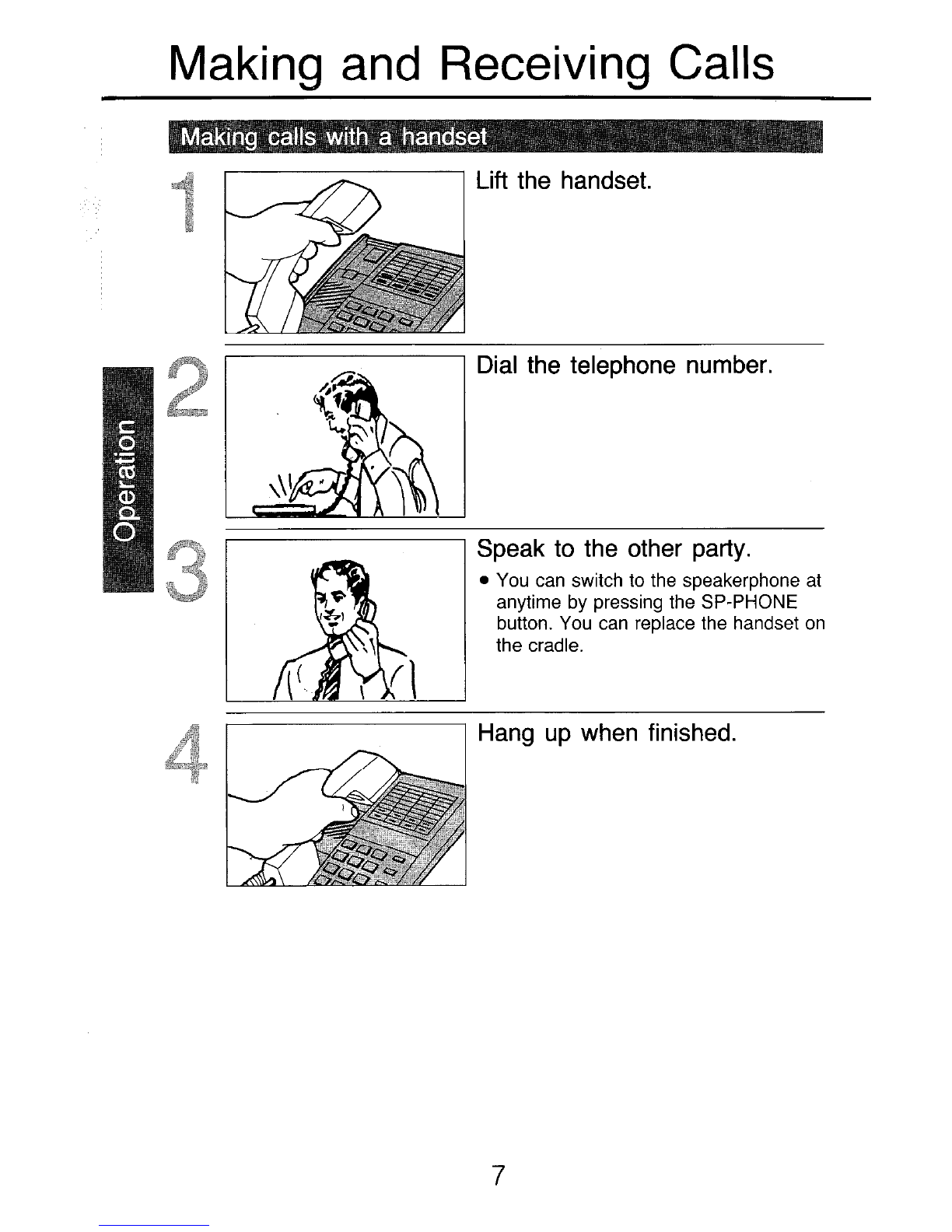

Making and Receiving Calls
Lift the handset.
Dial the telephone number.
Speak to the other party.
l You can switch to the speakerphone at
anytime by pressing the SP-PHONE
button. You can replace the handset on
the cradle.

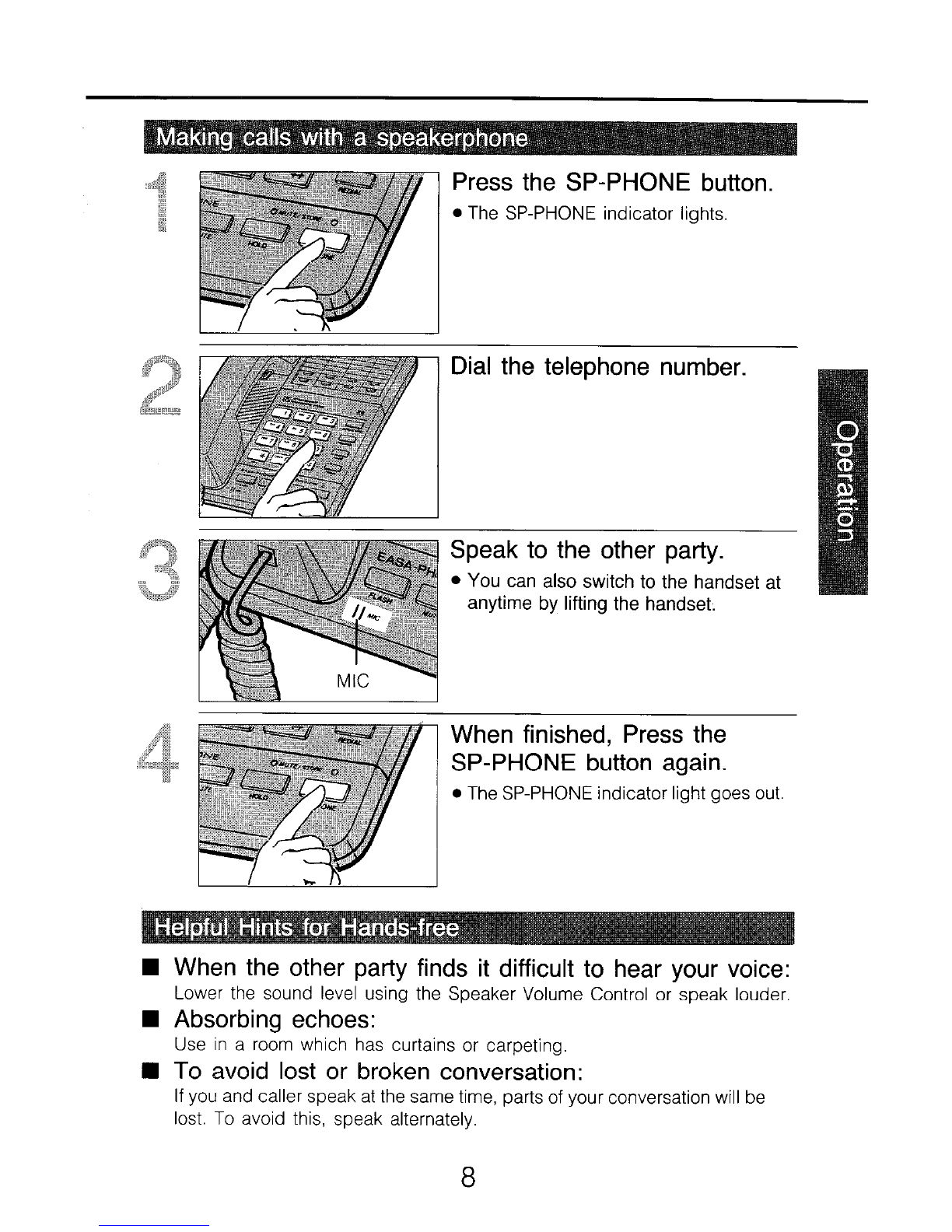

7

Press the SP-PHONE button.
l The SP-PHONE indicator lights,
Dial the telephone number.
Speak to the other party.
l You can also switch to the handset at
anytime by lifting the handset.
When finished, Press the
SP-PHONE button again.
l The SP-PHONE indicator light goes out
n When the other party finds it difficult to hear your voice:
Lower the sound level using the Speaker Volume Control or speak louder.
n Absorbing echoes:
Use in a room which has curtains or carpeting.
n To avoid lost or broken conversation:
If you and caller speak at the same time, parts of your conversation will be
lost. To avoid this, speak alternately.
8

Makingand ReceivingCalls (cont.).
Lift the handset.
Press the SP-PHONE button.
or
Speak to the calling party.
Press the REDIAL button when
the line is busy.
l Pressing the REDIAL button enables
you to redial once.
9

Storing Phone Numbers
n There are 20 memory stations, each station is capable of storing 16 digits
n There are 8 Direct Call buttons, each capable of storing 16 digits.
Each Dialing button serves as a memory station.
Be sure that the handset is on the cradle and the SP-PHONE indicator is off
and the batteries are installed.
n Home Use
Press the PROGRAM button
until the STORE indicator lights.
-
Press the Station number.
0 Phone numbers can be stored into
memory stations m m to m p[
following the same procedure.
Dial the telephone number.
Press the AUTO/STORE button
to store the number into
memory.
After storing all the numbers,
press the PROGRAM button.
l The STORE indicator goes out.
IO

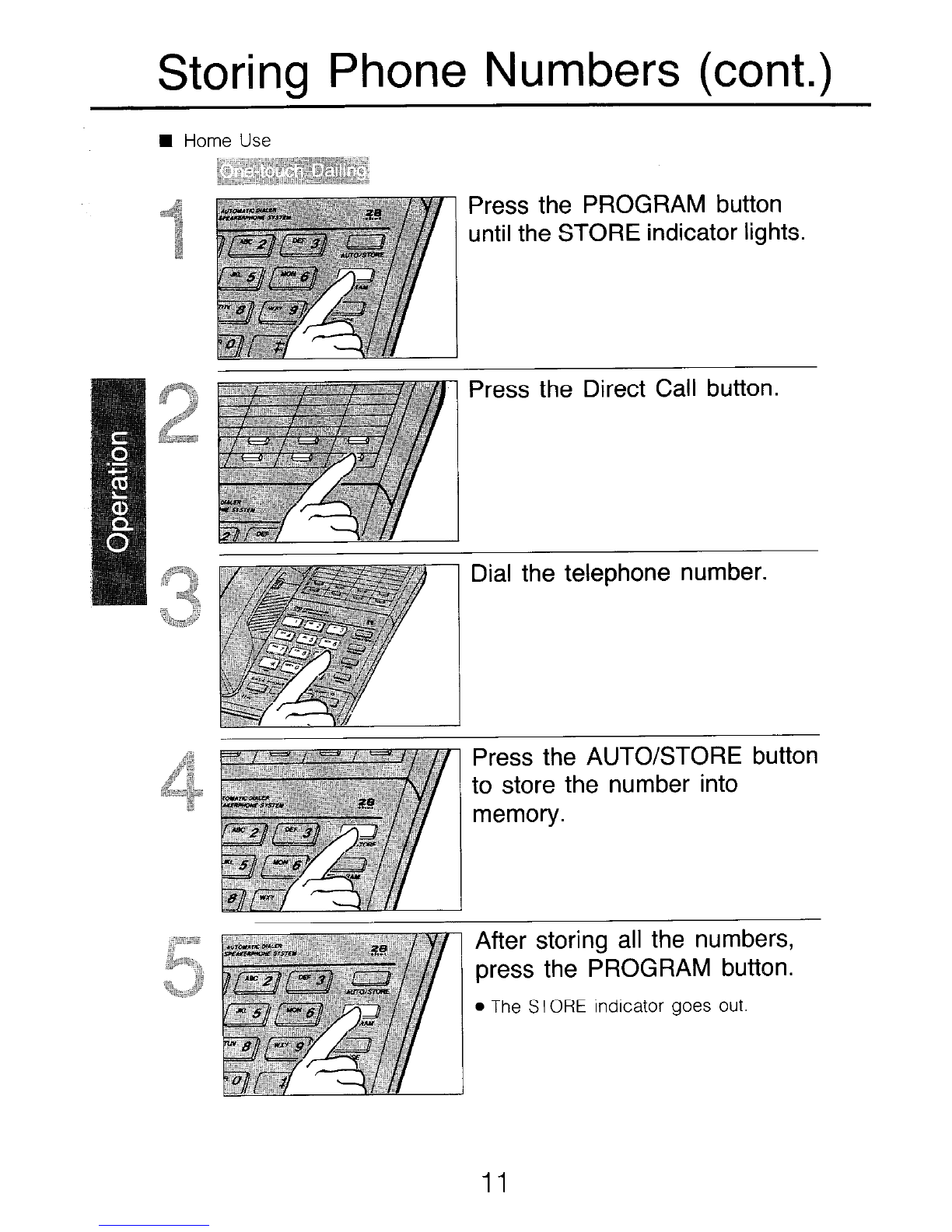

Storing Phone Numbers (cont.)
H Home Use
Press the PROGRAM button
until the STORE indicator lights.
Press the Direct Call button.
Dial the telephone number.
Press the AUTO/STORE button
to store the number into
memory.
After storing all the numbers,
press the PROGRAM button.
l The STORE indicator goes out.
11

W Office Use (PBX)
Press the PROGRAM button
until the STORE indicator lights.
Press the Station number.
l You may use the Direct call button
instead of pressing the station number.
Enter Line access n u m her for
an example 9.
Press the PAUSE button.
Dial the telephone number.
Press the AUTO/STORE button.
After storing all the numbers,
press the PROGRAM button.
l The STORE indicator goes out.

Automatic Dialing
Lift the handset, or press the
SP-PHONE button.
n To change a stored number, repeat the steps of “Storing Phone numbers”.
n If the batteries are not installed, programming and speakerphone operation
can not be done.
Press the AUTO/STORE button.
Press the Station number.
(01 to 20)
Press the Direct Call button.
13
