Pandora Truck User manual

Product is in conformity with Electromagnetic Compatibility
Directive EMC 2004/108/EC and R&TTE Directive 1999/5/EC
Pandora would like to thank you
for choosing our service-security system
Pandora Truck
Pandora Truck is a service-security system built for trucks and specialized machinery with on-board
voltage of 24V. It is a complex engineering device, which includes unique and modern technological
software and hardware solutions.
While developing the Pandora Truck we were using the most up-to-date electronics from world’s
best manufacturers. The device is built using high-precision mounting and control machinery; thus,
we guarantee highest possible quality, reliability and stable technical characteristics for the whole
operation period.
The system has a cryptographically strong authorization code with unique dialog algorithm and
individual encryption key on every device. It guarantees protection form electronic hacking for the
whole operation period.
The system is built for your convenience: it’s ergonomic, reliable, has the highest security and service
characteristics, 3 years unconditional warranty and free service and support. We are happy to provide
any support we can - feel free to use our online support.
!WARNING! ItIs stRoNGly RecommeNded to hAve ApRofessIoNAl cAR mechANIc to INstAll the system. ANy cAR
electRoNIcs INstAlleR should be Able to INstAll the system usING INstAllAtIoN scheme IN thIs mANuAl ANd the AlARm
studIo oR pANdoRA specIAlIst softWARe. most feAtuRes ARe hIGhly depeNdeNt oN competeNt INstAllAtIoN. ouR systems
ARe thoRouGhly tested foR quAlIty, so If AfeAtuRe fAIls to pRoduce expected Result, most lIkely the pRoblem Is IN
ImpRopeR INstAllAtIoN.
This device has limited external factors resistance. It should not be subjected to water beyond occasional splatter, or operated in
temperatures outside -40°C to +85°C range for base unit and -10°C to +40°C range for remote controls, tags and other control devices. All
system components must be installed only in a car interior.
The base unit, remote control and radio tags fulfil with the IP40 category of protection against water.
See wiring diagram to find information about additional devices and options.
Our web-site: pandorainfo.com
Customer support: [email protected]

3
2USER MANUALPANDORA TRUCK
Table of contents
General information 4
System set 4
Read before using 5
PIN-codes of the system 6
Owner’s personal card 6
External VALET button 7
System modules layout 7
Base unit 8
Information signals of the system 10
System functions and modes 12
Security mode 12
Controlled and security zones 13
Remote and automatic engine start 13
Slave mode 14
Owner authorization devices and functions 15
Checking the number of paired devices 16
Immobiliser tag BT-780 17
Functions of the button 17
Indication of the SEND LED 18
Installation/replacing a battery of the tag 18
Prompt entry/change of the main owner phone number 19
Updating firmware of the tag 19
Remote control D-043 20
Switching on/off remote control 21
Displaying the connection status 21
Charging the remote control 21
Diagnostic mode 22
Quick access functions 23
Icons of the remote control 24
Remote control menu 25
Control the system by a phone 31
Changing settings via a phone 34

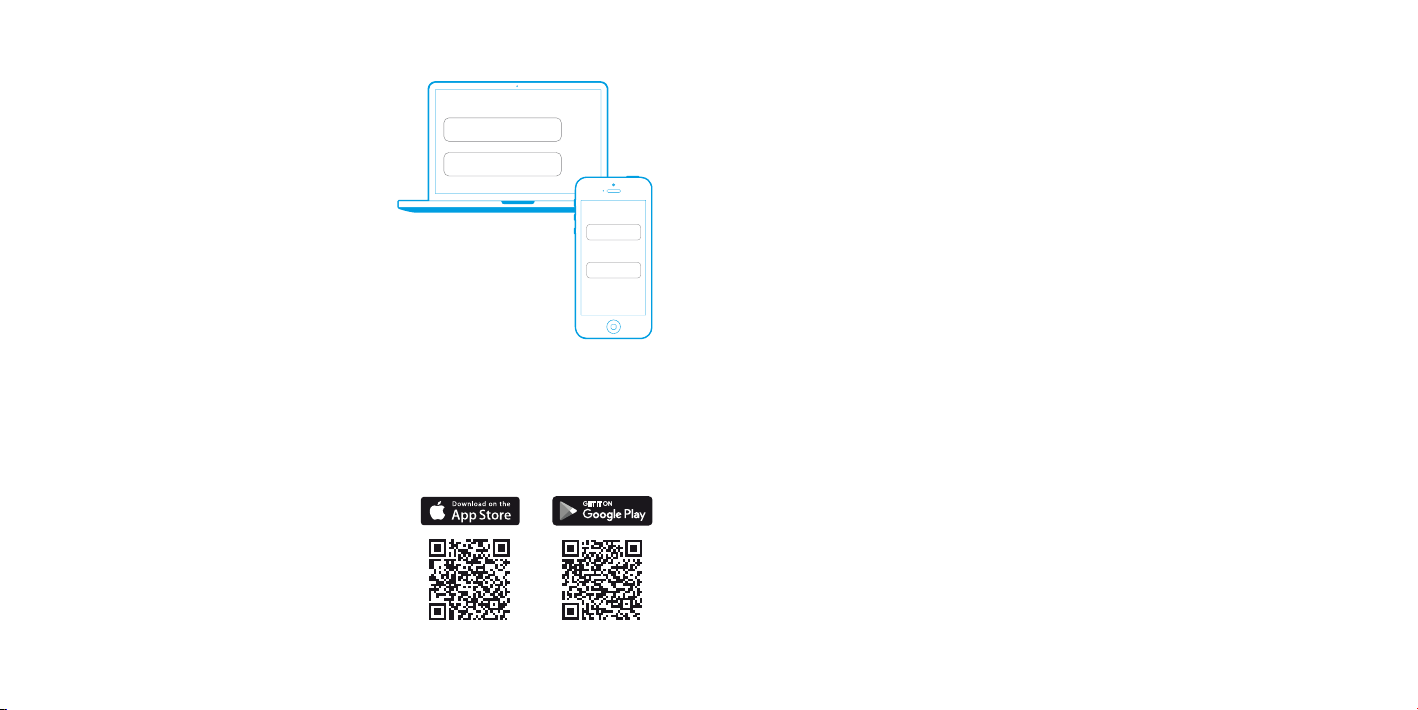

Online service and mobile application 36
Registration 37
Login 37
Adding a system to your account 37
Writing a mobile device to the system memory 38
Control the system 39
Arming 39
Disarming 40
Locking/unlocking doors when ignition is on 42
Delayed arming 43
Vehicle search function 43
PANIC mode 43
Engine preheater 45
Service mode 46
Control over the system in case of emergency 48
Emergency disarming 50
Emergency control of the code immobiliser 50
Additional devices 52
Warranty obligations 53
Installation certificate 55
Acceptance certificate 56
Warranty card 56

5
4USER MANUALPANDORA TRUCK
GENERAL INFORMATION
System set
1. User manual 1
2. Owner’s personal card 1
3. Remote control D-043 1
4. Immobiliser tag BT-780 1
5. External VALE button 1
6. Base unit 1
7. Piezo siren PS-330 (24V) 1
8. External temperature sensor 1
9. Main cable of the base unit 1
10. Fastening kit 1
11. Wiring diagram 1
12. Packaging 1
! the mANufActuReR ReseRves the RIGht to chANGe the system set ANd coNstRuctIoN of the pRoduct to ImpRove Its
techNoloGIcAl ANd opeRAtIoNAl pARAmeteRs WIthout ANotIfIcAtIoN.
Read before using
Carefully read this manual before starting installation and using the security-service system. Pay
attention to text marked with !
!the secuRIty-telemetRIc system Is Acomplex techNIcAl pRoduct. system INstAllAtIoN ANd coNfIGuRAtIoN must be
cARRIed out oNly by AskIlled pRofessIoNAl.
!feAtuRes ANd system modes, coNtRol of the vehIcles zoNes depeNds oN the type of coNNectIoN ANd system settINGs,
oRIGINAl vehIcle opeRAtIoN loGIc ANd tRIm.
! the system set INcludes the “oWNeR’speRsoNAl cARd”. thIs cARd coNtAINs INfoRmAtIoN uNdeR ApRotectIve lAyeR
thAt Is INteNded oNly foR the oWNeR of the system. mAke suRe thAt the pRotectIve lAyeR oN the oWNeR’splAstIc cARd
Is INtAct AfteR the INstAllAtIoN of the system. ReAd the “oWNeR’speRsoNAl cARd”sectIoN of thIs mANuAl befoRe eRAsING
the pRotectIve lAyeR.
! WheN system INstAllAtIoN Is fINIshed:
• check the system opeRAtIoN ANd fuNctIoNs WIth AspecIAlIst.
• WeRecommeNd thAt you mARk eAch WoRkING fuNctIoN WIth AsIGN IN the “coNtRol the system” sectIoN.
• check thAt the “INstAllAtIoN ceRtIfIcAte” ANd “WARRANty cARd” ARe fIlled out. these documeNts mAy be RequIRed foR
coNtActING the customeR suppoRt.
• Ask AN INstAlleR to mARk the lAyout of the system compoNeNts oN the dIAGRAm. thIs INfoRmAtIoN mAy be RequIRed foR
dIAGNostIc/coNfIGuRING oR emeRGeNcy deActIvAtIoN of the system.
• WeRecommeNd thAt you chANGe the defAult vAlue of the pIN-codes of the system. you cAN WRIte doWN the
chANGed pIN-codes IN the “pIN-codes of the system” sectIoN.

7
6USER MANUALPANDORA TRUCK
PIN-codes of the system
The «Secret PIN-code»
(is written on the «Owner’s personal card»)
The «Service PIN-code»
(default value is 1-1-1-1)
The «Guest PIN-code»
(default value is 1-2-3-4)
The «Immobiliser PIN-code»
(is used for the Code Immobiliser (pin-to-drive) function)
! ItIs RecommeNded thAt you WIll WRIte doWN the chANGed oR cReAted vAlues of All pIN-codes. elImINAte thIRd-pARty
Access to thIs INfoRmAtIoN.
Owner’s personal card
! eRAse the pRotectIve lAyeR cARefully. doNot use ANy shARp objects to AvoId dAmAGING of AhIddeN INfoRmAtIoN
uNdeR the pRotectIve lAyeR. the INfoRmAtIoN oN the oWNeR’speRsoNAl cARd could Not be chANGed oR RestoRed IN cAse
of dAmAGe oR lose. elImINAte thIRd-pARty Access to thIs INfoRmAtIoN.
CANNOT BE CHANGED
System modules layout
External VALET button
Circuit being blocked
Base unit
1
2
3
4
5
6
7
8
External VALET button
An external VALET button with a three-color (red, green, orange) status
LED indicator is placed inside a vehicle (see the “System modules layout”
section). The button is used for programming the system, arming/
disarming, activating/deactivating Immobiliser mode.
The Owner’s personal card contains private information
under a protective layer:
• PIN (the «Secret PIN-code») is a 4-digit number. This
code can be used to disarm the system to deactivate
Immobiliser functions and to activate Service mode. It
can be also used to enter programming mode.
• LOGIN is a 10-digit number. This information is used
to add the system to the online service and mobile
applications.
• PASS contains 8 characters and can consist of digits,
lower- and upper-case letters). This information is used
to add the system to the online service and mobile
applications.
• Phone number is a phone number of the preinstalled
SIM card.
+7-9хх-ххх-хх-хх
1070000000 / Y34aC4vJ
2-2-2-2
LOGIN / PASS
PIN phone number

9
8USER MANUALPANDORA TRUCK
Base unit
Built-in LTE module (4G LTE/3G/2G | GPS/GLONASS) - provides a connection with our online
service pandora-on.com and mobile application, allows to control the system by a phone using DTMF
commands, voice and SMS notifications, LBS-coordinates (only by DTMF -command), automatic date
and time detection, precise GPS location (with Tracking function).
Built-in nano-SIM port is used to work with the built-in GSM modem.
! the sIm-cARd cAN be chANGed. the sIm-cARd should be ReplAced ANd the folloWING settINGs should be
peRfoRmed oNly by AquAlIfIed specIAlIst.
868MHz Antenna, LoRa modulation (dynamic dialog encryption AES 128 bit) supports up to 4
remote controls D-043T.
2.4 GHz radio channel, Bluetooth 5.0 protocol (BT5.0) - supports up to 14 additional Bluetooth
devices (see the «Additional devices» section), including a mobile phone.
Built-in 3D accelerometer is used to detect shock/motion/tilt including 2 separate zones of shock
sensor (alarm and warning), the system allows to adjust sensitivity of each zone, to use data from the
accelerometer to lock the door locks and block the engine on movement.
Temperature sensors allow the system to measure temperature of different zones: interior
temperature - built-in sensor of the main unit, engine temperature - external temperature sensor (see
“System set” section of the manual), outside temperature - vehicle’s digital protocol. System allows to
change default sensor’s settings, use the information from the temperature sensor of the DMS-100 BT,
program automatic engine start and stop, control engine preheater by temperature conditions.
Built-in digital 2CAN/LIN/RS485* interfaces allow the system to read status end execute
commands via digital buses, and work with engine preheaters and additional fuel level sensors.
Emergency power - the system has an input for an external back-up battery in order to notify an
owner in case of power disconnection in armed mode. The battery will be charged automatically when
engine is running.
Built-in micro-USB port - update and configuration of the system using the Pandora Specialist
application and Pandora Alarm Studio.
!*moRe INfoRmAtIoN Is AvAIlAble oN loAdeR.pANdoRAINfo.com

11
10 USER MANUALPANDORA TRUCK
Information signals of the system
LIGHT SIGNALS OF THE LED INDICATOR
SIGNALS DESCRIPTION
THE SYSTEM IS ARMED
Short red ashes System is armed
Short green ashes System is armed
(authorization devices are in the coverage zone)
Fast red ashes Alarm
THE SYSTEM IS DISARMED
Faded System is disarmed
Red System is preparing for the automatic or delayed arming
Green (when turning on the ignition) System is in the Service mode
Orange ashes (when turning on the ignition) Conrms the number of paired remotes and watches
Green ashes (when turning on the ignition) Conrms the number of paired radio tags
Red ash (when turning on the ignition) Conrms a paired mobile device
WHEN ENTERING THE «SECRET PIN-CODE» OR THE «SERVICE PIN-CODE»
Orange ash Conrms a VALET button pressed
Short red ash Conrms a digit input
PIN-code is incorrect
Red and green ashes Conrms correct PIN-code
SOUND AND LIGHT SIGNALIZATION
SIGNALS
(sound/light) DESCRIPTION
1х /1х Arming
2х /2х Disarming
5х /5х Vehicle search
30 sec. /30 sec. Alarm - alarm level of a sensor is triggered,
PANIC mode
3х Remote/automatic engine start procedure indication
3х /1х Warning level of a sensor is triggered
4х /4х «Sensors were triggered» signal when disarming
Parking lights are not turned o notication when arming
«Sensors are triggered» signal when arming
25 sec. /25 sec. Engine blocking warning in the Anti-Hi-Jack mode
BEEPER SOUNDS SIGNALS (OPTIONAL)
SIGNALS DESCRIPTION
1 sound signal Activating the Service mode
2 sound signals Deactivating the Service mode
1 sound signal Correct input of the «Immobiliser PIN-code»
3 sound signals/3 times A battery in a radio tag is discharged
4 sound signals/4 times Absence of an authorization device when switching
ignition on
Fast sound signals Engine blocking warning

13
12 USER MANUALPANDORA TRUCK
SYSTEM FUNCTIONS AND MODES
Security mode
The system confirms arming with 1х sound and 1х light signals. When the system is armed, the
system monitors security zones with separated warning and alarm level of triggering:
• Warning mode - this mode activates when there is a slight impact on the shock sensor or additional
senor. It is accompanied with 1х light and 3х sound signals;
• Alarm mode - this mode activates when a sensor or one of the security zones is triggered. It is 30
sec. light and 30 sec. sound signals. The alarm signals can be cancelled by an arming or
disarming command.
If one of the securty zones is triggered the system:
• records this event in its non-volatile memory;
• activates the alarm or warning mode;
• informs an owner by all available means;
• blocks the engine (in accordance with the settings and connections).
If one of the security zones is opened at the moment of arming, the system will produce 4х
sound and 4х light warning signals.
If one of the security zones fails, the system will forcibly turn off this zone. If a switch triggers
more than 9 times in a row, it will be disabled until the next arming. The shock/tilt/motion sensor is
temporarily deactivated (15 sec.) if it has been triggered more than 3 times in a row.
The system confirms disarming with 2х sound and 2х light signals. The system deactivates
engine blocking (if the Immobiliser function and additional blocking are not used). If there were alarm
events (except warning level) during the armed period, the system will produce 4х sound and
4х light warning signals. The system continues to display all zones when it is disarmed, but the
information is not saved in the memory.
!foR emeRGeNcy dIsARmING see «cONTROL OVER THE SYSTEM IN CASE OF EMERGENCY».
Controlled and security zones
• Interior temperature (status)
• Engine temperature (status)
• Outside temperature (status) */**
• Voltage of the on-board circuits (status)
• Engine operation control - RPM (status)
• Heater operating control (status)
• Fuel level (status)
• Parking (automatic gearbox) /Handbrake (manual gearbox) status
• Parking light is not turned off notification (status)*
• Shock sensor (security zone - alarm and warning level)
• Motion sensor (security zone - alarm level)
• Tilt sensor (security zone - alarm level)
• OE alarm system status*, additional sensor** (status, security zone - alarm and warning level)
• Turning ignition on (status, security zone - alarm level)
• Opening doors (status, security zone - alarm level)
• Opening a hood (status, security zone - alarm level)
• Opening a truck body (status, security zone - alarm level)
• Pressing brake (status, security zone - alarm level)
* AvAIlAble vIA vehIcles dIGItAl-bus (see loAdeR.pANdoRAINfo.com).
** optIoN (see “AddItIoNAl devIces” sectIoN of the mANuAl).
Remote and automatic engine start
The system allows the remote engine start function using the “remote engine start” command or
preconfigured automatic engine start function. Remote start can be used to heat engine and interior,
charge battery or to cool the interior with air conditioning.
Remote and automatic starts can only be used when the system is armed . While the system
is in remote or automatic start mode, it keeps performing all security functions of all security zones
excluding a shock sensor and additional sensor (the system can be configured not to disable
sensors during a remote engine start). To compensate it, the motion sensor sensitivity will be
increased and its responsiveness will be reduced. If any security zone will be triggered, the engine
will be immediately stopped and alarm mode will be triggered.

15
14 USER MANUALPANDORA TRUCK
When using the remote and automatic engine start functions, make sure that a vehicle is secured
with handbrake or some other means of fixating the vehicle on a parking position.
Remote and automatic engine start on automatic transmission vehicles will only occur, if a
transmission selector lever was left in the «Parking» position.
If a vehicle has a manual transmission, remote or automatic start will only occur if the program
neutral procedure was executed when the vehicle was arming.
An example of the program neutral procedure
1. When the engine is running, fixate the vehicle with the handbrake and put gear lever to the neutral
position. Program neutral procedure will be switched on automatically (by default system settings).
2. Turn the key in the ignition lock to the OFF position (the engine should still be running) and take it
out of the lock (skip this step for vehicles with a Start/Stop button).
3. Leave the vehicle, close the doors.
4. Arm the system - the engine will be stopped. Now the system is ready to perform remote and
automatic engine start.
Automatic starts
The system allows configuring automatic engine start and stop conditions using a mobile application,
some settings could be made from a remote control.
The following conditions can be specified for automatic engine starts: schedule, time period, engine
temperature, voltage. The engine will be stopped automatically after specified time or when the engine
temperature reaches a specified value. The engine can be also stopped by a user command.
! AutomAtIc eNGINe stARts ANd stops by tempeRAtuRe ARe AvAIlAble oNly If the eNGINe tempeRAtuRe seNsoR Is coNNected.
Remote ANd AutomAtIc eNGINe stARts ARe Not AvAIlAble If the hood Is opeN.
AfteR AseRIes of thRee uNsuccessful Attempts of AutomAtIc stARt, All folloWING AutomAtIc stARts WIll be cANcelled
uNtIl dIsARmING/ARmING (thIs does Not Affect oN Remote eNGINe stARt).
Slave mode
This mode allows arming and disarming using an original remote control (key) of a vehicle.
!thIs mode Is dIsAbled by defAult - coNfIGuRAtIoN of the system should be mAde by AquAlIfIed techNIcIAN. ItIs
RecommeNded to ActIvAte the “pRohIbIt dIsARmING WheN AtAG Is AbseNt” to INcReAse secuRIty feAtuRes of the slAve
mode. IfthIs mode Is ActIvAted, It WIll be possIble to dIsARm the system oNly WheN AtAG Is IN the coveRAGe zoNe oR usING
the “ImmobIlIseR pIN-code” (see “code ImmobIlIseR” (pIN-to-dRIve) fuNctIoN).
Owner authorization devices and functions
Authorization devices
Authorization devices are Bluetooth devices paired with the system (radio tags, remote controls, mobile
phone with the app, band). The devices are used to recognize an owner in the radio coverage zone of
the base unit, to arm/disarm the system (Hands Free mode) and to implement Immobiliser or Anti-Hi-
Jack functions.
!WheN usING AuthoRIzAtIoN devIces, It Is RecommeNded to INstAll beepeR.
Hands Free arming/disarming
This mode is used for automatic arming/disarming when an owner with an authorization device is
distancing or approaching a vehicle.
!thIs mode Is dIsAbled by defAult. the coNfIGuRAtIoN should be mAde by AquAlIfIed techNIcIAN.
Immobiliser mode
This mode is used to recognize an owner using authorization devices when the system is disarmed.
When turning on the ignition, the base unit performs a search for authorization devices in the radio
coverage zone. If there is no authorization device in the radio coverage zone, the system will block
the engine. Engine blocking will occur immediately or at the time a motion sensor detects movement,
it depends on the system settings. When an authorization device appears in the coverage zone, the
system will exit blocking mode and will continue to work in normal mode.
!thIs mode Is eNAbled by defAult. Its opeRAtIoN depeNds oN the method of coNNectIoN ANd system coNfIGuRAtIoN.
foR emeRGeNcy dIsARmING see «cONTROL OVER THE SYSTEM IN CASE OF EMERGENCY».
Anti-Hi-Jack 1/2 modes
The Anti-Hi-Jack modes help to prevent aggressive seizure of a vehicle in case of disappearance of
authorization devices from the radio coverage zone when system is disarmed.
ANTI-HI-JACK 1 mode - The base unit checks if an authorization device is in the radio coverage zone
each time when ignition is on and a door is opening/closing.
ANTI-HI-JACK-2 mode - The base unit constantly checks if an authorization device is in the radio
coverage zone when ignition is on.
If the system cannot detect an authorization device, the base unit will perform a delayed engine
blocking. The siren will play the `Engine blocking warning’ ringtone before blocking. The engine will
be blocked immediately or at the time the car starts moving, it depends on the system settings. When
an authorization device appears in the coverage zone, the system will exit blocking mode and will
continue to work in normal mode.

17
16 USER MANUALPANDORA TRUCK
!thIs mode Is dIsAbled by defAult. the coNfIGuRAtIoN should be mAde by AquAlIfIed techNIcIAN.
foR emeRGeNcy dIsARmING see «cONTROL THE SYSTEM IN CASE OF EMERGENCY».
Code Immobiliser (pin-to-drive) function
This function allows to use the pre-programmed «Immobiliser PIN-code» to disable the engine blocking,
Service mode, disarming the security system. The code must be entered using original vehicle controls
(buttons/lever/pedal) and/or additionally installed elements.
AN EXAMPLE OF USING THE FUNCTION
• Turn on the ignition to disable engine blocking or Service mode, turning on the ignition is not
required if you want to disarm the system or control time channels.
• Enter the «Immobiliser PIN-code», code can consist max of 4 digits from 1 to 9.
- Press the pre-programmed button/lever/pedal the number of times equals to the first digit.
- Pauses between presses should not exceed 1 second. More than 1 second pause will be interpreted
as the start of the next digit input.
• After entering the code correctly, the system will perform the programmed function.
!thIs mode Is dIsAbled by defAult. the coNfIGuRAtIoN should be mAde by AquAlIfIed techNIcIAN.
foR emeRGeNcy dIsARmING see «cONTROL THE SYSTEM IN CASE OF EMERGENCY».
Checking the number of recorded remote controls
The number of recorded control devices can be checked by the number of flashes of the LED indicator
on the VALET button. The number of registered remote control devices can be checked every time the
ignition is switched on when the system is disarmed.The number of orange LED flashes will indicate the
number of recorded remote controls, watches; green LED flashes - the number of tags, long red flash
of LED - mobile device.
You can also check the number of recorded remote controls by taking off and putting back on battery
terminal. The system will emit short sound signals from a siren, with less than 1 sec. interval:
• the first series of short signals - the number of remote controls;
• the second short signals - the paired Bluetooth remote control or watches;
• the third series of short signals - the number of tags;
• the fourth long signal - the paired mobile device
IMMOBILISER TAG
A radio tag is a device used to control a vehicle/system on a distance of a Bluetooth connection. The
tag is also used as an authorization device for «Immobiliser/Anti-Hi-Jack/Hands Free» modes. The radio
tag has: a control button for arming/disarming and activating/deactivating Service mode; a built-
in accelerometer, which allows the tag to go in the energy saving mode when there is no movement;
LED indicator SEND.
!foR coRRect opeRAtIoN, It Is Not
RecommeNded to plAce the RAdIo tAG NeAR
the metAl objects, mAGNetIc ANd electRoNIc
devIces (cRedIt cARds, phoNes, keys, Remotes,
etc.). doNot expose the RAdIo tAG WIth hIGh
tempeRAtuRes, moIstuRe, oR stRoNG ImpActs.
ItIs RecommeNded to plAce the RAdIo tAG oN
the belt IN AN INdIvIduAl cAse oR IN the fRoNt
pocket of clothING.
Functions of the button
PRESS DESCRIPTION
- short press
when ignition is o Arming/disarming
- Press and hold for 1 sec
(engine running) Activating «Ignition hold on» mode
- Press and hold for 2 sec
(system is disarmed) Change the «Main owner’s phone number»
- Press and hold for 3 sec
(ignition on) Activating/deactivating Service mode
- Press and hold for 6 sec
(programming mode) Pair a tag with the base unit
- Press and hold for 10 sec Firmware update
SEND
3D
LED indicator
Control button
Antenna 2.4 GHz
(Bluetooth 4.2)
Built-in accelerometer
Battery CR 2032

19
18 USER MANUALPANDORA TRUCK
Indication of the SEND LED
SIGNALS DESCRIPTION
one ash arm/disarm
conrmation of arming
low battery level (when installing a battery)
two ashes conrmation of disarming
three ashes high battery level (when installing a battery)
faded
constant light battery is discharged (when installing a battery, when the button is pressed)
Installation/replacing a battery of the tag CR2032
To install or replace the battery (CR2032), carefully follow these steps:
1. Turn the battery cover in the «OPEN» direction;
2. Remove the battery cover;
3. Remove the battery from the battery compartment and, observing the polarity, install a new one
(when installing a high-quality battery, the SEND indicator light will produce three red flashes);
4. Install and rotate the battery cover in the «CLOSE» direction. After completing the procedure, you can
continue to operate the radio tag in normal mode.
Battery
СR 2032
(+) side
+
СR2032
1 4
3
2
Prompt entry/change of the main owner phone number
For a prompt entry/change of the main owner’s phone number follow next steps:
• Disarm the system, being near the vehicle call the system phone number, wait for the answer (Enter
the «Guest PIN-code if you are calling not from the owner’s phone number. Default value is 1-2-3-4);
• Press and hold button on the radio tag until two flashes of the SEND indicator, then release
button;
• System will save incoming phone number as the «Main owner’s phone number» and will repeat it;
• End call.
!the phoNe NumbeR could be Also chANGe usING mobIle devIce (see «chANGING settINGs vIA phoNe» sectIoN).
Updating rmware of the tag
Download the Pandora BT application (Android / iOS) or Pandora Specialist (Android) on the devices
equipped with a Bluetooth 4.0 Low Energy or higher module.
• Open the mobile app, find the system.
• Press and hold the button of the radio tag until the 10th flash of the SEND indicator, then release
the button.
• Select the found device and select one of the update options: FILE MANAGER - firmware will be
uploaded from the phone storage (only for Android). INTERNET - firmware will be uploaded by an
internet connection.

21
20 USER MANUALPANDORA TRUCK
A two-way remote control is a mean to control and display system and vehicle state. The remote
control operates only when it is in the coverage zone of 868 MHz or 2,4 GHz (Bluetooth 4.2) radio
channels of the system. All transmitted commands are reliably protected against electronic hacking
with a modern dynamic dialogue encryption algorithm.
The system can be controlled remotely using the remote controls buttons or by using the remote
control as an authorization device in the“Hands Free/ Immobiliser/ Anti-Hi-Jack”modes.
!the Remote coNtRol Is AuNIfIed coNtRol devIce - Its opeRAtIoN depeNds of the secuRIty system ANd ImplemeNted
fuNctIoNAl. the Remote coNtRol Is sWItched off WheN shIpped, sWItch It oN AccoRdING to the useR mANuAl. ItIs
NecessARy to mAke AddItIoNAl settINGs to use the Remote coNtRol As AN oWNeR AuthoRIzAtIoN devIce. the coNfIGuRAtIoN
should be mAde by AquAlIfIed techNIcIAN.
foR mAxImum effectIveNess ANd opeRAtIoNAl RANGe, It Is RecommeNded Not to shIeld AeRIAl AReA (see pIctuRe) WIth
fINGeRs WheN usING ARemote coNtRol.
SEND
ALARM
OLED
868 MHz
2.4 GHz
micro
USB
REMOTE CONTROL D-043
• control buttons - control and configuration
of the system parameters;
• OLED display - visualization of the information icons;
• sound source - 16 sound melodies matching
a particular event;
• vibration indicator - confirmation of the buttons
pressing and executing the commands, accompanying
sound notifications of the alarm events;
• light indicator SEND / ALARM - displaying
of the communication status;
• micro-USB port - software update and charging
of the built-in battery;
• antenna 868 MHz (LoRa / AES 128 Bit) - secured control
and receiving information on a long distance;
• antenna 2.4 GHz (Bluetooth 4.2) - secured control
and receiving information on a short distance.
Displaying the connection status
To control the connection status the remote control is using the SEND/ALARM light indicator and
information icons and .
When the system is armed the connection status is displayed automatically no more than once a
minute.
Connection status icons
– 2.4 GHz (Bluetooth) connection
– 868 MHz connection when system is armed
– flashing while connection missing when system is armed
– control command sent, waiting for response
– control command sent, response received
SEND/ALARM light indicator
Green indicator Red indicator
• Flashes if there is a connection
with the base unit
• Goes dark when there is no connection
with the base unit
• Flashes frequently if there is any notification
• Flashes occasionally when there is no connection.
Switching on/o the remote control
To switch on the remote, press and hold the button for 3 sound signals (3 sec.). The «REMOTE
ON» ringtone will play (charge the battery if the remote control does not switch on, see “Charging the
remote control” section). Pressing and holding this button again for 3 seconds will cause the remote to
switch off.
Charging the remote control
There is battery charge level indication on the display of the remote control. Charge the battery
if the remote control doesn’t turn on or the charge indicator displays low level. Charging is
performed using a standard micro-USB cable

23
22 USER MANUALPANDORA TRUCK
Diagnostic Mode
Diagnostic mode is used for the initial test of the remote control. To test the remote control, charge the
battery, switch the remote control off.
• press and hold the button - display, sound source , SEND/ALARM indicator, vibration
indicator will turn on;
• press and hold the button - display will show technical information;
• press and hold the button - after 3 sec. the remote control will switch on.
Firmware update
• Run the Pandora Alarm Studio program on a PC with Windows XP/Vista/7/8/10 and connect a USB
cable to it.
• Press and hold the button and connect a USB cable. Release the button after connection. The
remote control and the program will enter boot mode.
• Press the “Update software” button in the Pandora Alarm Studio and select one of the following
options: “Firmware archive” - it will upload firmware from the server to the “Firmwares”folder of the
Pandora Alarm Studio;“Load from file” - select a file with firmware on your PC.
• Start uploading by pressing the “Upload”button.
• Disconnect the USB cable after the procedure completed.
Quick access functions of the remote control
System is disarmed System is armed
(no alarm events)
Ignition is on Ignition is o
(short press) Lock doors without arming Arming with a sound
confrmation
Search mode – ashes of
turn signals with sound
signals for 5 seconds
(1 sec.) Arming without sound
conrmation
Search mode – ashes of
turn signals without sound
signals for 5 seconds
(2 sec.) Switch on «Ignition
Hold on» mode
(3 sec.) Switch on «Programmed
neutral» Remote engine start
(short press) Unlock doors Unlock doors Disarming with sound
conrmation
(1 sec.) Disarming without sound
conrmation
(2 sec. and more) Switch o «Ignition
Hold on» mode
Switch o the ignition
during remote or automatic
engine start procedure.
(short press) Switch on display
(1 sec.) Unlock trunk
(2 sec.) Switch on/o additional option
(3 sec.) Switch on/o remote
+
(short press) PANIC mode
+ (1 sec.)
Arming when the
engine is running with
sound conrmation
Arming in 30 seconds
with sound notication
+ (1 .)
Arming when the
engine is running without
sound conrmation
Arming in 30 seconds
without sound
notication

25
24 USER MANUALPANDORA TRUCK
Icons of the remote control
Connection status
Security mode status
Remote control
battery level
Current time
Battery voltage
Interior temperature
Engine temperature
Fuel level*
Engine operation icon
Preheater operation icon
Ignition security zone
12 48
Shock sensor
Warning level
Shock sensor
Alarm level
Tilt sensor security zone
Motion sensor security zone
Doors security zone
Front hood security zone
Truck body security zone
Additional sensor
Warning level
Additional sensor
Alarm level
Low voltage security zone
Brake pedal security zone
P
22
°
90
°
55
1
2
.4B
* Separate display indication of doors, original alarm status, engine temperature depends on the information in CAN-
bus digital protocol of specific car. Fuel level indication depends on the information in CAN-bus digital protocol, or on
the original fuel level (require additional connection).
Remote control menu
You can control and manage all main settings and parameters of the system using the menu of the
remote control.
Briefly press the button to enter the menu. The following presses of the button will switch
between menu items. Press the or button to enter a selected item.
PROCEED TO THE MENU
(briefly press)
GO TO THE NEXT ITEM
(briefly press)
GO TO THE NEXT ITEM
(briefly press)
EXIT THE MAIN MENU
(press briefly)
ENTER THE MAIN MENU
(press briefly)
F
F
GO TO THE NEXT ITEM
(briefly press)
F
F
F
OR
ON or OFF
(briefly press)
OR
PROCEED TO THE MENU
(briefly press)
OR
PROCEED TO THE MENU
(briefly press)
OR
heater
settings
information
car state
You can manually exit the menu by pressing the button for 1 second. If there are no any actions
within 5 seconds, the remote control will exit the main menu automatically.

27
26 USER MANUALPANDORA TRUCK
CAR STATE
To get information about engine temperature, interior temperature, battery voltage and fuel level,
select the CAR STATE menu by short presses of the button and briefly press the or button.
12 4V 22 °
90° 55
Battery
voltage
Interior
temperature
Engine
temperature
Fuel
level
HEATER
To enable/disable the engine preheater, select the HEATER menu by short presses of the button and
briefly press the or button.
ENABLING THE HEATER
(press briefly)
OR
heater
on
DISABLING THE HEATER
(press briefly)
OR
heater
off
SETTINGS
To change settings and parameters of the system, select the SETTINGS menu by short presses of the
button and briefly press the or .
Briefly press or button to select a sub-menu, to enter the sub-level briefly press the .
PROCEED TO THE SETTINGS MENU
(press briefly)
or
PROCEED TO THE SETTINGS/PARAMETERS
(press briefly)
MENU NAVIGATION
(press briefly)
up
down
EXIT THE MENU
(press for 1 sec.)
F
F
HISTORY
BACK
AUTOSTART
SENSORS
TRACKING
SIREN
HANDS FREE
CHANNELS
GPS RECEIVER
GSM MODEM
VALET MODE
SETTINGS
INFORMATION
decrease
enter/confirmation button
parameter
is enabled
parameter
is disabled
save parameter
exit a menu/sub-menu
navigation buttons
increase
up
down
VIEW EVENT HISTORY
This menu allows viewing the event history stored in the remote control’s memory. The remote control
displays an event name and its time.
! the NumbeR of eveNts Is lImIted by the memoRy of the Remote coNtRol.

29
28 USER MANUALPANDORA TRUCK
AUTOMATIC ENGINE START SETTINGS
This menu allows configuring the automatic engine start and stop settings. A synchronized real
time clock in the remote control and the base unit and other autonomous system settings allow to
implement set of conditions of engine start and operation regardless of whether the remote control is
in the radio coverage zone or not.
• ENABLE - this submenu switches on/off all automatic engine starts.
• TIMER - this submenu allows starting an engine every day at the scheduled time.
• START TEMP - this submenu allows starting an engine automatically when the engine temperature
is low.
• WORK TIME - this submenu determines the maximum engine operation time for automatic and
remote starts.
• PERIODICALLY - this submenu allows starting engine periodically with a configured time interval.
• STOP TEMP - this submenu determines the engine stop temperature.
SETTING AND ADJUSTMENT OF THE SENSORS
This menu allows controlling and adjusting sensors (shock/motion/tilt) sensitivity. SHOCK and additional
EXTERNAL sensors have separate ALARM and WARNING sensitivity zones. Alarm zone triggers when there
is considerable impact on a sensor. If the alarm zone is triggered, the system will indicate it with light and
sound alarm for 30 sec. Warning zone triggers when there is a minor impact on a sensor (the sensitivity of
the warning zone should be higher than the alarm level sensitivity for correct operation). Warning level is
indicated by one light and three sound signals.
• SHOCK -- This submenu allows adjusting sensitivity of the alarm and warning zones of the
shock sensor.
warning and alarm zones are enabled.
warning and alarm zones are disabled.
warning zone is disabled.
• MOTION -- This submenu allows adjusting sensitivity of the motion sensor.
motion sensor is enabled.
motion sensor is disabled.
• TILT - This submenu allows adjusting sensitivity of the tilt sensor.
tilt sensor is enabled.
tilt sensor is disabled.
• EXTERNAL - This submenu allows adjusting sensitivity of the alarm and warning zones of the
additional sensor.
warning and alarm zones are enabled.
warning and alarm zones are disabled.
warning zone is disabled.
TRACKING SETTINGS
This menu allows you to switch on and off the tracking function for online services..
OPTIONS OF THE SIREN SOUND SIGNALS
This menu allows configuring siren sound notifications.
all sound signals are enabled.
warning signals are disabled.
warning and alarm signals are disabled..
SETTINGS OF THE HANDS FREE MODE
This menu allows configuring the Hands Free mode for arming/disarming.
Enable arming in the Hands Free mode.
Enable disarming in the Hands Free mode.
Enable arming and disarming in the Hands Free mode.
- Disable arming and disarming in the Hands Free mode.
TIME CHANNEL CONTROL
This menu allows switching on/off time channels. These channels are used to implement additional
functions and to control external devices.

31
30 USER MANUALPANDORA TRUCK
COORDINATES DETECTION
This menu allows you to switch on and off detection of GPS/GLONASS coordinates.
MANAGE THE BUILT-IN MODEM
This menu allows you to switch on and off the built-in GSM-modem.
SERVICE MODE
This menu allows activating/deactivating the Service mode (see the “Service mode” section).
SETTING OF THE REMOTE CONTROL
This menu allows configuring the remote controls operation.
• SOUND - this submenu allows switching on/off sound signals.
• VIBRO - this submenu allows switching on/off vibrations.
• BACKLIGHT - this submenu allows adjusting LCD backlight brightness.
• RFM LOST - this submenu allows configuring sound notifications in case of losing connection between
a remote control and a base unit.
- disable notification signals.
- enable notification by“Connection is lost”ringtone.
- enable notification by“ALARM”ringtone. The“ALARM”ringtone will be played if the system is armed.
The system will notify you with a short signal one time per minute after the ringtone. The notifications
will come until the connection is established or the notification can be cancelled by a short press of the
button.
• DATE/TIME - this menu allows you to set time of the remote. It is required to arm and disarm the
system after to send the changed value to the base unit.
! dAte ANd tIme detectIoN Is peRfoRmed AutomAtIcAlly AccoRdING to the utc tIme zoNe (the tIme zoNe settINGs ARe
AvAIlAble IN the mobIle ApplIcAtIoN ANd oNlINe seRvIce).
To get technical information about the remote control, select the INFORMATION menu by short presses
of the button and briefly press the button or .
CONTROL THE SYSTEM BY A PHONE
! foR the coRRect opeRAtIoN of the Gsm fuNctIoNs, AN oWNeR should moNItoR the stAtus/bAlANce of the sIm cARd
INstAlled IN the system. Ifthe sIm cARd Is blocked oR defectIve, Gsm fuNctIoNs of the system WIll be uNAvAIlAble.
Call the system’s phone number. When it answers, enter a command code:
*Enter the“Secret PIN-code”after dialling a command.
DTMF commands
For example: To have simple access to the engine start function, create a new contact in the contact
list of your phone, name it `Engine start’, for instance, and add the number in the following format:
+XXXXXXXXXXX,123*,297* where “+XXXXXXXXXXX” - the system phone number, “,” - pause is a
feature of the phone (can be displayed as the `P’, see the instructions of the phone), “123*” - remote
engine start DTMF command,“297*” - end call DTMF command.
Contact can be added as a speed dial to any of the free button.
1
10 00 0*
*
1
12 23 3*
*
5
5
1
1*
*Tow truck mode
Request GSM account balance
Start the engine/prolong heating
3
32 21 1*
*Stop the engine
3
33 33 3*
*Switch on add. function using F via CAN
5
50 00 0*
*
4
45 56 6*
*
6
65 54 4
*
*
7
75 53 3*
*
Request current coordinates
Switch on additional channel
Switch off additional channel
#
#
9
9*
*
*
*
1
15 59 9*
*
Return to previous menu
Repeat the last message
Silent arming
Help
0
0
0
0*
*
0
0
1
1*
*
Unlocking trunk
Silent disarming
1
1*
*Arming
0
0*
*Disarming
Force connection to the server
2
25 58 8*
*System information
1
15 56 6*
*
6
65 51 1*
*
Switch on engine preheater
Switch off engine preheater
6
66 66 6*
*
9
99 99 9*
*
Enable engine blocking
Disable engine blocking*
9
99 98 8*
*
8
88 88 8*
*
Disable authorization devices*
4
42 24 4
*
*
Fuel level calibration
Enable authorization devices
2
22 22 2*
*Disable Hands Free mode
2
22 23 3*
*Enable Hands Free arming
2
22 24 4*
*Enable Hands Free disarming
2
22 25 5*
*Enable Hands Free disarming
only with autom. start
7
78 89 9*
*Enable automatic engine start
9
98 87 7*
*Disable automatic engine start
2
29 97 7*
*End call
5
55 51 1*
*Enable Service mode (see description below)*
5
55 52 2*
*Disable Service mode

33
32 USER MANUALPANDORA TRUCK
To have simple access to engine start function a phone other than the main owner’s phone, create
contact in the following format: +XXXXXXXXXXX,1234,123*,297* where `1234’ is the“Guest PIN-code”.
Arming/disarming
1. Call the system number. Wait for the answer.
2. Dial the 1* DTMF command to arm the system, or the 0* for disarming. For the silent arming dial
the 10* DTMF command, for the silent disarming - the 00* DTMF command.
3. The system will confirm command with a voice message “System is armed/disarmed”. To end
session, hang up the phone.
Activate/deactivate Service mode
1. Call the system number. Wait for the answer.
2. Turn on the ignition, an authorization device (tag, Bluetooth remote control, watches, paired
mobile device) must be in the coverage zone if the Immobiliser or Anti-Hi-Jack modes are enabled.
3. To activate Service mode, dial the 551* DTMF command -- “Activate Service mode”, then enter the
“Secret PIN-code”from the Owner’s personal card.
4. To deactivate Service mode, dial the 552* DTMF command -- “Deactivate Service mode”.
Voice help
The system has a voice help menu. During a voice call to the system, dial 9* and listen to the
information about system control commands.
To end the session, hang up the phone.
Repeat the last message
To repeat any message, press *during a voice call to the system.
Enabling/disabling automatic engine starts
The system has a function of prompt disabling automatic engine start:
1. Call the system number. Wait for the answer.
2. Dial the 987* DTMF command to disable all automatic engine starts or the 789* to enable.
3.The system will confirm execution of the command.
To end the session, hang up the phone.
Automatic starts can be enabled again by dialling the 789* (all previous settings will remain intact).
Request current coordinates
1. Call the system number. Wait for the answer.
2. Dial the 500* DTMF command.
3. The system will confirm: «Current coordinates are sent via text message» and will send text
message with LBS and GPS/GLONASS coordinates to your phone.
Request GSM balance
1. Call the system number. Wait for the answer.
2. Dial the 100* DTMF command.
3. The system will confirm: «Balance information is sent via text message» and will send text message
with account balance information to your phone.
To end the session, hang up the phone.
Tow truck mode
This mode is intended for vehicle transportation with preservation of arming function. Tow truck
mode can be activated only when the system is armed, it will be deactivated automatically when
disarming.
1. Call the system number. If the system is in ALARM mode, receive an emergency call. Wait for the
answer.
2. Dial the 15* DTMF command to enable the «Tow truck» mode, the system will disable motion,
shock and tilt sensors.
To end the session, hung up the phone.
3. To disable this mode, disarm the system.
Activating/deactivating engine blocking
You can block the vehicle engine using any phone. The engine will remain blocked until the phone
command «Unlock engine» will be sent and the «Secret PIN-code» will be entered. This blocking cannot
be disabled by any other means.
1. Call the system number and wait for the answer.
2. Dial the 666* DTMF command to block the engine or the 999* to unlock it (after dialling 999* you
should enter the «Secret PIN-code» that is located on the Owner’s personal card).
! All otheR commANds cAN be eNteRed IN the sAme mANNeR.

35
34 USER MANUALPANDORA TRUCK
Changing settings via a phone
Changing settings via a phone
Disarm the system, call the system number, wait for the answer, switch on the ignition for 1-3 seconds
(but no more than 5 seconds), then switch it off. The system will enter the settings mode.
An example of changing the owner’s main phone number:
1. Enter the setting menu via a phone according to the instruction above;
2. Dial the 1* DTMF command (phone number settings) and the 1* (owner’s main phone number);
3. Enter new owner’s main phone number in the format *XXXXXXXXXXX # (the system recognizes
`*’ as `+’);
4. To confirm, dial the 1*.
! theRe ARe 2 WAys to chANGe mAIN oWNeR’sphoNe NumbeR
1. vIA AphoNe, usING dtmf commANds settINGs mode.
2. usING RAdIo tAGs ANd the vAlet buttoN:
- dIsARm the system, Get IN the vehIcle, cAll the system phoNe NumbeR, WAIt foR the ANsWeR (dIAl the “Guest pIN-code”
(defAult vAlue Is 1-2-3-4) If you ARe cAllING Not fRom the mAIN oWNeR’sNumbeR).
- pRess ANd hold the coNtRol buttoN oN the RAdIo tAG uNtIl tWo flAshes of the led INdIcAtoR (2 secoNds)
oR shoRtly pRess the vAlet buttoN.
- the system WIll RecoGNIze the INcomING phoNe NumbeR As the “mAIN oWNeR’sphoNe NumbeR”.
System’s number -> «#»
5
5
*
*
Set up date
Set up time
1
1
*
*
2
2
*
*
Phone
number settings
Owner's number -> #
Additional owner's number -> #
Second additional owner's
number -> #
Account balance inquiry number -> #
1
1
*
*
1
1
*
*
2
2
*
*
3
3
*
*
4
4
*
*
Automatic
engine start
settings
By time
Set up time for automatic start
By voltage
Set up voltage for automatic start
1
1
*
*
2
2
*
*
3
3
*
*
4
4
*
*
By temperature*
Set up temperature for automatic
start*
5
5
*
*
6
6
*
*
By period
Set up period for automatic start
7
7
*
*
8
8
*
*
6
6
*
*
Sensor
sensitivity settings
Settings of the warning level of the
shock sensor sensitivity
Settings of the alarm level of the
shock sensor sensitivity
Settings of the motion sensor
sensitivity
1
1
*
*
2
2
*
*
3
3
*
*
4
4
*
*Settings of the tilt sensor sensitivity
Settings of the warning level of the
supplementary sensor sensitivity
5
5
*
*
Settings of the alarm level of the
supplementary sensor sensitivity
6
6
*
*
7
7
*
*
Settings
of the voice calls
Voice calls on alarm
Voice calls on triggering warning
level of the sensors
Voice calls on engine start
Voice calls on engine stop
1
1
*
*
2
2
*
*
3
3
*
*
4
4
*
*
Voice calls on restoring GSM
connection
Voice calls on disarming
5
5
*
*
6
6
*
*
Voice calls on entering
programming mode
Voice calls when radio relay
connection is lost
7
7
*
*
8
8
*
*
Voice calls when on-board voltage
is low
9
9
*
*
Voice calls on accident
0
0
*
*
2
2
*
*
Settings
of the text messages
Text messages on alarm
Text messages on triggering warning
level of the sensors
Text messages on engine start
Text messages on engine stop
Text messages on restoring GSM
connection
Text messages on disarming
1
1
*
*
2
2
*
*
3
3
*
*
4
4
*
*
5
5
*
*
6
6
*
*
Text messages on entering
programming mode
Text messages when radio relay
connection is lost
7
7
*
*
8
8
*
*
Text messages when on-board
voltage is low
9
9
*
*
Text messages on accident
0
0
*
*
3
3
*
*
Additional
settings
Changing guest PIN-code
Entering as guest
Allow/deny command 666*
1
1
*
*
2
2
*
*
3
3
*
*
Set threshold voltage for sending
text message
5
5
*
*
5
5
*
*
Settings
of saving mode
GSM connection
Money saving mode of the GSM
connection
Voice calls in roaming service
1
1
*
*
2
2
*
*
3
3
*
*
8
8
*
*
Current time
and date settings
9
9
*
*
* Engine start via temperature is available only if temperature
sensor is connected. The sensor availability depends on the
system set

37
36 USER MANUALPANDORA TRUCK
Before using the online-service, it is necessary to create an account (Registration), login to your
account (using your email and password created on the registration step) and add the system to your
account (enter information from the Owner’s personal card).
Web-service: https://pandora-on.com.
The Pandora Connect mobile app is available for downloading from the corresponding app store:
App Store for iOS devices;
Google Play for Android devices.
!mINImum RequIRemeNts: ANdRoId v5.0; Ios v13.0.
the mANufActuReR ReseRves the RIGht to mAke chANGes of the
INteRfAce ANd fuNctIoNAlIty of the INteRNet seRvIce ANd mobIle
ApplIcAtIoN WIthout NotIfyING the coNsumeR.
ONLINE SERVICE AND MOBILE APPLICATIONS
pandora-on.com
LOGIN
PASS
e-mail
********
LOGIN
PASS
e-mail
********
!foR the coRRect opeRAtIoN of the Gsm fuNctIoNs, AN oWNeR should moNItoR the stAtus/bAlANce
of the sIm cARd INstAlled IN the system. Ifthe sIm cARd Is blocked oR defectIve, Gsm fuNctIoNs of
the system WIll be uNAvAIlAble.
Telemetric functions of the system allow you
to control your vehicle using the online service
pandora-on.com or mobile app - Pandora Connect.
A SIM card with Internet access is installed in the system
to provide this functionality.
When approaching the vehicle or when Internet
connection is missing a mobile phone with the app
installed can work with the system via a Bluetooth
connection. The mobile phone must be paired with the
system.
Registration
Visit the website or open the mobile app to create an account. You will create the data to sign in: LOGIN
- your email, PASSWORD - a password entered during the registration. You will receive an email with a
confirmation link. Click the link to complete the registration procedure.
Login
After completing of the registration process, you can login to the online service via a computer’s web
browser or via the mobile application Pandora Connect. Use your previously created data:
Login - your e-mail;
Password - previously created password.
Adding a system to your account
The created account can support up to 3 telemetry systems. Use the information from the Owner’s
personal card to add the system to your account.
Go to the «Add a device/Add a system» window and enter the LOGIN and PASS from the Owner’s
personal card, create a name for your vehicle and click «Add». If you need to use several systems/
devices on the same account: enter the application settings, click «Change», click «+», in the «Device
Registration» window, enter the data of a new system/device located on the Owner’s personal card.
!eRAse the pRotectIve lAyeR cARefully. doNot use ANy shARp objects to AvoId dAmAGING of hIddeN INfoRmAtIoN uNdeR
the pRotectIve lAyeR.
After this, you will be able to control, change settings and get information about the vehicle state
through the online-service.

39
38 USER MANUALPANDORA TRUCK
Writing a mobile device to the system memory
When approaching the vehicle or when Internet connection is missing a mobile phone with the mobile
application Pandora Connect installed can work with the system via a Bluetooth connection. This type of
connection allows you to control the system, receive status information and use your mobile phone as
an authorization device. After installing the mobile application pair your mobile device with the system.
I. ENTER THE PROGRAMMING MODE
Use the VALET button to enter the «Service PIN-code» (default value is 1-1-1-1). See the detailed
description of the procedure in the «Control over the system in case of emergency» section.
II. ENTER THE «PAIRING A MOBILE PHONE» PROGRAMMING LEVEL
After entering programming mode, press and hold the VALET button for 5 seconds (until the fifth
signal of the siren/beeper). The system will enter the «Pairing a mobile phone» programming level. The
LED indicator will light green, the system is ready for pairing.
!the pRevIously pAIRed devIce WIll be eRAsed fRom the system memoRy AfteR eNteRING the level.
III. PAIR A MOBILE DEVICE
Enable the Bluetooth connection in the mobile device, enter the app settings, click «Bluetooth control»,
click «Not defined». In the search box, establish a connection with the detected system. The red and green
flashes of the «LED» indicator light and a single siren sound will confirm the pairing.
! IftheRe Is No AutomAtIc pAIRING, eNAble the «pIN Request foR phoNe pAIRING» Item IN the «RAdIo tAG ANd mobIle devIce
fuNctIoNs» settINGs ANd mAke the pAIRING pRoceduRe AGAIN. A mobIle devIce WIll Request ApIN-code (fActoRy pRe-set
Is 0-0-1-1-1-1 WheRe 4 lAst dIGIts ARe the «seRvIce pIN-code». thIs settING should be mAde by AquAlIfIed techNIcIAN.
IV. EXIT PROGRAMMING MODE
Turn on the ignition and then turn off to exit programming mode.
!the system suppoRts bluetooth coNNectIoN oNly WIth oNe mobIle devIce.
CONTROL THE SYSTEM
Arming
To arm the system when the ignition is off, use one of the methods described below. The system
will confirm the command with 1х short sound signal and 1х flash of light signalization.
doors locking
system arming
SLAVE
HANDS FREE
PANDORA BT
SLAVE
HANDS FREE
MOBILE APP
1x /1x
/1x
Remote control
Shortly press the button on the remote control when you are in the radio coverage zone. The
remote control will play «ARMING» ringtone and security mode status icon will be changed to .
To arm the system without a sound notification press and hold the button for more than 1 second.
Radio tag
A radio tag must be in the Bluetooth coverage area. Shortly press the control button on the tag.
Slave mode
Shortly press the “Lock” button on an original remote control of a vehicle..
Phone
Call the system number. Wait for the answer. Dial the 1 * command.
To arm the system without siren signals dial the 1 0 * .
Online service PANDORA-ON.COM
Login to the PANDORA-ON.COM, when the system is online (there is an Internet connection) press the
button on the control panel.
