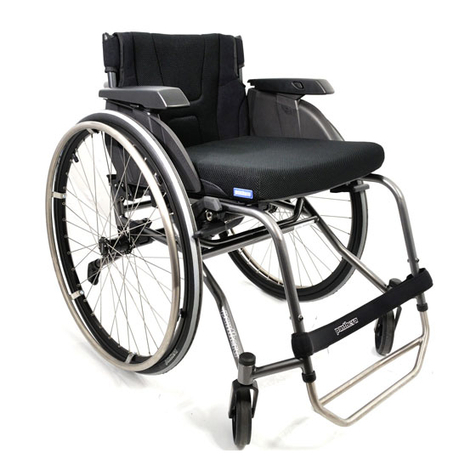

panthera S3 Operating instructions

Panthera AB, Gunnebogatan 26, SE-163 53 Spånga, Sweden, [phone], www.panthera.se
TROUBLESHOOTING
art.nr. fels-S3-swing-benstöd-eng
Rev.2017-01

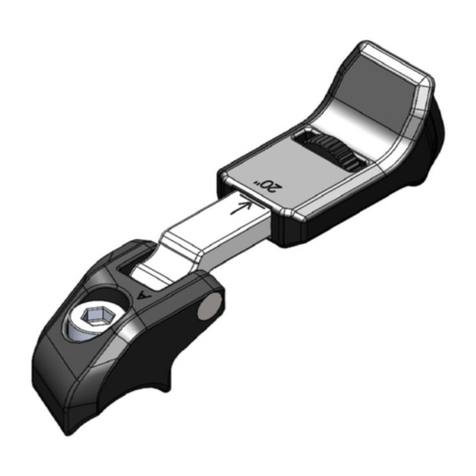

FOOTREST S3 SWING
1) If the mechanism for loosing the fot-
rest has jammed, even though you press
the release button properly, you can fol-
low this instruction.
2) Loosen this screw with allen key 3
mm.
3) Then use the allen key to push out
the locking piston to release the footrest
from the wheelchair.
Troubleshooting for:
Footrest S3 Swing
art.no. 43911XX, 43912XX, 43913XX
Tools needed:
Allen key 3 mm
Allen key 6 mm
Knife
4) Remove the footrest from the wheel-
chair.
.
5) Remount the screw to the footrest. 6) Use a suitable tool, e.g. a long allen
key to push down the release mecha-
nism in the frame to make the ejector to
come out. Pull it out with e.g.a knife
LINK TO
INSTRUKTION VIDEO

Panthera AB, Gunnebogatan 26, SE-163 53 Spånga, Sweden, [phone], www.panthera.se
7) Take out the ejector. 8) Then tighten the attachment towards
the frame properly with allen key 6 mm..
9) Remount the ejector.
10) Finally check the function of the lock-
ing mechanism of the footrest.
LINK TO
INSTRUKTION VIDEO
