Paradox TM50 Touch User manual

Printed in Canada | 06/2012 TM50 Quick Install Guide
Wiring Diagram
Technical Specifications

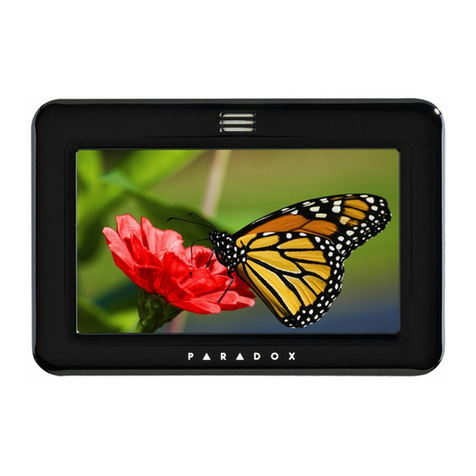

TM50 Touch
Intuitive Touchscreen
Quick Install Guide
The TM50 Touch Intuitive Touchscreen allows you to control your
Paradox system’s functions through its touchscreen interface. Use
the following instructions to install your new TM50 Touch.
Installation
1. Using a screwdriver, pry the front housing assembly from
the backplate.
Power Input 9 to 16Vdc
Display 16-bit, color LCD; 6.4 x 11.2 cm (2.5 x 4.4 in.), 480 x
272 pixels
Consumption Standby: 100mA, Alarm: 200mA
Dimensions 14.4 x 9.6 x 1.4 cm (5.7 x 3.8 x 0.6 in.)
Weight 165 g (5.8 oz)
Humidity 5-90%
Sensors Indoor temperature sensor
Compatibility EVO v2.16 or higher, MG/SP v4.72 or higher
CONTROL PANEL
BLUE
ZONE/TEMP
RED
BLK
GRN
YEL
Kpd 1 or Kpd 2
N.C . COM
AUX-GRN YEL
AUX+
Warranty: For complete warranty information on this product, please refer to
the Limited Warranty Statement found on the Web site www.paradox.com/
terms. Your use of the Paradox product signifies your acceptance of all
warranty terms and conditions.
© 2012 Paradox Ltd. All rights reserved. Specifications may change without
prior notice. www.paradox.com
TM50-EI01

2. Mount the backplate to the wall by securing a M3.5 (#6)
screw in each of the dedicated mounting holes and tamper
hole. Ensure that the UP arrow on the backplate is in the up
position.
3. Assemble both items by joining the hooks on the backplate
to their respective slots on the front housing assembly. Make
sure the SD card cover clip is secured.
4. Make sure to connect the unit’s 5-pin connector. Secure the
front housing to the backplate by snapping it into place.
The installation process is complete.
TM50 Touch to Panel Connections
As shown in the Wiring Diagram, the red, black, green, and yellow
wires on the TM50 Touch must be connected to their
corresponding labeled terminals on the control panel’s PCB. The
blue wire is connected to either a keypad zone or external
temperature sensor.
