SOLDERING GUN PLP 100 A1
IAN 71921
SOLDERING GUN
Operation and Safety Notes
JUOTTOPISTOOLI
Käyttö- ja turvaohjeet
LÖDPISTOL
Bruksanvisning och säkerhetsanvisningar
LÖTPISTOLE
Bedienungs- und Sicherheitshinweise

GB Operation and Safety Notes Page 5
FI Käyttö- ja turvaohjeet Sivu 19
SE Bruksanvisning och säkerhetsanvisningar Sidan 33
DE/AT / CH Bedienungs- und Sicherheitshinweise Seite 47
Before reading, unfold the page containing the illustrations and familiarise yourself with all
functions of the device.
Käännä ennen lukemista kuvallinen sivu esiin ja tutustu seuraavaksi laitteen kaikkiin toimintoihin.
Vik ut bildsidan och ha den till hands när du läser igenom anvisningarna och gör dig bekant
med apparatens/maskinens funktioner.
Klappen Sie vor dem Lesen die Seite mit den Abbildungen aus und machen Sie sich anschließend
mit allen Funktionen des Gerätes vertraut.

1 2
3
4
5
6
10
7
8
9
1

5GB/IE
Introduction
Proper use ............................................................................... Page 7
Description of parts and features.......................................... Page 7
Included items......................................................................... Page 8
Technical data......................................................................... Page 8
Safety advice
1. Workplace safety............................................................... Page 9
2. Electrical safety.................................................................. Page 9
3. Personal safety ................................................................... Page 10
4. Careful handling and use of electrical power tools........ Page 12
Original accessories/attachments....................................... Page 12
Use
Switching on and off .............................................................. Page 12
Replacing a soldering tip....................................................... Page 13
Maintenance and cleaning.................................. Page 14
Service centre ................................................................. Page 14
Warranty ............................................................................ Page 14
Disposal................................................................................ Page 16
Declaration of Conformity/
Manufacturer.................................................................. Page 16
Table of contents

6 GB/IE
Introduction
The following pictograms are used in these operating
instructions/on the device:
Read instruction manual!
Observe caution and safety notes!
Caution– electric shock! Danger to life!
Risk of explosion!
Risk of fire!
Warning - Hot surfaces!
V~Volt (AC)
WWatts (Effective power)
Wear a breathing/dust mask, protective glasses,
gloves and clothing.
Keep children away from electrical devices!
Check that the device, mains lead and plug are in
good condition!
Do not smoke!
Do not eat!

7GB/IE
Introduction
Soldering gun PLP 100 A1
Q
Introduction
Please make sure you familiarise yourself fully with the way
the device works before you use it for the first time and that
you understand how to handle it correctly. Please read the
operating instructions below. Be careful to keep these advice notes and
if necessary pass them on to a third party.
Q
Proper use
The device is intended for soldering tasks in a DIY environment. Soft solder-
ing takes place at temperatures below 450°C. Suitable solders have typic al
melting temperatures around 200°C. Use the device only as described
and for the indicated purposes. The device is not intended for commercial
use. Any other use or modification to the device shall be considered as
improper use and could give rise to considerable dangers. The manufac-
turer will not accept liability for loss or damage arising from improper use.
Q

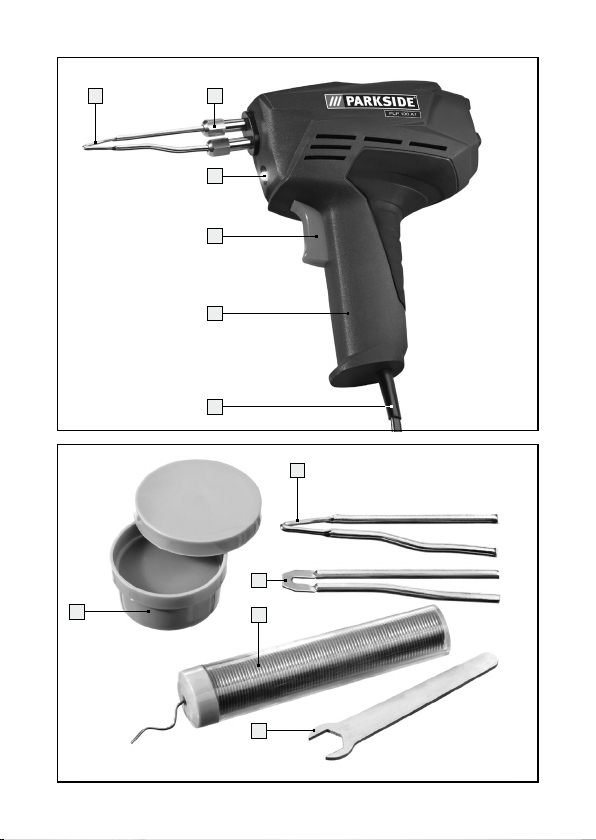

Description of parts and features
1Soldering tip
2Union nut
Do not drink!
Dispose packaging and appliance in an
environmentally-friendly way!

8 GB/IE
3Soldering light
4ON/ OFF switch
5Handle
6Mains lead
7Cutting tip
8Tin solder
9Open spanner
10 Solder flux
Q
Included items
1 Soldering gun PLP 100 A1
1 Carry case
2 Soldering tips (1 cutting tip 7premounted)
1 Open spanner
20g Tin solder
10g Solder flux
1 Operating instructions
Q
Technical data
Rated voltage: 230V~
Frequency: 50Hz
Power: 100W
Max. soldering tip
temperature: 540 °C
Protection class: II/
ON max. 12 sec./OFF min. 48 sec.
Safety adviceIntroduction

9GB/IE
Safety advice
CAUTION! Failure to observe the instructions and advice given
below may result in electric shock, fire and/or serious injury.
1. Workplace safety
a) Keep your working area clean and well lit. Untidy or
poorly lit working areas can lead to accidents.
b) Do not work with the device in potentially
explosive environments in which there are
inflammable liquids, gases or dusts. Electrical
power tools create sparks, which can ignite dusts or fumes.
c) Keep children and other people away while
you are operating the electrical tool. Distrac-
tions can cause you to lose control of the device.
2. Electrical safety
a) The mains plug on the device must match the mains sock-
et. The plug must not be modified in any way. Do not
use an adapter plug with devices fitted with a protec-
tive earth. Unmodified plugs and matching sockets reduce the
risk of electric shock.
b) Keep the device away from rain or moisture. Water en-
tering an electrical device increases the risk of electric shock.
c) Use a residual current device (RCD) for protection if
operating the electrical power tool in a moist environ-
Safety adviceIntroduction

10 GB/IE
ment is unavoidable. The use of an RCD reduces the risk of
electric shock.
d) Do not use the mains lead for any purpose for
which it was not intended, e.g. to carry the
device, to hang up the device or to pull the
mains plug out of the mains socket. Keep the mains lead
away from heat, oil, sharp edges or moving parts of the device.
Damaged or tangled mains leads increase the risk of electric shock.
e) Do not operate the device if the mains lead or mains plug is
damaged.
A damaged mains lead presents a serious
danger to life from electric shock.
f) Always keep the mains lead out of the operating area and run it
away from the rear of the device.
g) Always pull out the mains plug if you are about to leave the device
unattended or wish to carry out any tasks on the device.
3. Personal safety
a) Children or persons who lack the knowledge or expe-
rience to use the device or whose physical, sensory or
intellectual capacities are limited must never be al-
lowed to use the device without supervision or in-
struction by a person responsible for their safety. Chil-
dren must never be allowed to play with the device.
b) Remain alert at all times, watch what you are doing
and always proceed with caution. Do not use the
device if you are tired or under the influence of drugs,
alcohol or medication. One moment of carelessness when us-
ing the device can lead to serious injury.
Safety advice Safety advice

11GB/IE
Never touch the hot soldering tip or the molten solder.
You could suffer burn injuries. Always let the device cool
before you replace components on the device, clean it
or check its condition.
After use let the soldering gun cool down in air only. Under no
circumstances quench the tip in water!
When allowing the device to cool or when taking a break from
using it, always stand the device up vertically with the soldering
tip at the top.
Keep the device away from combustible materials.
CAUTION! DANGER OF INJURY! Keep your hands away
from the hot workpiece. Avoid contact with the hot soldering tip.
If a dangerous situation arises, pull the mains plug immediately
out of the mains socket.
CAUTION! DANGER OF POISONING! Do not breathe air
contaminated with soldering fumes.
When working with the device for long periods do not
allow the fumes from soldering to build up. They may
be hazardous to health. Always provide adequate
ventilation of your working area. In addition, it is recommended that
you wear protective gloves, a face mask and a protective apron.
Do not eat, drink or smoke in rooms where soldering is carried
out. Otherwise your hands may transfer any adhering traces of
lead via food or cigarettes into your body.
Always wash your hands immediately after soldering.
Do not dispose of soldering waste with the household rubbish.
Soldering waste must disposed of as special waste.
Safety advice Safety advice

12 GB/IE
4. Careful handling and use of
electrical power tools
a) When not in use always ensure that electrical power
tools are kept out of reach of children. Do not let any-
one use the device if he or she is not familiar with it
or has not read the instructions and advice. Electrical
power tools are dangerous when they are used by inexperienced
people.
b) Look after the device carefully. Check for broken
parts or parts that are damaged to the extent they
detrimentally affect the functioning of the device.
Have any damaged parts repaired before you use
the device. Many accidents have their origins in poorly main-
tained electrical tools.
Q
Original accessories/attachments
Use only the accessories detailed in the operating
instructions. The use of attachments or accessories other than
those recommended here could lead to you suffering an injury.
Q
Use
Q
Switching on and off
Switching on:
Insert the mains plug into a suitable mains socket. Press the
ON/ OFF switch 4and keep it pressed.
Maximum switched-on duration: 12 seconds
UseSafety advice/Use

13GB/IE
Switching off:
Release the ON/OFF switch 4.
Pause: At least 48 seconds
CAUTION! Never heat up the device if it is not fitted with a sol-
dering tip.
ATTENTION! Never use in continuous operation mode. The flow
of electrical current controls the delivery of soldering heat. As soon
as the ON/OFF switch 4is released, the delivery of soldering
heat drops. If the ON/OFF switch 4is pressed again, the deliv-
ery of soldering heat rises. Pay particular attention to achieving an
even delivery of soldering heat to ensure the highest soldering quali-
ty. You can do this by not allowing the soldering tip 1to become
excessively hot.
Note: The device has a soldering light 3to illuminate the work-
ing area.
Q
Replacing a soldering tip
CAUTION! DANGER OF BURNS! Allow the device to
cool down before replacing a soldering tip.
Release the two union nuts 2using the open spanner 9.
Pull the soldering tip 1or 7out of the holder.
Insert another tip into the holder.
Tighten the two union nuts 2using the open spanner 9.
UseSafety advice/Use

14 GB/IE
Q
Maintenance and cleaning
RISK OF INJURY! Before you carry out any work
on the device always pull the mains plug out of the mains socket and
allow the device to cool.
Clean the device after you have finished using it.
Use a cloth and a little mild detergent for cleaning the device.
In no circumstances use sharp objects, or petrol, solvents or clean-
ing agents that might attack plastic. Do not allow any liquids to
enter the inside of the device.
Q
Service centre
Have your device repaired only by qual i-
fied specialist personnel using original manufacturer
parts only. This will ensure that your device remains safe to use.
If the plug or mains lead needs to be
replaced, always have the replacement carried out
by the manufacturer or his service centre. This will ensure
that your device remains safe to use.
Q
Warranty
The warranty for this appliance is for 3 years from the
date of purchase. The appliance has been manufactured
with care and meticulously examined before delivery.
Please retain your receipt as proof of purchase. In the
event of a warranty claim, please make contact by tele-
phone with our Service Department. Only in this way
can a post-free despatch for your goods be assured.
WarrantyMaintenance and cleaning/Service centre/Warranty

15GB/IE
The warranty covers only claims for material and maufacturing defects,
but not for transport damage, for wearing parts or for damage to frag-
ile components, e.g. buttons or batteries. This product is for private use
only and is not intended for commercial use.
The warranty is void in the case of abusive and improper handling, use
of force and internal tampering not carried out by our authorized service
branch. Your statutory rights are not restricted in any way by this warranty.
The warranty period will not be extended by repairs made unter war-
ranty. This applies also to replaced and repaired parts. Any damage
and defects extant on purchase must be reported immediately after un-
packing the appliance, at the latest, two days after the purchase date.
Repairs made after the expiration of the warranty period are subject to
payment.
GB
Service Great Britain
Tel.: [phone]
(0,10 GBP/ Min.)
e-mail: kom[email protected]
IAN 71921
IE
Service Ireland
Tel: [phone]
(0,08 EUR/ Min. (peak)
0,06 EUR/ Min. (off peak))
e-mail: kom[email protected]
IAN 71921
WarrantyMaintenance and cleaning/Service centre/Warranty

16 GB/IE
Q
Disposal
The packaging is wholly composed of environmentally-
friendly materials that can be disposed of at a local
recycling centre.
Do not dispose of electrical devices
with the household rubbish!
In accordance with European Directive 2002/96/EC (covering waste
electrical and electronic equipment) and its transposition into national
legislation, worn out electrical devices must be collected separately and
taken for environmentally compatible recycling.
Contact your local refuse disposal authority for more details of how to
dispose of your worn-out devices.
Q Declaration of Conformity/Manufacturer
We, Kompernaß GmbH, the person responsible for documents: Mr
Semi Uguzlu, Burgstr. 21, D-44867 Bochum, Germany, hereby declare
that this product complies with the following standards, normative doc-
uments and EU directives:
EU Low Voltage Directive
(2006/ 95 / EC)
Electromagnetic Compatibility
(2004/ 108 / EC)
Declaration of Conformity/ManufacturerDisposal/Declaration of Conformity/Manufacturer

17GB/IE
Applicable harmonized standards
EN 60335-2-45/A1:2008
EN 60335-1/A13:2008
EN 62233:2008
EN 55014-1/A1:2009
EN 55014-2:2008
EN 61000-3-2/A2:2009
EN 61000-3-3:2008
Type/Device description:
Soldering gun PLP 100 A1
Date of manufacture (DOM): 12–2011
Serial number: IAN 71921
Bochum, 31.12.2011
Semi Uguzlu
- Quality Manager -
We reserve the right to make technical modifications in the course of
further development.
Declaration of Conformity/ManufacturerDisposal/Declaration of Conformity/Manufacturer

Sisällysluettelo
18

19FI
Johdanto
Määräysten mukainen käyttö..................................................Sivu 21
Osien kuvaus.............................................................................Sivu 21
Toimituksen sisältö ....................................................................Sivu 22
Tekniset tiedot ...........................................................................Sivu 22
Turvaohjeet
1. Työpiste .................................................................................Sivu 23
2. Sähköturvallisuus..................................................................Sivu 23
3. Henkilöiden turvallisuus.......................................................Sivu 24
4. Sähkötyökalujen huolellinen käsittely ja käyttö.................Sivu 26
Alkuperäiset tarvikkeet/lisälaitteet.........................................Sivu 26
Käyttöönotto
Käynnistäminen ja sammuttaminen.........................................Sivu 26
Juotoskärjen vaihto...................................................................Sivu 27
Huolto ja puhdistus......................................................Sivu 27
Huolto......................................................................................Sivu 28
Takuu........................................................................................Sivu 28
Hävittäminen ....................................................................Sivu 29
Vaatimustenmukaisuusvakuutus/
Valmistaja............................................................................Sivu 30
Sisällysluettelo

20 FI
Johdanto
Tässä käyttöohjeessa/laitteessa käytetään seuraavia
kuvakkeita:
Lue käyttöohje!
Huomioi varoitus- ja turvaohjeet!
Varo sähköiskua! Hengenvaara!
Räjähdysvaara!
TULIPALOVAARA!
Varo kuumia pintoja!
V~Voltti (Vaihtojännite)
WWatti (Vaikutusteho)
Käytä aina laitteen parissa työskennellessäsi pölysuo-
jainta, suojalaseja, suojakäsineitä ja suojavaatteita.
Pidä lapset loitolla sähkölaitteesta!
Tarkista, ettei laitteessa,
verkkojohdossa eikä verkkopistokkeessa ole vaurioita!
Tupakointi kielletty!
Syöminen kielletty!
