Parrot Products IWS1043 User manual

Tel: (RSA) 010 140 4900 / Email: [email protected]
www.parrot.co.za
User Manual
Touch LED - 43" Touch Standing Kiosk
IWS1043

Safety tips
.......................................................................................................................... 3
Warning 3
Caution 4
Basic operation 4
Product display + size 5
Product introduction 6
7
8
Contents
..........................................................................................................................
..........................................................................................................................
..........................................................................................................................
..............................................................................................................
..........................................................................................................................
9
10
11
12
13
Electricity boot
..........................................................................................................................
Wifi & Touch Points
Standby Mode
Troubleshooting
Specifications 21.5 inch
..........................................................................................................................
..........................................................................................................................
..........................................................................................................................
.........................................................................................................
Waste Disposal
...........................................................................................................................
Cleaning & Maintenance
...........................................................................................................

Ensure safe use to maximize usage performance and product lifespan
Please read and follow the instructions carefully before using this product.
We strongly recommend using standard adapters and portable power supplies, or adapters with
internal circuit breakers, to prevent bad power supplies from damaging the device.
Take note of symbols:
Warning: May cause personal injury or death
The operation is prohibited
Caution: May cause damage or property loss
The operation must be executed
WARNING
1. This product is not waterproof and should be placed in a dry and ventilated environment.
2. Avoid using this product outdoors during rainy days or in harsh environments such as lightning strike, dust, fog,
snow and ice, hail, strong wind and low temperature.
3. Do not place the device in an unstable place.
4. Do not put any objects in this product, or liquid containers on it.
5. Do not expose this product to water, properly connect plug to electricity outlet on wall to prevent short circuit
6. During thunderstorms or lightning strikes, unplug the power plug and antenna to avoid product damage.
7. Do not place this product near a radiator or other heat source products.
8. The power supply on the socket should not be overloaded to prevent electric shock or fire.
9. Wipe the device with a dry soft cloth (free of volatile substances) to remove dirt or dust
10. When cleaning the equipment, please unplug the power cord first to ensure that the machine is in a power
off state mode.
11. Please read the instructions carefully before inserting TF card /U disk to avoid damage to the machine.
12. Do not squeeze the power cord, especially the power plug and the connection between the power cord and the
product.
13. Please contact an electrical technician to repair this product to avoid high voltage impact or other dangers.
14. Disconnect the power supply of all devices before you plug or remove all cables. Do not work in the boot state.
15. The power plug should be fully inserted into the socket, if not fully inserted into the socket, it will cause fire due
to heat.
16. Hide the power switch of this product to
prevent children from touching it to eliminate possible electric shock
17. If this product is not operating for long periods of time, please unplug the power supply.
18. Do not block the ventilation, heat dissipation and sound insulation holes of this product.
Safety Tips
3

Do not allow children to climb on this product.
Keep gadgets away from children to prevent them from swallowing.
If not used for a long time, please turn off the device and unplug the power plug.
When adjusting the device position, disconnect all power cables and move them slowly to avoid tipping.
No scraping, patting, twisting or squeezing with hard objects.
When the unit moves from a low temperature state to a high temperature state, do not start the unit
immediately to eliminate condensation from damaging this product.
Remove the power plug before cleaning the device. Wipe with a clean soft cloth; Do not use industrial chemicals;
Prevent foreign matter from entering the machine. Improper cleaning (such as cleaning liquid, water) can
damage the product, erase the printed information. The inflow of liquid can cause parts damage,
leading to machine failure.
If the same screen is displayed for a long time, or the mobile screen has a fixed text or icon, the shadow may
be left on the screen, which will not disappear after the power off; This is normal and not covered by the
warranty.
If the LCD breaks and liquid spills onto your skin, rinse immediately with water for 15 minutes and consult your
doctor.
When holding the device, hold the backpack or case tightly. Do not apply pressure to the panel.
Proper use of equipment: use under proper lighting conditions; Poor light or prolonged viewing can damage
your eyesight.
Please insert the plug correctly into the socket to prevent sparks and fire to occur.
Specifications and packing of this contract are subject to change without prior notice. This manual may differ
slightly from actual practice.
Basic operation
Power on/off
1. Plug the 110V/220V AC power supply into the power socket of the device.
2. If the screen of the device is not lit, please use the remote control to start it or press the power start button on
the device.
3. If you want to stop the machine temporarily, please use the standby button on the remote control or touch the
standby button on the Windows system interface of the device.
Memory before shutdown
The setting of image and sound before the device is turned on and the preset channel will be remembered after
the device is turned off. After the device is turned on again, it will work according to the state set before the device
is turned off.
* such as using the PC signal source, please focus your PC graphics resolution to set the following pattern:
(1920 x1080/60 Hz, 1280 x 1024/60 Hz, 1024 x 768/60 Hz, 800 x 600/60 Hz, 640 x 480/60 Hz).
Note: If you have any questions about the operation, switch and connection of the equipment, please contact
us; If the equipment does not work properly, please cut off the power immediately and consult us. This device is a
class A product and may produce radio interference in the living environment. In such cases, take feasible
measures to use the power plug as a disconnecting device.
Caution
4

Product Display + Size
5

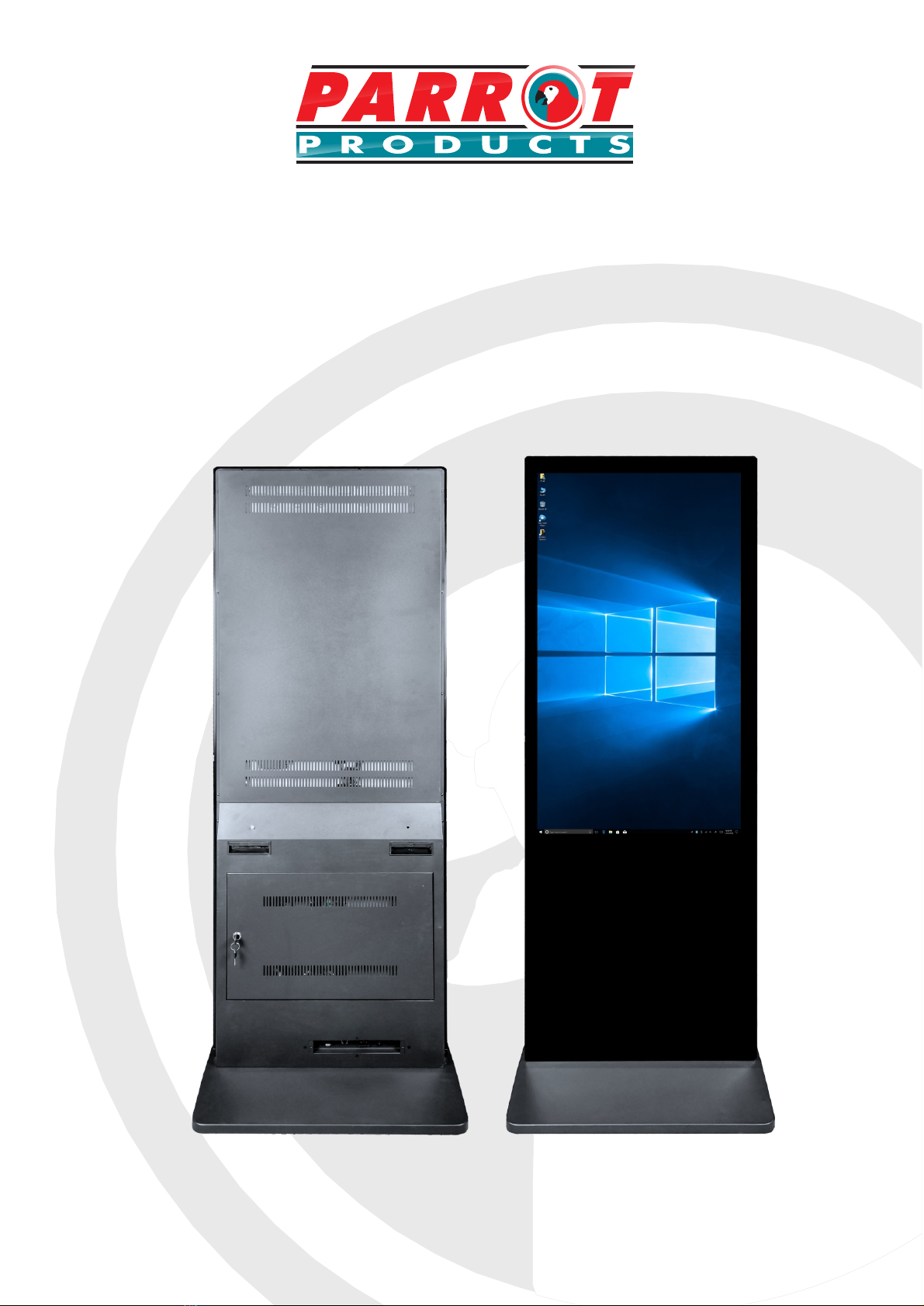

Touch LED - 43" Touch Standing kiosk (Model: IWS1043)
- 43

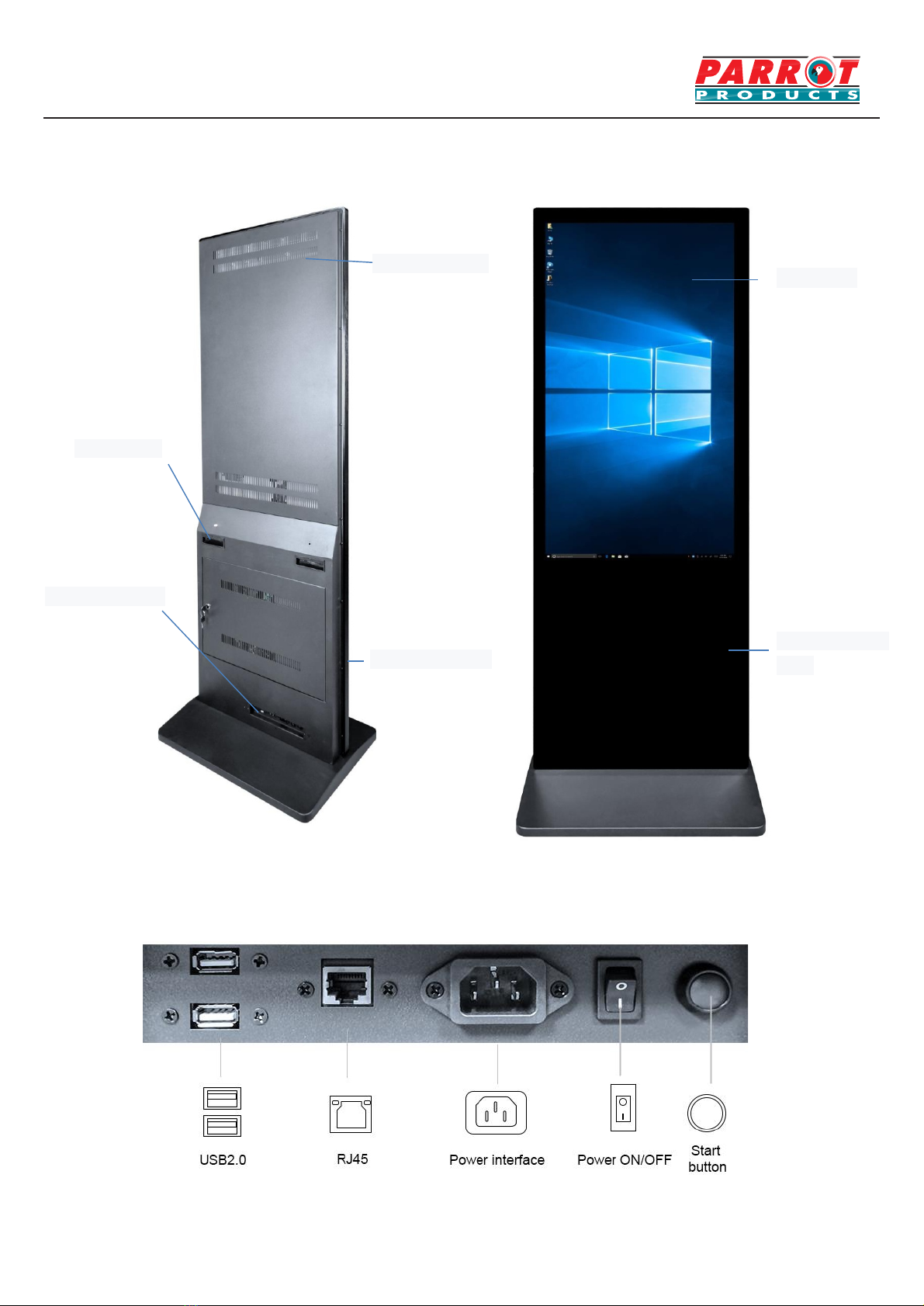

Port panel
LCD screen
The armrest
Aluminium frame
Rear port design
Explosion-proof
glass
Heat dissipation
Product Information
6

Take out the power adapter cable and check whether the cable on the base is firmly inserted. Then, insert the
power adapter cable into the switch port on the back and the other end into the 110V/220V socket.
Power cable
In the device part of the port panel, find the start button, press the start button, the system will start.
PC Power
Electricity Boot
7
1. Connection
2. Start the boot

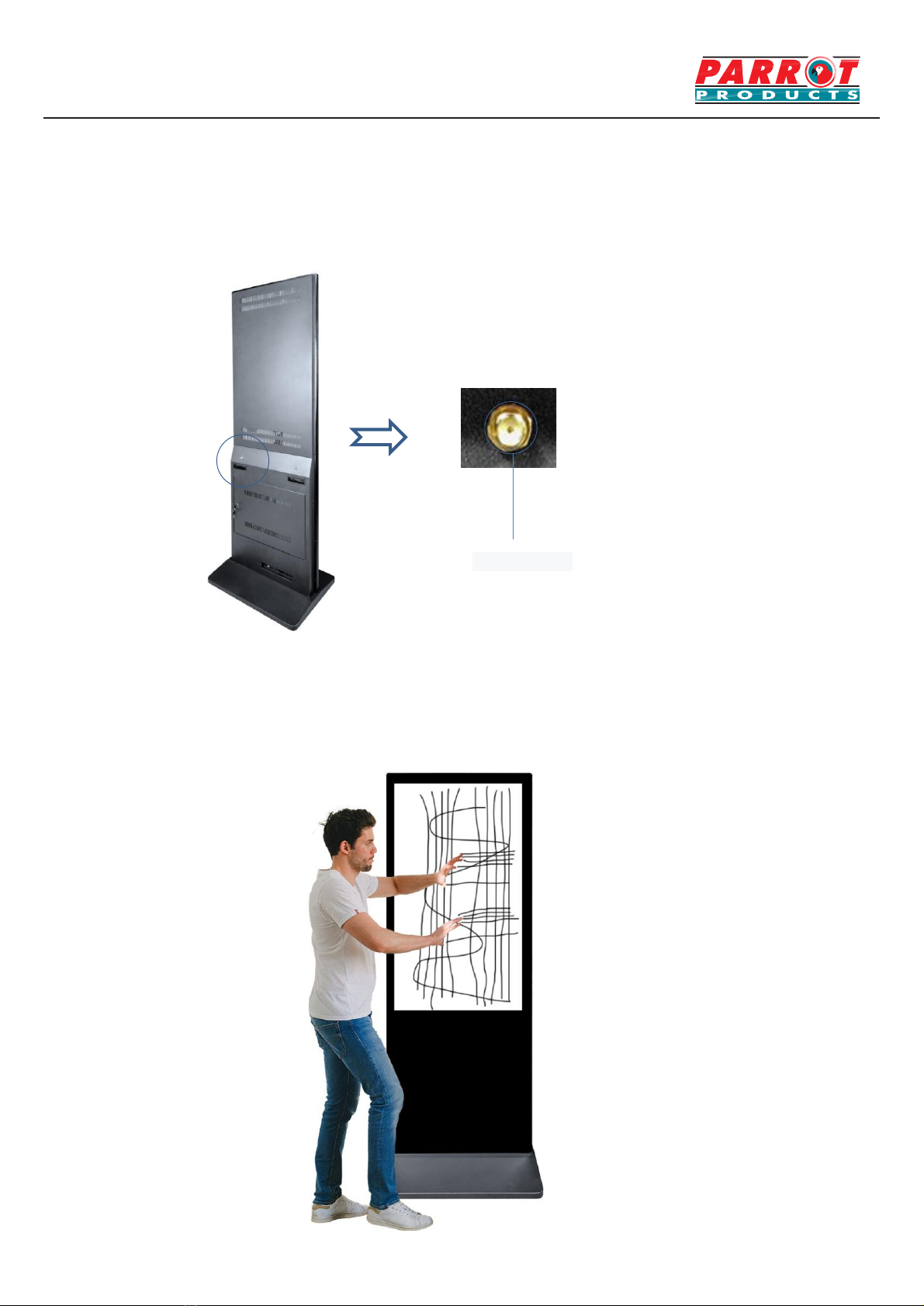

Take out the Wi-Fi cable, find the Wi-Fi port in the upper port position, insert the Wi-Fi antenna and tighten it, and
connect the network in the lower right corner of the Windows system interface.
Open any image in Windows, use the drawing tool to write, and use your finger or stylus pen to write at the
same time. Up to 10 points can be written simultaneously.
Wi-Fi interface
3.Connect the Wi-Fi
4.Touch & writing
8
Wi-Fi & Touch

5. Switch off the screen and start in standby mode
Automatic extinguish screen and standby setting can be set when not used for a long time, energy saving and
environmental protection.
6. Query software 7. PPT notes
Supports various query software. Office software, ready to demonstrate annotation.
9
Standby Mode

Before contacting our service department, please do the following checks. If the problem still cannot be
solved according to the following instructions, please note down the device model and serial number and contact
us.
No sound or pictures
1、Check whether the power cable is connected to the socket and whether the socket is energized.
2、 Check that you have pressed the power switch on the panel.
3、 Check screen brightness and contrast Settings.
The picture is normal but there is no sound
1、 Check the volume Settings.
2、 Check whether the mute button of the remote control is pressed.
No picture or image black and white
1、 Adjust colour Settings.
2、 Check the colour system.
3、 Check the sound format.
Sound and image interference
1、 Locate device thats causing frequency interference and keep it away from the device.
2、 Plug the device thats causing interference into a different outlet.
Blurred or distorted picture
1、 Check your antenna orientation, position, and connection.
The remote control doesn't work
1、 Replace the battery of the remote control.
2、 Clean the infrared window of the remote control.
3、 Check the battery contacts.
Troubleshooting
10

Specifications - 43 inch (IWS1043)
Standing Kiosk Black
11
SPECIFICATION
43" (16:9) Class A HD LCD panel
LED backlight
1920 x 1080 (pixels)
300 cd/m2 (typ.)
1200:1 (typ.)
8ms (typ.)
941.2(H)mm x 529.4(V)mm
>2,000,000
88/88/88/88(L/R/U/D)
8bit,16.7M
0.4845mm
100V~240V,50-60Hz
0~40°C
-10~60°C
10~60% RH Non-condensing
20~80% RH Non-condensing
24hours
Intel chipset
Intel i5 dual core 8400(6M L3 cache),main frequency: 2.8GHz
8G DDR4 2400FSB
2.5inch 120G SSD
100/1000M
Built-in 802.11 b/g/n 300Mb/s
Intel HD630, display chip,350/1000 MHZ
HD 5.1 hi-fi chip
1x VGA, 1x HDMI, 4x USB3.0, 1x RJ-45, 1x Audio output / headset output,
Back interface: 2x USB2.0, 1x Wi-Fi, 1x RJ45, PC power, 1x AC power supply
Windows 10 OS 64bits Professional (not included)
ITEM
LCD size
Light source
Resolution
Brightness(typ.)/(min)
Contrast (typ.)
Response (ms)
Display Area
Touch times
Viewing angle
Colour
Dot pitch
Voltage
Power Consumption
Operating temperature (°C)
Storage temperature (°C)
Storage humidity
Operating humidity
Maximum operating time (hrs/day)
Mainboard chipsEt
CPU
Memory
Hard Drive
Net Card
Wi-Fi
Display core
Sound Card
Interface
Preloaded OS
Power
Supply Panel
Environment
Functions
150W
>

Cleaning and Maintenance
1. Avoid strong hard rubbing when cleaning this product.
2. Keep the product dry to avoid possible moisture damage.
3. Don't place the product under direct sunlight which may shorten the service life of the screen.
4. Clean screen and product by using a glass cleaner.
5. If this products is not in use for a long time, pull out the power cord to prevent the internal short circuit or
other potential dangers.
Names and Contents of Toxic and Hazardous Substances or
Elements in the Product
Part name
Toxic and hazardous substances or elements
Pb Hg Cd Cr6+ PBB PBDE
Display
О О О О О
Shell
О О О О × ×
Circuit board assembly *
О О О О О
Wires О О О О О О
Metal parts О О О О О О
Packaging materials*
О О О О О О
Remote control
О О О О О
Speaker
О О О О О
Accessories* О О О О О О
* : Circuit board assembly includes PCB and the electronic elements
thereof; Packaging materials include packaging box, styrofoam,
etc.;
Other accessories include instruction manual.
О: the content of the toxic and hazardous substances or elements in the part is lower than the limit
specified in GB/T 26572-2011 standard.
×: the content of the toxic and hazardous substances or elements in the part is higher than the limit
specified in GB/T 26572-2011 standard.
The table shows that the machine contains harmful substances inside. The data is provided by
material suppliers and verified by the company according to the material type. Some materials
contain harmful substances that can’t be replaced in present technology. We are dedicated to
improving this.
The EFUP of the product is ten years. The pollution control label is shown on the right.
12

The EFUP is valid only when the user operates in the normal conditions specified in the manual herein.
Waste Electrical and Electronic Products Recycling and Disposal Regulations
To protect the earth, if you do not need this product or its service life expires, please abide by your
local Waste Electrical and Electronic Products Recycling and Disposal Regulations or send
it to qualified local manufacture for recycling.
Waste Disposal
13
Erect the standing Kiosk,
connect to power and install
