Contents
4
English p. 7
Fran<;ais p. 25
Spanish p. 43

General Information
FCC Compliance Statement
This device complies with part 15 of the FCC rules. Operation is'
subject to the following two conditions:
(1). this device may not cause harmful interference, and
(2). this device must accept any interference received, including
interference that may cause undesired operation.
Note: The manufacturer is not responsible for any radio or tv interference caused
by unauthorized modifications to this equipment. Such modifications could
vOid
the user's authority to operate the equipment.
Declaration of Conformity
We, Parrot S.A. of 174 quai de Jemmapes, 75010 Paris, France,
declare under our sole responsibility that our product, the
Parrot PMK5800 to which this declaration relates
in conformity
with appropriate standards EN300328,
EN301 357 and CEPT
REC 70-03 Annex 13 as aClass 2device and EN301489-
17, EN301489-9, EN60950 following the provision of Radio
Equipment and Telecommunication Equipment directive
(1999/5/EC
R&TTE), with requirements covering EMC directive
89/336/EEC and Low Voltage directive 73/23/EEC.
Identification n° :394 149 496 R.C.S. PARIS
Parrot S.A.
Bluetooth
The Bluetooth word mark and logos are owned by the
Bluetooth® SIG, Inc. and any use of such marks by Parrot S.A.
is under license. Other trademarks and trade names are those of
their respective owners.
Correct Disposal of This Product (Waste Electrical &
Electronic Equipment)
(Applicable
in the European Union and other European countries
with separate collection systems). This marking shown
on the
product or its literature, indicates that it should not be disposed
with other household wastes at the end of its working life. To
prevent possible harm to the environment or human health
from uncontrolled waste disposal, please separate this from
other types
of wastes and recycle it responsibly to promote the
sustainable reuse
of material resources. Household users
should contact either the retailer where they purchased this
product, or their local government office, for details of where and
how they can take this item for environmentally safe recycling.
Business users should contract their supplier and the terms and
conditions
of the purchase contract. This product should not be
mixed with other commercial wastes for disposal.
Compatibility problems
Some special edition cars can be released with some differences
from the original model. This could cause some compatibility
problems with the interfaces.
Our company is not responsible of compatibility problems
caused by new equipment
or devices updated by the car
manufacturer without advise.
5

Copyrights
Copyright ©2007 Parrot. All rights reserved. The total or even
partial reproduction, transmission
or storage of this guide in
any form or by any process whatsoever (electronic, mechanical,
photocopy, recording or otherwise) is strictly prohibited without
prior consent from Parrot.
Registered trademarks
All the names and trademarks mentioned in this document are
copyrightprotected and are the property
of their respective
owners.
Modifications
The explanations and specifications in this guide are given for
information purposes only and may be modified without prior
notice. They are deemed
to be correct at time of going to press.
The utmost care has been taken when writing this guide,
as part
of the aim
to provide you with accurate information. However,
Parrot shall not be held responsible for any consequences
arising from any errors
or omissions in the guide, nor for any
damage or accidental loss
of data resulting directly or indirectly
from the use of the information herein. Parrot reserves the right
to amend or improve the product design
or user guide without
any restrictions and without any obligation
to notify users.
As part of our ongoing concern to upgrade and improve our
products, the product that you have purchased may differ
6
slightly from the model described in this guide.
if so, alater version
of this guide might be available in electronic
format at Parrot's website at www.parrot.com.

7

Contents
Introduction 09
Kit contents 10
Using
for the first time 10
1. Installing the Parrot PMK5800 10
2. Syntonizing your car radio with the Parrot PMK5800 11
3. Pairing your phone with the Parrot PMK5800 12
4. Selecting the language of the Parrot PMK5800 12
5. Setting the frequency 13
6. Reversing the display orientation 13
Description du Parrot PMK5800 14
1. Scrolling through the menus '16
2. Menu structure 16
Features 16
1. Voice recognition 16
1.1 Recording keywords and magic words 16
1.2 Saving contacts in the Parrot PMK5800 17
2. Telephony 17
2.1 Making acall manually from the phone 17
2.2 Making acall via the voice recognition feature 18
2.3 Receiving acall. 18
2.4 Ending acall. 19
2.5 Redial function 19
2.6 Adjusting the volume 19
2.7 Changing to discreet mode 19
8
2.8 Sending DTMFs 19
2.9 Clearing the memory 19
2.10 Microphone mute 20
3. Audio Streaming
3.1 Pairing your audio player with the Parrot PMK5800.20
3.2 Playing music files 20
3.3 Pausing during playback 21
3.4 Stopping playback: 21
3.5 Adjusting the volume 21
3.6 Selecting music files 21
3.7 Fast forwarding /fast rewinding the current track 21
4. Audio Streaming via audio cable 21
Updating the software 22
Hotline 22
Specification 23

I ntrod uction
The Bluetooth technology enables voice and data to be sent via
ashort-distance radio link. It allows several electronic devices
to communicate with each other, particularly phones
and hands-free kits. Parrot is drawing on its long years
of experience in signal processing and voice recognition
technology to offer ahands-free kit with superior audio quality
during cails :the Parrot PMK5800.
Thanks to
~s FM transmitter the Parrot PMK5800 offers you a
faithful reproduction
of your communication or music through
the speakers
of your car. This wiil ailow you to enjoy the listening
comfort of your cars' audio system without instailing anything.
With the Parrot PMK5800, you wiil be able to make phone cails
from your car while keeping your hands on the wheel.
You can also use the audio streaming function on your hands-
free kit to listen to the music files on your phone, PDA or audio
player over your vehicle's speakers (if your phone, PDA or audio
player supports the audio streaming function). It wiil also ailow
you to stream your music files from any audio player using the
USB/Jack audio cable. The Parrot PMK5800 acts as areal
extension
of your mobile phone.
9
..c:
fIl
Cl
C
W

Kit contents
The kit includes:
•Parrot PMK5800
•USB/Jack audio cable
•Rubber tip
•User guide
•Parrot product guide o
The use of a FM transmitter is forbidden in certain
countries. Please
refer to national legislation or
Recommandation 70-03 Implementation table for
currenl position htto:llwww.ero.dk.
10
Using for the first time
1. Installing the Parrot PMK5800
Use the Parrot PMK5800
on your vehicle's cigar lighter.
The rubber tip will allow you to fit
the Parrot
PMKSBOO to all types of
cigar lighter sockets. If this rubber tip
is necessary, screw it on the lower
part of the device.
You can position the screen
of the Parrot PMK5800 correctly
by adjusting the base
of the device or by pressing
the red button to reverse
the display orientation.
_-

NOTE. YOU CAN USE THE PARROT PMK5800 IN ANY TYPE OF VEHICLE
EXCEPT IN HEAVY TRUCKS
124V)
In some rare occasions, depending on the depth at which
the cigar-lighter is placed, it is convenient
to add an extender
(not proYided), so that the driver has the Parrot PMK5800 in full
view. Make sure that the device stays stable and within reach if
you are using it while driving.
2. Syntonizing your car radio
with the Parrot PMK5800
Thanks to the FM transmitter of the Parrot PMK5800,
your communications as well as audio streaming and vocal
menus will be relayed through the vehicles speakers.
But you first have to syntonize your car radio and your cell
phone, that is to say to set your car radio and the Parrot
PMK5800 to the same frequency.
NOTE DO NOT CHOOSE FREOUENCIES WHICH CORRESPOND
TO THE MAIN NATIONAL RADIO STATIONS.
Geographical area Authorized frequencies
North America
88/108 MHz
Europe
87.5/108 MHz
After syntonization, set the volume
of your car radio to ahigh
level and press the scroll wheel. The Parrot PMK5800 will send
out
an audio signal that will be relayed through the speakers
of your vehicle. This will confirm the syntonization.
NOTE IF THE PARROT PMK58IJ() AND YOUR CELL PHONE ARE NOT
CORRECTLY SYNTONIZED. THE SPEAKERS OF YOUR VEHICLE WON'T
RELAY ANY AUDIO SIGNALS WE ADVISE YOU TO KEEP AFREOUENCY
ON YOUR CAR RADIO EXCLUSIVELY FOR THE PARROT PMK5800. FOR
MORE INFORMATION. REFER TO YOUR CAR RADIO'S USER
GUIDE
11
.c
CIl
Cl
c:
W

Prior to use the Parrot PMK5800 with your phone for the very
first time, you must initially pair both devices.
1. Turn on your cell phone.
2. Plug the Parrot PMK5800 in the cigar lighter socket and
switch on the ignition.
>The Parrot PMK5800 says «Please Pair device ».
3. From your Bluetooth phone, search for Bluetooth peripherals
(consult your phone's user guide or refer
to the «Support»
heading on the www.oarrot.com website).
4. Select «Parrot PMK5800».
5. Enter «0000 »on your phone when prompted.
>The Parrot PMK5800 says «Pairing successfull »
when both devices are connected.
>The language is automatically selected if your cell phone
supports this feature. Otherwise, you can set the language
manually (for more information, refer to the "Selecting
the language" section).
r··40TE •YOU CA,N PAIR UP TOI 0PHONES WITH THE PARROT P~.".1K5800.
12
The default language of the Parrot PMK5800 is English.
Depending on your cell phone, the language can also be set
according to the information on your
SIM card. If you set the
language manually, the automatic selection will be disabled until
the next memory erasing.
If you want to set the language
of the Parrot PMK5800 manually:
1. On your car radio, select the same frequency you chose on
the Parrot PMK5800.
2. Quickly press the scroll wheel.
>The Parrot PMK5800 says the selected language
3. Press the scroll wheel once more to enter the «Language»
menu.
4. Use the scroll wheel to select the language.
5. Press the scroll wheel or the green button to confirm the
language you selected.

5. Setting the frequency
To get your communications as well as audio streaming relayed
through the vehicles speakers, you first have to set your car
radio and the Parrot PMKS800
to the same frequency.
To do so, the Parrot PMKS800 allows you to memorize
frequencies with the Preset button.
1. On your car radio, select the frequency you will attribute
to the Parrot PMKS800 and assign this frequency to apreset
button. For more information, refer to your car radio's user
guide.
2. Press the Preset button for 2seconds to switch to the
memorizing mode.
>The Preset area blinks.
3. Select the same frequency you chose on your car radio with
the scroll wheel.
4. Select the preset number you want to assign to this frequency
by quickly pressing the Preset button.
S. Press the Preset button for 2seconds to assign the frequency
to the preset
number you previously selected.
>The blinking in the preset area
stops: the frequency has
been correctly assigned.
WARNING FOR OBVIOUS REASONS OF SECURITY, 00 NOT CHANGE
THIS FREQUENCY WHILE YOU ARE ORIVING.
NOTE
-YOU CAN MEMORIZE
UP TO 9FREOUENCIES.
-
IF YOU RECORO SEVERAL FREOUENCIES ON THE PARROT PMK5800,
ASHORT PRESS ON THE PRESET BUTTON
WILL ALLOW YOU
TO CHANGE TO THE NEXT PRESET
6. Reversing the display orientation
Press the red button for 2seconds to reverse the display
orientation
13
.r::
(/)
.-
Cl
C
W

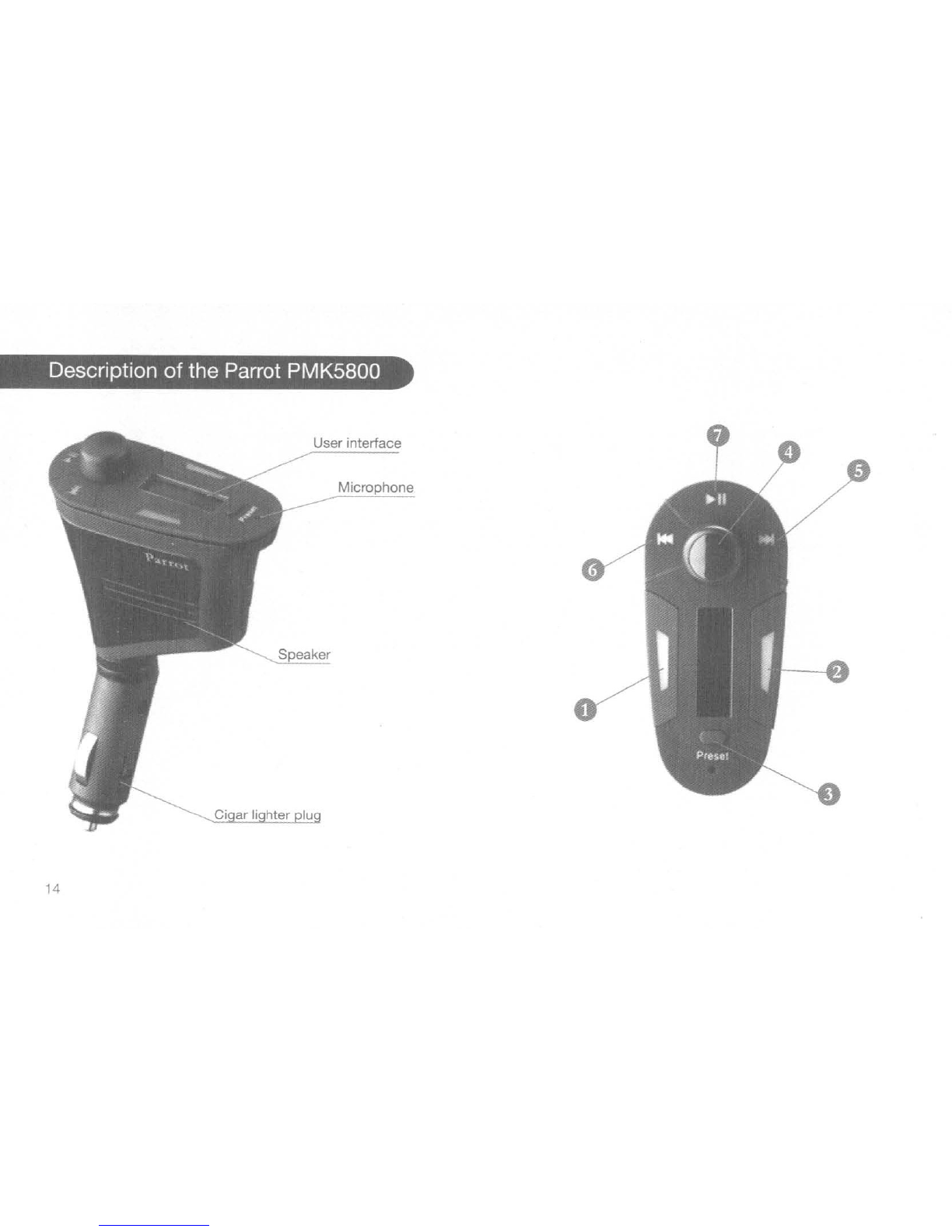

Description of the Parrot PMK5800
User interface
Microphone
Speaker
Ci ar Ii hler lu
14

Hang up
Exit the vocal menu
Exit the Voice recognition mode
Reject
an incoming call
Reverse the display orientation
Answer
an incoming call
Start acall
Redial the last number dialled
Confirm
Change
to discreet mode during acall
Make acall via the voice recognition feature
Set the frequency
Navigate through the vocal menu
Select/confirm
Play the active
track
Pause /resume playback
Stop playback (long press)
Suspend music from the analogical source
15
.c
en
.-
-
C)
c:
W

• On your car radio, select the same frequency you chose
on the Parrot PMK5800. For more information, refer to the
«Setting the frequency".
•Press the central scroll wheel
to access the menus.
The kit says the name of the current menu.
•Browse through the menus by turning the wheel and confirm
with the green button or
by pressing the scroll wheel.
•
To exit the menu, press the red button or wait afew seconds.
•Language: This menu allows you to select the lanquage of
the Parrot PMK5800. Refer to the «Selecting the language»
section.
•Add voice tags: This menu allows you to transfer acontact
via Bluetooth and add avoiceprint to this contact.
•Record magic words: This menu allows you to record
the «
phone» magic word (to accept an incoming call or start
the voice recognition feature) and the «Hang up "magic word
(to terminate acall). It also allows you to activate/deactivate
these words if you already recorded them.
For more information, refer
to the Voice recognition section.
16
•Record Keywords: This menu allows you to record
keywords (which are useful
in the event of acontact
with several phone numbers). For more information,
refer to the Voice recognition" section.
•Software update: Enable this option before updating via
Bluetooth (www.oarrot.com.Downloadsection).Doing so will
increase the number
of devices compatible with your
Parrot PMK5800.
Features
The Parrot PMK5800 will allow you to enjoy the voice recognition
feature even if your phone does not support it.
Using the voice recognition feature is particularly appropriate
while you are driving.
1.1. Recording keywords and magic words
To offer you as many features as possible, the Parrot PMK5800
lets you record keywords: «general", «mobile», «work», «home»,
«other»,
as well as magic words: «phone» and «hang up».

•The magic word «phone» lets you accept an incoming call,
as well as start the voice recognition feature.
•The magic word «hang up» lets you terminate acall.
•
In the event of a contact with several phone numbers,
the keywords allow you
to choose the number to C?all.
To record keywords and magic words:
1. On your car radio, select the same frequency you chose
on the Parrot PMK5800. For more information, refer
to the «
Setting the frequency».
2. Press the scroll wheel to enter the menu and select «Record
keywords».
3. Follow the prompts given by the kit. You will need to record
each keyword
twice for better recognition.
>When akeyword is correctly recorded, you can choose
another keyword. Otherwise, it prompts you
to record it again.
> You can exit the menu at any time by pressing the red
button and then
go back to record or modify the keywords
whenever required.
1.2. Saving contacts in the Parrot PMK5800
To use the voice recognition feature, your contacts must first be
saved
in the hands-free kit's memory. Consequently you have
to send your contacts to the Parrot PMK5800 via Bluetooth. To
do so:
1. On your car radio, select the same frequency you chose
on the Parrot PMK5800. For more information, refer to the
«Setting the frequency» section.
2. Press the scroll wheel to enter the menu and select «Add
voice tags».
>The kit says "Awaiting acontact"
3. On your cell phone, select the contact and send it via
Bluetooth. For more information, refer
to your phone's
user guide.
4. Once received, add avoiceprint by following the prompts
f\JOTE: THE USE OF CERTAIN FEATURES (VOICE RECOGNITION, SEND
CONTACTS
BY BLUETOOTH) DEPENDS EXCLUSIVELY ON YOUR PHONE.
REFER TO THE SUPPORT HEADING ON OUR WEBSITE
AT WWW PARROT
~ FOR FURTHER INFORM,t\TION.
2.1 Making acall manually from the phone
•Dial the number using the phone's keypad and start the call.
•The call automatically changes
to hands-free mode. Otherwise,
press the green button on the Parrot PMK5800.
17
..c
(J)
.-
-
C>
c::
W

2.2 Making acall via
the voice recognition feature
IMPORTANT: YOU MUST HAVE FIRST RECORDED THE VOICE PRINTS
ON YOUR PHONE OR THE KIT (REFER TO THE CHAPTER ENTITLED
VOICE RECOGNITION
).
1. On your car radio, select the same frequency you chose
on the Parrot PMK5800. For more information, refer to the «
Setting the frequency» section.
2. QUickly press the green button or say the
"phone" magic word
(only if you already recorded this
magic word -
refer to the Voice recognition section
for more information).
3. Say the name
of the person that you wish to call after the
«beep",
4. If your contact has several phone numbers and if you are
using the kit's voice recognition feature, say «home»,
•• work»,
"mobile .. ,«general» or «other» after the second beep. If you do
not do so, the default number of this contact will be dialled.
NOTE" PRESS THE RED BunON TO EXIT THE VOICE RECOGNITION
MODE OR WAIT FOR 5SECONDS.
NOTE·
THE USE OF CERTAIN FEATURES NOICE RECOGNITION.
SEND CONTACTS BY BLUETOOTHI DEPENDS EXCLUSIVELY
ON YOUR PHONE. REFER TO
THE SUPPORT HEADING ON OUR WEBSITE
AT WWWPARROTCOM FOR FURTHER INFORMATION
18
2.3 Receiving acall
An incoming call is indicated by aringtone and ablinking
of the red and green LEDs.
•If your car radio is already set on the frequency of the
Parrot PMK5800, then press the green
button to answer the
call
or the red button to reject it.
•If your car radio is
not set to the frequency of the Parrot
PMK5800, switch
to this frequency. By doing so, you
automatically answer the call.
•
You can also answer this call with your phone (private
conversation).

2.4 Ending acall
To end acall, press the red
button on the Parrot PMK5800
or say "hang
up" (only
if you already recorded
this magic word - refer
to the Voice recognition
section
for more information).
2.5 Redial function
•Hold down the green key on the kit for two seconds
to redial the last number dialled.
2.6 Adjusting the volume
•During the call. turn the volume control command
of your car radio or set it with your phone.
NOTE. THE USE OF CERTAIN FEATURES (VOLUME ADJUSTEMENT.
SEND CONTACTS BY BLUETOOTHI OEPENDS EXCLUSIVELY
ON YOUR PHONE. REFER TO THE SUPPORT HEADING ON OUR WEBSITE
AT WWWPABBillCOM FOR FURTHER INFORMATION
2.7 Changing to discreet mode
•During acall, ij you want to continue the conversation
on your phone (private conversation). press the green button
on the Parrot PMK5800. The call is transferred to the phone.
•If you want to switch back to the kit,
press the green button again.
2.8 Sending DTMFs
During acall. you can send DTMFs (Dual-Tone Multi-Frequency)
for touch-tone dialling. This feature can be used for managing
your voicemail, for example .
1. Press the scroll wheel -the kit says "0".
2. Turn the wheel to scroll through the numbers.
3. Press the scroll wheel to send the selected number
to the phone.
4. Repeat this sequence to send other DTMFs.
2.9 Clearing the memory
You can pair up to 10 devices.
•If you attempt to pair a
11 th device, the kit displays «memory
full«.
•
To pair anew phone, you must clear the memory by pressing
simultaneously the red and green buttons.
CAUTION' THIS WILL CLEAR ALL THE CONTACTS AND VOICEPRINTS
ASSOCIATED WITH THE PHONE AT THE SAME TIME.
19
.c
en
Ol
c:
W

20
Nu'E IF YOU ARE USING YOUR PHONE FOR THE HANDS· FREE
AND STREAMING AUDIO FUNCTiONS AT THE SAME TIME THE
3.2. Playing music files
1. On your car radio, select the same frequency you chose
on the Parrot PMK5800. For more information.
refer to the "Setting the frequency'.
2 If a connection for Audio Streaming is active ......
press the "Play IPause· button to start
playing the music files stored
In your phone's Iplayer's memory.
1. On your car radio, select the same frequency you chose
on the Parrot PMK5800. For more Information,
refer
to the" Setting the frequency ...
2. From your Bluetooth audio player, search for Bluetooth
peripherals (consult your audio player's user guide
or refer to
the "Support
.. heading on the www,parrpl,com website).
3. Select "Parrot PMK5800 ...
4. Enter ,,0000 .. on your audio player when prompted.
>The Parrot PMK5800 says "pairing successful"
when both devices are paired. The device sounds
abeep when connected.
FOLLOWING PHASE IS NO' REDUIRED
'f IP n NE IS ALREAD F'" COGNISED B THE , ....
•
•
3.1. Pairing your audio player
with the Parrot PMK5800
The streaming audio feature lets you play the music tracks
recorded on your Bluetooth audio player over the vehicle's
speakers. This feature depends on your audio player.
Some phones also incorporate this feature.
For further information, refer to our website: www·paaot.cow.
Prior to use the Parrot PMK5800 with your audio player,
you will need to pair both devices.
2.10 Microphone mute
•During acall, if you do not want the person on the other
end
of the line to hear you, qUickly press the "Play" button
on the remote controls
of the Parrot PMK5800.
Press the button again to cancel the mute.
t\i - HI:::: .... F CER-A NFEATURES DISCREET MODE
F )1 ENDS EXCL S \/ELY
PHONE REFER '. E-UPPORT HEADIN('
~BS TE if'. iig Pb~RQI ,;,C 1 ., FOR FURTHER NFORMATION
