207
BIPPER
This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is
solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All
rights reserved © Copyright 2011 PARROT SA, a French Société Anonyme (Public Limited Company) Registered on the Paris Trade and
Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually
binding.
BIPPER
Installation manual:

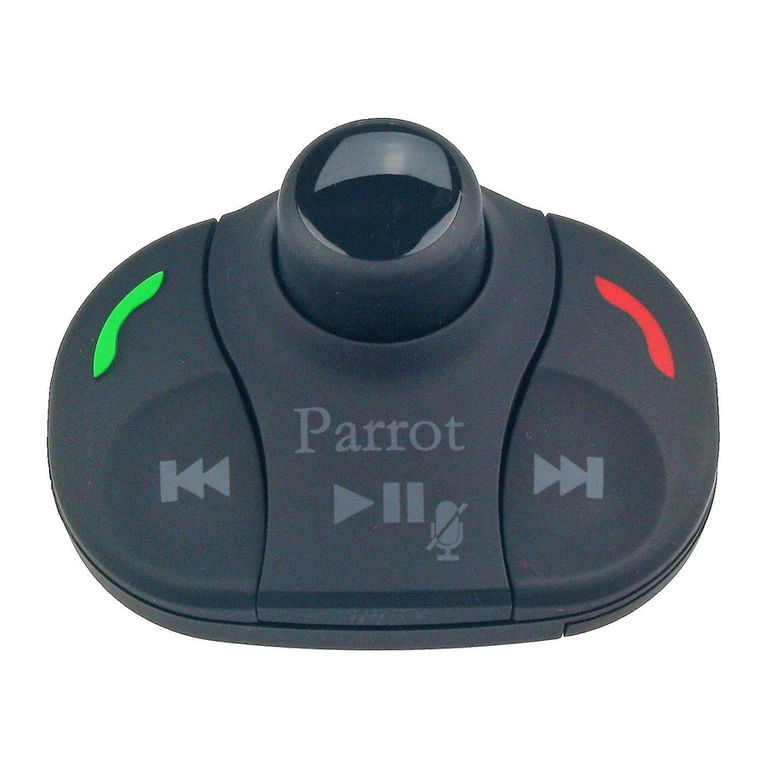

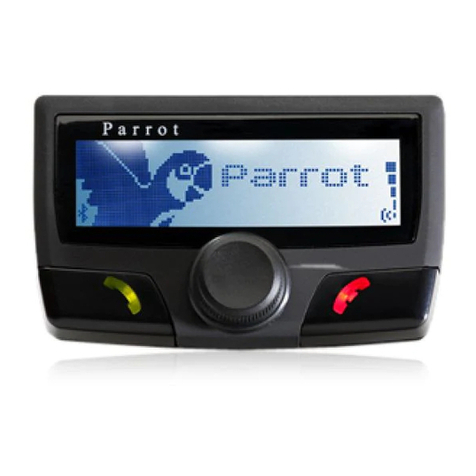

Parrot MKi + Parrot
CK3100 range
The brand name PEUGEOT BIPPER and the PEUGEOT logo are the property of AUTOMOBILES PEUGEOT.
This document is only valid for the vehicle model BIPPER® year 2008 to 2011, excluding all other models in the same range and excluding later
modifications made to the vehicle by the manufacturer.
The Parrot brand name and logos are the exclusive property of Parrot SA.
207
BIPPER
This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is
solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All
rights reserved © Copyright 2011 PARROT SA, a French Société Anonyme (Public Limited Company) Registered on the Paris Trade and
Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually
binding.

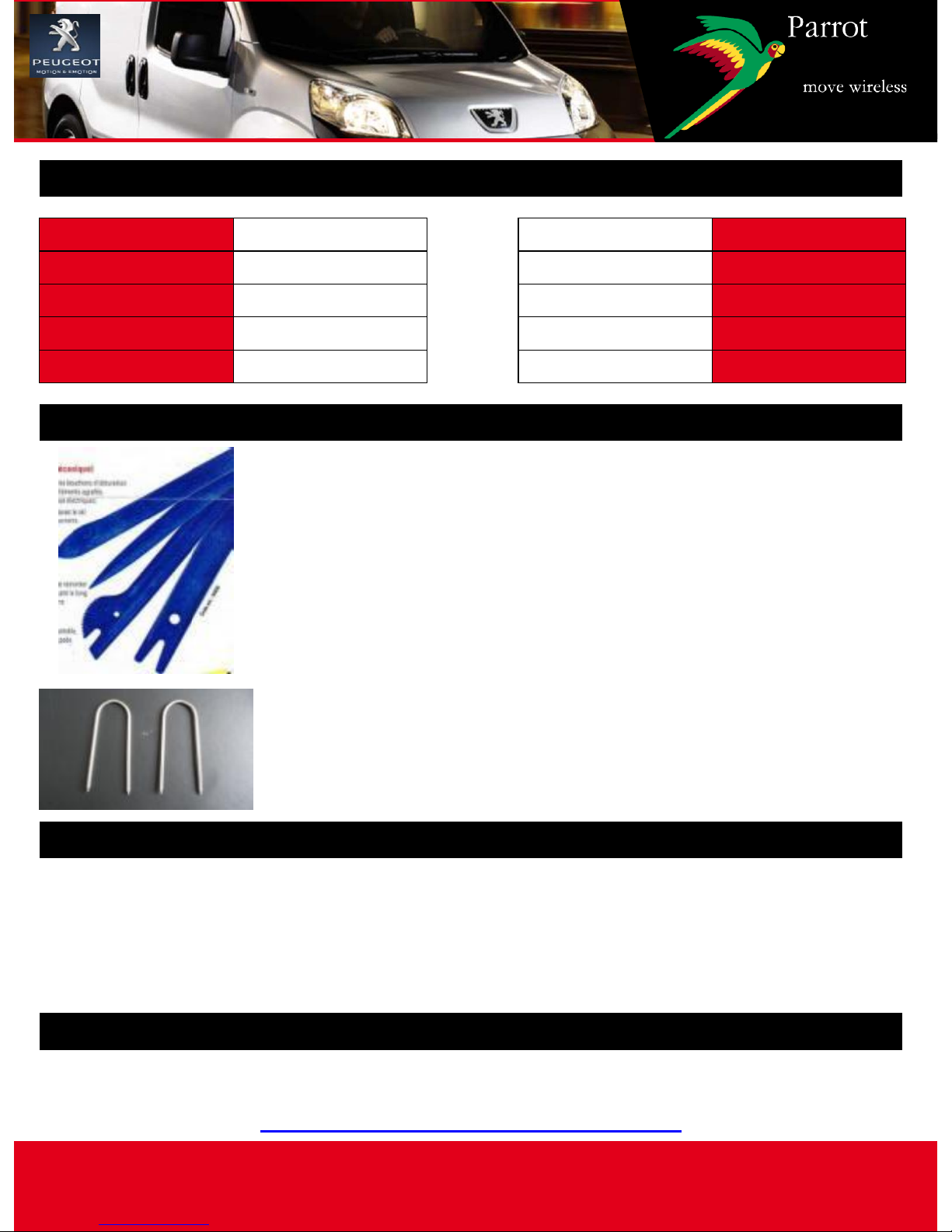

Accessories required
Disassembly
15min
Kit installation
15min
Refitting
15min
Testing
15min
Total
1 hour
NO
ACC wire
YES
ISO
N/A
UNIKA
FRONT SPEAKER
TEL mode
ALL
MUSIC mode
Fitting time (estimated) / Main features
Tools
- Multimeter or Test lamp
- Hose clamp
- Electrical tape
"Please contact your Wholesaler to purchase accessories."
Updating
Plastic trim removal tools
FACOM / BERNER
FACOM Sleeve
DX-25 (n°4 spanners)
To get the most out of your hands-free kit we recommend that you update your
software regularly. The update procedure can be found at
www.parrot.com/usa/support/downloads
207
BIPPER
This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is
solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All
rights reserved © Copyright 2011 PARROT SA, a French Société Anonyme (Public Limited Company) Registered on the Paris Trade and
Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually
binding.
Disassembly
207
BIPPER
This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is
solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All
rights reserved © Copyright 2011 PARROT SA, a French Société Anonyme (Public Limited Company) Registered on the Paris Trade and
Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually
binding.
Disassembly 1 / 2
Insert the removal tools into the
slots on each side of the radio.
Unclip, pull and remove the radio
taking care to unplug
the connector and the antenna.
Unscrew screws 1 and 2 on the
sides of the drawer.
Unscrew screws 3 and 4 on the
bottom of the drawer.
1
3
2
4
5 6
Remove the drawer very
carefully as it is very sharp.
Unscrew screws 5 and 6 on the
panel underneath the steering
wheel, then unclip it.
1 2 3 4
5 6
!
207
BIPPER
This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is
solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All
rights reserved © Copyright 2011 PARROT SA, a French Société Anonyme (Public Limited Company) Registered on the Paris Trade and
Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually
binding.

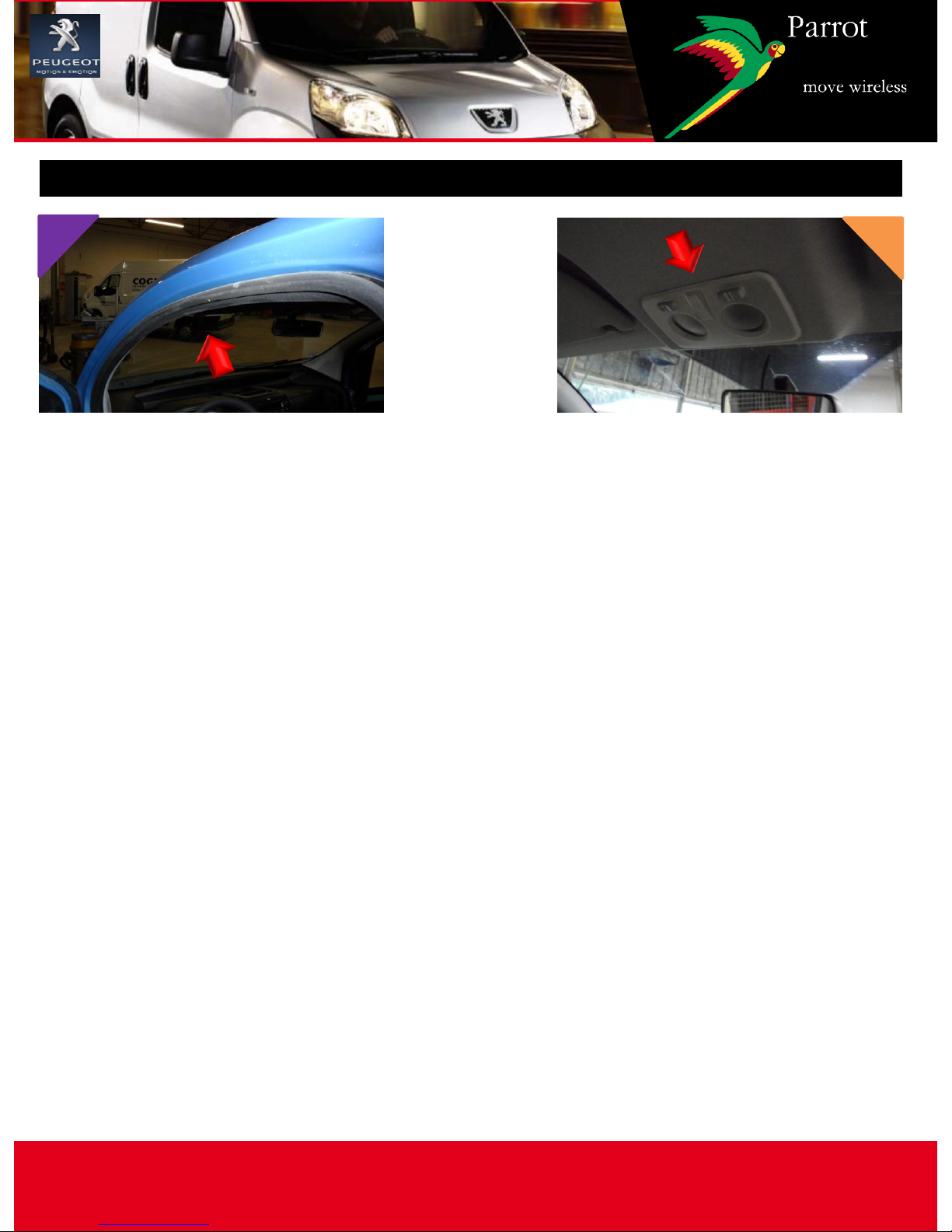

Disassembly 2 / 2
Remove the door seal on the
driver’s side.
Using the plastic trim tools,
unclip the cabin light.
7 8
207
BIPPER
This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is
solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All
rights reserved © Copyright 2011 PARROT SA, a French Société Anonyme (Public Limited Company) Registered on the Paris Trade and
Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually
binding.

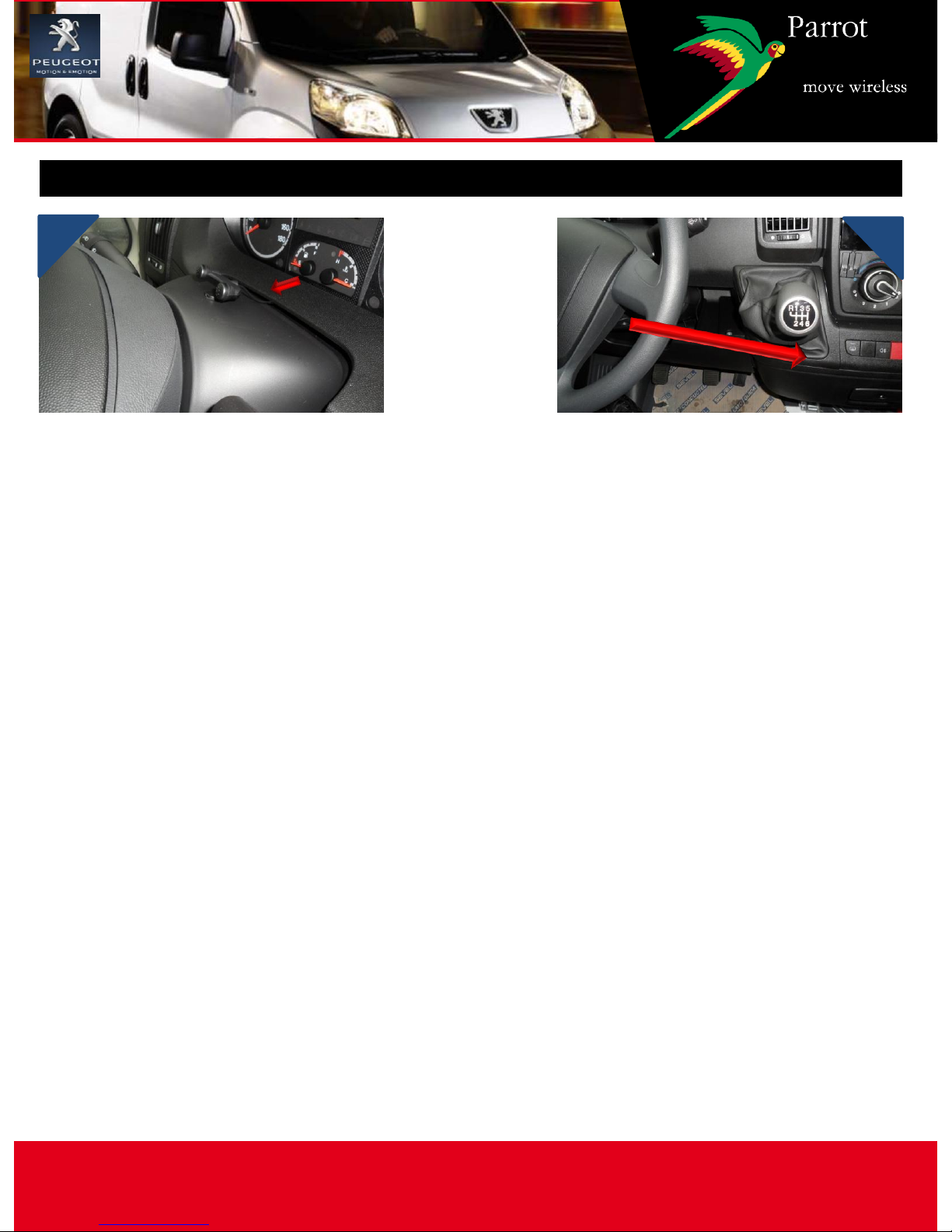

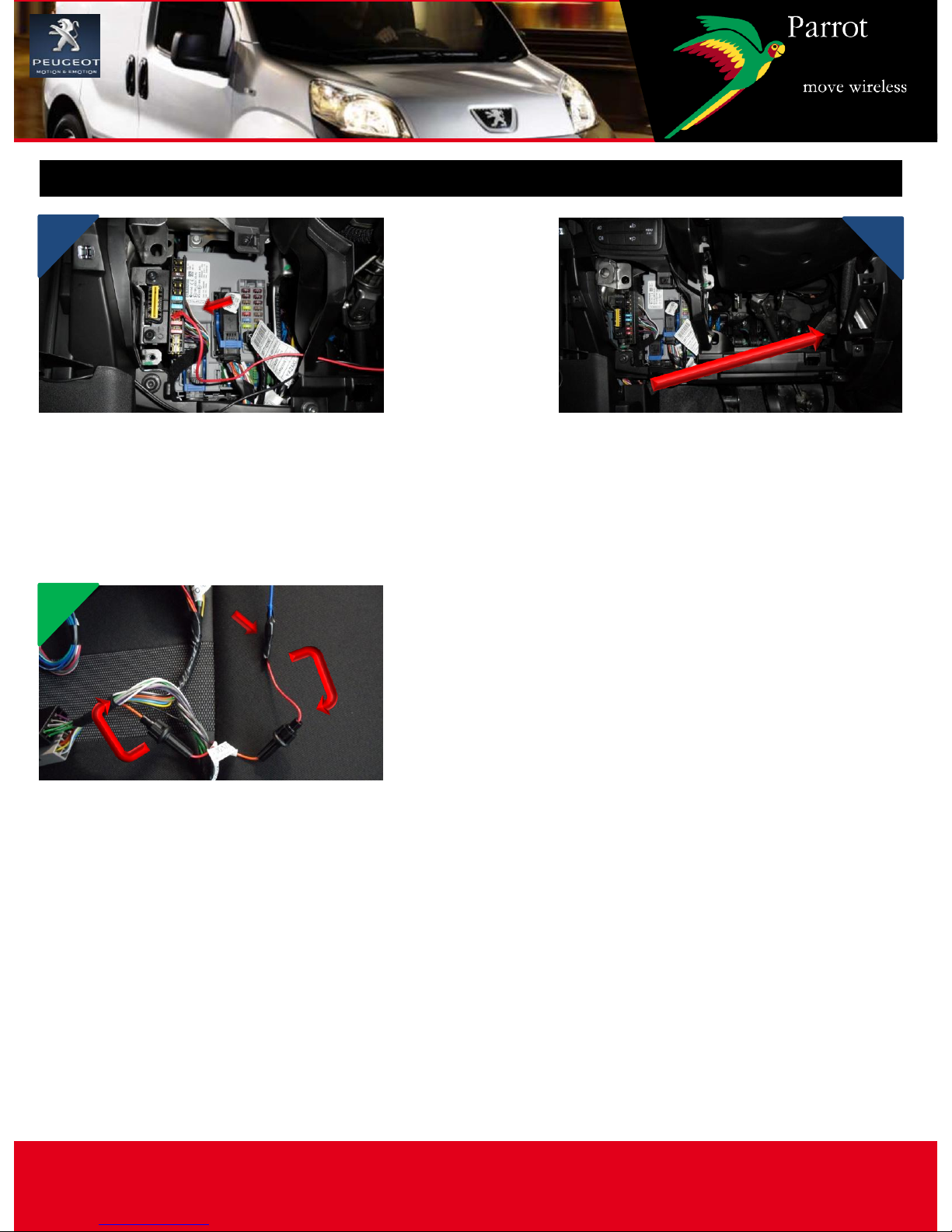

Finding an ACC wire
Connect a wire to the fuse box
next to the DIAG socket using a
1.5mm terminal. (Check the ACC
wire with a multi meter.)
Run the wire under the steering
wheel towards the radio
housing, attaching it with wire
ties.
1 2
9
10
After swapping the red and
orange fuses. Cut the kit's
original ISO connector (supplied)
between the fuse and the ISO
connector. Connect the ACC
wire.
3
207
BIPPER
This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is
solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All
rights reserved © Copyright 2011 PARROT SA, a French Société Anonyme (Public Limited Company) Registered on the Paris Trade and
Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually
binding.
Microphone passage
Stick the microphone bracket
(supplied) to the steering column,
after having thoroughly cleaned
the surface.
Pass the cable towards the radio
housing.
1 2
207
BIPPER
This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is
solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All
rights reserved © Copyright 2011 PARROT SA, a French Société Anonyme (Public Limited Company) Registered on the Paris Trade and
Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually
binding.
Feeding the accessory cable
In the bottom of the glove box
and using a guide.
Feed the cable into the glove box
towards the radio housing.
1 2
Place the cable being careful to
leave enough length.
3
207
BIPPER
This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is
solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All
rights reserved © Copyright 2011 PARROT SA, a French Société Anonyme (Public Limited Company) Registered on the Paris Trade and
Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually
binding.
Fitting the hands-free system 1 / 2
Connect all of the original wires (supplied) to
the blue box as shown in the diagram below.
Test the assembly before reassembly, then slide
the assembly down to the back of the radio
housing.
1
ISO
adapter
207
BIPPER
This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is
solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All
rights reserved © Copyright 2011 PARROT SA, a French Société Anonyme (Public Limited Company) Registered on the Paris Trade and
Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually
binding.
Fitting the hands-free system 2 / 2
Pass the cable towards the back
of the housing. When refitting
the metal drawer, be careful not
to cut the screen cable.
Before sliding the radio back in,
stick the support provided to the
top left-hand corner of the radio
after having thoroughly cleaned
the surface. When clipping it in
place be careful not to cut the
cable.
2 3
!
