Parrot MAMBO FLY User manual

MAMBO FLY
MAMBO FLY
MAMBO FLY
QUICK START GUIDE
STRUČNÝ NÁVOD K POUŽITÍ
KASUTUSELEVÕTU JUHEND
ĀTRĀS UZSĀKŠANAS ROKASGRĀMATA
GREITO NAUDOJIMO VADOVAS
PRZEWODNIK SZYBKIEGO URUCHAMIANIA
КРАТКОЕ ПРАКТИЧЕСКОЕ РУКОВОДСТВО
SPRIEVODCA RÝCHLYM ŠTARTOM
V.1.1 06/2017
PI032303AB_QSG_Mambo_Fly_EU3.indd 1 29/06/2017 12:44:24

PI032303AB_QSG_Mambo_Fly_EU3.indd 2 29/06/2017 12:44:24

English.......................................4
Čeština ................................... 16
Polski .......................................27
Pусский .................................. 38
Magyar.................................... 49
Română.................................. 59
PI032303AB_QSG_Mambo_Fly_EU3.indd 3 29/06/2017 12:44:24

4
PRESENTATION OF THE
PARROT MAMBO
Hull
Hull
Warning lights
Connector
Battery
enclosure
Camera
On/Off
button
Micro USB
port
Tab
Charge
LED
Contact
PI032303AB_QSG_Mambo_Fly_EU3.indd 4 29/06/2017 12:44:24

5
ENGLISH

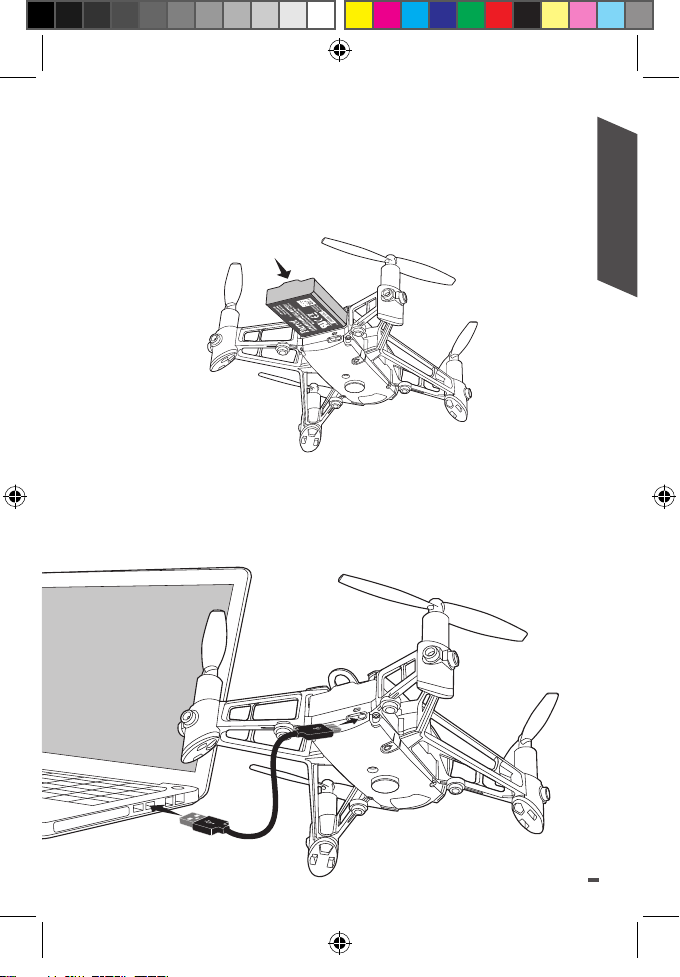

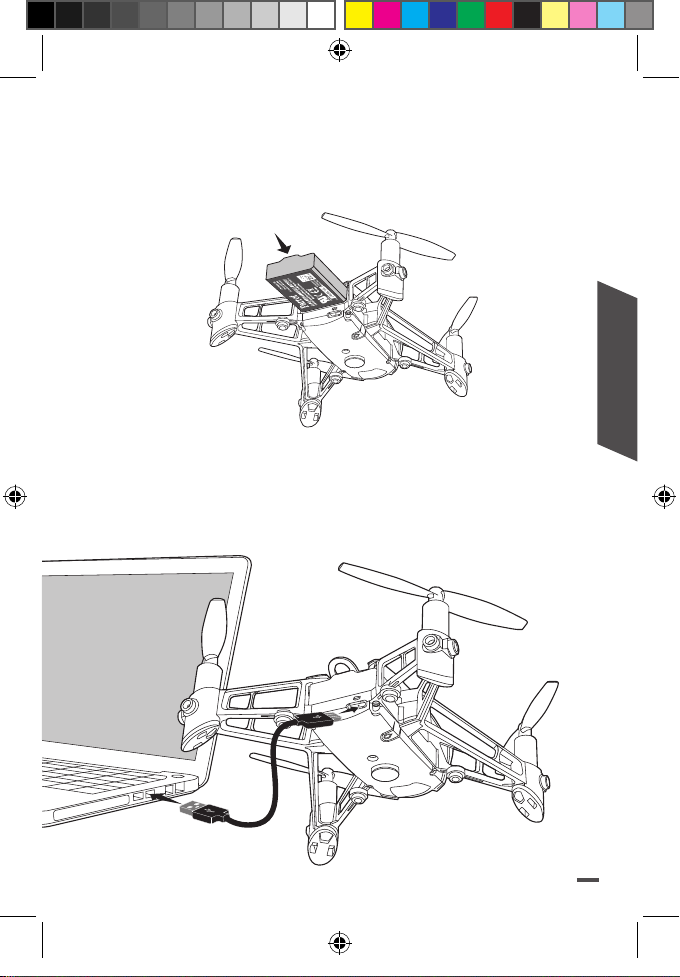

CHARGING THE BATTERY
1. Insert the battery in the slot provided for this
purpose.
2. With the micro USB cable, connect the Parrot
Mambo to a computer or a USB power adapter.
PI032303AB_QSG_Mambo_Fly_EU3.indd 5 29/06/2017 12:44:25

6
The charge LED is steady red when charging.
The charge time is approximately 30 minutes with
a 2.1A charger. Once charging is complete, the
charge LED turns green.
To remove the battery, lift the tab and slide the
battery backwards.
DOWNLOAD THE
APPLICATION
Login to the App Store®or Google PlayTM and
download the free FreeFlight Mini application to
your smartphone or tablet.
CONNECTING TO THE
PARROT MAMBO
1. Insert the battery in the slot provided for this
purpose or press the On/Off button.
>The Parrot Mambo turns on.
PARROT
4:21 PM
22%
Builder nodesign
My flights
START
06
98%
PI032303AB_QSG_Mambo_Fly_EU3.indd 6 29/06/2017 12:44:26

7
ENGLISH
2. Place the Parrot Mambo on a flat surface with
the propellers up.
3. Wait until the warning lights turn green.
4. On your smartphone, turn on the Bluetooth®
function and open the FreeFlight Mini application.
>The application automatically connects to the
Parrot Mambo.
If it does not automatically connect, a list of
available drones appears. Select your Parrot
Mambo.
PARROT
4:21 PM
22%
Builder nodesign
My flights
START
06
98%
PI032303AB_QSG_Mambo_Fly_EU3.indd 7 29/06/2017 12:44:26

8
TAKING OFF
1. Place the Parrot Mambo on a flat surface with
the propellers up.
2. In the FreeFlight Mini application, press
START
.
3. Select the type of accessory used (with or without
hulls).
4. Press
TAKE-OFF
.
>The Parrot Mambo takes off and stabilises at
1 meter above the ground waiting for a com-
mand.
PI032303AB_QSG_Mambo_Fly_EU3.indd 8 29/06/2017 12:44:28

9
ENGLISH
LANDING
Pre-programmed
patterns
Turn left
Move left
Move right
Turn right
Go up Go forward
Go down Land Go backward
LANDING
To land the Parrot Mambo, press the
button.
>The Parrot Mambo lands.
FLYING
Joystick mode is the default flying mode.
PI032303AB_QSG_Mambo_Fly_EU3.indd 9 29/06/2017 12:44:28

10
PRE-PROGRAMMED
PATTERNS
1. Press .
>A list of patterns appears.
2. Select a pattern.
>The icon for the selected pattern appears.
3. Double-tap the centre of your smartphone or
tablet screen to perform the selected pattern.
ACCESSORIES
HULLS
Attach the hulls to the Parrot Mambo’s arms. Make
sure the hulls are properly secured on the Parrot
Mambo’s contacts by pressing on them.
To remove the hulls: gently remove the hulls from
the Parrot Mambo’s contacts.
PI032303AB_QSG_Mambo_Fly_EU3.indd 10 29/06/2017 12:44:29

11
ENGLISH
WARNING LIGHT
INDICATIONS
Steady
orange light The Parrot Mambo is
starting up.
Steady
green light The Parrot Mambo is ready for use.
Flashing
red light
The Parrot Mambo’s
battery is low.
> Charge the battery.
Steady
red light
The Parrot Mambo has
detected a problem.
> Make sure
Bluetooth®is
enabled on your
smartphone. If the
problem persists,
visit www.parrot.com.
PI032303AB_QSG_Mambo_Fly_EU3.indd 11 29/06/2017 12:44:29

12
GENERAL INFORMATION
ACCESSORIES AND SPARE PARTS
Accessories and spare parts are available from your Parrot retailer or on
www.parrot.com.
PRECAUTIONS FOR USE AND MAINTENANCE
The Parrot Mambo is not suitable for children under 14 years of age.
The Parrot Mambo is a model aircraft designed for recreation and leisure. The
pilot must, at all times, maintain eye contact with the Parrot Mambo and control
its trajectory. The Parrot Mambo must be used according to the rules of civil
aviation in your country. The places where it is used must be suitable for its
progression in order to continuously ensure the safety of people, animals and
property. Using the Parrot Mambo in some public places (for example: train
stations, airports, etc.) or on public roads may not be allowed.
To use the Parrot Mambo inside, install the hulls to protect the Parrot Mambo in
case a collision with another object.
The Parrot Mambo’s propellers in flight can cause damage to people, animals or
objects. Do not touch the Parrot Mambo in flight. Stay a safe distance away and
wait for the propellers to completely stop before handling the Parrot Mambo.
Only use the Parrot Mambo gun with balls designed for the Parrot Mambo.
Only use accessories specified by Parrot Drones SAS.
If sand or dust gets into the Parrot Mambo, it may be irreparably damaged and
no longer function properly.
Do not use the Parrot Mambo in adverse weather conditions (rain, strong wind
or snow) or when visibility is poor (at night).
Keep the Parrot Mambo away from high voltage power lines, buildings or any
other potentially hazardous areas.
Do not use this device near liquids. Do not place the Parrot Mambo on water or
on a wet surface as this could cause irreparable damage.
Do not leave the Parrot Mambo in the sun.
WARNING: THE PARROT MAMBO AND ITS ACCESSORIES ARE MADE OF
OR CONTAIN SMALL OBJECTS - CHOKING HAZARD – DO NOT SHOOT THE
PARROT MAMBO GUN’S BALLS AT PEOPLE, ANIMALS OR OBJECTS.
WARRANTY
For the warranty conditions, please read the Terms and Conditions of sale of the
retailer where you purchased the Parrot Mambo.
HOW TO RECYCLE THIS PRODUCT
This symbol on the product or its documentation indicates that it must
not be disposed of with household waste. Uncontrolled waste disposal
may harm the environment or human health. Please separate your device
from other types of waste to recycle it responsibly. This will help to foster
the sustainable re-use of material resources. We invite you to contact your retai-
ler or inquire at your local town hall to find out where and how the Parrot Mam-
bo can be recycled.
PI032303AB_QSG_Mambo_Fly_EU3.indd 12 29/06/2017 12:44:29

13
ENGLISH
CONFORMITY DECLARATION
PARROT DRONES, 174 quai de Jemmapes, 75010 Paris, France, hereby de-
clares that it is solely responsible for the compliance of the product described
in this user guide with technical standards, EN 301489-17, EN300328, EN71-1,
EN71-2, EN62115, EN50581 according to the provisions of the R&TTE Directive
1999/5/EC, the ROHS Directive 2011/65/EU and the General Product Safety Di-
rective 2001/95/EC.
The statement of compliance is available at the following address:
www.parrot.com/fr/ce/?parrot-mambo
TRADEMARKS
Parrot Mambo, Parrot Swing as well as their respective logos are trademarks of
Parrot Drones SAS.
Parrot and the Parrot logos are trademarks of Parrot S.A.
App Store is a trademark of Apple Inc.
Google Play is a trademark of Google Inc.
The Bluetooth®name and logo are registered trademarks of Bluetooth SIG, Inc.
and any use of these trademarks by Parrot Drones SAS is done under licence.
All other trademarks mentioned in this guide are the property of their respec-
tive owners.
WARNING REGARDING PRIVACY AND RESPECT FOR IMAGES
OF PROPERTY
Recording and broadcasting an individual’s image without their permission may
constitute an invasion of privacy and you may be held liable. Ask permission
before filming people, especially if you intend to keep your recordings and/
or broadcast them. Do not broadcast degrading images which may affect an
individual’s reputation or dignity.
Recording and broadcasting the image of property without permission from
its owner and or any third party holding intellectual property rights on the pro-
perty may constitute a violation of the property’s image rights and you may be
held liable. Ask permission from its owner and/or any third party with ownership
rights.
FCC AND IC COMPLIANCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class
B Digital Device, pursuant to Part 15 of the FCC Rules / with Industry Canada
Licence-exempt RSS standard(s). These limits are designed to provide reaso-
nable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful in-
terference to radio communications. However, there is no guarantee that inter-
ference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and receiver.
PI032303AB_QSG_Mambo_Fly_EU3.indd 13 29/06/2017 12:44:29

14
• Connect the equipment to an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with Part 15 of the FCC Rules / with Industry Cana-
da Licence exempt RSS standard(s). Operation is subject to the following two
conditions: This equipment may not cause harmful interference. This equip-
ment must accept any interference received, including interference that may
cause undesired operation. Modifications not authorized by the manufacturer
may void the user’s authority to operate this device.
Caution: Exposure to Radio Frequency Radiation
The installer of this radio equipment must ensure that the antenna is located or
pointed such that it does not emit RF field in excess of Health Canada limits for
the general population; consult Safety Code 6, obtainable from Health Cana-
da’s website at http://www.hc-sc.gc.ca
This equipment complies with the FCC RF radiation exposure limits set forth
for an uncontrolled environment. This equipment should be installed and ope-
rated with a minimum distance of 20cm between the radiator and any part of
your body.
DECLARATION OF CONFORMITY IN CANADA
This device complies with the Industry Canada RSS applicable to license-exempt
radio apparatus. Operation is permitted subject to the following two condi-
tions: (1) the device must not produce interference, and (2) the user of the de-
vice must accept any radio interference encountered, even if the interference is
likely to compromise operations.
This category B digital device is compliant with the NMB-003 standard of Canada.
BATTERY
WARNING: Failure to follow all the instructions may result in serious injury, ir-
reparable damage to the battery and may cause a fire, smoke or explosion.
Always check the battery’s condition before charging or using it. Replace the
battery if it has been dropped, or in case of odour, overheating, discoloura-
tion, deformation or leakage. Never use anything other than the approved LiPo
charger to charge the battery. Always use a balancing charger for LiPo cells
or a LiPo cell balancer. It is recommended that you do not to use any other
charger than the one provided with the product. Never trickle charge or charge
under 2.5 V per cell. The battery temperature must never exceed 60 °C (140 °F)
otherwise the battery could be damaged or ignite. Never charge on a flam-
mable surface, near flammable products or inside a vehicle (preferably place
the battery in a non-flammable and non-conductive container). Never leave the
battery unattended during the charging process. Never disassemble or mo-
dify the housing’s wiring, or puncture the cells. Always ensure that the charger
output voltage corresponds to the voltage of the battery. Do not short circuit
the batteries. Never expose the LiPo battery to moisture or direct sunlight, or
store it in a place where temperatures could exceed 60 °C (car in the sun, for
example). Always keep it out of reach of children. Improper battery use may
result in a fire, explosion or other hazard.
The battery terminals should not be allowed to short-circuit. The pro-
duct should be connected only to class II appliances which display
the symbol.
PI032303AB_QSG_Mambo_Fly_EU3.indd 14 29/06/2017 12:44:29

15
ENGLISH
Use only 6 mm diameter balls (reference MCPLA01357A_Chonggao) sold by
PARROT DRONES. Warning. Do not aim at eyes or face or body part.
MANUFACTURER INFORMATION
The Parrot Mambo is manufactured by: PARROT DRONES SAS - 174 Quai de
Jemmapes - 75010 Paris (France) - Corporate and Trade Register Paris 808 408 074
FCC ID: 2AG6IDELOS3
IC: 21053-DELOS3
PI032303AB_QSG_Mambo_Fly_EU3.indd 15 29/06/2017 12:44:29

16
PREZENTACE
PARROT MAMBO
Kýl
Kýl
Světelné
kontrolky
Konektor
Umístění
baterie
Kamera
Tlačítko
On/Off
Vstup
micro-USB
Jazýček
LED
nabíjení
Kontaktní
úsek
PI032303AB_QSG_Mambo_Fly_EU3.indd 16 29/06/2017 12:44:30

17
ČEŠTINA
NABÍJENÍ BATERIE
1. Založte baterii do příslušného umístnění.
2. Kabelem micro-USB připojte Parrot Mambo k
počítači nebo adaptéru USB.
PI032303AB_QSG_Mambo_Fly_EU3.indd 17 29/06/2017 12:44:30

18
Během nabíjení svítí LED červeně.
Doba nabíjení je cca 30 minut s nabíječkou 2,1 A.
Jakmile je nabíjení u konce, LED svítí zeleně.
Chcete-li baterii vyjmout, zvedněte jazýček a
vysuňte baterii dozadu.
STÁHNĚTE SI APLIKACI
FREEFLIGHT MINI
Připojte se do App Store® nebo Google PlayTM a
stáhněte si bezplatnou aplikaci FreeFlight Mini.
PŘIPOJTE SE K
PARROT MAMBO
1. Založte baterie do příslušného umístnění, nebo
stiskněte spínač On/Off.
>Parrot Mambo se rozsvítí.
PARROT
4:21 PM
22%
Builder nodesign
My flights
START
06
98%
PI032303AB_QSG_Mambo_Fly_EU3.indd 18 29/06/2017 12:44:30

19
ČEŠTINA
2. Položte Parrot Mambo na rovný povrch s
vrtulemi směrem nahoru.
3. Vyčkejte, až budou světelné kontrolky svítit
zeleně.
4. Na svém smartphone aktivujte funkci Bluetooth®
a spusťte aplikaci FreeFlight Mini.
> Aplikace se automaticky připojí k Parrot
Mambo.
Neproběhne-li spojení automaticky, objeví se
seznam dostupných dronů. Zvolte svůj Parrot
Mambo.
PARROT
4:21 PM
22%
Builder nodesign
My flights
START
06
98%
PI032303AB_QSG_Mambo_Fly_EU3.indd 19 29/06/2017 12:44:30

20
VZLET
1. Položte Parrot Mambo na rovný povrch s vrtulemi
směrem nahoru.
2. V apliakci FreeFlight Mini stiskněte na
START
.
3. Zvolte typ používaného doplňku (s kýly nebo bez).
4. Stiskněte na
TAKE-OFF
.
> Parrot Mambo vzlétne a stabilizuje se 1 metr
na zemí a vyčkává pokyn.
PŘISTÁNÍ
Chcete-li, aby Parrot Mambo přistál, stiskněte tlačítko
.
>Parrot Mambo přistane.
PI032303AB_QSG_Mambo_Fly_EU3.indd 20 29/06/2017 12:44:30
