PAX PX5 User manual

One Blue Hill Plaza, 16th Floor, PO Box 1546
Pearl River, NY 10965
1-800-PC-AMERICA, 1-800-722-6374
(Voice) 845-920-0800 (Fax) 845-920-0880
PAX PX5 Pinpad
This document provides step-by-step instructions on installing, configuring settings, and processing transactions in
CRE/RPE using the PAX PX5 Pinpad. This device is configured for an Ethernet interface.

2
TABLE OF CONTENTS
REVISION HISTORY 3
INSTALLING PAX PX5 STYLUS 4
REMOVE SMART CARD READER PLUG 5
HOW TO RESTARTING THE PAX PX5 5
CONNECTING ETHERNET AND POWER 6
CONFIGURING THE PAX COMMUNICATION PORT FOR TCP/IP ONLY 7
CONFIGURING THE PAX PX5 NOT TO PROMPT FOR DEBIT 11

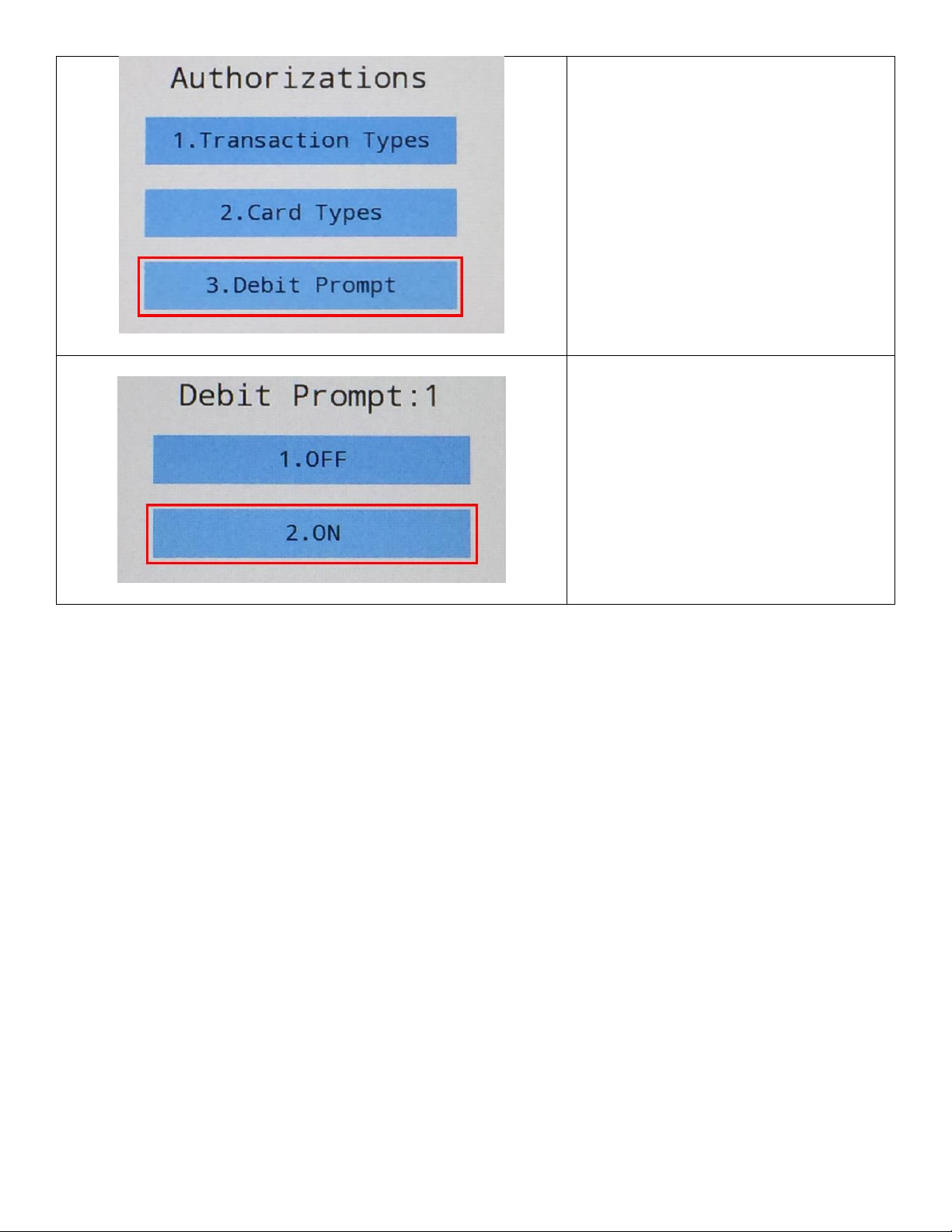

CONFIGURING THE PAX PX5 TO PROMPT FOR DEBIT 13
CONFIGURED PAX PX5 TO PROMPT FOR CASHBACK 15
ENABLING PAX PX5 FOR CONTACTLESS PAYMENTS 17

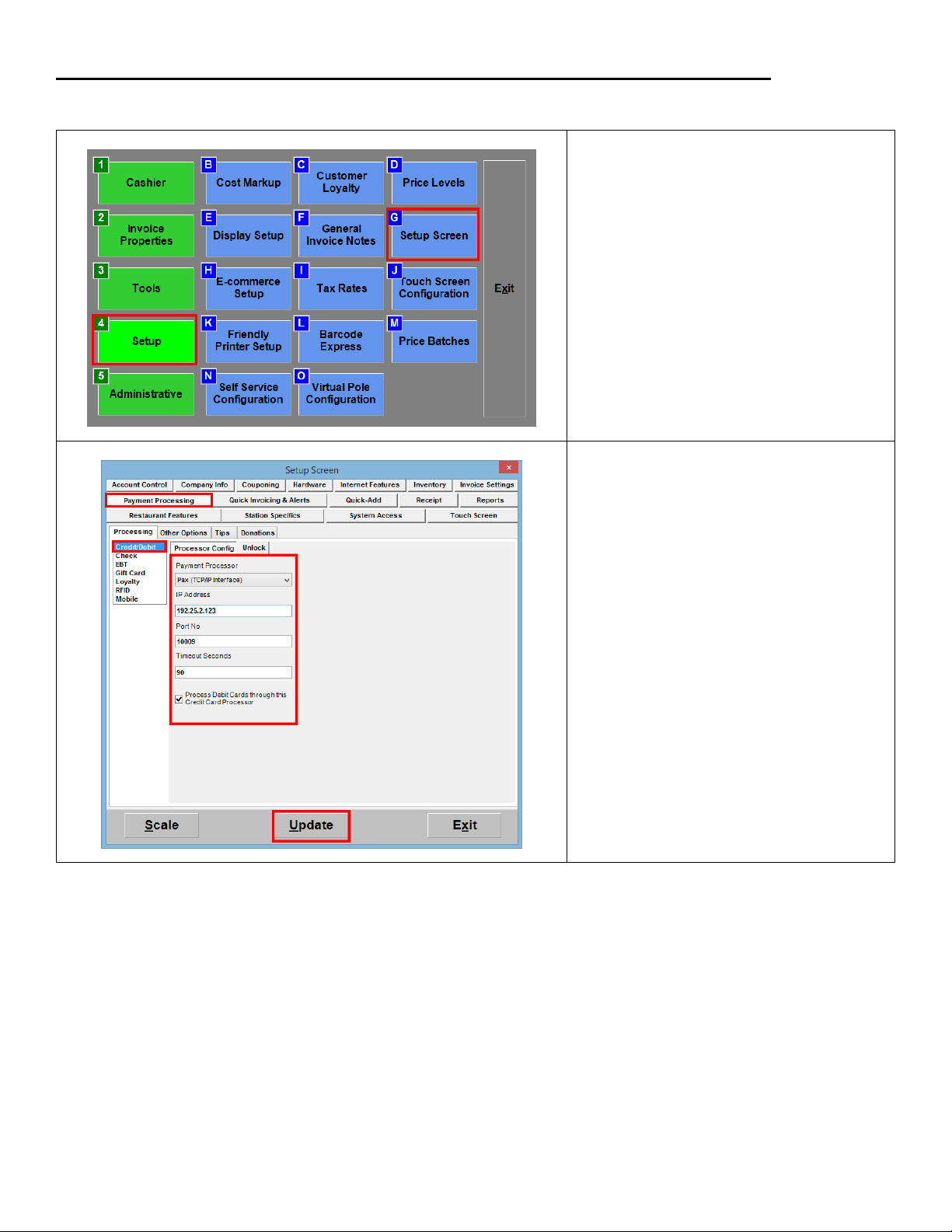

CONFIGURING PAX PX5 IN CRE TO ACCEPT CREDIT/DEBIT PAYMENTS –TCP/IP INTERFACE 19

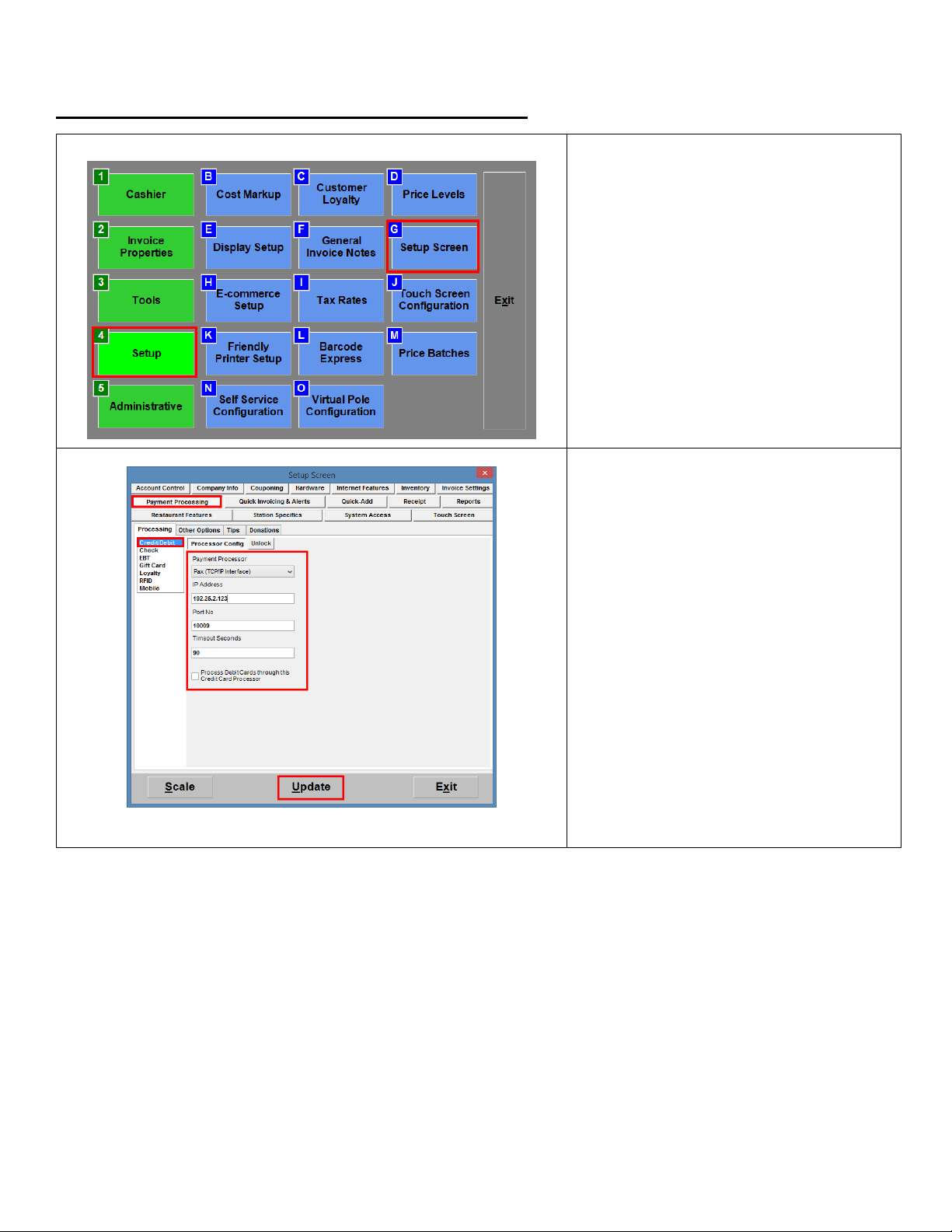

CONFIGURING CRE FOR THE PAX PX5 TO PROMPT FOR DEBIT 20
CONFIGURING THE PAX PX5 IN CRE TO ACCEPT EBT PAYMENTS –TCP/IP INTERFACE 21
CONFIGURING THE PAX PX5 IN CRE TO ACCEPT GIFT CARD PAYMENTS –TCP/IP INTERFACE 22
CONFIGURING THE PAX PX5 TO ACCEPT TIPS 23
PERFORMING A CREDIT CARD SALE WITH TIPS ENABLED (FINE DINING) 24
PERFORMING A CREDIT CARD SALE WITH EMV IN CRE 33
PERFORMING A CREDIT CARD SALE WITH A CONTACTLESS ENABLED CARD 36
PERFORMING A DEBIT CARD SALE IN CRE 39
PERFORMING AN EBT FOOD STAMP SALE 41
PERFORMING A EBT CASH SALE WITH CASHBACK 43
PERFORMING A DEBIT SALE WITH PAX PX5 CONFIGURED TO PROMPT FOR DEBIT 45
PERFORMING A MANUAL CARD ENTRY USING THE KEYPAD OF THE PAX PX5 DEVICE 47
PERFORMING A SETTLEMENT/BATCH CLOSE AND SETTING UP AUTO SETTLEMENT 50

3
Revision History
Document Version
Date
Author
Description of Changes
1.0
October 16, 2018
JC
1st Release

4
Installing PAX PX5 Stylus
Important: Every register processing card transactions MUST have its own PAX unit.
Installing the stylus
1. Location of stylus Port is on the
bottom left side of the pinpad.
2. Locate stylus and connect it to the
pinpad.
3. There is only one way it can
connect. Be sure not to force it.

5
Remove Smart Card Reader Plug
EMV receptacle plug must be removed to allow EMV cards to be inserted.
Follow steps below to remove the plug.
To remove, gently pry out the plug using a small
flat head screwdriver in the slit along top of the
plug. Now the pinpad is ready to accept EMV
Cards
How to Restart the PAX PX5
Note: This will be used for making changes and to load updates.
On the bottom left of the PAX Device. Next to
the stylus port. There is a button labeled reset.
This is used to restart the device. So,
when asked to power cycle the device.
Press and hold this button until you see
the device

6
Connecting Ethernet and Power
Please connect the Ethernet cable to the pinpad before connecting the power.

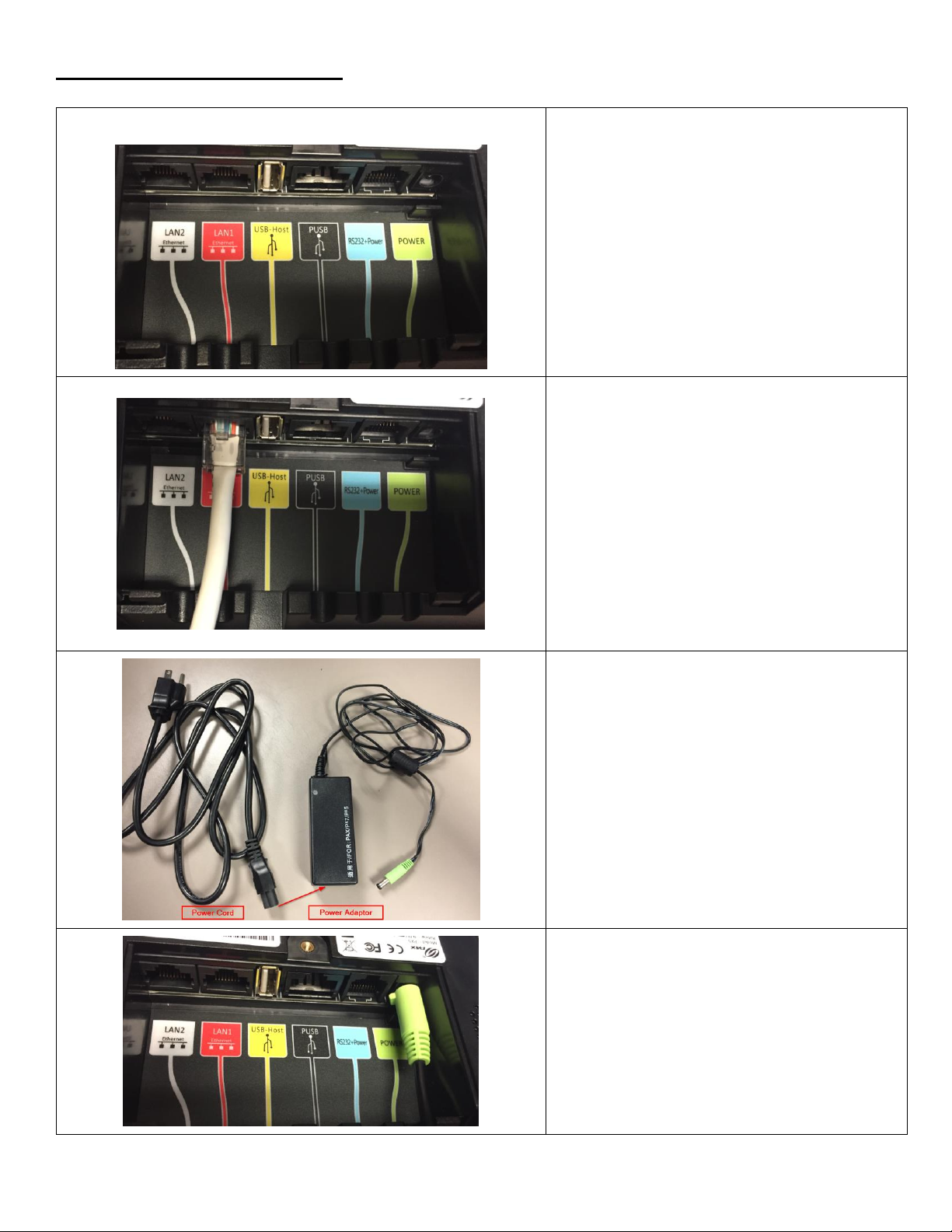

1. On the back of the Pinpad all interfaces are
color coded.
Note: Only LAN1 is supported at this time
2. Please connect the Ethernet Cable to the
LAN1 Port (RED).
3. Location the power cord and adaptor.
Connect the power cord to the adaptor
4. Connect one end to your outlet/surge
protector and connect the other end to the
Power Port (Green).

7
Configuring the PAX communication port for TCP/IP only
Communication between the PAX, PC, and payment processing done over TCP/IP.
The pinpad must be configured for TCP/IP. Steps below will show you how to check and/or configured the pinpad.
1. To access the confirmation Menu,
Press both the Green and number 1
buttons at the same time.
2. Enter Password. Then press the green
button on the keypad.
This is provided by your payment
processor
Main Menu:
3. Tap on Communication or press 6on the
keypad.
4. Enter password using the keypad.
Communication Options:
5. Tap the blue arrow on the right to
navigate to page 2.

8
6. Tap on ECR Comm. Type or press 3on the
keypad.
7. Tap on Ethernet or Press 3on the
keypad.
8. Confirm the Communication port is 10009
Press green button on the keypad.
Make a note of this. Will need it later, to enter
this information into CRE.
9. Tap on TCP/IP or press 1on the keypad.
Note: It will return you back to the
communication options Menu
10. Navigate back to page 2,
Tap on LAN Parameters or press 2on the
keypad.

9
11. Tap on IP Address or press 2on the
keypad
12. Make Note of the IP Address that is
displayed. Will need it later, to enter this
information into CRE.
Then press the OK Button (Green) on the key
pad, to return back to the LAN Parameters
Menu.
13. Tap on LAN Type or Press 1on the keypad.
14. Tap on Static or Press 2on the keypad.
Note: It will return you back to the previous
screen.

10
15. Tap on IP Address or press 2on the
keypad
16. Confirm the IP Address displayed is the
same as what you have in step 12.
Alternatively you may assign a different IP by
tapping on the blue arrow once and pressing
the red key with the X, then using the keypad
enter a new IP address, hit the green key with
the O to save your changes.
You will need to enter the IP Address as 12
digits, e.g. if the IP address you are entering is
192.25.2.123, this will have to be keyed in as
192.025.002.123.
Take note of the new IP address then press the
green key with the O to save your changes.
Press the red button with the X repeatedly
until you are back at the Pax splash screen
(Insert Anytime).
