PCB 350B44/NC User manual

Model 350B44/NC
ICP® Triaxial shock accelerometer, 1.0 mV/g, 5k g range, mechanically isolated and electrically
filtered, 5-ft integral cable, no mating cable supplied
Installation and Operating Manual
For assistance with the operation of this product,
contact the PCB Piezotronics, Inc.
Toll-free: 716-684-0001
24-hour SensorLine: 716-684-0001
Fax: [phone]
E-mail: [email protected]
Web: www.pcb.com

Manual 21354 Rev E
ECN 50523
Repair and Maintenance
PCB guarantees Total Customer Satisfaction through its
“Lifetime Warranty Plus” on all Platinum Stock Products
sold by PCB and through its limited warranties on all other
PCB Stock, Standard and Special products. Due to the
sophisticated nature of our sensors and associated
instrumentation, field servicing and repair is not
recommended and, if attempted, will void the factory
warranty.
Beyond routine calibration and battery replacements
where applicable, our products require no user
maintenance. Clean electrical connectors, housings, and
mounting surfaces with solutions and techniques that will
not harm the material of construction. Observe caution
when using liquids near devices that are not hermetically
sealed. Such devices should only be wiped with a
dampened cloth—never saturated or submerged.
In the event that equipment becomes damaged or ceases
to operate, our Application Engineers are here to support
your troubleshooting efforts 24 hours a day, 7 days a
week. Call or email with model and serial number as well
as a brief description of the problem.
Calibration
Routine calibration of sensors and associated
instrumentation is necessary to maintain measurement
accuracy. We recommend calibrating on an annual basis,
after exposure to any extreme environmental influence,
or prior to any critical test.
PCB Piezotronics is an ISO-9001 certified company whose
calibration services are accredited by A2LA to ISO/IEC
17025, with full traceability to SI through N.I.S.T. In
addition to our standard calibration services, we also offer
specialized tests, including: sensitivity at elevated or
cryogenic temperatures, phase response, extended high
or low frequency response, extended range, leak testing,
hydrostatic pressure testing, and others. For more
information, contact your local PCB Piezotronics
distributor, sales representative, or factory customer
service representative.
Returning Equipment
If factory repair is required, our representatives will
provide you with a Return Material Authorization (RMA)
number, which we use to reference any information you
have already provided and expedite the repair process.
This number should be clearly marked on the outside of
all returned package(s) and on any packing list(s)
accompanying the shipment.
Contact Information
PCB Piezotronics, Inc.
3425 Walden Ave.
Depew, NY14043 USA
Toll-free: [phone]
24-hour SensorLine: [phone]
General inquiries: in[email protected]
Repair inquiries: [e-mail]
For a complete list of distributors, global offices and sales
representatives, visit our website, www.pcb.com.
Safety Considerations
This product is intended for use by qualified personnel
who recognize shock hazards and are familiar with the
precautions required to avoid injury. While our equipment
is designed with user safety in mind, the protection
provided by the equipment may be impaired if equipment
is used in a manner not specified by this manual.
Discontinue use and contact our 24-Hour Sensorline if:
Assistance is needed to safely operate equipment
Damage is visible or suspected
Equipment fails or malfunctions
For complete equipment ratings, refer to the enclosed
specification sheet for your product.
Definition of Terms and Symbols
The following symbols may be used in this manual:
DANGER
Indicates an immediate hazardous
situation, which, if not avoided, may
result in death or serious injury.

Manual 21354 Rev E
ECN 50523
CAUTION
Refers to hazards that could damage
the instrument.
NOTE
Indicates tips, recommendations and
important information. The notes
simplify processes and contain
additional information on particular
operating steps.
The following symbols may be found on the equipment
described in this manual:
This symbol on the unit indicates that
high voltage may be present. Use
standard safety precautions to avoid
personal contact with this voltage.
This symbol on the unit indicates that
the user should refer to the operating
instructions located in the manual.
This symbol indicates safety, earth
ground.

Manual 21354 Rev E
ECN 50523
PCB工业监视和测量设备 - 中国RoHS2公布表
PCB Industrial Monitoring and Measuring Equipment - China RoHS 2 Disclosure Table
部件名称
有害物质
铅(Pb)
汞
(Hg)
镉
(Cd)
六价铬(Cr(VI))
多溴联苯 (PBB)
多溴二苯醚(PBDE)
住房
O
O
O
O
O
O
PCB板
X
O
O
O
O
O
电气连接器
O
O
O
O
O
O
压电晶体
X
O
O
O
O
O
环氧
O
O
O
O
O
O
铁氟龙
O
O
O
O
O
O
电子
O
O
O
O
O
O
厚膜基板
O
O
X
O
O
O
电线
O
O
O
O
O
O
电缆
X
O
O
O
O
O
塑料
O
O
O
O
O
O
焊接
X
O
O
O
O
O
铜合金/黄铜
X
O
O
O
O
O
本表格依据 SJ/T 11364 的规定编制。
O：表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 规定的限量要求以下。
X：表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 规定的限量要求。
铅是欧洲RoHS指令2011/65/ EU附件三和附件四目前由于允许的豁免。
CHINA RoHS COMPLIANCE

Manual 21354 Rev E
ECN 50523
Component Name
Hazardous Substances
Lead (Pb)
Mercury (Hg)
Cadmium (Cd)
Chromium VI
Compounds
(Cr(VI))
Polybrominated
Biphenyls (PBB)
Polybrominated
Diphenyl Ethers
(PBDE)
Housing
O
O
O
O
O
O
PCB Board
X
O
O
O
O
O
Electrical Connectors
O
O
O
O
O
O
Piezoelectric Crystals
X
O
O
O
O
O
Epoxy
O
O
O
O
O
O
Teflon
O
O
O
O
O
O
Electronics
O
O
O
O
O
O
Thick Film Substrate
O
O
X
O
O
O
Wires
O
O
O
O
O
O
Cables
X
O
O
O
O
O
Plastic
O
O
O
O
O
O
Solder
X
O
O
O
O
O
Copper Alloy/Brass
X
O
O
O
O
O
This table is prepared in accordance with the provisions of SJ/T 11364.
O: Indicates that said hazardous substance contained in all of the homogeneous materials for this part is below the limit
requirement of GB/T 26572.
X: Indicates that said hazardous substance contained in at least one of the homogeneous materials for this part is above the limit
requirement of GB/T 26572.
Lead is present due to allowed exemption in Annex III or Annex IV of the European RoHS Directive 2011/65/EU.

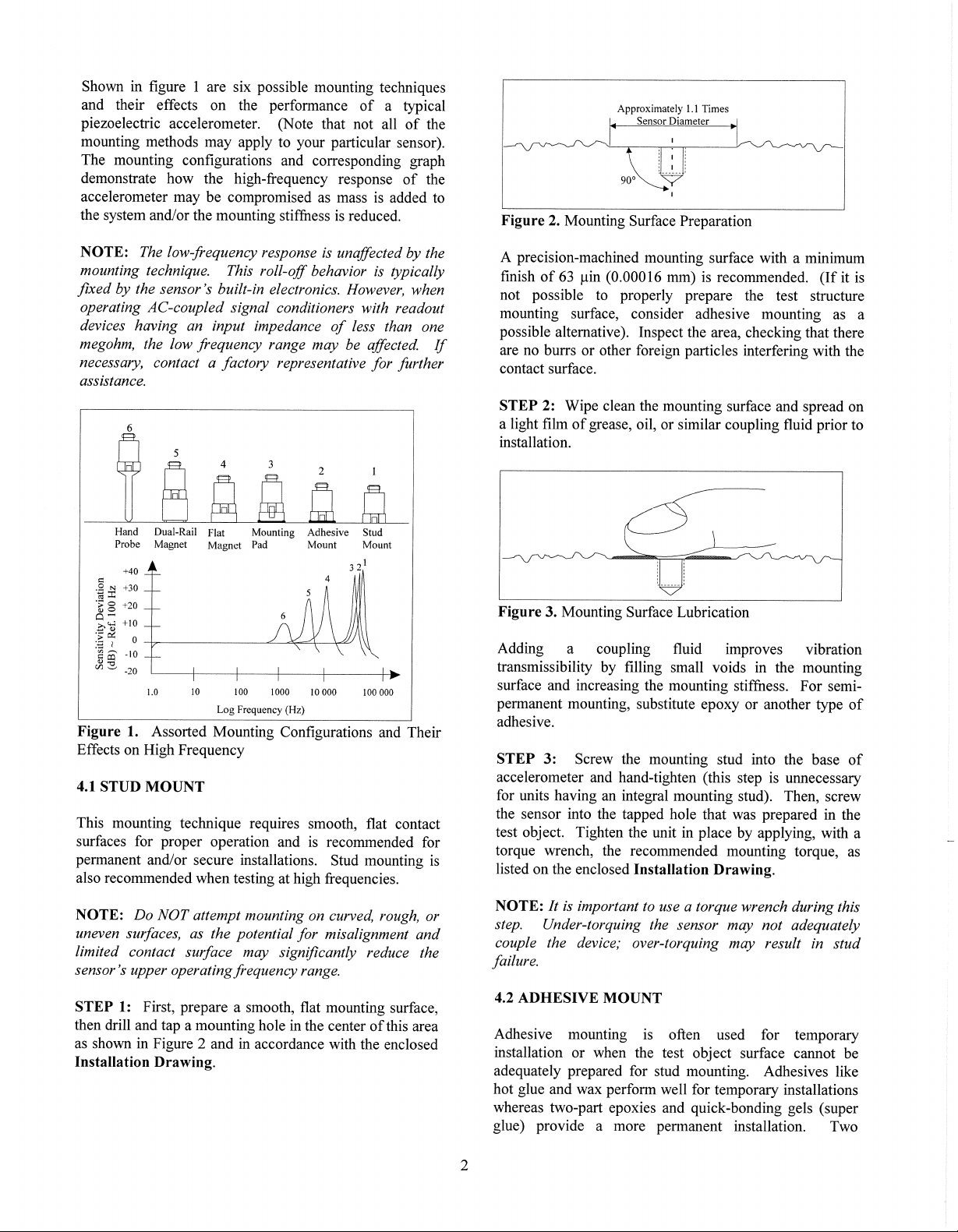

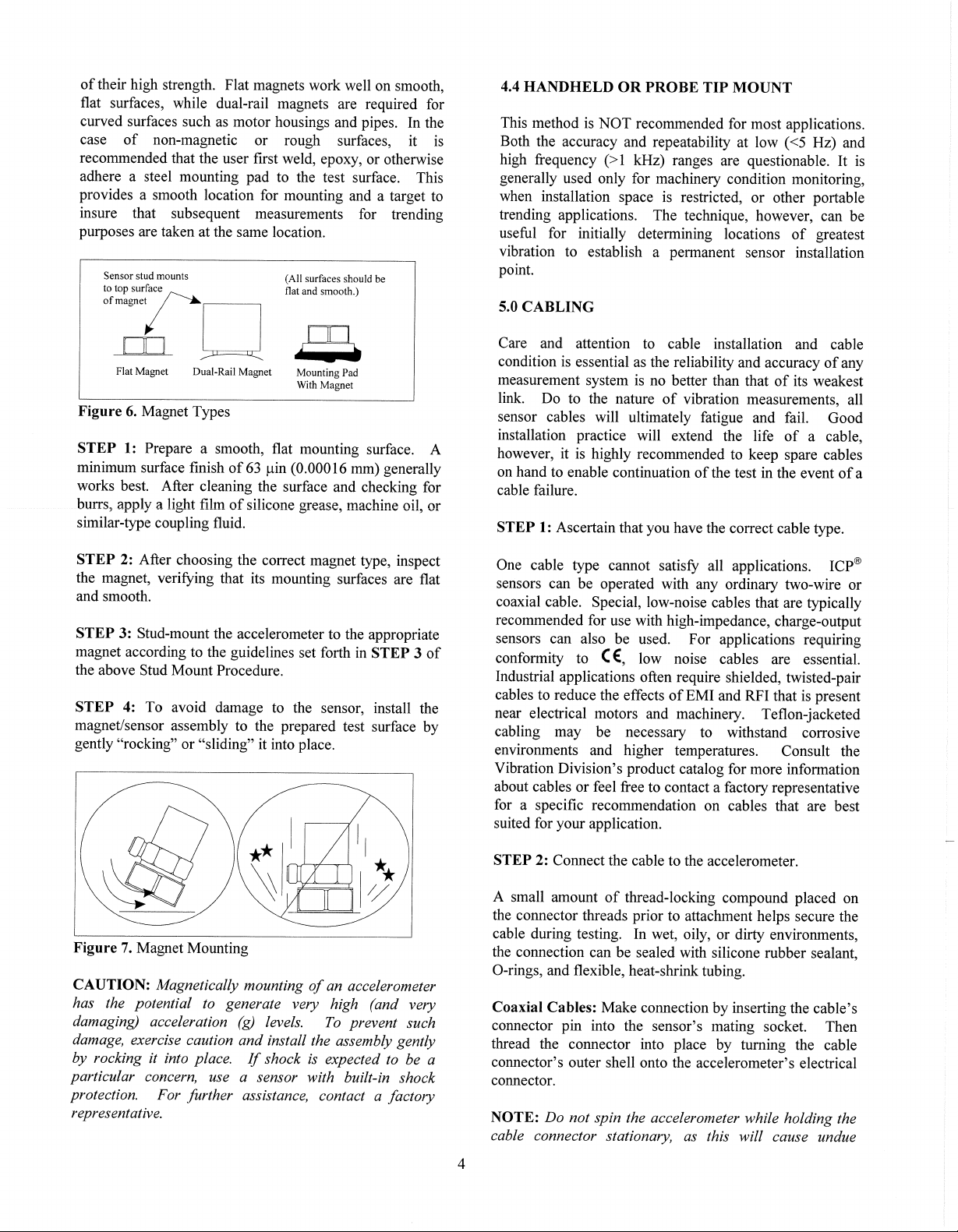

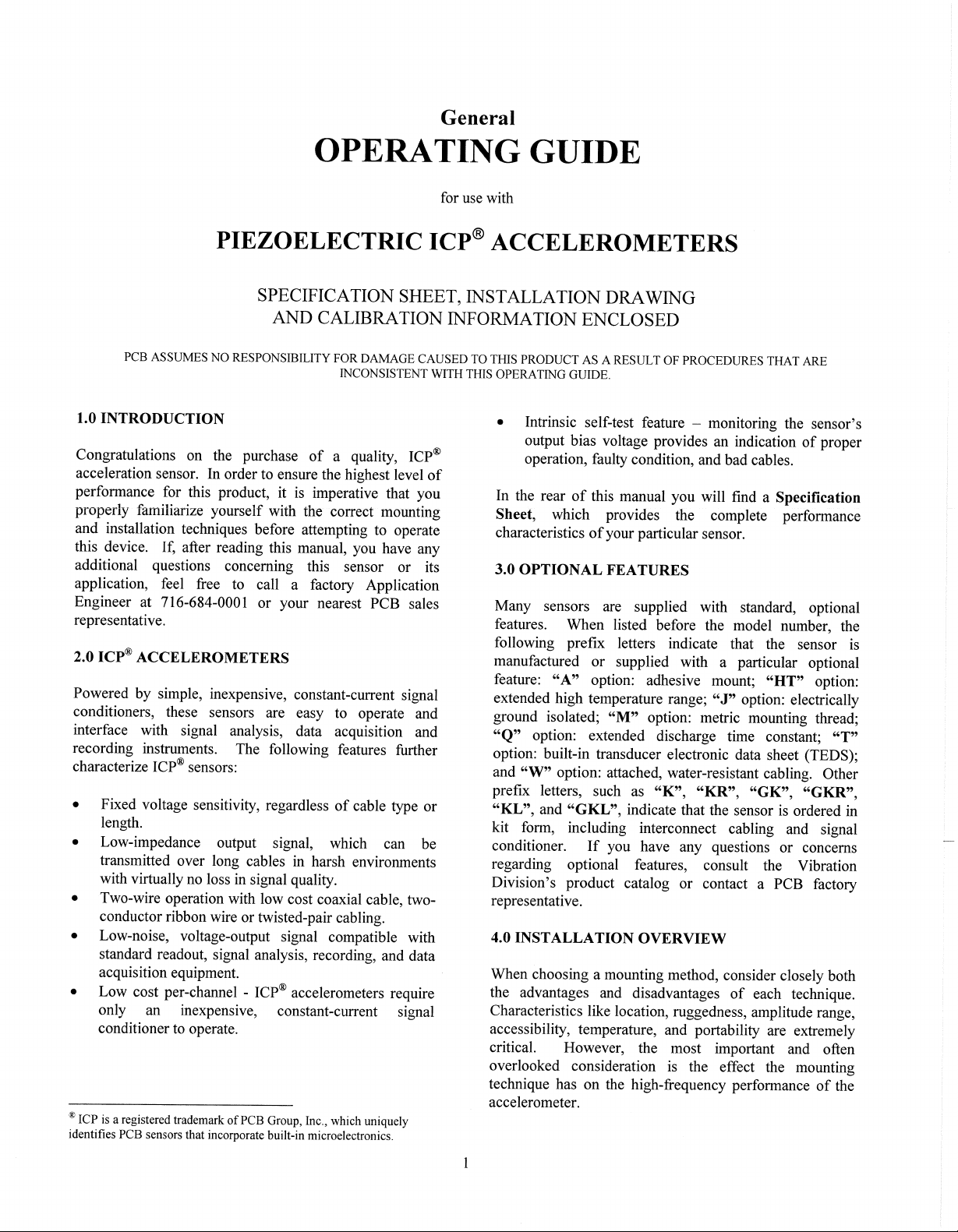

Model Number
350B44 TRIAXIAL ICP® ACCELEROMETER Revision: B
ECN #: 51341
Performance ENGL ISH SI
Sensitivity(± 30 %) 1.0 mV/g .1 mV/(m/s²)
Measurement Range ± 5,000 g pk ± 49,000 m/s² pk
Frequency Range(± 1 dB) 0.4 to 10,000 Hz 0.4 to 10,000 Hz
Frequency Range(- 3 dB) 0.2 to 25,000 Hz 0.2 to 25,000 Hz [1]
Resonant Frequency > 50 kHz > 50 kHz
Electrical Filter Corner Frequency(- 3 dB) 17 kHz 17 kHz [2][3]
Mechanical Filter Resonant Frequency 35 kHz 35 kHz [2][4]
Broadband Resolution(1 to 10,000 Hz) 0.04 g rms 0.39 m/s² rms [2]
Non-Linearity(per 1000 g (9810 m/s2)) ≤ 2.0 % ≤ 2.0 %
Transverse Sensitivity ≤ 7 % ≤ 7 %
Environmental
Overload Limit(Shock) ± 50,000 g pk ± 490,000 m/s² pk
Temperature Range(Operating) -10 to +150 °F -23 to +66 °C
Temperature Range(Storage) -40 to +200 °F -40 to +93 °C
Temperature Response See Graph See Graph [2][5]
Base Strain Sensitivity 0.002 g/µε 0.02 (m/s²)/µε [2]
Electrical
Excitation Voltage 20 to 30 VDC 20 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤ 200 Ohm ≤ 200 Ohm
Output Bias Voltage 8 to 14 VDC 8 to 14 VDC
Discharge Time Constant 1.0 to 2.0 sec 1.0 to 2.0 sec [2]
Settling Time(within 10% of bias) < 10 sec < 10 sec
Electrical Isolation(Case) > 108 Ohm > 108 Ohm
Physical
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Titanium Titanium
Sealing Hermetic Hermetic
Size (Height x Length x Width) 1.02 in x 1.02 in x 1.02 in 26.0 mm x 26.0 mm x 26.0
mm
Weight(without cable) 0.95 oz 27 g [2]
Electrical Connector Integral Cable Integral Cable
Electrical Connection Position Side Side
Cable Termination 1/4-28 4-Pin Jack 1/4-28 4-Pin Jack
Cable Length 5.0 ft 1.52 m
Cable Type 034 4-cond Shielded 034 4-cond Shielded
Mounting Through Hole Through Hole
[6]
All specifications are at room temperature unless otherwise specified.
In the interest of constant product improvement, we reserve the right to change specifications without notice.
ICP® is a registered trademark of PCB Piezotronics, Inc.
OPTIONA L VERSIONS
Optional versions have identical specifications and accessories as listed for the standard model except
where noted below. More than one option may be used.
NOTES:
[1]Typical corner frequency for coupled electrical and mechanical filters.
[2]Typical.
[3]Electrical filter is a second order filter.
[4]Amplitude at resonance is +9 dB.
[5]Test performed on a shaker at 100Hz
[6]See PCB Declaration of Conformance PS023 for details.
Date: 12/17/2020 Date: 12/17/2020 Date: 12/17/2020 Date: 12/17/2020 67765
Entered: LK Engineer: AJA Sales: RWM Approved: BAM Spec Number:
3425 Walden Avenue, Depew, NY 14043
Phone: [phone]
Fax: [phone]
E-Mail: i[email protected]
SUPPLIED ACCESSORIES:
Model 034G05 4-cond. shielded cable, 5 ft (1.5M), 4-pin plug to (3) BNC plugs (1)
Model 100-16040-40 Metric mounting screws (M6x1.0 x 22mm long (1)
Model 100-6774-10 STD mounting screw (1/4-28 x .87 long) (1)
Model 100-8994-40 Coupling grease (1)
Model ACS-14T High G shock triaxial accelerometer calibration using Hopkinson bar (1)
Model ACS-22T NIST Traceable triaxial frequency response (100Hz to ±1 Db point (1)

MOUNTING HOLE PREPARATION:
1/4-28 UNF - 2B .56 [14.2] MIN
(M) OPTION:
M6x1.0 - 6H .56 [14.2]
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
CODE
IDENT. NO.
52681
DWG. NO.
SCALE: SHEET
DRAWN CHECKED ENGINEER
TITLE
UNLESS OTHERWISE SPECIFIED TOLERANCES ARE:
DIMENSIONS IN MILLIMETERS
[ IN BRACKETS ]
ANGLES 2 DEGREES
3425 WALDEN AVE. DEPEW, NY 14043
[phone] E-MAIL: [e-mail]
DIMENSIONS IN INCHES
ANGLES 2 DEGREES
FILLETS AND RADII
.003 - .005
FILLETS AND RADII
0.07 - 0.13

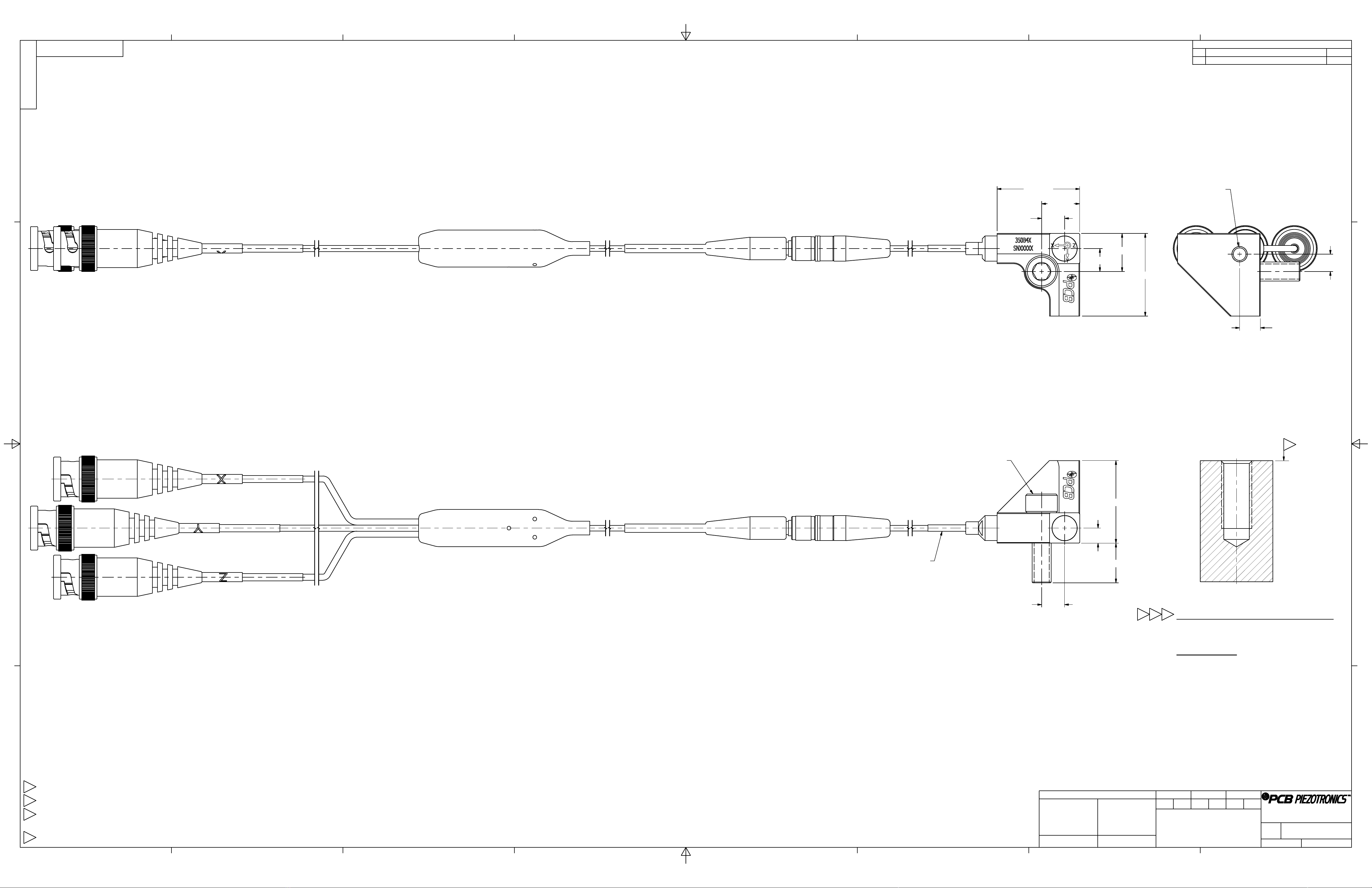

OUTLINE DRAWING
67761
1 OF 12.5X
MODEL 350B4X
ACCELEROMETER
DECIMALS XX ±.03
XXX ±.010
DECIMALS X ± 0.8
XX ± 0.25
NJF 09/16/22 JDM 09/16/22 AJA 09/16/22
67761
PCB Piezotronics Inc. claims proprietary rights in
the information disclosed hereon. Neither it nor any
reproduction thereof will be disclosed to others
without the written consent of PCB Piezotronics Inc.
REVISIONS
REV DESCRIPTION DIN
A UPDATED MOUNTING HOLE NOTES 53191
.26 [6.5]
.47 [12.0]
.29 [7.2]
.47 [12.0]
.29 [7.2]
1
1
2
3
4APPLY COUPLING GREASE BETWEEN MOUNTING SURFACES FOR BEST RESULTS (SUPPLIED PER SPECIFICATIONS SHEET)
RECOMMENDED MOUNTING TORQUE 2-5 FT-LBS [3-7 Nm]
MOUNTING SURFACE SHOULD BE FLAT TO WITHIN .001 [.02] TIR OVER Ø1.6 [40.6] WITH
A MINIMUM SURFACE FINISH OF 32 [.08] FOR BEST RESULTS
DRILL PERPENDICULAR TO MOUNTING SURFACE TO WITHIN 1°
.28 [7.2]
.49 [12.5]
1.02 [26.0]
.19 [4.7]
INTEGRAL CABLE 5 ft [1.5 m]
LONG TERMINATING IN 4-PIN JACK
MOUNTING BOLT
(SUPPLIED PER
SPECIFICATION SHEET)
10-32 UNF - 2B .135 [10-32 UNF - 2B 3.4]2X
(FOR CALIBRATION ONLY)
4
23
1.02 [26.0]
1.02 [26.0]
.22 [5.5]
