PDQ 3100 User manual

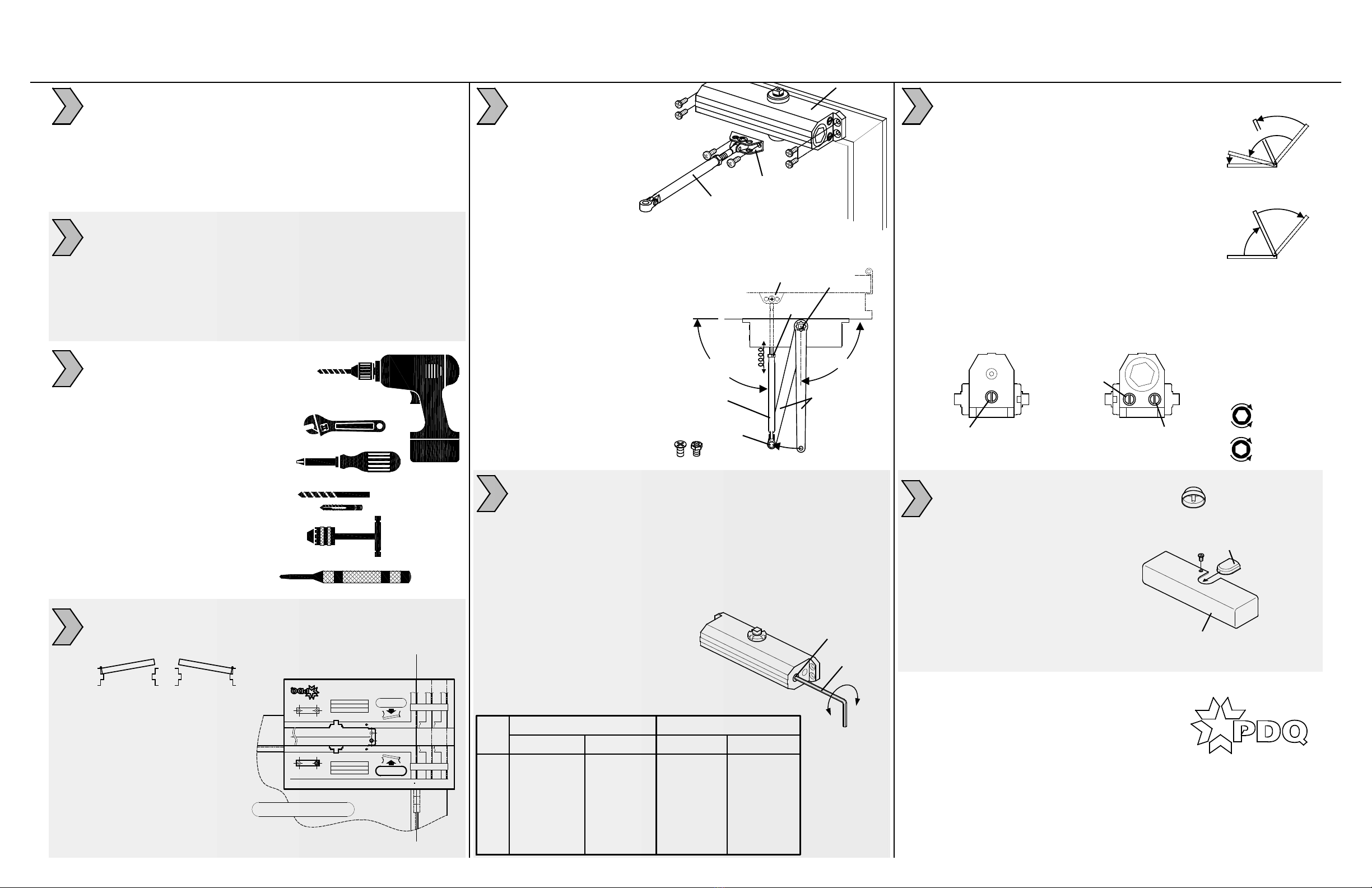

3100 DOOR CLOSER MODELS
TOP JAMB INSTALLATION - PUSH SIDE - PIVOT STOP (PS) ARM APPLICATIONS
INSTRUCTION: 319356
REV.0 04-09-20
MACHINE SCREWS:
USE #7 OR 13/64" [5.1] DRILL AND 1/4-20 TAP
WOOD DOOR/FRAME SCREWS:
USE 5/32" [4] DRILL
SEX NUTS:
USE 3/8" [9.5] DRILL (CLOSER TO DOOR) PDQ Manufacturing
2230 Embassy Dr.
Lancaster, PA 17603
833-273-7832
833-2 PDQTECH
www.pdqlocks.com
NOTES:
1. DO NOT SCALE DRAWING. LEFT HAND DOOR SHOWN.
2. DIMENSIONS ARE GIVEN IN INCHES [MM].
3. FOR DOORS WITH REVEAL OF 4 INCHES. CONSULT FACTORY FOR OTHER REVEAL DEPTHS.
4. MINIMUM CEILING CLEARANCE FROM BOTTOM OF FRAME FACE FOR CLOSER : 2-13/16".
5. SEX NUTS REQUIRED FOR UNREINFORCED OR COMPOSITE FIRE DOORS.
6. DOOR AND FRAME MUST BE REINFORCED PER ANSI/SDI A250.8 REQUIREMENTS - MINIMUM THICKNESS
RECOMMENDED FOR REINFORCEMENTS IN HOLLOW-METAL DOORS AND FRAMES: 0.067" UNLESS OTHERWISE NOTED.
7. HOLLOW-METAL DOORS REQUIRE CHANNEL OR BOX-TYPE REINFORCEMENT WHEN SEX NUT MOUNT IS SPECIFIED.
BOTTOM OF FRAME FACE
B
A9 1/16" [230.2]
1 3/4" [44.5]
1 1/2" [38.1]
1/2" [12.7]
3/4" [19.1]
BOTTOM OF
FRAME FACE
C
L
HINGE
OR
PIVOT
Opening Dim. A Dim. B
85° 10-1/16" [255.6] 16-1/16" [408]
90° 9-3/8" [238.1] 15-3/8" [390.5]
95° 8-3/4" [222.3] 14-3/4" [374.7]
100° 8-1/4" [209.6] 14-1/4" [362]
105° 7-13/16" [198.4] 13-13/16" [350.8]
110° 7-1/2" [190.5] 13-1/2" [342.9]

3100 DOOR CLOSER MODELS
TOP JAMB INSTALLATION - PUSH SIDE - PIVOT STOP (PS) ARM APPLICATIONS
INSTRUCTION: 319356
REV.0 04-09-20
PRELOAD
TO 90°
ARM SCREW OR BOLT
MAIN ARM
90°
NUT
BACKCHECK
RESISTANCE
LATCH
SPEED
CONTROL
SWEEP SPEED
CONTROL
SPINDLE/
PINION
FOOT
ADJUSTMENT
ARM
(L)
(S)
LH RH
PREPARE DOOR AND FRAME:
1. Determine maximum opening angle.
2. Determine door hand (LH or RH).
3. Align & attach
full size template
(see reverse side).
4. Mark door & frame
with center punch.
5. Remove template before
machining door & frame.
ADJUST SPRING POWER:
1. Use 4 mm hex key provided to adjust to size on chart.
Clockwise (CW) turns increase spring power (+).
Counter-clockwise (CCW) turns decrease spring power (-).
3101 Series closers can be adjusted to meet
ADA Barrier Free (BF) applications. Compliance with ADA/BF
requirements may result with door not fully closing and latching.
Check with local AHJ. Closer size may vary due to site conditions.
6
1. Confirm this sheet is correct for your product and application.
2. Read the complete instruction sheet before starting installation.
3. Incorrectly installed or adjusted door closers can cause
personal injury or property damage.
4. To ensure safe operation closers should be examined
and serviced, regularly.
TOOLS REQUIRED:
1. Power drill
2. 14mm box/combo wrench
3. Phillips screw driver
4. #7 or 13/64" drill bit and
1/4-20 tap (machine screws)
5. Tap handle
6. 5/32" drill bit (wood screws)
7. 3/8" drill bit (sex nuts)
8. Center punch
1. See reverse side of this sheet to machine door & frame.
2. Dimensions based on 4-1/2" x 4-1/2" full mortise butt hinges
with 5/8" stop and 1/8" door gap.
3. Confirm door & frame are properly reinforced.
4. Sex nuts required for un-reinforced or composite fire doors.
5. Do not install closer on the exterior (weather) side of building.
1
2
3
4
INSTALL CLOSER AND ARM:
1. Attach closer body to
frame. Sweep and latch
valves point towards
hinge/pivot.
2. Attach foot assembly
to door.
5
3. Secure main arm to closer spindle, 90° to door/frame.
4. Rotate main arm towards adjustment arm.
5. Shorten (S) or lengthen (L) adjustment
arm until it is 90° to door/frame when
connected with main arm.
6. Secure adjustment arm to main arm
with arm screw or bolt.
7. Tighten lock-nut against
adjustment arm.
SLOWER
FASTER
INCREASE
DECREASE
1. Use hex key provided.
2. Adjust SWEEP (closing max.°- 10°).
3. Adjust LATCH (closing 10°- 0°).
4. Adjust BACKCHECK resistance (opening 70°- max.°).
DO NOT COMPLETELY CLOSE VALVE
CONTROL ADJUSTMENTS:
CRITICAL: For closer longevity, BACKCHECK
must be adjusted to significantly slow opening
of door before arm bottoms on stop.
Closing time of 3-7 seconds is typical.
More time may be needed for ADA/BF access.
Clockwise (CW) = SLOWER.
Counter-clockwise (CCW) = FASTER.
DO NOT REMOVE VALVES
CLOSING CYCLE
Y
A
L
E
D
E
E
W
S
P
H
C
T
A
L
MAX.°
K
C
A
B
C
E
H
C
K
N
E
P
O
I
N
G
OPENING CYCLE
MAX.°
7
8
PDQ Manufacturing
2230 Embassy Dr.
Lancaster, PA 17603
833-273-7832
833-2 PDQTECH
www.pdqlocks.com
TOP JAMB INSTALLATION - PUSH SIDE - NON-HOLD OPEN AND HOLD OPEN APPLICATIONS
5301/5501 DOOR CLOSER MODELS INSTRUCTION SHEET
TEMPLATE: 539352,
REV. 0 07-07-16
THIS SIDE UP
FOR LH DOOR
THIS SIDE UP
FOR RH DOOR
CLOSER BODY (RIGHT HAND DOOR)
CLOSER BODY (LEFT HAND DOOR)
FOOT
(LH DOOR)
FOOT
(RH DOOR)
RH DOOR SHOWN
DOOR WIDTH APPROX. 360° TURNS
SIZE INTERIOR EXTERIOR 3100 3101
BF BF ON 36" -- -- -16 (CCW)
1 32" [812.8] 28" [711.2] -- -11 (CCW)
2 36" [914.4] 32" [812.8] -- -6 (CCW)
3 42" [1006.8] 36" [914.4] 0 (PRESET) 0 (PRESET)
4 48" [1219.2] 42" [1006.8] +5 (CW) +5 (CW)
5 54" [1317.6] 48" [1219.2] +9 (CW) --
6 58" [1473.2] 54" [1317.6] +12 (CW) --
CW
CCW
(-) (+)
SPRING POWER
ADJUSTING NUT
HEX
KEY
INSTALL DUST CAP:
1. Press dust cap over top
closer pinion.
INSTALL COVER (Optional):
1. Orient cover so
cutouts align with
closer pinion.
2. Slide pinion cover
into top cutout.
3. Slip cover over closer
until flush with door face.
4. Secure with screw provided. COVER
PINION
COVER
DUST
CAP
ADJUSTMENT
ARM
CLOSER
BODY
FOOT
!
