PDQ 5100 User manual

5100 DOOR CLOSER MODELS
REGULAR ARM INSTALLATION - PULL SIDE - PIVOT STOP (PS) ARM APPLICATIONS
INSTRUCTION: 519355
REV.0 10-01-19
MACHINE SCREWS:
USE #7 OR 13/64" [5.1] DRILL AND 1/4-20 TAP
WOOD DOOR/FRAME SCREWS:
USE 5/32" [4] DRILL
SEX NUTS:
USE 3/8" [9.5] DRILL (CLOSER TO DOOR) PDQ Manufacturing
2230 Embassy Dr.
Lancaster, PA 17603
833-273-7832
833-2 PDQTECH
www.pdqlocks.com
C
L
HINGE
OR
PIVOT
1 3/4" [44.5]
3/4" [19.1]
1 1/16" [27.0]
11 1/8" [282.6]
A
B
BOTTOM OF FRAME FACE
Opening Dim. A Dim. B
85°10-15/16" [277.8] 16-7/16" [417.5]
90°10-1/8" [257.2] 15-5/8" [396.9]
95°9-5/8" [244.5] 15-1/8" [384.2]
100°9-1/16" [230.2] 14-9/16" [369.9]
105°8-5/8" [219.1] 14-1/8" [358.8]
110°8-3/16" [208] 13-1/16" [347.7]
1 1/4" [31.8]
NOTES:
1. DO NOT SCALE DRAWING. LEFT HAND DOOR SHOWN.
2. DIMENSIONS ARE GIVEN IN INCHES [MM].
3. MINIMUM CEILING CLEARANCE FROM BOTTOM OF FRAME FACE FOR CLOSER ARM : 1-5/8".
4. SEX NUTS REQUIRED FOR UNREINFORCED OR COMPOSITE FIRE DOORS.
5. DOOR AND FRAME MUST BE REINFORCED PER ANSI/SDI A250.8 REQUIREMENTS - MINIMUM THICKNESS
RECOMMENDED FOR REINFORCEMENTS IN HOLLOW-METAL DOORS AND FRAMES: 0.067" UNLESS OTHERWISE NOTED.
6. HOLLOW-METAL DOORS REQUIRE CHANNEL OR BOX-TYPE REINFORCEMENT WHEN SEX NUT MOUNT IS SPECIFIED.

ADJUST SPRING POWER:
1. Use 4 mm hex key provided to adjust to size on chart.
Clockwise (CW) turns increase spring power (+).
Counter-clockwise (CCW) turns decrease spring power (-).
5100 Series closers can be adjusted to meet
ADA Barrier Free (BF) applications. Compliance with ADA/BF
requirements may result with door not fully closing and latching.
Check with local AHJ. Closer size may vary due to site conditions.
LH RH

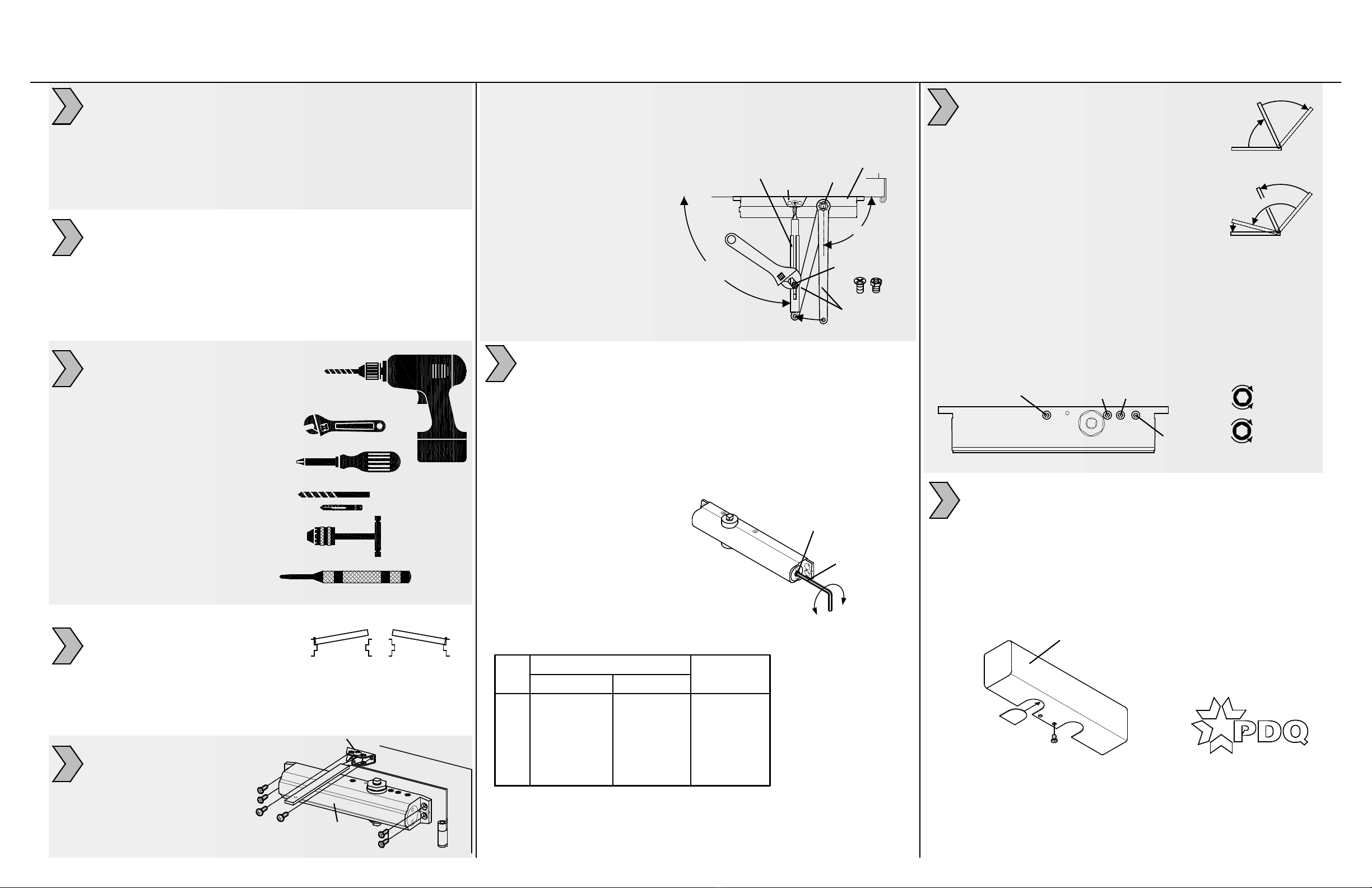

1. Confirm this sheet is correct for your product and application.
2. Read the complete instruction sheet before starting installation.
3. Incorrectly installed or adjusted door closers can cause
personal injury or property damage.
4. To ensure safe operation, door closers should be examined and
serviced regularly.
INSTALL CLOSER AND ARM:
1. Attach closer body to door.
Spring adjustment nut faces
away from hinges.
2. Attach foot to frame.
SLOWER
FASTER
INCREASE
DECREASE
ARM SCREW
OR BOLT
CLOSING CYCLE
Y
A
L
E
D
E
E
W
S
P
H
C
T
A
L
MAX.°
K
C
A
B
C
E
H
C
K
N
E
P
O
I
N
G
OPENING CYCLE
MAX.°
PREPARE DOOR AND FRAME:
1. Determine proper opening angle.
2. Determine door hand (LH or RH).
3. Using template (see reverse
side), mark holes on door & frame.
3. Secure main arm to closer spindle 90° to door/frame.
4. Connect adjustment arm with foot assembly:
Rotate main arm until adjustment arm is 90° to door & frame.
Tighten arm screw or bolt .
MAIN ARM
SPINDLE
ADJUSTMENT
ARM
PRELOAD
TO 90°
FOOT
CLOSER
90°
CW
CCW
(-) (+)
SPRING
POWER/SIZE
ADJUSTING NUT
HEX
KEY
TOOLS REQUIRED:
1. Power drill
2. 10mm box/combo wrench
3. Phillips screw driver
4. #7 or 13/64" drill bit and
1/4-20 tap (metal screws)
5. Tap handle
6. 5/32" drill bit (wood screws)
7. 3/8" drill bit (sex nuts)
8. Center punch
NOTES:
1. See reverse side of this sheet to machine door & frame.
2. Dimensions based on 4-1/2" x 4-1/2" full mortise butt hinges
with 5/8" stop and 1/8" door gap.
3. Confirm door & frame are properly reinforced.
4. Sex nuts required for un-reinforced or composite fire doors.
5. Do not install closer on the exterior (weather) side of building.
1
2
3
4
5
7
6
8
INSTRUCTION: 519355
REV.0 10-01-19
PDQ Manufacturing
2230 Embassy Dr.
Lancaster, PA 17603
833-273-7832
833-2 PDQTECH
www.pdqlocks.com
5100 DOOR CLOSER MODELS
REGULAR ARM INSTALLATION - PULL SIDE - PIVOT STOP (PS) ARM APPLICATIONS
DOOR WIDTH APPROX.
SIZE INTERIOR EXTERIOR 360° TURNS
1 32" [812.8] 28" [711.2] -5 (CCW)
2 36" [914.4] 32" [812.8] -3 (CCW)
3 42" [1066.8] 36" [914.4] 0 (PRESET)
4 48" [1219.2] 42" [1066.8] +3 (CW)
5 54" [1371.6] 48" [1219.2] +6 (CW)
6 58" [1473.2] 54" [1371.6] +9 (CW)
SWEEP SPEED
CONTROL
DELAYED
ACTION
BACKCHECK
LATCH
SPEED
CONTROL
COVER
INSTALL COVER:
1. Align cover with closer spindle.
Slide insert into unused cutout.
2. Slide cover over closer until
flush with door face.
3. Secure with
screw
provided.
CLOSER
BODY
FOOT
CONTROL ADJUSTMENTS:
CRITICAL: For closer longevity, BACKCHECK
must be adjusted to significantly slow opening
of door before arm bottoms on stop.
Closing time of 3-7 seconds is typical.
More time may be needed for ADA/BF access.
Clockwise (CW) = SLOWER.
Counter-clockwise (CCW) = FASTER.
DO NOT REMOVE VALVES
1. Use hex key provided.
2. Adjust SWEEP (closing max.°- 10°).
3. Adjust LATCH (closing 10°- 0°).
4. Adjust BACKCHECK resistance (opening 70°- max.°).
DO NOT COMPLETELY CLOSE VALVE
5. Adjust (optional) DELAYED ACTION (closing max.°- 70°);
Provides additional hesitation for access (ADA/BF) through
door.
!
