Pentair Pool Products Nocchi R2T User manual

R2T - R4T
R2TD - R4TD
IManuale di uso e manutenzione
GB Use and maintenance manual
FManuel d’utilisation et d’entretien
DBedienungs - und Wartungsanleitung
EManual de uso y manutenciòn
NL Handleiding voor gebruik en onderhound
RUS Bycnherwbb gj ecnfyjdrt b
aeyrwbjybhjdfyb/
pag. 3
,, 13
,, 23
,, 33
,, 53
,, 63
pag. 43

Table of Contents
1. GENERAL INFORMATION Page 14
1.1 Documentation supplied
1.1.1 Manual
1.2 Ownership of information
1.3 Machine identification data
1.4 EC compliance declaration
1.5 General safety information Page 15
1.5.1 Personnel qualifications
1.5.2 Special measures
1.6 Conventions
1.6.1 Terminological conventions
1.6.2 Typesetting conventions
1.7 Recommended use
1.7.1 Recommended use
1.7.2 Recommended installation
1.8 Non recommended use
1.8.1 Liability arising from non recommended use
1.9 Warranty
1.10 Assistance
1.11 How to use the documentation supplied
2. DESCRIPTION
2.1 Description
2.1.1 Architecture and operating principles
2.1.2 Machine frame
2.2 Technical characteristics
2.2.1 Noise
2.2.2 Liability
3. INSTALLATION Page 17
3.1 Lifting
3.1.1 Machine without any type of packing
3.1.2 Machine packed in a cardboard box
3.2 Transportation
3.3 Storage
3.3.1 Characteristics of the storage area
3.3.2 Environmental characteristics of the storage area
3.4 Preliminary inspections
3.4.1 Assessment of damage
3.4.2 Damage reporting
3.5 Preparation of the installation site
3.5.1 Characteristics of the installation site
3.6 Installations Page 18
3.6.1 Assembly
3.6.2 Connection of the machine to the pipes
3.6.3 Air vent Page 19
3.6.4 Terminal block positioning
3.6.5 Connection to the mains
4. OPERATION Page 20
4.1 Start-up
4.2 Checking the frequency of starts and stops
5. MAINTENANCE
5.1 Lubrication
5.2 Temporary disabling
5.3 Periodical inspection
5.4 Extraordinary maintenance Page 21
6. OPERATING PROBLEMS
7. DEMOLITION
7.1 Machine disabling
7.2 Residual risks after disabling

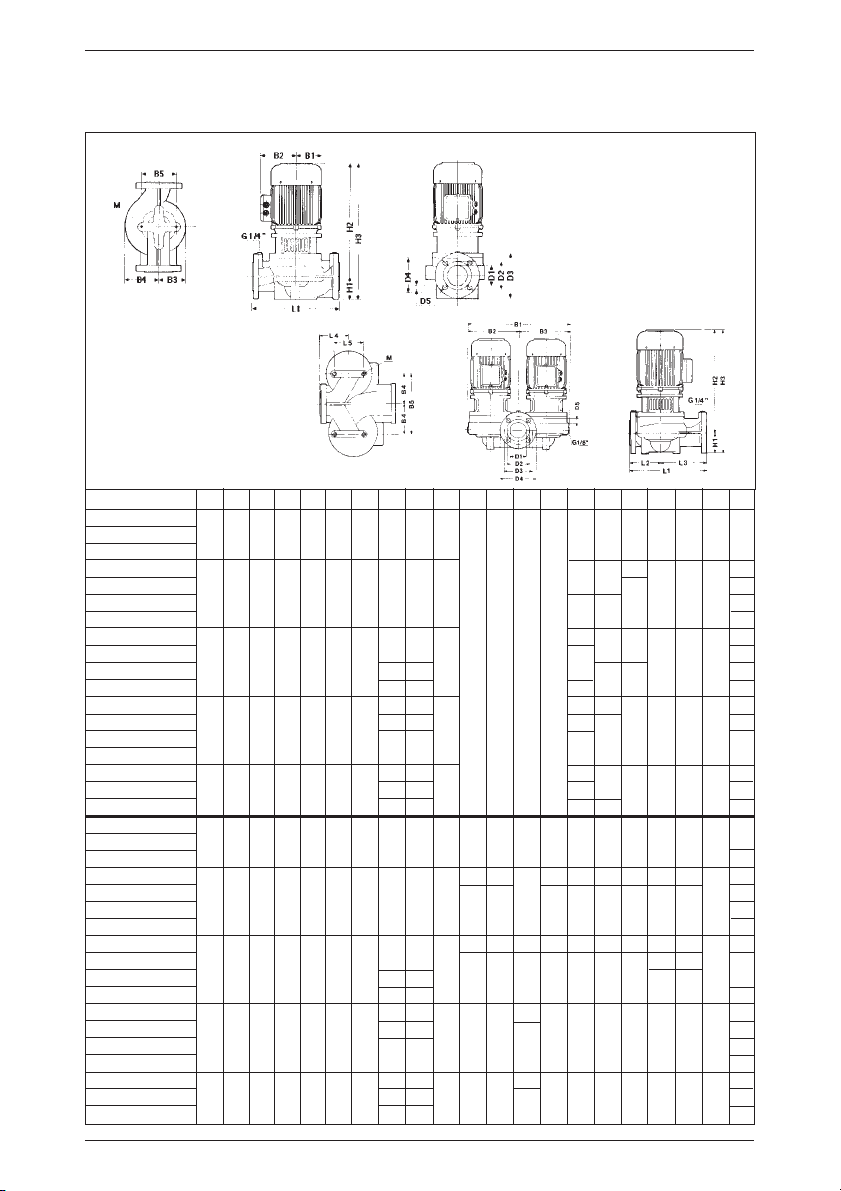

PRODUCT SPECIFICATIONS Page 73

1. GENERAL INFORMATION
1.1 Documentation supplied
1.1.1 Manual
Data
Instruction manual
Edition 1
Version 0102
Code 253P4250
Addressees
This manual is addressed to the operators responsible for
operating the machine during all the technical stages of its life.
Contents
This manual contains the following information:
- Manufacturer’s declaration
- Safety information
- Commercial information
- Information on documentation
- Machine description
- Transportation information
- Storage information
- Installation information
- Information on adjustments
- Operational information
- Maintenance information
- Dismantling information
Information is divided into the following chapters and
appendices of this manual:
Chapter 1 : General information
Chapter 2 : Description
Chapter 3 : Installation
Chapter 4 : Operation
Chapter 5 : Maintenance
Chapter 6 : Operating problems
Chapter 7 : Dismantling
Appendix : Product specifications
1.2 Ownership of information
The information contained in this manual is property of
PENTAIR WATER ITALY Srl.
It is forbidden to reproduce in whole or in part this manual
without the explicit authorisation of PENTAIR WATER ITALY
Srl.
The information contained in this manual is related only to the
machines indicated in section “Product Specifications”.
PENTAIR WATER ITALY reserves the right to make the
changes deemed necessary to the machines not listed in the
“Machine identification data”.
1.3 Machine identification data
Machine code R 2 T D 65 - 60 X 6
Circulating pump
2 = two-pole motor
4 = four-pole motor
Coupling to standard motor
Twin type
Rated diameter of mouths
Max head (in dm)
Special version (only on
request

)
Rated pressure (bar)
1.4 EC compliance declaration
See page 2
1.5 General safety information
It is advisable to carefully follow the instructions contained in
this manual with specific reference to notes, warnings and
danger signs.
Attention
Users should always follow the accident
prevention laws in force in the country
where the product is installed.
Danger
Before repairing or servicing the
electropump, disconnect it from the socket
and/or turn the main switch to Off (when
present) to interrupt the power supplied to
the electropump. This prevents the
electropump from accidentally restarting
and from causing accidents to people
and/or damages to the people.
Danger
Do not service, install or move the
electropump while it is powered, because
these operations can cause serious
accidents or even death.
Attention
During operation, do not remove or move
the electropump.
Danger
Before using the electropump, always
check that the cable and all electric devices
are efficient, shielded and protected.
Danger
When starting the electropump (by
inserting the plug into the socket and/or
turning the main switch to on), always wear
shoes and make sure that the hands are
dry.
NOTE
Failure to follow the safety procedures and
precautions contained in the
documentation supplied shall relieve
PENTAIR WATER ITALY from all liability
thereof.

1.5.1 Personnel qualifications
Qualification and protection limits established for operators
OPERATOR QUALIFICATION
RECOMMENDED
INDIVIDUAL
PROTECTION
MEANS
Transportation Familiarity and
knowledge of
chapters:
- "General
information "
- "Description"
- "Installation"
Protective shoes
and gloves
Installation Qualification
compliant with
regulations and
installation status,
knowledge of
installation status
and familiarity with
chapters:
- "General
information "
- "Description"
- "Installation""
Protective shoes
and gloves
Operation Familiarity and
knowledge of
chapters:
- "General
information "
- "Description"
- "Installation"
Protective shoes
and gloves and
protective
temperature against
high temperatures
Maintenance Qualification
acknowledged by
PENTAIR WATER
ITALY. Familiarity
and knowledge of
chapters:
- "General
information "
- "Description"
- "Maintenance”
Protective shoes
and gloves
Demolition Familiarity and
knowledge of
chapters:
- "General
information "
- "Description"
- "Installation "
Protective shoes
and gloves
Danger
The machine operates in safety conditions
if it is used by qualified personnel in
accordance with the instructions and
information contained in this manual and
present on board.
All the operations referred to in this manual
should be performed by qualified personnel
equipped with the protection means
described in this manual
NOTE
PENTAIR WATER ITALY shall not be liable
for accidents if the machine is used from
non qualified or unauthorised personnel
and originating from the failure to follow
the instructions contained in this manual
and present on the machine board
1.5.2 Special measures
The use of personnel with a qualification differing from the one
indicated can endanger the safety of people and/or damage
the property.
1.6 Conventions
1.6.1 Terminological conventions
The following conventions have been adopted throughout the
manual
- Machine : electropumps specified in section
"Product specifications"
- Authorised technician : person authorised by PENTAIR
WATER ITALY to perform even
the operations not specifically
indicated in this manual
- Specialised technician : person authorised to perform even
the operations not specifically
indicated in this manual after
being authorised by PENTAIR
WATER ITALY
1.6.2 Typesetting conventions
Danger
Danger signs indicate procedures that have
to be thoroughly followed to avoid causing
physical injuries to operators
Warning
Warning signs indicate procedures that
have to be thoroughly followed to avoid
damaging the machine or other equipment
connected to it
NOTE
Notes contain important information that
are highlighted outside the text and
connected to it
1.7 Recommended use
1.7.1 Recommended use
The machine has been designed, manufactured and protected
to allow the transfer, circulation and increase of pressure of the
following types of liquid:
- Water with a temperature ranging from -20 °C to 130 °C (for
temperatures below 0 °C, it is necessary to add an
appropriate amount of anti-frost)
- Cooling fluids that do not contain mineral oils
- Neutral, non explosive and non aggressive fluids free from
solid particles and suspended fibres
The machine has been designed, manufactured and protected
to guarantee a flow rate of fluid that changes according to the
desired head (see “Product specifications”).
1.7.2 Recommended installation
The machine has been designed, manufactured and protected
to be installed in the following environments:
- Indoors
- Outdoors with protection against atmospheric agents
The machine has been designed, manufactured and protected
to be used in the following atmospheric conditions:
- Temperature range: -15 °C and +40 °C
- Relative humidity range: from 30% to 90%

Danger
If the temperature of the pumped fluid is
above 65°C, it is necessary to take
appropriate measures to position the pump
in order to avoid accidental contact with
operators.
The machine has been designed, manufactured and protected
to be installed with the motor axis arranged vertically and the
motor, in the upper position, located horizontally.
The machine has been designed, manufactured and protected
to be placed on overhead pipes able to tolerate the weight of
the machine (without supporting base).
The machine has been designed, manufactured and protected
to be supplied with electric energy having the following
characteristics:
- 230 V, 50 Hz, three-phase
- 400 V, 50 Hz, three-phase
Different voltage and frequency values are available on
request
1.8 Non recommended use
The machine has not been designed, manufactured or
protected for the uses not specifically listed under section
“Recommended use”
In particular the machine has not been designed,
manufactured or protected to transfer, circulate or increase the
pressure of the following fluids:
- Explosives
- Corrosive fluids
- Fluids derived from crude oil or mixtures containing
derivatives of crude oil
- Mixtures containing materials or suspended fibres
- Sea water
For special uses, contact our technical department
1.8.1 Liability arising from non recommended use
NOTE
PENTAIR WATER ITALY shall not be liable
for damages to people, animals or property
deriving from non recommended use
1.9 Warranty
NOTE
Installation, adjustment and maintenance
operations that have not been authorised
and/or performed by unskilled personnel
will invalidate the warranty
1.10 Assistance
Warning
If the pump has been used with noxious or
toxic fluids, the pump will be classified as
polluted and PENTAIR WATER ITALY Srl
will have the right to refuse offering its
assistance for the pump.
For all assistance requests, contact:
PENTAIR WATER ITALY Srl – Servizio Assistenza
Via Masaccio, 13
56010 Lugnano - PISA - ITALY
Tel. [phone] - Fax [phone]
1.11 How to use the documentation
supplied
Operators should carefully read the documentation supplied
before performing any operation on the machine.
The documentation supplied should be kept along with the
machine until it is dismantled, so that it is available in case of
need.
If the used machine is sold, it will be necessary to supply all
the documentation enclosed.
2. DESCRIPTION
2.1 Description
2.1.1 Architecture and operating principles
The machines are horizontal, centrifugal and single stage
electropumps with mechanical sealing and suction and delivery
on-line flanged mouths.
Machines are directly coupled to an asynchronous three-phase
electric motor with 2 (R2T-R2TD) or 4 (R4T-R4TD) poles,
closed casing and external ventilation.
Twin models contain two twin pumps and a single delivery and
suction mouth, each coupled with its electric motor.
These machines are not self-priming.
2.1.2 Machine frame
The pump body and the motor stool are made of cast iron
GG20.
The shaft is made of stainless steel AISI 420.
The impeller, the impeller guide ring, the conical bushing and
the nut of the conical bushing are made of stainless steel AISI
304.
The mechanical sealing of the machine consists of sliding
backfaces in tungsten carbide.
Suction and delivery mouths are flanged (DN40÷100).
The electric control motor is asynchronous with closed casing
and 2 or 4 pole external ventilation, IP54 protection degree and
Class F insulation. The motor has a V18 manufacturing form
with counterclockwise direction of rotation (viewed from the
cooling fan side).
2.2 Technical characteristics
Dimensions and weights of machines
See "Product Specifications"
Electric data
See "Product specifications" and nameplate
Pressure
- maximum operating pressure: 6 bar
- minimum suction pressure: depending on NPSH values
increased by a safety factor of 0.5 m water gauge (see
PRODUCT SPECIFICATIONS - PERFORMANCES).
2.2.1 Noise
The maximum continuous noise equivalent to weighed noise A
of acoustic vibrations generated by the machine: 82 dB (A)
2.2.2 Liability
PENTAIR WATER ITALY declines any liability in the event of
failure to comply with the values indicated in this paragraph.

3. INSTALLATION
3.1 Lifting
The machine can be lifted in one of the following conditions:
- Machine without any kind of packing
- Machine packed in a cardboard box
3.1.1 Machine without any type of packing
It is possible to lift only one machine at a time:
- machines with a weight below 25 Kg: the machine can be
lifted manually by one operator
- machines with a weight ranging from 25 and 50 Kg: the
machine can be lifted manually by two operators
- machines with a weight above 50 Kg: the machine can be
lifted by means of appropriate lifting and slinging equipment
3.1.2 Machine packed in a cardboard box
It is possible to lift several machines packed in a cardboard
box, depending on the machine weight. Packed machines are
maintained in position by means of the inert material that fills
the box.
- machines with a weight below 25 Kg: the machine can be
lifted manually by one operator
- machines with a weight ranging from 25 and 50 Kg: the
machine can be lifted manually by two operators
- machines with a weight above 50 Kg: the machine can be
lifted by means of appropriate lifting and slinging equipment
3.2 Transportation
The machine must be transported in the following conditions:
- Machine in fixed position without possibility of moving
- Machine protected from atmospheric agents
Danger
Warning
Ascertain that the conditions referred to in
the points above are met during
transportation
3.3 Storage
3.3.1 Characteristics of the storage area
The storage area should have the following physical
characteristics:
- Sufficient extension to contain the machine and the packing,
when present, and to enable its lifting by means of the lifting
devices provided
- Flat and horizontal resting surface
- Resting surface with a capacity above the weight of the
machines stored
- Protection against accidental impacts
3.3.2 Environmental characteristics of the storage
area
The storage area should have the following environmental
characteristics:
- Acceptable temperature range: +7 °C ÷ +50 °C
- Relative humidity range: 30 ÷ 90%
- Protection from atmospheric agents
Warning
Keep the machine in horizontal position
3.4 Preliminary inspections
3.4.1 Assessment of damage
- Check the integrity of the packing
- Open the packing and extract the machine
- Check that the received machine complies with the
characteristics indicated in the order
- Check that the machine has not suffered damage, and verify
in particular that the following components are integral:
- Motor fan cover
- Terminal block cover
- Coupling joint protection
- Cast iron parts
Warning
Keep the original packing in the event it
were necessary to transport the machine in
future
3.4.2 Damage reporting
If non compliance characteristics or damages are detected,
immediately report the problem to PENTAIR WATER ITALY or
to the distributor within and no later than 8 (eight) days from
the date of purchase.
3.5 Preparation of the installation site
3.5.1 Characteristics of the installation site
The installation site should have the following characteristics:
- Simplify the positioning and access to the machine
- Enable a safe connection to the electric system
- Enable safe connections to tubing
- Offer an appropriate natural and/or lighting designed to
guarantee full operational safety
- Offer a minimum distance of 150 m from each point of the
machine and from obstacles
- Offer a free space of at least 300 mm above the machine to
guarantee a sufficient ventilation of the motor fan.
Warning
Do not cover or obstruct the motor fan
cover grid
Environmental conditions
- Acceptable temperature range: +7 °C ÷ +40 °C
- Acceptable relative humidity range: 30 ÷ 90%
- Protection from atmospheric agents

Power supply
Electric power supply should have the following characteristics:
- Offer a differential protection
- Offer voltage and frequency values compliant with the values
indicated on the motor nameplate
- Offer a power not below the value indicated on the motor
nameplate
- Be equipped with an appropriate thermal protection
- Be equipped with a thermal relay adjusted according to the
actual current absorbed
- Be equipped with a cut-off switch with protective fuses
- Be equipped with cables with a section suitable to the power
absorbed by the motor
Access
Connect the machine so that it can be easily accessible for
maintenance operations
Supporting system
The machine supporting system can correspond to one of the
following configurations:
- The machine can be connected to a fixed pipe able to
maintain the machine in position
- The machine can be connected to a pipe and rested on a
base with the characteristics indicated in “Product
specifications”, paragraph “Foundations”
- The machine can be connected to a pipe and fixed, by means
of nuts, to a base with the characteristics indicated in
“Product Specifications” , paragraph "Foundations"
3.6 Installations
Danger
All installation operations should be
performed while the electropump is
disconnected from the mains.
Warning
Do not install the machine in environments
containing gases and/or inflammable or
explosive materials.
Danger
Electropumps are designed so that all the
moving parts are rendered inoffensive by
means of protections. Do not use the
electropump if these protections have been
removed or are damaged, since this could
cause serious accidents to people.
Danger
The machine supply line should always
have a differential circuit breaker.
3.6.1 Assembly
- The arrows printed on the machine body indicate the
direction of the flow.
- It is advisable to fit gates downstream and upstream from
the machine.
- The machine should be installed so that the axis of the motor
is between the vertical and horizontal direction in all
positions.
- The motor should never be arranged in a low position to
avoid water entering the motor and the bearings. See the
following figure for reference.
R4T – R2T
R4TD – R2TD
- Install the machine on horizontal or vertical pipes, on the
“delivery” and “return” lines.
- The machines used do recirculate used water should always
be installed on the vertical section of the pipe so that the
water flow is directed upwards.
- The system should also be equipped with an air venting
system on the section of the pipe where the machine is
installed.
- If the machine is installed on a vertical pipe with the flow
directed downwards, the air vent should be fitted on the
highest point of the machine.
- Do not install the machine in the lowest point to protect it
from deposits.
- To guarantee a regular suction pressure and avoid noise
and cavitation, the pipe connected to the expansion vessel
should be installed before the suction mouth of the machine.
- Verify that the machine is not subject to tensions caused by
pipes or water temperature variations.
- The machines can be directly inserted in the pipes if these
are appropriately supported. The threaded holes on its base
can be used to fix the machine to a support (see PRODUCT
SPECIFICATIONS – DIMENSIONS AND WEIGHTS).
- To avoid deposits from accumulating in the machine and in
the valves, drain the system before starting the machine.
- It is advisable to install anti-vibration supports on both
flanges and on the base to prevent vibrations from being
transmitted along the pipes.
3.6.2 Connection of the machine to the pipes
Check valves should be installed both upstream and
downstream from the machine, to avoid having to drain the
whole system when it is necessary to disassemble and remove
the machine.
Before pipes are installed, it is necessary to make sure that
they do not exert mechanical stresses on the machine.
It is necessary to make sure that the diameter of the suction
and delivery pipes is appropriate and that the minimum inlet
pressure is guaranteed (see 2.2 “Technical characteristics”).
To avoid sediments from accumulating inside the machine, it is
advisable to avoid installing the machine in the lowest point of
the system.
Tubes must be installed in a position that prevents air from
accumulating, especially on the suction side.

PIPE ASSEMBLY
Incorrect Correct
Accumulated
air
Warning
The pump should never be started if the
check valve on the delivery side is closed,
because this would increase the
temperature of the fluid inside the pump.
The accumulation of steam could cause
cavitation, which could damage the moving
components.
If the valve can operate with a closed valve,
it is advisable to ensure a minimum fluid
flow by means of a by-pass or a drain. The
drain can also be connected to a collection
reservoir every time it is necessary to
provide a minimum flow equivalent to at
least 10% of the rated one in the maximum
yield point. Flow rate and head in the
maximum yield point are printed on the
pump nameplate.
3.6.3 Air vent
Considering that the mechanical seal is water lubricated, the
machine should be operated only after the machine and the
system have been filled with water and vented from air. The air
is vented from the pump through a special vent valve.
VENT VALVE
This operation doesn’t need to be performed on machines
installed on vertical pipes with flow directed upwards.
For twin machines with horizontal or vertical shaft, this
operation should be performed by loosening the 1/8” cap on
the pump housing.
Sometimes the air venting operation needs to be repeated
several times to completely remove the noise originating from
the presence of air in the pump.
3.6.4 Terminal block positioning
Warning
Before performing any operation, make
sure that the pump is not connected to the
power supply and that it cannot be started
accidentally.
The terminal block can be rotated in any position by 90° steps.
To change the position of the terminal block, perform the
operations described here below:
1. If necessary, use a screwdriver to remove the grid that
protects the motor-pump coupling. Do not remove the
coupling.
2. Remove the screws that fix the motor to the pump body.
3. Turn the motor in the desired position.
4. Reposition and tighten the screws.
5. Reassemble the protection grid.
3.6.5 Connection to the mains
Danger
The installer will have to make sure that the
electric supply system has an adequate
grounding compliant with the laws in force.
Danger
Check that the supply system has a
differential switch with a degree of
sensitivity of ∆= 30 mA (DIN VDE
0100T739).
Danger
Before removing the cover from the
terminal block of the motor and before
performing operations on the machine,
make sure that the supply line has been
cut-off.
NOTE
The electric motors of twin machines are
connected separately.

To connect the machine to the mains, perform the operations
described here below:
- Make sure that the motor is suitable to the mains voltage and
frequency
- Cut the electric system off by using a cut-off switch
- Loosen the screws that fix the cover to the terminal block
- Insert the supply cable into the cable holder.
- Connect the phases and the ground to the terminals following
the instructions shown on the diagram inside the terminal
block.
- Reposition the cover of the terminal block with the related
gasket
- Tighten the screws that fix the cover to the terminal block
- Insert the electric supply by using the cut-off switch
- Supply one current impulse to the machine
- Check the direction of rotation of the motor
A- If the direction of rotation complies with the direction of the
rotation indicated by the arrows shown on the machine
head, the connections are correct
B- If the direction of rotation is opposed to the one shown by
the arrows present on the machine head, perform the
following operations:
-- Cut the electric system off by using the cut-off switch
-- Loosen the screws that fix the terminal block cover in
position
-- Invert the connection of the two phases
-- Reposition the terminal block cover with the related
gasket
-- Tighten the screws of the terminal block cover
4. OPERATION
Warning
Always start the machine after filling it with
fluid, as explained under sections
“Operation”.
4.1 Start-up
Perform the following operations to start the machine for the
first time:
- Open the gate on the suction line
- Start the machine
- Slowly open the gate on the delivery line to avoid water
hammering on the delivery line
- Adjust the thermal relay depending on the current absorbed
by the motor
- Adjust the enabling and disabling pressure of the pressure
switch that controls the operation of the machine
4.2 Checking the frequency of starts and
stops
To check the frequency of starts and stops, perform the
following operations:
- Check the operation of the machine for an hour
- If the number of starts/stops is above 40, adjust the control
equipment in order to reduce the frequency
Danger
For high temperature fluids it is necessary
to allow the fluid contained in the machine
to cool before loosening the screws that fix
the machine to the pipes
Warning
Always check that the machine is filled.
Never start the machine without fluid, as
indicated under section “Operation”.
5. MAINTENANCE
5.1 Lubrication
The gasket on the shaft is self-adjusting. The sealing surfaces
are resistant to wear and are lubricated by the pumped fluid.
The bearings of the machine are lubricated by the pumped
fluid.
The ball bearings of the motor are self-lubricated with grease
resistant to heat.
Warning
If the machines are installed, used and
serviced in accordance with the
instructions and directions given in this
manual, they do not require lubrication.
Follow the instructions and directions
given in this manual
5.2 Temporary disabling
To disable the machine for a long period of time, perform the
following operations:
- Cut the electric system off by using a cut-off switch
- If ambient temperature falls below the freezing temperature of
the pumped fluid, perform the following operations:
A- If the whole system has to be disabled:
-- Drain the system
B- If it is not necessary to drain the whole system:
-- Close the gates on the delivery and suction lines
-- Allow all the fluid to de-flow from the drainage cap of the
machine
-- Store the drainage cap for future use without
disassembling it from the machine
Danger
When using high temperature fluids, allow
the fluid contained inside the machine to
de-flow before removing the cap and
draining the fluid
Warning
Before restarting the machine, fill it as
indicated under sections “Operation”.
5.3 Periodical inspection
At regular intervals, perform the following inspections:
- Hydraulic performances
- Lack of fluid leaks
- Motor overheating
- Relay tripping time
- Start-up frequency
- Correct operation of automatic controls
- Vibrations
- Noise
A- If check-ups do not reveal the presence of abnormal
conditions, continue to use the machine until the next
check-up

B- If check-ups reveal the presence of abnormal conditions,
perform the operations described here below:
-- Refer to table “Problems/Causes" under "Operating
problems"
-- If the problem and cause is listed in table
“Problems/Causes” under “Operating problems”, contact
an authorised technician or a specialised technician and
report the abnormal condition found
-- If the problem and the cause is not listed in table
“Problems/Causes” under “Operating problems”, contact
an authorised technician or a specialised technician.
5.4 Extraordinary maintenance
Extraordinary maintenance operations performed after
problems, failures, breakage or technical updates should be
performed only by authorised or specialised technicians.
NOTE
PENTAIR WATER ITALY declines any
liability and cancels all warranty contracts
in presence of:
- Operations not documented in this
manual and performed on the machine
- Extraordinary maintenance carried out by
others than authorised or specialised
technicians
6. OPERATING PROBLEMS
See table "Problems/Causes".
7. DEMOLITION
7.1 Machine disabling
- Cut the system off using the cut-off switch
- Close the gates on the suction and delivery lines
- Loosen the screws that fix the terminal block cover
- Disconnect the wires from the terminal block
- Remove the supply cable from the cable holder
- Remove the priming and drainage caps
- Allow all the fluid to drain from the machine
- Loosen the screws that fix the machine to the base
- Lift the machine as described under "Installation", "Lifting"
- Transport the machine as indicated under "Installation",
"Transportation"
- To re-use the machine, perform the following operations:
-- Reposition the terminal block cover with the related gasket
-- Tighten the screws that fix the terminal block cover
-- Close the delivery and suction holes to prevent dirt from
entering inside the machine
-- Store the machine as indicated in “Installation”, “Storage”
Danger
If the temperature of the fluid that flows in
the pipes and circulates in the machine is
above 65 °C, install a protection around the
machine to protect it from high
temperatures
NOTE
PENTAIR WATER ITALY shall not be liable
of parts of the machine are recycled or re-
used
7.2 Residual risks after disabling
Warning
The machine has been manufactured with
non biodegradable materials. The machine
should be dismantled only in a deposit
equipped for these operations

Problem/Causes
Problem Causes
A - The motor fails to run when started 1 - The line voltage has been interrupted
2 - Burnt fuse
3 - Tripped thermal relay
4 - No conduction in the starter contacts or faulty coil
5 - Burnt fuses in the auxiliary circuit
6 - Faulty motor
B - The starter thermal switch trips when voltage is applied 1 - Burnt fuse
2 - Faulty starter contacts
3 - Faulty electric connections
4 - Faulty motor windings
5 - The machine is mechanically blocked
6 - The thermal relay calibration is too low
C - The thermal relay trips occasionally without apparent
reason
1 - The thermal relay calibration is too low
2 - The line voltage is periodically missing
3 - The line voltage in peak periods is too low
D - The thermal relay has not tripped, but the machine is
unable to run
1 - The line voltage has been interrupted
2 - Burnt fuse
3 - No conduction in the starter contacts or faulty coil
4 - Burnt fuses in the auxiliary circuit
E - The machine flow rate is irregular 1 - Air present in the suction tube or in the pump
2 - The pressure on the suction side is insufficient
3 - The suction pipe is partially obstructed
F - The machine runs but fails to supply fluid 1 - The suction pipe or pump are obstructed
2 - The bottom (or stop) valve is blocked in closed position
3 - Leaks in the suction line
4 - Air in the suction line or pump
G - When stopped the machine runs in opposite direction 1 - Leaks in the suction pipe
2 - Faulty bottom (or stop) valve
3 - The bottom (or stop) valve is blocked in partially or fully
opened position
H - Fluid leaks in mechanical seals 1 - Misaligned pump shaft.
2 - Faulty mechanical seal
I - The pump is too noisy 1 - Pump cavitation due to insufficient pressure on the suction
side.
2 - Misaligned pump shaft.
3 - Foreign material inside the pump.

Alimentazione elettrica
Power supply
Alimentation electrique
Stromzufuhr pag. 74
Alimentacion electrica
Elektrische voeding
Ýëåêòðîïèòàíèå
Dimensioni e pesi
Dimensions and weights
Dimensions and poids
Abmessungen und Gewichte pag. 75
Dimensiones y pesos
Afmetingen en gewichten
Ðàçìåðû è âåñ
Prestazioni
Performances
Performances
eistungen pag. 76
Prestaciones
Prestaties
Õàðàêòåðèñòèêè
SCHEDA PRODOTTO/PRODUCT DE SPECIFICATION
FICHE DU PRODUIT/PRODUKTP AN
FICHA DE PRODUCTO/PRODUCTBESTEK
ÊÀÐÒÀ ÈÇÄÅËÈß
73

RL4T 40 - 30
kW Volt (V) A
0,25
Hz
0,37 1380
2840
28100,55
0,25
0,37
0,75
3x230÷400
1,10
0,25
0,37 50
1380
1390
2810
2860
1380
1390
1,10
1,50
0,25
0,75
2,20
2,20
0,55
1,10
3,00
2840
2870
1380
1405
2870
2870
1390
1395
2870
3x400 V 3x230 V n (min-1)Ia/In
(%)
RL2T 40 - 60
RL2T 40 - 120
RL4T 50 - 30
RL4T 50 - 60
RL2T 50 - 120
RL2T 50 - 180
RL4T 65 - 30
RL4T 65 - 60
RL2T 65 - 120
RL2T 65 - 180
RL4T 80 - 30
RL4T 80 - 60
RL2T 80 - 120
RL2T 80 - 180
RL4T 100 - 30
RL4T 100 - 60
RL2T 100-120
1,10
1,00
1,45
1,10
1,25
1,90
2,60
1,10
1,25
2,50
3,40
1,10
2,25
4,80
4,80
1,70
3,00
6,30
1,90
1,73
2,50
1,90
2,15
3,30
4,50
1,90
2,15
4,30
5,90
1,90
3,90
8,30
8,30
2,90
5,20
10,90
4,6
4,1
5,2
4,6
4,2
4,5
5,2
4,6
4,2
5,8
6,0
4,6
5,1
4,8
4,8
4,5
4,0
4,2
RL4TD 40 - 30 2x0,25
2x0,37 1380
2840
28102x0,55
2x0,25
2x0,37
2x0,75
3x230÷400
2x1,10
2x0,25
2x0,37 50
1380
1390
2810
2860
1380
1390
2x1,10
2x1,50
2x0,25
2x0,75
2x2,20
2x2,20
2x0,55
2x1,10
2x3,00
2840
2870
1380
1405
2870
2870
1390
1395
2870
RL2TD 40 - 60
RL2TD 40-120
RL4TD 50 - 30
RL4TD 50 - 60
RL2TD 50-120
RL2TD 50-180
RL4TD 65 - 30
RL4TD 65 - 60
RL2TD 65-120
RL2TD 65-180
RL4TD 80 - 30
RL4TD 80 - 60
RL2TD 80-120
RL2TD 80-180
RL4TD 100 - 30
RL4TD 100 - 60
RL2TD 100-120
1,10
1,00
1,45
1,10
1,25
1,90
2,60
1,10
1,25
2,50
3,40
1,10
2,25
4,80
4,80
1,70
3,00
6,30
1,90
1,73
2,50
1,90
2,15
3,30
4,50
1,90
2,15
4,30
5,90
1,90
3,90
8,30
8,30
2,90
5,20
10,90
4,6
4,1
5,2
4,6
4,2
4,5
5,2
4,6
4,2
5,8
6,0
4,6
5,1
4,8
4,8
4,5
4,0
4,2
74
Power supply - Alimentation electrique - Stromzufuhr
Alimentacion electrica - Alimentazione elettrica
Alimentação elèctrica - Elektrische voeding

D2D3D4D5n D5H1H2H3L1L2L3L4L5B1B2B3B4B5Mkg
RL4T 40 - 30 42RL2T 40 - 60
RL2T 40 - 120
RL4T 50 - 30
RL4T 50 - 60
RL2T 50 - 120
RL2T 50 - 180
RL4T 65 - 30
RL4T 65 - 60
RL2T 65 - 120
RL2T 65 - 180
RL4T 80 - 30
RL4T 80 - 60
RL2T 80 - 120
RL2T 80 - 180
RL4T 100 - 30
RL4T 100 - 60
RL2T 100-120
D1
80 130 100 14 4 67 343 410 250 70 101 75 90 96 M12 20
50 90 140 110 14 4 75 337 412 280 70 101 75 102 96 M12 24
80 115 101
23
31
29
65 110 160 130 14 4 82 347 429 340
70 101 75 124 96 M12 29
90 115 101
26
36
33382
401 464 483
80
80 128 190 150 18 4 97
348 445
360
70 101
130 96 M12 36
90 115 101
32
41
383
433
480
530
80
100 148 210 170 18 4 107 421 528 450 80 115 167 144 M16 57
100 130 101 49 62
457
507 564 614 90
RL4TD 40 - 30 42RL2TD 40 - 60
RL2TD 40-120
RL4TD 50 - 30
RL4TD 50 - 60
RL2TD 50-120
RL2TD 50-180
RL4TD 65 - 30
RL4TD 65 - 60
RL2TD 65-120
RL2TD 65-180
RL4TD 80 - 30
RL4TD 80 - 60
RL2TD 80-120
RL2TD 80-180
RL4TD 100 - 30
RL4TD 100 - 60
RL2TD 100-120
80 130 100 14 4 68 343 411 250 281 101 180 100 200 M12 27
50 90 140 110 14 4 76 337 413 280
380 193 187
M12 43
440 220 220
31
31
31
65 110 160 130 14 4 84 347 431 340
404 208 196
M12 40
231 224
45
46
382
401 466 485 455
80 128 190 150 18 4 98
348 446
360 120 240 M12 50
236 228
54
60
375
433
481
531 464
100 148 210 170 18 4 108 421 529 450 286 140 280 M16 80
274 61
82
457
504 565 615 560
99 151 97 96 29
117
120 120
163
160
96
120
100
120
200
240
136
140
204
200
120
140
96
120
120
120
100 240
240
200
145 215
140
143 120
66
189 261 143
187 140
75
RL2T -RL4TRL2T -RL4T
RL2T -RL4TRL2T -RL4T
RL2T -RL4T
RL2TD -RL4TDRL2TD -RL4TD
RL2TD -RL4TDRL2TD -RL4TD
RL2TD -RL4TD
Dimensions and weights - Dimensions et poids
Abmessungen und Gewichte - Dimensiones y pesos
Dimensioni e pesi - Dimensões e pesos - Afmetingen en gewichten

Prestazioni - Performances - Performances - Leitungen - Prestaciones
Prestaties - Õàðàêòåðèñòèêè
R2T - R4T 40
76

Prestazioni - Performances - Performances - Leitungen - Prestaciones
Prestaties - Õàðàêòåðèñòèêè
R2T - R4T 50
77

Prestazioni - Performances - Performances - Leitungen - Prestaciones
Prestaties - Õàðàêòåðèñòèêè
R2T - R4T 65
78

Prestazioni - Performances - Performances - Leitungen - Prestaciones
Prestaties - Õàðàêòåðèñòèêè
R2T - R4T 80
79

Prestazioni - Performances - Performances - Leitungen - Prestaciones
Prestaties - Õàðàêòåðèñòèêè
R2T - R4T 100
80

Prestazioni - Performances - Performances - Leitungen - Prestaciones
Prestaties - Õàðàêòåðèñòèêè
R2TD - R4TD 40
81
