Pentair Pool Products HYDROMATIC SKHD 150 Manual

Submersible Effluent Pump
SKHD 150
NOTE! To the installer: Please make sure you provide
this manual to the owner of the pumping equipment or to
the responsible party who maintains the system.
Pump Installation and Service Manual

2
Thank you for purchasing your
Hydromatic®Pump. To help
ensure years of trouble-free
operation, please read the
following manual carefully.
Before Operation:
Read the following instructions
carefully. Reasonable care and
safe methods should be practiced.
Check local codes and
requirements before installation.
Attention:
This manual contains important
information for the safe use of
this product. Read this manual
completely before using this
product and refer to it often for
continued safe product use.
DO NOT THROW AWAY OR
LOSE THIS MANUAL. Keep it
in a safe place so that you may
refer to it often.
WARNING: Before handling
these pumps and controls,
always disconnect the power
first. Do not smoke or use
sparkable electrical devices or
flames in a septic (gaseous) or
possible septic sump.
To reduce risk of electrical shock:
1. Risk of Electrical Shock:
This pump has not been
investigated for use in
swimming pool areas.
2. Risk of Electrical Shock:
Connect only to a properly
grounded receptacle.
Septic tank to be vented
in accordance with local
plumbing codes.
Do not smoke or use sparkable
electrical devices or flame in a
septic (gaseous) or possible
septic sump.
If a septic sump condition
exists and if entry into sump is
necessary, then (1) provide
proper safety precautions per
OSHA requirements and (2) do
not enter sump until these
precautions are strictly adhered
to.
Do not install pump in location
classified as hazardous per
N.E.C., ANSI/NFPA 70 - 1999.
Failure to heed above cautions
could result in injury or death.
General
Information
Pump
Warning
Note: Some city regulations
do not allow installing a
pump with plastic pipe. Check
local regulations.
5. In applications where the
pump may sit idle for months
at a time, it is recommended
that the pump(s) be cycled
every month to ensure the
pumping system is working
properly when needed.
6. A check valve should be
installed in discharge pipe.
7. An audible alarm system, such
as the Q Alert, for high water
conditions should be installed
for greater protection.
Note: The Q Alert is for
indoor use only. Contact your
Hydromatic distributor for
additional control and alarm
panels applications.
8. Use pump partially or
completely submerged for
pumping waterlike liquids
(temperature to 140° F).
The SKHD150 will pump solid
materials up to 3⁄4" (spherical)
in diameter.
9. Caution: Do not pump
flammable liquids, strong
chemicals or salt water.
10.For added protection an
optional seal failure probe
is available as well as
the control and alarm
panel. Contact your
Hydromatic distributor or the
factory for more information.
These important instructions must
be followed for satisfactory
performance of your pump.
Before installation, check
your local electrical and
plumbing codes.
1. Provide proper basin or tank
size to ensure pump operates
without restriction. A two
to five minute run time
is recommended.
2. Make sure sump is free of
string, cloth, nails, gravel, etc.
before installing pump.
3. Do not set pump directly on
the bottom of sump pit if it is
not solid. Raise the pump by
placing bricks or concrete
blocks underneath it.
4. Use steel or plastic pipe for all
connecting lines between
pump and sewer outlet.
Pump
Installation

3
Performance Data
TOTAL DYNAMIC HEAD-FEET
010 20 30 40 50 60
0
40
80
120
160
CAPACITY-U.S. G.P.M.
1-1/2 HP

4
Pump
Maintenance
Read the following instructions
carefully before replacing any
parts. Reasonable care and safe
methods should be practiced.
Check local codes and
requirements before installation.
Only competent electrician
should make the installations.
Warning: Before handling these
pumps and controls, always
disconnect the power first.
Do not smoke or use sparkable
electrical devices or flames in
a septic (gaseous) or possible
septic sump.
Before removing the pump from
its installation for repairs, check
first to see if the trouble
is caused by:
1. Miswiring of the pump into
the terminal block.
2. Miswiring of the float level
controls into the panel.
3. Miswiring inside the
control panel.
4. Tripped circuit breaker. If the
breaker is manually reset and
then trips off again, the
problem could be:
a. short circuit in motor or
control panel
b. water in the motor housing
c. insufficient amp capacity of
wiring or breakers
d. improper panel wiring
5. Tripped overload. If overload
is manually reset and then trips
off again, the problem could be:
a. pump or piping clogged
b. pump motor or bearings
may be defective
c. start capacitor in motor may
have failed
d. pump may be miswired to
terminal block
e. head lower than rating,
pumping too much liquid
6. Air locked pump. A sump
pump is said to be air locked if
air traps in the pump and it
cannot get out, thus preventing
pump from operating.
As a precaution, a 1⁄8" hole
should be drilled in the
discharge pipe below the
check valve. The check valve
should be 12 to 18 inches
above pump discharge. Do not
install check valve directly
into pump discharge opening.
Note: In sumps where the pump
is operating daily, air locking
rarely occurs.
7. Wrong impeller rotation.
Rotation should be
counterclockwise when
looking at the impeller.
Correct improper rotation on
three phase pumps by
reversing any two line leads.
Rotation check is not necessary
on single phase pumps.
8. Closed discharge gate valve.
9. Plugged impeller or pipeline.
10.Discharge head may be too
high. Check elevation against
design point of pump.
11.Floats not hanging free in
the sump.
12.Malfunctioning floats.
Checking Power Cord:
To be sure wires are not
burned off or broken in cord,
use ohmmeter for check. Set
ohmmeter scale pointer to R X 1
scale and attach one meter lead to
white cord wire and one meter
lead to black cord wire, then place
a screwdriver blade across
terminals of plug. If cord is O.K.,
meter needle will go to zero
and stay there. If meter needle
does not move, this will
indicate an open wire and cord
must be replaced.
Repair – Motor:
Warning: Be certain power to
pump is off! Disconnect pump
power cord from terminals and
remove pump from sump pit.
1. Clean any dirt or trash from
the outside of the pump before
dismantling.
2. If motor does not run when
the pump is tested, the capacitor
and/or stator must be checked.
See Step 5. Remove plug (#9)
from top of housing (#2) and
pour oil into container,
preferably glass, so that oil
can be observed.
3. If oil is clear, it will indicate
motor is not burned and there
has been no water leak into
the motor. If oil is cloudy, it
will indicate water in motor,
or, if oil is black, it will
indicate a burned stator. If
water is in the oil, all seals
should be replaced.
4. After draining oil, carefully
loosen the power cord assembly
from the motor housing. With
power cord loose, remove the
four screws (#6) and carefully
lift off the motor housing (#2)
exposing the capacitor (single
phase [1ø] only) and the
motor assembly.
5. On single phase units, check
capacitor (#3) using ohmmeter.
With ohmmeter scale set at R
X 1000, attach meter leads to
capacitor. The meter needle
should go to zero and come

5
back slowly. If it does not, the
capacitor should be replaced.
6. To check motor stator, remove
power cord leads from terminal
bushings on top of motor. If
stator is visibly burned, motor
assembly must be replaced.
7. Ground check on stator
should be performed using
ohmmeter with scale set at R X
100 and checking meter by
putting both meter leads
together and adjusting the needle
knob until meter reads zero. If
meter cannot be adjusted to
zero, it will indicate that
batteries in meter must be
replaced. Always make this
test with the meter when scale
pointer is set to a new scale
before making any checks on
the motor.
Now connect one meter lead to
one terminal of stator and
touch and other meter lead to
motor stator shell. If needle on
ohmmeter goes completely to
zero, the motor probably has a
wire touching the stator at
some point and the motor
assembly will have to
be replaced.
8. Winding Resistance Test:
should be performed if the
ground test is satisfactory. Use
ohmmeter with scale pointer
set on R X 1 scale. On this
scale, meter reads directly on
ohms. Always check the meter
with leads together as
described above under Ground
Check Test before making a
reading of the winding.
Connect one motor lead to the
white wire terminal and the
other meter lead to the black
wire terminal. This reading is
for the main winding (1ø). If
the readings obtained do not
agree with those given below,
the stator is defective and the
motor assembly must be replaced.
Resistance:
1ø Main1ø Start3ø Bal.
230V 1.78 3.53 6.65
460V — — 6.65
200V — — 3.4
575V — — 27.97
9. For three phase pumps,
remove the power cord assembly
(#27) by cutting the butt
connections and removing the
power cord from the pump.
10.Twist the three leads of one
end of the power cord together.
Then at the other end, with an
ohmmeter, check any two
leads. Also check the third lead
with either of the first two. If a
zero reading is indicated for
any wire, the wire is broken
and a new power cord assembly
must be installed.
Seal Housing:
The pump is equipped with two
mechanical seals mounted in
tandem. The lower seal (#20) and
the upper seal (#8) consist of a
ceramic stationary seat and a
carbon rotating ring.
As noted, if water is detected in
the motor housing, inspect the
power cord connection, pipe plug
connections, O-rings, the motor
housing itself, and the two
mechanical seals.
There are two quarts of oil in the
motor housing. This is a paraffinic
“SE-40” process oil. The same oil
is used in the seal housing (#13)
between the two mechanical seals.
To check the seals, remove the
lower housing pipe plug (#11)
and pour the oil out into a
clean, preferably glass, container.
Look for the milky color as
noted previously.
If the oil is clear, the lower seal is
still good. If this seal is damaged,
water will seep in and continue to
stain the oil, changing it
from clear, to slightly discolored,
to cloudy, and finally to a
milky white.
Except for very rare instances, the
motor will continue to be protected
by the upper mechanical seal. If
seal probe is used the pump will
not shut off when water in the oil
is sensed. However, if connected
to a control panel, an alarm
or light will be activated. The
panel alarm will show failure.
The lower seal and oil must
be replaced.
Lower Seal:
If water is found in the seal
chamber, the lower seal must be
replaced. Separate the volute by
removing the three cap screws
(#7) holding the volute case (#10)
to the upper volute.
Insert a large screwdriver in the
slotted pump shaft and strike the
impeller sharply with a plastic or
rubber headed hammer. The
impeller should spin free. The
impeller holds the rotation carbon
ring of the lower mechanical seal
against the stationary ceramic
seat by compressing a stainless
steel spring.
When the impeller is removed, the
spring will relax, allowing the
carbon ring to be removed. There
is a rubber sleeve (bellows) inside
the spring which grips the pump
shaft. This often restricts the
spring and must be pried or
pulled loose.
With the carbon ring, spring, and
rubber sleeve removed, wedge the
ceramic seat out of the housing.
Be sure not to scratch or mar the
pump shaft.
Upper Seal:
1. To remove and replace the
upper mechanical seal (#8), the

6
Pump
Maintenance
seal, replace both the rotational
and the stationary seal halves.
9. Reassemble the lower seal
as described.
Note: If seal probe is used, go to
Step 16.
10.Add a drop of Locktite 277* to
the impeller threads and screw
the impeller (#16) on hand
tight. The impeller will force
the rotating seal half (#20)
into position.
11.Set the seal housing and
motor housing assembly into
the volute case (#10) and
secure with four hex head
screws (#7).
12.To replace the power cord on
single phase pumps, as
determined on page 5, first slip
the stator lead wires through
the holes in the wire seal
assembly. Coat the cord grip
threads with pipe dope or
apply teflon tape and screw the
new power cord assembly into
the motor housing. Referring
to wiring diagrams in this
manual, secure wires together.
Note: Do not tape leads together
as the hot oil will deteriorate the
tape and cause failure.
13.Before filling the motor
housing with oil, an air test
should be performed. Apply 7
to 8 pounds of air pressure in
the 1⁄4" NPT tap (#9) on the top
of the motor cover and seal
chamber. (Note: Too much
pressure will damage the seal.)
Then submerge the pump in
water and check for leaks. If a
leak occurs, isolate where it is
coming from and correct the
problem by replacing the
Reassembly
1. Thoroughly clean the seal
plate, particularly the seal and
bearing pockets. All sand and
dirt must be removed.
2. If the stationary seal half was
removed, use a plastic pusher
to press it into the housing.
Make sure the rubber ring goes
in first. Do not use any
sharp objects that may damage
the seal.
3. When installing a replacement
bearing press only on the inner
face and make sure the bearing
is flush against the snap ring. If
a press is not available, the
bearing can be tapped onto the
shaft using a sleeve that bears
only on the inner face.
Pressing on the outer face will
ruin the bearing.
4. Push the shaft, rotor and ball
bearing assembly into the seal
plate, being careful not to chip
the ceramic of the stationary
seal half.
5. Replace the stator if it is
visibly burned or if the ground
resistance test or the winding
resistance test has failed. Note
that the replacement stator
must be of the same manufacture
as the existing rotor, or vice
versa. Replace the four stator
bolts (#32).
6. Remove the old O-ring (#24),
regardless of condition, and
replace. Place the new O-ring
over the seal plate shoulder.
7. Clean the motor housing (#2)
thoroughly, then position it
onto the seal plate.
8. Press the rotating seal half
(#13) onto the shaft with the
rubber ring facing the impeller.
Caution: Mixing old and new
seal parts will cause immediate
seal failure. When replacing
base (#10), impeller (#16),
lower mechanical seal (#20),
and volute must be removed
first. Drain the seal oil from
the housing by removing pipe
plug (#11).
2. The rotating carbon ring and
stainless steel spring are
held in place by a snap ring
(#21) and washer (#15).
Remove these.
3. Remove the four hex head
stator bolts(#32) and lift the
stator (#5) from the seal plate
(#14). A screwdriver can be
inserted under the stator shell
in order to remove the stator.
4. Bump the end of the shaft with
a plastic hammer. This will
push the rotating half of the
mechanical seal from the shaft
and also push the lower bearing
from the seal plate. Now
remove the shaft, rotor, and
bearing assembly from the
seal plate.
5. If water was found in the oil,
the rotating and stationary
halves of the mechanical seal
must be replaced. Remove the
stationary seal half by inserting
a screwdriver into seal plate
from the top and tapping
lightly with a hammer.
6. Turning the bearing(#33, #34)
by hand: if it feels rough when
turned or looks rusted, it
should be replaced. Obtain a
bearing puller to remove the
bearing. If a puller cannot be
replaced over the bearing,
remove the outer face by
cracking in a vise. Now the
outer face and balls can be
removed, allowing the inner
face to be pulled.

7
sealing part. If there are no
leaks, fill the motor and seal
housing with high grade
transformer oil, such as
Factopure SE40 or equivalent,
to at least one inch below top
of housing.
Do not fill the motor housing
completely – allow air space
for expansion. Replace oil
plug (#9).
14.Check for proper sealing of
lower seal assembly by adding
7–8 lbs. air pressure at (#11)
tap oil fill hole.
Note: Too much pressure will
cause seal failure. Seal would
have to be replaced.
Submerge in water. If air
bubbles appear, isolate the
source of the leak and correct
the problem. If there are no
leaks fill lower seal chamber
with high grade transformer
oil. Lay pump on side and fill
to 1⁄2" below fill plug. Replace
plug (#11).
15.Connect power cord wires to
terminals, connect power, and
check pump running. Motor
should run smoothly and be
free of vibration.
16.To check seal probe, use
an ohmmeter to measure
resistance and check continuity.
If meter reads zero then
replace probe (#23). Check
probe sensor wire (#22) for
opens using the ohmmeter. If
reading is zero the wire is OK.
For shorts place lead on the
motor housing, making sure
bare metal surface is used.
Place the other lead on the
bared end (#26) of the probe
lead (#22). Reading should be
infinity (∞). If reading is zero
then replace seal probe lead.
Return to Step 10.
Warning: Before handling these
pumps and controls, always
disconnect the power first.
Do not smoke or use sparkable
electrical devices or flames in a
septic (gaseous) or possible
septic sump.
Pump does not run or hum.
1. Check line voltage for
proper power.
2. Line circuit breaker may be
off, or fuse may be blown
or loose.
3. Water level in sump may be
too low. Run in more water to
activate switch. It will turn on
when 90˚ has been achieved.
4. Pump cord plug may not be
making contact in receptacle.
5. If pump is using the series cord
plug, the two plugs may not be
plugged tight together.
6. Float may be stuck. Be sure
float operates freely in basin.
7. If all symptoms check OK,
motor winding may be open;
take pump to an authorized
service center.
Pump runs but does not
deliver water.
1. Check valve may be installed
backwards. Arrow in valve
points in direction of flow.
2. Discharge gate valve, if used,
may be closed.
3. Pump may be air locked. Start
and stop several times by plug-
ging and unplugging cord.
Check vent hole in pump case
for plugging.
4. Pump head may be too high.
Pump cannot deliver water
over 100 ft. vertical.
Horizontal distance does not
affect pumping, except loss
due to friction.
5. Inlet in pump base may be
clogged. Remove pump and
clean out openings.
Pump
Troubleshooting
1
930 29
27
4
26
5
6
1Ø only
22
23
24
13
11
10
161918172021
15
8
14
12
7
25
6
2
31
3
1"
Oil
Level

8
Pump
Troubleshooting
6. Impeller or volute openings
may be plugged or
partially plugged. Remove
pump and clean per
maintenance instructions.
Pump runs and pumps out
sump but does not stop.
1. Float is stuck in up position.
Be sure float operates freely
in basin.
Pump runs but delivers only
small amount of water.
1. Pump may be air locked. Start
and stop several times.
2. Pump head may be too high.
Pump cannot deliver water
over 100 ft. vertical.
Horizontal distance does not
affect pumping, except loss
due to friction.
3. Inlet in pump base may be
clogged. Remove pump and
clean out openings.
4. Impeller or volute openings
may be plugged or
partially plugged. Remove
pump and clean per
maintenance instructions.
5. Pump impeller may be partially
clogged causing motor to run
slow, resulting in motor
overload. Clear obstruction
from volute and impeller.
Fuse blows or circuit breaker
trips when pump starts.
1. Inlet in pump base may be
clogged. Remove pump and
clean out openings.
2. Impeller or volute openings
may be plugged or
partially plugged. Remove
pump and clean per
maintenance instructions.
3. Pump impeller may be partially
clogged causing motor to run
slow, resulting in motor
overload. Clear obstruction
from volute and impeller.
4. Fuse size or circuit breaker is
too small.
5. Defective motor stator: return
to Hydromatic service center
for verification of failure.
Motor runs for short time
then stops. Then after short
period starts again. Indicates
tripping overload caused by
symptom shown.
1. Inlet in pump base may be
clogged. Remove pump and
clean out openings.
2. Impeller or volute openings
may be plugged or partially
plugged. Remove pump and
clean per maintenance instructions.
3. Pump impeller may be partially
clogged causing motor to run
slow, resulting in motor
overload. Clear obstruction
from volute and impeller.
4. Defective motor stator: return
to Hydromatic service center
for verification of failure.
If symptom not found call
Hydromatic distributor or
repair center for assistance.
1
930 29
27
4
26
5
6
1Ø only
22
23
24
13
11
10
161918172021
15
8
14
12
7
25
6
2
31
3
1"
Oil
Level

9
Pump
Notes
______________________________________________
______________________________________________
______________________________________________
______________________________________________
______________________________________________
______________________________________________
______________________________________________
______________________________________________
______________________________________________
______________________________________________
______________________________________________
______________________________________________
______________________________________________
______________________________________________
______________________________________________
______________________________________________
______________________________________________
______________________________________________
______________________________________________
______________________________________________
______________________________________________
______________________________________________
______________________________________________
______________________________________________

10
START
CAPACITOR
START
SWITCH
STATOR
POWER CORD
BL
BK
R
BKW
R
R
BL R
W
1
3
2
SKHD150
Parts List
Ref. No. Part No. Part No. Description Qty.
1 Phase 3 Phase
230V 230/460V
1 60-000-5 60-000-5 Handle 1
2 56-023-2 56-023-2 Housing, Motor 1
3 13208-001-1 n/a Capacitor (1ø, 230V) 1
4 13209-003-1 n/a Solid State Switch (1ø, 230V) 1
5 12690-000-1 12691-000-1 Motor Assemly 1
6 19100A012 19100A012 Screw, Hex Hd. 4
7 101-015-1 101-015-1 Screw, Hex Hd. 3
8 17048-000-1 17048-000-1 Shaft Seal-Upper 1
9 14981-001-1 14981-001-1 Pipe Plug, 1/4 NPT 1
10 9641-000-2 9641-000-2 Volute Case 1
11 87-004-1 87-004-1 Pipe Plug, 1/8 NPT 1
12 25-016-1 25-016-1 Screw Rd. Hd. 3
13 7579-001-2 7579-001-2 Housing, Bearing/Seal 1
14 6846-004-2 6846-004-2 Plate, Bearing/Seal 1
15 156-052-1 156-052-1 Washer 1
16 9640-000-3 9640-000-3 Impeller 1
17 * * Locktite Sealant 1
18 n/a 518-001-1 Washer, Impeller (3ø only) 1
19 n/a 111-008-1 Screw, Impeller (3ø only) 1
20 83-002-1 83-002-1 Shaft Seal-lower 1
20 83-007-1 83-007-1 Shaft Seal-lower 1
21 975-001-1 975-001-1 Snap Ring 1
22 6000-056-1 6000-056-1 Wire Terminal Assembly 1
23 8472-006-5 8472-006-5 Seal Failure Sensor 1
24 77-003-1 77-003-1 O-Ring 2
25 12709-000-2 12709-000-2 Adapter 1
26 12672A001 12672A001 Splice Connector 1
27 13216-022-5 n/a Power Cord Assembly, 20' 1
w/plug,1ø only
27 11644-089-5 11644-018-5 Power Cord Assembly, 20' w/S.F. 1
†28 n/a 73-001-1 Connector (3øm 230V/460V) 4
29 13425-069-1 13425-069-1 Nameplate 1
30 4580-001-1 4580-001-1 Drive Screw 2
31 * * Oil 1

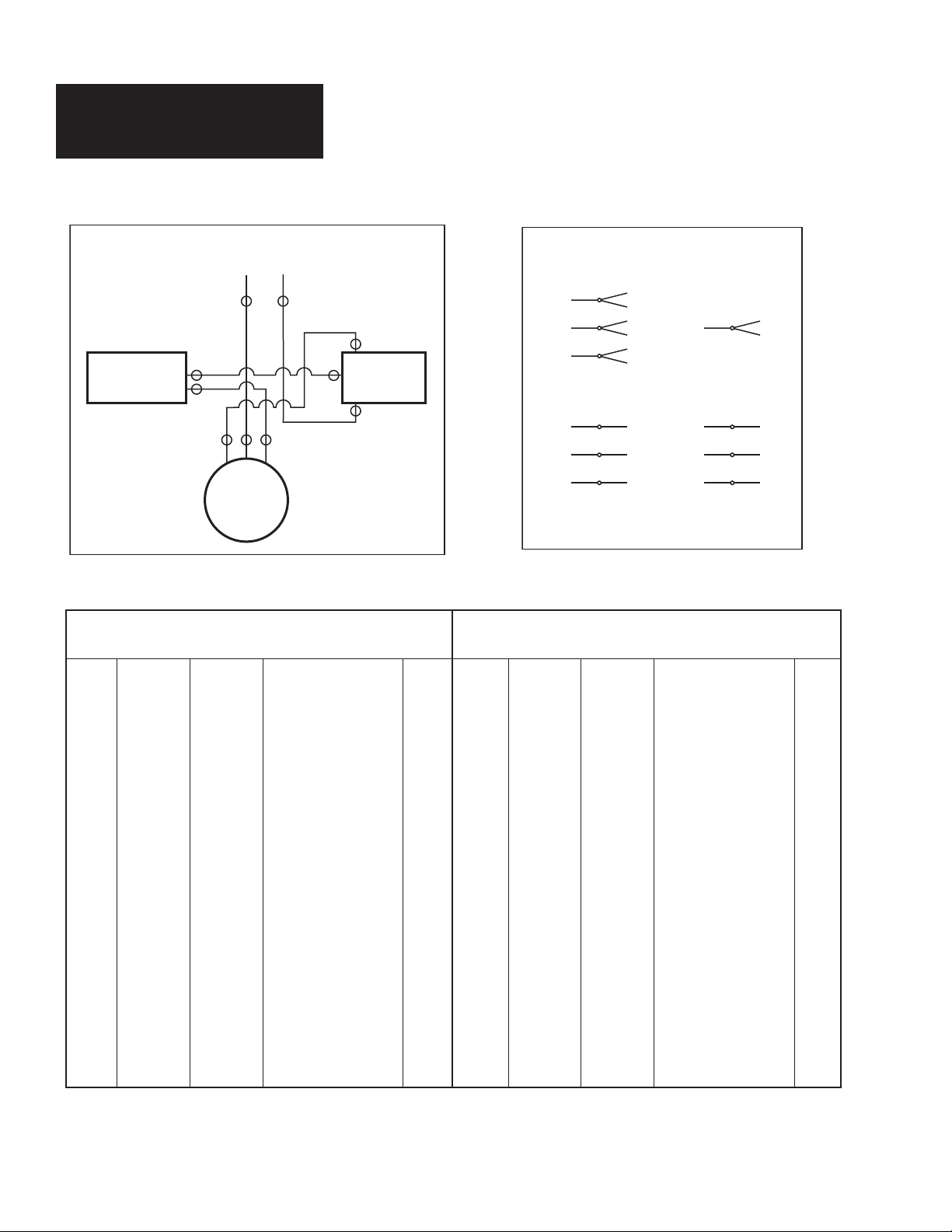

3-PHASE WIRING
L1 1
7
L2 2
8
L3 3
9
54
6
LOW VOLTAGE
L1
L2
L3
1
2
3
4
5
6
7
8
9
HIGH VOLTAGE
Ref. No. Part No. Part No. Description Qty.
1 Phase 3 Phase
230V 230/460V

11
1
930 29
27
4
26
5
6
1Ø only
22
23
24
13
11
10
161918172021
15
8
14
12
7
25
6
2
31
3
1"
Oil
Level
SKHD150

Item # W-03-194 12/2/09Part # 5625-194-1
– Your Authorized Local Distributor –
USA
740 East 9th Street, Ashland, Ohio 44805
Tel: [phone] Fax: [phone] www.hydromatic.com
CANADA
269 Trillium Drive, Kitchener, Ontario, Canada N2G 4W5
Tel: [phone] Fax: [phone]
© 2007 Hydromatic®Ashland, Ohio. All Rights Reserved.
LIMITED WARRANTY
HYDROMATIC warrants to the original consumer purchaser (“Purchaser” or “You”) of HYDROMATIC Sump
Pumps, Effluent Pumps, Sewage Pumps (other than 2-1/2"), and Package Systems, that they will be free from
defects in material and workmanship for the Warranty Period of 36 months from date of manufacture.
Our warranty will not apply to any product that, in our sole judgement, has been subject to negligence,
misapplication, improper installation, or improper maintenance. Without limiting the foregoing, operating a
three phase motor with single phase power through a phase converter will void the warranty. Note also that
three phase motors must be protected by three-leg, ambient compensated, extra-quick trip overload relays of
the recommended size or the warranty is void.
Your only remedy, and HYDROMATIC’s only duty, is that HYDROMATIC repair or replace defective products
(at HYDROMATIC’s choice). You must pay all labor and shipping charges associated with this warranty and
must request warranty service through the installing dealer as soon as a problem is discovered. No request
for service will be accepted if received after the Warranty Period has expired. This warranty is not transferable.
EXCEPTIONS: Hydromatic Special Application Pumps, Battery Back-Up Sump Pumps, Filtered Effluent
Pumps, Grinder Pumps, and 2-1/2" Sewage Pumps are warranted for a period of 12 months from date of
purchase or 18 months from date of manufacture, whichever comes first.
HYDROMATIC SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL, INCIDENTAL, OR CONTINGENT
DAMAGES WHATSOEVER.
THE FOREGOING WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS AND
IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE FOREGOING WARRANTIES
SHALL NOT EXTEND BEYOND THE DURATION EXPRESSLY PROVIDED HEREIN.
Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on
the duration of an implied warranty, so the above limitations or exclusions may not apply to You. This warranty
gives You specific legal rights and You may also have other rights which vary from state to state.
This warranty supersedes and replaces all previous warranty publications.
HYDROMATIC
740 East 9th Street, Ashland, OH 44805
Phone: [phone] • Fax: [phone] • Web Site: http://www.hydromatic.com
