Pentair Sta-Rite J Series User manual

671 0294
MODELS
HP MEDIUM HEAD MODELS HIGH HEAD MODELS
1/3 JBMB-56S – JMB-56L – JBHB-61S – JHB-61HL –
1/2 JBMC-56S JBMC3-56S JMC-56L JMC3-56 JBHC-61S JBHC3-61S JHC-61HL JHC3-61H
3/4 JBMD-57S JBMD3-57S JMD-57L JMD3-57 JBHD-62S JBHD3-62S JHD-62HL JHD3-62H
1 JBME-58S JBME3-58S JME-58L JME3-58 JBHE-63S JBHE3-63S JHE-63HL JHE3-63H
1-1/2 JBMF-40S JBMF3-40S JMF-40L JMF3-40 JBHF-51S JBHF3-51S JHF-51HL JHF3-51H
2 JBMG-41S JBMG3-41S JMG-41L JMG3-41 JBHG-52S JBHG3-52S JHG-52HL JHG3-52H
2-1/2 JBMMG-59S JBMMG3-59S – – JBHHG-53S JBHHG3-53S JHHG-53HL
JHHG3-53H
OWNER’S MANUAL
60 Cycle “J” and “JB” Series
Centrifugal Pump
INSTALLATION AND OPERATING INSTRUCTIONS

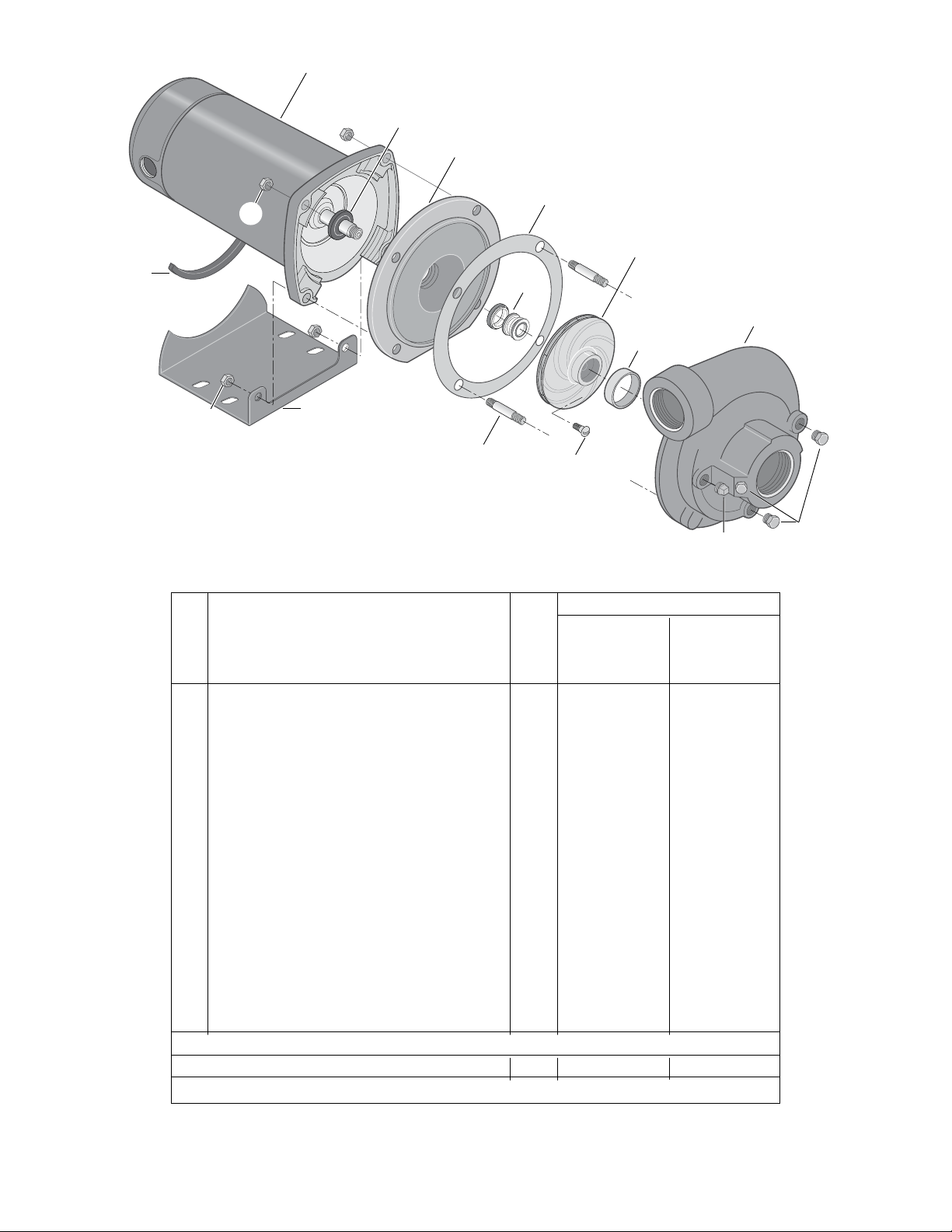

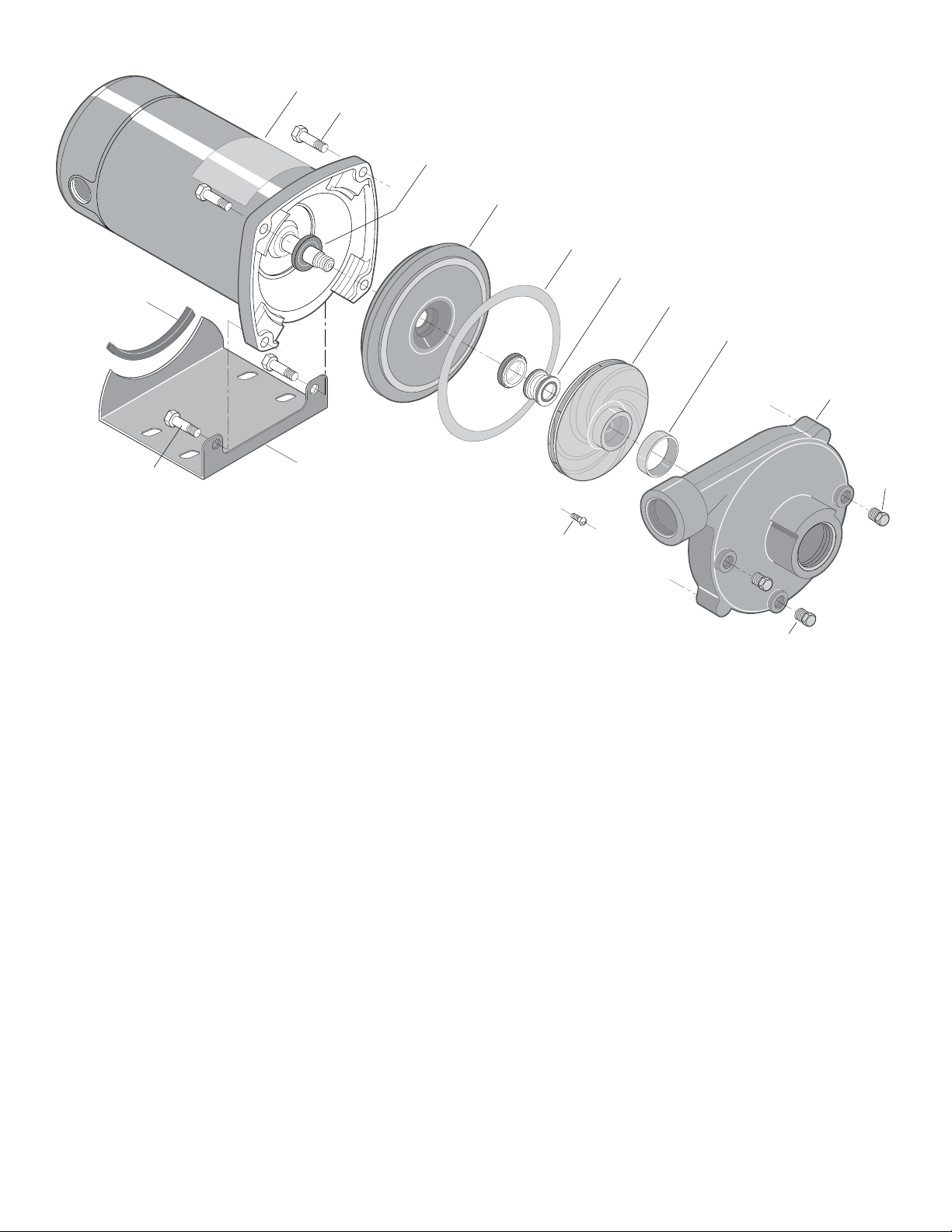

REPAIR PARTS LIST
© 2013 Pentair Ltd. All Rights Reserved. S873 (REV 01/14/13)
293 WRIGHT STREET, DELAVAN, WI 53115 WWW.STA-RITE.COM
PH: 888-782-7483

Support suction pipe
as required
Support discharge
pipe as required
As close
as possible
4 x "D"
minimum
Foot
Valve
Pipe diameter
"D"
Straight run, short as
possible but at least 6
times pipe diameter ("D")
sloping away from pump
Short length of
straight pipe
after reducer
Important:
All connections must
be air tight
Eccentric
Reducer
Solid, level
base
Tee and
Priming Plug
Rotated Volute
Gate
Valve
Union
Discharge
to service
Recommended pump suction
and discharge connections
Vent
Plug
Priming
Plug
Street Elbow
Not recommended pump suction
and discharge connections
Elbow immediately
in front of pump
suction.
On the discharge avoid:
Quick closing valves.
Small I.D. pipe.
Numerous fittings.
Misalignment.
Sharp turns in piping run.
High
lift
Pipe diameter "D"
insufficient size
Pipe submerged
less than 4 x "D"
will cause vortexing
Long suction
run
Concentric
Reducer
Use of excess fittings
means potential air leaks
Valve
Unsupported
Pipe
Concentric Reducer causes high
spots along the suction line resulting
in air pockets.
684 0294
Figure 1
Figure 2
2

3
California Proposition 65 Warning
This product and related accessories
contain chemicals known to the State of California to
cause cancer, birth defects or other reproductive harm.
PIPING - GENERAL
Support both suction and discharge piping independently at
a point near the pump to avoid putting a strain on the pump
housing. Start all piping AT THE PUMP.
Increase pipe diameter at both the suction and discharge
by one (1) standard pipe size (minimum) to obtain desired
performance and flow rate. Refer to Table I when sizing pipe
for your pumping system.
NOTICE: Do not use pipe with smaller diameter on the suction
side of pump.
TABLE I
Pipe Tapping Recommended
Size On Pump Pipe Size
Suction Discharge Suction Discharge
1-1/4 1 1-1/2 1-1/4
1-1/2 1-1/4 2 1-1/2
2 1-1/2 3 2
SUCTION PIPE
Increase pipe size from pump tapping as shown in Table I.
Figure 1 (Page 2) depicts a recommended run of pipe and
fittings for the suction side of a centrifugal pump. Please refer
to this illustration when choosing pipe and fittings for your
suction connection.
IMPORTANT: All connections must be air tight!
Figure 2 (Page 2) depicts conditions that are NOT DESIRABLE
on the suction side of a centrifugal pump and may cause
problems in flow rate and priming. Please look this illustration
over carefully before choosing pipe and fittings for your suction
connection.
DISCHARGE PIPING
Increase pipe size from pump tapping as show in Table I.
Figure 1 (Page 2) depicts a recommended run of pipe and
fittings for the discharge. Install tee with priming plug as close
to pump as possible. Figure 2 (Page 2) notes conditions that
should be avoided. Please read over carefully before making
discharge connection.
PRIMING THE PUMP
A pump is primed when all air in the suction line and pump
volute has been evacuated and replaced with water.
To Prime:
1. Close valve in discharge line.
2. Remove priming plug from tee and fill pump and suction line
with water until water is flowing back out of tee.
3. Replace priming plug.
4. Start pump and slowly open valve until desired water flow is
achieved.
NOTICE: If water is not being pumped, turn off pump, close
valve, and repeat steps 1 thru 4.
If pump volute is rotated as shown in Figure 1 (Page 2), loosen
vent plug when priming to evacuate air trapped inside volute
and tighten when volute is completely filled with water.
Risk of explosion and scalding. Never run
pump against closed discharge. To do so can boil water inside
pump, causing hazardous pressure buildup and possible
explosion.
Risk of flooding. Do not run the pump dry. This
will damage mechanical seal and void warranty. It may cause
burns to person handling pump.
Motor normally operates at high temperature
and will be too hot to touch. It is protected from heat damage
during operation by an automatic internal cutoff switch. Before
handling pump or motor, stop motor and allow it to cool for 20
minutes.
TABLE II - RECOMMENDED FUSING AND WIRING DATA - 60 CYCLE MOTORS
DIAMETER IN FEET FROM MOTOR TO METER
BRANCH 0’ 51’ 101’ 201’ 301’ 401’
MOTOR MAX. LOAD FUSE* TO TO TO TO TO TO
HP AMPERES RATING 50’ 100’ 200’ 300’ 400’ 500’
AMPS WIRE SIZE
SINGLE PHASE - 115/230 VOLT
1/3 9.4/4.7 15/15 14/14 14/14 10/14 10/14 6/14 6/12
1/2 9.4/4.7 15/15 14/14 14/14 10/14 10/14 6/14 6/12
3/4 12.2/6.1 20/15 12/14 12/14 10/14 8/14 6/12 6/12
1 14.8/7.4 20/15 12/14 12/14 8/14 6/14 6/12 4/10
1-1/2 19.2/9.6 25/15 10/14 10/14 8/14 6/12 4/10 4/10
2 24.0/12.0 30/15 12/14 10/14 6/14 6/12 4/10 4/10
THREE PHASE - 230/460 VOLT
1/2 2.3/1.15 15/15 14/14 14/14 14/14 14/14 14/14 14/14
3/4 3.1/1.55 15/15 14/14 14/14 14/14 14/14 14/14 14/14
1 3.6/1.8 15/15 14/14 14/14 14/14 14/14 14/14 14/14
1-1/2 4.7/2.35 15/15 14/14 14/14 14/14 14/14 14/14 14/14
2 6.8/3.4 15/15 14/14 14/14 14/14 14/14 12/14 12/14
2-1/2 8.5/4.25 15/15 14/14 14/14 14/14 14/14 12/14 10/14
* Time delay fuse or circuit breakers are recommended in any motor circuit.

4
Connection diagram for dual voltage, single-phase
motors. Your dual-voltage motor’s terminal board (under the
motor end cover) will match one of the diagrams below. Follow
that diagram if necessary to convert motor to 115 Volt power.
Connect power supply wires to L1 and L2. For 3-phase
motors, or if motor does not match these pictures, follow the
connection diagram on the motor nameplate.
THE MOTOR IS SET FOR 230 VOLTS
WHEN SHIPPED.
To change the motor to use 115 volts:
1. Turn off power
2. Remove the back motor cover.
3. Use a screwdriver or 1/2” wrench and turn the voltage
selector dial counterclockwise until 115 shows in the dial
opening.
4. Reinstall the motor cover.
Hazardous voltage. Can shock, burn, or
cause death. Disconnect power to motor before working on
pump or motor. Ground motor before connecting to power
supply.
WIRING
Ground motor before connecting to electrical power
supply. Failure to ground motor can cause severe or
fatal electrical shock hazard.
Do not ground to a gas supply line.
To avoid dangerous or fatal electrical shock, turn
OFF power to motor before working on electrical
connections.
Supply voltage must be within ±10% of nameplate
voltage. Incorrect voltage can cause fire or damage
motor and voids warranty. If in doubt consult a
licensed electrician.
Use wire size specified in Wiring Chart (Page 3). If
possible, connect pump to a separate branch circuit
with no other appliances on it.
Wire motor according to diagram on motor nameplate.
If nameplate diagram differs from diagrams above,
follow nameplate diagram.
1. Install, ground, wire and maintain your pump in compliance
with the National Electrical Code (NEC) in the U.S., or the
Canadian Electrical Code (CEC), as applicable, and with all
local codes and ordinances that apply. Consult your local
building inspector for code information.
2. Provide a correctly fused disconnect switch for protection
while working on motor. For switch requirements, consult
your local building inspector for information about codes.
3. Disconnect power before servicing motor or pump. If the
disconnect switch is out of sight of pump, lock it open and
tag it to prevent unexpected power application.
4. Ground the pump permanently using a wire of the same
size as that specified in wiring chart (Page 3). Make ground
connection to green grounding terminal under motor canopy
marked GRD. or .
5. Connect ground wire to a grounded lead in the service panel
or to a metal underground water pipe or well casing at least
10 feet long. Do not connect to plastic pipe or insulated
fittings.
6. Protect current carrying and grounding conductors from
cuts, grease, heat, oil, and chemicals.
7. Connect current carrying conductors to terminals L1 and L2
under motor canopy. When replacing motor, check wiring
diagram on motor nameplate against Figure ##. If the motor
wiring diagram does not match either diagram in Figure 3,
follow the diagram on the motor.
IMPORTANT: 115/230 Volt single phase models are shipped
from factory with motor wired for 230 volts. If power supply
is 115 volts, remove motor canopy and reconnect motor as
shown in Figure 3. Do not try to run motor as received on 115
volt current.
8. Motor has automatic internal thermal overload protection. If
motor has stopped for unknown reasons, thermal overload
may restart it unexpectedly, which could cause injury or
property damage. Disconnect power before servicing motor.
9. If this procedure or the wiring diagrams are confusing,
consult a licensed electrician.
ELECTRICAL

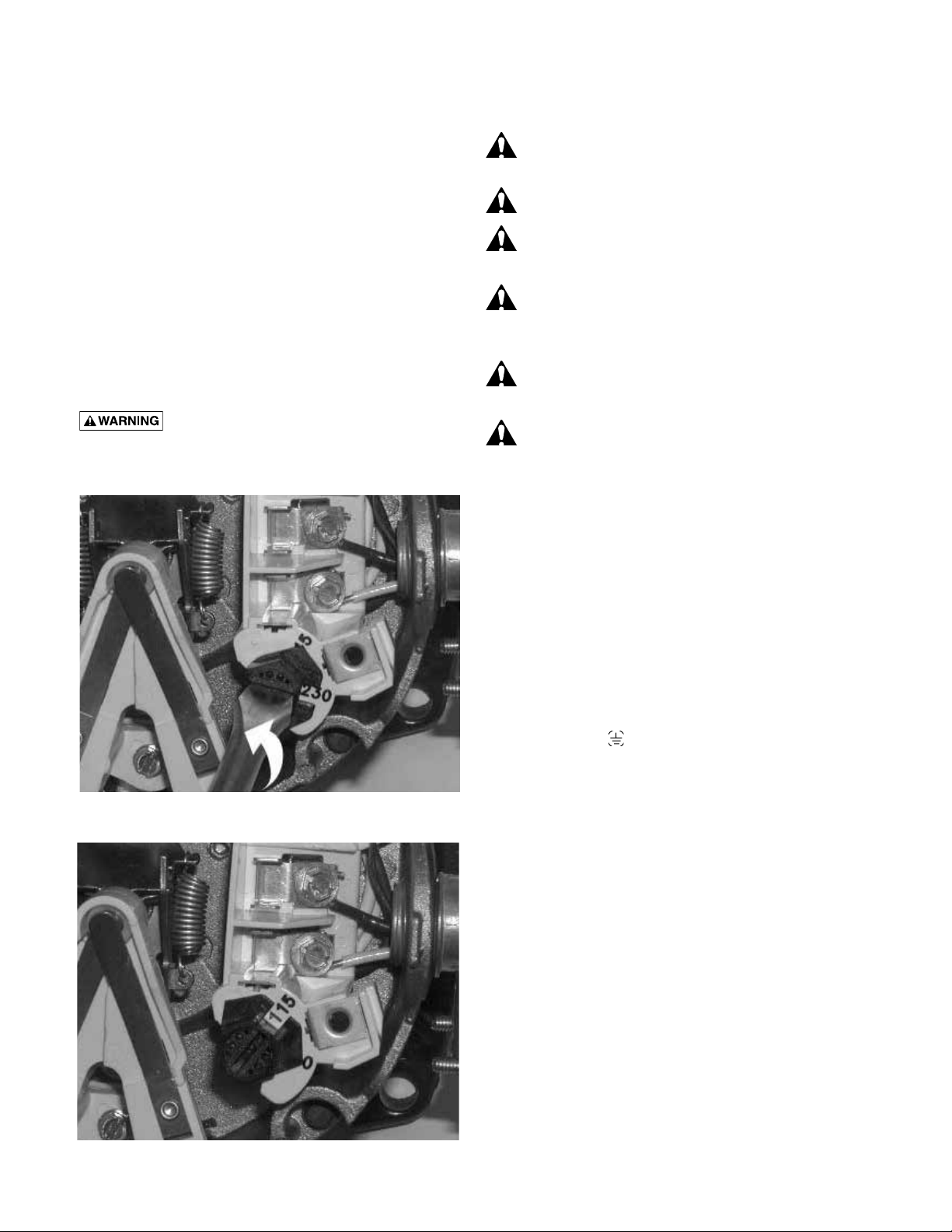

Figure 3: Changing the Voltage Setting
Figure 4: Motor Set for 115 Volt Operation

5
Seal Plate
Mechanical seal
rotating half
Mechanical seal
stationary half
A-Seal removal-rotating half B-Seal removal-stationary half C-Stationary half installation D-Rotating half installation
T
u
r
n
o
v
e
r
Polished
surface Rubber
surface
Cardboard
washer
(supplied w/seal)
3/4" socket
or pipe
Sealing
face
Rubber drive
ring
Impeller
Shaft
shoulder
5939 0109
FIGURE 5
PUMP SERVICE
This centrifugal pump requires little or no service other than
reasonable care and periodic cleaning. Occasionally, howev-
er, a shaft seal may become damaged and must be replaced.
The procedure as outlined below will enable you to replace
the seal.
NOTICE: Pumps use mechanical seals with a rubber
seat ring or a sealing O-Ring. THESE SEALS ARE
COMPLETELY INTERCHANGEABLE.
NOTICE: The highly polished and lapped faces of this seal
are easily damaged. Read instructions and handle the seal
with care.
Some models are equipped with an impeller screw, which has
a left hand thread. Before unscrewing the impeller, remove
the impeller screw.
REMOVAL OF OLD SEAL
1. After unscrewing impeller, carefully remove rotating part
of seal by prying up on sealing washer, using two screw-
drivers (see Figure 5A). Use care not to scratch motor
shaft.
2. Remove seal plate from motor and place on flat surface,
face down. Use a screwdriver to push ceramic seat out
from seal cavity (see Figure 5B).
INSTALLATION OF FLOATING SEAT (Figure 5C)
1. Clean polished surface of floating seat with clean cloth.
2. Turn seal plate over so seal cavity is up, clean cavity thor-
oughly.
3. Lubricate outside rubber surface of ceramic seat with
soapy water and press firmly into seal cavity with finger
pressure. If seat will not locate properly in this manner,
place cardboard washer over polished face of seat and
press into seal cavity using a 3/4” socket or 3/4” piece of
standard pipe.
4. DISPOSE OF CARDBOARD WASHER. Be sure polished
surface of seat is free of dirt and has not been damaged
by insertion. Remove excess soapy water.
INSTALLATION OF ROTATING
PART OF SEAL UNIT (Figure 5D)
1. Reinstall seal plate using extreme caution not to hit ceram-
ic portion of seal on motor shaft.
2. Inspect shaft to make sure that it is clean.
3. Clean face of sealing washer with clean cloth.
4. Lubricate inside diameter and outer face of rubber drive
ring with soapy water and slide assembly on motor shaft
(sealing face first) until rubber drive ring hits shaft shoulder.
5. Screw impeller on shaft until impeller hub hits shaft shoul-
der. This will automatically locate seal in place and move
the sealing washer face up against seat facing. Reinstall
impeller screw (if used).
SERVICE

6
1
8
2
3
10
4
7
5A
5
6
9
9A
12
12A
8,8A
801 0394

7
REPAIR PARTS LIST – “J” SERIES - HIGH HEAD
MOTOR AND HORSEPOWER JHB-61HL JHC-61HL JHD-62HL JHE-63HL JHF-51HL JHG-52HL JHHG-53HL
Key Part No. – JHC3-61H JHD3-62H JHE3-63H JHF3-51H JHG3-52H JHHG3-53H
No. Description Used 1/3 HP 1/2 HP 3/4 HP 1 HP 1-1/2 HP 2 HP 2-1/2 HP
1* Motor, 115/230V, Single Phase 1 J218-582APKG J218-582APKG J218-590PKG J218-596PKG J218-601PKG J218-883APKG J218-628APKG
†2 Water Slinger 1 17351-0009 17351-0009 17351-0009 17351-0009 17351-0009 17351-0009 17351-0009
3 Seal Plate 1 C3-1042P C3-1042P C3-1042P C3-1042P C3-1042P C3-181 C3-181
†4 Shaft Seal 1 U109-6A U109-6A U109-6A U109-6A U109-6A U109-6A U109-6A
5 Impeller - Single Phase 1 C105-92PNX C105-92PNX C105-92PMX C105-92PLX C105-92PBX C105-214PCA C105-214PA
5 Impeller - Three Phase 1 – C105-92PNXA C105-92PMXA C105-92PLXA C105-92PBXA C105-214PCA C105-214PA
5A Impeller Screw - Three Phase 1 – C30-12 C30-14SS C30-14SS C30-14SS C30-14SS C30-47SS
6 Volute Assembly - Complete 1 C101-284A C101-284A C101-284A C101-284A C101-284A C101-264 C101-264B
7 Wear Ring (1) C23-27 C23-27 C23-27 C23-27 C23-27 C23-19 C23-19 8A Capscrew - 3/8 - 16 x 1” Lg. (2) – – – – – U30-74ZP U30-99SS 8A Capscrew - 3/8 - 16 x 1-1/4” Lg. (2) U30-75ZP U30-75ZP U30-75ZP U30-75ZP U30-75ZP – – 8B Capscrew - 3/8 - 16 x 1-1/4” Lg. (2) U30-75ZP U30-75ZP U30-75ZP U30-75ZP U30-75ZP U30-75ZP U30-104ZP 9 Pipe Plug - 1/4” NPT (3) U78-941ZPV U78-941ZPV U78-941ZPV U78-941ZPV U78-941ZPV U78-941ZPV U78-941ZPV †10 Gasket - Volute 1 C20-121 C20-121 C20-121 C20-121 C20-121 C20-122 C20-122
11 Base 1 J104-9F J104-9F J104-9F J104-9F J104-9F J104-9F J104-9F
11A Motor Pad 1 C35-5 C35-5 C35-5 C35-5 C35-5 C35-5 C35-5
SERVICE KIT
Seal and Gasket Kit 1 PP1700 PP1700 PP1700 PP1700 PP1700 PP1700 PP1700
NOTE: † Included in Seal and Gasket Kit. * For repair or service to motors, always give the motor Model Number and any other data found on the Motor Model Plate.

8
REPAIR PARTS LIST – “J” SERIES - MEDIUM HEAD
MOTOR AND HORSEPOWER
JMB-56L JMC-56L JMD-57L JME-58L
Key Part No. – JMC3-56 JMD3-57 JME3-58
No. Description Used 1/3 HP 1/2 HP 3/4 HP 1 HP
1* Motor, 115/230V, Single Phase 1 J218-582APKG J218-582APKG J218-590PKG J218-596PKG
1* Motor, 230/460V, Three Phase 1 – AP100CL AP100DL AP100EL
†2 Water Slinger 1 17351-0009 17351-0009 17351-0009 17351-0009
3 Seal Plate 1 N3-8 N3-8 N3-8 N3-8
4 Gasket, Seal Plate 1 N29-26 N29-26 N29-26 N29-26
†5 Shaft Seal 1 U109-6A U109-6A U109-6A U109-6A
6 Impeller - Single Phase 1 J105-42PHA J105-42PHA J105-42PJA J105-42P
6 Impeller - Three Phase 1 – J105-42PHA J105-42PJA J105-42PPA
6A Impeller Screw - Three Phase 1 C30-21 C30-6SS C30-6SS C30-6SS
7 Volute Assembly w/Wear Ring 1 C101-122E C101-122E C101-122E C101-122
7A Wear Ring (Only) (1) N23-7 N23-7 N23-7 N23-7
8 Pipe Plug - 1/4” NPT (4) U78-941ZPV U78-941ZPV U78-941ZPV U78-941ZPV
9 Base 1 J104-9 J104-9 J104-9 J104-9
9A Motor Pad 1 C35-5 C35-5 C35-5 C35-5
10 Capscrews - 3/8 - 16 x 1-1/4” (2) U30-75ZP U30-75ZP U30-75ZP U30-75ZP
11 Capscrews - 3/8 - 16 x 1-1/2” (2) U30-76ZP U30-76ZP U30-76ZP U30-76ZP
SERVICE KIT
Seal and Gasket Kit 1 PP1700 PP1700 PP1700 PP1700
NOTICE: † Included in Seal and Gasket Kit.
* For repair or service to motors, always give the motor Model Number and any other data found on the Motor Model Plate.
2409 0496 SPC
1
2
3
4
5
6
7A
6A
7
8
10 9
9A
8
8
This drawing is for use with
Models using a capscrew configuration.
11

9
REPAIR PARTS LIST – “J” SERIES - MEDIUM HEAD
MOTOR AND HORSEPOWER
JMF-40L JMG-41L
Key Part No. JMF3-40 JMG3-41
No. Description Used 1-1/2 HP 2 HP
1 Motor, 115/230V, 1 Phase 1 J218-601PKG J218-883APKG
1 Motor, 230/460V, 3 Phase 1 AP100FL AP100GL
2 Water Slinger 1 17351-0009 17351-0009
3 Seal Plate 1 C3-52 C3-52
4 Gasket, Seal Plate 1 C20-21 C20-21
5 Shaft Seal 1 U109-6A U109-6A
6 Impeller, Single Phase 1 C105-114PC C105-114PNA
6 Impeller, Three Phase 1 C105-114PCA C105-114PNA
6A Impeller Screw 1 C30-14SS C30-14SS
7 Volute Assembly with Wear Ring 1 C101-123 C101-123
7A Wear Ring 1 C23-19 C23-19
8 Pipe Plug, 1/4” NPT Sq. Hd. 1 U78-57DT U78-57DT
9 Pipe Plug, 1/4” NPT Hex Hd. 3 U78-941ZPV U78-941ZPV
10 Base with Motor Pad 1 J104-9 J104-9
10A Motor Pad 1 C35-5 C35-5
11 Stud, 3/8 - 16 x 1-13/16” 4 U30-35SS U30-29
12 Hex Nut, 3/8 - 16 4 U36-38ZP U36-38ZP
SERVICE KIT
Seal and Gasket Kit 1 PP1700 PP1700
NOTICE: † Included in Seal and Gasket Kit.
* For repair or service to motors, always give the motor Model Number and any other data found
on the Motor Model Plate.
2410 0496 SPC
1
2
3
4
5
6
7A
6A
7
8
12
11
12
10
10A
9
This drawing is for use with
Models using a stud configuration.

10
2407 0496
1
2
3
4
5
6
7A
6A
7
8
9
11
12
10
10A

11
REPAIR PARTS LIST – “JB” SERIES - HIGH HEAD
MOTOR AND HORSEPOWER
JBHB-61S JBHC-61S JBHD-62S JBHE-63S JBHF-51S JBHG-52S JBHHG-53S
Key Part No. – JBHC3-61S JBHD3-62S JBHE3-63S JBHF3-51S JBHG3-52S JBHHG3-53S
No. Description Used 1/3 HP 1/2 HP 3/4 HP 1 HP 1-1/2 HP 2HP 2-1/2 HP
1 Motor, 115/230V, 1 Phase 1 J218-582APKG J218-582APKG J218-590PKG J218-596PKG J218-601PKG J218-883APKG J218-628APKG 1 Motor, , 230/460V, 3 Phase 1 – AP100CL AP100DL AP100EL AP100FL AP100GL AP100G5L †2 Water Slinger 1 17351-0009 17351-0009 17351-0009 17351-0009 17351-0009 17351-0009 17351-0009
3 Seal Plate 1 C3-1042P C3-1042P C3-1042P C3-1042P C3-1042P C3-181 C3-181 †4 Gasket, Seal Plate 1 C20-121 C20-121 C20-121 C20-121 C20-121 C20-122 C20-122
†5 Shaft Seal 1 U109-6A U109-6A U109-6A U109-6A U109-6A U109-6A U109-6A
6 Impeller, Single Phase 1 C5-256BA C5-256BA C5-256BAA C5-254BA C5-254BC C5-257BB C5-257B 6 Impeller, Three Phase 1 – C5-256BA C5-256BAA C5-254BA C5-254BC C5-257BB C5-257B 6A Impeller Screw, Three Phase 1 C30-14SS C30-14SS C30-14SS C30-14SS C30-14SS C30-14SS C30-14SS 7 Volute Assembly with Wear Ring 1 C101-284A C101-284A C101-284A C101-284A C101-284A C101-264 C101-264B 7A Wear Ring 1 C23-27 C23-27 C23-27 C23-27 C23-27 C23-27 C23-27 8 Pipe Plug, 1/4” NPT Hex Hd. 3 U78-941ZPV U78-941ZPV U78-941ZPV U78-941ZPV U78-941ZPV U78-941ZPV U78-941ZPV 9 Base with Motor Pad 1 J104-9 J104-9 J104-9 J104-9 J104-9 J104-9 J104-9F 9A Motor Pad 1 C35-5 C35-5 C35-5 C35-5 C35-5 C35-5 C35-5 10 Hex Capscrew, 3/8” - 16 x 1” Lg. 2 – – – – – U30-74ZP U30-74ZP
10 Socket Head Capscrew, 3/8” - 16 x 1” Lg.
(JBHHG-53S) 2 – – – – – – U30-99SS 10 Hex Capscrew, 3/8” - 16 x 1-1/4” Lg. 2 U30-75ZP U30-75ZP U30-75ZP U30-75ZP U30-75ZP – –
11 Hex Capscrew, 3/8” - 16 x 1-1/4” Lg. 2 U30-75ZP U30-75ZP U30-75ZP U30-75ZP U30-75ZP U30-75ZP U30-75ZP
11 Socket Head Capscrew, 3/8” - 16 x 1-1/4” Lg.
(JBHHG-53S) 2 – – – – – – U30-104ZP * For repair or service to motors, always give the motor Model Number and any other data found on the Motor Model Plate.

12
2409 0496 SPC
1
2
3
4
5
6
7A
6A
7
8
10 9
9A
8
8
This drawing is for use with
Models using a capscrew configuration.
11
REPAIR PARTS LIST – “J” SERIES - MEDIUM HEAD
MOTOR AND HORSEPOWER
JBMB-56S JBMC-56S JBMD-57S JBME-58S
Key Part No. – JBMC3-56S JBMD3-57S JBME3-58S
No. Description Used 1/3 HP 1/2 HP 3/4 HP 1 HP
1 Motor, 115/230V, 1 Phase 1 J218-582APKG J218-582APKG J218-590PKG J218-596PKG
1 Motor, 230/460V, 3 Phase 1 – AP100CL AP100DL AP100EL
2 Water Slinger 1 17351-0009 17351-0009 17351-0009 17351-0009
3 Seal Plate 1 N3-8 N3-8 N3-8 N3-8
4 Gasket, Seal Plate 1 N20-26 N20-26 N20-26 N20-26
5 Shaft Seal 1 U109-6A U109-6A U109-6A U109-6A
6 Impeller, Single Phase 1 J105-42MA J105-42MA J105-42LA J105-42NA
6 Impeller, Three Phase 1 – J105-42MA J105-42LA J105-42NA
6A Impeller Screw 1 – C30-6SS C30-6SS C30-6SS
7 Volute Assembly with Wear Ring 1 C101-122E C101-122E C101-122E C101-122
7A Wear Ring 1 N23-7 N23-7 N23-7 N23-7
8 Pipe Plug, 1/4” NPT Hex Hd. 4 U78-941ZPV U78-941ZPV U78-941ZPV U78-941ZPV
9 Base with Motor Pad 1 J104-9 J104-9 J104-9 J104-9
9A Motor Pad 1 C35-5 C35-5 C35-5 C35-5
10 Hex Capscrew, 3/8” - 16 x 1-1/2” Lg. 2 U30-76ZP U30-76ZP U30-76ZP U30-76ZP
11 Hex Capscrew, 3/8” - 16 x 1-1/4” Lg. 2 U30-75ZP U30-75ZP U30-75ZP U30-75ZP
SERVICE KIT
Seal and Gasket Kit 1 PP1700 PP1700 PP1700 PP1700
NOTICE: † Included in Seal and Gasket Kit.
* For repair or service to motors, always give the motor Model Number and any other data found on the Motor Model Plate.

13
2410 0496 SPC
1
2
3
4
5
6
7A
6A
7
8
12
11
12
10
10A
9
This drawing is for use with
Models using a stud configuration.
REPAIR PARTS LIST – “J” SERIES - MEDIUM HEAD
MOTOR AND HORSEPOWER
JBMF-40S JBMG-41S JBMMG-59S
Key Part No. JBMF3-40S JBMG3-41S JBMMG3-59S
No. Description Used 1-1/2 HP 2 HP 2-1/2 HP
1 Motor, 115/230V, 1 Phase 1 J218-601PKG J218-883APKG J218-628APKG
1 Motor, 230/460V, 3 Phase 1 AP100FL AP100GL AP100G5L
2 Water Slinger 1 17351-0009 17351-0009 17351-0009
3 Seal Plate 1 C3-52 C3-52 C3-52
4 Gasket, Seal Plate 1 C20-21 C20-21 C20-21
5 Shaft Seal 1 U109-6A U109-6A U109-6A
6 Impeller, Single Phase 1 C105-79B C105-73BA C105-80DA
6 Impeller, Three Phase 1 C105-79BA C105-73BA C105-80DA
6A Impeller Screw 1 C30-14SS C30-14SS C30-14SS
7 Volute Assembly with Wear Ring 1 C101-123 C101-123 C101-123B
7A Wear Ring 1 C23-19 C23-19 C23-19
8 Pipe Plug, 1/4” NPT Sq. Hd. 1 U78-57DT U78-57DT U78-57DT
9 Pipe Plug, 1/4” NPT Hex Hd. 3 U78-941ZPV U78-941ZPV U78-941ZPV
10 Base with Motor Pad 1 J104-9 J104-9 J104-9F
10A Motor Pad 1 C35-5 C35-5 C35-5
11 Stud, 3/8 - 16 x 1-13/16” 4 U30-35SS U30-35SS U30-35SS
12 Hex Nut, 3/8 - 16 4 U36-38ZP U36-38ZP U36-38ZP
SERVICE KIT
Seal and Gasket Kit 1 PP1700 PP1700 PP1700
NOTICE: † Included in Seal and Gasket Kit.
* For repair or service to motors, always give the motor Model Number and any other data found on the Motor
Model Plate.

14
TROUBLE - CAUSES AND REMEDY
TROUBLE AND CAUSE REMEDY
FAILURE TO PUMP
1. Pump not properly primed. 1. Make sure pump casing and suction line are full of water.
See priming instructions.
REDUCED CAPACITY AND/OR HEAD
1. Air pockets or leaks in suction line. 1. Check suction piping.
2. Clogged impeller. 2. Remove and clean.
PUMP LOSES PRIME
1. Air leaks in suction line. 1. Check suction piping
2. Excessive suction lift and operating 2. Move pump nearer to water level.
too near shut-off point.
3. Water level drops while pumping, 3. Check water supply. Add length of pipe to suction
uncovering suction piping. to keep submerged end under water.
MECHANICAL TROUBLES AND NOISE
1. Bent shaft and/or damaged bearings. 1. Take motor to authorized motor repair shop.
2. Suction and/or discharge piping not 2. See that all piping is supported to relieve strain
properly supported and anchored. on pump assembly.

15
Limited Warranty
STA-RITE warrants to the original consumer purchaser (“Purchaser” or “You”) of the products listed below, that they will be free
from defects in material and workmanship for the Warranty Period shown below.
Product Warranty Period
Water Systems Products — jet pumps, small centrifugal pumps,
submersible pumps and related accessories
whichever occurs first:
12 months from date of original installation,
or 18 months from date of manufacture
Pro-Source®Composite Tanks 5 years from date of original installation
Pro-Source®Steel Pressure Tanks 5 years from date of original installation
Pro-Source®Epoxy-Lined Tanks 3 years from date of original installation
Sump/Sewage/Effluent Products 12 months from date of original installation, or
18 months from date of manufacture
Our warranty will not apply to any product that, in our sole judgement, has been subject to negligence, misapplication,
improper installation, or improper maintenance. Without limiting the foregoing, operating a three phase motor with single phase
power through a phase converter will void the warranty. Note also that three phase motors must be protected by three-leg,
ambient compensated, extra-quick trip overload relays of the recommended size or the warranty is void.
Your only remedy, and STA-RITE’s only duty, is that STA-RITE repair or replace defective products (at STA-RITE’s choice). You
must pay all labor and shipping charges associated with this warranty and must request warranty service through the installing
dealer as soon as a problem is discovered. No request for service will be accepted if received after the Warranty Period has
expired. This warranty is not transferable.
STA-RITE SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL, INCIDENTAL, OR CONTINGENT DAMAGES WHATSOEVER.
THE FOREGOING WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS AND IMPLIED WARRANTIES,
INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. THE FOREGOING WARRANTIES SHALL NOT EXTEND BEYOND THE DURATION EXPRESSLY PROVIDED HEREIN.
Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on the duration of an
implied warranty, so the above limitations or exclusions may not apply to You. This warranty gives You specific legal rights and
You may also have other rights which vary from state to state.
This Limited Warranty is effective June 1, 2011 and replaces all undated warranties and warranties dated before June 1, 2011.
STA-RITE INDUSTRIES
293 Wright Street • Delavan, WI U.S.A. 53115
Phone: [phone] • Fax: [phone] • Web Site: sta-rite.com
