FAT LEVEL SENSOR KVF-F

FAT LEVEL SENSOR KVF-F
Content
236056 2011-04
EN - 1
EN
1 Safety................................................................................... 2
1.1 General Safety Instructions ...........................................................................2
1.2 Used Symbols...............................................................................................2
1.3 Declaration of Conformity..............................................................................3
1.4 Intended Use ................................................................................................3
1.5 Delivery, Transport and Storage ....................................................................4
1.6 Installation and Commissioning ....................................................................4
1.7 Maintenance .................................................................................................4
1.8 Repair ...........................................................................................................5
1.9 Disposal........................................................................................................5
1.10 Applied Standards and Directives .................................................................5
2 Product Specifications....................................................... 6
2.1 Function........................................................................................................6
2.2 Product Program...........................................................................................6
2.3 Design and Dimensions................................................................................7
3 Installation........................................................................... 8
3.1 Mounting of the Sensors ...............................................................................8
3.2 Mounting the KVF-F Fat Level Sensor...........................................................9
3.3 Connection of the Sensor ...........................................................................10
4 Operation........................................................................... 11
4.1 Emptying (Disposal) of the Container..........................................................11
5 Maintenance and Repair.................................................. 12
5.1 Function Testing..........................................................................................12
6 Troubleshooting................................................................ 13
6.1 System Care ...............................................................................................13
7 Technical Specifications.................................................. 14
7.1 Fat Level Sensor KVF-F ..............................................................................14

236056 2011-04
2 - EN
FAT LEVEL SENSOR KVF-F
Safety
EN
1Safety
1.1 General Safety Instructions
The plant owner is responsible for its planning, installation, commissioning,
operation, maintenance and disassembly.
Installation and commissioning of all devices must be performed by a trained
professional only.
Protection of operating personnel and the system is not ensured if the product is
not used in accordance with its intended purpose.
Laws and regulations applicable to the usage or the intended purpose must be
observed. The devices are only approved for appropriate and intended use.
Ignoring these instructions will void any warranty and absolve the manufacturer
from any liability.
The Declaration of Conformity, Certificate of Compliance, Statement of
Conformity, EC-type-examination certificate and data sheets are an integral part of
this document.
The data sheet contains the electrical data of the Declaration of Conformity, the
Certificate of Compliance and the EC-type-examination certificate.
The documents mentioned are available from http://www.pepperl-fuchs.com or
contact your local Pepperl+Fuchs representative.
1.2 Used Symbols
Safety-relevant Symbols
Danger!
This symbol indicates a warning about a possible danger.
In case of ignoring the consequences may range from personal injury to death.
Warning!
This symbol indicates a warning about a possible fault or danger.
In case of ignoring the consequences may cause personal injury or heaviest
property damage.
Caution!
This symbol warns of a possible fault.
In case of ignoring the devices and any connected facilities or systems may be
interrupted or fail completely.

FAT LEVEL SENSOR KVF-F
Safety
236056 2011-04
EN - 3
EN
Informative Symbols
Action
This symbol marks an acting paragraph.
1.3 Declaration of Conformity
All products have been developed and manufactured taking into consideration
applicable European standards and regulations.
The manufacturer of this product, Pepperl+Fuchs GmbH in 68307 Mannheim,
Germany, has a certified quality assurance system in conformity with ISO 9001.
1.4 Intended Use
The fat level sensor KVF-F (referred to as "sensor" in the following sections) is a
suspended sensor for monitoring fat layer thickness in grease interceptors.
The sensor must always be connected to an warning device of type NVD-111
(see product program).
1.4.1 Marking
Note!
This symbol brings important information to your attention.
Note!
A Declaration of Conformity can be requested from the manufacturer.
ISO9001
Fat Level Sensor
Pepperl+Fuchs GmbH
Lilienthalstrasse 200, 68307 Mannheim, Germany
KVF-F

236056 2011-04
4 - EN
FAT LEVEL SENSOR KVF-F
Safety
EN
1.5 Delivery, Transport and Storage
Check the packaging and contents for damage.
Check if you have received every item and if the items received are the ones you
ordered.
Keep the original packaging. Always store and transport the device in the original
packaging.
Always store the device in a clean and dry environment. The permitted storage
temperature (see data sheet) must be considered.
1.6 Installation and Commissioning
1.6.1 Installation of the Sensor
The sensor and warning device must be free of voltage during installation and
maintenance. The warning device must only be connected to the supply voltage
after complete mounting and connection of the sensors.
The sensor has IP68 protection and is weather- and oil/fat-resistant. It can
therefore be installed in grease interceptors.
When installing the device in oil/petrol separators, observe the permissible
ambient temperature in the range from -20 °C ... 60 °C (253 K ... 333 K).
1.6.2 Sensor Cable
Sensor cables must not be installed in cable or conductor bundles together with
other current circuits. Avoid installing sensor cables parallel to other cables that
may transmit interfering signals, which impair the sensor signal and thus the alarm
function. The sensor itself must not be grounded.
If you extend the sensor cable, observe the applicable specifications with regard
to color, quality and durability. Use unshielded cables.
1.7 Maintenance
For operation of grease interceptors, there may be standards, directives or laws
that define regular system or sensor tests. Check the operation of the sensor at
least twice a year and more frequently in the event of unfavorable environmental
conditions.
When the grease interceptor is being emptied (disposal), the sensor must always
be washed and dried. The sensor must not be cleaned with caustic fluids. A badly
contaminated sensor can trip a wrong alarm or, in certain circumstances, fail to
trip an alarm.

FAT LEVEL SENSOR KVF-F
Safety
236056 2011-04
EN - 5
EN
1.8 Repair
The devices must not be repaired, changed or manipulated. If there is a defect,
the product must always be replaced with an original device.
1.9 Disposal
Disposal of devices and their packaging material must be performed in
compliance with the applicable laws and guidelines of the corresponding country.
The devices do not contain batteries which need to be disposed of separately
from the products.
1.10 Applied Standards and Directives
EN 50178
EN 61000-6-2
EN 61000-6-3
EMC Directive 2004/108/EC
Low Voltage Directive 2006/95/EC

236056 2011-04
6 - EN
FAT LEVEL SENSOR KVF-F
Product Specifications
EN
2 Product Specifications
2.1 Function
The sensor has an integrated electronic circuit which, via an oscillator circuit,
emits a weak HF signal that changes depending on whether the sensor element is
surrounded by water or fat.
The sensor is mounted suspended and immersed in liquid.
The sensor can distinguish between water and floating fat, oil and grease (FOG).
2.2 Product Program
Warning device
Sensors
Accessories
Description Type c o d e
Warning device, 230 V AC NVD-111
Description Type c o d e
Fat level sensor, for detecting fat layer thickness in an
aqueous emulsion with small lumps of fat or a hardened layer
of fat
FAU-104
Fat level sensor, for detecting fat layer thickness in a liquid
layer of fat KVF-F
Overflow sensor, for detecting excessively high liquid level KVF-O
Description Type c o d e
Cable connector IP68 for one sensor LAL-SK2
Mounting set for one sensor NVO5-B
Installation housing with DIN mounting rail NVO5-KV

FAT LEVEL SENSOR KVF-F
Product Specifications
236056 2011-04
EN - 7
EN
2.3 Design and Dimensions
Fat level sensor KVF-F
Figure 2.1
1Lower section with laser marking
2Middle section
3Upper section
4Cable
5Switch point
3
1
5
4
2
138
25
Ø31.6

236056 2011-04
8 - EN
FAT LEVEL SENSOR KVF-F
Installation
EN
3 Installation
3.1 Mounting of the Sensors
Read the chapter on Safety and, in particular, the section on Installation and
Commissioning (see chapter 1.6) before mounting the sensor. Do not remove the
identification plate.
During installation, read the instructions provided by the grease interceptor
manufacturer. Ensure that the suspension mechanism keeps the sensor
permanently at the correct height. Where possible, secure the device in a position
where it can be reached from the manhole opening so that it can be removed
when emptying (disposal) or carrying out maintenance work on the grease
interceptor.
The precise height of the sensor depends on how it is mounted. When mounting
in a concrete tank, for example, use the NVO5-B mounting set (see figure below).
For containers, tanks or separators made from other materials, such as plastic or
metal, use the appropriate alternative mounting options (screws and dowels).

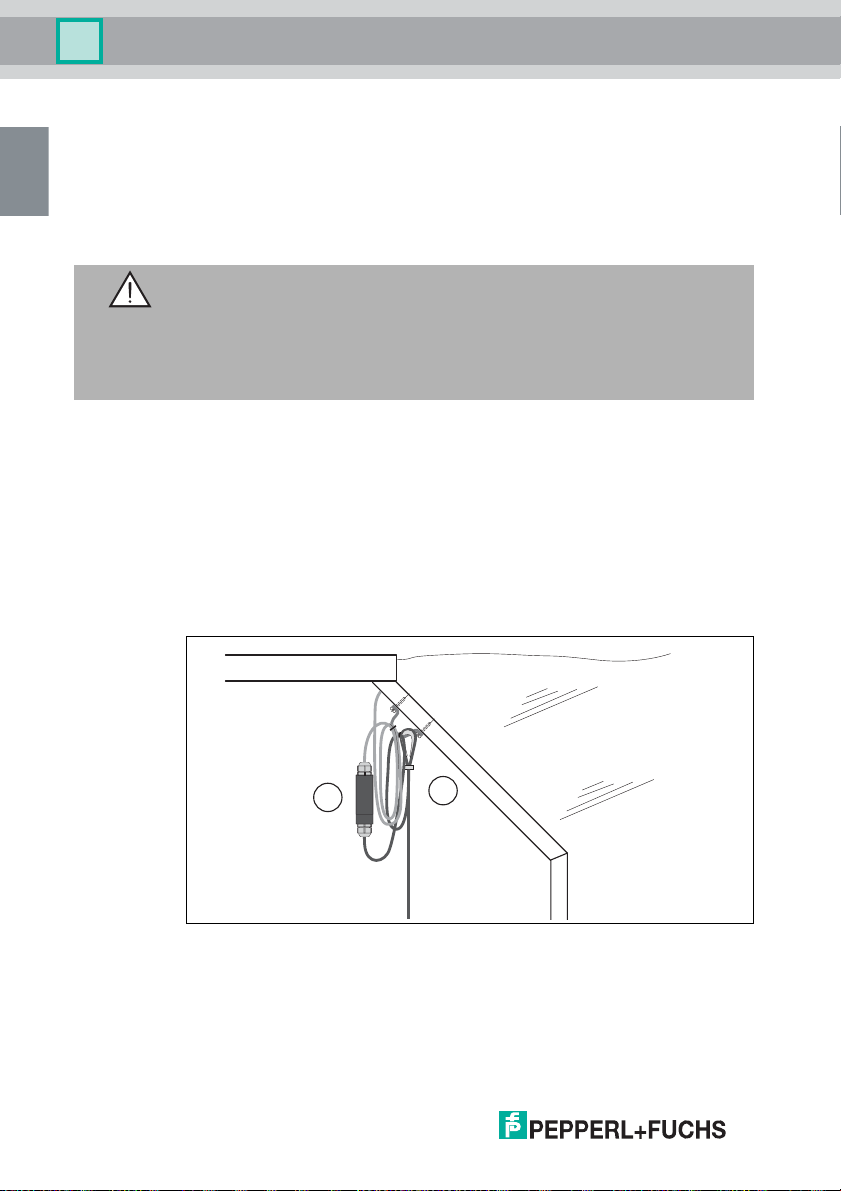

Figure 3.1 Mounting using cable connector and mounting set
Warning!
Risk of short circuit
Injuries and damage to the device are possible when working with live parts.
■Before working on the device, always disconnect the supply voltage.
■Connect the device to the supply voltage only after completion of the work.
1Mounting set for one sensor NVO5-B
2Cable connector for one sensor LAL-SK2
21

FAT LEVEL SENSOR KVF-F
Installation
236056 2011-04
EN - 9
EN
3.2 Mounting the KVF-F Fat Level Sensor
The sensor must be immersed a few centimeters when the liquid is at its normal
level (water zero line).
The exact immersion depth depends on
■the type of grease interceptor,
■its design,
■its capacity
■and the height of the maximum fat layer thickness.
The sensor must always be immersed in the liquid. The switching point of the
sensor is located between the insulated connecting piece and the top metal
section.
Figure 3.2 Mounting the fat level sensor
1Fat level sensor KVF-F
AAir
BFat, oil, grease (FOG)
CWater
LWater zero line
SSensor switching point
XAlarm limit (maximum fat layer thickness)
L
S
B
C
A
1
X

236056 2011-04
10 - EN
FAT LEVEL SENSOR KVF-F
Installation
EN
3.3 Connection of the Sensor
Read the chapter on Safety and, in particular, the section on Installation and
Commissioning (see chapter 1.6) before connecting the sensor.
Take care not to reverse the polarity when connecting the sensor cable. The loop
resistance of the extension cable should not exceed 20 Ωfor the sensors.
For extending the sensor cable, use cable connector LAL-SK2.
Warning!
Risk of short circuit
Injuries and damage to the device are possible when working with live parts.
■Before working on the device, always disconnect the supply voltage.
■Connect the device to the supply voltage only after completion of the work.
Note!
Avoid installing sensor cables parallel to other cables that may transmit interfering
signals, which impair the sensor signal and thus the alarm function. Use
unshielded 2-wire cable for each sensor.
To ensure perfect operation of the warning device, do not exceed:
■the max. cable length of 190 m with a cross-section of 0.75 mm2.
■the max. cable length of 250 m with a cross-section of 1 mm2.
Note!
Further information on connection of the sensors to the warning device is
available in the manual of the warning device NVD-111.

FAT LEVEL SENSOR KVF-F
Operation
236056 2011-04
EN - 11
EN
4Operation
4.1 Emptying (Disposal) of the Container
The sensor is a sensitive component. Therefore always observe the following
safety information during emptying (disposal):
Caution!
Malfunction or damage through mechanical stress of the sensor.
In case of nonobservance, the safety and operation of the sensor or the entire
alarm system is not guaranteed.
■Before emptying (disposal) the grease interceptor, remove the sensor from
the container.
■Protect the sensor against impacts, knocks and unnecessary tensile forces in
the cable.
■Insert the sensor in the grease interceptor only after it has been filled.

236056 2011-04
12 - EN
FAT LEVEL SENSOR KVF-F
Maintenance and Repair
EN
5 Maintenance and Repair
5.1 Function Testing
Test frequency
The sensor is maintenance-free. However, to guarantee perfect operation of the
complete alarm system check the operation of the sensor at least once a year, or
more frequently in the event of unfavorable environmental conditions.
Checking the normal status
1. Switch DIP switch 1 to position OFF.
2. Remove the sensor from the grease interceptor.
3. Wash and dry the sensor.
4. Hold the sensor in your hand (no gloves). Only touch the upper and lower
metal section ( see Figure 2.1 on page 7) or
5. Immerse the sensor in water.
The green "SYSTEM OK" LED on the warning device flashes or lights up.
Checking the alarm situation
1. Switch DIP switch 1 to position OFF.
2. Suspend the fat level sensor freely in air.
The red "FAT LAYER ALARM" LED lights and, if applicable, an acoustic
signal sounds.
Note!
Further information on connection of the sensors to the warning device is
available in the manual of the warning device NVD-111.

FAT LEVEL SENSOR KVF-F
Troubleshooting
236056 2011-04
EN - 13
EN
6Troubleshooting
6.1 System Care
Dirty sensors may trigger false alarms. Clean the sensor at least once a year. Pay
particular attention to cleaning the sensor tips of all oil, fat and other dirt residues
using a degreasing agent.

236056 2011-04
14 - EN
FAT LEVEL SENSOR KVF-F
Technical Specifications
EN
7 Technical Specifications
7.1 Fat Level Sensor KVF-F
Power supply
Rated voltage 13 V DC
Ambient conditions
Ambient temperature -20 °C…60 °C (253 K …333 K)
Mechanical specifications
Protection degree IP68
Connection cable
Material stainless steel
Cable 5m
Mass approx. 520 g
Dimensions ∅31.6 mm x 138 mm

FETTSCHICHTSENSOR KVF-F
Inhalt
236056 2011-04
DE - 1
DE
1 Sicherheit ............................................................................ 2
1.1 Allgemeine Sicherheitshinweise....................................................................2
1.2 Verwendete Symbole....................................................................................2
1.3 Konformitätserklärung...................................................................................3
1.4 Bestimmungsgemäße Verwendung..............................................................3
1.5 Lieferung, Transport und Lagerung ...............................................................4
1.6 Installation und Inbetriebnahme ....................................................................4
1.7 Wartung ........................................................................................................4
1.8 Reparatur......................................................................................................5
1.9 Entsorgung ...................................................................................................5
1.10 Angewandte Normen und Richtlinien............................................................5
2 Produktspezifikationen...................................................... 6
2.1 Funktion ........................................................................................................6
2.2 Produktprogramm .........................................................................................6
2.3 Aufbau und Abmessungen............................................................................7
3 Installation........................................................................... 8
3.1 Montage der Sensoren in der Fettabscheideranlage.....................................8
3.2 Montage des Fettschichtsensors KVF-F .......................................................9
3.3 Anschluss des Sensors...............................................................................10
4 Betrieb ............................................................................... 11
4.1 Entleeren (Entsorgen) des Behälters ..........................................................11
5 Wartung und Reparatur ................................................... 12
5.1 Funktionsprüfung ........................................................................................12
6 Störungsbeseitigung........................................................ 13
6.1 Anlagenpflege.............................................................................................13
7 Technische Daten ............................................................. 14
7.1 Fettschichtsensor KVF-F.............................................................................14

236056 2011-04
2 - DE
FETTSCHICHTSENSOR KVF-F
Sicherheit
DE
1Sicherheit
1.1 Allgemeine Sicherheitshinweise
Die Verantwortung hinsichtlich Planung, Montage, Inbetriebnahme, Betrieb,
Wartung und Demontage liegt beim Betreiber der Anlage.
Die Installation und Inbetriebnahme aller Geräte darf nur durch eingewiesenes
Fachpersonal durchgeführt werden.
Der Schutz von Betriebspersonal und Anlage ist nicht gewährleistet, wenn die
Baugruppe nicht entsprechend ihrer bestimmungsgemäßen Verwendung
eingesetzt wird.
Die für die Verwendung bzw. den geplanten Einsatzzweck zutreffenden Gesetze
bzw. Richtlinien müssen beachtet werden. Die Geräte sind nur für eine
sachgerechte und bestimmungsgemäße Verwendung zugelassen. Bei
Zuwiderhandlung erlischt jegliche Garantie und Herstellerverantwortung.
Die entsprechenden Datenblätter, Konformitätserklärungen und/oder
EG-Baumusterprüfbescheinigungen sind ein integraler Bestandteil dieses
Dokumentes. Das Datenblatt enthält die elektrischen Daten der
EG-Baumusterprüfbescheinigung.
Diese Dokumente finden Sie auf www.pepperl-fuchs.com oder wenden Sie sich
an Ihren lokalen Pepperl+Fuchs-Vertreter.
1.2 Verwendete Symbole
Sicherheitsrelevante Symbole
Ge f a h r !
Dieses Symbol kennzeichnet eine unmittelbar drohende Gefahr.
Bei Nichtbeachten drohen Personenschäden bis hin zum Tod.
Warnung!
Dieses Zeichen warnt vor einer möglichen Störung oder Gefahr.
Bei Nichtbeachten drohen Personenschäden oder schwerste Sachschäden.
Vorsicht!
Dieses Zeichen warnt vor einer möglichen Störung.
Bei Nichtbeachten können Geräte oder daran angeschlossene Systeme und
Anlagen bis hin zur völligen Fehlfunktion gestört werden.

FETTSCHICHTSENSOR KVF-F
Sicherheit
236056 2011-04
DE - 3
DE
Informative Symbole
Handlungsanweisung
Dieses Symbol markiert eine Handlungsanweisung.
1.3 Konformitätserklärung
Alle Produkte wurden unter Beachtung geltender europäischer Normen und
Richtlinien entwickelt und gefertigt.
Der Hersteller des Produktes, die Pepperl+Fuchs GmbH in 68307 Mannheim,
besitzt ein zertifiziertes Qualitätssicherungssystem gemäß ISO 9001.
1.4 Bestimmungsgemäße Verwendung
Der Fettschichtsensor KVF-F (nachfolgend Sensor genannt) ist ein Hängesensor
zur Überwachung der Fettschichtdicke in Fettabscheideranlagen.
Der Sensor muss immer an eine Warnanlage des Typs NVD-111 angeschlossen
werden (siehe Produktprogramm).
1.4.1 Kennzeichnung
Hinweis!
Dieses Zeichen macht auf eine wichtige Information aufmerksam.
Hinweis!
Eine Konformitätserklärung kann beim Hersteller angefordert werden.
ISO9001
Fettschichtsensor
Pepperl+Fuchs GmbH
Lilienthalstraße 200, 68307 Mannheim, Germany
KVF-F

236056 2011-04
4 - DE
FETTSCHICHTSENSOR KVF-F
Sicherheit
DE
1.5 Lieferung, Transport und Lagerung
Überprüfen Sie Verpackung und Inhalt auf Beschädigung.
Überprüfen Sie den Lieferumfang auf Vollständigkeit und Richtigkeit.
Bewahren sie die Originalverpackung auf. Das Gerät sollte immer in der
Originalverpackung eingelagert oder transportiert werden.
Lagern sie das Gerät immer in trockener und sauberer Umgebung. Beachten sie
die zulässige Lagertemperatur (siehe Datenblatt).
1.6 Installation und Inbetriebnahme
1.6.1 Installation des Sensors
Der Sensor und die Warnanlage müssen bei Installation und Wartung
spannungsfrei sein. Erst nach kompletter Montage und Anschluss der Sensoren
darf die Warnanlage an die Versorgungsspannung angeschlossen werden.
Der Sensor ist in Schutzart IP68 ausgeführt und wetter- und öl-/fettbeständig. Er
kann deshalb in Fettabscheideranlagen installiert werden.
Beachten Sie bei der Installation des Sensors in Fettabscheideranlagen die
zulässige Umgebungstemperatur im Bereich von -20 °C...60°C
(253 K ... 333 K).
1.6.2 Sensorkabel
Sensorkabel dürfen nicht in Kabel- oder Leiterbündeln gemeinsam mit anderen
Stromkreisen verlegt werden. Vermeiden Sie, das Sensorkabel parallel mit
anderen Kabeln zu verlegen, von denen Störsignale ausgehen können, die das
Sensorsignal und damit die Alarmfunktion beeinträchtigen. Der Sensor selbst
darf nicht geerdet werden.
Wenn Sie das Sensorkabel verlängern, beachten Sie die geltenden Vorschriften
bezgl. Farbe, Qualität, Beständigkeit. Verwenden Sie ungeschirmtes Kabel.
1.7 Wartung
Für den Betrieb von Fettabscheideranlagen können Normen, Richtlinien oder
Gesetze vorliegen, die Forderungen nach regelmäßigen Systemprüfungen oder
Sensorprüfungen festlegen. Prüfen Sie die Funktion des Sensors mindestens
zweimal jährlich, unter erschwerten Umgebungsbedingungen öfter.
Der Sensor ist beim Entleeren (Entsorgen) der Fettabscheideranlage immer zu
waschen und zu trocknen. Der Sensor darf dabei nicht mit ätzenden Flüssigkeiten
gereinigt werden. Ein stark verschmutzter Sensor kann Fehlalarm auslösen oder
unter Umständen keinen Alarm auslösen.
