Pepperl+Fuchs EI-0D2-10Y-10B User manual

ETHERNET ISOLATOR
EI-0D2-10Y-10B
PROCESS AUTOMATION
MANUAL

With regard to the supply of products, the current issue of the following document is appli-
cable: The General Terms of Delivery for Products and Services of the Electrical Industry,
published by the Central Association of the Electrical Industry (Zentralverband Elektrotech-
nik und Elektroindustrie (ZVEI) e.V.) in its most recent version as well as the supplementary
clause: "Expanded reservation of proprietorship"
ETHERNET ISOLATOR

3
ETHERNET ISOLATOR
1 Safety ........................................................................... 5
1.1 General .......................................................................................................5
1.2 Used Symbols............................................................................................5
1.3 Declaration of Conformity ........................................................................6
1.4 Intended Use..............................................................................................6
1.4.1 Marking........................................................................................................7
1.5 Non-Intended Use......................................................................................7
1.6 Installation and Commissioning ..............................................................7
1.6.1 Requirements for installation within Zone 2 ................................................7
1.6.2 Installation in connection with intrinsically safe power circuits ....................7
1.6.3 Intrinsically Safe Wiring and Cable Parameter............................................8
1.6.4 Special Requirements at Low Ambient Temperatures ................................8
1.7 Transport, Storage and Service ..............................................................8
1.8 Disposal .....................................................................................................8
2 Product Specifications ............................................... 9
2.1 Function .....................................................................................................9
2.2 Typical Applications................................................................................10
2.3 Component Overview and Dimensions................................................. 11
2.4 Technical Data EI-0D2-10Y-10B..............................................................12
3 Installation and Commissioning.............................. 13
3.1 Mounting ..................................................................................................13

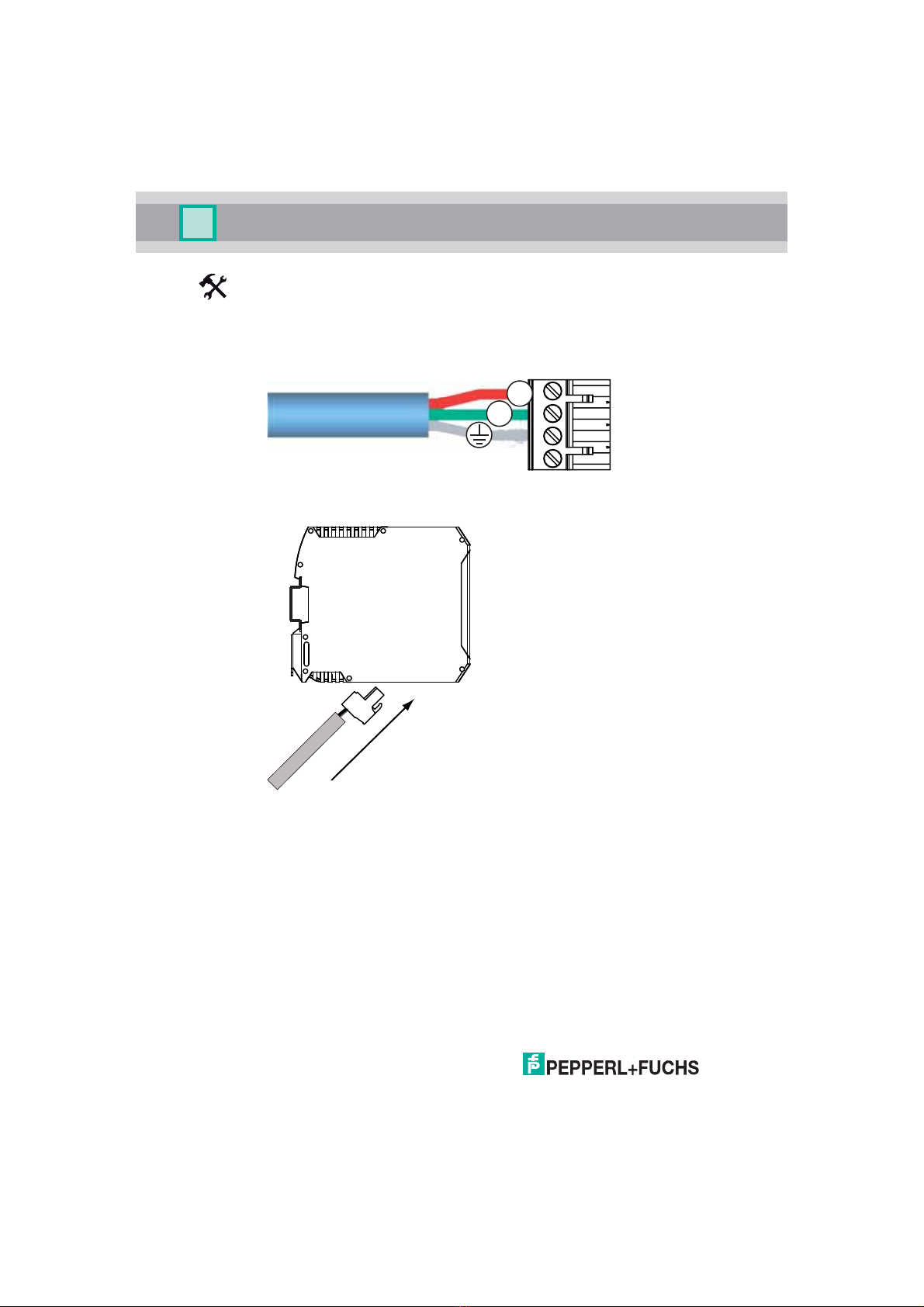

3.2 Power Supply and Ethernet Wiring........................................................13

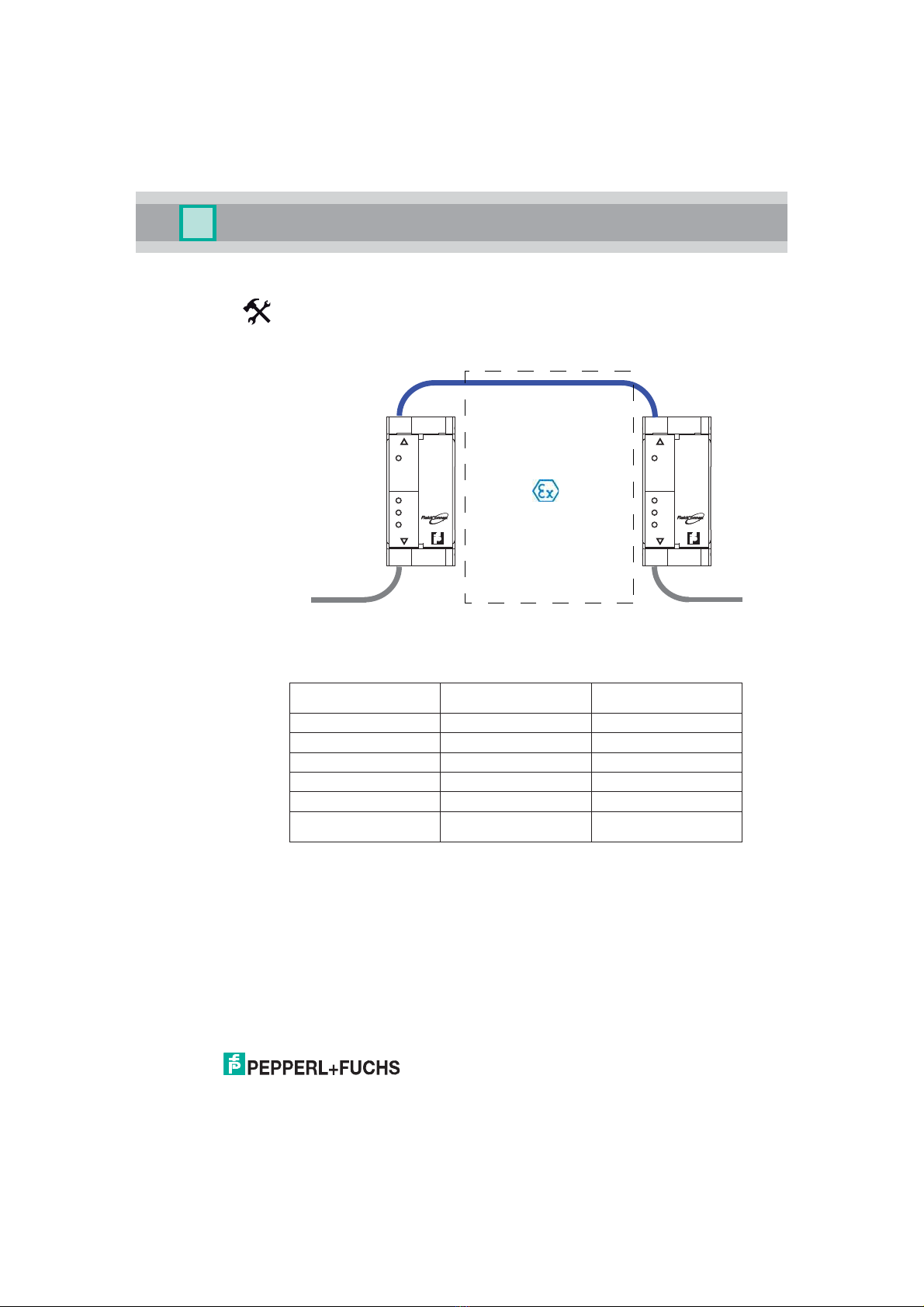

3.2.1 Ethernet Cabel Overview for Interconnection............................................15

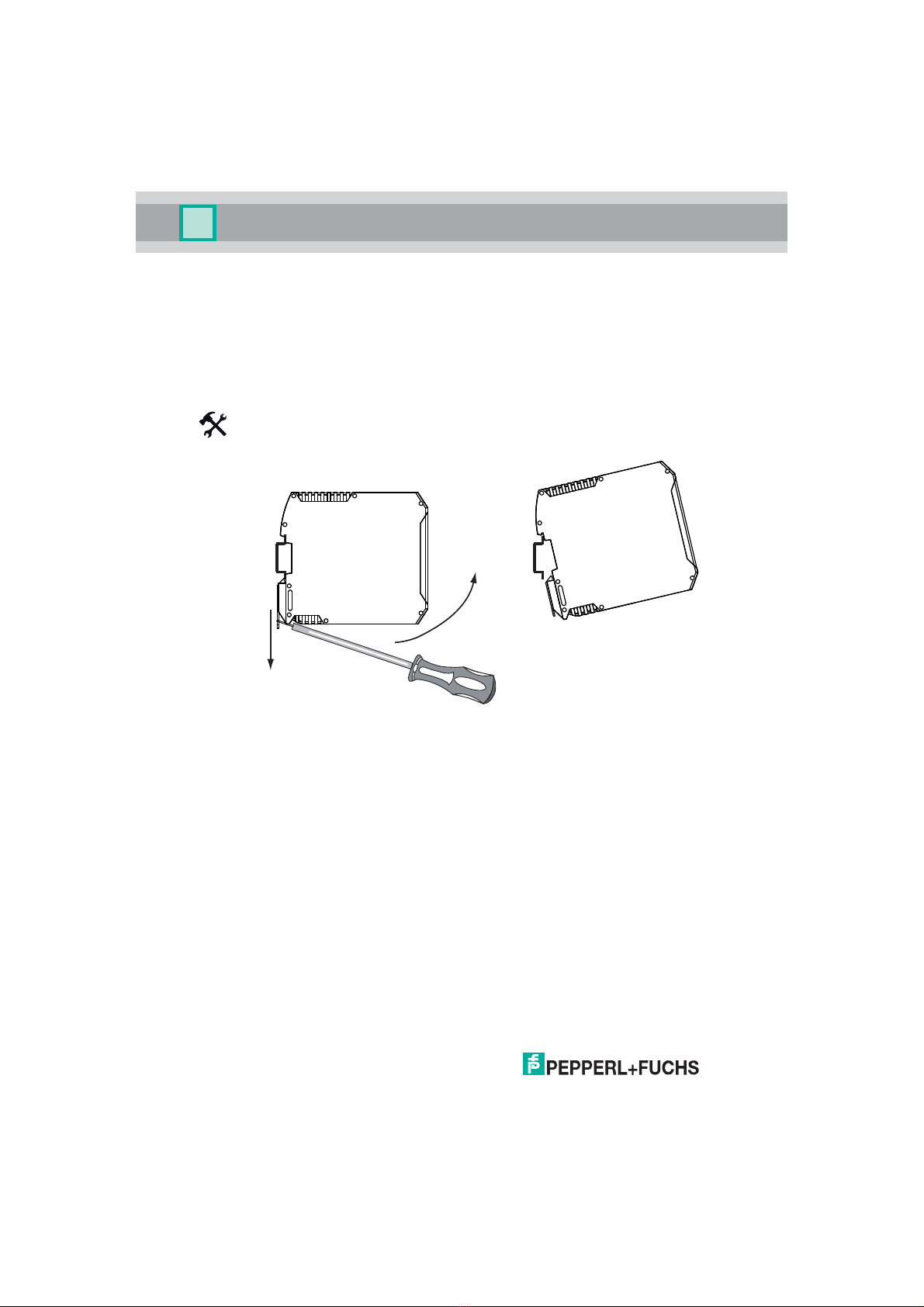

3.3 Demounting..............................................................................................16
4 Operation ................................................................... 17
4.1 LED Indication and Basic Troubleshooting ..........................................17

4
ETHERNET ISOLATOR
5 Electromagnetic Compatibility Verification in
Accordance with EC Council Legislation Directive
89/336/EEC18

ETHERNET ISOLATOR
Safety
201116 2009-01
5
1 Safety
1.1 General
The operator of the system is responsible in terms of planning, mounting, commissioning,
operating and maintenance.
Installation and commissioning of all devices must be performed by a trained professional only.
Protection of operating personnel and the system is not ensured if the product is not used in
accordance with its intended purpose.
Laws and regulations applicable to the usage or planned purpose of usage must be observed.
Devices are only approved for proper usage in accordance with intended purpose. Improper
handling will result in voiding of any warrantee or manufacturer's responsibility.
The Declaration of Conformity, Certificate of Compliance, Statement of Conformity, EC-type-
examination certificate and data sheets are an integral part of this document.
The data sheet contains the electrical data of the Declaration of Conformity, the Certificate of
Compliance and the EC-type-examination certificate.
The documents mentioned are available from http://www.pepperl-fuchs.com or contact your
local Pepperl+Fuchs representative.
1.2 Used Symbols
Safety-relevant Symbols
Danger!
This symbol indicates a warning about a possible danger.
In the event the warning is ignored, the consequences may range from personal injury to death.
Warning!
This symbol indicates a warning about a possible fault or danger.
In the event the warning is ignored, the consequences may course personal injury or heaviest
property damage.
Caution!
This symbol warns of a possible fault.
Failure to observe the instructions given in this warning may result in the devices and any
connected facilities or systems develop a fault or fail completely.

201116 2009-01
6
ETHERNET ISOLATOR
Safety
Informative Symbols
Action
This symbol marks an acting paragraph.
1.3 Declaration of Conformity
All products have been developed and manufactured taking into consideration applicable
European standards and regulations.
The manufacturer of this product, Pepperl+Fuchs GmbH in D-68301 Mannheim, Germany, has
a certified quality assurance system in conformity with ISO 9001.
1.4 Intended Use
The Ethernet Isolator is used to generate a galvanically isolated intrinsically safe Ethernet
signal from a non-intrinsically safe Ethernet signal. It may be used to lead a standard Ethernet
cable through a hazardous Zone 0 or Zone 1 area. For bridging the intrinsically Ethernet line
through a hazardous area one Ethernet Isolator has to be used at each end.
The device is designed for mounting on a 35-mm DIN rail according to DIN EN 60 715.
The device is constructed to satisfy the IP20 protection classification and must be protected
accordingly from adverse environmental such as water spray or dirt exceeding the pollution
severity level 2.
Note!
This symbol brings important information to your attention.
Note!
A Declaration of Conformity can be requested from the manufacturer.
ISO9001

ETHERNET ISOLATOR
Safety
201116 2009-01
7
1.4.1 Marking
The modules are product-specifically marked with:
1.5 Non-Intended Use
The Ethernet Isolators are not intended to be used for series connections of more than two
Ethernet Isolators.
1.6 Installation and Commissioning
1.6.1 Requirements for installation within Zone 2
The device must be mounted for installation in the hazardous area in category 3G / Zone 2 in a
housing which corresponds at least to protection class IP 54 per EN 60529 and which is
suitable for this type of installation.
The connection and disconnection of non-power-limited circuits carrying current is permitted
only during installation or maintenance, or for purposes of repair.
Devices being operated in connection with hazardous areas may not be changed or
manipulated. If there is a defect, the product must always be replaced with an original part.
If devices have been operated in general electrical systems, they must not subsequently be
operated in electrical systems related to explosive areas.
1.6.2 Installation in connection with intrinsically safe power circuits
The EC-type-examination certificate should be observed as first concern. It is especially
important to observe the "special conditions for safe use" as far as contained in the certificate.
The installation of the intrinsically safe circuits has to be conducted in accordance with the
relevant installation regulations particularly EN 60079-14 / IEC 60079-14.
Connect only devices that are approved by EC-type-examination certificate of the Ethernet
Isolator for this kind of use, to the I.S. port of the Ethernet Isolator.
If devices have been operated in general electrical systems, they must not subsequently be
operated in electrical systems related to explosive areas.
EI-0D2-10Y-10B
Pepperl+Fuchs GmbH
68301 Mannheim/Germany
Ethernet Isolator
EI-0D2-10Y-10B
PTB 07 ATEX 2025 X
II (1) GD [Ex ia] IIB
II 3 (1GD) G Ex nA [ia IIB] II T4

201116 2009-01
8
ETHERNET ISOLATOR
Safety
1.6.3 Intrinsically Safe Wiring and Cable Parameter
Only Ethernet cables which meet the requirements of the EC-type-examination certificate must
be connected to the I.S. port of the Ethernet Isolator.
Special care must be taken about the inductance / resistance-ratio (H/:) of the used Ethernet
cable, because this value is an indicator for the stored energy within the cable (see chapter
2.4).
The length of the I.S. cable between the two Ethernet Isolators may not ecxeed 100m.
The shield contact of the intrinsically safe port is connected to the shield contact of the non-
intrinsically safe port and the power supply connection within the Ethernet Isolator.
1.6.4 Special Requirements at Low Ambient Temperatures
At an ambient temperature of -40°C to -25°C the Ethernet interface contacts (RJ45) of the
device must not be plugged or un-plugged or mechanically stressed in any other way.
1.7 Transport, Storage and Service
In case of defect, the device must be removed and replaced with a new one.
Store all devices in a clean and dry environment.
1.8 Disposal
Disposal of devices and their packaging material must be performed in compliance with the
applicable laws and guidelines of the corresponding country.
The devices do not contain batteries which need to be disposed of separately from the
products.

ETHERNET ISOLATOR
Product Specifications
201116 2009-01
9
2 Product Specifications
2.1 Function
The Ethernet Isolator may be installed within the safe area and the Zone 2 hazardous area. As
an associated apparatus it is certified to lead intrinsically safe instrumentation into Zone 0 and
Zone 1 hazardous areas. It is a one-to-one data connector with automatic speed detection.
Data is passed through without buffering.
The Ethernet Isolator can be used for any Ethernet-based application. This includes current
and future PROFINET and FF HSE installations. This intrinsically safe solution is well suited
for:
• mobile machinery and equipment in harsh environments
• assemblies that are often removed, replaced or reworked
• where cable breakage is a risk
The intrinsically safe energy limitation eliminates any need for protected installation.
Intrinsically safe Ethernet can be connected and disconnected during normal plant operation
without requiring a hot work permit.
The galvanic isolation eliminates the need for equipotential bonding between the safe area and
the hazardous area. Significant cost savings are realized through reduced installation material
and effort.
The internal design of the Ethernet Isolator includes a galvanically isolating fibre optic bridge
and a voltage and current limiting circuit. Additionally it is following the stringent requirements
for energy-efficient design and low heat dissipation leading to reduced cooling requirements
and if necessary highest packing density in the installation cabinet or equipment.

201116 2009-01
10
ETHERNET ISOLATOR
Product Specifications

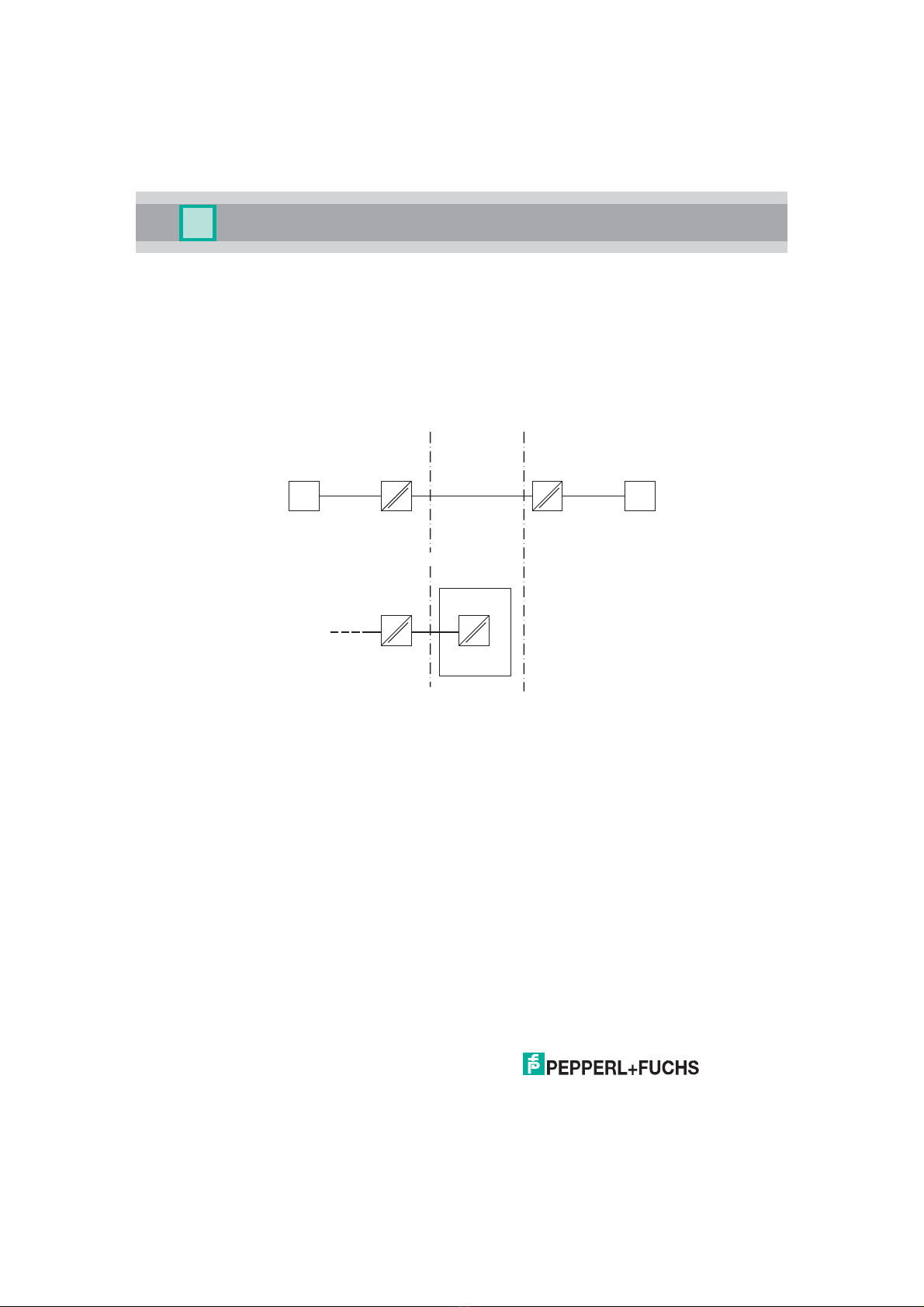

2.2 Typical Applications
The figure below (view Figure 2.1 on page 10) shows the typical usage of Ethernet Isolators
within an Ethernet network. Using standard Ethernet cable (for cable parameters see chapter
2.4) and hardware, an up to 100 m long intrinsically safe connection can be established to
connect the hazardous area and the network in the safe area. It is also a fast and easy way to
bridge the Ethernet network through a Zone 0 or Zone 1 hazardous area. One Ethernet Isolator
is required at each end of the intrinsically safe line.
The Ethernet Isolator requires a 24 VDC power supply.
Non-
Intrinsically
safe
Non-ExNon-Ex
Ethernet
Switch
Non-
Intrinsically
safe
Ethernet
Switch
Intrinsically
safe
Enclosure
Ex
Ethernet
Isolator
Ethernet
Isolator
Ex d
Ethernet
Isolator
Ethernet
Isolator

ETHERNET ISOLATOR
Product Specifications
201116 2009-01
11

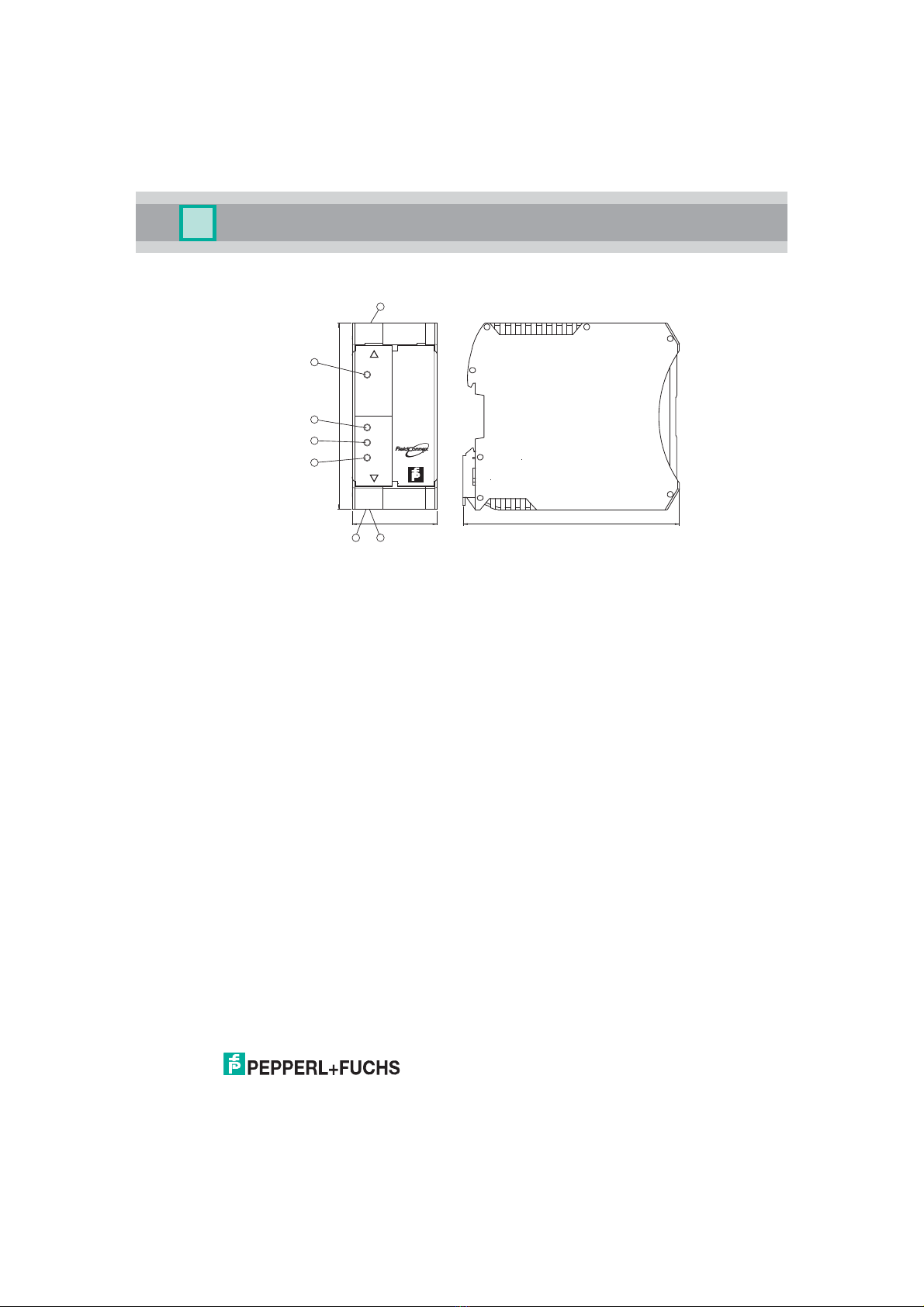

2.3 Component Overview and Dimensions
All dimensions in millimeters (mm) and inch ('') without tolerance indication
1LED Communication active intrinsically safe port
2LED Power
3LED Transfer rate
4LED Communication active non-intrinsically safe port
5Intrinsically safe connector female
6Non-Intrinsically safe connector female
7Power supply connection
Non-I.S. Port
I.S. Port
ACT
10/100
ACT
PWR
Ethernet
Isolator
10BASE-T/
100BASE-TX
®
2
1
3
4
5
7
6
99 (3.9")
45 (1.8") 114 (4.5")

201116 2009-01
12
ETHERNET ISOLATOR
Product Specifications
2.4 Technical Data EI-0D2-10Y-10B
Power supply
Ethernet Interface
Ambient conditions
Mechanical specifications
Rated voltage 19.2 ... 35 V
Rated current 150 ... 100 mA
Power loss 3 W
Intrinsically safe port 10 BASE-T/100 BASE-TX
Non-intrinsically safe port 10 BASE-T/100 BASE-TX
Connention type 2 x RJ-45 , IEC 60603-7
Connector pinout Connector, female; TIA/EIA-568-B
Transfer rate 10/100 MBit/s , Auto-Negotiation
Operating mode Half/Full Duplex
Cable type Cat5e S/FTP AWG 24, Installation cable,
L/R ratio max. 10 μH/:of all strand combinations
Total cable length 10 MBit/s: typ. 100 m / 20 °C
100 MBit/s: typ. 200 m / 20 °C
Number of isolators max. 2 in series connection
Ambient temperature -40 ... 60 °C
Storage temperature -40 ... 85 °C
Relative humidity d95 % non-condensing
Shock resistance 15 g 11 ms
Vibration resistance 1 g 10 ... 150 Hz
Degree of soiling max. 2, according to IEC 60664
Connection type terminals
Core cross-section up to 2.5 mm²
Housing material Polyamide PA 66
Protection degree IP 20 according to EN 60529
Mass 195 g
Mounting DIN rail mounting

ETHERNET ISOLATOR
Installation and Commissioning
201116 2009-01
13
3 Installation and Commissioning
3.1 Mounting
Read the chapter on Safety and, in particular, the section on Installation and Commissioning
(see chapter 1.6) before installing the device.
DIN-Rail Mounting of the Ethernet Isolator
Snap the device onto the DIN rail as follows:
3.2 Power Supply and Ethernet Wiring
Additional information about auto crossover
The Ethernet Isolator does not support auto crossover functionality. Therefore connection
problems may happen if the Ethernet Isolator is installed between two devices with activated
auto crossover function. In general the deactivation of the auto crossover function at one
device solves the problem. In certain cases you have to switch off auto crossover at both sides.
To prevent those connection problems Pepperl+Fuchs recommends a fixed setup of the
transfer polarity.
Additonal information about signal attenuation
Because of derating effects at raising ambient temperatures the max. posible Ethernet cable
length may be reduced by 0.3 –0.4 m per °C depending on the cable quality and signal
attenuation (refer to the specifications of the cable manufacturer).
Click!
Warning!
Risk of short circuit
Injuries and damage to the device are possible when working with live parts.
• Before working on the device, always disconnect the supply voltage.
• Connect the device to the supply voltage only after completion of the work.

201116 2009-01
14
ETHERNET ISOLATOR
Installation and Commissioning
Power Supply Wiring
The easiest way to connect the power supply to the Ethernet Isolator is to prepare the cabling
first on the removed connector plug and to plug it to the device afterwards.
1. Remove the power supply connector plug from the bottom side of the Ethernet Isolator.
2. Plug and screw the leads to the connector plug like follows:
3. Then hook up the wired connector plug into the power supply socket of the Ethernet
Isolator.
+
-

ETHERNET ISOLATOR
Installation and Commissioning
201116 2009-01
15
Ethernet Wiring
1. Plug in the standard, non-specific Ethernet cable into the non-I.S.-ports of the device.
2. Now interconnect the two Ethernet Isolators by plugging in an Ethernet cable into both I.S.-
ports of the devices.
3.2.1 Ethernet Cabel Overview for Interconnection
The cross-table below gives a general idea which Ethernet cable has to be used for
interconnection of two Ethernet Isolators or an Ethernet Isolator to another device.
General Information about Standard Ethernet Patch and Crossover Cables
The TIA/EIA-568-B Ethernet connector specification defines two types of pin assignment for an
Ethernet cable. The standard Ethernet patch cable is a straight through connection of where
both RJ45 ends wired the same. The Ethernet crossover cable has the RX and TX pairs
switched between the end terminals.
Non-I.S. Port
I.S. Port
ACT
10/100
ACT
PWR
Ethernet
Isolator
10BASE-T/
100BASE-TX
®
Non-I.S. Port
I.S. Port
ACT
10/100
ACT
PWR
Ethernet
Isolator
10BASE-T/
100BASE-TX
®
Ethernet Isolator I.S.-port Ethernet Isolator non-I.S.-
port
Ethernet Isolator I.S.-port Crossover cable not allowed
Switched standard-port not allowed Crossover cable
Switch uplink-port not allowed Standard patch cable
Notebook not allowed Standard patch cable
Workstation not allowed Standard patch cable
Device with auto-crossover
functionality
not allowed Standard patch cable

201116 2009-01
16
ETHERNET ISOLATOR
Installation and Commissioning
In order to guarantee the communication across the cable the transmit signal of terminal device
A has to connect to the receive port of terminal device B and vice versa. The signal has to be
crossed at least once in a connection. A switched hub (switch) typically performs signal
crossing internally and this is why a standard Ethernet patch cable is to be used to connect to
another non-crossing device as well if a device supports an auto-crossover detection function.
The crossover cable on the other hand is used when connecting two devices that do either both
not cross or do both cross the signals. In this case the crossover must be done externally.
3.3 Demounting
Demounting from the DIN-Rail
Use a screw driver to loose the fixing trap and remove the module from the DIN rail.

ETHERNET ISOLATOR
Operation
201116 2009-01
17
4 Operation
4.1 LED Indication and Basic Troubleshooting
LED Indication Meaning Help
PWR Eternet Isolator active and
powered
PWR Ethernet Isolator not
powered
Check power supply and
wiring
Device defect Send the device to
Pepperl+Fuchs
PWR
10/100
Eternet Isolator active
Ethernet transfer rate 10
Mbit/s
PWR
10/100
Eternet Isolator active
Ethernet transfer rate 100
Mbit/s
PWR
I.S. Port Act
Non-I.S. Port Act
Eternet Isolator active
I.S. Port is receiving data
PWR
I.S. Port Act
Non-I.S. Port Act
Eternet Isolator active
Non-I.S. Port is receiving
data

201116 2009-01
18
ETHERNET ISOLATOR
Electromagnetic Compatibility Verification in Accordance with EC Council Legislation
5 Electromagnetic Compatibility Verification in Accordance
with EC Council Legislation Directive 89/336/EEC
Compatibility in accordance with EN 61326
The electromagnetic compatibility –EMC –requirements applicable for electrical equipment for
measurement, control and laboratory use in general are anchored in the European Standard
EN 61326. Three different categories of device performances are distinguished:
A category A device –operates as intended during the test. This device can withstand the
immunity tests without any noticeable performance degradations within the specification limits
of the manufacturer.
A category Bdevice –operates as intended after the test. The device shows temporary
degradation or loss of function of performance during the test but self-recovers from that state
when the exposures are ceased.
A category Cdevice –has loss of function, may need manual restoration. During the test a
temporary loss of function is allowed as long as an operator can restore the device back to
operation.
Conducted EMC tests:
Immunity
Emission
Result Category Standard Immunity Type
Passed A* EN 61000-4-2 Electrostatic
discharge
Direct contact
Passed A* EN 61000-4-2 Electrostatic
discharge
Indirect air
Passed A EN 61000-4-3 Electro-
magnetic field
Radiated, radio
frequency
Passed A* EN 61000-4-4 Fast transients Burst
Passed A EN 61000-4-5 Slow transients Surge
Passed B EN 61000-4-6 Electro-
magnetic field
Conducted,
radio frequency
*EN 61326 just demands Category B here, but NAMUR NE 21 recommends Category A
Result Level Standard Emission Type
Passed Class A EN 55011 Electro-
magnetic field
Radiated
Passed Class A EN 55011 Electro-
magnetic field
Conducted

ETHERNET ISOLATOR
Electromagnetic Compatibility Verification in Accordance with EC Council Legislation
201116 2009-01
19
Compatibility in accordance with NAMUR NE 21
Compared to EN 61326, the NE 21 of the international user association of automation
technology for process industries NAMUR recommends passing category level A for ESD and
Burst.
In general category A conformity has a lasting effect on increasing the application’s availability
just in case and is an everlasting argument for the product’s quality. Conformity to a lower
category will become a limiting factor on the overall performance of the whole installation.
Especially for wired communications technology this leads to:
• increased number of immediate transmission retries
• retries at upper protocol level
• prolonged overall data transfer time
• dead times in control cycles
• control loops oscillating due to missing telegrams
In comparison category A conformity gives you:
• stable and less distorted signal quality
• least impact on communication signal
• no unnecessary telegram re-transmissions
• constant throughput and guaranteed deterministic timings

Subject to modifications
Copyright PEPPERL+FUCHS • Printed in Germany
www.pepperl-fuchs.com
Worldwide Headquarters
Pepperl+Fuchs GmbH
68307 Mannheim · Germany
Tel. [phone]
E-mail: [email protected]
For the Pepperl+Fuchs representative
closest to you check www.pepperl-fuchs.com/pfcontact
PROCESS AUTOMATION –
PROTECTING YOUR PROCESS
201116 / TDOCT-1288B_ENG
01/2009
