H-System – Isolated Barriers and Termination Boards
Introduction
1Introduction
1.1 Content of this Document
This document contains information that you need in order to use your product throughout
the applicable stages of the product life cycle. These can include the following:
• Product identification
• Delivery, transport, and storage
• Mounting and installation
• Commissioning and operation
• Maintenance and repair
• Troubleshooting
• Dismounting
• Disposal
The documentation consists of the following parts:
• Present document
• Instruction manual
•Datasheet
Additionally, the following parts may belong to the documentation, if applicable:
• EU-type examination certificate
• EU declaration of conformity
• Attestation of conformity
• Certificates
• Control drawings
• Additional documents
1.2 Target Group, Personnel
Responsibility for planning, assembly, commissioning, operation, maintenance, and
dismounting lies with the plant operator.
Only appropriately trained and qualified personnel may carry out mounting, installation,
commissioning, operation, maintenance, and dismounting of the product. The personnel must
have read and understood the instruction manual and the further documentation.
Prior to using the product make yourself familiar with it. Read the document carefully.
Note!
This document does not substitute the instruction manual.
Note!
For full information on the product, refer to the instruction manual and further documentation
on the Internet at www.pepperl-fuchs.com.

H-System – Isolated Barriers and Termination Boards
Introduction
2018-08
5
1.3 Symbols Used
This document contains symbols for the identification of warning messages and of informative
messages.
Warning Messages
You will find warning messages, whenever dangers may arise from your actions. It is
mandatory that you observe these warning messages for your personal safety and in order
to avoid property damage.
Depending on the risk level, the warning messages are displayed in descending order as
follows:
Informative Symbols
Action
This symbol indicates a paragraph with instructions. You are prompted to perform an action
or a sequence of actions.
Danger!
This symbol indicates an imminent danger.
Non-observance will result in personal injury or death.
Warning!
This symbol indicates a possible fault or danger.
Non-observance may cause personal injury or serious property damage.
Caution!
This symbol indicates a possible fault.
Non-observance could interrupt the device and any connected systems and plants, or result
in their complete failure.
Note!
This symbol brings important information to your attention.

2018-08
6
H-System – Isolated Barriers and Termination Boards
Product Specifications
2 Product Specifications
2.1 Function
Isolated barriers are used to protect intrinsically safe circuits in explosive areas. In addition
to the required current, voltage and power limitation, the isolated barriers have a galvanic
isolation between the field circuit and the controller.
The H-System isolated barriers are mounted on termination boards. Pre-wiring is possible on
termination boards. To close the signal circuit, the isolated barriers are simply plugged in.
The isolated barriers can be replaced during live operation when the wiring is connected.
Figure 2.1 Generic H-System termination board with isolated barriers
Generic and control system-specific termination boards are available in the H-System.
Termination boards can be adapted to specific input/output requirements. These requirements
can be implemented via
• Various connecting plugs to the controller
• Various terminals to the field device
• A large selection of isolated barriers

H-System – Isolated Barriers and Termination Boards
Product Specifications
2018-08
7
2.2 Isolated Barriers
H-System isolated barriers are available in two different housing widths depending on
the function and application:
• HiC devices with a width of 12.5 mm
• HiD devices with a width of 18 mm
Both versions cover all functions and the interoperability of the H-System.
The pin assignment and terminal designations are consistent for all termination boards.
Each H-System isolated barrier can therefore be mounted in each termination board slot.
• HiC isolated barriers on HiC termination boards
• HiD isolated barriers on HiD termination boards
The termination board can be coded together with the isolated barriers. This prevents
the isolated barriers being mixed up on the termination board. The safety-relevant data for
the connected field devices is backed up.
HiC Device Housing
Figure 2.2 HiC device housing (12.5 mm)
Used for high signal integrity
• Narrow 12.5 mm housing
• Highest packing density with "single-loop integrity"
• For mounting on HiC termination boards
PWR
HiC
2025
1 ch
Transm.
Power
Supply

2018-08
8
H-System – Isolated Barriers and Termination Boards
Product Specifications
HiD Device Housing
Figure 2.3 HiD device housing (18 mm)
Used for high channel density
• Compact 18 mm housing
• Packing density from 4.5 mm per channel
• For mounting on HiD termination boards
HiD
2844
4 ch
Switch
Amplifier
PWR
STATUSFAULT
CH 1
CH 2
CH 4
CH 3

H-System – Isolated Barriers and Termination Boards
Product Specifications
2018-08
9
2.2.1 Color Coding of the Isolated Barriers
The color coding of the devices has the following meaning:
Figure 2.4 Color identification of devices
Digital Input
• Orange identifier (1) for switch amplifiers with a relay output
• Orange identifier (2) and "S" indicator for switch amplifiers, which are used in
combination with the safety sensors SN, S1N
• Blue identifier (3) for switch amplifiers with a transistor output
Digital Output
• Purple identifier (4) for solenoid drivers
Analog Input
• Magenta identifier (5) for transmitter power supplies, measuring transmitters, and
repeaters
• Yellow identifier (6) for temperature converters
Analog Output
• Green identifier (7) for current drivers
Universal
• Red identifier (8) for universal barrier
PWR
HiC
2841
1ch
Switch
Amplifier
CH1
FAULT
STATUS/
PWR
HiC
2851
1ch
Switch
Amplifier
STATUS
FAULT
PWR
HiC
2821
1ch
Switch
Amplifier
CH1
FAULT
STATUS/
PWR
HiC
2025
HiD
2032
2ch
Current
Driver
PWR
ON
HiD
2082
2ch
Tem p e r a t u r e
Converter
PWR
ON
CH1
CH2
FAULTFA ULT
Configuration
Serial
PWR
HiC
2441
1 ch
Transm.
Power
Supply
1 ch
Universal
Barrier
PWR
HiC
2883
1 ch
Solenoid
Driver
OUT
LB/SC
21 3 4 5 6 7 8

2018-08
10
H-System – Isolated Barriers and Termination Boards
Product Specifications
2.2.2 Status Indications of the Isolators
LEDs are often used on isolators to indicate different statuses (e. g. for power supply, device
failure, status messages, binary switching states). Standard LED colors are assigned to the
status indication according to NAMUR NE44.
LED Display function Display Meaning
Green LED Power supply On Power supply OK
Off No power supply or insufficient power supply –
device faulty
Red LED Device fault, device failure On Internal fault signal, failure signal –fault/failure
display of causes detected inside the device,
device needs replacing
Line fault Flashing External fault signal, failure signal –fault/failure
display of causes detected outside the device,
inspection and elimination of fault required
No fault Off No malfunction, device is operating properly
Yellow LED Switching states of binary
inputs and outputs
On Possible causes of the output:
• The relay is energized.
• The NO contact (also a change-over contact)
is actively closed.
• The open collector is switched through.
• The switching voltage generated inside the
device is applied.
Possible causes of the input:
• A binary switching signal is present.
• An analog limit value is reached.
Off Possible causes of the output:
• The relay is de-energized.
• The NO contact (also a change-over contact)
is actively opened.
• The open collector is not switched through.
• The switching voltage generated inside the
device is not applied.
Possible causes of the input:
• A binary switching signal is present.
• An analog limit value is reached.
Table 2.1 Meaning of status indications

H-System – Isolated Barriers and Termination Boards
Product Specifications
2018-08
11
Figure 2.5 Example status indications
2.2.3 Label Carriers
The isolated barriers are fitted with a label carrier ex works for individual identification.
Figure 2.6 Label carrier on the front
1Green LED "PWR"
Power supply status indication
2Yellow LED "STATUS"
Switching state of the output
3Red LED "FAULT"
Lead breakage and short circuit status indication
PWR
STAT US
FAULT
1
2
3
1Label carrier on HiC devices for 35 mm x 10.5 mm labels
2Label carrier on HiD devices for 35 mm x 10.5 mm labels
1 2

2018-08
12
H-System – Isolated Barriers and Termination Boards
Product Specifications
2.3 Termination Boards
Termination boards form the wiring level for field and control signals. The isolated barriers
are mounted on termination boards. The isolated barriers are connected with the field and
control side via the termination boards. Once the isolated barrier is mounted, the signal circuit
between the field and control side is closed.
Figure 2.7 Connection example termination board with 8 slots
Features depending on version
• For HiC or HiD isolated barriers
• With 8, 16, or 32 slots
• For redundant and fused power supply
• For fault monitoring and diagnostics
1Field side connection
2Connection power supply and fault indication output
3Control side connection
4Connection HART communication (if available)
X20
Zone 0, 1, 2
Div. 1, 2
mA
1 2
4
3

H-System – Isolated Barriers and Termination Boards
Product Specifications
2018-08
13
2.3.1 Connection Options
A variety of termination boards is available with different methods of connecting to the field and
control side. Please refer to the documentation for the respective device for the specific
connection layout.
Connecting the Field Side
The field devices can be connected to the termination board with the following connection
options:
Screw terminals

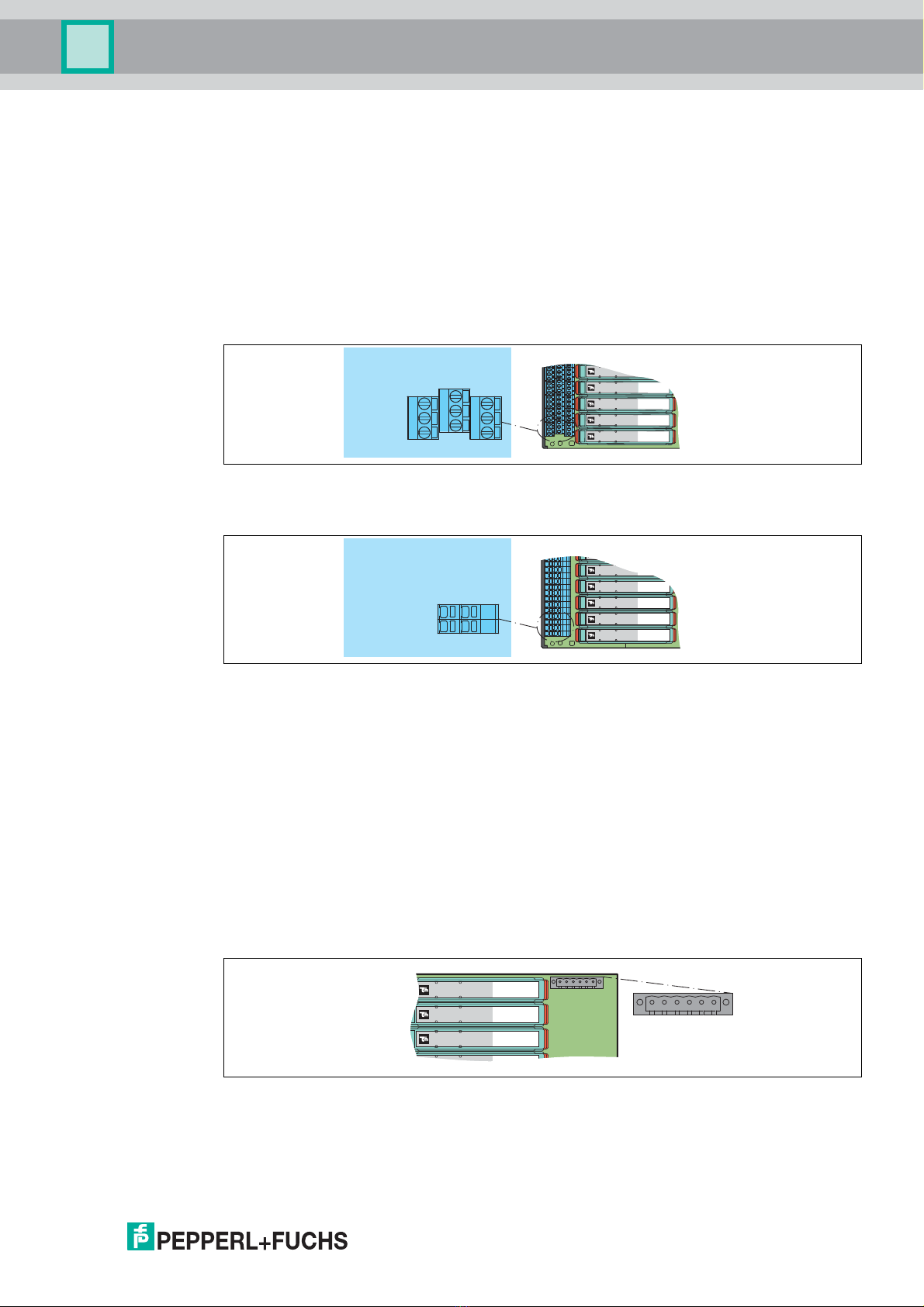

Figure 2.8 Connection example: field-side screw terminals
Spring terminals
Figure 2.9 Connection example: field-side spring terminals
Connecting the power supply and Fault Indication Output
Isolated barriers
The isolated barriers are supplied via the termination board. The isolated barriers are therefore
attached to the termination board.
Te r m i n a t i o n b o a r d s
The termination boards are supplied via screw terminals or spring terminals.
The supply voltage range depends on
• The values used for the isolated barriers
• The voltage drop of the decoupling diodes on the termination board
Figure 2.10 Connection example of power supply and fault indication output
123
456
789
54 21
Fault 24 V DC
561234
--++

2018-08
14
H-System – Isolated Barriers and Termination Boards
Product Specifications
Connecting the Control Side
The termination board on the control side can be connected via the following connection
options:
Screw terminals
Figure 2.11 Connection example: control-side screw terminals
Spring terminals
Figure 2.12 Connection example: control-side spring terminals
Sub-D plug
Figure 2.13 Connection example: control-side Sub-D plugs
Control system-specific plug
Figure 2.14 Connection example: control-side system plugs
131211
161514
191817
1514 1211

H-System – Isolated Barriers and Termination Boards
Product Specifications
2018-08
15
Establishing the HART Communication
Establish the HART communication via HART plug and HART multiplexer.
HART plug
Figure 2.15 Connection via control-side HART plug
HART multiplexer
Figure 2.16 HART multiplexer connection
PWR
HART TXFAULT
OFFON
HiD
Mux
2700
Hart
Note!
See corresponding datasheets for further information.

2018-08
16
H-System – Isolated Barriers and Termination Boards
Product Specifications
2.3.2 Status Indicators of Termination Boards
LEDs are often used on termination boards to indicate different statuses (e. g. for power
supply, device failure, status messages). Standard LED colors are assigned to the status
display according to NAMUR NE 44.
Figure 2.17 Example status indicators
LED Display function Display Meaning
Red LED "FAULT" Device fault On Module fault, module failure
Power supply failure Flashing Power supply failure
Green LED "PWR2" Power supply II On Power supply OK
Off No power
Green LED "PWR1" Power supply I On Power supply OK
Off No power
Table 2.2 Meaning of status indicators
1Red LED "FAULT"
Module fault, module failure, power supply failure
2Green LED "PWR2"
Status indicator power supply II
3Green LED "PWR1"
Status indicator power supply I
1 2 3

H-System – Isolated Barriers and Termination Boards
Product Specifications
2018-08
17
2.3.3 Accessories
Label Carriers for Termination Boards
The termination boards can be fitted with a label carrier for individual identification.
Figure 2.18 Label carrier for termination boards
HART Communication Board
The HART Communication Board is connected to HART-compatible H-
System termination boards. It has one slot to mount a 32-channel HiD Mux2700-type
HART multiplexer master.
Preconfigured HART connection cables enable easy connection between the H-
System termination boards and the HART Communication Board.
The device offers a redundant fused power supply with an LED indicator. The
RS 485 terminals have a redundant configuration and enable simple bridging to the next
bus node.
Figure 2.19 HART Communication Board HiATB01-HART-4x8
1Label carrier HiALC-HiCT*-SET-*** for HiC termination boards
1Label carrier HiALC-HiDT*-SET-*** for HiD-termination boards
1
PWR
HART TXFAULT
OFFON
HiD
Mux
2700
Hart

2018-08
18
H-System – Isolated Barriers and Termination Boards
Product Specifications
Application Example
The following diagram shows a typical example of an application with a
HART Communication Board.
Figure 2.20 H-System topology
2.3.4 DIN Mounting Rail, on the User Side
The termination boards are mounted on a 35 mm DIN mounting rail according to EN 60715.
Figure 2.21 Example: DIN mounting rail (35 mm x 7.5 mm)
1Termination board
2HART Communication Board
3Connection power supply I and II (redundant)
4Connection control side
5Connection HART communication
5Connection fault indication output
PWR
HART TXFAULT
OFFON
HiD
Mux
2700
Hart
1 2
4 3
6
5

H-System – Isolated Barriers and Termination Boards
Mounting and Installation
2018-08
19
3 Mounting and Installation
3.1 Termination Board Mounting
Danger!
Explosion hazard from damaged electronic components
Premature wear of electronic components in a device that was previously used in a general
electrical installation can cause sparks that can ignite the surrounding potentially explosive
atmosphere.
Never install devices that have already been operated in general electrical installations in
electrical installations used in combination with hazardous areas!
Danger!
Explosion hazard from pollution
An excessively polluted surface of the device can become conductive and consequently
ignite a surrounding potentially explosive atmosphere.
Ensure that you install the device only in environments with a pollution degree 2 or better
according to IEC/EN 60664–1.
Warning!
Risk of short circuit
Working on live parts can cause injuries and can compromise the function and the electrical
safety of the device.
• Before working on the device, always disconnect the supply voltage.
• Connect the device to the supply voltage only after completion of the work.

2018-08
20
H-System – Isolated Barriers and Termination Boards
Mounting and Installation
Mounting the Termination Boards
The termination boards are mounted on the 35 mm DIN mounting rail. The DIN mounting rail
runs centrally below the termination board.
1. Clip the termination board (2) onto the DIN mounting rail (1).
2. Tighten the mounting screws (3).
The termination board (2) is now properly mounted and secured.
Figure 3.1 Termination board mounting
Figure 3.2 Termination board fixing
1DIN mounting rail
2Termination board
1DIN mounting rail
2Termination board
3Fastening screws
1
2
1 2 33
