This document contains information that you need in order to use your product
throughout the applicable stages of the product life cycle. These can include the
following:
• Product identification
• Delivery, transport, and storage
• Mounting and installation
• Commissioning and operation
• Maintenance and repair
•Troubleshooting
•Dismounting
•Disposal
The documentation consists of the following parts:
•Presentdocument
• Instruction manual
• Datasheet
Additionally, the following parts may belong to the documentation, if applicable:
• EU-type examination certificate
• EU declaration of conformity
• Attestation of conformity
• Certificates
• Control drawings
• Additional documents
Note!
This document does not substitute the instruction manual.
Note!
For full information on the product, refer to the instruction manual and further
documentation on the Internet at www.pepperl-fuchs.com.
System Description H-System –Isolated Barriers and Termination Boards for HIMA

H-System – Isolated Barriers and Termination Boards for HIMA
Introduction
2016-11
5
1.2 Target Group, Personnel
Responsibility for planning, assembly, commissioning, operation, maintenance,
and dismounting lies with the plant operator.
Only appropriately trained and qualified personnel may carry out mounting,
installation, commissioning, operation, maintenance, and dismounting of the
product. The personnel must have read and understood the instruction manual
and the further documentation.
Prior to using the product make yourself familiar with it. Read the document
carefully.
1.3 Symbols Used
This document contains symbols for the identification of warning messages and
of informative messages.
Warning Messages
You will find warning messages, whenever dangers may arise from your actions.
It is mandatory that you observe these warning messages for your personal safety
and in order to avoid property damage.
Depending on the risk level, the warning messages are displayed in descending
order as follows:
Danger!
This symbol indicates an imminent danger.
Non-observance will result in personal injury or death.
Warning!
This symbol indicates a possible fault or danger.
Non-observance may cause personal injury or serious property damage.
Caution!
This symbol indicates a possible fault.
Non-observance could interrupt the device and any connected systems and
plants, or result in their complete failure.

2016-11
6
H-System – Isolated Barriers and Termination Boards for HIMA
Introduction
Informative Symbols
Action
This symbol indicates a paragraph with instructions. You are prompted to perform
an action or a sequence of actions.
Note!
This symbol brings important information to your attention.

H-System – Isolated Barriers and Termination Boards for HIMA
Product Specifications
2016-11
7
2 Product Specifications
2.1 Function
Isolated barriers are used to protect intrinsically safe circuits in explosive areas. In
addition to the required current and voltage limitation, the isolated barriers have a
galvanic isolation between the field circuit and the controller.
The H-System isolated barriers are mounted on termination boards. Pre-wiring is
possible on termination boards. To close the signal circuit, the isolated barriers
are simply plugged in. The isolated barriers can be replaced during live operation
when the wiring is connected.
Figure 2.1 H-System termination board with isolated barriers for HIMA
Universal and control system-specific termination boards are available in the
H-System. Termination boards can be adapted to specific input/output
requirements. These requirements can be implemented via
• Various connecting plugs to the controller
• Various terminals to the field device
• A large selection of isolated barriers
System Description H-System –Isolated Barriers and Termination Boards for HIMA

2016-11
8
H-System – Isolated Barriers and Termination Boards for HIMA
Product Specifications
2.2 System Components
2.2.1 Isolated Barriers
H-System isolated barriers are available in two different housing widths
depending on the function and application:
• HiC devices with a width of 12.5 mm
• HiD devices with a width of 18 mm
Both versions cover all functions and the interoperability of the H-System.
The pin assignment and terminal designations are consistent for all termination
boards. Each H-System isolated barrier can therefore be mounted in each
termination board slot.
• HiC isolated barriers on HiC termination boards
• HiD isolated barriers on HiD termination boards
The board can be coded together with the isolated barriers. This prevents the
isolated barriers being mixed up on the termination board. The safety-relevant
data for the connected field devices is backed up.
HiC Device Housing
Figure 2.2 HiC device housing (12.5 mm)
Used for high signal integrity
• Narrow 12.5 mm housing
• Highest packing density with "single-loop integrity"
• For mounting on HiC termination boards
HiC
2871
1 ch
Solenoid
Driver
CH1
STATUS

H-System – Isolated Barriers and Termination Boards for HIMA
Product Specifications
2016-11
9
HiD Device Housing

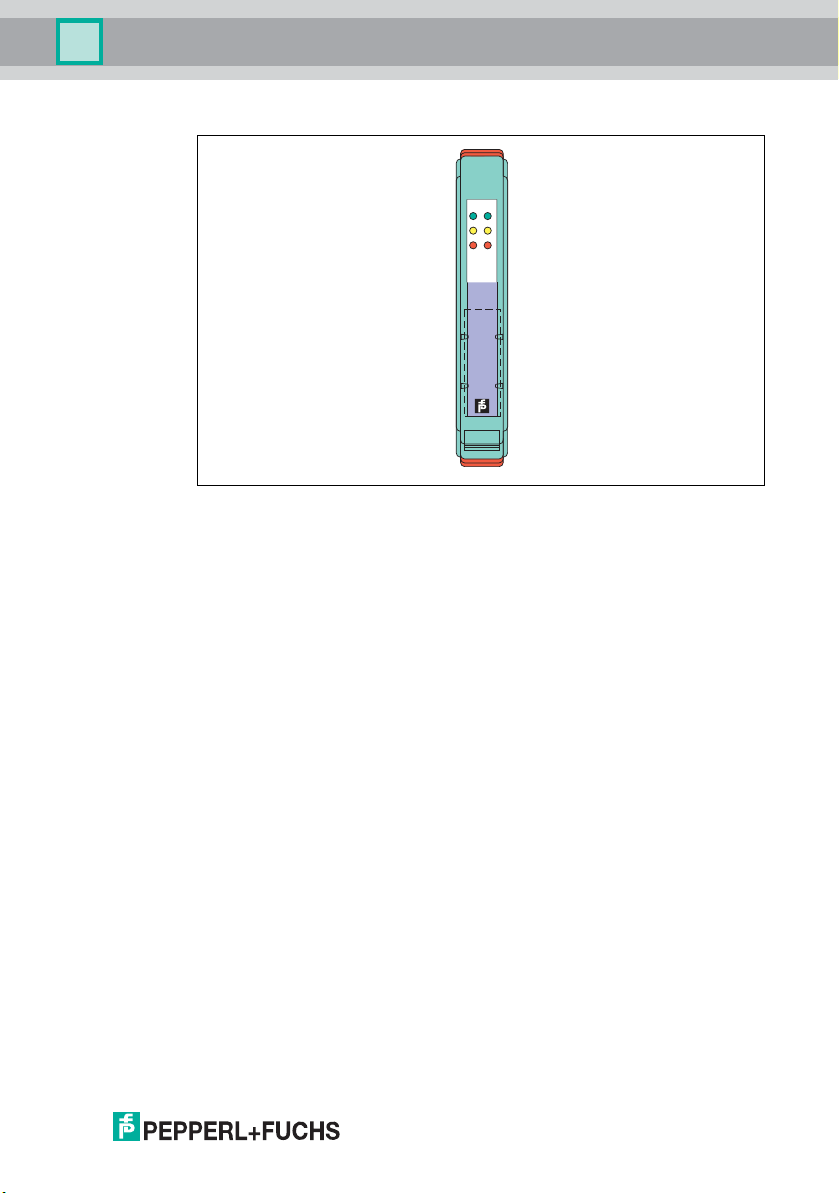

Figure 2.3 HiD device housing (18 mm)
Used for high channel density
• Compact 18 mm housing
• Highest channel density on the market
• Only 4.5 mm per channel
• For mounting on HiD termination boards
HiD
2872
2 ch
Solenoid
Driver
PWR
FAULT
STATUS
CH 2 CH 1

2016-11
10
H-System – Isolated Barriers and Termination Boards for HIMA
Product Specifications
2.2.2 Termination Boards
Termination boards form the wiring level for field and control signals. The isolated
barriers are mounted on termination boards. The isolated barriers are connected
with the field and control side via the termination boards. Once the isolated barrier
is mounted, the signal circuit between the field and control side is closed.

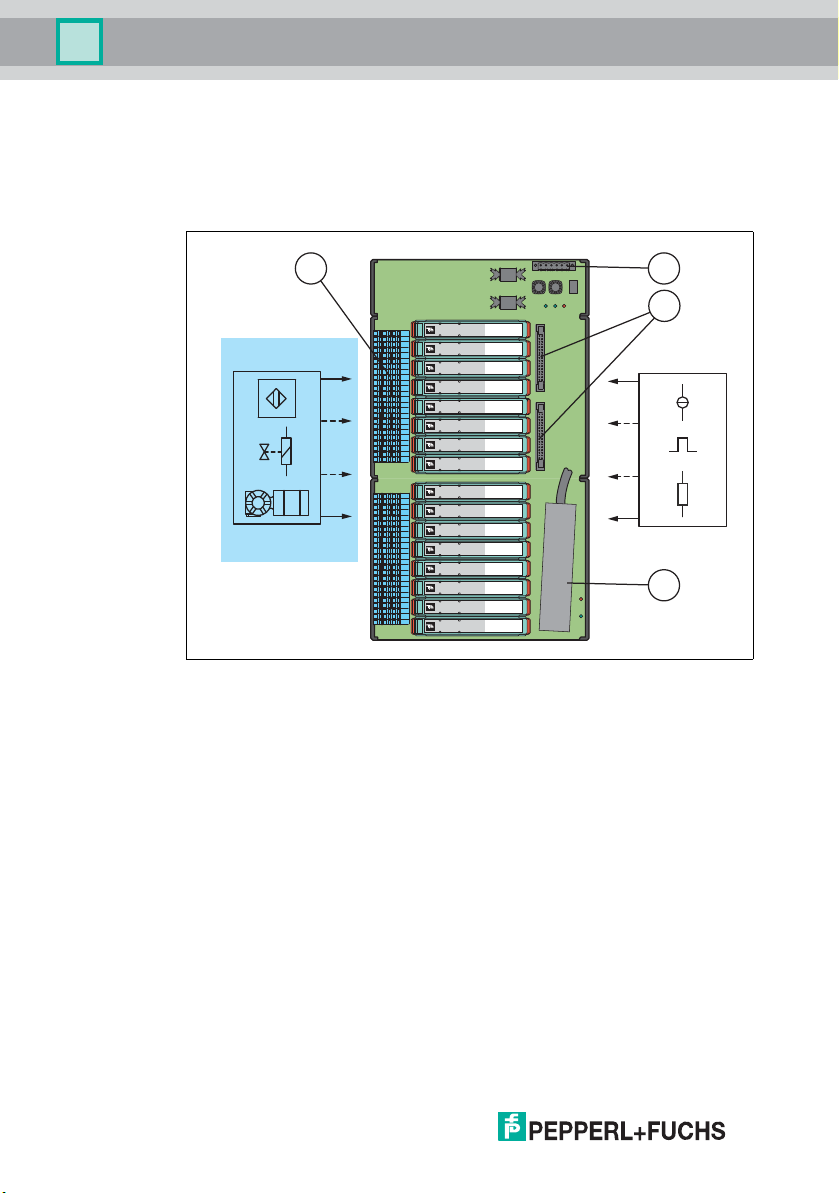

Figure 2.4 Connection example termination board with 16 slots
Use
• For HiC or HiD isolated barriers
• With 16 or 32 slots
• For redundant and fused power supply
• For fault monitoring and diagnostics
1Field side connection
2Connection power supply and fault indication output
3HART communication
4Control side connection
XG2
PWR1 PWR2 FAULT
HART2 HART1
Field Run
XG1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
mA
2
4
3
1

H-System – Isolated Barriers and Termination Boards for HIMA
Product Specifications
2016-11
11
2.2.3 Accessories
Label carriers for Termination Boards
The termination boards can be fitted with a label carrier for individual
identification.
Figure 2.5 Label carrier for termination boards
HART Communication Board
The HART Communication Board is connected to HART-compatible H-System
termination boards. It has one slot to mount a 32-channel HiD Mux2700-type
HART multiplexer.
Preconfigured HART connection cables enable easy connection between the
H-System termination boards and the HART Communication Board.
The device offers a redundant fused power supply with an LED indicator. The
RS 485 terminals have a redundant configuration and enable simple bridging to
the next bus node.
Figure 2.6 HART Communication Board HiATB01-HART-2x16
1Label carrier HiALC-HiCT*-SET-*** for HiC termination boards
1Label carrier HiALC-HiDT*-SET-*** for HiD-termination boards
1
2
3
4
5
6
7
8
1
PWR
HART TXFAULT
OFFON
HiD
Mux
2700
Hart

2016-11
12
H-System – Isolated Barriers and Termination Boards for HIMA
Product Specifications
Application example
The following diagram shows a typical example of an application with a
Fault Indication Board and HART Communication Board.
Figure 2.7 Connection HART communication
1Termination board
2HART Communication Board
3Connection power supply I and II (redundant)
4Connection HART communication
5Connection HART communication
6Control side connection
PWR
HARTTXFAULT
OFFON
HiD
Mux
2700
Hart
XG2
PWR1
PWR2
FAULT
HART2HART1
FieldRun
XG1
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16
1 2
5
3
4
6

H-System – Isolated Barriers and Termination Boards for HIMA
Product Specifications
2016-11
13
2.3 Connection Options
A variety of termination boards is available with different methods of connecting to
the field and control side. Please refer to the documentation for the respective
device for the specific connection layout.
Connecting the Field Side
The field devices can be connected to the termination board via spring terminals:
Figure 2.8 Connection via spring terminals
Connecting the Power Supply and Fault Indication Output
Isolated Barriers
The isolated barriers are supplied via the termination board. The isolated barriers
are therefore attached to the termination board.
Termination Boards
The termination boards are supplied with power via spring terminals in
accordance with their design.
The supply voltage range depends on
• The values used for the isolated barriers
• The voltage drop of the decoupling diodes on the termination board
Figure 2.9 Connections of power supply and fault indication output via spring terminals
12
45
M1
Fault
5 6
Power
Supply
1+ 2- 3+ 4-

2016-11
14
H-System – Isolated Barriers and Termination Boards for HIMA
Product Specifications
Connecting the Control Side
The termination board is connected on the control side via the HIMA system
connector.
Figure 2.10 Connection via HIMA system connector, 96-pin
In the case of a signal splitter application, you can connect the termination board
via spring terminals.
Figure 2.11 Connection via spring terminals
1515 1212
M2M1

H-System – Isolated Barriers and Termination Boards for HIMA
Product Specifications
2016-11
15
Connecting the HART Communication
Connect the HART communication via HART multiplexer as follows:
HART Plugs
Figure 2.12 Connection via control-side HART plugs
HART Multiplexers
Figure 2.13 HART multiplexer connection
HART
PWR
HART TXFAULT
OFFON
HiD
Mux
2700
Hart
Note!
For more information see the corresponding datasheets.

2016-11
16
H-System – Isolated Barriers and Termination Boards for HIMA
Product Specifications
2.4 Color Coding of the Isolated Barriers
The color coding of the devices has the following meaning:
Figure 2.14 Color identification of devices
Digital Input
• Orange identifier (1) for switch amplifiers with a relay output
• Blue identifier (2) for switch amplifiers with a transistor output
Digital Output
• Purple identifier (3) for solenoid drivers
Analog Input
• Magenta identifier (4) for transmitter power supplies, measuring transmitters,
and repeaters
• Yellow identifier (5) for temperature converters
Analog Output
• Green identifier (6) for current drivers
PWR
HiC
2841
1ch
Switch
Amplifier
CH1
FAULT
STATUS/
PWR
HiC
2821
1ch
Switch
Amplifier
CH1
FAULT
STATUS/
21
PWR
HiC
2873
1 ch
Solenoid
Driver
STATUS
FAULT
1 ch
Tem p.
Conv.
2081
PWR
FAULT
HiC
PROG
PWR
HiC
2031
1 ch
Current
Driver
PWR
HiC
2025
1 ch
Transm.
Power
Supply
5 63 4

H-System – Isolated Barriers and Termination Boards for HIMA
Product Specifications
2016-11
17
2.5 Status Indicators with LEDs
LEDs are often used on isolators to indicate different statuses (e. g. for power
supply, device failure, status messages, binary switching states). Standard LED
colors are assigned to the status display according to NAMUR NE44.
LED Display function Display Meaning
Green LED Power supply On Power supply OK
Off Power failure or insufficient power supply –
device faulty
Red LED Device fault, device
failure
On Internal fault signal, failure signal –fault/failure
display of causes detected inside the device,
device needs replacing
Line fault Flashing External fault signal, failure signal –fault/failure
display of causes detected outside the device,
inspection and elimination of fault required
No fault Off No malfunction, device is operating properly
Yellow LED Switching states of
binary inputs and
outputs
On Possible causes of the output:
• The relay is energized.
• The NO contact (also a change-over
contact) is actively closed.
• The open collector is switched through.
• The switching voltage generated inside the
device is applied.
Possible causes of the input:
• A binary switching signal is present.
• An analog limit value is reached.
Off Possible causes of the output:
• The relay is de-energized.
• The NO contact (also a change-over
contact) is actively opened.
• The open collector is not switched through.
• The switching voltage generated inside the
device is not applied.
Possible causes of the input:
• A binary switching signal is present.
• An analog limit value is reached.
Table 2.1 Meaning of status indicators

2016-11
18
H-System – Isolated Barriers and Termination Boards for HIMA
Product Specifications
Figure 2.15 Example status indicators
2.6 Status Indicators of Termination Boards
LEDs are often used on termination boards to indicate different statuses (e. g. for
power supply, device failure, status messages, binary switching states). Standard
LED colors are assigned to the status display according to NAMUR NE44.
1Yellow LED "OUT"
Switching state of the output
2Red LED "CHK"
Lead breakage and short circuit status indicator
3Green LED "PWR"
Power supply status indicator
OUT CHK PWR
123
LED Display function Display Meaning
Green LED "PWR1" Power supply I On Power supply OK
Off No power
Green LED "PWR2" Power supply II On Power supply OK
Off No power
Red LED "FAULT" Power supply failure On Power supply failure
Device fault Flashing Isolated barrier fault
Green LED "Run" Connection status On The HIMax I/O module is supplied with
power and is connected to the
termination board (FTA) via a system
cable.
Red LED "Field" Connection failure On The HIMax I/O module detects faults in
the connection between HIMax I/O
module and termination board (FTA).
Table 2.2 Meaning of status indicators

H-System – Isolated Barriers and Termination Boards for HIMA
Product Specifications
2016-11
19

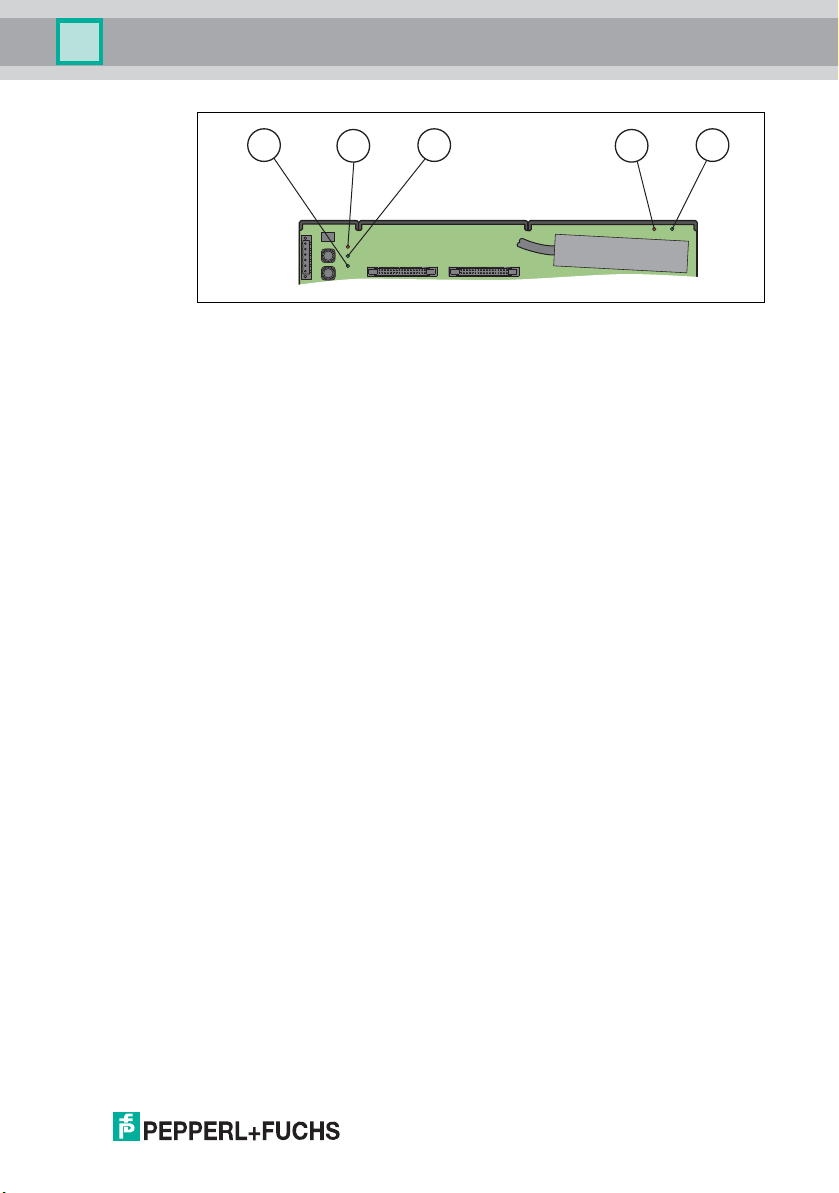

Figure 2.16 Example status indicators
1Green LED "PWR1"
Status indicator power supply I
2Green LED "PWR2"
Status indicator power supply II
3Red LED "FAULT"
Device fault, device failure, power supply failure
4Red LED "Field"
Connection failure
5Green LED "Run"
Status indicator connection
XG2
PWR1
PWR2
FAULT
HART2 HART1
Field Run
XG1
2
35 4
1

2016-11
20
H-System – Isolated Barriers and Termination Boards for HIMA
Product Specifications
2.7 Label Carriers
The isolated barriers are fitted with a label carrier ex works for individual
identification.
Figure 2.17 Label carrier on the front
1Label carrier on HiC devices for 35 mm x 10.5 mm labels
2Label carrier on HiD devices for 35 mm x 10.5 mm labels
1 2
