IOLAN STS8D GR/SDS8P GR Hardware Installation Guide
Updated: October 2017
Version A.1.10.03.2017
Document Part#:5500426-10
www.perle.com

IOLAN STS8D GR/SDS8P GR Hardware Installation Guide 1
THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS GUIDE ARE SUBJECT TO CHANGE
WITHOUT NOTICE. ALL STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS GUIDE ARE BELIEVED TO BE
ACCURATE BUT ARE PRESENTED WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE
FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS.
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC
rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio-frequency energy and, if not installed and used in
accordance with this hardware guide may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference, in which case users will be required to correct the interference at their own
expense.
Modifications to this product not authorized by Perle could void the FCC approval and negate your authority to operate the product.
Perle reserves the right to make changes without further notice, to any products to improve reliability, function, or design.
Perle, the Perle logo, and IOLAN STS8D GR/SDS8P GR are trademarks of Perle Systems Limited.
©2017. Perle Systems Limited.

Table of Contents
Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
IOLAN STS8D GR / SDS8P GR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
IOLAN STSD GR/SDS8P GR (Back View with socket for Barrel connector) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Ethernet and Serial Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Button/Switch Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
LED Indicators
Power/Ready . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Connecting the Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Connecting the Console Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Rebooting/Resetting the IOLAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Connecting Data Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Configuring the IOLAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Appendix A - Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

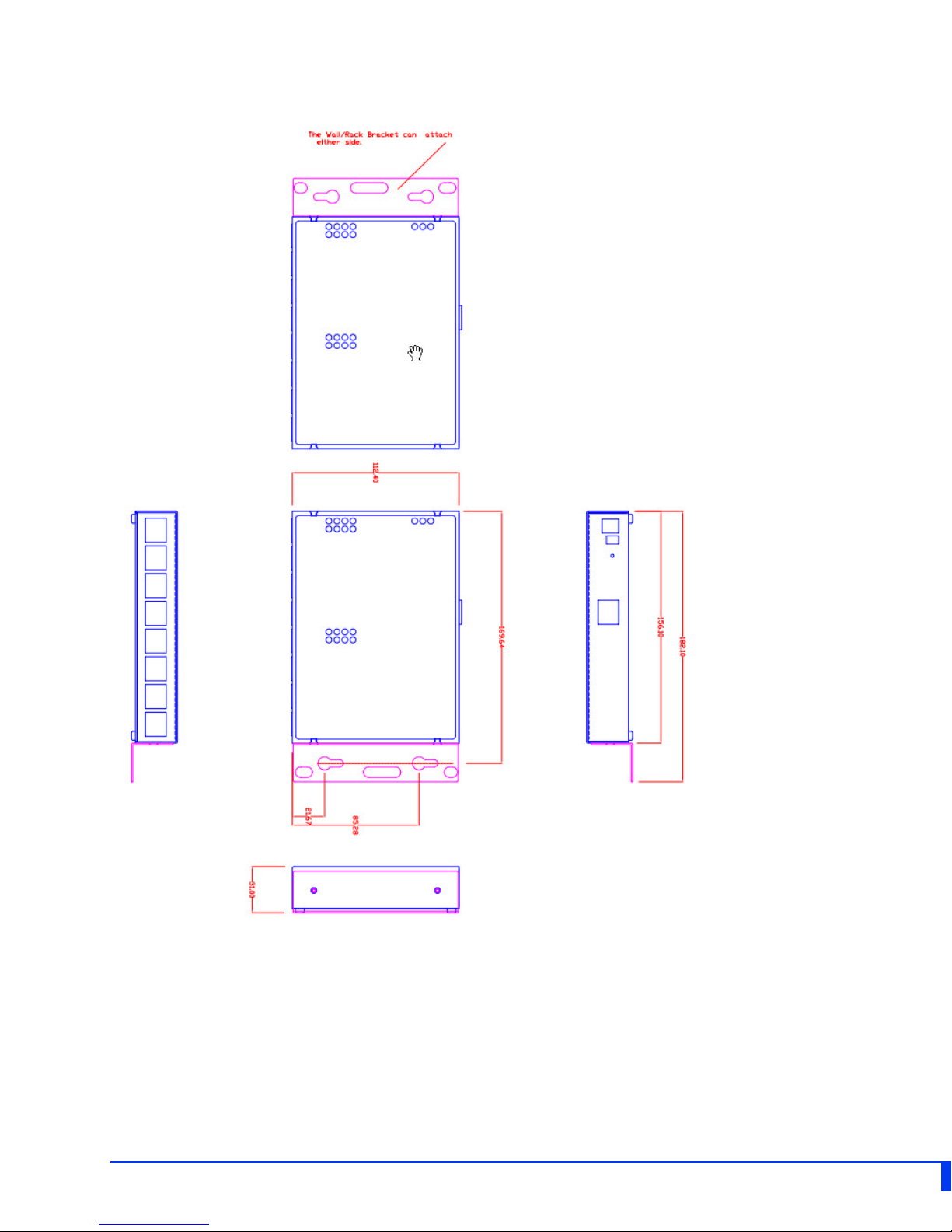

Appendix B - Mechanical Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Appendix C - Labels (Sample) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Appendix D - Cabling and Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Appendix E - IOLAN Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

IOLAN STS8D GR/SDS8P GR Hardware Installation Guide 2
Preface
Audience
This guide is for the network or computer technician responsible for installing the Perle
IOLAN STS8D GR /SDS8P GR. Familiarity with the concepts and terminology of Ethernet
and local area networks is required.
Purpose
This document describes the hardware and physical characteristics of the Perle IOLAN
STS8D GR /SDS8P GR. It covers hardware features as well as installation and operation of
the IOLAN. This document does not cover how to configure your Perle IOLAN STS8D GR /
SDS8P GR.
Information to configure your Perle IOLAN SDS can be found in the IOLAN User’s Guide.
Document Conventions
This document contains the following conventions:
Most text is presented in the typeface used in this paragraph. Other typefaces are used to
help you identify certain types of information. The other typefaces are:
Note: Means reader take note: notes contain helpful suggestions.
Caution: Means reader be careful. In this situation, you might perform an action that
could result in equipment damage or loss of data.
Warning: IMPORTANT SAFETY INSTRUCTIONS
Means danger. You are in a situation that could cause bodily injury. Before you work on
any equipment, be aware of the hazards involved with electrical circuitry and be familiar
with standard practices for preventing accidents. Only qualified personnel should con‐
nect power to this unit.

IOLAN STS8D GR/SDS8P GR Hardware Installation Guide 3
Overview
The IOLAN 8 port comes in various models.
• STS8 GR - 8 port model with eight RJ45 serial ports
• SDS4P GR - 8 port model with eight RJ45 serial ports (multi-protocol)
and is 802.3af Power over Ethernet complaint
This chapter discusses the following topics:
IOLAN STS8D GR / SDS8P GR
IOLAN STSD GR/SDS8P GR (Back View with socket for Barrel connector)
Ethernet and Serial Port
Button/Switch Functions
LED Indicators Power/Ready
Connecting the Power
Connecting the Console Port
Rebooting/Resetting the IOLAN
Connecting Data Ports
Configuring the IOLAN

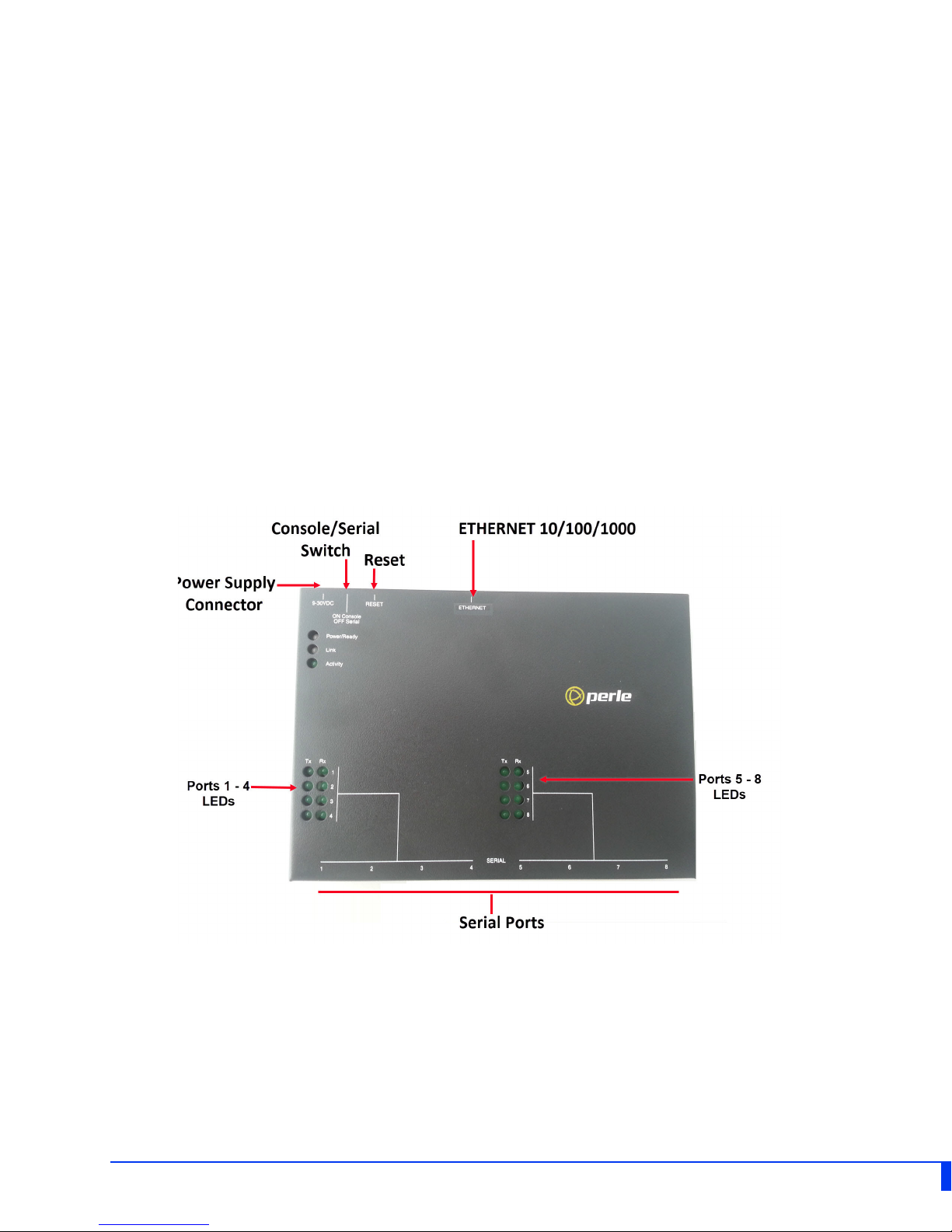

IOLAN STS8D GR / SDS8P GR
The IOLAN STS8D GR only supports RS‐232 on RJ45‐10 pin.

IOLAN STS8D GR/SDS8P GR Hardware Installation Guide 4

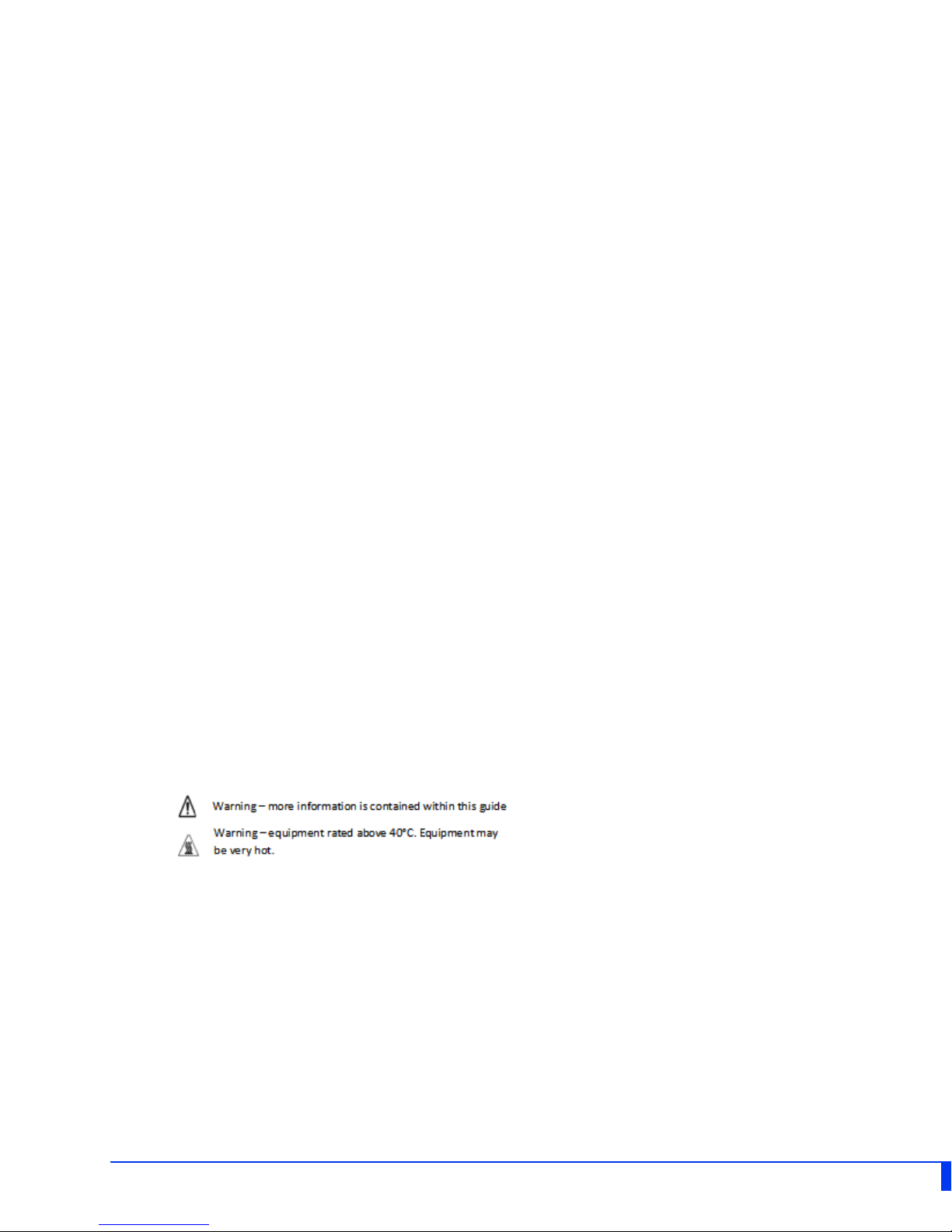

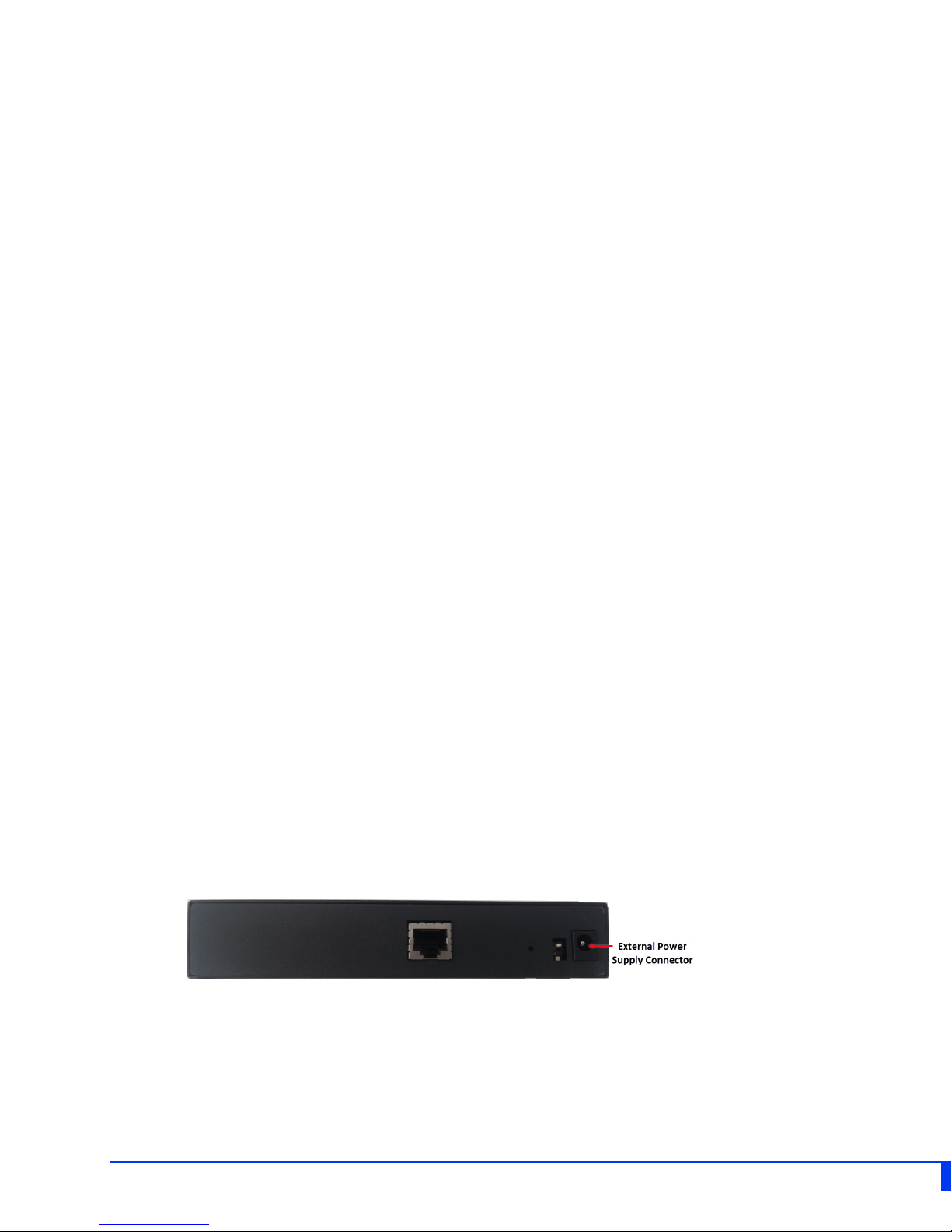

IOLAN STSD GR/SDS8P GR (Back View with socket for Barrel connector)
Ethernet and Serial Port
10/100/1000Base-T Port
The Ethernet port provides the standard gigabit Ethernet interface speeds of 10/100/
1000 Mbps through twisted pair (UTP) cables of up to 100 meters (328ft) in length.
Serial Port / Console Port (RJ45)
The dip switch on the IOLAN is set in the factory to serial (up position). Unless you plan to
attach a console to the IOLAN, leave the dip switch in the serial position (see Connecting
Serial Devices). In console mode, this port can also be used as a console management
port providing access to the IOLAN management function using the industry standard CLI
command set (see Appendix D - Cabling and Connectors).
Button/Switch Functions

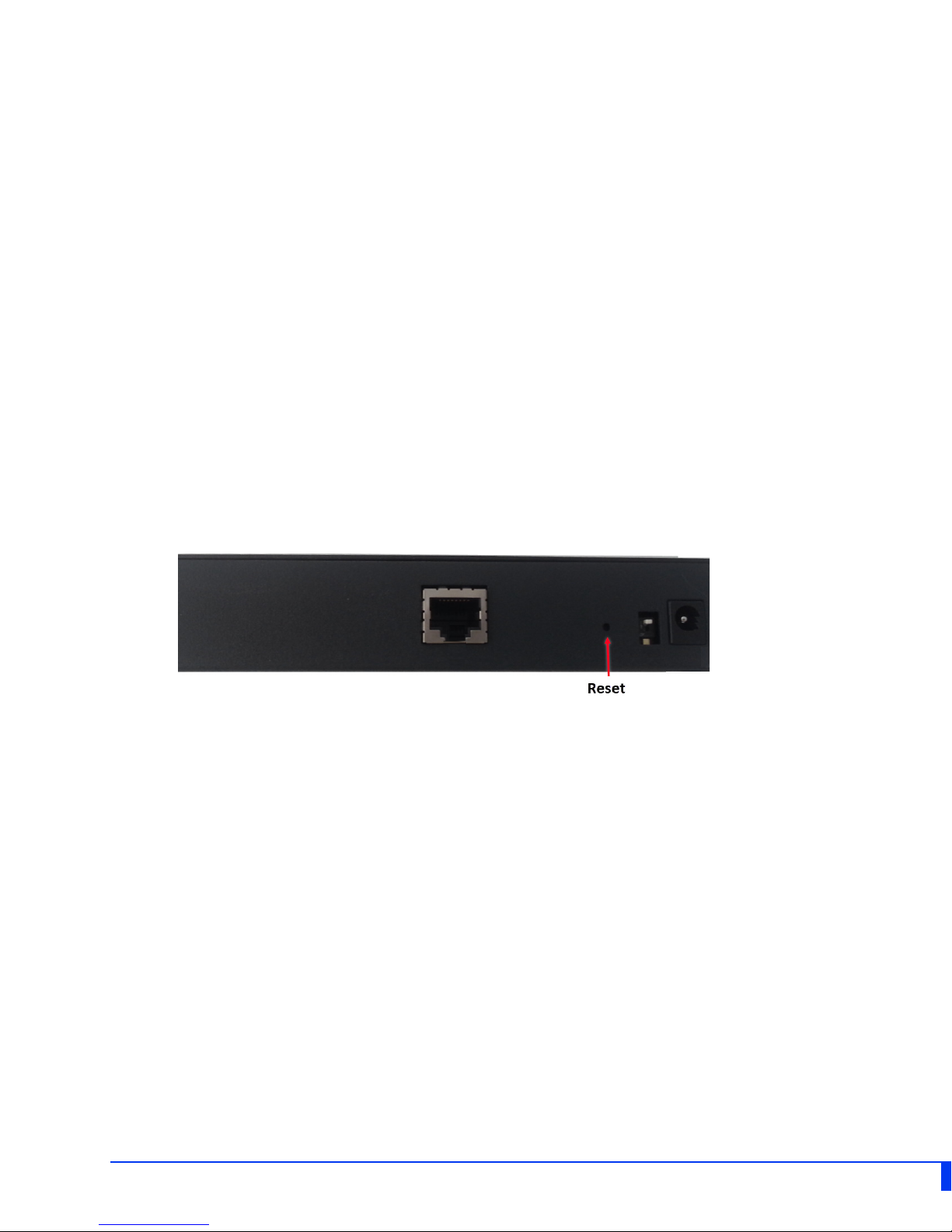

Reset Button
The inset RESET button will reboot the IOLAN if pushed in and released quickly. It will
reset the IOLAN to factory defaults if pushed in and held for more than three seconds.
Console / Serial Switch (RJ45)
The IOLAN can be fully configured and managed from the console port. The IOLAN is set
in the factory to serial (up position). Unless you plan to attach a console to the IOLAN,
leave the dip switch in the serial position. If this DIP switch is set to the down position,
then the serial port is in console mode. In console mode, the port provides access to the
IOLAN management function using the industry standard CLI command set. See the
IOLAN Command Line Interface Reference Guide for more information.

IOLAN STS8D GR/SDS8P GR Hardware Installation Guide 5
LED Indicators
Power/Ready
Link 10/100/1000
Activity
State Description
Green - solid System Ready
Green - flashing System is booting or DIP switch is
in console mode
Red Error condition
State Description
Green 1000 Mbps
Amber 100 /10 Mbps
Off No LAN connection
State Description
Green Flashes with activity
Amber Flashes with activity
Off No LAN connection

IOLAN STS8D GR/SDS8P GR Hardware Installation Guide 6
Installation
This chapter discusses the following topics:
General Cautions and Warnings
Connecting the barrel connector
Grounding and Power Cord Relief clip
Console Port Mode (RJ45)
Serial Port Mode
Ethernet Connection
CLI
Web Device Manager
DeviceManager
Warranty / Registration
General Cautions and Warnings
Warning: Power sources must be off prior to beginning the power connection steps.
Read the installation instructions before you connect the unit to its power source.
Warning: Ensure that the voltage and current ratings of the intended power source are
appropriate for the IOLAN as indicated on the product label.
Warning: Ensure that the installation and electrical wiring of the equipment is performed
by trained and qualified personnel and that the installation complies with all local and
national electrical codes.
Warning: The working voltage inputs are designed for operation with Safety extra low
Voltage (SELV). Connect only to SELV circuits with voltage restrictions in line with IEC/EN
60950‐1:2005 (2nd Edition) + A1:2009 and EN 60950‐1: 2006 + A11:2009
Warning: If this equipment is used in a manner not specified by the manufacturer, the
protection provided by the equipment may be impaired.
Connecting the Power
The STS8D GR model connects to power using the power adapter that came with your
IOLAN. The SDS8P GR does not come with a Perle supplied external power adapter, how‐
ever it can be powered over Ethernet.
Power over Ethernet
The IOLAN SDS8P GR can operate as a Powered Device(PD) under IEEE 802.3af operating
with end span and mid span power sources (PSE).
Connecting the barrel connector
Plug the power adapter into a power socket and connect the barrel connector end into
the IOLAN. The IOLAN will perform a power up sequence. The Power/Ready LED should
show a solid green. See LED Indicators Power/Ready for power up sequence.

IOLAN STS8D GR/SDS8P GR Hardware Installation Guide 7
Grounding and Power Cord Relief clip
If your installation requires additional grounding, follow this procedure.
Grounding the chassis requires the following items:
• One grounding lug (not provided)
• One 12AWG wire (not provided)
Follow the manufacturers instructions for attaching the ground wire to the grounding
lug.
1. Attach the grounding lug to the chassis and secure with the grounding screw
provided. See Figure 1.
2. Attach the power cord relief clip as shown in Figure 2.
Connecting the Console Port
The IOLAN can be fully configured and managed from the console port. The IOLAN is set
in the factory to serial (up position). Unless you plan to attach a console to the IOLAN,
leave the dip switch in the serial position. If this DIP switch is set to the down position,
then the serial port is in console mode. In console mode, the port provides access to the
IOLAN management function using the industry standard CLI command set. See the
IOLAN Command Line Interface Reference Guide.
Console Port Mode (RJ45)
To connect to the console port, follow instructions below.
1. Power off the IOLAN and set the console switch to the down position.
2. Connect the power and allow the IOLAN to complete the boot up sequence.
3. Connect an RJ45 cable directly from the IOLAN to the COM port on your PC. An RJ45
to DB9 adapter can be ordered from Perle.
4. Choose Start > Control Panel > Systems or equivalent on the Windows Operating
System you are using.
5. Click the Hardware tab and choose Device Manager, Expand the Ports (COM & LPT)
section. This will expand the drop down to show the number of com ports on your
system. Connect the cable to one of these ports (probably COM1 or COM2).
6. Start an terminal‐emulation program (such as Putty or SecureCRT) on the COM port
where you have connected the cable PC.
7. Configure this COM port within the terminal emulation program with the following
parameters:
Figure 1
Figure 2

IOLAN STS8D GR/SDS8P GR Hardware Installation Guide 8
• 9600 baud
• 8 data bits
• 1 stop bit
•No parity
• None (flow control)
8. Connect power to the unit as described in Connecting Power to the IOLAN.
9. The PC will display the loot‐loader sequence.
See Appendix D - Cabling and Connectors for information on cabling requirements.
Serial Port Mode
Serial mode is used when the IOLAN acts as a communication sever, or anytime you are
not connecting directly to the IOLAN to configure it. You can connect directly to the
IOLAN in serial mode, but the IOLAN will not display all the messages/information you
will get in Console mode. See the IOLAN User’s Guide for more information on the serial
port.
Rebooting/Resetting the IOLAN
To reset the IOLAN insert a paper clip into the reset hole, then gently press inwards. If
the button is released quickly the IOLAN will reboot, if the button is pressed for more
then three seconds the IOLAN will be returned to factory defaults.
Connecting Data Ports
Ethernet Connection
By default the 10/100/1000 Ethernet port will automatically set itself up to match the
speed of the port it is connected to. If auto negotiation is not supported by that port
then, the port can be configured to operate at a fixed speed and duplex settings.
To connect to 10Base‐T, 100Base‐TX or 1000Base‐T follow these steps:
1. Connect a straight through Ethernet cable from the IOLAN’s Ethernet port to an 10/
100/1000 RJ45 port on the network hub/switch.
2. Once the IOLAN is connected and the link is established, the link LEDs will turn on.
These LEDs will indicate whether you have a 10, 100 or 1000 Mbps link to your hub/
switch. See. (LED Indicators Power/Ready) for more details.

IOLAN STS8D GR/SDS8P GR Hardware Installation Guide 9

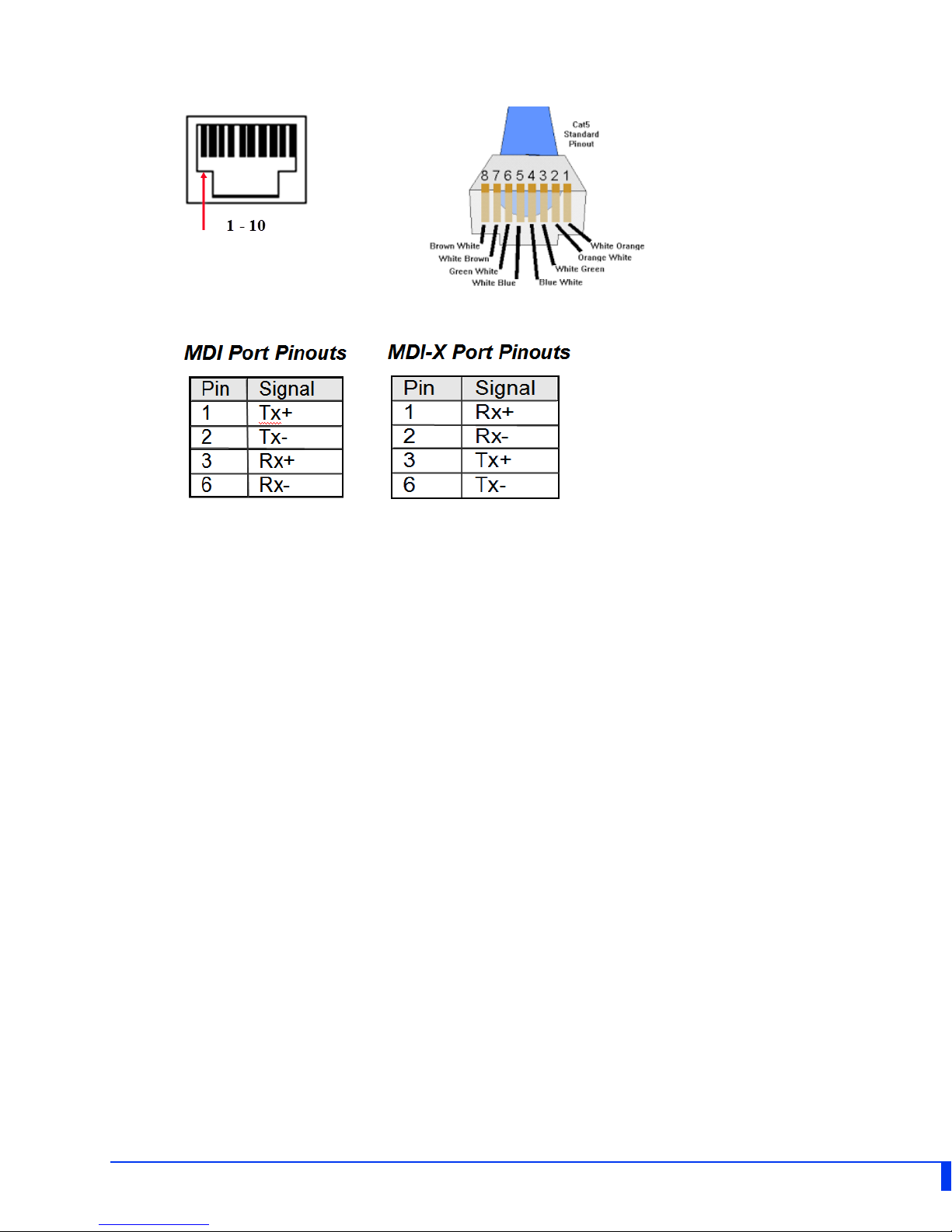

Ethernet Connector - 8-pin RJ-45

IOLAN STS8D GR/SDS8P GR Hardware Installation Guide 10
Configuring the IOLAN
The IOLAN can be configured, operated and monitored using any of the following
methods. See the IOLAN User’s Guide for more details.
CLI
A text‐based Command Line Interface based on industry standard syntax and structure.
The CLI can be accessed from the console port without a valid IP address for the initial
setup. Once an IP address has been assigned the IOLAN can also be accessed by Telnet,
SSH, SNMP or the Web interface.
Web Device Manager
The Perle Web Device Manager is an embedded Web based application that provides an
easy to use browser interface for configuring and managing the IOLAN. The IOLAN can be
accessed through any standard desktop web browser. The IOLAN must have a valid IP
address.
DeviceManager
This is a Windows‐based utility that provides the ability to do either an initial setup (out
of the box) or to configure and manage the IOLAN. In order to use this utility the IOLAN
must be connected to your network. You can download the DeviceManager software from our
website at www.perle.com.

IOLAN STS8D GR/SDS8P GR Hardware Installation Guide 11
Appendix A - Technical Specifications
IOLAN STS8D GR/SDS8P GR Port Technical Specifications
Contacting Technical Support
Contact information for the Perle Technical Assistance Center (PTAC) can be found at the
link below.
https://www.perle.com/support_services/support_request.shtm
Warranty / Registration
This product is covered by the Perle IOLAN SDS Warranty. Details can be found at:
https://www.perle.com/support_services/warranty.shtml
Nominal Input Voltage 12/24 VDC (9-30 VDC)
Power Supply Options
Power via external power 9-30 VDC, 6.4 watts uses
standard 5.5 mm x 9.5 mm x 2.1 mm barrel socket.
Power IOLAN over Serial 9-30VDC with RJ45 model SDS8P GR
Operating Temperature
-0°C to 55°C
-32°F to 131°F
Operating Temperature - Extended
Temperature
-40°C to 74°C
-40°F to 165°F
Storage Temperature
-40°C to 66°C
-40°F to 150°F
Operating and Storage Humidity 5 to 95% (non condensing)
Regulatory Approvals
Emissions
CFR47 FCC Part 15 Subpart B:2016
ICES-003:2016
EN55032:2012 (CISPR32:2012)
Immunity
EN61000-4-2:2009
EN61000-4-3:2006/A2:2010: RF Electromagnetic
Field Modulated
EN61000-4-4:2004 Fast Transients
EN61000-4-5:2006 Surge
EN61000-4-6:2009 RF Continuous Conducted
EN61000-4-8:2010 Power-Frequency Magnetic Field
EN61000-4-11:2004 Voltage Dips and Voltage
Interruptions
EN61000-3-2:2014, Limits for Harmonic Current
Emissions
EN61000-3-3:2013, Limits of Voltage Fluctuations
and Flicker
EN55024:2010/CISPR24:2010
Safety
IEC 62368-1:2014 (second edition)
EN 62368-1:2014
CSA/UL 62368-1:2014

IOLAN STS8D GR/SDS8P GR Hardware Installation Guide 12
Appendix B - Mechanical Drawing

IOLAN STS8D GR/SDS8P GR Hardware Installation Guide 13

IOLAN STS8D GR/SDS8P GR Hardware Installation Guide 14
Appendix C - Labels (Sample)

IOLAN STS8D GR/SDS8P GR Hardware Installation Guide 15
Appendix D - Cabling and Connectors
This appendix provides pinouts for the serial RJ45 ports and the Ethernet cable.
Connecting Serial Devices
Ensure you have the appropriate cable for connecting your serial devices to the serial
ports on the IOLAN.
IOLAN RJ45 Connector
The Power In pin, pin 1 can be 9-30V DC. STS8D-GR is a RS-232 RJ45 model only.
Hardware Options (SDS8P)
The IOLAN contains jumpers that you might need to set before you configure it and put it
into production. You can set the Power Out pin, pin 10 to a fixed 5V DC output or to the
external adapter output; this can range from 9‐30V DC (if an external adapter is shipped
with the IOLAN, it has a 12V DC output). The Power Out pin is only supported on the
SDS8P GR model.
The serial port on the SDS8P GR can also operate in either EIA 232, 422 or 485 mode. This
is a software configuration (See the IOLAN User’s Guide for information on setting this
parameter in your IOLAN firmware). If EIA 422 or 485 is selected, the line termination
may need to be set.
Line Termination is not necessary unless the IOLAN’s are the end points.
Pinout EIA-232 EIA-422
EIA-485
Full Duplex
EIA-485
Half Duplex
1 Power In Power In Power In Power In
2 (in) DCD
3 (out) RTS TxD+ TxD+ TxD+/RxD+
4 (in) DSR
5 (out) TxD TxD- TxD- TxD-/RxD-
6 (in) RxD RxD+ RxD+
7 GND GND GND GND
8 (in) CTS RxD- RxD-
9 (out) DTR
10 Power Out Power Out Power Out Power Out

IOLAN STS8D GR/SDS8P GR Hardware Installation Guide 16
To change the hardware settings, do the following:
1. Unplug the IOLAN from the electrical outlet and disconnect everything from the unit.
2. Open the case by unscrewing the side screws, on each side, and lifting off the top of
the case.
The following table describes how to jumper the pins for line termination, fixed 5V out‐
put, and for output equal to the external adapter input:
Port # Line Termination 5V Output Input Volt Output
1To terminate Serial Port 1 for Full
Duplex set DIP switch 1 ON.
To terminate for Half Duplex set
only DIP switch 2 to ON.
P1, jumper pins 1 & 2 P1, jumper pins 2 & 3
2To terminate Serial Port 2 for Full
Duplex set DIP switch 1 ON.
To terminate for Half Duplex set
only DIP switch 2 to ON.
P2, jumper pins 1 & 2 P2, jumper pins 2 & 3
3To terminate Serial Port 3 for Full
Duplex set DIP switch 1 ON.
To terminate for Half Duplex set
only DIP switch 2 to ON.
P6, jumper pins 1 & 2 P6, jumper pins 2 & 3
4To terminate Serial Port 4 for Full
Duplex set DIP switch 1 ON.
To terminate for Half Duplex set
only DIP switch 2 to ON.
P5, jumper pins 1 & 2 P5, jumper pins 2 & 3
5To terminate Serial Port 5 for Full
Duplex set DIP switch 1 ON.
To terminate for Half Duplex set
only DIP switch 2 to ON.
P10, jumper pins 1 & 2 P10, jumper pins 2 & 3
6To terminate Serial Port 6 for Full
Duplex set DIP switch 1 ON.
To terminate for Half Duplex set
only DIP switch 2 to ON.
P9, jumper pins 1 & 2 P9, jumper pins 2 & 3

IOLAN STS8D GR/SDS8P GR Hardware Installation Guide 17
3. To change the power pin out, locate the set of three pins associated with the line you
want to set. For fixed 5V DC output, jumper pins 1 and 2. For the output to equal the
external adapter input, jumper pins 2 and 3
4. Close the IOLAN case by replacing the case lid and the screws. You can now power the
IOLAN with the new settings.
7To terminate Serial Port 7 for Full
Duplex set DIP switch 1 ON.
To terminate for Half Duplex set
only DIP switch 2 to ON.
P8, jumper pins 1 & 2 P8, jumper pins 2 & 3
8To terminate Serial Port 8 for Full
Duplex set DIP switch 1 ON.
To terminate for Half Duplex set
only DIP switch 2 to ON.
P7, jumper pins 1 & 2 P7, jumper pins 2 & 3
Port # Line Termination 5V Output Input Volt Output

IOLAN STS8D GR/SDS8P GR Hardware Installation Guide 18
Appendix E - IOLAN Maintenance
• Ensure there is clearance of 50.8mm (2 inches) on all sides of the IOLAN to provide
proper airflow through the unit.
• Do not use solvents or cleaning agents on this unit.
• Keep vent holes clear of debris.
• If case gets dirty wipe with a dry cloth.
• Ensure all cables are in working condition.
Other manuals for IOLAN STS8D GR
1
This manual suits for next models
1
Table of contents
Other Perle Switch manuals

Perle
Perle IDS-509G User manual

Perle
Perle IDS-710HP User manual

Perle
Perle IDS-509 User manual

Perle
Perle IDS-305F Manual

Perle
Perle IDS-206 User manual

Perle
Perle IDS-509-SFP Manual

Perle
Perle IDS-409-SFP User manual

Perle
Perle IDS-105G User manual

Perle
Perle IOLAN SDG2 W User manual

Perle
Perle IDS-509CPP Manual
