PetSafe®Pawz Away™
Spray Deterrent
Operating andTraining Guide
Please read this entire guide before beginning.
PDT00-11312

2 Customer Care Center 1-800-732-2677
Thank you for choosing PetSafe®, the best selling brand of electronic training
solutions in the world. Our mission is to be the most trusted brand in the pet
ownership experience.We want to ensure your pet’s safety by providing you
with the tools and techniques to successfully train your pet. If you have any
questions, please contact the Customer Care Center at 1-800-732-2677 or
visit our website at www.petsafe.net.
To get the most protection out of your warranty, please register your product
within 30 days at www.petsafe.net. By registering and keeping your receipt,
you will enjoy the product’s full warranty and should you ever need to call the
Customer Care Center, we will be able to help you faster. Most importantly,
PetSafe®will never give or sell your valuable information to anyone. Complete
warranty information is available online at www.petsafe.net.
Table of Contents
Components.............................................................................................. 3
Features..................................................................................................... 3
How the Pawz Away™ Spray DeterrentWorks............................................... 3
Key Definitions.......................................................................................... 4
Operating andTraining Guide................................................................ 5
To Insert and Remove the Battery............................................................ 5
To Fill and Refill the Unscented Spray..................................................... 5
Choose fromThreeTraining Options....................................................... 6
Controls ................................................................................................ 6
ToTest the PetSafe®Pawz Away™ Spray Deterrent........................................ 7
Choosing a Location .................................................................................. 7
Care & Cleaning ........................................................................................ 8
Accessories ................................................................................................ 8
Frequently Asked Questions................................................................... 8
Troubleshooting....................................................................................... 8
Terms of Use and Limitation of Liability..................................................... 9
Customer Care International...................................................................... 9
Caution ..................................................................................................... 9
FCC.........................................................................................................10

www.petsafe.net 3

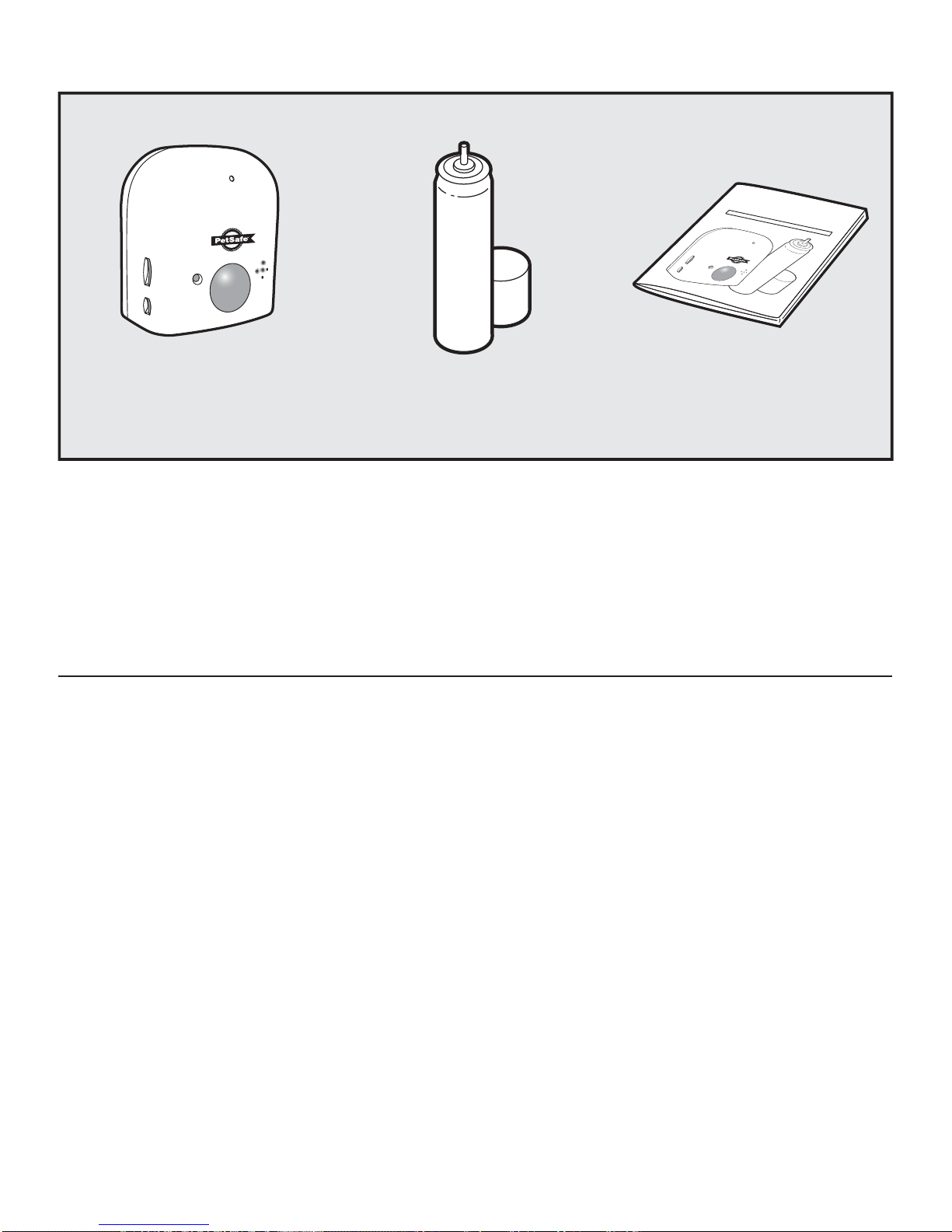

Components
Operating and
Training Guide
Unscented Spray
(PAC19-11883)
Pawz Away™
Spray Deterrent
PetSafe
®
Pawz Away
™
Spray Deterrent
Operating andTrainingGuide
Please readthis entire guide before beginning.
PDT00-11312
Features
Indoor training for dogs and cats• 3 easy-to-use training options (Tone+Spray;Tone Only; Spray Only)• Detection range adjustable from 18 – 36 inches• Unobtrusive and versatile; just 2.75 inches tall for use in any room• Unscented spray is safe and effective• Good/low battery indicator•
Prevent your pet from:
Entering a room• Jumping on furniture• Counter surfing• Tipping garbage cans•
How the Pawz Away™ Spray DeterrentWorks
PetSafe®Pawz Away™ Spray Deterrent monitors for movement up to 3 feet away.When your pet is
detected, the Pawz Away™Spray Deterrent sends a quick, safe spray that startles your pet.Your pet
quickly learns to avoid areas that are off-limits. It is effective for both dogs and cats of all sizes.
The PetSafe®Pawz Away™Spray Deterrent offers three options to discourage your pet from designated
areas: Tone+Spray; Tone Only (without Spray) and Spray Only.The spray is odorless, safe and
humane; however it is a sufficient stimulus to deter pets from jumping on countertops, digging in trash
or entering restricted areas.
The PetSafe®Pawz Away™Spray Deterrent has a small (only 2.75 inches high), innovative design that
can sit, hang or be placed most anywhere.You should get about 80-100 sprays between refills.
Important
Not for use by children.• The Pawz Away• ™Spray Deterrent is intended for use only with dogs and cats. Never
attempt to use it for any purpose not described in this manual.
For use indoors only.•

4 Customer Care Center 1-800-732-2677
Key Definitions
Pawz Away™Spray Deterrent:Train your pet to avoid certain areas.
4-Function Switch: Choose between training options, or turn the unit off.
Motion Sensor: Detects motion from the pet.
Refill Port: Used to refill the spray.
Spray Nozzle: Emits the spray.The spray travels approximately 12 inches from the unit, and
12 inches upward.
Hi/Low Switch: Adjust range to either 18 or 36 inches.
LED: Shows green for good battery; red for low battery; amber for low spray.
Speaker: Delivers the audible tone.
Hanging Provision: Used to hang or mount the unit.
Battery Door: Allows access to the 9-volt battery (not included).
Front Back
Refill Port
Spray
Nozzle
4-Function
Switch
Hi/Low
Switch
Motion
Sensor
Speaker
LED
Hanging Provision
Battery
Door

www.petsafe.net 5
Operating andTraining Guide

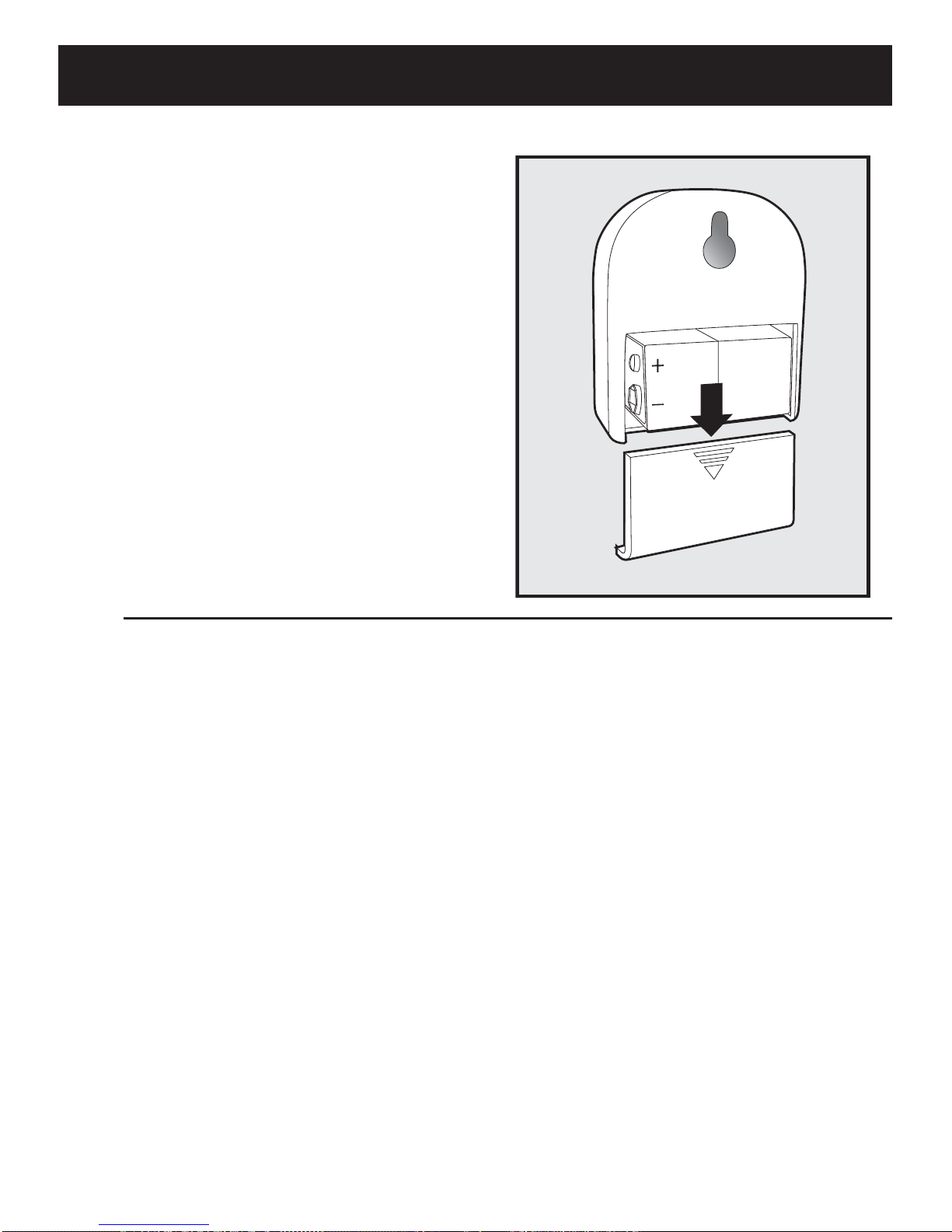

To Insert and Remove the Battery
The PetSafe• ®Pawz Away™Spray Deterrent
requires a replaceable 9-volt battery (not
included).
The battery door is located on the back of• the unit. Slide the battery door open.
Insert the 9-volt battery with the positive• side oriented as shown.
Replace the battery door by positioning• the top edge, and snap the bottom of the
battery door back into place.
Battery Life
Average battery life is 2-3 months,
depending on how often the unit activates.
To conserve battery life, turn to the “off”
position while the Pawz Away™ Spray
Deterrent is not in use.
To Fill and Refill the Unscented Spray
Turn the unit off.• Hold the Unscented Spray can upright and firmly press the nozzle down into the Refill• Port. Hold for 15 seconds and remove.
Note:If spray leaks out,you may need to press harder to complete the seal.
Reset the low spray indicator.• From the Off position, move switch toTone+Spray.–LED will flash green, then red, then amber.–While LED is amber, immediately move the switch to Off.–Wait 15 seconds with unit Off, then switch to desired training option.–LED will flash amber 5 times to indicate the spray counter has been reset, and will–start normal operation.
Note:Do not puncture or incinerate the spray deterrent or the refill canister.Do not expose to
extreme heat or store at temperatures above 120° F.
Step
1
Step
2

6 Customer Care Center 1-800-732-2677
Choose fromThreeTraining Options
The PetSafe®Pawz Away™ Spray Deterrent offers three training options designed to
shorten training and promote good behavior. Options include Tone+Spray,Tone Only
and Spray Only.
Tone+Spray:The Pawz Away™ Spray Deterrent emits a brief tone, followed by an
immediate spray when your pet enters the restricted area. Most pets learn very quickly
to avoid the area where the Pawz Away™Spray Deterrent is located.After some initial
training withTone+Spray, you may elect to switch to theTone Only mode.
Tone Only:WithTone+Spray mode, described above, the pet learns the spray follows the
tone.After a few encounters you may choose theTone Only option (that is, tone without
spray).The tone activates when the pet steps into the restricted area but there will be no
spray. Pets will usually respond to theTone warning and avoid the off-limits area.
Spray Only:There may be times when you prefer to leave the spray on without the tone;
for instance, when you are sleeping. Spray Only sends immediate correction when your pet
steps into the restricted area without sending the warning tone.
Controls
There are two switches located on the side of the unit.The top switch is used to choose
between the three training options, and turn off the unit.
Switch Function
Position 1 Off
Position 2 On/Tone+Spray
Position 3 On/Tone Only
Position 4 On/Spray Only
Adjusting the Range
The second switch, located below the function switch, is used to adjust the range.“Hi”
will detect the pet up to 36 inches away;“Low” will detect the pet up to 18 inches away.
LED Colors
Green LED Flashes every 5 seconds Unit is On
Red LED Flashes 3 times every 5 seconds Low battery; replace soon
Amber LED Solid Low spray, refill as soon as possible
Step
3
Step
4

www.petsafe.net 7

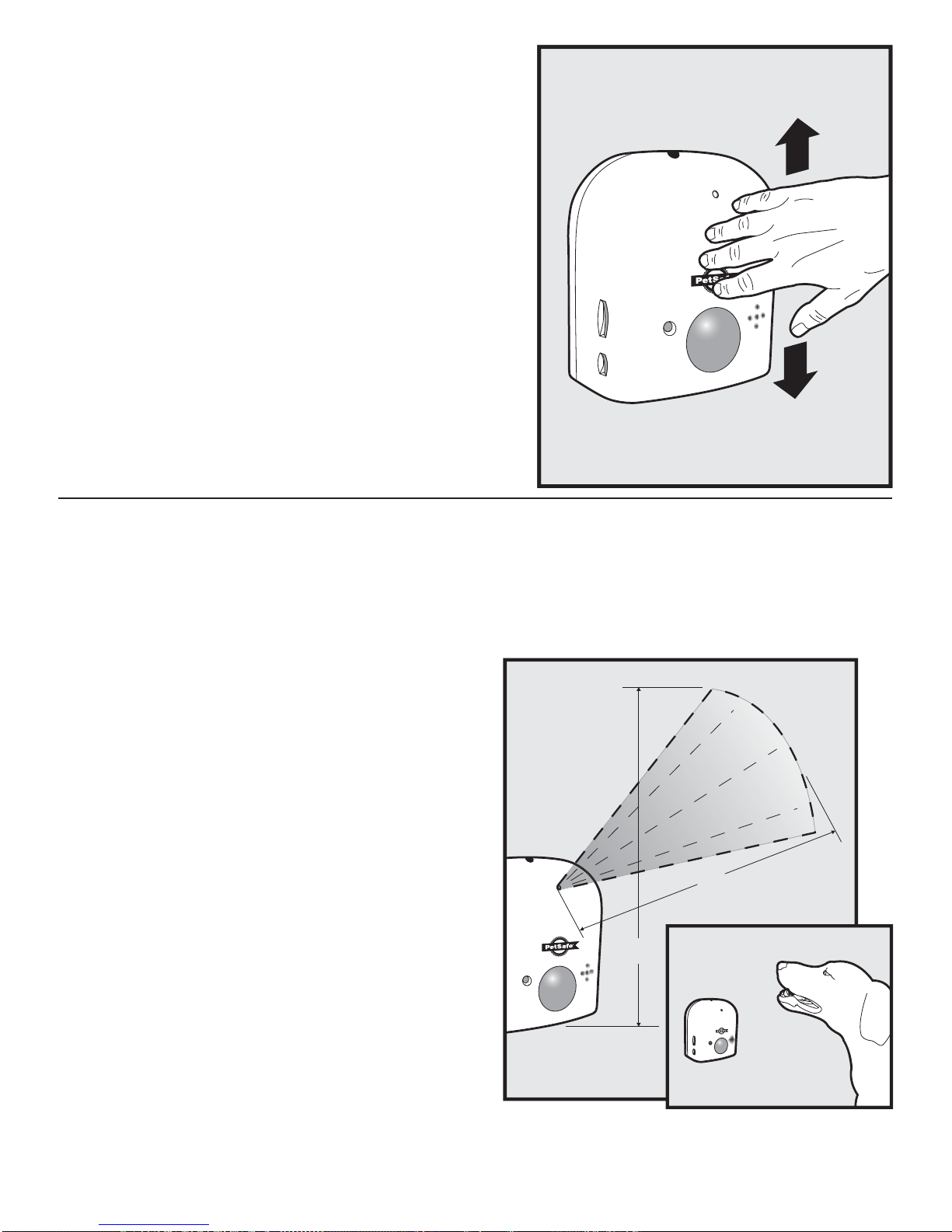

ToTest the PetSafe®Pawz
Away™ Spray Deterrent
Ensure the battery has been installed and the unit is
set toTone+Spray,Tone Only or Spray Only. Move
your hand in front of the motion detector.The unit will
detect your presence and activate accordingly.
Choosing a Location
Place the Pawz Away1. ™ Spray Deterrent in a location you want your pet to avoid (i.e., in a
doorway; on the counter, window sills or on your trash can)
Slide the function switch to the desired training position.2. Adjust the detection range by sliding the Hi/Low Switch accordingly.3.
The Pawz Away™Spray Deterrent is Small
andVersatile
Stand-alone: Place it in front of house plants or
on countertops
Hang it: Use the keyhole slot on the back to
mount on a wall or in a doorway
PetSafe®also recommends Scotch®Mounting
Squares, double-sided foam tape. Just peel and
stick to the back of the Pawz Away™unit, and your
wall. Great for use on walls, windows, cabinets and
other smooth dry surfaces.
Note:The spray emits approximately 12 inches outward
and 12 inches upward.It is recommended that the unit be
positioned at a level that would be below your pet’s head.
12"
12"

8 Customer Care Center 1-800-732-2677
Care & Cleaning
Turn off the Pawz Away™ Spray Deterrent. Use a cloth and mild soapy water to wipe the unit,
paying close attention to cleaning the spray nozzle. Do not fully submerse the Pawz Away™Spray
Deterrent in water. It is recommended that the unit be cleaned about every other month to
prevent clogging.The need for cleaning will depend on usage.
Accessories
To purchase additional accessories for your PetSafe®Pawz Away™ Spray Deterrent, please visit our
website at www.petsafe.net or contact the Customer Care Center.
Component Part Number
Battery Door RFA-375
Pawz Away™Spray
Deterrent RFA-364
Unscented Refill PAC19-11883
Lemon Refill RFA-64-11
9v Battery PAC11-12067
Frequently Asked Questions
Will the Pawz Away™ Spray
Deterrent work for my dogs
or cats?
The Pawz Away• ™ Spray Deterrent is safe and effective for all
breeds and sizes of dogs and cats.
Is the spray safe and humane?
While the spray is unpleasant, it is harmless to your pet.•
Troubleshooting
The Pawz Away™ Spray
Deterrent does not spray. Ensure that the battery is properly installed.• Replace the battery.• Clean the spray nozzle.• Refill the Unscented Spray.• If the Pawz Away• ™ Spray Deterrent still does not respond,
contact the Customer Care Center.
When I try to refill the
Unscented Spray, the
spray leaks out around
the Spray Nozzle.
Place the Pawz Away• ™Spray Deterrent on a hard surface, such
as a countertop.
Hold the Unscented Spray can upright. If it is held at an• angle, it will not create a good seal.
Press firmly on the Unscented Spray can to create a good seal.•
If the spray continues to leak, contact the Customer Care Center.•
The Spray Nozzle has a
build up of Unscented
Spray around the nozzle.
Gently clean around the spray nozzle with a warm soapy cloth.•

www.petsafe.net 9
Terms of Use and Limitation of Liability
Terms of Use1.
This Product is offered to you conditioned upon your acceptance without modification of the terms,
conditions and notices contained herein. Usage of this product implies acceptance of all such terms,
conditions, and notices.
Proper Use2.
This Product is designed for use with pets where training is desired.The specific temperament of
your pet may not work with this product.We recommend that you not use this product if your pet is
aggressive. If you are unsure whether this is appropriate for your pet, please consult your veterinarian,
certified trainer or contact our Customer Care Center at 1-800-732-2677.
Proper use includes reviewing the entire Operating andTraining Guide provided with your product
and any specific Caution statements.
No Unlawful or Prohibited Use3.
This Product is designed for use with pets only.This pet training device is not intended to harm, injure,
or provoke. Using this product in a way that is not intended could result in violation of Federal, State
or local laws.
Limitation of Liability4.
In no event shall Radio Systems®Corporation be liable for any direct, indirect, punitive,incidental,
special or consequential damages, or any damages whatsoever arising out of or connected with the use
or misuse of this Product. Buyer assumes all risks and liability from the use of this Product.
Modification ofTerms and Conditions5.
Radio Systems®Corporation reserves the right to change the terms, conditions and notices under
which this Product is offered.
Customer Care International
United States / Canada: 1-800-732-2677
Australia: 1800 786 608
New Zealand: 0800 543 054
Caution
Important:The pet training device is not a toy, keep away from children.
Do not use this product near fire or open flame.• Keep away from children.• Warn others of the presence of the Pawz Away• ™ Spray Deterrent.
Use PetSafe• ®refills only.
Do not puncture. Store away from heat.• Use under well-ventilated conditions.•

10 Customer Care Center 1-800-732-2677
FCC
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1)This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
CAUTION: Modification or changes to this equipment not expressly approved by Radio
Systems®Corporation may void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules.These limits are designed to provide reasonable
protection against harmful interference in a residential installation.This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a specific installation. If interference does occur to
radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.• Increase the separation between the equipment and the receiver.•
Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.•
Consult customer care, the dealer, or an experienced radio/TV technician for help.•
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est con forme à la norme NMB-003 du Canada.

www.petsafe.net 11

Radio Systems Corporation
10427 Electric Ave.
Knoxville,TN 37932
1-800-732-2677
www.petsafe.net
400-983/1
©2008 Radio Systems®Corporation
