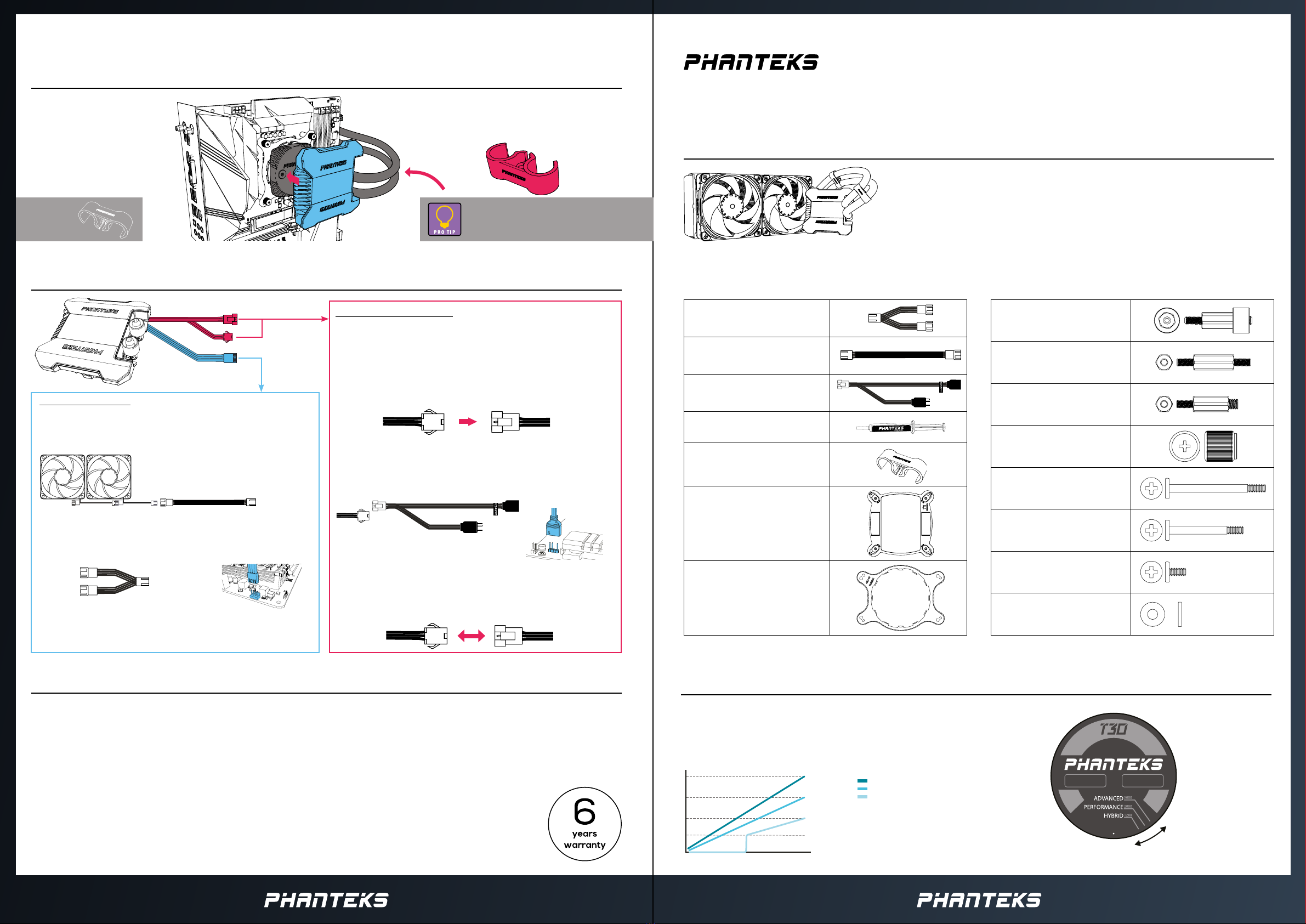

Phanteks GLACIER ONE 240 T30 User manual

Pump & Fan cables
A) Connect the Fans together with the Daisy-chain cables
and use the Fan PWM Extension Cable to reach the
motherboard.
Choose between 2 congurations:
B1) Use the PWM Splitter Cable to connect the pump
and fans to a single motherboard CPU header.
B2) If 2x CPU headers are available on the motherboard,
the pump and fans can also be connected individually
(without PWM Splitter Cable) for more precise control.
GLACIER ONE HIGH PERFORMANCE CLOSED LOOP CPU LIQUID COOLER
GLACIER ONE 240 T30
• Innity Mirror Cap
• 240x38 mm Radiator
• 2x 120mm T30 Fans
Package Contents
5. Install Infinity Mirror Cap and Tube Clips
6. Connect cables
As a Phanteks customer, you are priority number one. We have a dedicated team of employees across the globe to deliver the
experience you deserve.
CUSTOMER CARE
RMA AND TECHNICAL SUPPORT AMERICAS
Hours : Monday-Friday 9:00-5:00 PST
Phone number : [phone]
Email : [email protected]
Facebook : @Phanteks
For spare parts and optional upgrades please visit:
www.axpertec.com (EU) | www.phanteksusa.com (US)
RMA AND TECHNICAL SUPPORT INTERNATIONAL
Email : [email protected]
Facebook : @Phanteks
7. Support & Warranty
4x AM4 Stand-o
4x 115x/1200 Stand-o
4x 2066 Stand-o
4x Thumb Nut
8x 39mm Halos Screws
8x 36mm Fan Screws
8x 5mm Radiator Screws
8x Washers
Manual V1.0
Accessories
Screws:
A) The Innity Mirror Cap
simply snaps into place
via strong magnets.
Make sure the D-RGB
cable stays clear from
the Thumb Nut.
B) OPTIONAL: Install the (3x) included
Tube Clips for a tidy tube routing.
Simply snap the clips on the tubes.
D-RGB Cables D-RGB cable connection
The D-RGB lighting can be controlled through a D-RGB
equipped Phanteks chassis/controller or motherboard.
A) To Phanteks D-RGB Chassis/Controller
Connect the chassis D-RGB connector to the Innity Mirror
Cap and/or Halos.
B) To D-RGB Motherboard
Use the 3-Pin D-RGB Motherboard Adapter to connect the
D-RGB cable to a D-RGB equipped motherboard (A-RGB*).
*follow motherboard manual for instruction on D-RGB control
Fan cables can be routed through the
middle of the Tube Clips
4-Pin PWM Splitter Cable, 2x
80mm
4-Pin Fan PWM Extension Cable,
500mm
3-Pin D-RGB Motherboard
Adapter, 600mm
PH-NDC Thermal Compound
3x Tube Clips
Intel 115x/1200/1366
Backplate
AMD AM4 Bracket
(Intel Bracket is pre-installed)
3 x
daisy chain fans
to PWM Splitter Cable
Fan PWM Extension Cable
to Motherboard
CPU header
to Pump
to Fans
Pump PWM Cable
D-RGB Chassis
or D-RGB controller
innity mirror cap
and/or HALOS
to 3rd Party
D-RGB products
(optional)
to D-RGB Motherboard
D-RGB
Lighting
Product
3-Pin D-RGB Motherboard Adapter
To D-RGB Lighting Products
All Phanteks D-RGB lighting products can be daisy-chained
together D-RGB Lighting ProductD-RGB Lighting Product
0% 100%
PWM signal
1200 RPM
500 RPM
2000 RPM
3000 RPM Advanced mode
Performance mode (recommended)
Hybrid mode
RPM
50%
1. T30 Fan preparation
The T30 fan supports 3 dierent fan proles via a switch on
the fan hub. Please choose your preferred fan prole before
installing the fan into your system.
We recommend the default ‘Performance mode’.
Mode switch

3. Installing the pump block
4. Mount the radiator and fans
2. Motherboard preparation(follow instructions for the corresponding socket)
AMD Socket AM4
INTEL Socket 115X / 1200 / 1366
INTEL Socket 2011 & 2066
A) Remove the stock mounting brackets
A) This step is for AMD AM4 socket only
(for Intel socket installation, go to step 3B)
We recommend to install the fans to the radiator before
mounting it into the chassis.
3 Types of screws are included to mount the radiator and
the fans in dierent options:
Remove the Intel bracket
from the pump
1. Push the Intel bracket in
2. Rotate to loosen
3. pull the bracket o
Secure the AMD AM4
Bracket to the pump
4. push the AMD bracket in
5. rotate to fasten the bracket
A) Prepare the Intel Backplate for the correct socket
A) Secure the 4x Intel 2011/2066 Stand-os to the motherboard
B) Secure the 4x AM4 Stand-os to the motherboard
B) Secure the pump unit to the
stand-os on the motherboard
with the 4x Thumb Nuts
B) Secure the 4x 115x/1200/1366 Stand-os
to the motherboard and Intel Backplate
The thermal compound is pre-applied.
More thermal compound is included for
future installations
Use the optional washers if necessary on the
chassis for a secure t
Use the 36mm fan screw to mount the fan to the
radiator (and chassis)
Use the 5mm radiator screw to mount the radiator
directly to the chassis
Use the 39mm Halos screw to mount the Halos and
fans to the radiator (and chassis)
5mm radiator screw
36mm fan screw
36mm fan screw
5mm radiator screw
39mm Halos screw
2.
3.
5.
4.
115x/1200
1366
4 x
4 x
4 x 4 x
Option B:
Option A:
Option C (When using Halos only):
1.
