Philco POB68 User manual

User manual
Oven
POB68
All manuals and user guides at all-guides.com
all-guides.com

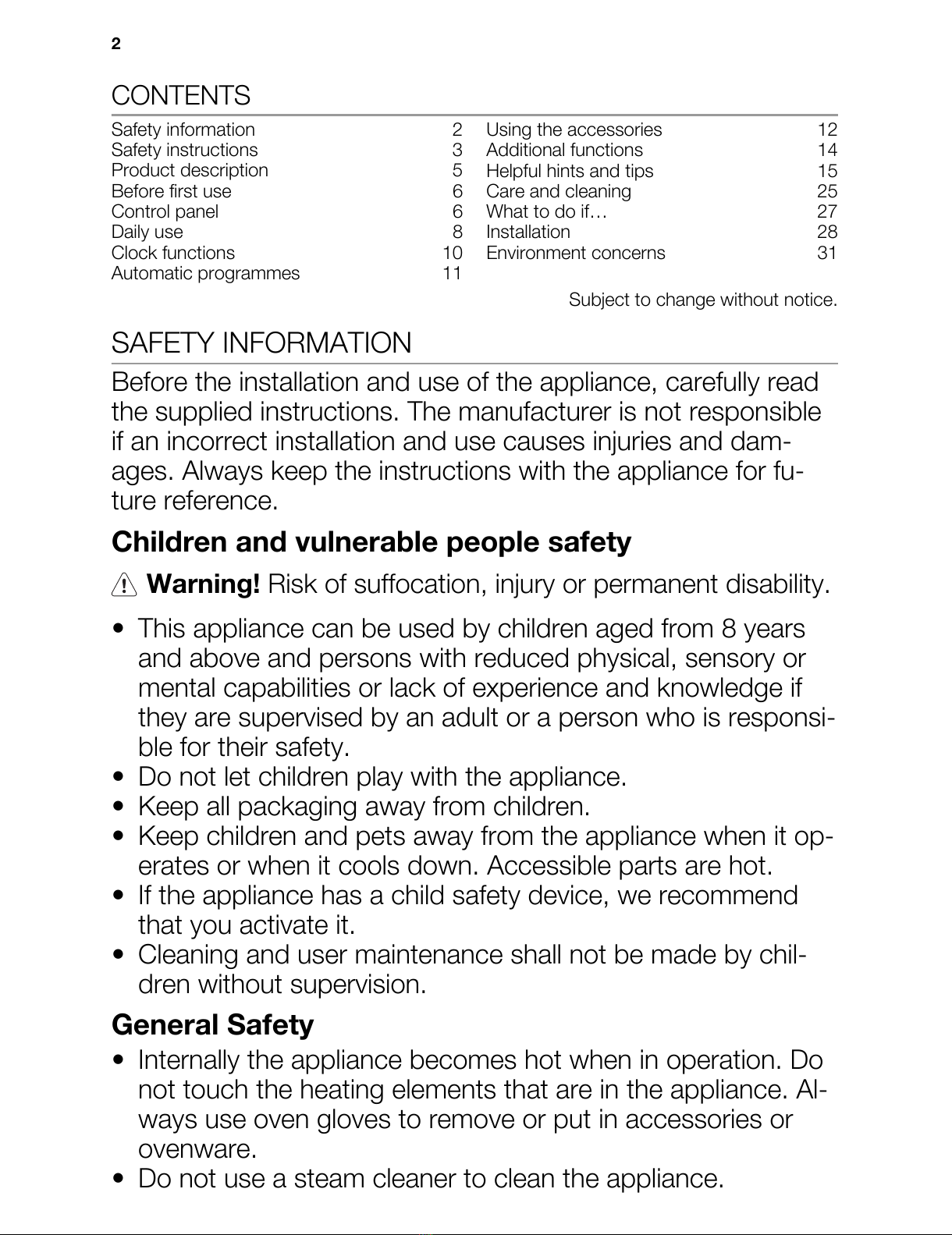

CONTENTS
Safety information 2
Safety instructions 3
Product description 5
Before first use 6
Control panel 6
Daily use 8
Clock functions 10
Automatic programmes 11
Using the accessories 12
Additional functions 14
Helpful hints and tips 15
Care and cleaning 25
What to do if… 27
Installation 28
Environment concerns 31
Subject to change without notice.
SAFETY INFORMATION
Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible
if an incorrect installation and use causes injuries and dam-
ages. Always keep the instructions with the appliance for fu-
ture reference.
Children and vulnerable people safety
Warning! Risk of suffocation, injury or permanent disability.
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they are supervised by an adult or a person who is responsi-
ble for their safety.
• Do not let children play with the appliance.
• Keep all packaging away from children.
• Keep children and pets away from the appliance when it op-
erates or when it cools down. Accessible parts are hot.
• If the appliance has a child safety device, we recommend
that you activate it.
• Cleaning and user maintenance shall not be made by chil-
dren without supervision.
General Safety
• Internally the appliance becomes hot when in operation. Do
not touch the heating elements that are in the appliance. Al-
ways use oven gloves to remove or put in accessories or
ovenware.
• Do not use a steam cleaner to clean the appliance.
2
All manuals and user guides at all-guides.com

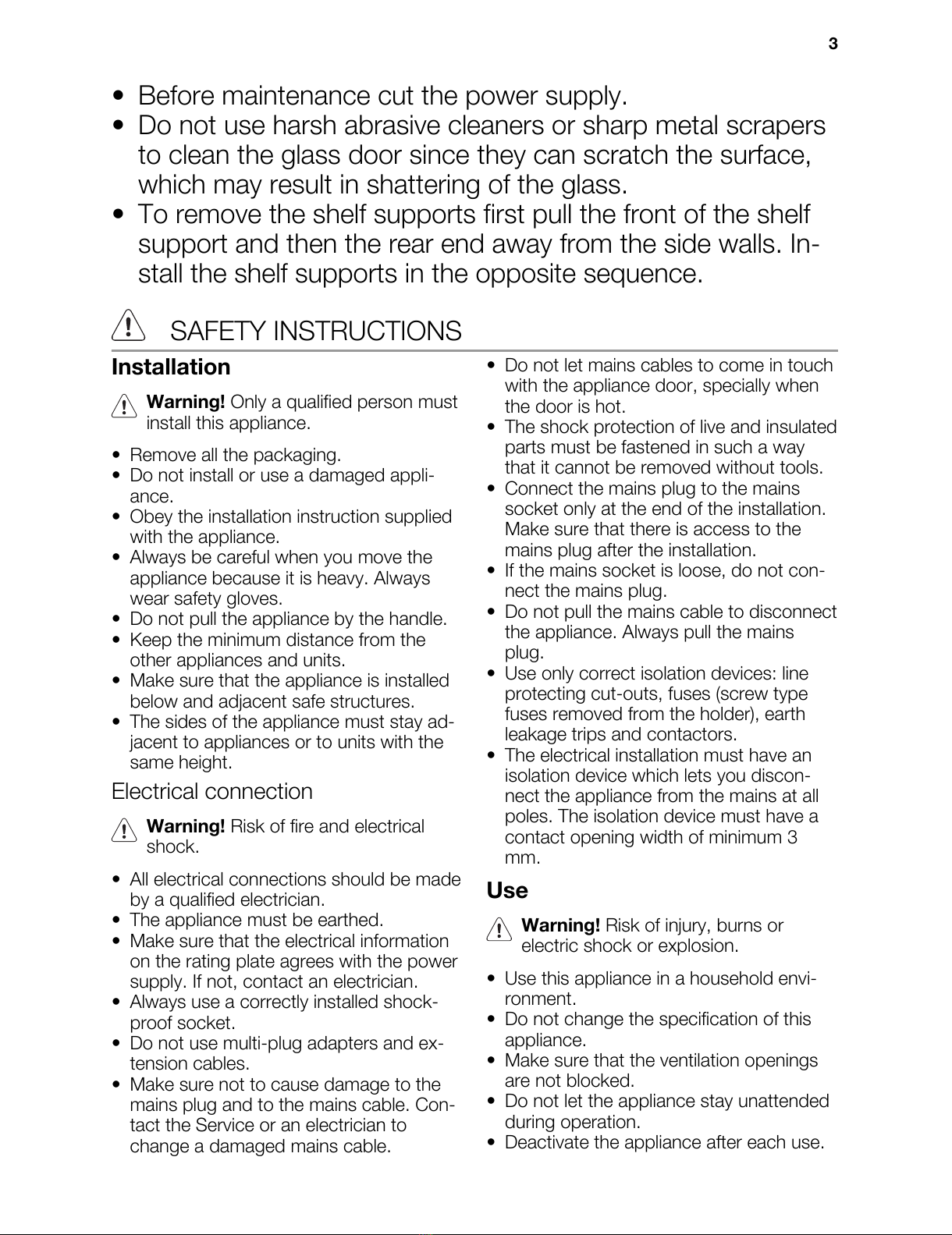

• Before maintenance cut the power supply.
• Do not use harsh abrasive cleaners or sharp metal scrapers
to clean the glass door since they can scratch the surface,
which may result in shattering of the glass.
• To remove the shelf supports first pull the front of the shelf
support and then the rear end away from the side walls. In-
stall the shelf supports in the opposite sequence.
SAFETY INSTRUCTIONS
Installation
Warning! Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged appli-
ance.
• Obey the installation instruction supplied
with the appliance.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Do not pull the appliance by the handle.
• Keep the minimum distance from the
other appliances and units.
• Make sure that the appliance is installed
below and adjacent safe structures.
• The sides of the appliance must stay ad-
jacent to appliances or to units with the
same height.
Electrical connection
Warning! Risk of fire and electrical
shock.
• All electrical connections should be made
by a qualified electrician.
• The appliance must be earthed.
• Make sure that the electrical information
on the rating plate agrees with the power
supply. If not, contact an electrician.
• Always use a correctly installed shock-
proof socket.
• Do not use multi-plug adapters and ex-
tension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable. Con-
tact the Service or an electrician to
change a damaged mains cable.
• Do not let mains cables to come in touch
with the appliance door, specially when
the door is hot.
• The shock protection of live and insulated
parts must be fastened in such a way
that it cannot be removed without tools.
• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.
• If the mains socket is loose, do not con-
nect the mains plug.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains
plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have an
isolation device which lets you discon-
nect the appliance from the mains at all
poles. The isolation device must have a
contact opening width of minimum 3
mm.
Use
Warning! Risk of injury, burns or
electric shock or explosion.
• Use this appliance in a household envi-
ronment.
• Do not change the specification of this
appliance.
• Make sure that the ventilation openings
are not blocked.
• Do not let the appliance stay unattended
during operation.
• Deactivate the appliance after each use.
3
All manuals and user guides at all-guides.com

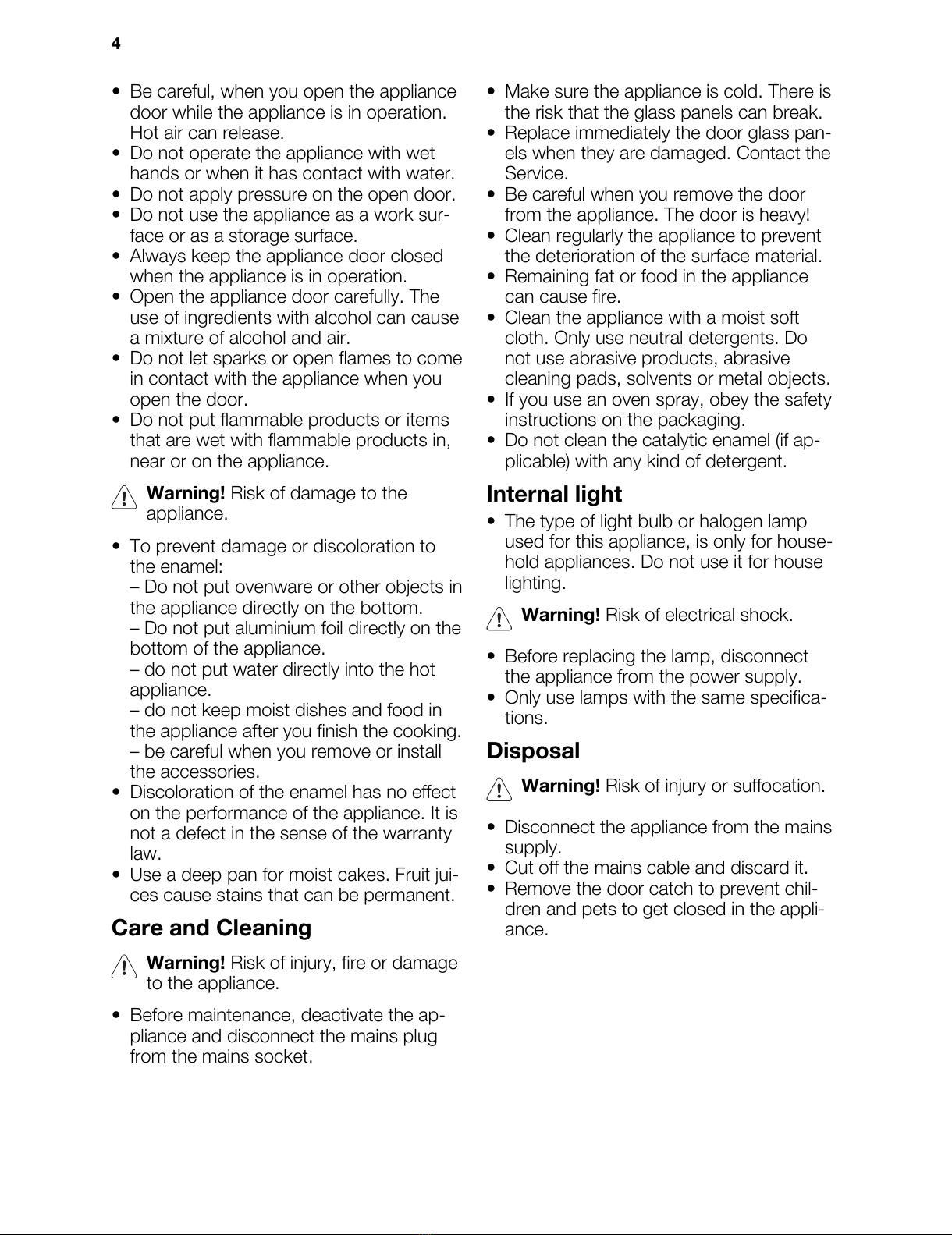

• Be careful, when you open the appliance
door while the appliance is in operation.
Hot air can release.
• Do not operate the appliance with wet
hands or when it has contact with water.
• Do not apply pressure on the open door.
• Do not use the appliance as a work sur-
face or as a storage surface.
• Always keep the appliance door closed
when the appliance is in operation.
• Open the appliance door carefully. The
use of ingredients with alcohol can cause
a mixture of alcohol and air.
• Do not let sparks or open flames to come
in contact with the appliance when you
open the door.
• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance.
Warning! Risk of damage to the
appliance.
• To prevent damage or discoloration to
the enamel:
– Do not put ovenware or other objects in
the appliance directly on the bottom.
– Do not put aluminium foil directly on the
bottom of the appliance.
– do not put water directly into the hot
appliance.
– do not keep moist dishes and food in
the appliance after you finish the cooking.
– be careful when you remove or install
the accessories.
• Discoloration of the enamel has no effect
on the performance of the appliance. It is
not a defect in the sense of the warranty
law.
• Use a deep pan for moist cakes. Fruit jui-
ces cause stains that can be permanent.
Care and Cleaning
Warning! Risk of injury, fire or damage
to the appliance.
• Before maintenance, deactivate the ap-
pliance and disconnect the mains plug
from the mains socket.
• Make sure the appliance is cold. There is
the risk that the glass panels can break.
• Replace immediately the door glass pan-
els when they are damaged. Contact the
Service.
• Be careful when you remove the door
from the appliance. The door is heavy!
• Clean regularly the appliance to prevent
the deterioration of the surface material.
• Remaining fat or food in the appliance
can cause fire.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use abrasive products, abrasive
cleaning pads, solvents or metal objects.
• If you use an oven spray, obey the safety
instructions on the packaging.
• Do not clean the catalytic enamel (if ap-
plicable) with any kind of detergent.
Internal light
• The type of light bulb or halogen lamp
used for this appliance, is only for house-
hold appliances. Do not use it for house
lighting.
Warning! Risk of electrical shock.
• Before replacing the lamp, disconnect
the appliance from the power supply.
• Only use lamps with the same specifica-
tions.
Disposal
Warning! Risk of injury or suffocation.
• Disconnect the appliance from the mains
supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent chil-
dren and pets to get closed in the appli-
ance.
4
All manuals and user guides at all-guides.com

PRODUCT DESCRIPTION
21
9
3
4
5
6
7
8
5
4
3
2
1
1Control panel
2Electronic programmer
3Heating element
4Lamp
5Fan
6Rear wall heating element
7Bottom heat
8Shelf support, removable
9Shelf positions
Accessories
Wire shelf
For cookware, cake tins, roasts.
Grill- / Roasting pan
To bake and roast or as a pan to collect
fat.
Trivet
• For roasting and grilling.
Use the trivet only with the Grill- /
roasting pan.
5
All manuals and user guides at all-guides.com

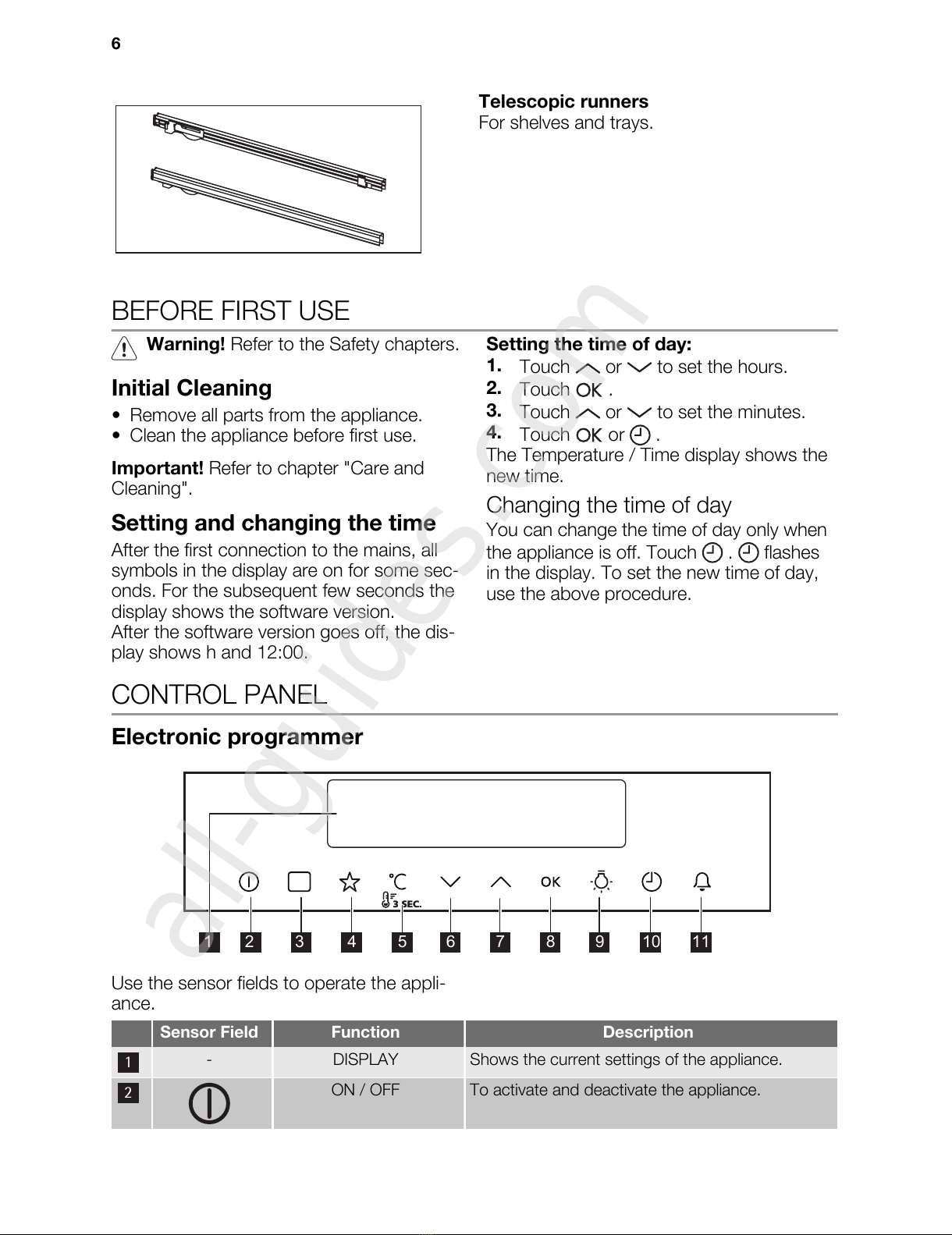

Telescopic runners
For shelves and trays.
BEFORE FIRST USE
Warning! Refer to the Safety chapters.
Initial Cleaning
• Remove all parts from the appliance.
• Clean the appliance before first use.
Important! Refer to chapter "Care and
Cleaning".
Setting and changing the time
After the first connection to the mains, all
symbols in the display are on for some sec-
onds. For the subsequent few seconds the
display shows the software version.
After the software version goes off, the dis-
play shows h and 12:00.
Setting the time of day:
1. Touch or to set the hours.
2. Touch .
3. Touch or to set the minutes.
4. Touch or .
The Temperature / Time display shows the
new time.
Changing the time of day
You can change the time of day only when
the appliance is off. Touch . flashes
in the display. To set the new time of day,
use the above procedure.
CONTROL PANEL
Electronic programmer
3 SEC.3 SEC.
21 3 4 5 6 7 8 9 10 11
Use the sensor fields to operate the appli-
ance.
Sensor Field Function Description
1
-DISPLAY Shows the current settings of the appliance.
2
ON / OFF To activate and deactivate the appliance.
6
All manuals and user guides at all-guides.com
all-guides.com

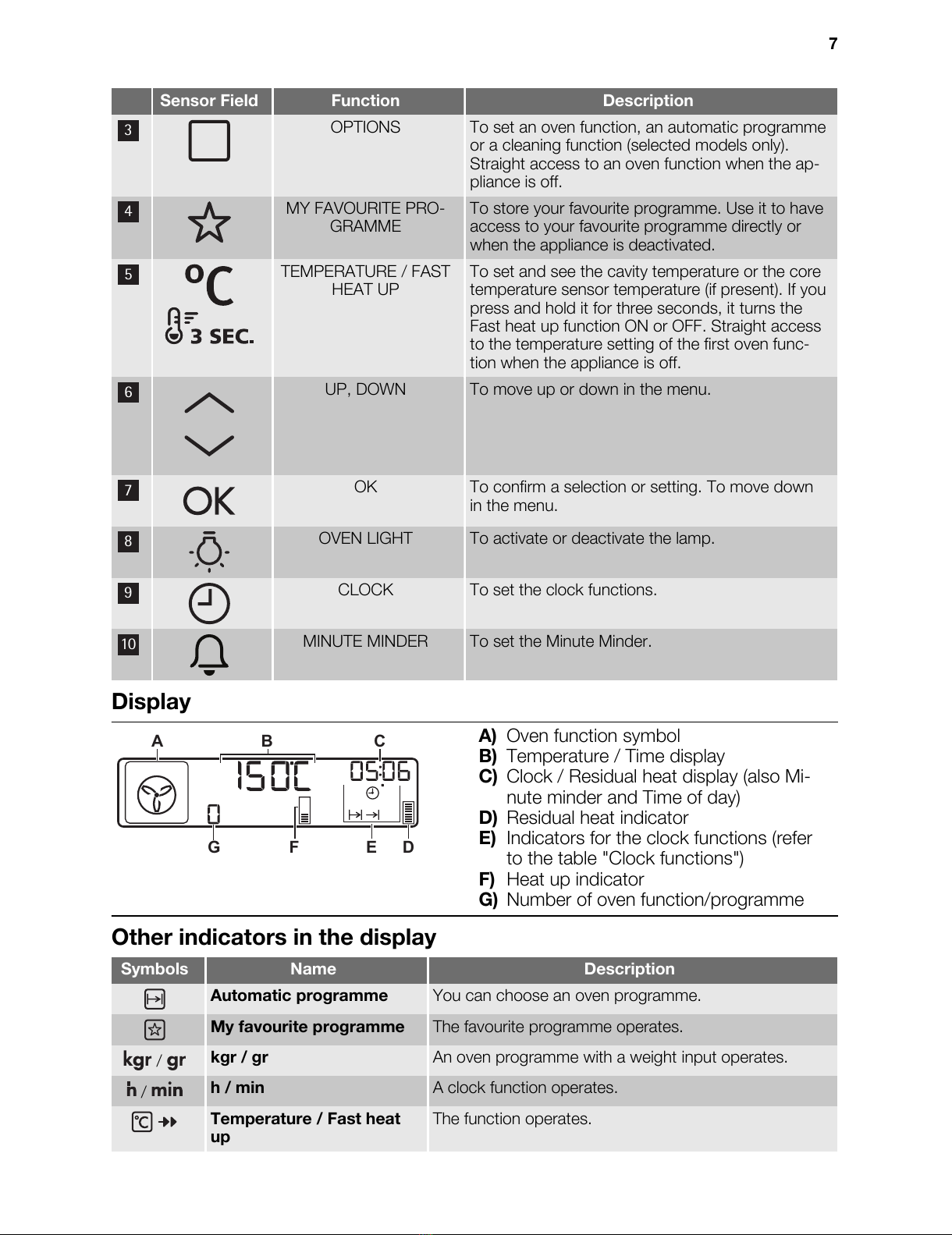

Sensor Field Function Description
3
OPTIONS To set an oven function, an automatic programme
or a cleaning function (selected models only).
Straight access to an oven function when the ap-
pliance is off.
4
MY FAVOURITE PRO-
GRAMME
To store your favourite programme. Use it to have
access to your favourite programme directly or
when the appliance is deactivated.
5
TEMPERATURE / FAST
HEAT UP
To set and see the cavity temperature or the core
temperature sensor temperature (if present). If you
press and hold it for three seconds, it turns the
Fast heat up function ON or OFF. Straight access
to the temperature setting of the first oven func-
tion when the appliance is off.
6
UP, DOWN To move up or down in the menu.
7
OK To confirm a selection or setting. To move down
in the menu.
8
OVEN LIGHT To activate or deactivate the lamp.
9
CLOCK To set the clock functions.
10
MINUTE MINDER To set the Minute Minder.
Display
AB C
DEFG
A) Oven function symbol
B) Temperature / Time display
C) Clock / Residual heat display (also Mi-
nute minder and Time of day)
D) Residual heat indicator
E) Indicators for the clock functions (refer
to the table "Clock functions")
F) Heat up indicator
G) Number of oven function/programme
Other indicators in the display
Symbols Name Description
Automatic programme You can choose an oven programme.
My favourite programme The favourite programme operates.
/ kgr / gr An oven programme with a weight input operates.
/ h / min A clock function operates.
Temperature / Fast heat
up
The function operates.
7
All manuals and user guides at all-guides.com

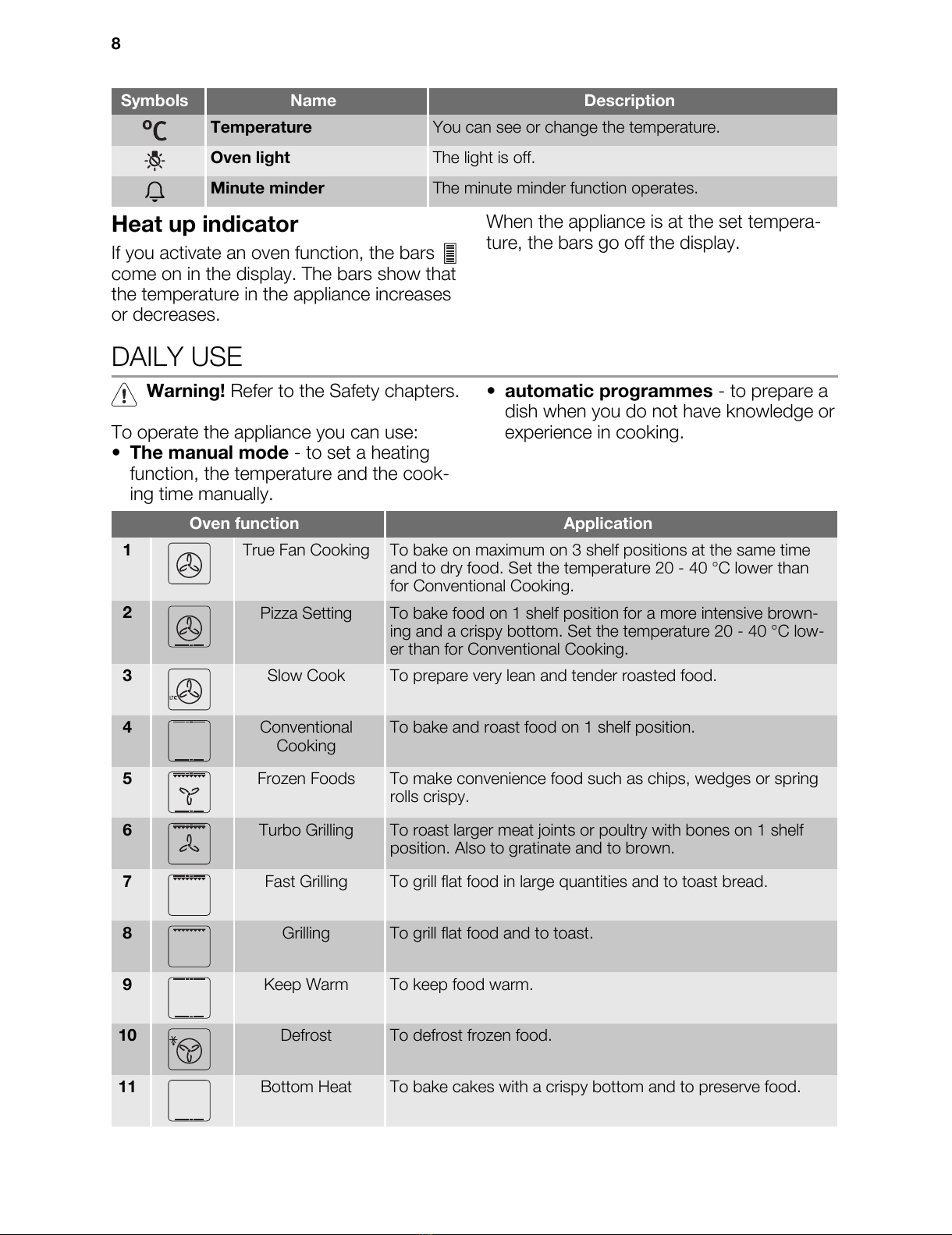

Symbols Name Description
Temperature You can see or change the temperature.
Oven light The light is off.
Minute minder The minute minder function operates.
Heat up indicator
If you activate an oven function, the bars
come on in the display. The bars show that
the temperature in the appliance increases
or decreases.
When the appliance is at the set tempera-
ture, the bars go off the display.
DAILY USE
Warning! Refer to the Safety chapters.
To operate the appliance you can use:
•The manual mode - to set a heating
function, the temperature and the cook-
ing time manually.
•automatic programmes - to prepare a
dish when you do not have knowledge or
experience in cooking.
Oven function Application
1True Fan Cooking To bake on maximum on 3 shelf positions at the same time
and to dry food. Set the temperature 20 - 40 °C lower than
for Conventional Cooking.
2Pizza Setting To bake food on 1 shelf position for a more intensive brown-
ing and a crispy bottom. Set the temperature 20 - 40 °C low-
er than for Conventional Cooking.
3Slow Cook To prepare very lean and tender roasted food.
4Conventional
Cooking
To bake and roast food on 1 shelf position.
5Frozen Foods To make convenience food such as chips, wedges or spring
rolls crispy.
6Turbo Grilling To roast larger meat joints or poultry with bones on 1 shelf
position. Also to gratinate and to brown.
7Fast Grilling To grill flat food in large quantities and to toast bread.
8Grilling To grill flat food and to toast.
9Keep Warm To keep food warm.
10 Defrost To defrost frozen food.
11 Bottom Heat To bake cakes with a crispy bottom and to preserve food.
8
All manuals and user guides at all-guides.com

Oven function Application
12 ECO Roasting ECO functions let you optimize the energy consumption dur-
ing cooking. Thus, it is necessary to set the cooking time
first. To get more information about the recommended set-
tings, refer to the cooking tables for an oven function that is
almost the same.
Setting the oven function
1. Activate the appliance with . The
display shows the set temperature, the
symbol and the number of the oven
function.
2. Touch or to set an oven func-
tion.
3. Touch or the appliance starts auto-
matically after five seconds.
If you activate the appliance and do not
set an oven function or programme,
the appliance deactivates automatically
after 20 seconds.
Changing the temperature
Touch / to change the temperature
in steps of 5 °C.
When the appliance is at the set tempera-
ture, an acoustic signal sounds three times
and the Heat up indicator goes out.
Checking the temperature
You can see the temperature in the appli-
ance when the function or programme op-
erates.
1. Touch . The Temperature / Time
display shows the temperature in the
appliance. If you want to change the
oven temperature, touch one more
time and use or .
2. Touch to go back to the set tem-
perature or the display shows it auto-
matically after five seconds.
Fast heat up function
The Fast heat up function decreases the
heat up time.
Activating the Fast heat up function:
Touch and hold for more than three
seconds.
If you activate the Fast heat up function, the
bars on the display flash one by one and
comes on to show that the function
operates.
Additional information:
• Do not put food into the oven when the
Fast heat up function operates.
• The Fast heat up is not available with all
oven functions. An acoustic signal
sounds if the Fast heat up is not available
for the set function.
Energy saving
The appliance contains features
which help you save energy during
everyday cooking:
•Residual heat:
– When the heating function or pro-
gramme operates, the heating ele-
ments are deactivated 10% earlier
(the lamp and fan continue to op-
erate). For this feature to operate,
the cooking time must be longer
than 30 minutes or you must use
the clock functions (Duration, End,
Time delay). This feature does not
operate with the grill functions.
– When the appliance is off, you can
use the heat to keep food warm.
The clock / residual heat display
shows the remaining temperature,
and the bars show the tempera-
ture as it decreases.
•Cooking with the lamp off - Touch
to deactivate the lamp during
cooking.
•Deactivating the display - If nec-
essary, you can fully deactivate the
appliance. Touch and at the
same time until the display goes out.
This step also activates the appli-
ance.
•Eco functions - refer to "Oven func-
tions".
9
All manuals and user guides at all-guides.com

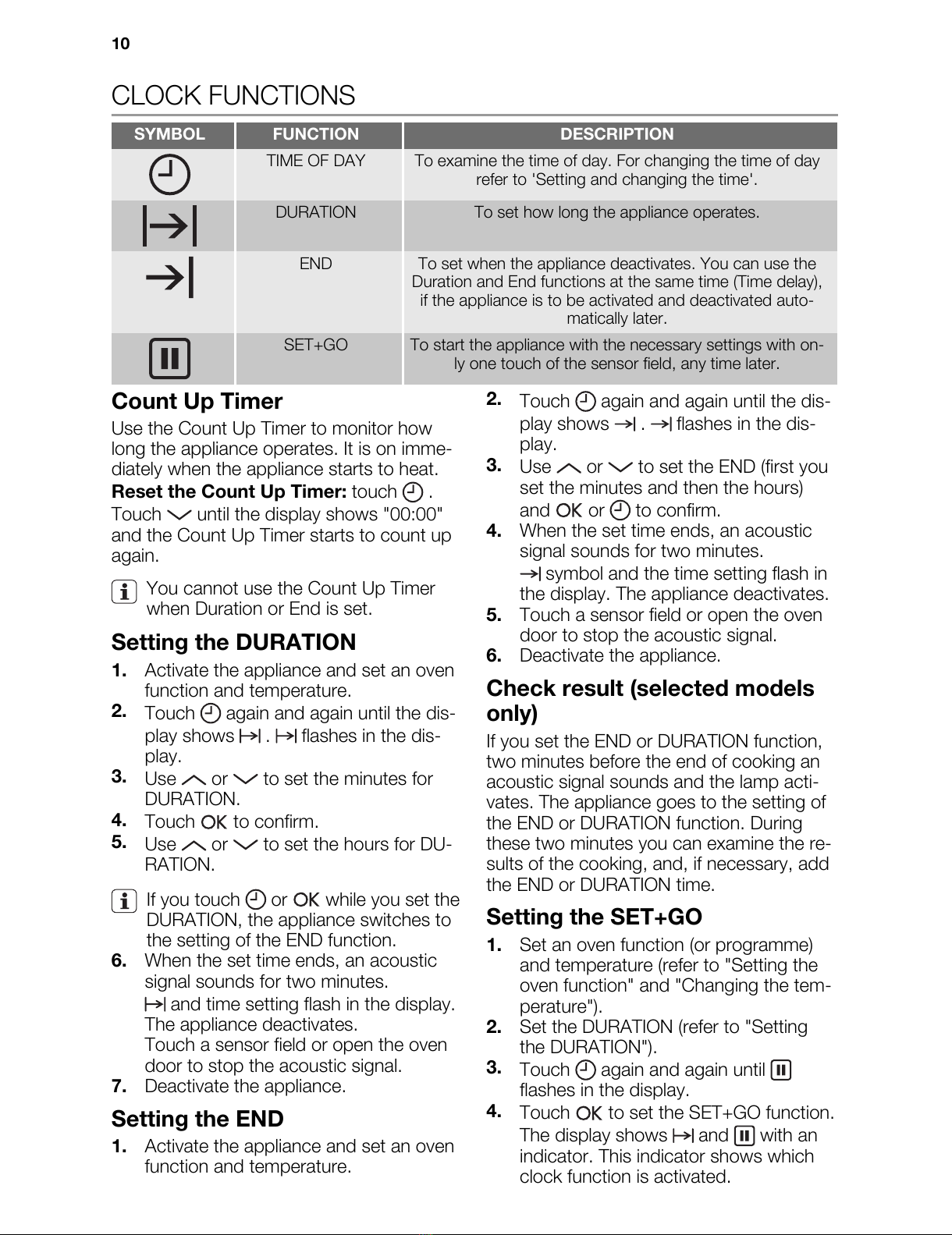

CLOCK FUNCTIONS
SYMBOL FUNCTION DESCRIPTION
TIME OF DAY To examine the time of day. For changing the time of day
refer to 'Setting and changing the time'.
DURATION To set how long the appliance operates.
END To set when the appliance deactivates. You can use the
Duration and End functions at the same time (Time delay),
if the appliance is to be activated and deactivated auto-
matically later.
SET+GO To start the appliance with the necessary settings with on-
ly one touch of the sensor field, any time later.
Count Up Timer
Use the Count Up Timer to monitor how
long the appliance operates. It is on imme-
diately when the appliance starts to heat.
Reset the Count Up Timer: touch .
Touch until the display shows "00:00"
and the Count Up Timer starts to count up
again.
You cannot use the Count Up Timer
when Duration or End is set.
Setting the DURATION
1. Activate the appliance and set an oven
function and temperature.
2. Touch again and again until the dis-
play shows . flashes in the dis-
play.
3. Use or to set the minutes for
DURATION.
4. Touch to confirm.
5. Use or to set the hours for DU-
RATION.
If you touch or while you set the
DURATION, the appliance switches to
the setting of the END function.
6. When the set time ends, an acoustic
signal sounds for two minutes.
and time setting flash in the display.
The appliance deactivates.
Touch a sensor field or open the oven
door to stop the acoustic signal.
7. Deactivate the appliance.
Setting the END
1. Activate the appliance and set an oven
function and temperature.
2. Touch again and again until the dis-
play shows . flashes in the dis-
play.
3. Use or to set the END (first you
set the minutes and then the hours)
and or to confirm.
4. When the set time ends, an acoustic
signal sounds for two minutes.
symbol and the time setting flash in
the display. The appliance deactivates.
5. Touch a sensor field or open the oven
door to stop the acoustic signal.
6. Deactivate the appliance.
Check result (selected models
only)
If you set the END or DURATION function,
two minutes before the end of cooking an
acoustic signal sounds and the lamp acti-
vates. The appliance goes to the setting of
the END or DURATION function. During
these two minutes you can examine the re-
sults of the cooking, and, if necessary, add
the END or DURATION time.
Setting the SET+GO
1. Set an oven function (or programme)
and temperature (refer to "Setting the
oven function" and "Changing the tem-
perature").
2. Set the DURATION (refer to "Setting
the DURATION").
3. Touch again and again until
flashes in the display.
4. Touch to set the SET+GO function.
The display shows and with an
indicator. This indicator shows which
clock function is activated.
10
All manuals and user guides at all-guides.com

5. Touch a sensor field (apart from ON /
OFF) to start the SET+GO function.
You can use the SET+GO function only
when the DURATION is set.
Setting the MINUTE MINDER
Use the MINUTE MINDER to set a count-
down (maximum 2 h 30 min). This function
has no effect on the operation of the oven.
You can set the MINUTE MINDER at any
time and also when the appliance is off.
1. Touch . and "00" flash in the dis-
play.
2. Use or to set the MINUTE
MINDER. First you set the seconds,
then the minutes and the hours.
3. Touch or the MINUTE MINDER
starts automatically after five seconds.
4. When the set time ends, an acoustic
signal sounds for two minutes and
00:00 and flash in the display.
5. Touch a sensor field or open the oven
door to stop the acoustic signal.
Setting the Time delay function
The DURATION and END functions
can be used at the same time, if the oven is
to be activated and deactivated automati-
cally later. In this case, first set the DURA-
TION and then the END function (re-
fer to "Setting the DURATION" and "Setting
the END" ).
When the Time delay function is activated,
the display shows a static symbol of the
oven function, with a dot and . The
dot shows which clock function is on in the
Clock / residual heat display.
AUTOMATIC PROGRAMMES
Warning! Refer to the Safety chapters.
There are 20 automatic programmes
and recipes. Use an automatic pro-
gramme or recipe when you do not
have the knowledge or experience on
how to prepare a dish. You can find the
list of the recipes for the automatic pro-
grammes in the "Helpful hints and tips"
chapter.
There are two types of automatic
programmes:
• Automatic recipes
• Automatic programmes with weight input
You can find the recipes for the auto-
matic programmes specified for this
appliance on our website. To find the
proper Recipe Book check the PNC
number on the rating plate on the front
frame of the appliance cavity.
Automatic recipes
Setting an automatic recipe:
1. Activate the appliance.
2. Touch . The display shows the num-
ber of the automatic programme (P1 –
P20).
3. Touch or to choose the auto-
matic recipe.
4. Touch or the automatic recipe acti-
vates automatically after five seconds.
5. When the set time ends, an acoustic
signal sounds for two minutes. The
symbol flashes. The appliance deac-
tivates.
6. Touch a sensor field or open the door
to stop the acoustic signal.
Automatic programmes with
weight input
If you set the weight of the meat, the appli-
ance calculates the roasting time.
1. Activate the appliance.
2. Touch .
3. Touch or to set the weight pro-
gramme (refer to the "Recipe book").
The display shows: the cooking time,
the duration symbol , a default
weight, a unit of measurement (kg, g).
4. Touch or the settings save auto-
matically after five seconds.
5. The appliance activates. A symbol of
the weight unit flashes in the display.
During this time you can change the
11
All manuals and user guides at all-guides.com
all-guides.com

default weight value with or .
Touch .
6. When the set time ends, an acoustic
signal sounds for two minutes.
flashes. The appliance deactivates.
7. Touch a sensor field or open the door
to stop the acoustic signal.

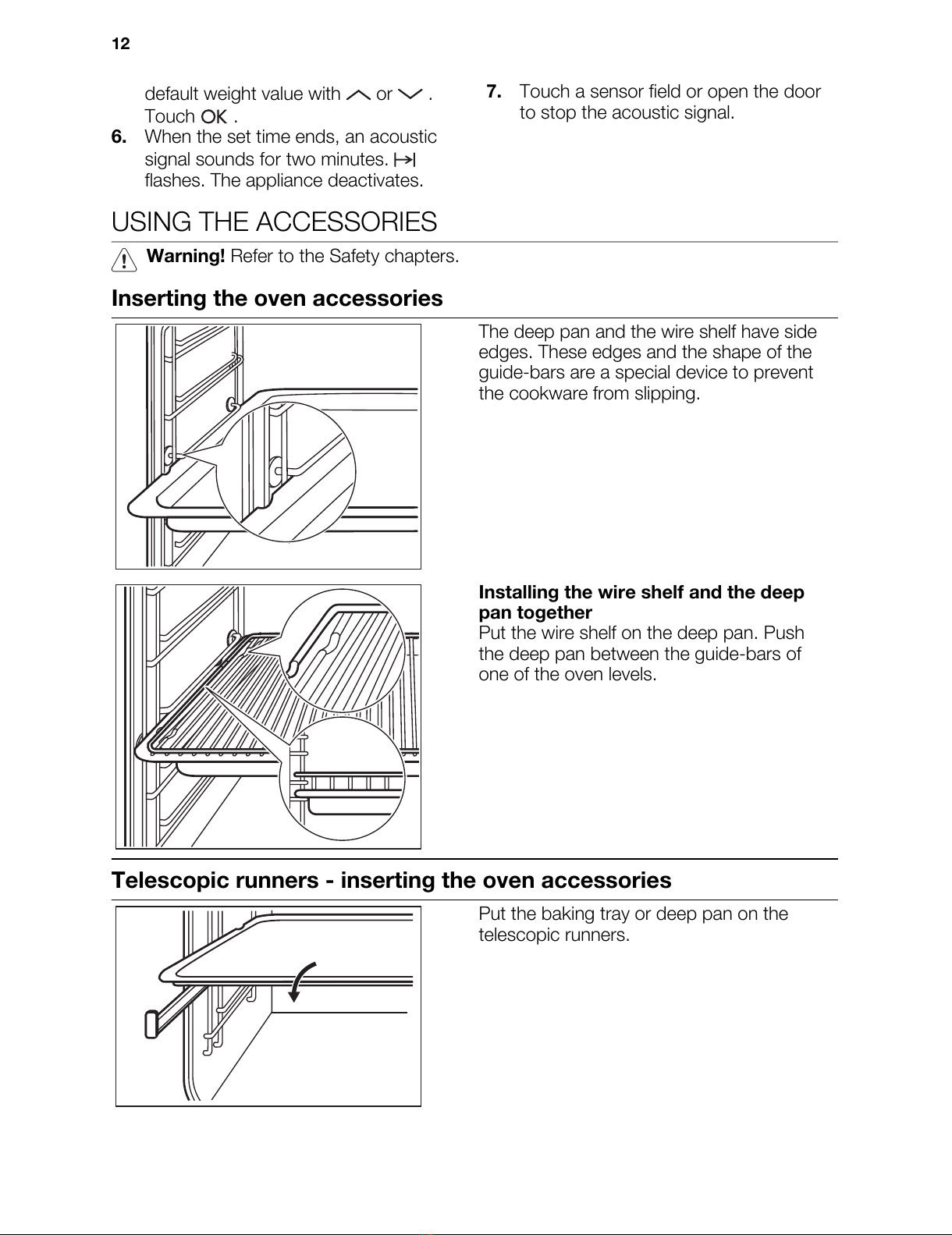

USING THE ACCESSORIES
Warning! Refer to the Safety chapters.
Inserting the oven accessories
The deep pan and the wire shelf have side
edges. These edges and the shape of the
guide-bars are a special device to prevent
the cookware from slipping.
Installing the wire shelf and the deep
pan together
Put the wire shelf on the deep pan. Push
the deep pan between the guide-bars of
one of the oven levels.
Telescopic runners - inserting the oven accessories
Put the baking tray or deep pan on the
telescopic runners.
12
All manuals and user guides at all-guides.com

Put the wire shelf on the telescopic runners
so that the feet point downwards.
The high rim around the wire shelf is a
special device to prevent the cookware
from slipping.
Inserting the wire shelf and the deep pan together
Put the wire shelf on the deep pan. Put the
wire shelf and the deep pan on the tele-
scopic runners.
Trivet and Grill- / Roasting pan
Warning! Be careful when you remove
the accessories from a hot appliance.
There is a risk of burns.
You can use the trivet to roast larger
pieces of meat or poultry on one shelf
position:
• Put the trivet into the deep pan so that
the supports of the wire shelf point up.
• Put the deep pan into the oven on the
necessary shelf position.
You can use the trivet to grill flat
dishes in large quantities and to toast:
• Put the trivet into the deep pan so that
the supports of the wire shelf point
down.
• Put the deep pan into the oven on the
necessary shelf position.
13
All manuals and user guides at all-guides.com

ADDITIONAL FUNCTIONS
My Favourite Programme
function
Use this function to save your favourite
temperature and time settings for an oven
function or programme.
1. Set the temperature and time for an
oven function or programme.
2. Touch and hold for more than three
seconds. An acoustic signal sounds.
3. Deactivate the appliance.
Using My Favourite Programme
function:
•To activate the function touch . The
appliance activates your favourite pro-
gramme.
•To deactivate the function touch .
The appliance deactivates your favourite
programme.
When the function operates, you can
change the time and temperature.
Child Lock
The Child Lock prevents an accidental op-
eration of the appliance.
Activating and deactivating the Child
Lock function:
1. Deactivate the appliance with . Do
not set an oven function.
2. Touch and hold and at the same
time for 2 seconds. An acoustic signal
sounds.
SAFE comes on or goes out in the display.
Function Lock
You can activate the function only when the
appliance operates. The Function Lock pre-
vents an accidental change of the oven
function.
Activating / deactivating the Function
Lock function:
1. Activate the appliance.
2. Activate an oven function or setting.
3. Touch and hold and at the same
time for 2 seconds. An acoustic signal
sounds.
Loc comes on or goes out in the display.
You can deactivate the appliance when the
Function Lock is on. When you deactivate
the appliance, the Function Lock deacti-
vates.
Settings menu
The settings menu lets you add or remove
functions from the main menu (for example:
you can activate or deactivate the Residual
heat indicator). The settings menu has a
maximum of seven settings (from SET1 to
SET7). Refer to the table below to see the
possible value of each setting.
Settings menu
Indicator of the setting
menu
Description Value to set
SET1 SET+GO ON / OFF
SET2 RESIDUAL HEAT INDICATOR ON / OFF
SET3 KEY TONE CLICK / BEEP / OFF
SET4 FAULTY TONE ON / OFF
SET5 SERVICE MENU ---
SET6 RESTORE SETTINGS YES / NO
SET7
1)
TIME EXTENSION ON / OFF
1) Selected models only
You can set the settings menu only
when the appliance is deactivated.
Activating the settings menu:
1. If necessary, deactivate the appliance
with .
14
All manuals and user guides at all-guides.com

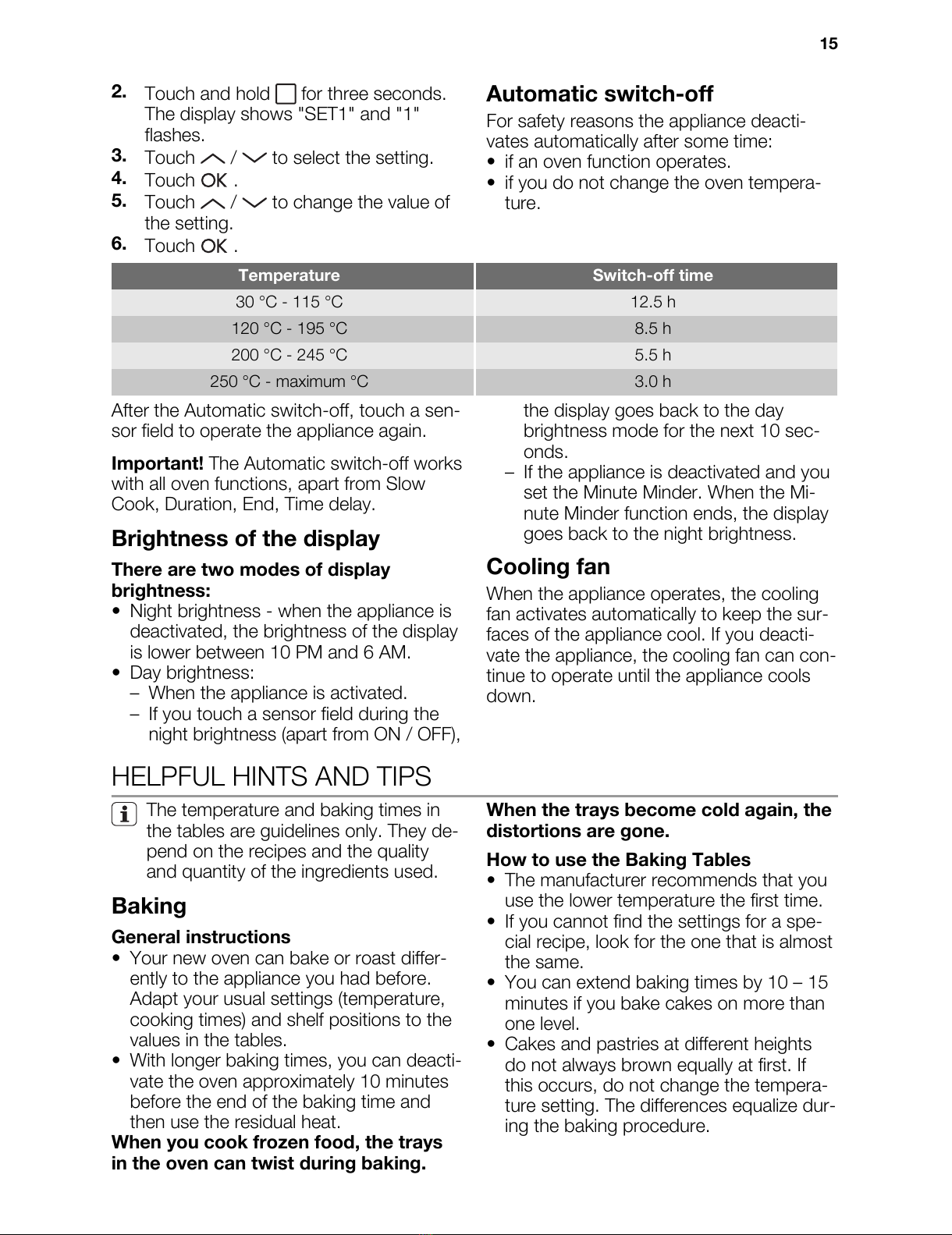

2. Touch and hold for three seconds.
The display shows "SET1" and "1"
flashes.
3. Touch / to select the setting.
4. Touch .
5. Touch / to change the value of
the setting.
6. Touch .
Automatic switch-off
For safety reasons the appliance deacti-
vates automatically after some time:
• if an oven function operates.
• if you do not change the oven tempera-
ture.
Temperature Switch-off time
30 °C - 115 °C 12.5 h
120 °C - 195 °C 8.5 h
200 °C - 245 °C 5.5 h
250 °C - maximum °C 3.0 h
After the Automatic switch-off, touch a sen-
sor field to operate the appliance again.
Important! The Automatic switch-off works
with all oven functions, apart from Slow
Cook, Duration, End, Time delay.
Brightness of the display
There are two modes of display
brightness:
• Night brightness - when the appliance is
deactivated, the brightness of the display
is lower between 10 PM and 6 AM.
•Daybrightness:
– When the appliance is activated.
– If you touch a sensor field during the
night brightness (apart from ON / OFF),
the display goes back to the day
brightness mode for the next 10 sec-
onds.
– If the appliance is deactivated and you
set the Minute Minder. When the Mi-
nute Minder function ends, the display
goes back to the night brightness.
Cooling fan
When the appliance operates, the cooling
fan activates automatically to keep the sur-
faces of the appliance cool. If you deacti-
vate the appliance, the cooling fan can con-
tinue to operate until the appliance cools
down.
HELPFUL HINTS AND TIPS
The temperature and baking times in
the tables are guidelines only. They de-
pend on the recipes and the quality
and quantity of the ingredients used.
Baking
General instructions
• Your new oven can bake or roast differ-
ently to the appliance you had before.
Adapt your usual settings (temperature,
cooking times) and shelf positions to the
values in the tables.
• With longer baking times, you can deacti-
vate the oven approximately 10 minutes
before the end of the baking time and
then use the residual heat.
When you cook frozen food, the trays
in the oven can twist during baking.
When the trays become cold again, the
distortions are gone.
How to use the Baking Tables
• The manufacturer recommends that you
use the lower temperature the first time.
• If you cannot find the settings for a spe-
cial recipe, look for the one that is almost
the same.
• You can extend baking times by 10 – 15
minutes if you bake cakes on more than
one level.
• Cakes and pastries at different heights
do not always brown equally at first. If
this occurs, do not change the tempera-
ture setting. The differences equalize dur-
ing the baking procedure.
15
All manuals and user guides at all-guides.com

Tips on baking
Baking results Possible cause Remedy
The bottom of the cake is not
browned sufficiently. The shelf position is incorrect. Put the cake on a lower shelf.
The cake sinks and becomes
soggy, lumpy or streaky.
The oven temperature is too
high.
The next time you bake, set a
slightly lower oven temperature.
The cake sinks and becomes
soggy, lumpy or streaky. The baking time is too short.
Set a longer baking time. You
cannot decrease baking
times by setting higher tem-
peratures.
The cake sinks and becomes
soggy, lumpy or streaky.
There is too much liquid in the
mixture.
Use less liquid. Be careful with
mixing times, especially if you
use a mixing machine.
The cake is too dry. The oven temperature is too
low.
The next time you bake, set a
higher oven temperature.
The cake is too dry. The baking time is too long. The next time you bake, set a
shorter baking time.
The cake browns unevenly.
The oven temperature is too
high and the baking time is too
short.
Set a lower oven temperature
and a longer baking time.
The cake browns unevenly. The mixture is unevenly distrib-
uted.
Spread the mixture evenly on
the baking tray.
The cake is not ready in the
baking time given.
The oven temperature is too
low.
The next time you bake, set a
slightly higher oven tempera-
ture.
Baking on one level:
Baking in tins
Type of baking Oven function Shelf position Temperature
(°C)
Time (min)
Ring cake / Brio-
che
True Fan Cook-
ing
1150 - 160 50 - 70
Madeira cake /
Fruit cakes
True Fan Cook-
ing
1140 - 160 70 - 90
Fatless sponge
cake / Fatless
sponge cake
True Fan Cook-
ing
2140 - 150 35 - 50
Fatless sponge
cake / Fatless
sponge cake
Conventional
Cooking
2160 35 - 50
Flan base - short
pastry
True Fan Cook-
ing
2170 - 180
1)
10 - 25
Flan base -
sponge mixture
True Fan Cook-
ing
2150 - 170 20 - 25
Apple pie / Apple
pie (2 tins Ø20
cm, diagonally off
set)
True Fan Cook-
ing
2160 60 - 90
16
All manuals and user guides at all-guides.com
all-guides.com

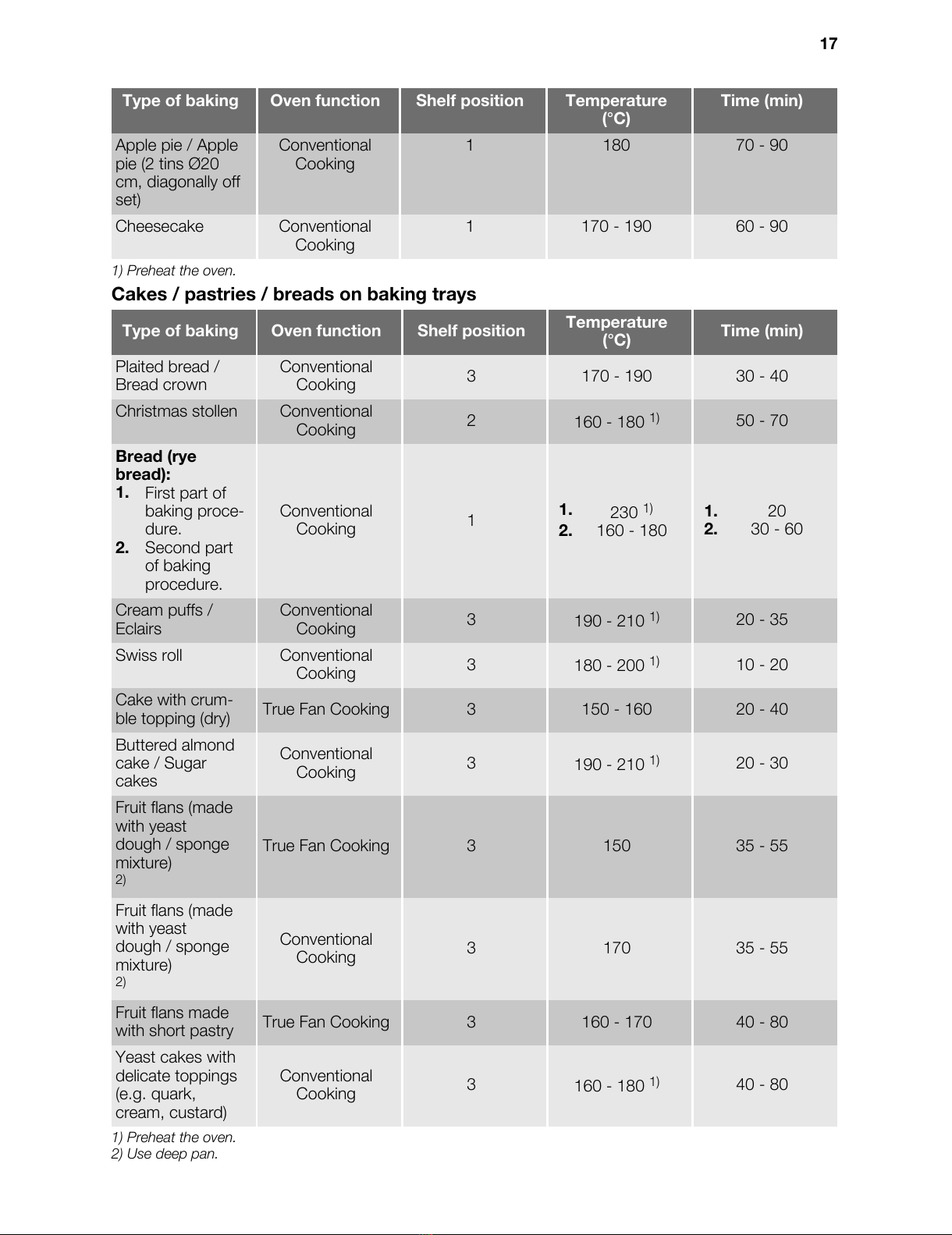

Type of baking Oven function Shelf position Temperature
(°C)
Time (min)
Apple pie / Apple
pie (2 tins Ø20
cm, diagonally off
set)
Conventional
Cooking
1180 70 - 90
Cheesecake Conventional
Cooking
1170 - 190 60 - 90
1) Preheat the oven.
Cakes / pastries / breads on baking trays
Type of baking Oven function Shelf position Temperature
(°C) Time (min)
Plaited bread /
Bread crown
Conventional
Cooking 3170 - 190 30 - 40
Christmas stollen Conventional
Cooking 2160 - 180
1)
50 - 70
Bread (rye
bread):
1. First part of
baking proce-
dure.
2. Second part
of baking
procedure.
Conventional
Cooking 11. 230
1)
2. 160 - 180
1. 20
2. 30 - 60
Cream puffs /
Eclairs
Conventional
Cooking 3190 - 210
1)
20 - 35
Swiss roll Conventional
Cooking 3180 - 200
1)
10 - 20
Cake with crum-
ble topping (dry) True Fan Cooking 3150 - 160 20 - 40
Buttered almond
cake / Sugar
cakes
Conventional
Cooking 3190 - 210
1)
20 - 30
Fruit flans (made
with yeast
dough / sponge
mixture)
2)
True Fan Cooking 3150 35 - 55
Fruit flans (made
with yeast
dough / sponge
mixture)
2)
Conventional
Cooking 3170 35 - 55
Fruit flans made
with short pastry True Fan Cooking 3160 - 170 40 - 80
Yeast cakes with
delicate toppings
(e.g. quark,
cream, custard)
Conventional
Cooking 3160 - 180
1)
40 - 80
1) Preheat the oven.
2) Use deep pan.
17
All manuals and user guides at all-guides.com

Biscuits
Type of baking Oven function Shelf position Temperature
(°C) Time (min)
Short pastry bis-
cuits True Fan Cooking 3150 - 160 10 - 20
Short bread /
Short bread /
Pastry stripes
True Fan Cooking 3140 20 - 35
Short bread /
Short bread /
Pastry stripes
Conventional
Cooking 3160
1)
20 - 30
Biscuits made
with sponge mix-
ture
True Fan Cooking 3150 - 160 15 - 20
Pastries made
with egg white /
Merungues
True Fan Cooking 380 - 100 120 - 150
Macaroons True Fan Cooking 3100 - 120 30 - 50
Biscuits made
with yeast dough True Fan Cooking 3150 - 160 20 - 40
Puff pastries True Fan Cooking 3170 - 180
1)
20 - 30
Rolls True Fan Cooking 3160
1)
10 - 25
Rolls Conventional
Cooking 3190 - 210
1)
10 - 25
Small cakes /
Small cakes (20
per tray)
True Fan Cooking 3150
1)
20 - 35
Small cakes /
Small cakes (20
per tray)
Conventional
Cooking 3170
1)
20 - 30
1) Preheat the oven.
Bakes and gratins
Dish Oven function Shelf position Temperature
(°C) Time (min)
Pasta bake Conventional
Cooking 1180 - 200 45 - 60
Lasagne Conventional
Cooking 1180 - 200 25 - 40
Vegetables au
gratin
1)
Turbo Grilling or
True Fan Cooking 1160 - 170 15 - 30
Baguettes topped
with melted
cheese
Turbo Grilling or
True Fan Cooking 1160 - 170 15 - 30
Sweet bakes Conventional
Cooking 1180 - 200 40 - 60
Fish bakes Conventional
Cooking 1180 - 200 30 - 60
Stuffed vegeta-
bles
Turbo Grilling or
True Fan Cooking 1160 - 170 30 - 60
1) Preheat the oven.
18
All manuals and user guides at all-guides.com

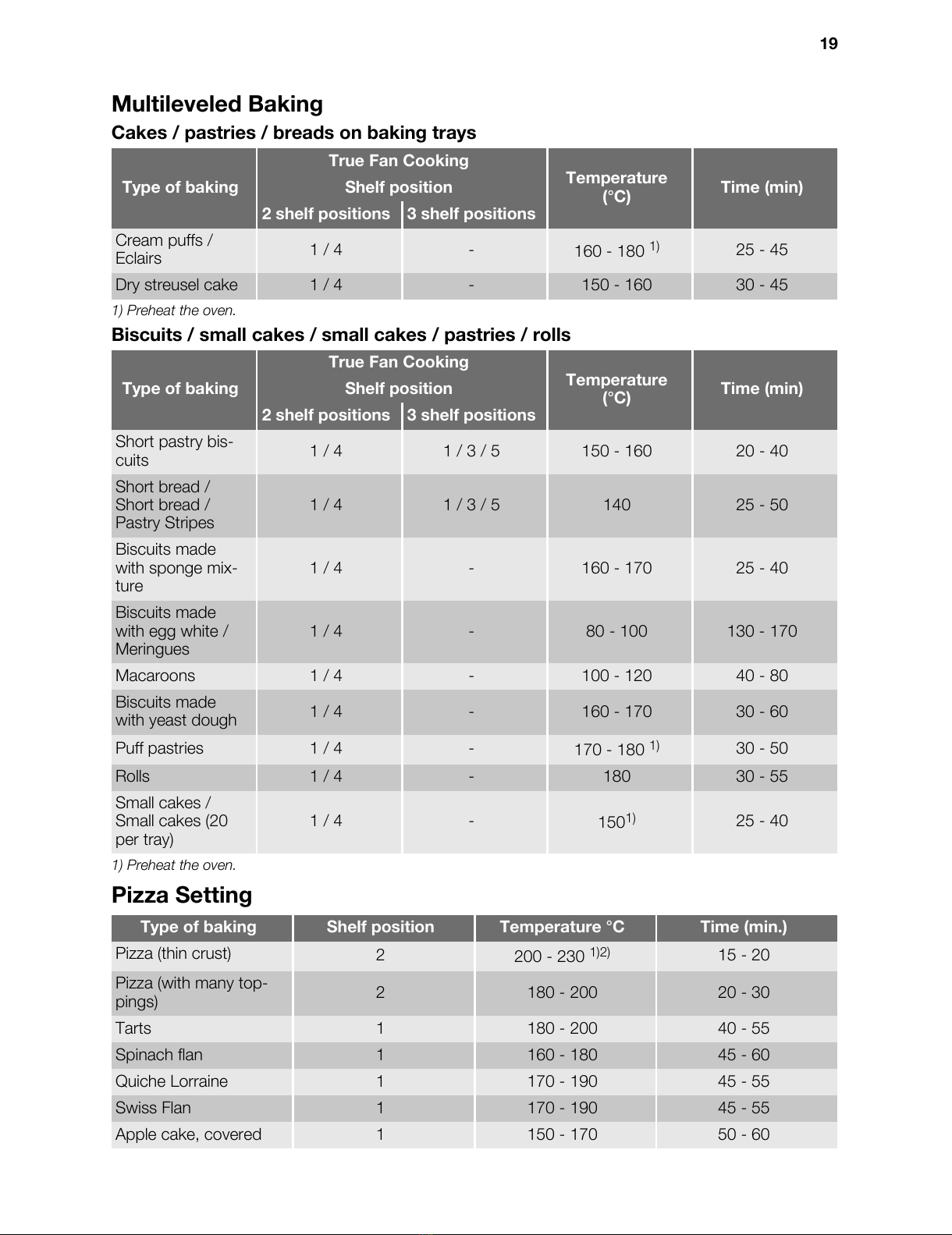

Multileveled Baking
Cakes / pastries / breads on baking trays
Type of baking
True Fan Cooking
Temperature
(°C) Time (min)Shelf position
2 shelf positions 3 shelf positions
Cream puffs /
Eclairs 1 / 4 -160 - 180
1)
25 - 45
Dry streusel cake 1 / 4 -150 - 160 30 - 45
1) Preheat the oven.
Biscuits / small cakes / small cakes / pastries / rolls
Type of baking
True Fan Cooking
Temperature
(°C) Time (min)Shelf position
2 shelf positions 3 shelf positions
Short pastry bis-
cuits 1 / 4 1 / 3 / 5 150 - 160 20 - 40
Short bread /
Short bread /
Pastry Stripes
1 / 4 1 / 3 / 5 140 25 - 50
Biscuits made
with sponge mix-
ture
1 / 4 -160 - 170 25 - 40
Biscuits made
with egg white /
Meringues
1 / 4 -80 - 100 130 - 170
Macaroons 1 / 4 -100 - 120 40 - 80
Biscuits made
with yeast dough 1 / 4 -160 - 170 30 - 60
Puff pastries 1 / 4 -170 - 180
1)
30 - 50
Rolls 1 / 4 -180 30 - 55
Small cakes /
Small cakes (20
per tray)
1 / 4 -150
1)
25 - 40
1) Preheat the oven.
Pizza Setting
Type of baking Shelf position Temperature °C Time (min.)
Pizza (thin crust) 2200 - 230
1)2)
15 - 20
Pizza (with many top-
pings) 2180 - 200 20 - 30
Tarts 1180 - 200 40 - 55
Spinach flan 1160 - 180 45 - 60
Quiche Lorraine 1170 - 190 45 - 55
Swiss Flan 1170 - 190 45 - 55
Apple cake, covered 1150 - 170 50 - 60
19
All manuals and user guides at all-guides.com

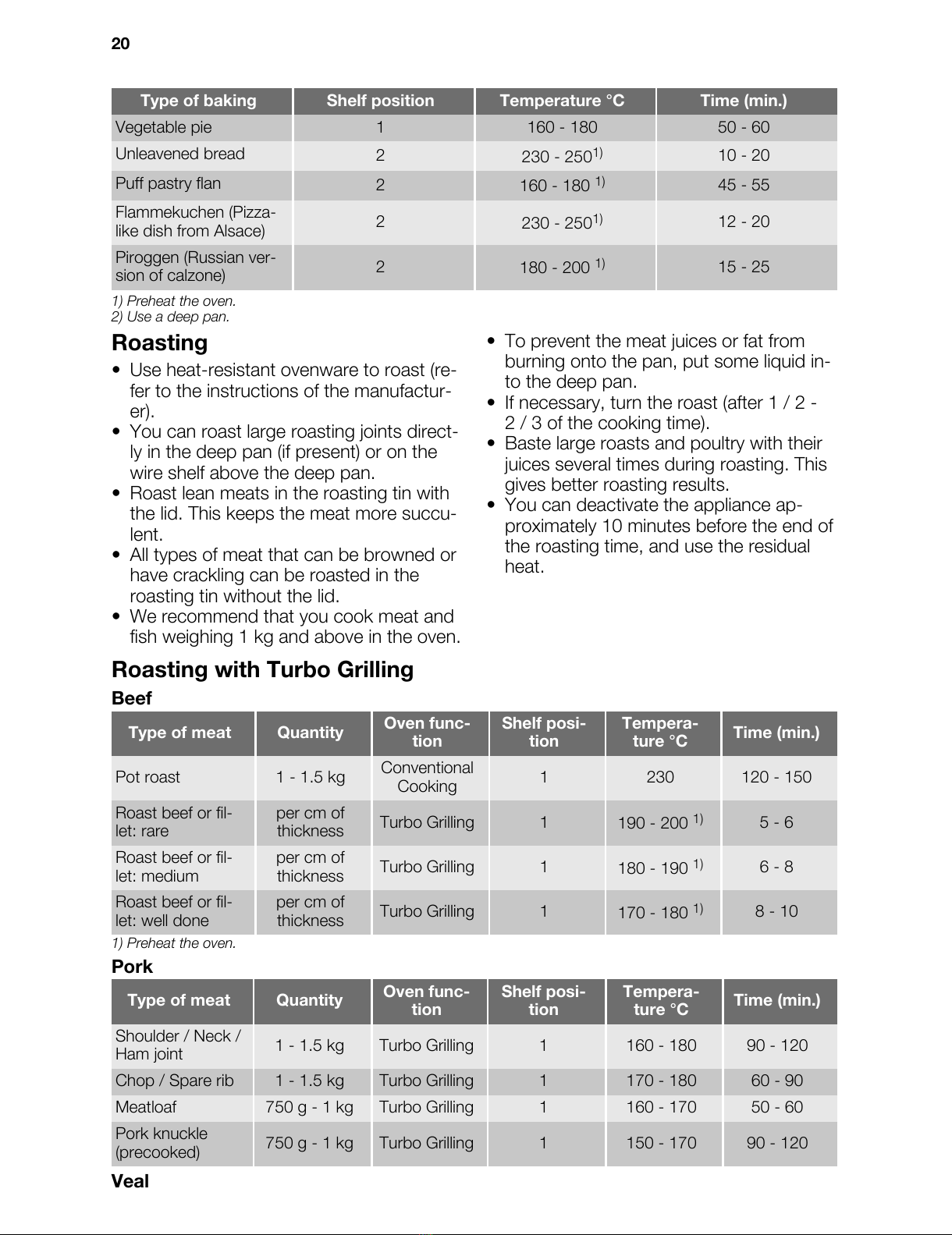

Type of baking Shelf position Temperature °C Time (min.)
Vegetable pie 1160 - 180 50 - 60
Unleavened bread 2230 - 250
1)
10 - 20
Puff pastry flan 2160 - 180
1)
45 - 55
Flammekuchen (Pizza-
like dish from Alsace) 2230 - 250
1)
12 - 20
Piroggen (Russian ver-
sion of calzone) 2180 - 200
1)
15 - 25
1) Preheat the oven.
2) Use a deep pan.
Roasting
• Use heat-resistant ovenware to roast (re-
fer to the instructions of the manufactur-
er).
• You can roast large roasting joints direct-
ly in the deep pan (if present) or on the
wire shelf above the deep pan.
• Roast lean meats in the roasting tin with
the lid. This keeps the meat more succu-
lent.
• All types of meat that can be browned or
have crackling can be roasted in the
roasting tin without the lid.
• We recommend that you cook meat and
fish weighing 1 kg and above in the oven.
• To prevent the meat juices or fat from
burning onto the pan, put some liquid in-
to the deep pan.
• If necessary, turn the roast (after 1 / 2 -
2 / 3 of the cooking time).
• Baste large roasts and poultry with their
juices several times during roasting. This
gives better roasting results.
• You can deactivate the appliance ap-
proximately 10 minutes before the end of
the roasting time, and use the residual
heat.
Roasting with Turbo Grilling
Beef
Type of meat Quantity Oven func-
tion
Shelf posi-
tion
Tempera-
ture °C Time (min.)
Pot roast 1 - 1.5 kg Conventional
Cooking 1230 120 - 150
Roast beef or fil-
let: rare
per cm of
thickness Turbo Grilling 1190 - 200
1)
5 - 6
Roast beef or fil-
let: medium
per cm of
thickness Turbo Grilling 1180 - 190
1)
6 - 8
Roast beef or fil-
let: well done
per cm of
thickness Turbo Grilling 1170 - 180
1)
8 - 10
1) Preheat the oven.
Pork
Type of meat Quantity Oven func-
tion
Shelf posi-
tion
Tempera-
ture °C Time (min.)
Shoulder / Neck /
Ham joint 1 - 1.5 kg Turbo Grilling 1160 - 180 90 - 120
Chop / Spare rib 1 - 1.5 kg Turbo Grilling 1170 - 180 60 - 90
Meatloaf 750 g - 1 kg Turbo Grilling 1160 - 170 50 - 60
Pork knuckle
(precooked) 750 g - 1 kg Turbo Grilling 1150 - 170 90 - 120
Veal
20
All manuals and user guides at all-guides.com
