Philip Payne 250MCRV User manual

250MCRV
Edgelit Exit Sign Recessed Ceiling Mount
Class
1IP 20
FEATURES
EXIT SIGN DIMENSIONS
Model Features Supply voltage Maximum luminaires on a
Type B, 10A circuit breaker Part No.
Maintained MM3 220-240V AC 50/60Hz 90 Luminaires 250MCRVLM
Self Test MM3 Auto Test 220-240V AC 50/60Hz 90 Luminaires 250MCRVYL
DALI MM3 DALI 220-240V AC 50/60Hz 90 Luminaires 250MCRVDL
SPECTO-XT SPECTO XT 220-240V AC 50/60Hz 90 Luminaires 250MCRVXT
Central Supply 220-240V AC 50/60Hz
176-264V DC 30 Luminaires 250MCRVLA
Central Supply DALI DALI 220-240V AC 50/60Hz
176-280V DC 30 Luminaires 250MCRVDA
IMPORTANT-SAFETY Before carrying out any servicing on this luminaire, ensure that the mains supply is fully isolated.
Disconnect luminaire before insulation testing of the installation.
WARNING Do not stare at operating lamp. It may be harmful to the eyes.
155
8
78
66
33
316
40
250
84
250CM
Edgelit Exit Sign Surface Ceiling
Class
1IP 20
FEATURES
EXIT SIGN DIMENSIONS
Model Features Supply voltage Maximum luminaires on a
Type B, 10A circuit breaker Part No.
Maintained MM3 220-240V AC 50/60Hz 90 Luminaires 250CMLM
Self Test MM3 Auto Test 220-240V AC 50/60Hz 90 Luminaires 250CMYL
DALI MM3 DALI 220-240V AC 50/60Hz 90 Luminaires 250CMDL
SPECTO-XT SPECTO XT 220-240V AC 50/60Hz 90 Luminaires 250CMXT
Central Supply 220-240V AC 50/60Hz
176-264V DC 30 Luminaires 250CMLA
Central Supply DALI DALI 220-240V AC 50/60Hz
176-280V DC 30 Luminaires 250CMDA250CMDA
IMPORTANT-SAFETY Before carrying out any servicing on this luminaire, ensure that the mains supply is fully isolated.
Disconnect luminaire before insulation testing of the installation.

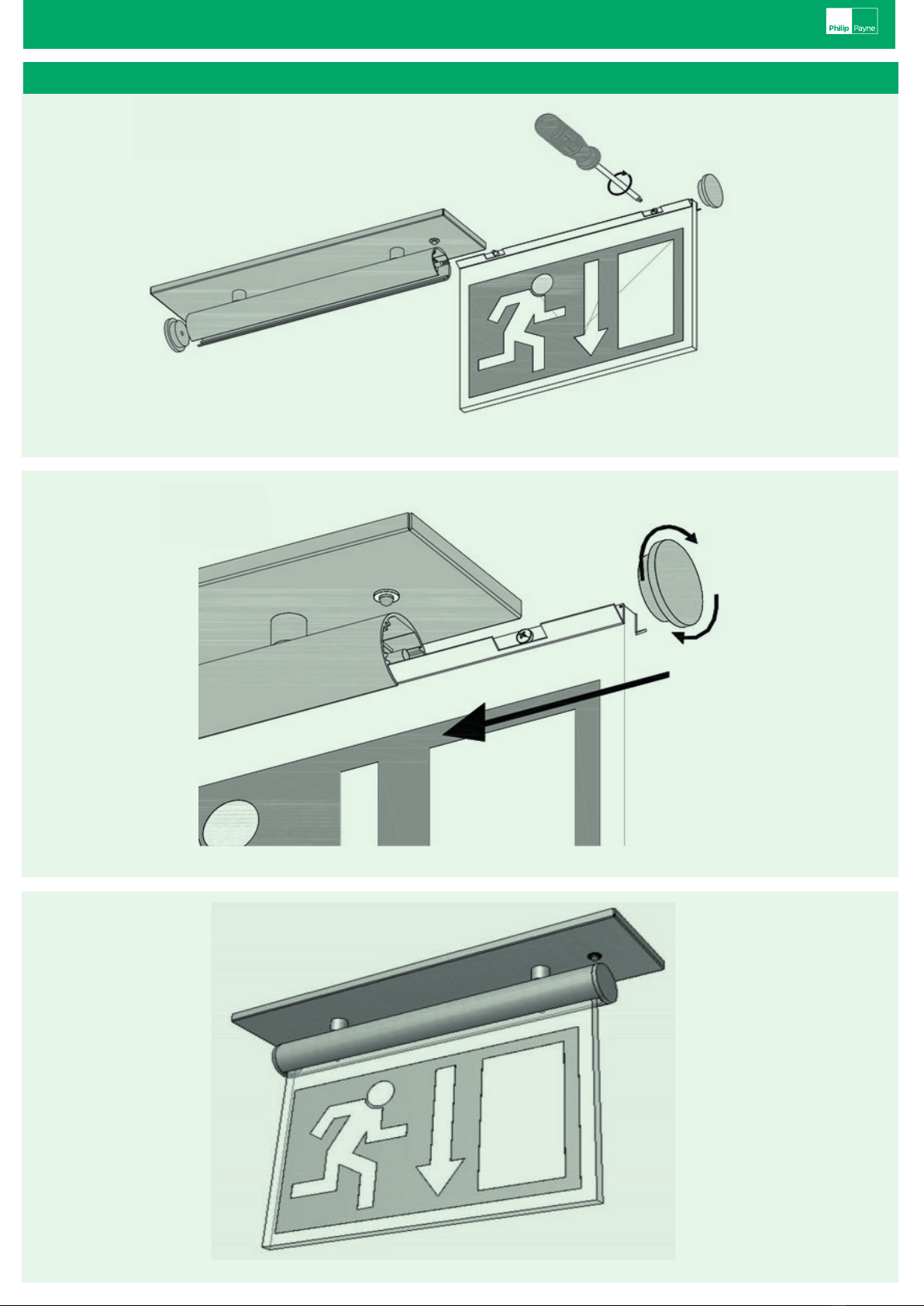

SURFACE CEILING
MOUNTED
x2
3
Edgelit Exit Sign IP20 Class 1 Surface Ceiling 250CM
74
107
155 or 100mm
LEGEND
170
202
8250
258
37
36
36
6 OFF Ø5 FIXING HOLES
2 OFF Ø14 KNOCKOUTSØ20 KNOCKOUT
CABLE ENTRY
1
x1
2
x2
4
Monthly and Annual tests should be carried out in accordance
with: BS EN 50172:2004, 7.2.
Testing can be carried out by using a sub circuit isolator
or by switching off the lighting circuit at the circuit breaker.
(Not for Autotest or Dali versions.)
Battery Pack shall be replaced if the specified 3 hour
duration is not met.
For replacement LED strip contact Philip Payne Ltd.
MM3
AutoTest
DALI
DALI 250CMDL
250CMYL
250CMLM
250CMDA
250CMLA
250CMLE
MM3
230V
230V
MM3
MM3
250CMXT
MM3
SpectoXT
SpectoXT Antenna
6 OFF Ø5 FIXING HOLES
Ø20 KNOCKOUT 2 OFF Ø14 KNOCKOUTS
155 OR 100MM
LEGEND
107
258
74
8 250
36
36
170
202
37
SPECTO-XT ANTENNA
WARNING Do not stare at operating lamp. It may be harmful to the eyes.
272

SUPPLY CONNECTIONS
P2 | 250MCRV
2.
CENTRAL SUPPLY CENTRAL SUPPLY
DALI
SELF TEST
AND SPECTO XT
DALI
N
USL
DA
DA
SL
N
USL
DA
DA
SL
N
USL
DA
DA
SL
N
USL
DA
DA
SL
1.
3.
GENERAL INSTALLATION METHOD
BASIC INSULATION IS MAINTAINED BETWEEN THE LV SUPPLY AND CONTROL CONDUCTORS ON THIS LUMINAIRE.

P3 | 250MCRV
GENERAL INSTALLATION
4.
5.
6.

P4 | 250MCRV
LED STATUS INDICATION
Operation Led Status
Normal mode Green LED- ON
Commissioning Green LED- ON
Function test Green LED- Fast Flash
Duration test Green LED- Slow flash
Lamp fault/open circuit/short circuit Red LED - ON
Battery fault Red LED - Slow flash
Charge fault/Circuit fault Red LED - Fast flash
Emergency mode LED OFF
Identification Red/Green LED - Slow flash
IMPORTANT
To prevent lamp damage and false triggering of fault status please note the following :-
-Ensure LED’s are connected correctly to the luminaire prior to applying power.
-Do not interrupt unswitched supply during self-commissioning period.
-Please allow 51 hours for charge, discharge, charge cycle.
FAULT RECTIFICATION SEQUENCE
1.Fault Identification Slow Red Flash =
Battery Fault
Permanent Red =
Lamp Fault Charge Fault
2. Take Remedial Action Check Lamp/ Replace Lamp Check Battery/ Replace Battery Check Module/ Replace Module
3. Reset Unit/ Check Status Switch Luminaire unswitched mains o / on
For Specto-XT use the Specto-XT Programmer to check status of luminaire.
4. Automatic Reset
Philip Payne AutoTest automatically resets the module to confirm rectification of fault. The device then reverts to
standby mode if the fault has been cleared or returns to fault indication if fault persists.
For Specto-XT use the Specto-XT Programmer to initiate function/duration test. The luminaire will pend the test until
the battery is suciently charged. The test status can be retrieved using the Specto-XT Programmer (please leave at
least 60 seconds between test initiation and reading status).

P5 | AUTOTEST RECORD
Fitting Reference: Installation Date: Location:
MONTH TEST EXAMPLE 1ST YEAR 2ND YEAR 3RD YEAR 4TH YEAR 5TH YEAR 6TH YEAR 7TH YEAR 8TH YEAR
1. Funtional PASSED
2. Funtional PASSED 3. Funtional PASSED 4. Funtional PASSED 5. Funtional PASSED 6. Funtional PASSED 7. Funtional FAILED- REPLACED
LAMP HEAD
8. Funtional PASSED 9. Funtional PASSED 10. Funtional FAILED- REPLACED
BATTERY
11. Funtional PASSED 12. 3-Hour Duration PASSED
Each month, or more frequently if a fault is identi fied, we recommend the installation is checked for status of L.E.D.’s. Corrective action if necessary should be taken and recorded on the above form. Follow good practice as laid down in relevant legislation such as BS 5266.
TO RESET AFTER A FAULT - SWITCH LUMINAIRE UNSWITCHED
MAINS OFF / ON.
SLOW RED LED FLASHING = BATTERY FAULT
PERMANENT RED LED = LAMP FAULT
EMERGENCY LIGHTING IS THERE TO SAVE LIVES

INFORMATION
P6 | 250MCRV
NOTICE TO CONTRACTOR PLEASE PASS THIS LEAFLET TO THE END-USER.
CLEANING INSTRUCTIONS
H2O
+
Mild Soap
Savon Doux
Milde Seife
Sapone Delicato
Mild Soap
Savon doux
Milde Seife
Il sapone dolce
Philip Payne Ltd, Thornhill House, Thornhill Road, Solihull, B91 2HB
[phone] | [e-mail] | www.philippayne.co.uk
21LFT009_9
Operation and Maintenance
Suitable for indoor use.
Ambient temperature 25°C.
Continual operation at mains voltages in excess of the rated
voltage will reduce LED and expected gear life.
This luminaire uses plastic components in its construction and
when installed in environments containing chemicals, degradation
may occur.
Operation outside intended / stated parameters may cause a
hazard, and in an extreme case, for example water ingress to
electronic circuits, may cause a fire.
Please contact our Technical Department for advice.
Modifications
Philip Payne products should not be modified.
Any modification may render the product unsafe and will invalidate
any Safety/Approval marks.
Philip Payne will not accept any responsibility for any modified
products or for any damage caused as a result of their modification.
Monthly and Annual Tests
Monthly and Annual tests should be carried out in accordance
with BS EN 50172:2004, 7.2.
Testing can be carried out by using a sub circuit isolator or by
switching o the lighting circuit at the circuit breaker (not for
AutoTest or DALI versions).
Battery pack shall be replaced if the specified 3 hour duration is
not met.
For replacement battery pack contact Philip Payne Ltd.
The light source contained in this luminaire shall only be replaced
by the manufacturer or his service agent or a similar qualified
person.
KM587259 FM-55077
BS EN ISO 60598-2-22

250MCRV

Edgelit Exit Sign Recessed Ceiling Mount
Class
1IP 20
FEATURES
EXIT SIGN DIMENSIONS
Model Features Supply voltage Maximum luminaires on a
Type B, 10A circuit breaker Part No.
Maintained MM3 220-240V AC 50/60Hz 90 Luminaires 250MCRVLM
Self Test MM3 Auto Test 220-240V AC 50/60Hz 90 Luminaires 250MCRVYL
DALI MM3 DALI 220-240V AC 50/60Hz 90 Luminaires 250MCRVDL
SPECTO-XT SPECTO XT 220-240V AC 50/60Hz 90 Luminaires 250MCRVXT
Central Supply 220-240V AC 50/60Hz
176-264V DC 30 Luminaires 250MCRVLA
Central Supply DALI DALI 220-240V AC 50/60Hz
176-280V DC 30 Luminaires 250MCRVDA
IMPORTANT-SAFETY Before carrying out any servicing on this luminaire, ensure that the mains supply is fully isolated.
Disconnect luminaire before insulation testing of the installation.
WARNING Do not stare at operating lamp. It may be harmful to the eyes.
155
8
78
66
33
316
40
250
84
250CM
Edgelit Exit Sign Surface Ceiling
Class
1IP 20
FEATURES
EXIT SIGN DIMENSIONS
Model Features Supply voltage Maximum luminaires on a
Type B, 10A circuit breaker Part No.
Maintained MM3 220-240V AC 50/60Hz 90 Luminaires 250CMLM
Self Test MM3 Auto Test 220-240V AC 50/60Hz 90 Luminaires 250CMYL
DALI MM3 DALI 220-240V AC 50/60Hz 90 Luminaires 250CMDL
SPECTO-XT SPECTO XT 220-240V AC 50/60Hz 90 Luminaires 250CMXT
Central Supply 220-240V AC 50/60Hz
176-264V DC 30 Luminaires 250CMLA
Central Supply DALI DALI 220-240V AC 50/60Hz
176-280V DC 30 Luminaires 250CMDA250CMDA
IMPORTANT-SAFETY Before carrying out any servicing on this luminaire, ensure that the mains supply is fully isolated.
Disconnect luminaire before insulation testing of the installation.
SURFACE CEILING
MOUNTED
x2
3
Edgelit Exit Sign IP20 Class 1 Surface Ceiling 250CM
74
107
155 or 100mm
LEGEND
170
202
8250
258
37
36
36
6 OFF Ø5 FIXING HOLES
2 OFF Ø14 KNOCKOUTSØ20 KNOCKOUT
CABLE ENTRY
1
x1
2
x2
4
Monthly and Annual tests should be carried out in accordance
with: BS EN 50172:2004, 7.2.
Testing can be carried out by using a sub circuit isolator
or by switching off the lighting circuit at the circuit breaker.
(Not for Autotest or Dali versions.)
Battery Pack shall be replaced if the specified 3 hour
duration is not met.
For replacement LED strip contact Philip Payne Ltd.
MM3
AutoTest
DALI
DALI 250CMDL
250CMYL
250CMLM
250CMDA
250CMLA
250CMLE
MM3
230V
230V
MM3
MM3
250CMXT
MM3
SpectoXT
SpectoXT Antenna
6 OFF Ø5 FIXING HOLES
Ø20 KNOCKOUT 2 OFF Ø14 KNOCKOUTS
155 OR 100MM
LEGEND
107
258
74
8 250
36
36
170
202
37
SPECTO-XT ANTENNA
WARNING Do not stare at operating lamp. It may be harmful to the eyes.
272

SUPPLY CONNECTIONS
P2 | 250MCRV
2.
CENTRAL SUPPLY CENTRAL SUPPLY
DALI
SELF TEST
AND SPECTO XT
DALI
N
USL
DA
DA
SL
N
USL
DA
DA
SL
N
USL
DA
DA
SL
N
USL
DA
DA
SL
1.
3.
GENERAL INSTALLATION METHOD
BASIC INSULATION IS MAINTAINED BETWEEN THE LV SUPPLY AND CONTROL CONDUCTORS ON THIS LUMINAIRE.

P3 | 250MCRV
GENERAL INSTALLATION
4.
5.
6.

P4 | 250MCRV
LED STATUS INDICATION
Operation Led Status
Normal mode Green LED- ON
Commissioning Green LED- ON
Function test Green LED- Fast Flash
Duration test Green LED- Slow flash
Lamp fault/open circuit/short circuit Red LED - ON
Battery fault Red LED - Slow flash
Charge fault/Circuit fault Red LED - Fast flash
Emergency mode LED OFF
Identification Red/Green LED - Slow flash
IMPORTANT
To prevent lamp damage and false triggering of fault status please note the following :-
-Ensure LED’s are connected correctly to the luminaire prior to applying power.
-Do not interrupt unswitched supply during self-commissioning period.
-Please allow 51 hours for charge, discharge, charge cycle.
FAULT RECTIFICATION SEQUENCE
1.Fault Identification Slow Red Flash =
Battery Fault
Permanent Red =
Lamp Fault Charge Fault
2. Take Remedial Action Check Lamp/ Replace Lamp Check Battery/ Replace Battery Check Module/ Replace Module
3. Reset Unit/ Check Status Switch Luminaire unswitched mains o / on
For Specto-XT use the Specto-XT Programmer to check status of luminaire.
4. Automatic Reset
Philip Payne AutoTest automatically resets the module to confirm rectification of fault. The device then reverts to
standby mode if the fault has been cleared or returns to fault indication if fault persists.
For Specto-XT use the Specto-XT Programmer to initiate function/duration test. The luminaire will pend the test until
the battery is suciently charged. The test status can be retrieved using the Specto-XT Programmer (please leave at
least 60 seconds between test initiation and reading status).

P5 | AUTOTEST RECORD
Fitting Reference: Installation Date: Location:
MONTH TEST EXAMPLE 1ST YEAR 2ND YEAR 3RD YEAR 4TH YEAR 5TH YEAR 6TH YEAR 7TH YEAR 8TH YEAR
1. Funtional PASSED
2. Funtional PASSED 3. Funtional PASSED 4. Funtional PASSED 5. Funtional PASSED 6. Funtional PASSED 7. Funtional FAILED- REPLACED
LAMP HEAD
8. Funtional PASSED 9. Funtional PASSED 10. Funtional FAILED- REPLACED
BATTERY
11. Funtional PASSED 12. 3-Hour Duration PASSED
Each month, or more frequently if a fault is identi fied, we recommend the installation is checked for status of L.E.D.’s. Corrective action if necessary should be taken and recorded on the above form. Follow good practice as laid down in relevant legislation such as BS 5266.
TO RESET AFTER A FAULT - SWITCH LUMINAIRE UNSWITCHED
MAINS OFF / ON.
SLOW RED LED FLASHING = BATTERY FAULT
PERMANENT RED LED = LAMP FAULT
EMERGENCY LIGHTING IS THERE TO SAVE LIVES

INFORMATION
P6 | 250MCRV
NOTICE TO CONTRACTOR PLEASE PASS THIS LEAFLET TO THE END-USER.
CLEANING INSTRUCTIONS
H2O
+
Mild Soap
Savon Doux
Milde Seife
Sapone Delicato
Mild Soap
Savon doux
Milde Seife
Il sapone dolce
Philip Payne Ltd, Thornhill House, Thornhill Road, Solihull, B91 2HB
[phone] | [e-mail] | www.philippayne.co.uk
21LFT025_2
Operation and Maintenance
Suitable for indoor use.
Ambient temperature 25°C.
Continual operation at mains voltages in excess of the rated
voltage will reduce LED and expected gear life.
This luminaire uses plastic components in its construction and
when installed in environments containing chemicals, degradation
may occur.
Operation outside intended / stated parameters may cause a
hazard, and in an extreme case, for example water ingress to
electronic circuits, may cause a fire.
Please contact our Technical Department for advice.
Modifications
Philip Payne products should not be modified.
Any modification may render the product unsafe and will invalidate
any Safety/Approval marks.
Philip Payne will not accept any responsibility for any modified
products or for any damage caused as a result of their modification.
Monthly and Annual Tests
Monthly and Annual tests should be carried out in accordance
with BS EN 50172:2004, 7.2.
Testing can be carried out by using a sub circuit isolator or by
switching o the lighting circuit at the circuit breaker (not for
AutoTest or DALI versions).
Battery pack shall be replaced if the specified 3 hour duration is
not met.
For replacement battery pack contact Philip Payne Ltd.
The light source contained in this luminaire shall only be replaced
by the manufacturer or his service agent or a similar qualified
person.
KM587259 FM-55077
BS EN ISO 60598-2-22
