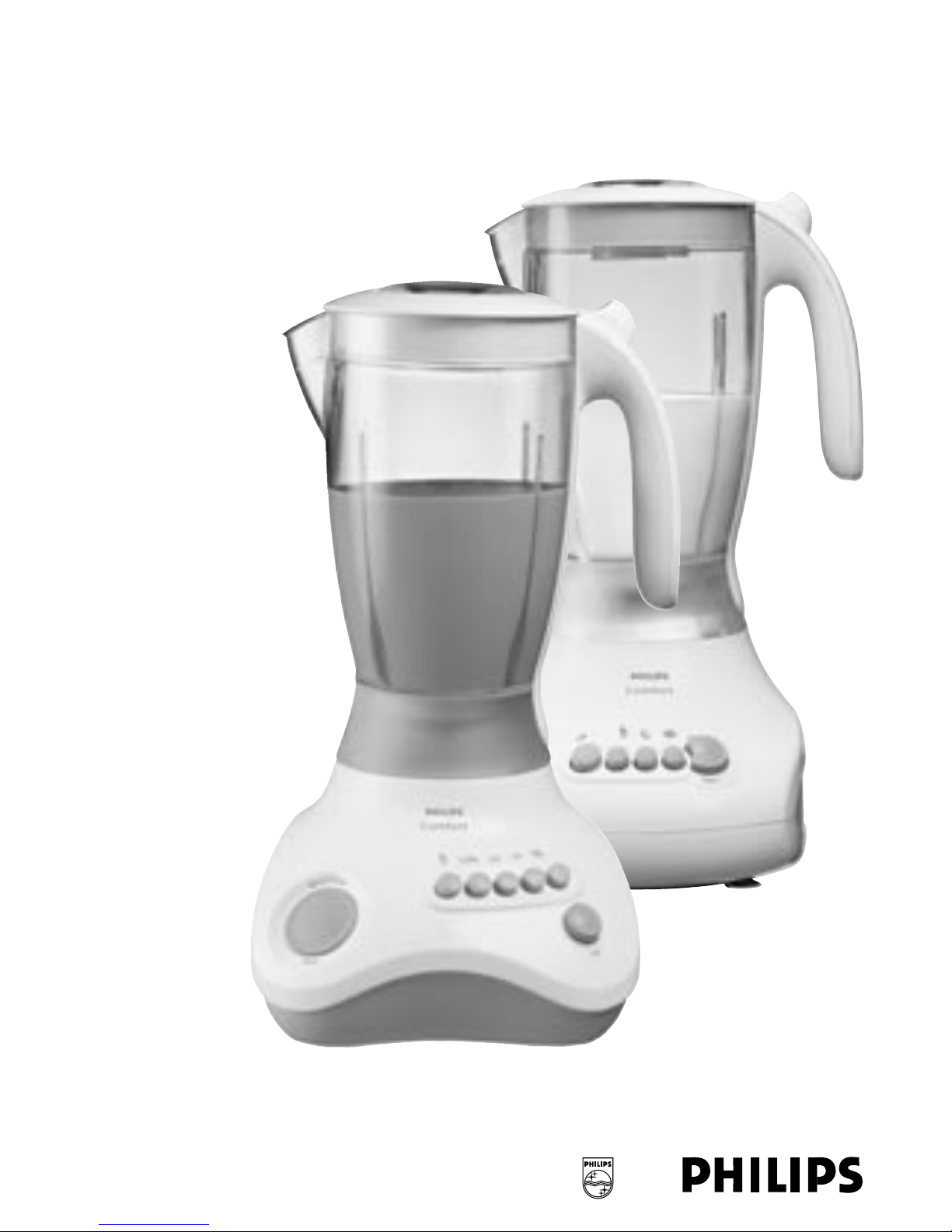

Philips HR1774/70 User manual

Comfort HR177X, HR176X

2

ENGLISH 4
ESPAÑOL 20
HR177X, HR176X
3

Important
◗Read the instructions for use and look at the
illustrations before you start using the
appliance.
◗Check if the voltage indicated on the
appliance corresponds to the local mains
voltage (110 - 127V or 220 - 240V) before
you connect the appliance.
◗Never use accessories or parts from other
manufactures or that have not been
specifically advised by Philips.Your guarantee
will become invalid if such accessories or
parts have been used.
◗If the mains cord of this appliance is damaged,
it must always be replaced by Philips or a
service centre authorised by Philips, as special
tools and/or parts are required.
◗Do not use the appliance if the mains cord,
the plug or other parts are damaged.
◗Do not exceed the quantities and preparation
times indicated in the tables.
◗Assemble the appliance properly before
putting the plug in the wall socket.
◗Keep the appliance out of the reach of
children.
◗Never immerse the motor unit in water or
any other fluid, nor rinse it under the tap. Use
only a moist cloth to clean the motor unit.
◗When the jar unit or the optional accessories
(mill and chopper, not supplied with this
appliance) have been properly fixed onto the
motor unit, you will hear a click.
ENGLISH4

◗Avoid touching the SHARP blades. Never
touch the blades when the appliance is
plugged in.
◗If the blades get stuck, UNPLUG THE
APPLIANCE before removing the ingredients
that are blocking the blades.
◗Let hot ingredients cool down before
chopping them or pouring them into the jar
(max. temperature 80cC/175cF).
Preparing the appliance for use
C◗Type HR176x: Push excess mains cord back
into the cord storage compartment on the
right side of the appliance.
C◗Type HR177x: Push excess mains cord back
into the cord storage compartment on the
right side of the appliance.
◗Wash all accessories and detachable parts
(see section 'Cleaning').
Using the appliance
Blender
The blender is intended for:
- Blending fluids, e.g. dairy products, sauces, fruit
juices, soups, mixed drinks, shakes.
- Mixing soft ingredients, e.g. pancake batter and
mayonnaise.
ENGLISH 5

- Pureeing cooked ingredients, e.g. for making
baby food.
C1Take the handgrip in your right hand and
mount the jar unit onto the motor unit.
C2Open the lid.
Open the lid by pressing the projection on the
side of the handle.
To remove the lid, open it and then pull it
upwards.You need only remove the lid for
cleaning purposes.
C3Put the ingredients in the jar.`
Do not prepare recipes that contain large
quantities of oil or fat.
To avoid spillage, never fill the jar above the
maximum level indication (1.5 litres), particularly
not when you are blending hot or foaming liquids
(maximum 1.1 litres).
C4Close the lid and insert the stopper into
the opening in the lid.
To avoid spillage, always insert the stopper into
the lid before you start processing.
◗The speed settings allow you to adjust the
speed of the appliance to obtain optimal
results. Consult the table for the
recommended speed settings.
ENGLISH6
1
2

C5HR176x: Switch the appliance on by
selecting the correct speed. HR177x:
Select the appropriate speed setting and
switch the appliance on by pressing the
On/Off button.
◗If you are not sure which speed to select,
choose the highest speed.
C6To switch the appliance off, press the OFF
button (HR176x) or the On/OFF button
(HR177x)
7If you want to use the "Pulse" function:
ENGLISH 7
HR176x
HR177x
H
R176x
HR177x
Recommended applications
Making chocolate milk and blending instant
juices and cocktails with alcohol
Blending soft fruits and milkshakes with soft
fruits
Making mayonnaise
Blending soups, milkshakes with harder fruits
(e.g. apples) and cocktails with fresh fruits
Making different kinds of sauces (e.g. tomato
sauce), pureeing hard fruits, vegetables (e.g.
carrots) and cooked beans and making baby
food
Crushing ice cubes
Chopping nuts (shelled), hard cheese,
chocolate, dry bread, beef, parsley and
onions
Settings
J
K
:
|
V
Z
C

- HR176x: Press the "Pulse" button.The appliance
will run at max. speed and it will stop as soon
as you release the "Pulse"button.
- HR177x: Select the appropriate speed by
pressing the corresponding speed button and
then press the "Pulse" button.The appliance will
run at the selected speed and will stop as soon
as you release the "Pulse" button.
Tips
C◗While the blender is running, you can pull the
stopper of the lid and pour liquid ingredients
into the blender jar.
◗Do not let the blender run for more than 3
minutes at a time. If you have not finished
blending after 3 minutes, switch the appliance
off for one minute before you continue
blending.
◗Cut solid ingredients into smaller pieces
before putting them into the blender. Feed a
series of small amounts into the jar rather
than processing a large quantity at once.
◗If you are not satisfied with the results when
blending solid ingredients, switch the blender
off and let it run briefly a number of times by
using the pulse setting. If this doesn't help, stir
the ingredients with a spatula (not while the
blender is running), or reduce the contents of
the jar and start processing smaller amounts.
◗To crush ice cubes, remove the stopper and
drop the ice cubes into the jar while the
blender is running. Keep the lid on the jar
during processing.
ENGLISH8

Never put your hand or an object in the jar while
the blender is running.
Accessories
Filter (types HR1764, HR1767, HR1774 and
HR1777 only)
You can use the filter accessory to prepare extra
finely blended sauces, fresh fruit juices or cocktails.
All pips and skins will be caught in the filter.
C1Put the filter in the blender jar.
C2Make sure the filter is properly fitted onto
the bottom of the jar.The grooves on the
filter and the ribs inside the blender jar
will help you put the filter in the right
position.
C3Put the lid on the jar to fix the filter in its
proper position.
C4Put the ingredients in the filter through the
opening in the lid.
5Add water or any other liquid.
6Put the stopper in place and switch the
appliance on. Select the highest speed and
let the appliance run for 40 seconds.
ENGLISH 9

C7Switch the appliance off. Pour out the
drink through the spout of the blender jar.
8For optimal results, put the jar with the
remaining ingredients back onto the
appliance and let it run for a few more
seconds.
9Pour out the rest of the drink.
Tips
◗Particularly when you are processing large
quantities, we advise you not to put all the
ingredients in the filter at the same time. Start
processing a small quantity, let the appliance
run for a moment, switch it off and then add
another small quantity. Repeat this procedure
until you have processed all the ingredients.
◗For making soy milk:
- Soak soy beans for 4 hours before processing
them.
-You can process max. 50 g of dry soy beans with
max. 500 ml water.
◗For making fruit juices and cocktails:
- Add approx. 300 ml water (or another liquid for
cocktails etc.) to 150 g fruit.
Chopper (type HR1762, HR1763, HR1772
and HR1773 only)
The chopper can be used for chopping
ingredients like nuts, meat, onions, hard cheese,
dried fruits, chocolate, garlic, herbs, dry bread etc.
ENGLISH10

C1Place the chopper on the motor unit.Turn
it in the direction of the arrow until you
hear a click.
C2Put the blade unit in the chopper.
The cutting edges of the blades are very sharp
Avoid touching them!
C3Put the ingredients in the beaker. Cut large
ingredients into pieces of approximately 2
cm/1 inch before processing them.
Never exceed the maximum quantity. See the
table for the advised quantities and speed settings.
ENGLISH 11
1
2
Quantities
5-25 g
10-50 g
25-75 g
25-75 g
25-75 g
25-75 g
25-50 g
25-75 g
20-40 g
25-50 g
25-75 g
Ingredients
peppercorns
sesame seeds
rice, wheat
soy beans
dried peas
coconut flesh
coffee beans
cheese
breadcrumbs
sugar cubes
nuts (shelled)

Tips
◗To chop meat, coconut, cheese and
breadcrumbs, cut the ingredients into smaller
pieces before you start processing them.
Chop a quantity equivalent to 1 teacup and
remove this quantity from the beaker after
chopping. Follow the same procedure with the
rest of the ingredients to be chopped.
Use the blender for mixing liquids, not the
chopper.
C4Put the lid on the beaker and turn it
clockwise until it is properly fixed.Then
switch the appliance on.
C5If the ingredients stick to the chopper
beaker wall, switch the appliance off and
loosen the ingredients by adding liquid or
using a spatula.
ENGLISH12
12
Select the maximum processing speed (setting Z) when
using the mill.

C◗If the appliance shakes when you switch it on
because the food is not evenly distributed, put
your hand on the lid.
C6When you have finished chopping, switch
the appliance off, unplug it and detach the
chopper by turning it in the direction of
the arrow.
7Remove the chopper from the motor unit
before you empty the beaker.
Mill (type HR1761, HR1763, HR1771 and
HR1773 only)
C◗The mill can be used for grinding and
chopping ingredients such as peppercorns,
sesame seeds, rice, wheat, coconut flesh, nuts
(shelled), coffee beans, soy beans, dried peas,
cheese, breadcrumbs, etc.
C1Put the ingredients in the beaker.
Process only dry ingredients. Do not fill the
beaker beyond the 'MAX' indication.
See the table for the advised quantities.
ENGLISH 13
2
3
1

C2Place the rubber ring on the blade unit.
C3Screw the blade unit onto the beaker.
If this requires some effort, moisten the rubber
ring with a drop of water.
ENGLISH14
2
1
Quantities
50-100 g
50-200 g
10-20 g
75-150 g
75-150 g
50-100 g
100-200 g
25-150 g
Ingredients
onions
meat (lean, uncooked)
parsley
fruits
vegetables (uncooked)
cheese (firm, crustless)
baby food
nuts (shelled)
Use the Csetting for chopping soft ingredients, e.g.
onions and herbs.When chopping hard ingredients, it is
recommended to press the Pulse setting several times at
the end of the processing job to obtain a very fine
chopping result.

C4Turn the assembled mill upside down and
screw it onto the motor unit in the
direction of the arrow.
C5Preferably use the mill at pulse position.
C◗After processing, you can use the shaker lid to
sprinkle the ingredients evenly onto a dish.
Cleaning
Cleaning of the appliance, its parts and the
accessories is easiest immediately after use.
Never clean the accessories or the parts of the
appliance in the dishwasher.
Clean the motor unit with a moist cloth.
Do not use abrasives, scourers, alcohol, etc.
1Unplug the appliance, detach the
accessories and parts you have used and
clean them in warm, soapy water.
ENGLISH 15
2
1

2Then rinse them under the tap to wash
away soap residues.
3When you have used the chopper, use
warm soapy water to clean it after use.
4Clean the jar, the lid and the filter in warm
soapy water.
◗It is recommended to remove the rubber ring
from the mill before cleaning.
5Wipe the motor unit with a damp cloth.
Do not immerse this part in water!
Quick cleaning of the blender jar
C1Pour lukewarm water and some washing-
up liquid into the blender jar, up to the
level indicated on the jar (0.5 litre).
2Assemble the lid and the stopper.
C3HR176x: Let the appliance run for a few
moments by pressing the Quick Clean
button. (When you release the button, the
appliance stops running).HR177x: Select
speed 4 or 5 and let the appliance run for
a few moments by pressing the Quick
Clean button. (When you release the
button, the appliance stops running).
4Detach the blender jar and rinse it with
clean water.
ENGLISH16
HR1764
HR1774

Guarantee & service
If you need information or if you have a problem,
please visit the Philips Web site at
www.philips.com or contact the Philips Customer
Care Centre in your country (you will find its
phone number in the worldwide guarantee
leaflet). If there is no Customer Care Centre in
your country, turn to your local Philips dealer or
contact the Service Department of Philips
Domestic Appliances and Personal Care BV.
Recipes
Do not exceed the recommended processing
times.
Let the appliance cool down to room
temperature after completing each recipe.
Broccoli soup
|Z
- 50 g Gouda cheese
- 250 g cooked broccoli
- 2 cooked potatoes
- 2 stock cubes (chicken or vegetable)
- a dash of cream
- a pinch of curry
- salt
- pepper
- nutmeg
BFirst cook the broccoli and retain 3/4 l of the
water in which the broccoli has been cooked.
Shred the cheese. Put the cooked broccoli with a
ENGLISH 17

little of the cooking water and the potatoes in the
blender jar and process at maximum speed
(setting Z). Put the broccoli puree and the stock
cubes in the rest of the cooking water and bring to
the boil.Add the cheese and season the soup with
salt, pepper, nutmeg and a dash of cream. Serve
with croutons.
Cheesecake
Z
- 4 eggs
- 525 ml milk
- 75g margarine
- 90g Parmesan cheese cut into 1-cm cubes
- 440g sugar
- 290g corn flour
- 250g wheat flour
- 1 tbsp dried yeast
BPut the eggs, milk, margarine, Parmesan cheese
and sugar in the jar. Let the appliance run at
maximum speed (Z) for 10 seconds.
BAdd the corn flour spoon by spoon and let the
appliance run for 20 seconds at maximum speed
(Z).Then add the wheat flour spoon by spoon
and let the appliance run for another 30 seconds
at maximum speed (Z).Add the dried yeast and
let the appliance run for 10 more seconds.Then
turn the appliance off. Put the mixture in a baking
tin that has been greased with oil or margarine
and then floured. Bake the cheesecake in the oven
at 200c-210cC for approximately 35-40
minutes.
ENGLISH18

Gazpacho
V
- 250 g tomatoes
- 2 slices of white bread
- 1 large clove of garlic
- 15 ml red wine vinegar
- 150 ml tomato juice
- 100 g fresh red pepper
- 1 small onion
- 1/2 cucumber
- 15 ml olive oil
- salt
- pepper
BPut the tomato juice, olive oil and vinegar in the
jar.Then add all the other ingredients. Blend the
ingredients until you have obtained a smooth
soup. Serve chilled.
Milkshakes
K
- 200 ml milk
- 30 g banana
- 30 g papaya
- 30 g apple
- 30 g sugar
BPeel the fruits and cut them into pieces. First put
the milk in the jar, then add the fruits and the
sugar. Blend approx. 30 seconds at the Ksetting.
ENGLISH 19

Importante
◗Antes de empezar a usar el aparato, lea las
instrucciones de uso y miren las ilustraciones.
◗Antes de enchufar el aparato a la red,
comprueben si el voltaje indicado en el
aparato se corresponde con el voltaje de su
hogar (110-127V ó 220-240V).
◗No usen nunca accesorios o piezas de otros
fabricantes o que no hayan sido
específicamente recomendadas por Philips. Su
garantía quedará invalidada si han usado tales
accesorios o piezas.
◗Si el cable de red de este aparato se
deteriora, siempre debe ser sustituido por
Philips o por un Servicio de Asistencia Técnica
de Philips ya que se precisan herramientas y/o
piezas especiales.
◗No usen el aparato si el cable de red, la clavija
u otras piezas están deterioradas.
◗No excedan las cantidades y los tiempos de
preparación indicados en las tablas.
◗Antes de enchufar el aparato a la red,
móntenlo adecuadamente.
◗Mantengan el aparato fuera del alcance de los
niños.
◗No sumerjan nunca la unidad motora en agua
o en cualquier otro líquido ni la enjuaguen
bajo el grifo. Para limpiar la unidad motora
usen solo un paño húmedo.
◗Oirán un "click" cuando la unidad de la jarra o
los accesorios opcionales (Molinillo y Picador
no suministrados con este aparato) hayan sido
adecuadamente fijados a la unidad motora.
ESPAÑOL20
