1. Important information
Safety
◆Before using this product, please read and
understand all instructions. Damage caused by
failure to follow the instructions is not covered
by the warranty.
◆Use only the accessories/components specied
by the manufacturer.
◆Use only the alkaline batteries with which the
product is equipped or use alkaline batteries of
the same type.
◆Do not forcibly disassemble the product to
trigger an alarm or damage the product.
◆Do not scrape the ngerprint sensor with
sharp objects, as this may cause permanent
damage.
◆Do not expose products to places that have
water leakage or splashing.
◆Do not expose the product to corrosive
substances to prevent damaging the protective
cover.
◆Do not hang objects on the handle in case it
might aect the use of the lock.
◆Please use a soft cloth soaked in water to
remove ngerprints/dirt left on the surface of
the assembly.
◆Do not remove the batteries during setting up
and operating.
◆Please follow the assembly instructions to
install the product and keep the relevant sealed
stickers properly.
◆Please change the default master PIN code
immediately after completing the installation and
troubleshooting, properly store the mechanical
keys, and do not disclose the PIN codes to others.
◆Please replace all batteries immediately when
a low battery alarm appears.
Caution
◆Do not place the batteries near ignition source
to avoid explosion.
◆Do not use any power supply that does not
meet the safety requirements to power up the
product.
◆Do not connect the 2 poles of the batteries to
metals to avoid a short circuit that may cause an
explosion.
◆Please make sure installation or any
component replacement is performed by Philips,
a Philips authorized service center or professional
technicians.
◆Do not use accessories or parts manufactured
by others or not expressly recommended by
Philips. The use of such accessories and parts may
void the warranty.
Disposal of used
products and batteries
◆You can have your locks taken back at
authorized Philips service centers. You will receive
appropriate compensation if your products meet
our conditions.
◆Please familiarize yourself with the local
collection system for electronic products.
◆Please follow local regulations and do not
discard used products and batteries into ordinary
household waste.
◆Please familiarize yourself with the local
regulations for recycling batteries. Proper
disposal of batteries can help prevent negative
eects on the environment and human health.

3
⑤User
manual
⑨Installation kit
②Interior
assemblywith
silicon pad
⑥Warranty
card
⑩Strike plate
③Drilling
template
⑪Key tag
④Mortise
⑦Mechanical
key ⑧Batteries
Warranty
Card
Easy Key
120
110
100
90
80
70
60
50
40
30
20
10
0
10
20
30
40
50
60
70
80
90
100
110
120
130
140
150
160
170
180
190
200
�$�$� 边
130
140
150
门厚中心线
241
180
22,5
18
30
20
20
20
3276
2,6
124,4
25,5
距离地面约1米
基准线
单位：mm
比例：1:1
210
3585断桥铝锁开孔图
35
35锁体
①Exterior
assemblywith
silicon pad
Packing list
This packing list is for reference only. Please refer to the actual packing items.
2 Assembly
EasyKey
6000serie s
DDL608-5HWS
Bridge-cut aluminum
smartdoor loc k
User
manual
www.philips.com/support
Signyour product up and get
supportat w ww.philips.com/sup -
port

4
11
7
410
9
8
6
5
3
12
Exploded views
1.Battery cover anchor
screw*1
2. Battery cover*1
3. AAA battery*4
4. Anchor screw*2
5. Interior assembly
component*1
6. Mortise*1
7. Mortise anchor
screw*2
8. M6 screw tube*2
9. Square shaft*1
10.Exterior assembly
component*1
11.Cover*1

5
1
2
3
Step 1 | Door swing direction
This product applies to doors with four opening directions: left-hand inswing, left-
hand outswing, right-hand inswing, and right-hand outswing.
Left-hand
inswing
Inside Inside
Inside Inside
Outside Outside
Outside Outside
Right-hand
inswing
Left-hand
outswing
Right-hand
outswing
Notice before assembling
Left-hand swing Right-hand swing

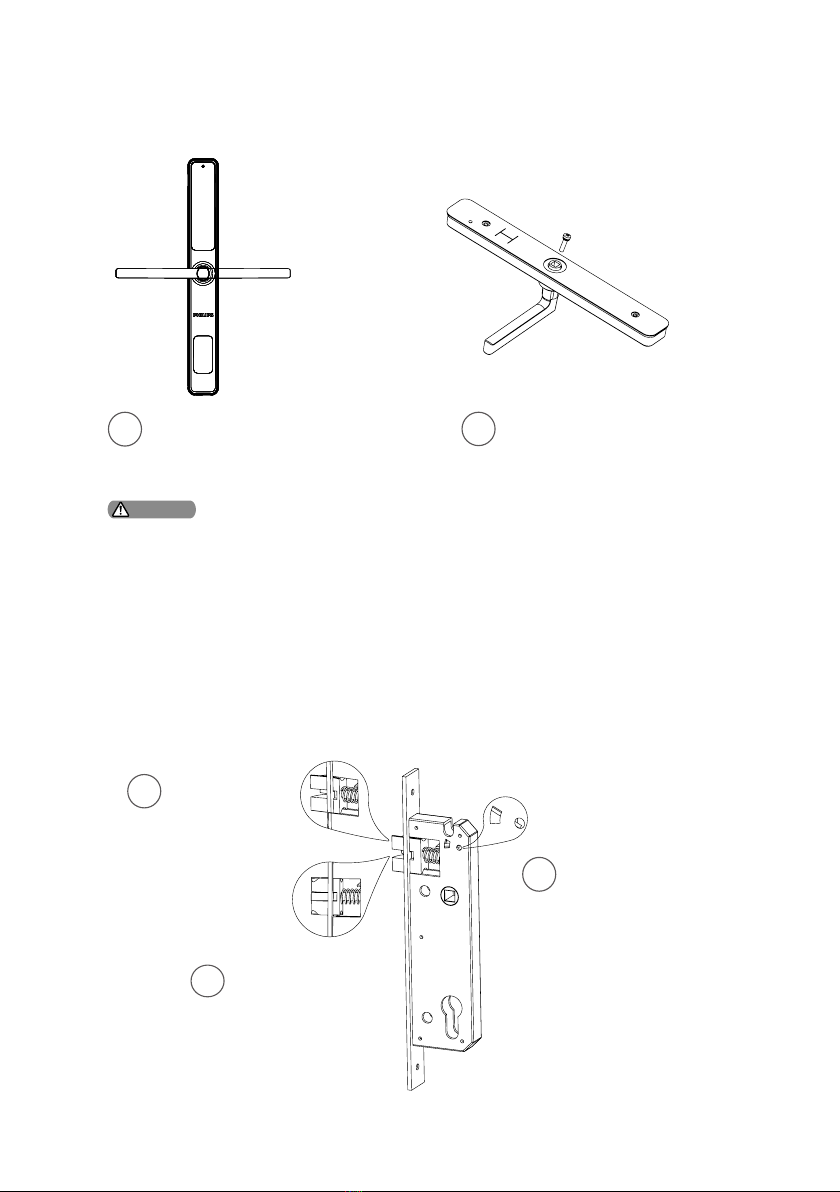

Step 2 | Adjustable exterior lever instructions
Loosen the screw. Rotate the lever 180
degrees to the right
position and secure
the screw.
Rotate the square
shaft hole to align
the triangular
mark on the square
shaft hole with the
direction of the
lever.

6
3
1
1
2
2
Adjustable rear lever instructions
Loosen the screw and rotate
the lever 180 degrees to the
right position.
Secure the screw.
1. Choose a proper installation kit based on the door thickness. The default tool kit
applies to a door thickness of 35-60mm. Please consult the local distributor for other
door thicknesses.
2. If the length of the square shaft is too long, please cut it to a proper length according
to the door thickness.
Attention
Step 3| Adjustable latch instructions
Adjust the latch direction to adapt to the door swing direction: if the slant of the
latch is towards the outside door, then the door is inswing; if the slant of the latch
is towards the inside door, then the door is outswing.
Push the latch in
and rotate it to
180 degrees
Release the latch
and let it rebound
Pull the lock-out
bolt bar upward

7
1
2
3

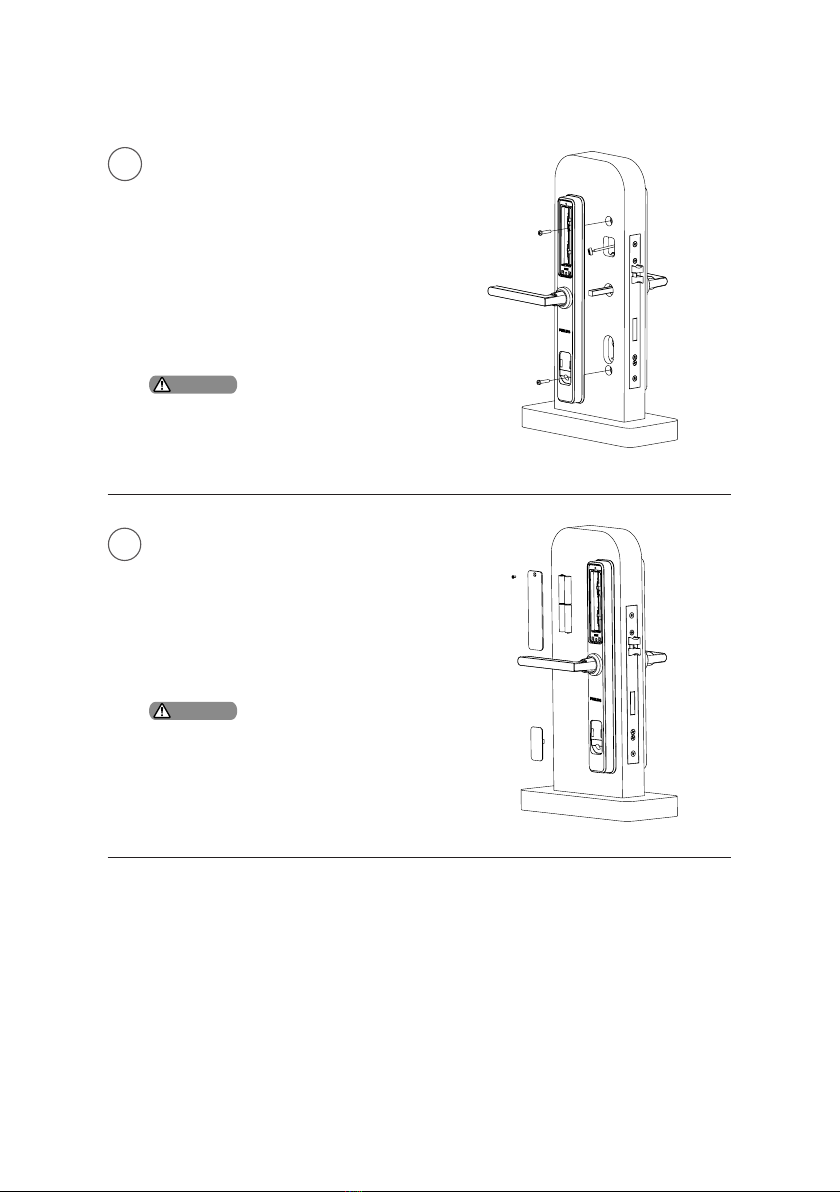

To drill holes in the door
according to the drilling template,
mount the mortise into the jamb,
and secure the anchor screws.
Attach the connecting screw
tubetothe exterior assembly
and insert the square shaft into
the hole accordingly. Please
ensurethattheprotrudingpart
on the square shaft is inserted
into the hole until it issecurely
seated.
Pass the connecting cable
through the hole, align and insert
the square shaft of the exterior
assembly into the rotary hole,
and ensure the exterior assembly
is rmly attached to the door
surface.
Assembly procedures
The following assembly procedures apply to the right-hand swing doors. For left-
hand swing doors, please read through the [Notice before assembling] and adjust
the lever/latch direction rst.

8
4
5
Insert the connecting cables
into the sockets of the interior
assembly accordingly, and align
the square shaft with the hole
to ensure the interior assembly
is rmly attached to the inner
surface of the door, then secure
the top and bottom of the interior
assembly with M6 anchor screws.
Install 4pcs AAA batteries and
secure the battery cover with
screws. Then put the the interior
assembly cover on. Finally, check
whether each part is connected
and assembled in good condition.
Please cut the square shaft to a
proper length according to the door
thickness.
Pleaseensurethattheinterior
assemblycoverissecurelyfastened
sothatitdoesnotfallowhenthe
doorisclosed.
Attention
Attention

9
Battery compartment
Interior lever
Reset button
Cover
1
2
3
4
1
6
5
4
4
7
8
3
2
2
3
1
3 Get to know your lock
Exterior assembly
Interior assembly
1
2
3
4
5
6
7
8
Indicator
Keypad
Card reader
Mute button
Fingerprint sensor
Exterior lever
Key hole
Reset and power supply
interface

10
◆User number
You can delete a user's information by the user code without having to delete everything.
You can record the user information in the following table for future reference.
User
number Name Fingerprint PIN code Key tag
000
001
002
003
004
005
006
007
008
009
◆Icon annotation
Master
PIN code
User PIN
code
User
number
Fingerprint [#]key Key tag[*]key
4 Settings
Instructions before setting
◆The system mode is divided into general mode and dual-verication mode.
Any enrolled access methods can
unlock the door
Any two enrolled access methods among
PIN code, key tag, and ngerprint can
unlock the door
General mode Dual-verication mode
1. Press [*] key to return to the previous menu.
2.The default initial PIN code is 12345678.
Attention

11
Master access
method settings
2
1
or or
or
or
or or
Press [#] and enter the master PIN code,
then conrm with [#]. Or press [#], swipe
the master key tag/scan the master
ngerprint to enter the master mode.
Press [#] and enter the master PIN code,
then conrm with [#]. Or press [#], swipe
the master key tag/scan the master
ngerprint to enter the master mode.
Press [1] to enter the master access
method settings, press [1] again to add a
master access method.
1 1
When setting the master access method for the rst
time, you can press [#] to enter the master mode.
Once you are in master mode, press [1] twice to add
the master access method and then complete the
remaining settings.
Attention
Master PIN code: Press [#] before
entering other numbers, then enter
the master PIN code and conrm
with [#], and you will be in master
mode.
Master ngerprint/ key tag：Press [#]
before entering other numbers, then
swipe the master key tag or scan the
master ngerprint, and conrm with
[#], and you will be in master mode.
Add a master PIN code: Enter a new
master PIN code and conrm with [#],
then enter the master PIN code again and
conrm with [#]. After hearing a voice
prompt indicating that the master PIN
code was added successfully, press [*] to
return to the previous menu until you exit
the master mode.
Add a master ngerprint: Enroll
your nger through the ngerprint
sensor. After you hear a voice prompt
“Please press again”, take your nger
o and put it back again, repeat the
action until you hear a voice prompt
indicating that the ngerprint was
added successfully. Press [*] to return
to the previous menu until you exit
the master mode.
Add a key tag: Place the key tag close
to the card reader until you hear a
voice prompt indicating that the key
tag was added successfully. Press [*]
to return to the previous menu until
you exit the master mode.
Light up the keypad

12
Enter the user number of the master
access method to be deleted and
conrm with [#]. After you hear a voice
prompt indicating that the deletion
was successful, press [*] to return to the
previous menu until you exit the master
mode.
Add a PIN code: Enter a new user PIN code
and press [#] to conrm, then enter the
PIN code again and conrm with [#]. After
you hear a voice prompt indicating that
the PIN code was added successfully, press
[*] to return to the previous menu until
you exit the master mode.
Add a ngerprint: Place your enrolled
nger on the sensor. After you hear a
voice prompt of “Please press again”,
take your nger o and put it back
again, repeat the action until you hear
a voice prompt indicating that the
ngerprint was added successfully.
Press [*] to return to the previous
menu until you exit the master mode.
Add a key tag: Place the key tag on
the card reader until you hear a voice
prompt indicating that the key tag
was added successfully. Press [*] to
return to the previous menu until you
exit the master mode.
User settings
or
or
Press [#] and enter the master PIN code,
then conrm with [#]. Or press [#], swipe
the master key tag/scan the master
ngerprint to enter the master mode.
Press [#] and enter the master PIN code,
then conrm with [#]. Or press [#], swipe
the master key tag/scan the master
ngerprint to enter the master mode.
Press [2] to enter user settings, then press
[1] to add a user. Press [2] to enter the user setting, then
press [2] again to delete a user.
1
22 2
or
or
12
Press [1] to enter the admin settings, then
press [2] to delete an admin.
Add a user
User number query: Once unlocking with
any enrolled access method, press [*], and
you will hear a voice prompt of the user
number of the access method.
Attention
or
or

13
Delete the user by user numbers: Enter
the numbers of access method to be
deleted, and press [#] to conrm. After
hearing a voice prompt indicating that
the deletion was successful, press [*] to
return to the previous menu until you exit
the master mode.
Delete all the users: Followed by the voice
prompt from the lock end, press [#] to
conrm to delete all the user information.
System settings
Press [#] and enter the master PIN code,
then conrm with [#]. Or press [#], swipe
the master key tag/scan the master
ngerprint to enter the master mode.
Press [#] and enter the master PIN code,
then conrm with [#]. Or press [#], swipe
the master key tag/scan the master
ngerprint to enter the master mode.
Press [3] to enter system settings, then press
[2] to enter the system mode settings.
Press [1] to select a user number to delete
the user; press [2] to delete all users.
Press [1] to enter general mode, then the
user can use any enrolled access method
to open the door. After hearing a voice
prompt indicating that the operation was
successful, press [*] to return to previous
menu until you exit the master mode.
Press [2] to enter dual-verication mode,
the user can use any two enrolled access
methods among PIN code, ngerprint,
and key tag to open the door. After
hearing a voice prompt indicating that
the operation was successful, press [*] to
return to previous menu until you exit the
master mode.
1
1
2
2
2
Press [3] to enter system settings, then
press [1] to enter the voice guide settings.
Press [1] to enable the voice guide. After
hearing a voice prompt indicating that
the operation was successful, press [*] to
return to previous menu until you exit the
master mode.
Press [2] to disable the voice guide, and
the system will be mute, press [*] to
return to previous menu until you exit the
master mode.
1
1
2
3
3
Voice guide settings
Voice guide settings
User number query: Once unlocking with
any enrolled access method, press [*], and
you will hear a voice prompt of the user
number of the access method.
Attention
or
or
or
or
or
or
or
or

14
Press [3] to enter system settings, then
press [3] again to enter the language
settings.
3 3 To connect to a hotspot, please press [1];
After hearing a voice prompt indicating
that the operation was successful, the
system will exit the master mode.
For Auto Connect, please press [2]; After
hearing a voice prompt indicating that
the operation was successful, the system
will exit the master mode.
1
For Chinese, please press [1]. After hearing
a voice prompt indicating that the
operation was successful, press [*] to return
to previous menu until you exit the master
mode.
For English, please press [2]. After hearing a
voice prompt indicating that the operation
was successful, press [*] to return to
previous menu until you exit the master
mode.
12
2
Press [#] and enter the master PIN code,
then conrm with [#]. Or press [#], swipe
the master key tag/scan the master
ngerprint to enter the master mode.
Press [4] to enter network settings.
4
Network settings
Press [#] and enter the master PIN code,
then conrm with [#]. Or press [#], swipe
the master key tag/scan the master
ngerprint to enter the master mode.
Under the dual-verication mode, any
enrolled master access method can be
used to open the door.
Attention
or
or
or
or
or
or

15
Application binding
1.Connect to power supply;
2.When you are in master mode,
press [4] to enter network settings,
then press [1] to connect to a hotspot
or press [2] for Auto Connect, log in
the Tuya Smart App to complete the
application binding accordingly;
3.Click "+" from Tuya Smart App’s
upper right corner to add a device,
select [Door lock (Wi-Fi)] under the
category of [Camera/Lock] to enter
the binding page, and complete the
application binding accordingly.
Please scan below QR code or go to App
Store to search “Tuya Smart App” and
download the app accordingly.
The door lock only supports 2.4GHz
band Wi-Fi routers (5GHz band is not
supported). Please ensure the visual
distance between the router and the door
lock is less than 10 meters, otherwise the
Wi-Fi signal might be weak.
Attention

16
下
压
执
手
3
1
1
1
22
2
Press down the handle to
unlock.
Lever

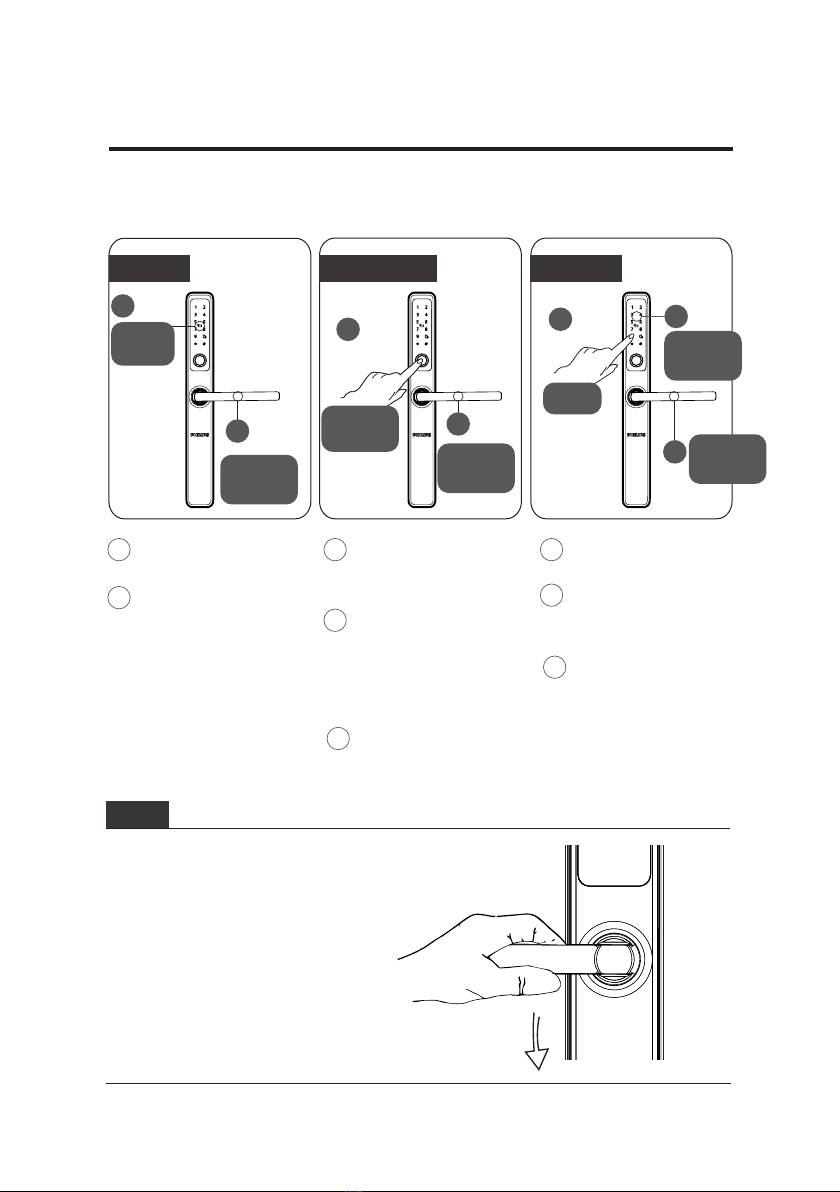

5 Get to use your lock
Outdoor unlock
Key tag
Card
reader
Press down
the lever
Press down
the lever
Enter PIN
code
Press down
the lever
Fingerprint PIN code
Place the enrolled key
tag on the card reader.
After a voice
prompt indicating
that unlocking was
successful, users can
press down the lever
to unlock the door.
Place the enrolled
nger on the
ngerprint sensor.
After a voice
prompt indicating
that unlocking was
successful, users can
press down the lever
to unlock the door.
Touch to wake up the
keypad.
Enter the enrolled
PIN code and conrm
with [#].
After a voice
prompt indicating
that unlocking was
successful, users
can press down the
lever to unlock the
door.
1 1 1
2
2
2
3
3
Fingerprint
sensor
Keypad
Indoor unlock

17
After closing the door, lift up the
handle, and the latch bolt will
automatically pop up to lock the door.
After closing the door, lift up the
handle, and the latch bolt will
automatically pop up to lock the door.
Outdoor locking
Indoor locking
Get the mechanical key from the
product package.
① ② Insert the mechanical key into
the lock hole at the bottom of the
exterior assembly and turn it 180
degrees to the right to open it.
Outdoor/Indoor locking
Mechanical key unlock
Please use the mechanical key to unlock the door for emergencies only, e.g. when the
battery is dead, when you have forgotten the PIN code, or the lock fails to work.
Attention

18

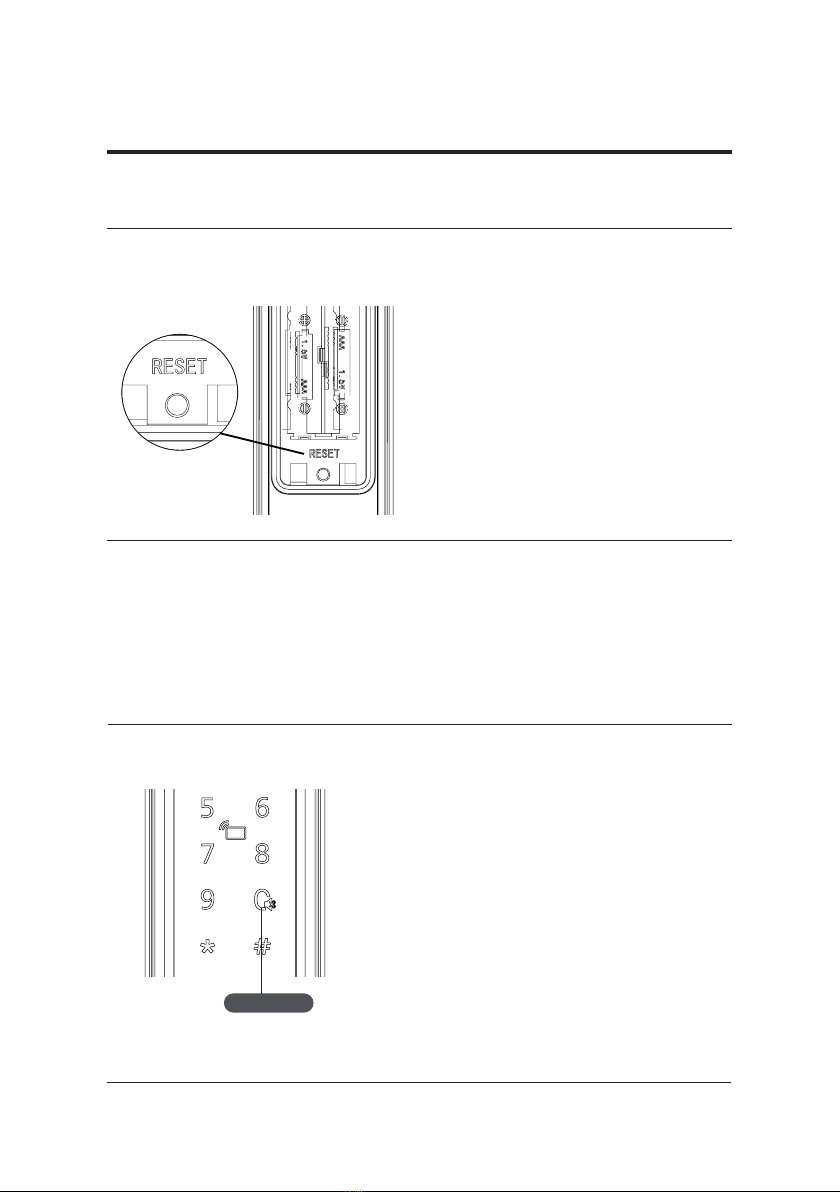

Mute button
6 Other features
Default settings
Function:
To empty all user information and restore to
default settings.
How to use:
Press the [RES] button for 6 seconds with
a sharp object, and you will hear a voice
prompt saying ”Press [#] for conrmation”,
once [#] is pressed, all user information
will be erasedand the lock willbe
restoredtoitsdefault settings.
Function:
Press the [Mute button] to enable mute
mode, this function applies to scenarios in
which you don’t want to disturb your family.
How to use:
(1)Mute: When the exterior assembly lights
up, press the [mute button] for 2 seconds to
enter mute mode.
(2)Unmute: When the exterior assembly
lights up, press the [mute button] for 2
seconds until you hear a voice prompt
indicating that the operation was successful,
and the voice guide will be restored.
Mute button
