English 6

English
IMPORTANT
SAFEGUARDS
READ ALL INSTRUCTIONS BEFORE USE
When using electrical products, especially
when children are present, basic safety
precautions should always be followed,
including the following:
DANGERS
To reduce the risk of electrocution:
1Always place and store the charger at a safe
distance from water.
2Do not reach for a product that has fallen
into water. Unplug immediately.
3Never use a charger with a damaged cord or
plug.
WARNINGS
To reduce the risk of burns, electrocution, fire
or physical injury:
1Do not clean the brush head, the handle or
the charger in the dishwasher.
2Do not use attachments other than those
recommended by the manufacturer.
6English

3Do not plug into an outlet with a voltage
other than specified on the bottom of the
product. This product is designed to
operate within a range of 100 to 240 volts.
Voltage converters do not warrant voltage
compatibility.
4Never force the plug into an outlet; if the
plug does not easily fit into the outlet,
discontinue use.
5Discontinue use if the product appears
damaged in any way (brush head, handle or
charger, etc.).
6The mains cord cannot be replaced. If the
mains cord is damaged, discard the charger.
7Keep the cord away from heated surfaces.
8Do not use the base charger outdoors or
near heated surfaces.
9This product contains no user-serviceable
parts. Refer to ‘Warranty and support’ if the
product no longer works properly or needs
repair.
10 Use this product only for its intended use as
described in this document or as
recommended by your dental professional.
11 This product is not intended for use by
persons (including children) with reduced
physical, sensory, or mental capabilities, or
lack of experience and knowledge, unless
they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
7
English

12 Children should be supervised to ensure
that they do not play with the product.
13 Philips Sonicare is a personal care device
and is not intended for use on multiple
patients in a dental office or institution.
14 Use UL Listed computer, USB Hub or USB
duplex receptacle when charging the
toothbrush handle in the travel case.
15 When using a computer to recharge the
toothbrush handle, the computer should be
located away from sources of water (i.e. sink
or tub) so as to avoid electrical shock.
16 The product is not intended to be repaired
by service personnel in case of failure or
component defect (unit can be thrown
away).
17 For connection to a supply not in the U.S.A.,
use a charger of the proper configuration
for the power outlet.
18 This appliance has only been designed for
cleaning teeth, gums and tongue. Do not
use it for any other purpose. Stop using the
appliance and contact your doctor if you
experience any discomfort or pain.
MEDICAL WARNINGS
1Consult your dental professional before you
use this product if you have had oral or gum
surgery in the previous 2 months.
8English

2Contact your dental professional if
excessive bleeding occurs after using this
product or bleeding continues to occur after
1 week of use.
3Discontinue use of this product and contact
a physician/dentist if discomfort or pain is
experienced.
4This product complies with the safety
standards for electromagnetic devices. If
you have a pacemaker or other implanted
device, contact your physician or the device
manufacturer prior to use.
5Consult your physician if you have other
medical concerns.
Electromagnetic fields (EMF)
This Philips appliance complies with all
applicable standards and regulations
regarding exposure to electromagnetic fields.
SAVE THESE
INSTRUCTIONS
Introduction
Congratulations on your purchase and
welcome to Philips! To fully benefit from the
support that Philips offers, register your
product at www.philips.com/welcome.

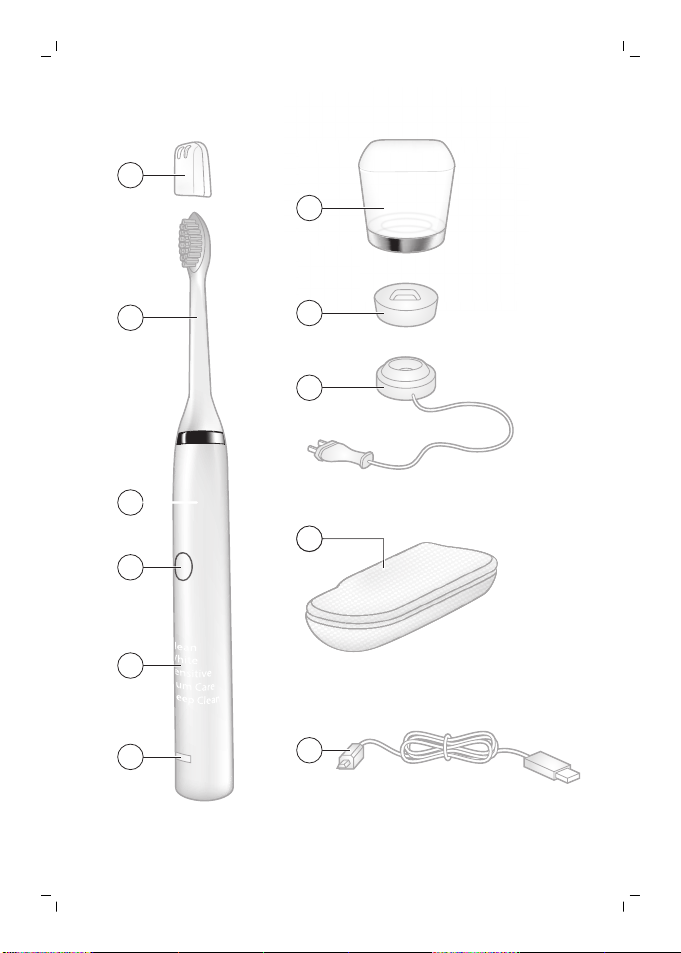

Your Philips Sonicare (Fig. 1)
1 Hygienic travel cap
2 Brush head
9
English

3 Handle with ergonomic shape
4 Recessed power on/off button
5 Hidden brushing mode display
6 Charge indicator
7 Charging glass
8 Charger stand
9 Charging base
10 Charging travel case
11 USB cord
Note: The content of the box may vary
based on the model purchased.
Getting started
Attaching the brush head
1Align the brush head so the bristles point in
the same direction as the front of the
handle.
2Firmly press the brush head down onto the
metal shaft until it stops.
Note: It is normal to see a slight gap between
the brush head and the handle.

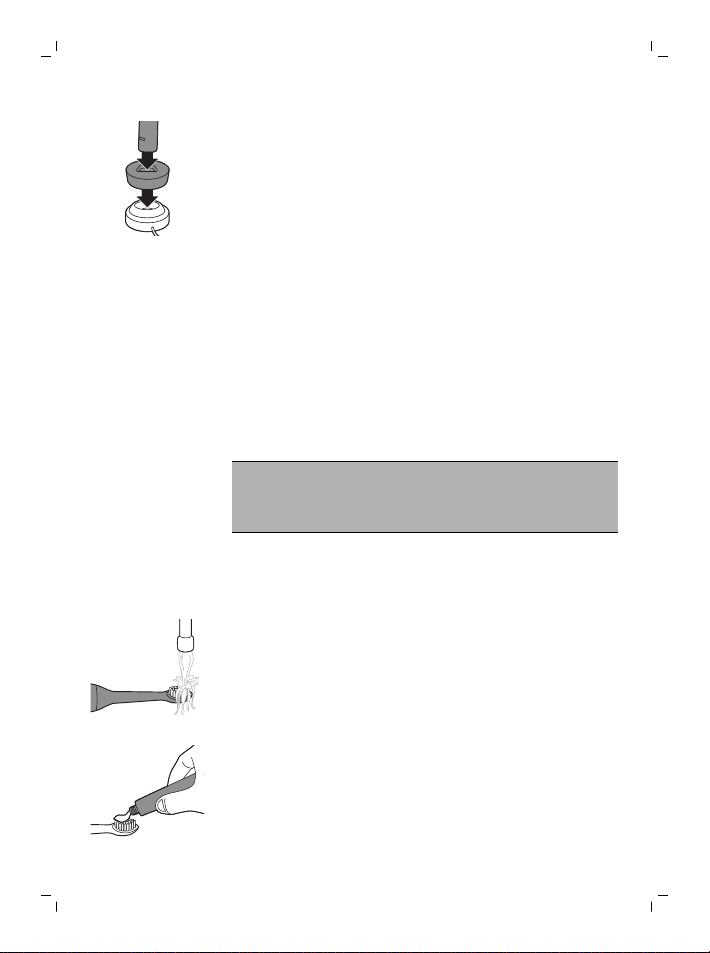

Charging your Philips Sonicare
1Plug the charger into an electrical outlet.
10 English

2Place the charging glass on top of the
charging base and place the handle in the
glass or place the charger stand on top of
the charging base. Place the handle in the
stand.
-The charge indicator flashes green until
fully charged.
-Rapid yellow flashing indicates charge is
extremely low (fewer than 3 uses left).
Note: It takes at least 24 hours to fully charge
the battery.
This charger is designed to properly charge
only one handle at a time. This charger is not
compatible with other models of Sonicare.
In order to effectively charge your Philips
Sonicare do not place your charger base on
a magnetic metal surface.
Using your Philips Sonicare
Brushing instructions
1Wet the bristles.
2Apply a small amount of toothpaste on the
bristles.
11
English

3Place the toothbrush bristles against the
teeth at a slight angle (45 degrees), pressing
firmly to make the bristles reach the
gumline or slightly beneath the gumline.
Note: Keep the center of the brush in
contact with the teeth at all times.
4Press the power on/off and mode button to
turn on your Philips Sonicare.

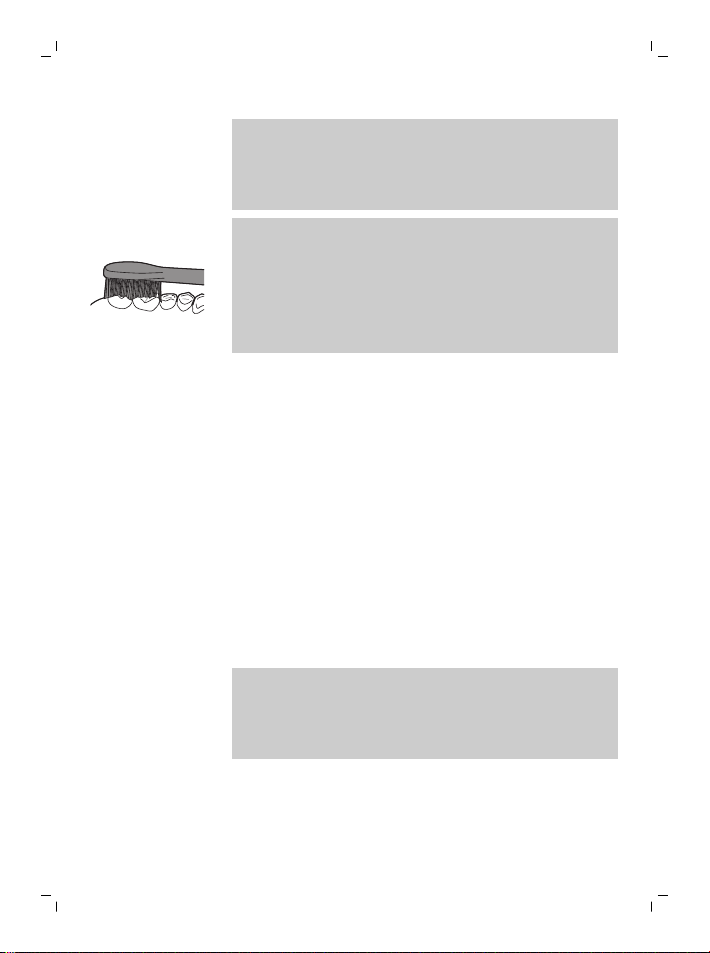

5Gently keep the bristles placed on the teeth
and in the gumline. Brush your teeth with
small back and forth motion so the bristles
reach between the teeth.
Note: The bristles should slightly flare. Do
not scrub.
6To clean the inside surfaces of the front
teeth, tilt the brush handle semi-upright
and make several vertical overlapping
brushing strokes on each tooth.
1
2
4
3
7Begin brushing in section 1 (outside top
teeth) and brush for 30 seconds (45
seconds in Deep Clean mode) before
moving to section 2 (inside top teeth).
Continue brushing in section 3 (outside
bottom teeth) and brush for 30 seconds (45
seconds in Deep Clean mode) before
moving to section 4 (inside bottom teeth).
12 English

Note: To make sure you brush evenly
throughout the mouth, divide your mouth
into 4 sections using the Quadpacer feature
(see chapter ‘Features’).
Note: After you have completed the
brushing cycle, you can spend additional
time brushing the chewing surfaces of your
teeth and areas where staining occurs. You
can also brush your tongue, with the
toothbrush turned on or off, as you prefer.
Your Philips Sonicare is safe to use on:
-Braces (brush heads wear out sooner when
used on braces).
-Dental restorations (fillings, crowns,
veneers).
Brushing modes
1To toggle through modes press the on/off
button twice in less than 5 seconds.
2To turn off your Philips Sonicare press the
on/off button again after 5 seconds.
Your Philips Sonicare comes with the Clean
mode activated.
Note: When the Philips Sonicare is used in
clinical studies, it must be used in the default
2-minute Clean mode or in the Deep Clean
mode with Easy Start turned off.
Clean mode
The ultimate in plaque removal (default mode).
Clean mode lasts for 2 minutes and includes
four 30 second Quadpacer intervals.
13
English

White mode
2 minutes to remove surface stains and 30
seconds to brighten and polish your front
teeth.
Sensitive mode
Extra gentle 2 minute mode for sensitive teeth
and gums.
Gum Care mode
Complete whole mouth cleaning (2 minutes)
plus gentle cleaning for problem areas and
along the gumline (1 minute).
Deep Clean mode (select models)
Provides an invigorating 3 minutes of
alternating cleaning and massaging to deliver
an exceptionally clean experience.
Polish mode (select models)
Quick 1-minute mode to brighten and polish
your front teeth.
Features
Quadpacer
1
2
4
3

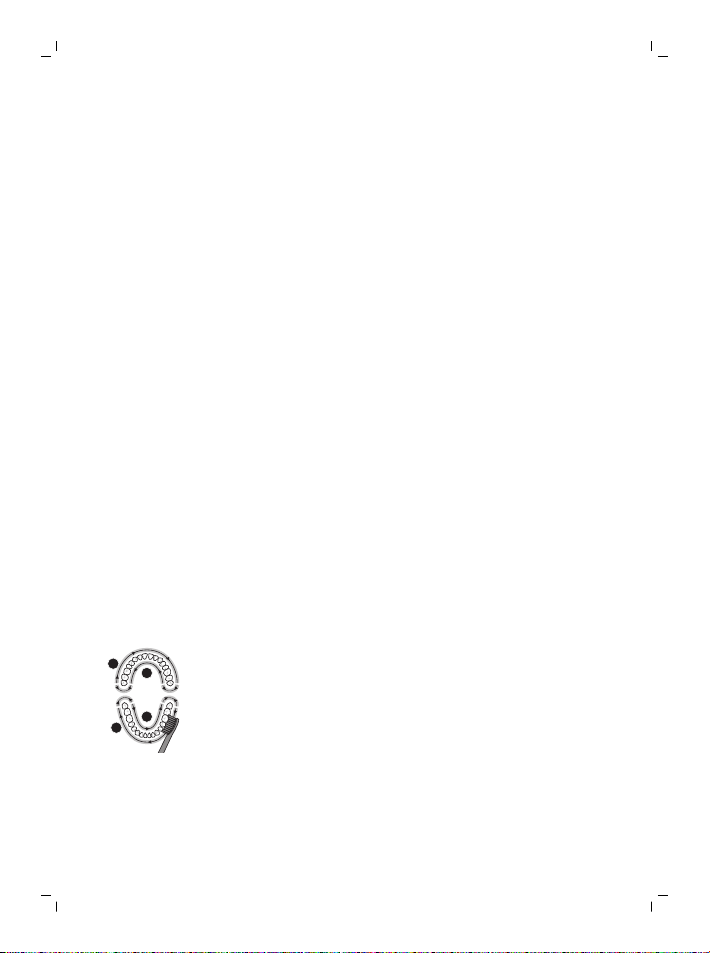

The Quadpacer is an interval timer that has a
short beep and pause to remind you to brush
the 4 sections of your mouth. Depending on
the brushing mode you have selected, the
Quadpacer beeps at different intervals during
the brushing cycle. The Quadpacer works in all
5 modes.
14 English

Smartimer
The Smartimer indicates that your brushing
cycle is complete by automatically turning off
the toothbrush at the end of the brushing
cycle.
Dental professionals recommend brushing no
less than 2 minutes twice a day.
Easy-start
The Easy-start feature gently increases the
power over the first 14 brushings to help you
get used to the brushing with the Philips
Sonicare. The Easy-start feature works in all
modes other than TongueCare mode. This
Philips Sonicare model comes with the Easy-
start feature activated.
Activating or deactivating the Easy-start
feature
1Place the handle in the plugged-in charger.
To activate Easy-start:
Press and hold the power on/off for 2
seconds. You hear 2 beeps to indicate that the
Easy-start feature has been activated.
To deactivate Easy-start:
Press and hold the power on/off for 2
seconds. You hear 1 beep to indicate that the
Easy-start feature has been deactivated.
Note: Using the Easy-start feature beyond the
initial ramp-up period is not recommended
and reduces Philips Sonicare effectiveness in
removing plaque.
15
English

Note: Each of the first 14 brushings must be at
least 1 minute in length to properly move
through the Easy-start ramp-up cycle.
Traveling with your Philips Sonicare
Charging with travel case (specific types only)
1Place the handle in the charging travel case.
2Connect the charging travel case to a UL
60950-1 and IEC 60950-1 Listed computer,
laptop, USB hub, USB receptacle, or wall
adapter.
3The wall adapter you use with this product,
shall have an output marked Class 2 or the
limited power source (LPS) requirements
and compatible with the electrical ratings
marked on the travel case.
4The battery indication flashes white until
your toothbrush is fully charged.
Important: The wall adapter must be a safe
extra low voltage source, compatible with the
electrical ratings marked on the device.
Important: Only toothbrush models HX993W,
HX993B, HX993P, HX993S, HX993L can be
charged in the travel case. Other products and
batteries are not compatible with the travel
case.
Note: It takes at least 24 hours to fully charge
your Philips Sonicare. You do not have to fully
charge your handle before first use, as the
16 English

handle is pre-charged for first use. However, it
is recommended to fully charge it after first
use.
Note: This charger is designed to properly
charge only one handle at a time. The charging
base is not compatible with other models of
Philips Sonicare.
Note: Do not place metallic objects in the
travel case, as handle charging may be
affected and may cause the charger to
overheat.
Cleaning
Note: Do not clean the brush head, handle,
charging base or USB travel case in the
dishwasher. The glass is dishwasher safe.
Toothbrush handle
1Remove the brush head and rinse the metal
shaft area with warm water. Make sure you
remove any residual toothpaste.
Caution: Do not push on the rubber seal on
the metal shaft with sharp objects, as this
may cause damage.
2Wipe the entire surface of the handle with a
damp cloth.
Note: Do not use isopropyl rubbing alcohol,
vinegar or bleach to clean handle as this
may cause discoloration.
17
English

Brush head
1Rinse the brush head and bristles after each
use.
2Remove the brush head from the handle
and rinse the brush head connection with
warm water at least once a week.
Charging base
Use a damp cloth to wipe the surface of the
charging base. Make sure you remove any
toothpaste or other residue from the surfaces.
Storage
If you are not going to use your Philips
Sonicare for an extended period of time,
charge the handle fully, unplug the charger
from the electrical outlet, clean both devices
and store them in a cool and dry place away
from direct sunlight.
Replacement
Brush head
Replace Philips Sonicare brush heads every 3
months to achieve optimal results. Use only
Philips Sonicare replacement brush heads.
Disposal
-This product contains a rechargeable
lithium-ion battery which must be disposed
of properly.
18 English

-Contact your local town or city officials for
battery disposal information. In the US, you
can also call 1-800-822-8837 or visit
www.call2recycle.org for battery drop-off
locations. In Canada, you can also call
888-224-9764 or visit www.call2recycle.ca
for battery drop-off locations.
-For assistance, visit our website
www.philips.com/support or call
1-800-243-3050 toll free.
-Your product is designed and manufactured
with high quality materials and
components, which can be recycled and
reused. For recycling information, please
contact your local waste management
facilities or visit www.recycle.philips.com.
Removing the rechargeable battery
Warning: Only remove the rechargeable
battery when you discard the appliance. Make
sure the battery is completely empty when you
remove it.
To remove the rechargeable battery, you need
a towel or cloth, a hammer and a flat-head
(standard) screwdriver. Observe basic safety
precautions when you follow the procedure
outlined below. Be sure to protect your eyes,
hands, fingers, and the surface on which you
work.
19
English

1To deplete the rechargeable battery of any
charge, remove the handle from the
charger, turn on the Philips Sonicare and let
it run until it stops. Repeat this step until
you can no longer turn on the Philips
Sonicare.
2Remove and discard the brush head. Cover
the entire handle with a towel or cloth.
1
2
3Hold the top of the handle with one hand
and strike the handle housing 0.5 inch
above the bottom end. Strike firmly with a
hammer on all 4 sides to eject the end cap.
Note: You may have to hit on the end
several times to break the internal snap
connections.
4Remove the end cap from the toothbrush
handle. If the end cap does not release
easily from the housing, repeat step 3 until
the end cap is released.
5Holding the handle upside down, press the
shaft down on a hard surface. If the internal
components do not easily release from the
housing, repeat step 3 until the internal
components are released.
20 English
