English
Introduction
Congratulations on your purchase and welcome to Philips! To fully
benefit from the support that Philips offers, register your product at
www.philips.com/welcome.
Important
Read this user manual carefully before you
use the appliance and save it for future
reference.
Danger
-Keep the charger away from water. Do not
place or store it over or near water
contained in a bathtub, washbasin, sink etc.
Do not immerse the charger in water or any
other liquid. After cleaning, make sure the
charger is completely dry before you
connect it to the mains.
Warning
-The mains cord cannot be replaced. If the
mains cord is damaged, discard the charger.
-Always have the charger replaced with one
of the original type in order to avoid a
hazard.
6English

-Do not use the charger outdoors or near
heated surfaces.
-If the appliance is damaged in any way
(brush head, toothbrush handle or charger),
stop using it. This appliance contains no
serviceable parts. If the appliance is
damaged, contact the Consumer Care
Centre in your country (see chapter
‘Guarantee and support').
-This appliance can be used by children
aged from 8 years and above and by
persons with reduced physical, sensory or
mental capabilities or lack of experience
and knowledge if they have been given
supervision or instruction concerning use of
the appliance in a safe way and if they
understand the hazards involved.Children
shall not play with the appliance. Cleaning
and user maintenance shall not be made by
children unless they are older than 8 and
supervised.
7
English

Caution
-Do not clean the brush head, the handle or
the charger in the dishwasher.
-If you have had oral or gum surgery in the
previous 2 months, consult your dentist
before you use the toothbrush.
-Consult your dentist if excessive bleeding
occurs after using this toothbrush or if
bleeding continues to occur after 1 week of
use. Also consult your dentist if you
experience discomfort or pain when you use
the Philips Sonicare.
-The Philips Sonicare toothbrush complies
with the safety standards for
electromagnetic devices. If you have a
pacemaker or other implanted device,
contact your physician or the device
manufacturer of the implanted device prior
to use.
-If you have medical concerns, consult your
doctor before you use the Philips Sonicare.
8English

-This appliance has only been designed for
cleaning teeth, gums and tongue. Do not
use it for any other purpose. Stop using the
appliance and contact your doctor if you
experience any discomfort or pain.
-The Philips Sonicare toothbrush is a
personal care device and is not intended for
use on multiple patients in a dental practice
or institution.
-Stop using a brush head with crushed or
bent bristles. Replace the brush head every
3 months or sooner if signs of wear appear.
Do not use other brush heads than the ones
recommended by the manufacturer.
-If your toothpaste contains peroxide, baking
soda or bicarbonate (common in whitening
toothpastes), thoroughly clean the brush
head with soap and water after each use.
This prevents possible cracking of the
plastic.
9
English

Electromagnetic fields (EMF)
This Philips appliance complies with all
applicable standards and regulations
regarding exposure to electromagnetic fields.

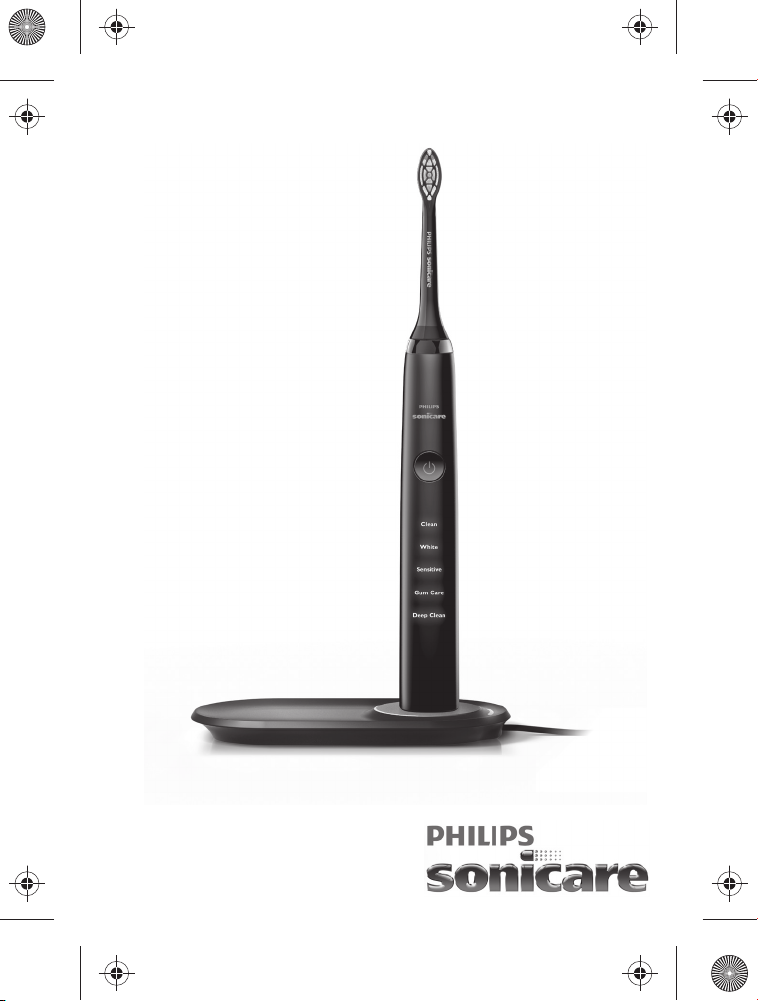

General description (Fig. 1)
1 Hygienic travel cap
2 Brush head with unique identifier
3 Handle with ergonomic shape
4 Recessed power on/off button
5 Hidden brushing mode display
6 Charge indicator
7 Wireless charging pad
8 USB cord
9 USB wall adapter
10 Travel pouch (select models)
Note: The content of the box may vary based on the model
purchased.
Preparing for use
Attaching the brush head
1Align the brush head so the bristles point in the same direction as
the front of the handle (Fig. 2).
2Firmly press the brush head down onto the metal shaft until it
stops.
Note: Philips Sonicare brush heads are imprinted with icons to easily
identify your brush head (Fig. 3).
Note: It is normal to see a slight gap between the brush head and the
handle (Fig. 4).
Charging your Philips Sonicare
1Plug the USB of the wireless charging pad into the wall adapter
and plug into the wall socket (Fig. 5).
10 English

2Place the handle vertically on the charging platform (the raised
surface of the charger (Fig. 6)).
-The charging pad beeps when the toothbrush is correctly
placed onto the charging platform.
Note: There may be a delay for the charging pad to beep while the
charging pad synchronizes with the handle.
-While the toothbrush is charging, the charging indicator flashes
white on the charging pad.
3When the toothbrush is fully charged, the charging indicator lights
up solid white (Fig. 7).
4If the charging indicator flashes red, that indicates detection of a
foreign object or a communication error between the handle and
charging pad.
-If this occurs remove any foreign objects from the charging pad
and/or try removing and replacing the handle on the charging
pad.
Note: It takes approximately 12 hours to ensure battery is fully
charged. Charging times may vary if alternative wall adapters are
used.
This charger is designed to properly charge only one handle at a time.
Only the handle provided in this box should be used with this
charging system.
This charger is not compatible with other models of Philips
Sonicare.
Do not place metallic objects on the charging pad as handle charging
may be affected and may cause the metallic object to overheat.
Battery status (when handle is not on charger)
When removing the Philips Sonicare from the charging pad or after a
brushing session, a battery light at the bottom of the toothbrush will
indicate the status of the battery life.
- Solid green LED: Between 2-3 weeks of brushing sessions left
- Flashing green LED: Approximately 1 week of brushing sessions
left
Only after a brushing is complete
11
English

- Flashing orange LED and three beeps: Only a few brushing
sessions left
- Flashing orange LED and two sets of five beeps: No brushing
sessions left (charge toothbrush)
Note: These indications are based off of using the device twice per
day in Clean Mode. Other modes or more frequent usage may
decrease the battery life.
Using the appliance
Brushing instructions
1Wet the bristles (Fig. 8).
2Apply a small amount of toothpaste on the bristles (Fig. 9).
3Place the toothbrush bristles against the teeth at a slight angle (45
degrees), pressing firmly to make the bristles reach the gumline or
slightly beneath the gumline (Fig. 10).
Note: Keep the center of the brush in contact with the teeth at all
times.
4Press the power on/off and mode button to turn on your Philips
Sonicare (Fig. 11).
5Gently keep the bristles placed on the teeth and in the gumline.
Brush your teeth with small back and forth motion so the bristles
reach between the teeth (Fig. 12).
Note: The bristles should slightly flare. Do not scrub.
6To clean the inside surfaces of the front teeth, tilt the brush handle
semi-upright and make several vertical overlapping brushing
strokes on each tooth (Fig. 13).
7Begin brushing in section 1 (outside top teeth) and brush for 30
seconds (45 seconds in Deep Clean mode) before moving to
section 2 (inside top teeth). Continue brushing in section 3 (outside
bottom teeth) and brush for 30 seconds (45 seconds in Deep
Clean mode) before moving to section 4 (inside bottom teeth (Fig.
14)).
Note: To make sure you brush evenly throughout the mouth,
divide your mouth into 4 sections using the Quadpacer feature
(see chapter ‘Features’).
12 English

Note: After you have completed the brushing cycle, you can spend
additional time brushing the chewing surfaces of your teeth and
areas where staining occurs. You can also brush your tongue, with
the toothbrush turned on or off, as you prefer (Fig. 15).
Your Philips Sonicare is safe to use on:
- Braces (brush heads wear out sooner when used on braces).
- Dental restorations (fillings, crowns, veneers).
Brushing modes
1To toggle through modes press the on/off button twice in less
than 5 seconds.
2To turn off your Philips Sonicare press the on/off button again
after 5 seconds.
Your Philips Sonicare comes with the Clean mode activated.
Note: When the Philips Sonicare is used in clinical studies, it must be
used in the default 2-minute Clean mode or in the Deep Clean mode
with Easy Start turned off.
Clean mode
The ultimate in plaque removal (default mode). Clean mode lasts for
2 minutes and includes four 30 second Quadpacer intervals.
White mode
2 minutes to remove surface stains and 30 seconds to brighten and
polish your front teeth.
Sensitive mode
Extra gentle 2 minute mode for sensitive teeth and gums.
Gum Care mode
Complete whole mouth cleaning (2 minutes) plus gentle cleaning for
problem areas and along the gumline (1 minute).
Deep Clean mode
Provides an invigorating 3 minutes of alternating cleaning and
massaging to deliver an exceptionally clean experience.
13
English

Features
Quadpacer
The Quadpacer is an interval timer that has a short beep and pause to
remind you to brush the 4 sections of your mouth. Depending on the
brushing mode you have selected, the Quadpacer beeps at different
intervals during the brushing cycle. The Quadpacer works in all 5
modes (Fig. 14).
Smartimer
The Smartimer indicates that your brushing cycle is complete by
automatically turning off the toothbrush at the end of the brushing
cycle.
Dental professionals recommend brushing no less than 2 minutes
twice a day.
Easy-start
The Easy-start feature gently increases the power over the first 14
brushings to help you get used to the brushing with the Philips
Sonicare. The Easy-start feature only works in Clean and White
modes. This Philips Sonicare model comes with the Easy-start feature
activated.
Activating or deactivating the Easy-start feature
1Attach the brush head to the handle.
2Place the handle on the charging platform.
To activate Easy-start:
Press and hold the power on/off and mode button for 2 seconds. You
hear 2 beeps to indicate that the Easy-start feature has been
activated.
To deactivate Easy-start:
Press and hold the power on/off and mode button for 2 seconds. You
hear 1 beep to indicate that the Easy-start feature has been
deactivated.
14 English

Note: Using the Easy-start feature beyond the initial ramp-up period
is not recommended and reduces Philips Sonicare effectiveness in
removing plaque.
Note: Each of the first 14 brushings must be at least 1 minute in length
to properly move through the Easy-start ramp-up cycle.
Traveling with the appliance
1Open the travel case and remove the middle insert.
2Place the charger base and wall adapter in the bottom of the case.
3Insert the toothbrush handle underneath the elastic band in the
middle insert to ensure the handle stays in place while traveling.
4Place the middle insert back into the travel case.
5Brush heads can be stored in the netted pouch of the travel case.
Cleaning
Note: Do not clean the brush head, handle, charging base or USB
travel case in the dishwasher. The glass is dishwasher safe.
Toothbrush handle
1Remove the brush head and rinse the metal shaft area with warm
water. Make sure you remove any residual toothpaste (Fig. 16).
Note: Do not push on the rubber seal on the metal shaft with sharp
objects, as this may cause damage.
2Wipe the entire surface of the handle with a damp cloth.
Note: Do not use isopropyl rubbing alcohol, vinegar or bleach to
clean handle as this may cause discoloration.
Brush head
1Rinse the brush head and bristles after each use (Fig. 17).
2Remove the brush head from the handle and rinse the brush head
connection with warm water at least once a week.
Charging Pad & Travel Pouch
1Unplug the charger.
2Use a damp cloth to wipe the surface of the charging pad and
travel pouch.
15
English

Storage
If you are not going to use your Philips Sonicare for an extended
period of time, unplug the charger from the electrical outlet, clean it
and store it in a cool and dry place away from direct sunlight.
Replacement
Brush head
Replace Philips Sonicare brush heads every 3 months to achieve
optimal results. Use only Philips Sonicare replacement brush heads.
Recycling
- This symbol means that this product shall not be disposed of with
normal household waste (2012/19/EU) (Fig. 27).
- This symbol means that this product contains a built-in
rechargeable battery which shall not be disposed of with normal
household waste (Fig. 28) (2006/66/EC). We strongly advise you
to take your product to an official collection point or a Philips
service centre to have a professional remove the rechargeable
battery.
- Follow your country’s rules for the separate collection of electrical
and electronic products and rechargeable batteries. Correct
disposal helps prevent negative consequences for the
environment and human health.
Removing the rechargeable battery
Warning: Only remove the rechargeable battery when you discard the
appliance. Make sure the battery is completely empty when you
remove it.
To remove the rechargeable battery, you need a towel or cloth, a
hammer and a flat-head (standard) screwdriver. Observe basic safety
precautions when you follow the procedure outlined below. Be sure
to protect your eyes, hands, fingers, and the surface on which you
work.
16 English

1To deplete the rechargeable battery of any charge, remove the
handle from the charger, turn on the Philips Sonicare and let it run
until it stops. Repeat this step until you can no longer turn on the
Philips Sonicare.
2Remove and discard the brush head. Cover the entire handle with
a towel or cloth (Fig. 18).
3Hold the top of the handle with one hand and strike the handle
housing 0.5 inch above the bottom end. Strike firmly with a
hammer on all 4 sides to eject the end cap (Fig. 19).
Note: You may have to hit on the end several times to break the
internal snap connections.
4Remove the end cap from the toothbrush handle. If the end cap
does not release easily from the housing, repeat step 3 until the
end cap is released (Fig. 20).
5Holding the handle upside down, press the shaft down on a hard
surface. If the internal components do not easily release from the
housing, repeat step 3 until the internal components are released
(Fig. 21).
6Remove the rubber battery cover (Fig. 22).
7Wedge the screwdriver between the battery and the black frame
at the bottom of the internal components. Then pry the
screwdriver away from the battery to break the bottom of the
black frame (Fig. 23).
8Insert the screwdriver between the bottom of the battery and the
black frame to break the metal tab connecting the battery to the
green printed circuit board. This will release the bottom end of the
battery from the frame (Fig. 24).
9Grab the battery and pull it away from the internal components to
break the second metal battery tab (Fig. 25).
Caution: Be aware of the sharp edges of the battery tabs so as
to avoid injury to your fingers.
10 Cover the battery contacts with tape to prevent any electrical short
from residual battery charge. The rechargeable battery can now be
recycled and the rest of the product discarded appropriately (Fig.
26).
17
English

Guarantee and support
If you need information or support, please visit
www.philips.com/support or read the separate worldwide guarantee
leaflet.
Guarantee restrictions
The terms of the international guarantee do not cover the following:
- Brush heads.
- Damage caused by use of unauthorised replacement parts.
- Damage caused by misuse, abuse, neglect, alterations or
unauthorised repair.
- Normal wear and tear, including chips, scratches, abrasions,
discolouration or fading.
18 English

Čeština
Úvod
Společnost Philips Vám gratuluje ke koupi a vítá Vás! Chcete-li
využívat všech výhod podpory nabízené společností Philips,
zaregistrujte svůj výrobek na stránkách www.philips.com/welcome.
Důležité
Před použitím přístroje si pečlivě přečtěte tuto
uživatelskou příručku a uschovejte ji pro
budoucí použití.
Nebezpečí
-Chraňte nabíječku před kontaktem s vodou.
Nepokládejte a neuskladňujte nabíječku
v blízkosti vody, například u vany
s napuštěnou vodou, umyvadla, dřezu
apod. Neponořujte nabíječku do vody ani
jiné kapaliny. Před připojením nabíječky
k napájení se ujistěte, že je po čištění zcela
suchá.
Varování
-Napájecí kabel nelze vyměnit. Pokud je
napájecí kabel poškozen, je nutné vyřadit
nabíječku z provozu.
-Nabíječku nechte vždy vyměnit za originální
typ, aby nevzniklo žádné riziko.
19
Čeština

-Nepoužívejte nabíječku venku ani blízko
horkých povrchů.
-Pokud dojde k jakémukoli poškození
přístroje (hlavy kartáčku, rukojeti kartáčku
nebo nabíječky), přestaňte jej používat.
Tento přístroj neobsahuje žádné součásti,
které by vyžadovaly údržbu. Pokud dojde
k jeho poškození, obraťte se na středisko
péče o zákazníky ve vaší zemi (viz kapitola
„Záruka a podpora“).
-Děti od 8 let věku a osoby s omezenými
fyzickými, smyslovými nebo duševními
schopnostmi nebo nedostatkem zkušeností
a znalostí mohou tento přístroj používat
v případě, že jsou pod dohledem nebo byly
poučeny o bezpečném používání přístroje
a že chápou rizika, která mohou hrozit. Děti
si s přístrojem nesmí hrát. Děti starší 8 let
nesmí provádět čištění a uživatelskou
údržbu, pokud jsou bez dozoru.
Upozornění
-Nemyjte hlavici kartáčku, rukojeť ani
nabíječku v myčce nádobí.
20 Čeština
