Philips SONICARE elite e7000 User manual

e7000
e9000
elite
the sonic toothbrush

2
B
J
F
D
E
H
G
I
A
C
1

ENGLISH 4
15
25
35
SONICARE ELITE 7000/9000

General description (fig. 1)
ATravel cap
BBristles
CBrush head
DColour code ring
ERemovable nut
FHandle with soft grip
GPower on/off button
HDual Speed Control button
ILED charging lights
JCharger
Important
Read these instructions for use carefully before using the appliance and
save them for future reference.
◗Check if the voltage indicated on the bottom or back of the
charger corresponds to the local mains voltage before you
connect the appliance.
◗Keep the charger away from water! Do not place or store it over
or near water contained in a bathtub, washbasin, sink etc. Do not
immerse the charger in water or any other liquid.
◗Never use the charger if it is damaged or if the cord or plug is
damaged. If the charger, the cord or the plug is damaged, always
have the charger replaced by one of the original type in order to
avoid a hazard.
◗Do not use the toothbrush in the bath or shower.
◗Only use the charger supplied.
◗Close supervision is necessary when this product is used by or on
children or the disabled.
◗If you have had oral or gum surgery in the previous 2 months,
consult your dentist before using the toothbrush.
◗Consult your dentist if excessive bleeding occurs after using this
toothbrush or if bleeding continues to occur after 1 week of use.
◗The Sonicare toothbrush complies with the safety standards for
electromagnetic devices. If you have a pacemaker or other
implanted device, consult your doctor or the manufacturer of the
implanted device if you have any questions about using the
Sonicare.
◗Do not use other brush heads than the ones recommended by
the manufacturer.
◗Replace the brush head every 6 months or sooner if signs of wear
appear, such as crushed or bent bristles.
◗This appliance has only been designed for cleaning teeth, gums and
tongue. Do not use it for any other purpose.
◗The Sonicare toothbrush is a personal care device and is not
intended for use on multiple patients in a dental practice or
institution.
ENGLISH4

◗Supervise children when they are brushing until they have
established good brushing habits.
◗If your toothpaste contains peroxide, baking soda or bicarbonate
(common in whitening toothpastes), thoroughly clean the brush
head with soap and water after each use.
◗Do not use the charger outdoors.

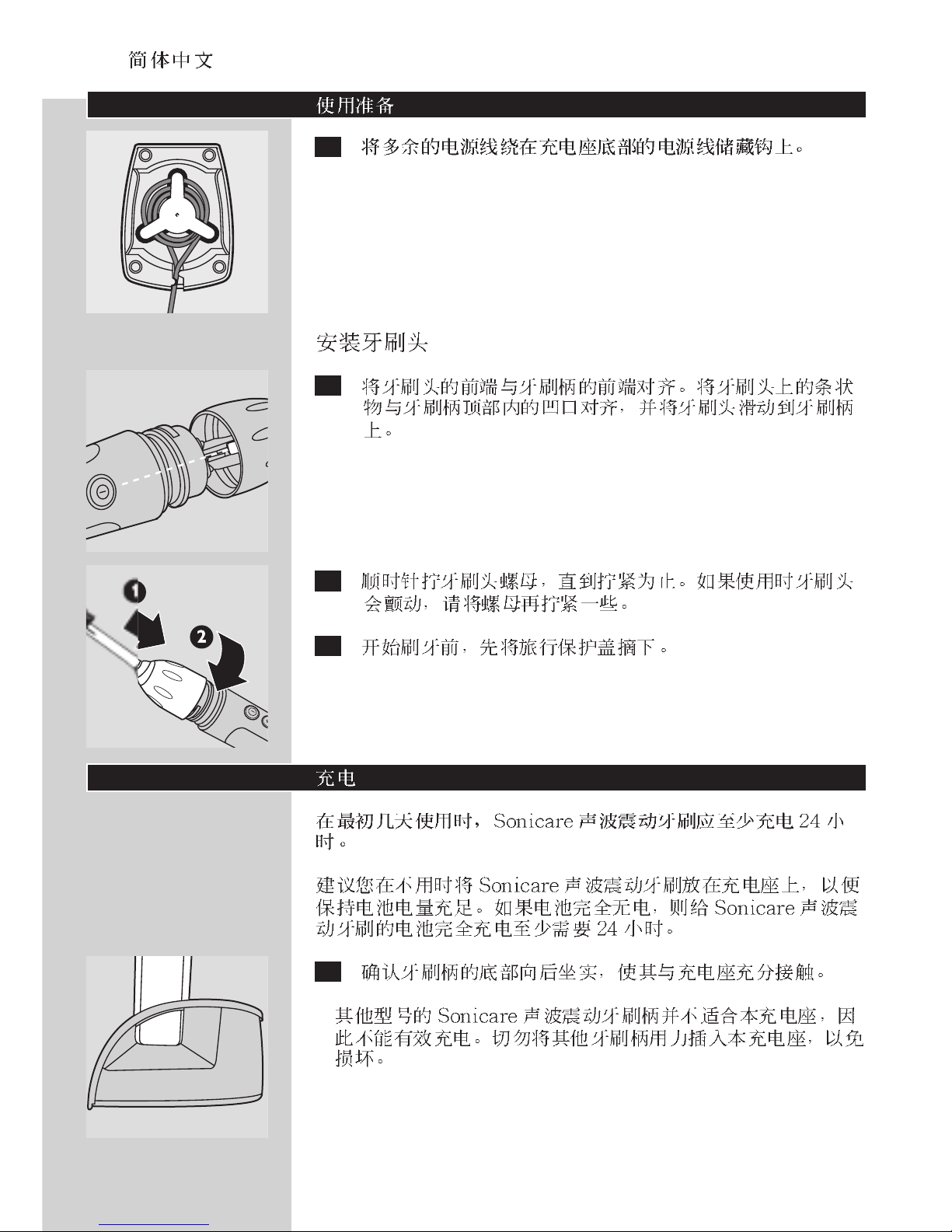

Preparing for use
C1Store excess cord by winding it round the cord storage hooks
in the bottom of the charger.
Attaching the brush head
C1Align the front of the brush head with the front of the
toothbrush handle. Match the bars on the brush head with the
notches inside the top of the handle and slide the brush head
onto the handle.
C2Screw the brush head nut clockwise until it is firmly tightened.
If the brush head rattles during use, tighten the nut further.
3Remove the travel cap from the brush head before you start
brushing.
Charging
Charge the Sonicare for at least 24 hours during the first few days of
use.
We advise you to keep the Sonicare in the plugged-in charger when
not in use to maintain a full battery charge.When the battery is empty,
it takes at least 24 hours to fully charge the Sonicare.
C1Make sure the bottom of the handle sits back securely in the
charger, making complete contact.
ENGLISH 5

◗The handles of other Sonicare models do not fit in this charger
and will therefore not charge effectively. Do not attempt to force
a handle into this charger, as this will cause damage.
Battery-low indicator
C◗When the battery is running low, you will hear 3 beeps after the
Smartimer has switched off the toothbrush and the bottom LED
blinks yellow for 30 seconds.
When you see and hear the battery-low indication, 3 or fewer
2-minute brushings remain.
Keep the Sonicare in the plugged-in charger when not in use to
maintain a full battery charge.
Multiple-LED charge indicator
◗When the handle is placed in the charger, the green charge
indicator LEDs blink in a rising pattern as the battery charges.
The number of blinking LEDs indicates the level to which the
battery has been charged.
When the battery is fully charged, the LEDs stop blinking and start
burning continuously. About once a minute, the charge indicator LEDs
go out briefly and then go on again.This indicates that the battery is
being maintained at full charge.The full-charge indication will persist
until the handle is removed from the charger.
Using the appliance
Useful tips
◗Place the brush head in your mouth before switching the
appliance on and keep your mouth closed during brushing to
prevent splattering of toothpaste.
◗Rinse the brush head and bristles after each use.
◗Clean the brush head weekly, including under the nut.
◗A fully charged Sonicare allows you brush your teeth for
2 minutes twice a day for approximately 2 weeks without
charging, making it easy to travel without the charger.
Brushing technique
C1Before switching the Sonicare on, place the bristles of the
brush head on your gumline at a 45-degree angle.
2Hold the handle with a light grip, switch the Sonicare on and
gently move the bristles in a small circular motion so that the
longer bristles reach between your teeth.After a few seconds,
pass the bristles to the next section. Continue this routine
throughout the 2-minute brushing cycle.
ENGLISH6
45
º

3To maximise the effectiveness of the Sonicare toothbrush, use
light pressure and let the Sonicare do the brushing for you.
Do not scrub.
C4To make sure you brush evenly throughout the mouth, divide
your mouth into 4 sections: outside upper teeth, inside upper
teeth, outside lower teeth and inside lower teeth. Begin brushing
the first section (outside upper teeth) and brush for 30 seconds
before moving to the next section (inside upper teeth). Continue
brushing the other two sections for 30 seconds each until you
have completed the 2-minute brushing cycle.
5After the 2-minute brushing cycle, you can switch the Sonicare
briefly back on again to brush the chewing surfaces of your
teeth.
6Press the on/off button to switch the Sonicare on or off as
needed.
◗You can also brush your tongue with the toothbrush switched on
or off, as you prefer.
Tips for specific oral care needs
◗Stain removal
In areas where staining occurs, spend extra brushing time to help
remove the stains.
C◗Braces
Place the brush head at a 45-degree angle between the brackets and
the gumline. Using light pressure, gently move the bristles in a small
circular motion so the longer bristles reach between your teeth for
2 seconds.Then gently roll the brush handle so the bristles clean the
bracket and the rest of the tooth before you pass the bristles to the
next tooth. Continue this until you have brushed all your teeth. Please
note that brush heads will wear out sooner when used on braces.
◗Dental restorations
Use Sonicare on dental restorations (such as implants, caps, crowns,
bridges and fillings) as you would on your normal tooth surfaces to
reduce plaque build-up and improve gum health.Work the bristles
around all areas of the restoration for thorough cleaning.
◗Periodontal pockets
Your dentist or dental hygienist may have indicated that you have
periodontal pockets, deep pockets where plaque bacteria collect. If this
is the case, after you have completed the 2-minute brushing cycle,
spend extra time gently brushing these areas to improve your gum
health.
ENGLISH 7
1
2
4
3
4
5
º

Features
Easy-start
◗All Sonicare models come with the Easy-start feature activated,
which helps you get used to brushing with the Sonicare.
◗The brushing power will gently increase to full power over the
first 14 brushings.
◗The Easy-start feature is active if you hear 2 beeps immediately
after switching on the Sonicare. Once the Sonicare has reached
optimal brushing power (after the 14th brushing), you will no
longer hear the 2 beeps at the beginning of each brushing cycle.
BNote: each of the first 14 brushings must be at least 1 minute long to
properly move through the Easy-start ramp-up cycle.

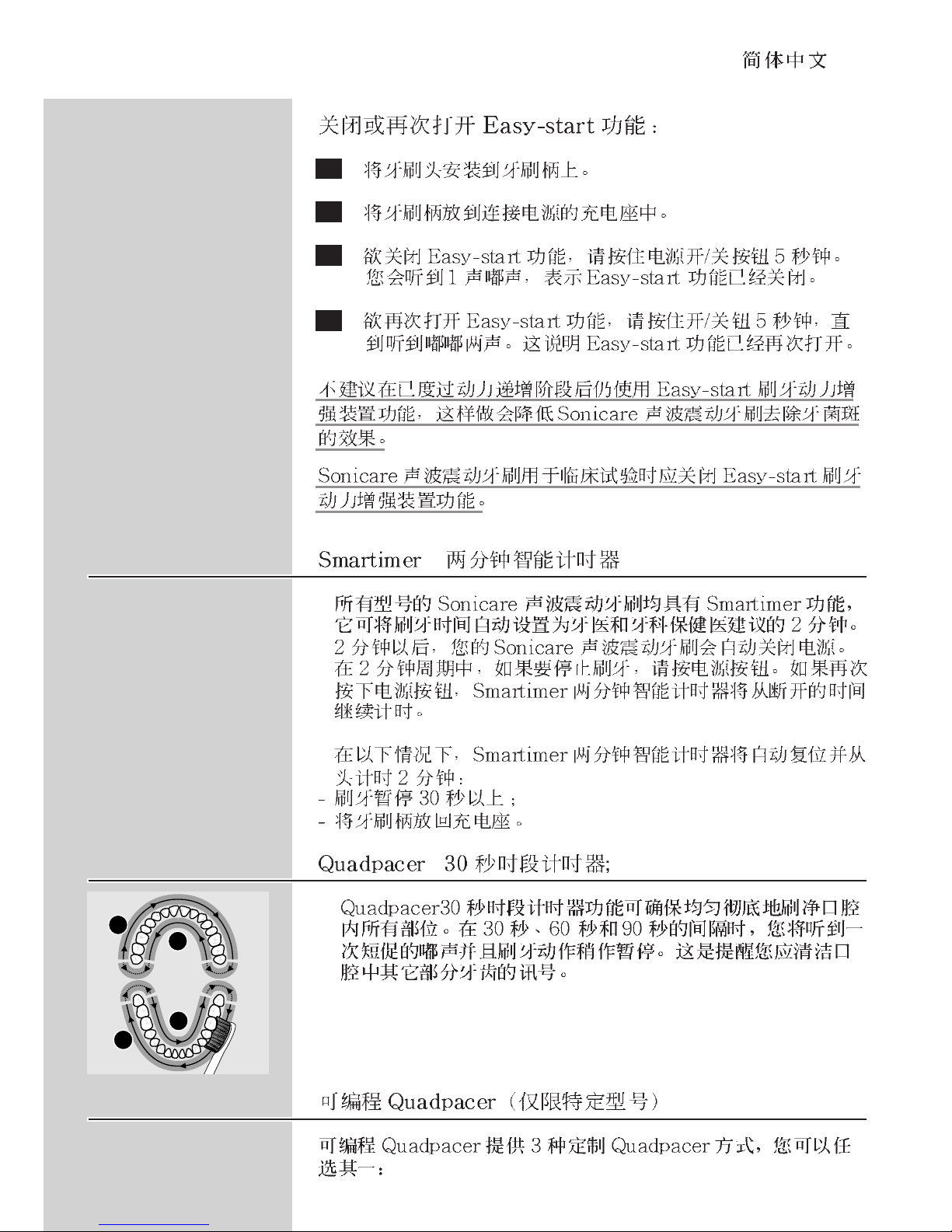

To deactivate or activate the Easy-start feature:
1Attach the brush head to the handle.
2Place the handle in the plugged-in charger.
3To deactivate the Easy-start feature, press and hold the on/off
button for 5 seconds.You will hear 1 beep to indicate that the
Easy-start feature has been deactivated.
4To activate the Easy-start feature, press and hold the on/off
button for 5 seconds.You will hear 2 beeps to indicate that the
Easy-start feature has been activated.
Using the Easy-start feature beyond the initial ramp-up period is not
recommended and reduces Sonicare's effectiveness in removing
plaque.
The Easy-start feature should be deactivated when Sonicare is used in
clinical trials.
Smartimer
◗All Sonicare models come with the Smartimer feature, which
automatically sets the brushing time to the 2 minutes
recommended by dentists and dental hygienists.
◗After 2 minutes the Smartimer automatically switches the
toothbrush off.
◗If you wish to stop brushing briefly during a 2-minute brushing
cycle, press the on/off button.When you press the on/off button
again, the Smartimer will resume the brushing cycle at the point
where you stopped.
ENGLISH8

BThe Smartimer will automatically reset to the beginning of a 2-minute
cycle if:
- you stop brushing for 30 seconds or longer;
- you put the handle in the charger.
Quadpacer\
C◗The Quadpacer 30-second interval timer ensures that you brush
all sections of your mouth evenly and thoroughly.At 30, 60 and
90 seconds, you will hear a short beep and a pause in brushing
action.This is your signal to start brushing the next section of
your mouth.

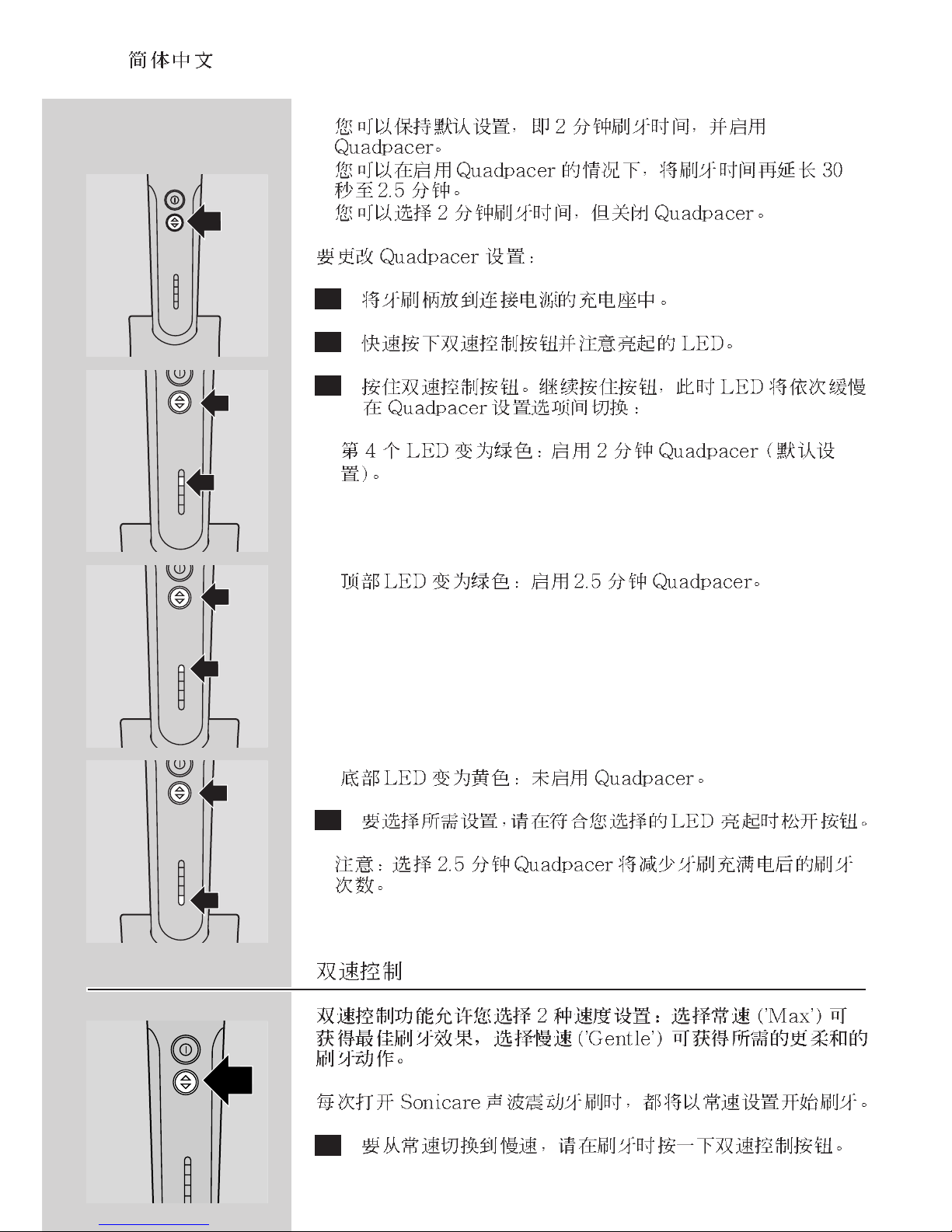

Programmable Quadpacer (specific types only)
The Programmable Quadpacer offers you the option of customising
the Quadpacer in 1 of 3 ways:
◗You may choose to keep the default setting of a 2-minute brushing
time with the Quadpacer activated.
◗You may choose to extend the brushing time by 30 seconds to
2.5 minutes with the Quadpacer activated.
◗You may choose a 2-minute brushing time with the Quadpacer
deactivated.
To change the Quadpacer setting:
1Place the handle in the plugged-in charger.
C2Press the Dual Speed Control button briefly and note which
LED lights up.
3Press and hold the Dual Speed Control button. Continue to
hold the button while the LEDs slowly cycle through the
Quadpacer settings:
C◗The fourth LED burns green: the 2-minute Quadpacer is active
(default setting).
ENGLISH 9
1
2
4
3

C◗The top LED burns green: 2.5-minute Quadpacer is active.
C◗The bottom LED burns yellow: the Quadpacer not active.
4To select the desired setting, release the button when the LED
corresponding to your choice lights up.
BNote: selecting the 2.5-minute Quadpacer reduces the number of
brushings available from a fully charged battery.
Dual Speed Control
The Dual Speed Control feature allows you to choose between 2 speed
settings: normal speed ('Max') for optimum brushing performance or
reduced speed ('Gentle') when an even more gentle brushing action is
desired.
Each time you switch the Sonicare on, it will begin brushing at the
normal speed setting.
C1To switch from normal to reduced speed, press the Dual Speed
Control button once during brushing.
2To switch from reduced to normal speed, press the Dual Speed
Control button a second time during brushing.
A distinctive two-tone beep indicates that the speed setting has been
changed.
We advise you to brush at the normal speed setting to maintain
optimal results.
When the Sonicare is used in clinical trials, the normal speed setting
should be selected.
Cleaning
Regular cleaning guarantees the best performance and a long life for
your appliance.
C1Rinse the brush head and bristles after each use. Let the brush
head air-dry only.
ENGLISH10

C2Clean the brush head at least once a week, including under the
nut.
C3Remove the nut by gently pressing on the rubber seal.
Avoid using sharp objects to press on the seal as this may cause
damage.
C◗Pull the nut over the top of the brush head.
4To reattach the nut, slip the nut over the brush head shaft and
pull it down until it snaps home.
C5Clean the handle weekly.
6Clean the charger periodically.
Unplug the charger before cleaning it. After cleaning the charger, dry it
completely before putting the plug back into the wall socket.
We advise you to use a mild cleaning agent, water and a moist cloth to
clean the Sonicare.
Storage
1If the appliance is not going to be used for a long time, you
should unplug it, clean it and store in a cool and dry place away
from direct sunlight.You can store the cord by winding it round
the cord storage hooks in the bottom of the charger.
ENGLISH 11

Replacement
Brush head
Replacing your brush head every 6 months is clinically proven to
remove more plaque.
Use only Sonicare replacement brush heads for this model.
Environment
C◗Do not throw the appliance away with the normal household
waste at the end of its life, but hand it in at an official collection
point for recycling. By doing this you will help to preserve the
environment.
◗The built-in rechargeable NiCd battery contains substances that
may pollute the environment.Always remove the battery before
discarding the appliance and handing it in at an official collection
point. Dispose of the battery at an official collection point for
batteries. If you have trouble removing the battery, you can also
take the appliance to a Philips service centre, which will remove
the battery for you and will dispose of it in an environmentally
safe way.
Removing the battery
Note that this process is not reversible.
To remove the batteries yourself, you will need a flat-head (standard)
screwdriver.
1Remove the toothbrush from the charger, switch it on and let
it run until it stops. Keep switching on the Sonicare until the
battery is completely empty.
C2Remove the nut from the brush head and place it onto the
handle.Tighten the nut onto the handle (A) until the housing
comes loose and then pull the nut forward (B).
The components inside the handle will come out of the housing along
with the nut.
C3Insert a screwdriver between the electronic circuit board and
the plastic part close to each end of the battery.Twist the
screwdriver to break the connection between the battery and
the electronic circuit board in 2 locations.
ENGLISH12
B
A

C4Separate the battery from the appliance by means of a
screwdriver.
Do not connect the appliance to the mains again after the battery has
been removed.
Guarantee & service
If you need information or if you have a problem, please visit the Philips
website at www.philips.com or contact the Philips Customer Care
Centre in your country (you will find its phone number in the
worldwide guarantee leaflet). If there is no Customer Care Centre in
your country, turn to your local Philips dealer or contact the Service
Department of Philips Domestic Appliances and Personal Care BV.
Guarantee restrictions
The following is not covered by the terms of the international
guarantee:
- Brush heads
- Damage caused by misuse, abuse, neglect or alterations.
- Normal wear and tear, including chips, scratches, abrasions,
discouloration or fading.
ENGLISH 13

Solution
You may need to recharge the Sonicare. Charge it for at least 24 hours.
Make sure the socket is live when you recharge the appliance.The
electricity supply to sockets in mirror cabinets over washbasins or
shaver sockets in bathrooms may be cut off when the light is switched
off.
You may need to reattach or replace the brush head.
You may experience a slight tickling/tingling sensation when using the
Sonicare for the first time. As you become accustomed to brushing
with the Sonicare, this sensation will diminish.
The Sonicare should produce a gentle hum during operation.Tightening
the brush head nut can eliminate excessive rattling. If the rattling does
not stop, you may need to replace the brush head. Make sure you
remove the travel cap before switching the appliance on.
You can avoid this by keeping the brush head properly oriented, with
the brush head placed on the gumline at an angle of 45 degrees.
You may need to recharge the Sonicare.
The Easy-start feature may be active and needs to be deactivated (see
chapter 'Features').
You may need to clean the brush head.
You may need to replace your the head.
The Dual Speed Control button may be set to reduced speed. Set the
button to normal speed.
You may need to clean the appliance. Clean the handle, brush head and
charger thoroughly (see chapter 'Cleaning').
You may need to replace the brush head.
The blinking yellow LED indicates that fewer than 3 brushings remain.
Recharge the Sonicare for at least 24 hours.
The Programmable Quadpacer has been set to a 2.5-minute brushing
cycle instead of the default 2-minute brushing cycle.This setting
provides additional time for brushing troublesome areas where plaque
collects and gum disease starts.We advise you to use the extra
30 seconds of brushing time to rebrush troublesome areas, massage
your gums or brush your tongue (see chapter 'Features').
Problem
The Sonicare toothbrush does not work
I feel a tickling sensation when I use the
Sonicare.
The brush head rattles when I use the
Sonicare.
The brush head chatters against my teeth.
Brushing seems less powerful.
The Sonicare gives off an unpleasant smell.
The yellow LED blinks.What does this mean?
The appliance has an extra 30 seconds of
brushing time.What is this for?
Troubleshooting
If you are unable to solve your problem by means of the troubleshooting guide below, contact your
local Philips Customer Care Centre or online at www.philips.com.
ENGLISH14

A
B
C
D
E
F
G
H
I
J
◗
◗
◗
◗
◗
◗
◗
◗
◗
◗
◗
◗
◗
◗
◗
◗
15

C1
C1
C2
3
C1
◗
16

17
C◗
◗
◗
◗
◗
◗
C1
2
3
45
º

18
C4
5
6
◗
◗
C◗
◗
◗
\
◗
◗
◗
B
1
2
4
3
4
5
º

19
1
2
3
4
\
◗
◗
◗
B
\
C◗
1
2
4
3

20
◗
◗
◗
1
C2
3
C◗
C◗
C◗
4
B
C1
