English
Important
Read this user manual carefully before you use the appliance and
save it for future reference.
Danger
-Keep the charger away from water. Do not
place or store it over or near water
contained in a bathtub, washbasin, sink etc.
Do not immerse the charger in water or any
other liquid. After cleaning, make sure the
charger is completely dry before you
connect it to the mains.
Warning
-The mains cord cannot be replaced. If the
mains cord is damaged, discard the charger.
-Always have the charger replaced with one
of the original type in order to avoid a
hazard.
-Do not use the charger outdoors or near
heated surfaces.
6English

-If the appliance is damaged in any way
(brush head, toothbrush handle or charger),
stop using it. This appliance contains no
serviceable parts. If the appliance is
damaged, contact the Consumer Care
Center in your country (see chapter
'Warranty and support').
-This appliance can be used by children aged
from 8 years and above and by persons with
reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given
supervision or instruction concerning use of
the appliance in a safe way and if they
understand the hazards involved. Children
shall not play with the appliance. Cleaning
and user maintenance shall not be made by
children unless they are older than 8 and
supervised.
Caution
-Do not clean the brush head, the handle or
the charger in the dishwasher.
7
English

-If you have had oral or gum surgery in the
previous 2 months, consult your dentist
before you use the toothbrush.
-Consult your dentist if excessive bleeding
occurs after using this toothbrush or if
bleeding continues to occur after 1 week of
use. Also consult your dentist if you
experience discomfort or pain when you use
the Philips Sonicare.
-The Philips Sonicare toothbrush complies
with the safety standards for
electromagnetic devices. If you have a
pacemaker or other implanted device,
contact your physician or the device
manufacturer of the implanted device prior
to use.
-If you have medical concerns, consult your
doctor before you use the Philips Sonicare.
-This appliance has only been designed for
cleaning teeth, gums and tongue. Do not
use it for any other purpose. Stop using the
appliance and contact your doctor if you
experience any discomfort or pain.
8English

-The Philips Sonicare toothbrush is a
personal care device and is not intended for
use on multiple patients in a dental practice
or institution.
-Stop using a brush head with crushed or
bent bristles. Replace the brush head every
3 months or sooner if signs of wear appear.
Do not use other brush heads than the ones
recommended by the manufacturer.
-If your toothpaste contains peroxide, baking
soda or bicarbonate (common in whitening
toothpastes), thoroughly clean the brush
head with soap and water after each use.
This prevents possible cracking of the
plastic.
Electromagnetic fields (EMF)
This Philips appliance complies with all applicable standards and
regulations regarding exposure to electromagnetic fields.
Radio Equipment Directive
- Radio Equipment in this product operates at 13.56 MHz
- Maximum RF power transmitted by the Radio Equipment is
30.16dBm
Introduction
Congratulations on your purchase and welcome to Philips! To fully
benefit from the support that Philips offers, register your product at
www.philips.com/welcome.
9
English

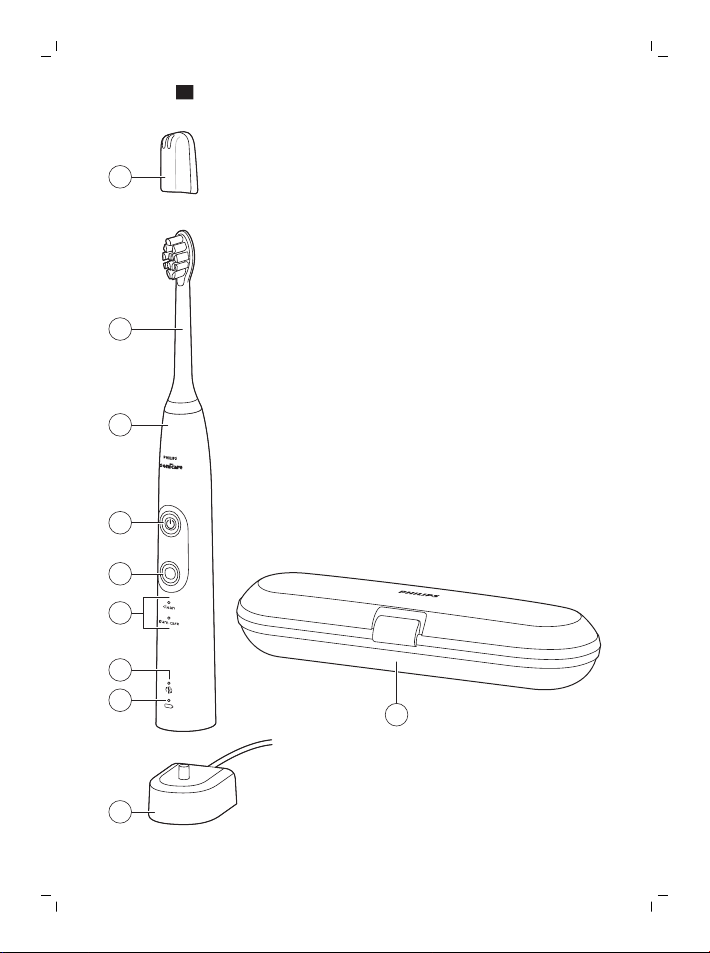

Your Philips Sonicare (Fig. 1)
1 Hygienic travel cap
2 Smart brush head(s)*
3 Handle
4 Power on/off button
5 Mode/intensity button
6 Mode light
7 Brush head replacement reminder light
8 Battery indication
9 Charging base
10 Travel case (specific types only)*
*Note: The content of the box may vary based on the model
purchased.
Brush heads
Your Philips Sonicare comes with one or more brush heads which are
designed to deliver superior results for your oral care needs.
Philips Sonicare BrushSync Technology
Your smart brush heads use a microchip to sync with your handle,
enabling brush head replacement reminder. For more information
regarding the brush head replacement reminder, see 'Features'.
This symbol indicates the brush head is equipped with BrushSync
technology. (Fig. 2)
Brushing modes
To toggle between modes press the mode button located below the
on/off button.
Your power toothbrush is equipped with either 2 or 3 brushing
modes, depending on your model.The following modes are available:
Clean mode
Clean is a 2-minute mode. It gives you a thorough and complete
clean and is recommended to be used with the C2 Optimal Plaque
Control brush head.
10 English

White mode
White is a 2-minute 30-seconds mode, recommended to be used
with the W2 Optimal White brush head.
Gum Care mode
Gum Care is a 3-minute mode, recommended to be used with the G2
Optimal Gum Care brush head.
Using your Philips Sonicare
Brushing instructions
1Press the brush head onto the handle in such a way that the
bristles will face the front of the handle. (Fig. 3)
2Firmly press the brush head down onto the metal shaft until it
stops.
Note: It is normal to see a slight gap between the brush head and
the handle.
3Wet the bristles. (Fig. 4)
4Apply a small amount of toothpaste on the bristles. (Fig. 5)
5Place the toothbrush bristles against the teeth at a slight angle (45
degrees), pressing firmly to make the bristles reach the gumline or
slightly beneath the gumline. (Fig. 6) A change in vibration (and a
slight change in sound) alerts you when you apply too much
pressure while brushing.
Note: Keep the center of the brush in contact with the teeth at all
times.
6Press the power on/off button to turn on the Philips Sonicare. (Fig.
7)
7Gently keep the bristles placed on the teeth and in the gumline.
Brush your teeth with small back and forth motion so the bristles
reach between the teeth. (Fig. 8)
Note: The bristles should slightly flare. Do not scrub.
8To clean the inside surfaces of the front teeth, tilt the brush handle
semi-upright and make several vertical overlapping brushing
strokes on each tooth. (Fig. 9)
11
English

9To make sure you brush evenly throughout the mouth, divide the
mouth into 4 sections using the Quadpacer feature. (Fig. 10) The
quadpacer feature beeps after 30 seconds.
10 Brush for the full 2 minutes following the Quadpacer. (Fig. 11) After
2 minutes, the toothbrush will automatically shut off.
In white mode, after 2 minutes the handle will continue to brush
for 30 seconds so that you can brighten and polish your front
teeth.
In gum care mode, after 2 minutes the handle will continue to
brush for an additional minute so you can gently stimulate and
massage your gums.
- After you have completed the brushing cycle, you can spend
additional time brushing the chewing surfaces of your teeth and
areas where staining occurs. (Fig. 12)
Your Philips Sonicare toothbrush is safe to use on:
- Braces (brush heads wear out sooner when used on braces)
- Dental restorations (fillings, crowns, veneers)
Note: When the Philips Sonicare toothbrush is used in clinical studies,
it must be used in the Clean mode (for plaque and gum health claims)
or in White mode (for whitening claims) at high intensity with
EasyStart turned off.
Features
- EasyStart
- Brush head replacement reminder
- Pressure sensor
- Quadpacer
EasyStart
This Philips Sonicare model comes with the EasyStart feature
activated. The EasyStart feature gently increases the power over the
first 14 brushings to help you get used to the brushing with the Philips
Sonicare. The EasyStart feature works in all modes.
To deactivate EasyStart see 'Activating or deactivating features'.
12 English

Brush head replacement reminder
Your Philips Sonicare is equipped with BrushSync technology that
tracks the wear of your brush head. (Fig. 13)
1When attaching a new smart brush head for the first time the
brush head replacement reminder light blinks green three times.
This confirms you have a Philips brush head with BrushSync
technology.
2Over time, based on the pressure you apply and the amount of
time used, the handle will track brush head wear in order to
determine the optimal time to change your brush head. This
feature gives you the guarantee for the best cleaning and care of
your teeth.
3When the brush head replacement reminder light lights up amber,
you should replace your brush head.
To deactivate the brush head replacement reminder see 'Activating or
deactivating features'.
Pressure sensor
Your Philips Sonicare is equipped with an advanced sensor that
measures the pressure you apply while brushing. If you apply too
much pressure, the toothbrush will provide immediate feedback to
indicate that you need to reduce the pressure. This feedback is given
by a change in vibration and therefore brushing sensation.
To deactivate the pressure sensor see 'Activating or deactivating
features'.
Quadpacer
The Quadpacer is an interval timer that has a short beep and pause
to remind you to brush the different sections of your mouth.
Depending on the brushing mode you have selected (see 'Brushing
modes'), the Quadpacer beeps at different intervals during the
brushing cycle.
Activating or deactivating features
You can activate or deactivate the following features of your
toothbrush:
13
English

- EasyStart
- Brush head replacement reminder
- Pressure sensor
To activate or deactivate these features, follow the instructions
below:
EasyStart
1Put the handle on the plugged-in charger.
2Press and hold the power on/off button while the handle remains
on the charger.
3Keep the power on/off button pressed until you hear a single
short beep (after 2 seconds).
4Release the power on/off button.
-Triple tone of low-med-high means the EasyStart feature has
been activated. The brush head replacement light and battery
light will also blink green 3 times in unison to confirm activation.
-Triple tone of high-med-low means the EasyStart feature has
been deactivated. The brush head replacement light and
battery light will also blink amber 3 times in unison to confirm
deactivation.
Note: To achieve clinical efficacy, EasyStart needs to be deactivated.
Brush head replacement reminder
1Put the handle on the plugged-in charger.
2Press and hold the power on/off button while the handle remains
on the charger.
3Keep the power on/off button pressed until you hear a series of
two short beeps (after 4-5 seconds).
4Release the power on/off button.
-Triple tone of low-med-high means the Brush head
replacement reminder feature has been activated. The brush
head replacement light and battery light will also blink green 3
times in unison to confirm activation.
14 English

-Triple tone of high-med-low means the Brush head
replacement reminder feature has been deactivated. The brush
head replacement light and battery light will also blink amber 3
times in unison to confirm deactivation.
Pressure sensor
1Put the handle on the plugged-in charger.
2Press and hold the power on/off button while the handle remains
on the charger.
3Keep the power on/off button pressed until you hear a series of
three short beeps (after 6-7 seconds).
4Release the power on/off button.
-Triple tone of low-med-high means the pressure sensor feature
has been activated. The brush head replacement light and
battery light will also blink green 3 times in unison to confirm
activation.
-Triple tone of high-med-low means the pressure sensor feature
has been deactivated. The brush head replacement light and
battery light will also blink amber 3 times in unison to confirm
deactivation.
If you continue holding the power on/off button after the three short
beeps, the activate/deactivate sequence repeats.
Battery status and charging
1Put the plug of the charger in an electrical outlet.
2Place the handle on the charger.
-The charger will emit 2 short beeps to confirm that the handle is
placed properly.
-The flashing light of the battery level indicator shows that the
toothbrush is charging.
-When handle is fully charged on the charger, the battery light
shows solid green for 30 seconds and switches off.
Note: Your toothbrush comes pre-charged for first use. After first use,
charge for at least 24 hours.
15
English

Battery status (when handle is not on charger)
When removing the Philips Sonicare from the charger, the battery
light at the bottom of the toothbrush will indicate the status of the
battery life.
- Solid green LED: full battery
- Flashing green LED: medium battery
- Flashing amber LED and three beeps: low battery
- Flashing amber LED and two sets of five beeps: No brushing
sessions left (charge toothbrush)
Cleaning
Note: Do not clean the brush head, handle or travel case in the
dishwasher.
Toothbrush handle
1Remove the brush head and rinse the metal shaft area with warm
water. Make sure you remove any residual toothpaste (Fig. 14).
Note: Do not push on the rubber seal on the metal shaft with
sharp objects, as this may cause damage.
2Wipe the entire surface of the handle with a damp cloth.
Note: Do not use isopropyl rubbing alcohol, vinegar or bleach to
clean handle as this may cause discoloration.
Brush head
1Rinse the brush head and bristles after each use (Fig. 15).
2Remove the brush head from the handle and rinse the brush head
connection with warm water at least once a week.
Charger
1Unplug the charger before you clean it.
2Wipe the surface of the charger with a damp cloth.
Storage
If you are not going to use your Philips Sonicare for an extended
period of time, unplug the charger from the wall socket, clean it and
store it in a cool and dry place away from direct sunlight.
16 English

Locating the model number
Look on the bottom of the Philips Sonicare toothbrush handle for the
model number (HX682x/HX683x).
Recycling
- This symbol means that this product shall not be disposed of with
normal household waste (2012/19/EU) (Fig. 24).
- This symbol means that this product contains a built-in
rechargeable battery which shall not be disposed of with normal
household waste (Fig. 25) (2006/66/EC). Please take your product
to an official collection point or a Philips service center to have a
professional remove the rechargeable battery.
- Follow your country’s rules for the separate collection of electrical
and electronic products and rechargeable batteries. Correct
disposal helps prevent negative consequences for the
environment and human health.
Removing the rechargeable battery
Warning: Only remove the rechargeable battery when you discard the
appliance. Make sure the battery is completely empty when you
remove it.
To remove the rechargeable battery, you need a towel or cloth, a
hammer and a flat-head (standard) screwdriver. Observe basic safety
precautions when you follow the procedure outlined below. Be sure
to protect your eyes, hands, fingers, and the surface on which you
work.
1To deplete the rechargeable battery of any charge, remove the
handle from the charger, turn on the Philips Sonicare and let it run
until it stops. Repeat this step until you can no longer turn on the
Philips Sonicare.
2Remove and discard the brush head. Cover the entire handle with
a towel or cloth (Fig. 16).
3Hold the top of the handle with one hand and strike the handle
housing 0.5 inch above the bottom end. Strike firmly with a
hammer on all 4 sides to eject the end cap (Fig. 17).
17
English

Note: You may have to hit on the end several times to break the
internal snap connections.
4Remove the end cap from the toothbrush handle. If the end cap
does not release easily from the housing, repeat step 3 until the
end cap is released (Fig. 18).
5Holding the handle upside down, press the shaft down on a hard
surface. If the internal components do not easily release from the
housing, repeat step 3 until the internal components are released
(Fig. 19).
6Remove the rubber battery cover.
7Wedge the screwdriver between the battery and the black frame
at the bottom of the internal components. Then pry the
screwdriver away from the battery to break the bottom of the
black frame (Fig. 20).
8Insert the screwdriver between the bottom of the battery and the
black frame to break the metal tab connecting the battery to the
green printed circuit board. This will release the bottom end of the
battery from the frame (Fig. 21).
9Grab the battery and pull it away from the internal components to
break the second metal battery tab (Fig. 22).
Caution: Be aware of the sharp edges of the battery tabs so as to
avoid injury to your fingers.
10 Cover the battery contacts with tape to prevent any electrical short
from residual battery charge. The rechargeable battery can now be
recycled and the rest of the product discarded appropriately (Fig.
23).
Warranty and support
If you need information or support, please visit
www.philips.com/support or read the international warranty leaflet.
Warranty restrictions
The terms of the international warranty do not cover the following:
- Brush heads.
- Damage caused by use of unauthorized replacement parts.
18 English

- Damage caused by misuse, abuse, neglect, alterations or
unauthorized repair.
- Normal wear and tear, including chips, scratches, abrasions,
discoloration or fading.
19
English

Deutsch
Wichtig
Lesen Sie diese Bedienungsanleitung vor dem Gebrauch des Geräts
aufmerksam durch, und bewahren Sie sie für eine spätere
Verwendung auf.
Gefahr
-Halten Sie das Ladegerät von Wasser fern.
Stellen Sie es nicht über oder direkt bei
einer mit Wasser gefüllten Badewanne bzw.
einem Waschbecken ab. Tauchen Sie das
Ladegerät nicht in Wasser oder andere
Flüssigkeiten. Vergewissern Sie sich nach
der Reinigung, dass das Ladegerät
vollständig trocken ist, bevor Sie es wieder
an das Stromnetz anschließen.
Warnhinweis
-Das Netzkabel kann nicht ersetzt werden. Ist
das Netzkabel beschädigt, müssen Sie das
Ladegerät entsorgen.
-Tauschen Sie das Ladegerät immer durch
ein Original-Ersatzgerät aus, um
Gefährdungen zu vermeiden.
-Benutzen Sie das Ladegerät nicht im Freien
oder in der Nähe von heißen Oberflächen.
20 Deutsch
