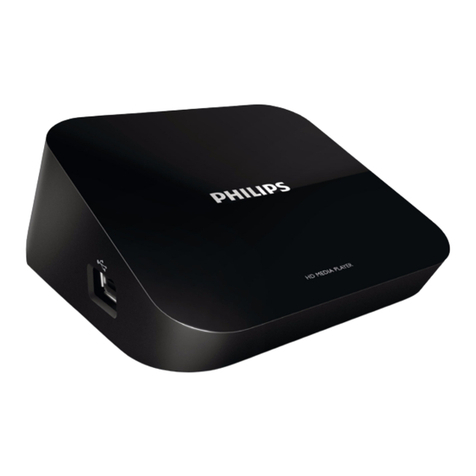

Philips HMP7020 User manual

www.philips.com/welcome
Always there to help you
Register your product and get support at
Question?
Contact
Philips
Question?
Contact
Philips
HMP7020
User manual 45
用户手册 11

Trademark notice
®
The terms HDMI and HDMI High-Denition Multimedia Interface, and the HDMI
Logo are trademarks or registered trademarks of HDMI Licensing LLC in the
United States and other countries.
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby Laboratories.
Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535
& other U.S. and worldwide patents issued & pending. DTS, the Symbol, & DTS
and the Symbol together are registered trademarks & DTS 2.0+Digital Out is a
trademark of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.
Real RMVB logo is a trademark or a registered trademark of RealNetworks, Inc.
3

4
AAA

5
SOURCE
TV
HDMI IN
AV
HDMI 1
HDMI 2
HDMI 3
Side HDMI
Side AV
HDMI
AC IN
中文 按开机。 白灯亮起。
再按 关机。红灯亮起
EN Press to switch on.The
indicator lights up white.
Press again to switch off.The
indicator lights up red.
中文 在电视机遥控器上，使用信号
源键选择HMP7020的HDMI输
入频道。
EN On the remote control of the
TV, use the source button to
select the HDMI input channel of
HMP7020.
开机 Switch on

6
Ԟൗഥᇆ
WWW
HDMI
Җ֊იခ
ອ઒
ႹཐIJၟขijອ
౬࿎ᄸອ઒ഥᇆ৏ྜ
ስײIJࡽၴij
൱ײIJ࣍ࢬij
设置：
接入你的家庭网络 Setup: Connect to your home network
中文 通过以太网线接入
EN Connect through an Ethernet cable
中文 在初始设置屏幕，选择网络设置 > 有线（以太）网。选
择自动(建议)自动获取IP地址。按网络提示完成连接。
EN On the screen of initial setup, select Network Setup > Wired
(Ethernet). Select Auto (Recommended) to acquire auto IP.
Follow onscreen instructions to complete connection.

7
HDMI
ఛᜰ
ഥᇆ
86%Ⴎஸ௸৅
ອ઒
խԩ
ఛᜰ
ሀѓ
ܼೄ
H6$7$
优朋影视：
播放网络电视
Voole: Play from the
online service
中文 再次开启HMP7020时，该机自动接入上次接入的网络。当HMP7020
接入网络时， 变为 。
从主屏幕上， 选择优朋影视。使用遥控器选择搜索、播放选项。
EN Next time you switch on HMP7020, the device connects to the previously
connected network. changes to .
From the Home screen, selectVoole. Use the remote control to select search
and play options.

8
HDMI
ഥᇆ
86% Ⴎஸ௸৅
ອ઒
խԩ
ఛᜰ
ሀѓ
ܼೄ
H6$7$
SimplyShare
޾৷ၢཞ
74963893
互联易享：播放飞利浦
安卓设备上的视频、照片
SimplyShare: Play from Philips
Android devices
中文 确定你已将飞利浦安卓设备接入HMP7020所在的同一网络。
EN Make sure that you have connected your Philips Android device to the
same network as HMP7020.
中文 在你的飞利浦安卓设
备上，启动 。首次
使用时，输入激活码
74963893。
EN On your Philips Android
device, launch . Enter
the activation code
74963893 for your first-
time use.
将你的飞利浦
安卓设备拖入
HMP7020。
Drag your Philips
Android device
to HMP7020.
选择你的飞利浦安
卓设备。点击 + 加
入通过HMP7020播
放的媒体文件。
Select your Philips
Android device.Tap
+ to add media that
you want to play
through HMP7020.

9
互联易享：播放飞利浦
安卓设备上的视频、照片
SimplyShare: Play from Philips
Android devices
中文 在飞利浦安卓设备上操控媒体播放时，选定该安卓设
备。左、右滑动选择播放控制屏幕或播放列表（选定
的媒体文件）
EN To control media play on the Philips Android device, select
the Android device. Swipe left/ right to switch between the
playback controls panel and the playlist of selected media
files.

10
HDMI
ഥᇆ
86%Ⴎஸ௸৅
ອ઒
խԩ
ఛᜰ
ሀѓ
ܼೄ
H6$7$
HDMI
eSATA
ഥᇆ
86%Ⴎஸ௸৅
ອ઒
խԩ
ఛᜰ
ሀѓ
ܼೄ
H6$7$
HDMI
ഥᇆ
86%Ⴎஸ௸৅
ອ઒
խԩ
ఛᜰ
ሀѓ
ܼೄ
H6$7$
从存储设
备上播放
Play from a mass
storage device
中文 从USB存储设备上播放
EN Play from a USB mass storage device
中文 从SD卡上播放
EN Play from the SD card
中文 从带eSATA接口的硬盘上播放
EN Play from a hard disk drive with a eSATA
connector

11EN
Contents
1 Safety and notice 13
Safety 13
Compliance 14
Copyright 15
Warranty 15
2 Basics 16
Connect 16
Switch on or off 17
Use the remote control 18
3 First-time setup 20
Connect to your home network 20
4 Play 22
Play from online services 23
Play from your home network 24
Play from a mass storage device 29
5 Setup 34
System 34
Audio 35
Video 35
Network 35

12 EN
6 EasyLink 36
7 UpdatethermwareofHMP7020 37
Update the rmware through the Internet 37
Update the rmware through a USB storage device 37
8 Troubleshooting 38
9 Specication 39

13EN
1 Safety and notice
Read and understand all instructions before you use this product. If damage is
caused by failure to follow the instructions, the warranty does not apply.
Safety
This 'bolt of lightning' indicates uninsulated material within the device may cause
an electrical shock. For the safety of everyone in your household, please do not
remove the covering.
The 'exclamation mark' calls attention to features for which you should read the
enclosed literature closely to prevent operating and maintenance problems.
WARNING: To reduce the risk of re or electric shock, the device should not be
exposed to rain or moisture and objects lled with liquids, such as vases, should
not be placed on the device.
CAUTION: To prevent electric shock, fully insert the plug. (For regions with
polarized plugs: To prevent electric shock, match wide blade to wide slot.)
Only use attachments/accessories specied by the manufacturer.
The product shall not be exposed to dripping or splashing.
Do not place any sources of danger on the product (e.g. liquid lled objects,
lighted candles).

14 EN
ModicationoftheproductcouldresultinhazardousradiationofEMCor
other unsafe operation.
Warning
•Never remove the casing of this product.
•Never lubricate any part of this product.
•Never place this product on other electrical equipment.
•Keep this product away from direct sunlight, naked ames or heat.
•Ensure that you always have easy access to the power cord, plug or adaptor to disconnect the
product from the power.
•Where the mains plug or an appliance coupler is used as the disconnect device, the disconnect
device shall remain readily operable.
Compliance
Class II equipment symbol:
CLASS II apparatus with double insulation, and no protective earth provided.
• Use this product in the areas of an altitude of no more than 2000 meters
only.
Note
•The type plate is located on the bottom of the product.

15EN
Copyright
Specications are subject to change without notice. Philips and the Philips’ Shield
Emblem are registered trademarks of Koninklijke Philips N.V. and are used by
WOOX Innovations Limited under license from Koninklijke Philips N.V.. WOOX
Innovations reserves the right to change products at any time without being
obliged to adjust earlier supplies accordingly.
Warranty
• Never attempt to repair the product, this could lead to the risk of injury,
damage to the product and will void your warranty.
• Use the product and accessories only as intended by the manufacturer.The
caution sign printed on the back of the product indicates risk of electric
shock.
• Never remove the cover of the product. Always contact Customer Support
for service or repairs.
• Any operation expressly prohibited in this manual, or any adjustments and
assembly procedures not recommended or authorized in this manual shall
void the warranty.

16 EN
2 Basics
Connect
a HDMIconnectorforaudio/videooutput
• Connects to a high-denition TV (HDTV) through an HDMI cable
b Powerconnector
• Connects to power supply through the AC power cord
To connect to a TV through AV cables
• Through CVBS, use the supplied AV cable to connect HMP7020 to a TV.
• Make sure that the plugs and sockets match in color.
HDMI IN
HDMI
a
b
TV
RLVIDEO

17EN
For high quality audio
• Through OPTICAL, use a ber optical cable to connect HMP7020 to the
OPTICAL or SPDIF input connector on an audio/video system.
Switchonoroff
1 On HMP7020, press on the remote control to switch on.
» The power indicator lights up white.
2 On the TV, switch to the input source of HMP7020:
• On the remote control of your TV, use the source button to select the
input channel of HMP7020.
3 To switch HMP7020 to standby mode, press again on the remote control.
SOURCE
TV
AV
HDMI 1
HDMI 2
HDMI 3
Side HDMI
Side AV

18 EN
» The power indicator lights up red.
Auto standby
From the Home screen, switch on [Automatic Standby]in[Setup] > [System].
If there is no button press or media play on HMP7020for 15 minutes, HMP7020
switches to standby mode automatically except when:
• You enter text on the onscreen keyboard.
Screensaver
From the Home screen, go to[Setup] > [System] to switch on [ScreenSaver].
If there is no button press or media play on HMP7020 for a selected time
duration, the screen saver is activated.To exit the screen saver, press any button on
the remote control.
Use the remote control
SwitchHMP7020onortostandbymode
• Press
Navigatebetweenscreensorthroughoptions
• Return to the Home screen
• Navigate through options
OK
• Conrm the option
• Back one level or exit (except in some online services)
Connecttotheonlinevideoservice
• Press
Viewoptionsmenuformediaplayorlenavigation
• Press
Control the play
• Start, pause, or resume the play
• Stop the play

19EN
/
Skip to the previous/ next media le
/
• Search backwards or forwards within current le
• Press repeatedly to select a search speed
/
• Rotate a photo
• Display the information about current le during play
• Press repeatedly to select aspect ratio, or zoom in or out.To pan
through an enlarged photo, press .
• Access subtitle options
• Access the options of audio languages
• Access the options of audio tracks
RemovetheconnectedUSBdevicesafely
• Press and hold and select the option
Manageles/foldersunderontheconnectedstoragedevices
• Press
Enter text
With the onscreen keyboard, use the remote control to enter text.
Select input modes
• Press / on the remote control.
» On the onscreen keyboard, current input mode is highlighted.
: English input in upper case
OK
ௗၿ
$%& DEF (# ௗၿ

20 EN
: English input in low case
: symbols
: Chinese Pinyin input
Enter text
1 On the remote control, press to move to a key, press OK to
select the letter or symbol.
2 On the onscreen keyboard, select the input options by using the remote
control:
/ : Move the cursor to the left or right.
: Delete the entry before the cursor.
3 When the text entry is complete, select OK on the onscreen keyboard to
exit.
3 First-time setup
The rst time you use HMP7020, do the following setup:
• In [MenuLanguage], select the menu language on HMP7020;
• In [NetworkSetup], connect HMP7020 to your home network through
an Ethernet cable.
To exit the setup screen,
• On the remote control, press .
» You enter the Home screen.
To change your setup options,
• From the Home screen, go to [Setup].
Connecttoyourhomenetwork
Connect HMP7020 to a router (Access Point) through an Ethernet cable. You can
connect HMP7020 to the network that is built around the router.
