Philips Cucina HR1565 User manual

HR1566, HR1565

2

3

4

ENGLISH 6
BAHASA MELAYU 12
INDONESIA 19
TI”NG VI◊T 26
 32
42
48
HR1566, HR1565
á«Hô©dG
v<ñUã

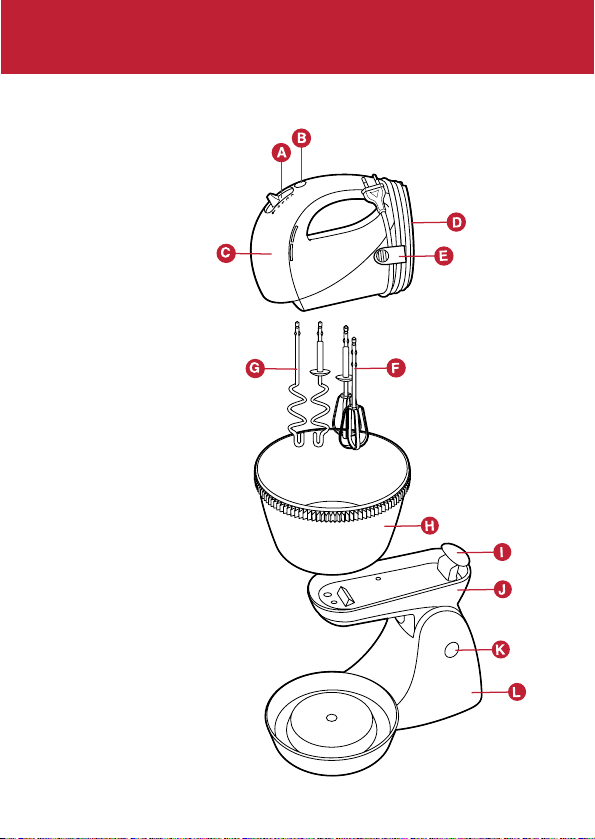

General description
AControl slide
-↑= eject position
- 0 = off
- 1 = low speed
- 2 = medium speed
- 3 = high speed
BTurbo button
CMotor unit
DCord storage facility
ECord clip for fixing the cord
FBeaters
GKneading hooks
HRotating bowl
IMixer release lever
JMixer holder
KHolder release button
LStand
Important
Read these instructions for use carefully before using the appliance and
save them for future reference.
◗Check if the voltage indicated on the appliance corresponds to
the local mains voltage before you connect the appliance.
◗Do not use the appliance if the mains cord, the plug or other
parts are damaged.
◗If the mains cord is damaged, it must be replaced by Philips, a
service centre authorised by Philips or similarly qualified persons
in order to avoid a hazard.
◗Keep the appliance out of the reach of children.
◗Always insert the beaters or the kneading hooks into the mixer
before you connect it to the mains.
◗Lower the beaters or kneading hooks into the ingredients before
switching the appliance on.
ENGLISH6

◗Unplug the mixer before removing the beaters or kneading
hooks and before cleaning.
◗Never immerse the motor unit in water nor rinse it under the
tap.
◗Never use any accessories or parts from other manufacturers or
that have not been specifically advised by Philips. Your guarantee
will become invalid if such accessories or parts have been used.
◗Noise level: Lc = 84 dB(A)
Using the appliance
The rotating bowl is especially suitable for large quantities. If you want
to process small quantities, we advise you to use a small bowl and to
hold the mixer with your hand.
Mixing with the mixer on the stand
1Place the mixer on the stand. First fit the front of the mixer into
the snap hook in the holder and then press the rear end of the
mixer down ('click') (fig. 1).
1Press the holder release button and tilt the holder with the
mixer backwards (fig. 2).
2Insert the beaters or kneading hooks into the mixer. Make sure
you insert the beater or the kneading hook with the plastic collar
into the larger opening in the bottom of the mixer (fig. 3).
It may be necessary to turn the beaters or kneading hooks slightly while
doing this.
The plastic collar on the beater or kneading hook remains visible; the
beater or kneading hook cannot be inserted further into the appliance.
3Put the plug in the wall socket.
4Put the ingredients in the bowl.
For the best result, put the liquid ingredients in the bowl first and then
add the dry ones.
5Place the bowl on the stand (fig. 4).
ENGLISH 7

6Press the holder release button and bring the mixer into
horizontal position so that the beaters or kneading hooks are
lowered into the ingredients (fig. 5).
7Switch the mixer on.
For the right quantities and processing times, see the table below.
◗Press the turbo button to mix more quickly or to increase the
speed during heavy jobs, e.g. kneading yeast dough.
◗Press the spatula against the side of the bowl to mix the
ingredients more quickly and efficiently.
8When you have finished mixing, set the control slide to 0 and
unplug the appliance.
9Press the holder release button and tilt the holder with the
mixer on it backwards (fig. 6).
10 Push the control slide forward to the eject position to release
the beaters or kneading hooks and remove them from the mixer
(fig. 7).
11 The mixer can be removed from the holder when the holder is
in upright or horizontal position. Press the mixer release lever at
the rear end of the holder and lift the mixer off the holder (fig.
8).
12 Remove the bowl from the stand.
Mixing without the stand
1Insert the beaters or kneading hooks into the mixer (follow the
procedure as described above at point 3).
2Put the plug in the wall socket.
3Lower the beaters or kneading hooks into the ingredients and
switch the mixer on.
Press the turbo button to mix more quickly or to increase the speed
during heavy jobs, e.g. kneading yeast dough.
ENGLISH8

4If you want to stop mixing for a while, switch the appliance off
and put it (with the beaters or kneading hooks still attached)
onits heel until you continue (fig. 9).
5When you have finished mixing, set the control slide to 0 and
unplug the appliance.
6Press the control slide to the eject position to release the
beaters or kneading hooks.
Cleaning
Always unplug the appliance before cleaning it.
Never immerse the motor unit in water nor rinse it under the tap.
1Clean the beaters, the kneading hooks and the spatula in warm
water with some washing up liquid or in the dishwasher.
The bowl, the stand and the holder and the motor unit are not
dishwasherproof.
2Clean the motor unit with a moist cloth.
Storage
◗Wind the cord round the heel of the appliance and attach the
loose end of the cord to the mixer housing by means of the cord
clip supplied (fig. 10).
Ordering accessories
The following items are available from your Philips dealer for
replacement or as extra accessories. Please use the service code
number mentioned below when ordering.
-OStrip beaters; available in pairs under type no. 4203 065 63221
-+Kneading hooks; available in pairs under type no. 4203 065
63211
-BSpatula; available under type no. 4203 065 63241
-NBowl; available under type no. 4203 065 63231
ENGLISH 9

Guarantee & service
If you need information or if you have a problem, please visit the Philips
website at www.philips.com or contact the Philips Customer Care
Centre in your country (you will find its phone number in the
worldwide guarantee leaflet). If there is no Customer Care Centre in
your country, turn to your local Philips dealer or contact the Service
Department of Philips Domestic Appliances and Personal Care BV.
Environment
◗Do not throw the appliance away with the normal household
waste at the end of its life, but hand it in at an official collection
point for recycling. By doing this you will help to preserve the
environment (fig. 11).
Fruitcake
Only use the strip beaters to prepare this recipe. If your mixer comes
with wire beaters, you can order strip beaters from your Philips dealer.
Ingredients:
- 150g dried dates, stoned and halved
- 420g dried prunes, halved
- 50g almonds
- 50g walnuts
- 50g raisins
- 50g sultanas
- 460g wholegrain rye flour
- 100g wheat flour
- 300g honey
- a pinch of salt
- 16g baking powder
- 500g buttermilk
BCut the dried dates, dried prunes, almonds and walnuts in small pieces.
BPut the dried dates, dried prunes, almonds, walnuts, raisins,
sultanas,100g wheat flour and 260g wholegrain rye flour in a bowl. Pour
the buttermilk in the bowl and insert the strip beaters into the mixer.
