Philips PET940/12 User manual

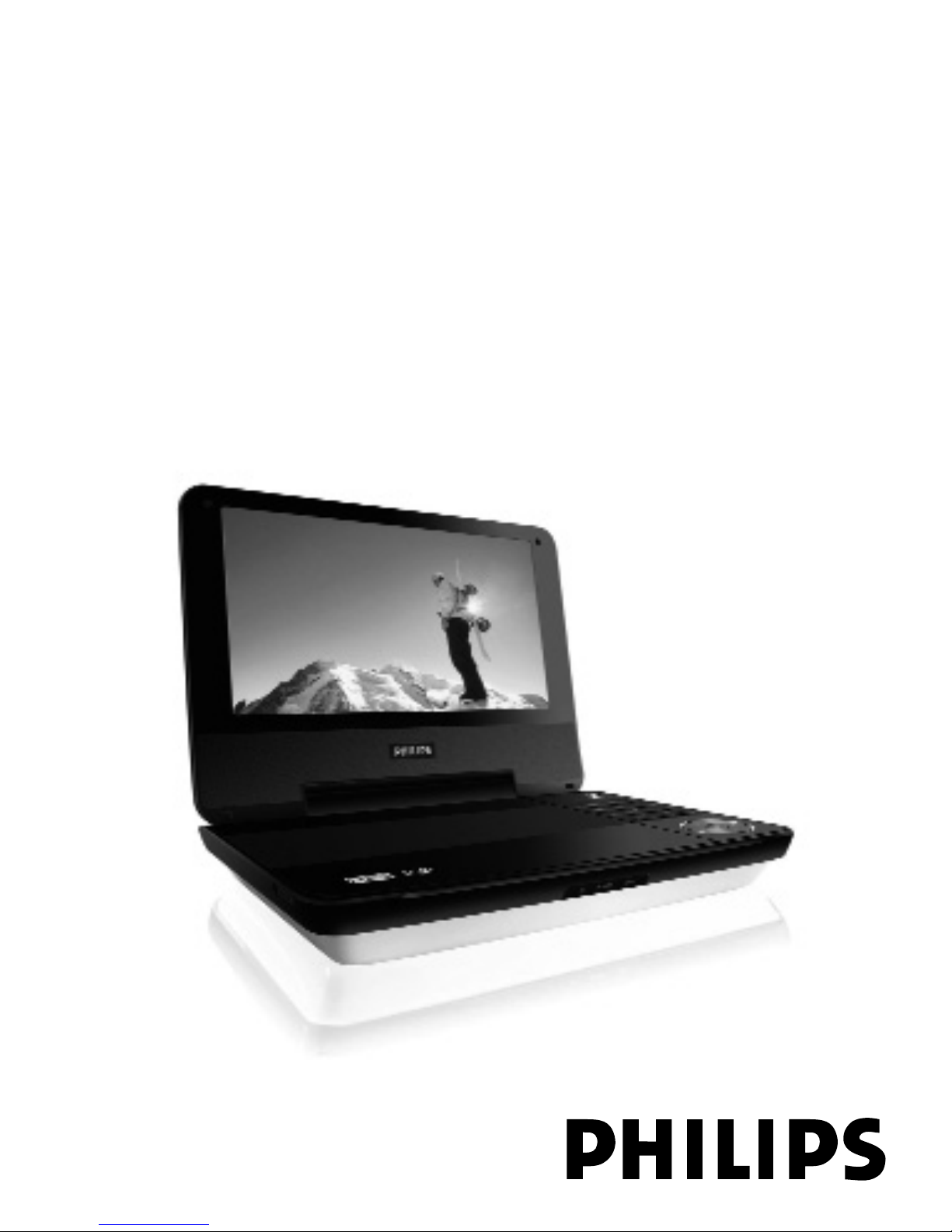

PET940Portable DVD player
Register your product and get support at
www.philips.com/welcome
User manual
Manuel d’utilisation
Manual de usuario
Benutzerhandbuch
Gebruikershandleiding
Manuale dell’utente
Användarhandbok
Brugervejledning
P001-035_PET940_12_Eng 2008.4.11 5:43 PM Page 1

2
P001-035_PET940_12_Eng 2008.4.11 5:43 PM Page 2

EnglishDeutsch Español Français
3
English - - - - - - - - - - - - - - - - - - - - 4
Français- - - - - - - - - - - - - - - - - - - 36
Español - - - - - - - - - - - - - - - - - - 71
Deutsch - - - - - - - - - - - - - - - - - - 104
Nederlands - - - - - - - - - - - - - - - 72
Italiano - - - - - - - - - - - - - - - - - - - 89
Svenska - - - - - - - - - - - - - - - - - 106
Dansk- - - - - - - - - - - - - - - - - - - - 123
P001-035_PET940_12_Eng 2008.4.11 5:43 PM Page 3

4
1
3
4
5
8
9
10
13
15
14
2
6
12
11
7
1
P001-035_PET940_12_Eng 2008.4.11 5:43 PM Page 4

5
2
2
5
3
4
1
6
7
8
9
10
11
12
13
14
15
16
P001-035_PET940_12_Eng 2008.4.11 5:43 PM Page 5

Content
1Control elements and functional components
1.1 Main unit controls
1.2 Remote Control
2 Introduction
2.1 Your portable DVD
player
2.2 Unpacking
2.3 Placement
2.4 Playable disc formats
2.5 Compatibility of the USB connection on this
portable DVD player
3General information
4Charging the units
4.1 Charge the DVD player
4.2 Powering your remote control
5Start up
5.1 Setup
5.2 Playback DVD
5.3 Playback VCD
5.4 Playback Super (S)-VCD
5.5 Playback Music CD
5.6 Playback Music MP3-CD
5.7 Playback Picture-CD
6
English
English
P001-035_PET940_12_Eng 2008.4.11 5:43 PM Page 6

5.8 Playback from USB
6Addition Functions
6.1 DISPLAY Menu
6.2 Connection
6.2.1 Headphone
6.2.2 TV
6.2.3 USB
7Troubleshooting
8Technical data
English
7
P001-035_PET940_12_Eng 2008.4.11 5:43 PM Page 7

1.1 Main unit controls (see figure 1)
1POWER Switch the player on / off
29Press once to stop playback and store the
stop position. Press twice to stop playback
completely.
32; Start / pause / resume playback
4J( / )K Skip to previous/next track or fast search
backward/forward
5
- VOL + Volume control
6 OPTION Access additional functions
7 MENU Display MENU page
83,4,1,2Up / down / left / right cursor
OK Confirm selection
9POWER•IR•CHG
Power / Remote sensor / charging indicator
10 OPEN Open disc door to insert or remove disc
11 1p 2Headphones jacks
12 AV OUT Audio/Video output
13 DC IN 9-12V Power supply socket
14 USB port Insert USB plug
15 RESET Reset the player when it is hanged up
8
English
Congratulations on your purchase and wel-
come to Philips! To fully benefit from the
support that Philips offers, register your
product at www.philips.com/welcome.
1Control elements and functional components
(illustrations on page 4-5)
P001-035_PET940_12_Eng 2008.4.11 5:43 PM Page 8

1.2 Remote Control (see figure 2)
1 MENU Display MENU page
23,4,1,2Up / down / left / right navigation key
OK Confirm selection
VOL+ / -Volume control
3 DISPLAY Adjust the display value of the system
4J( Skip to previous chapter, track or title
52; Start / pause / resume playback
69Press twice to stop playback
70- 9Numeric keypad
8 SUBTITLE Subtitle language selector
9 RETURN For VCD menu page
10 A - B To repeat or loop a sequence in a title
11 SETUP Enter SETUP menu
12 OPTION Access additional functions
13 )K Skip to next chapter, track or title
14 sMute player volume
15 AUDIO Audio language selector
16 ZOOM Enlarge video image
English
9
P001-035_PET940_12_Eng 2008.4.11 5:43 PM Page 9

10
English
2.1 Your portable DVD player
Your portable DVD player plays digital video discs conforming
to the universal DVD Video standard.With it, you will be able
to enjoy full-length movies with true cinema picture quality,
and stereo or multichannel sound (depending on the disc and
on your playback set-up).
The unique features of DVD-Video, such as selection of
soundtrack and subtitle languages, and of different camera
angles (again depending on the disc), are all included.What’s
more, parental lock lets you decide which discs your children
will be able to see.You will find your player remarkably easy
to use with the On-Screen Display and player display in com-
bination with the remote control.
2.2 Unpacking
First check and identify the contents of your package, as listed
below:
•Portable DVD player • Remote Control
•Car adaptor • User manual
•AC power adaptor • Audio/Video cable
2.3 Placement
•Place the player on a firm, flat surface.
•Keep away from domestic heating equipment and direct
sunlight.
•If the player cannot read CDs/DVDs correctly, try using a
commonly available cleaning CD/DVD to clean the lens
before taking the player to be repaired. Other cleaning
methods may destroy the lens.
•Always keep the disc door closed to avoid dust on the
lens.
2 Introduction
P001-035_PET940_12_Eng 2008.4.11 5:43 PM Page 10

English
11
•The lens may cloud over when the player is suddenly
moved from cold to warm surroundings. It is then not pos-
sible to play a CD/DVD. Leave the player in a warm envi-
ronment until the moisture evaporates.
2.4 Playable disc formats
In addition to DVD-Video disc, you will also be able to play all
Video CDs, CDs, CDR, CDRW,DVD±R and DVR±RW.
2.4.1 DVD-Video
Depending on the material on the disc (a movie, video clips, a
drama series, etc.) these discs may have one or more Titles,
and each Title may have one or more Chapters.To make
access easy and convenient, your player lets you move
between Titles, and also between Chapters.
2.4.2 Video CD
Depending on the material on the disc (a movie, video clips, a
drama series, etc.) these discs may have one or more Tracks,
and tracks may have one or more indexes, as indicated on the
disc case.To make access easy and convenient, your player lets
you move between tracks and between indexes.
2.4.3 Audio CD / MP3 CD
Audio CDs / MP3 CD contain music tracks only.You can play
them in the conventional way through a stereo system using
the keys on the remote control and/or main unit, or via the
TV using the On Screen Display (OSD).
2.4.4 CD with JPEG files
You can also view JPEG still photos on this player.
P001-035_PET940_12_Eng 2008.4.11 5:43 PM Page 11

12
English
2.4.5 DivX video discs
DivX is a popular media technology created by DivX, Inc.
DivX media files contain highly compressed video with high
visual quality that maintains a relatively small file size. DivX
files can also include advanced media features like menus, sub-
titles, and alternate audio tracks. Many DivX media files are
available for download online, and you can create your own
using your personal content and easy-to-use tools from
DivX.com.
Offical DivX® Certified product.
2.5 Compatibility of the USB connection on
this portable DVD player:
This portable DVD player supports most USB Mass storage
devices (MSD) that are compliant to the USB MSD standards.
—Most common Mass storage class devices are flash drives,
memory sticks, jump drives and etc.
—If you see a "Disc Drive" show up on your computer after
you plugged the mass storage device into your computer,
most likely it is MSD compliant and it will work with this
portable DVD player.
If your Mass storage device required a battery / power source.
Please make sure you have a fresh battery in it or charge the
USB device first and then plug it into the portable DVD player
again.
2.5.1 Music:
•This device only supports unprotected music with the fol-
lowing file extension:
.mp3
P001-035_PET940_12_Eng 2008.4.11 5:43 PM Page 12

English
13
•Music bought from on-line music stores are not supported
because they are secured by Digital Rights Management
protection (DRM).
2.5.2 Picture:
•This device only support picture file with the following file
extension:
.jpg
2.5.3 Video (vary with models):
•This device support DivX video files.The following file
extension is:
.divx, .dix
No Direct connection can be made from
computer USB port to the portable DVD player
even you have mp3 files in your computer.
P001-035_PET940_12_Eng 2008.4.11 5:43 PM Page 13

14
English
Power Sources
This unit operates on a supplied AC adaptor, car adapter, or a
rechargeable battery pack.
•Make sure that the input voltage of the AC adaptor is in
line with the local voltage. Otherwise, the AC adaptor and
unit may be damaged.
•Do not touch the AC adaptor with wet hands to prevent
electric shock.
•When connecting with car power (cigarette lighter) adap-
tor, be sure the input voltage of the adaptor is identical with
car voltage.
•Unplug the AC adaptor from the outlet when the unit is
not used for long periods of time.
•Hold the plug to disconnect the AC adaptor. Do not pull
the power cord.
3General information
Please always use supplied AC/DC adaptor (AY4117)
Safety and maintenance
•Do not disassemble the unit for laser rays are dangerous to
eyes.
Any service should be done by qualified service personnel.
•Unplug the AC adaptor to cut the power if liquid or
objects get inside the unit.
•Take care not to drop the unit or subject it to strong
shocks, which may cause malfunction.
•Do not expose to excessive heat caused by heating equip-
ment or direct sunlight.
P001-035_PET940_12_Eng 2008.4.11 5:43 PM Page 14

English
•This product is not waterproof: do not allow your player
to be submersed in water.Water entering the player may
cause major damage.
•Do not use any cleaning agents containing alcohol, ammo-
nia, benzene, or abrasives as these may harm the player.
•Apparatus shall not be exposed to dripping or splashing.
Do not place any sources of danger on the appartus (e.g.
liquid filled objects,lighted candles)
•Do not touch the lens!
Hearing Safety
Listen at a moderate volume.
•Using headphones at a high volume can impair your hearing.This
product can produce sounds in decibel ranges that may cause
hearing loss for a normal person, even for exposure less than a
minute.The higher decibel ranges are offered for those that may
have already experienced some hearing loss.
•Sound can be deceiving. Over time your hearing “comfort
level” adapts to higher volumes of sound. So after prolonged
listening, what sounds “normal” can actually be loud and harm-
ful to your hearing.To guard against this, set your volume to a
safe level before your hearing adapts and leave it there.
•Excessive sound pressure from earhones and headphones
can cause hearing loss.
To establish a safe volume level:
•Set your volume control at a low setting.
•Slowly increase the sound until you can hear it comfortably
and clearly, without distortion.
Listen for reasonable periods of time:
•Prolonged exposure to sound, even at normally “safe” lev-
els, can also cause hearing loss.
•Be sure to use your equipment reasonably and take appropri-
ate breaks.
15
P001-035_PET940_12_Eng 2008.4.11 5:43 PM Page 15

16
English
Be sure to observe the following guidelines when
using your headphones.
•Listen at reasonable volumes for reasonable periods of
time.
•Be careful not to adjust the volume as your hearing adapts.
•Do not turn up the volume so high that you can’t hear
what’s around you.
•You should use caution or temporarily discontinue use in
potentially hazardous situations.
•Do not use headphones while operating a motorized vehi-
cle, cycling, skateboarding, etc.; it may create a traffic hazard
and is illegal in many areas.
•Important (for models with by-packed headphones): Philips
guarantees compliance with the maximum sound power of its
audio players as determined by relevant regulatory bodies only
with the original model of provided headphones. In case this
one needs replacement, we recommend that you contact your
retailer to order a model identical to that of the original pro-
vided by Philips.
•Traffic safety: do not use while driving or cycling as you may
cause an accident.
When the player is in use for a long period of time, the
surface will be heated.This is normal.
CAUTION Use of controls or adjustments or perform-
ance of procedures other than herein may result in haz-
ardous radiation exposure or other unsafe operation.
P001-035_PET940_12_Eng 2008.4.11 5:43 PM Page 16

English
17
Handling discs
•Do not attach paper or tape to the disc.
•Keep the disc away from direct sunlight or heat
sources.
•Store the disc in a disc case after playback.
•To clean, wipe the disc outwards from the center with a
soft, lint-free clean cloth.
On handling the LCD screen
The LCD is manufactured using high precision technology.You
may, however, see tiny black points that continuously appear
on the LCD.This is a normal result of the manufacturing
process and does not indicate a malfunction.
Environmental information
We have reduced the packaging to its minimum and made it
easy to separate into mono materials: cardboard, PS, PE and
PET.Your set consists of material which can be recycled if dis-
assembled by a specialized company. Please observe the local
regulations to dispose of packaging, exhausted batteries and
old equipment.
Copyright information
“DivX, DivX” Certified, and associated logos are trademarks
of DivX, Inc. and are used under license.”
All other brand and product names are trademarks of their
respective companies or organizations.
Unauthorized duplication of any recordings downloaded from
the internet or made from CDs / VCDs / DVDs is a violation
of copyright laws and international treaties.
The Windows Media and the Windows logo are registered
trademarks of Microsoft Corporation in the United States
and/or other countries.
P001-035_PET940_12_Eng 2008.4.11 5:43 PM Page 17

18
English
4.1 Charge the DVD player
Plug in the AC/DC adaptor
•The RED LED indi-
cates that charging is
in progress.
•When the set is not
in use, it will take
about 4 hours to fully charge it.
The RED LED will turn off when the set is fully charged.
Tips:
* You can operate the DVD player while charging. However, it
takes longer time to fully charge the battery.
* When the low battery icon appears on the screen, please
charge the player.
* Rechargeable batteries have a limited number of charge
cycles and may eventually need to be replaced. Battery life
and number of charge cycles vary by use and settings.
4.2 Powering your remote control
1Open the battery compartment. Remove the
protective plastic tab (first time users only).
2Insert 1 x lithium 3V battery, type CR2025, then
close the compartment.
4Charging the units
P001-035_PET940_12_Eng 2008.4.11 5:43 PM Page 18

English
19
CAUTION
•Batteries contain chemical substances, so they should
be disposed of properly.
•Batteries shall not be exposed to excessive heat such
as sunshine, fire or the like.
•Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
•Incorrect use of batteries can cause electrolyte leakage
and will corrode the compartment or cause the batter-
ies to burst.
•Remove the batteries if the set is not to be used for a
long time.
•Perchlorate Material – special handling may apply. See
www.dtsc.ca.gov/hazardouswaste/perchlorate.
P001-035_PET940_12_Eng 2008.4.11 5:43 PM Page 19

20
English
5.1 Setup
1Press SETUP.A list of features is shown.
2Use 3/ 4to highlight your selection.
3Use 2to enter a sub-menu
4Use 3,4,1,2to highlight your desired setting and press OK
to confirm.
The SETUP menu includes:
General
Language Set On Screen Display (OSD) languages
PBC settings Set Playback Control function ON/OFF.
This feature is available for Super VCD.
Power save Set Power Saving mode ON/OFF
DivX (VOD) Get the DivX (Video-On-Demand) code
Parental Set parental options
Set password Change password (default: 9999)
Factory settings Restore factory settings
Video
TV Display Set screen display aspect ratio
TV standard Set video output format to TV system
5Start up
P001-035_PET940_12_Eng 2008.4.11 5:43 PM Page 20
