Phoenix Contact FL EPA 2 User manual

User manual
FL EPA 2
UM EN FL EPA 2

2018-02-21
PHOENIX CONTACT 108452_en_00
FL EPA 2
UM EN FL EPA 2
00
—
Designation Order No.
FL EPA 2 1005955
FL EPA 2 RSMA 1005957
FL BT EPA 2 1005869
User manual
Designation:
Revision:
Order No.:
This user manual is valid for:

PHOENIX CONTACT
Please observe the following notes
User group of this manual
The use of products described in this manual is oriented exclusively to:
– Qualified electricians or persons instructed by them, who are familiar with applicable
standards and other regulations regarding electrical engineering and, in particular, the
relevant safety concepts.
– Qualified application programmers and software engineers, who are familiar with the
safety concepts of automation technology and applicable standards.
Explanation of symbols used and signal words
How to contact us
Internet Up-to-date information on Phoenix Contact products and our Terms and Conditions can be
found on the Internet at:
phoenixcontact.com
Make sure you always use the latest documentation.
It can be downloaded at:
phoenixcontact.net/products
Subsidiaries If there are any problems that cannot be solved using the documentation, please contact
your Phoenix Contact subsidiary.
Subsidiary contact information is available at phoenixcontact.com.
Published by PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstraße 8
32825 Blomberg
GERMANY
Should you have any suggestions or recommendations for improvement of the contents and
layout of our manuals, please send your comments to:
[e-mail]
This is the safety alert symbol. It is used to alert you to potential personal injury
hazards. Obey all safety measures that follow this symbol to avoid possible
injury or death.
There are three different categories of personal injury that are indicated with a
signal word.
DANGER This indicates a hazardous situation which, if not avoided, will
result in death or serious injury.
WARNING This indicates a hazardous situation which, if not avoided, could
result in death or serious injury.
CAUTION This indicates a hazardous situation which, if not avoided, could
result in minor or moderate injury.
This symbol together with the signal word NOTE and the accompanying text
alert the reader to a situation which may cause damage or malfunction to the
device, hardware/software, or surrounding property.
This symbol and the accompanying text provide the reader with additional
information or refer to detailed sources of information.

Please observe the following notes
PHOENIX CONTACT
General terms and conditions of use for technical documentation
Phoenix Contact reserves the right to alter, correct, and/or improve the technical
documentation and the products described in the technical documentation at its own
discretion and without giving prior notice, insofar as this is reasonable for the user. The
same applies to any technical changes that serve the purpose of technical progress.
The receipt of technical documentation (in particular user documentation) does not
constitute any further duty on the part of Phoenix Contact to furnish information on
modifications to products and/or technical documentation. You are responsible to verify the
suitability and intended use of the products in your specific application, in particular with
regard to observing the applicable standards and regulations. All information made
available in the technical data is supplied without any accompanying guarantee, whether
expressly mentioned, implied or tacitly assumed.
In general, the provisions of the current standard Terms and Conditions of Phoenix Contact
apply exclusively, in particular as concerns any warranty liability.
This manual, including all illustrations contained herein, is copyright protected. Any
changes to the contents or the publication of extracts of this document is prohibited.
Phoenix Contact reserves the right to register its own intellectual property rights for the
product identifications of Phoenix Contact products that are used here. Registration of such
intellectual property rights by third parties is prohibited.
Other product identifications may be afforded legal protection, even where they may not be
indicated as such.
Note: Installation only by qualified specialist personnel
The product may only be installed, started up, and maintained by qualified specialist
personnel who have been authorized to do so by the system operator. An electrician is
someone who because of their education, experience, and instruction and their knowledge
of relevant standards is able to assess all planned activities and recognize any possible
dangers. Specialist personnel must read and understand this document and follow the
instructions. You must comply with the applicable national regulations regarding the
operation, function tests, repair, and maintenance of electronic devices.

Table of contents
108452_en_00 PHOENIX CONTACT 5
Table of contents
1 FL EPA 2 ....................................................................................................................................1
1.1 Properties.............................................................................................................. 1
1.1.1 Device versions ..................................................................................... 1
1.2 FL WLAN EPA ... country approvals......................................................................1
2 Installation ..................................................................................................................................1
2.1 General.................................................................................................................. 1
2.2 Mechanical installation .......................................................................................... 2
2.2.1 DIN rail mounting ................................................................................... 3
2.2.2 Wall or mast mounting ........................................................................... 3
2.2.3 Connectors ............................................................................................ 4
2.3 Antenna connection (FL EPA 2 RSMA only).......................................................... 5

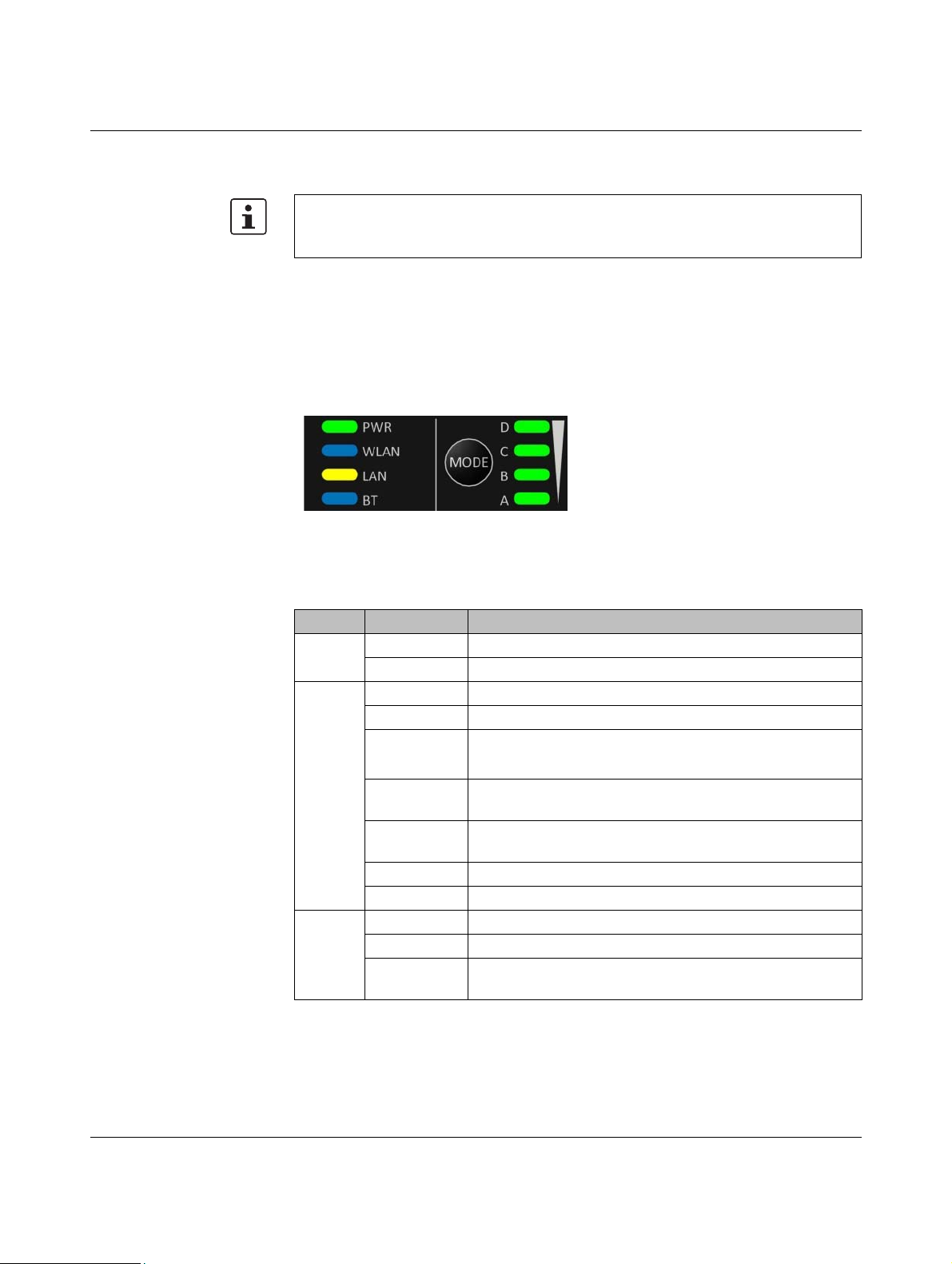

2.4 LED indicators ....................................................................................................... 5
3 Configuration .............................................................................................................................1
3.1 Easy Config (“MODE” button)................................................................................ 1
3.1.1 Using the “MODE” button ....................................................................... 2

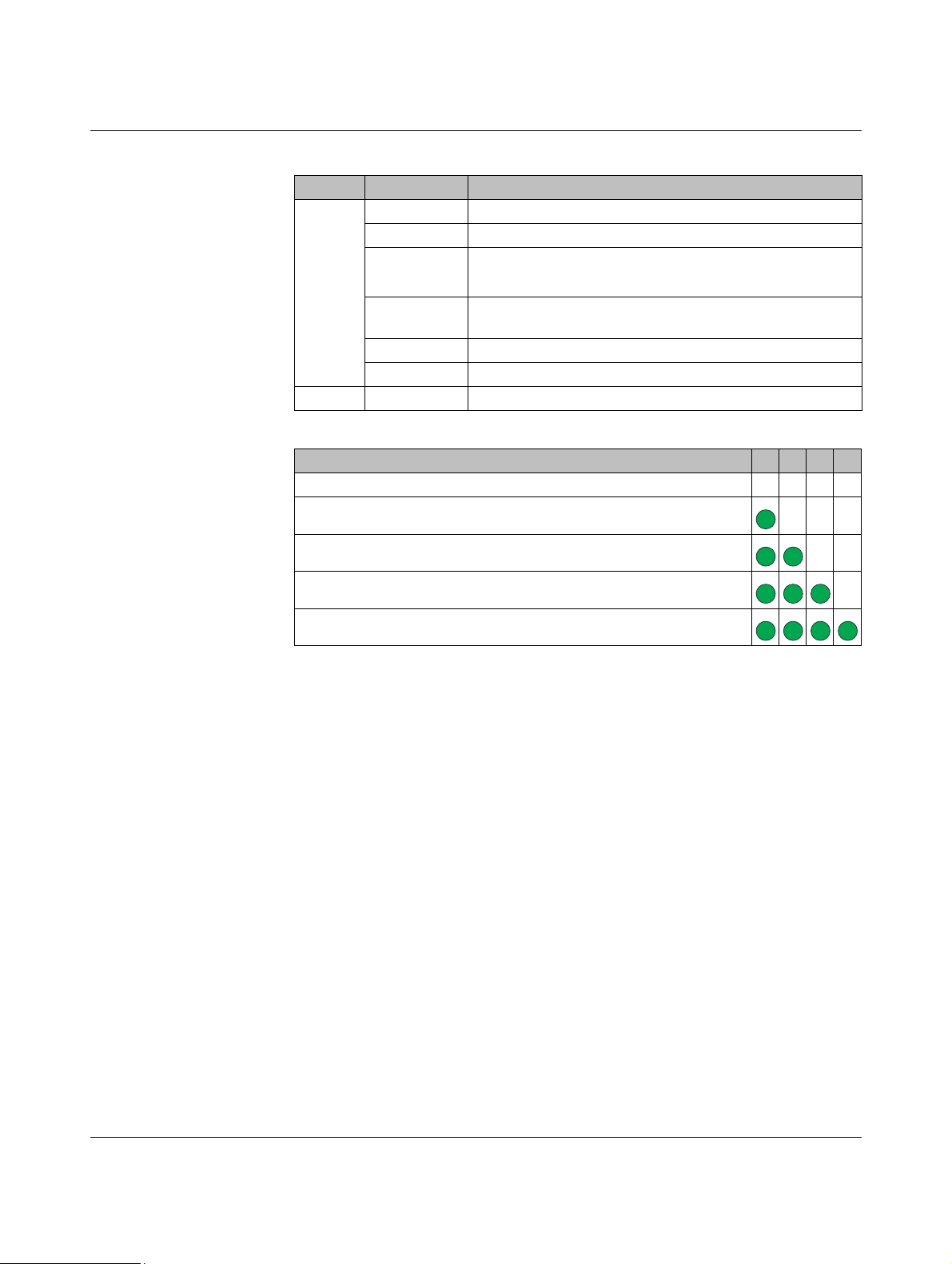

3.1.2 Easy Config modes ................................................................................ 2
4 Web-based management ..........................................................................................................1
4.1 General.................................................................................................................. 1

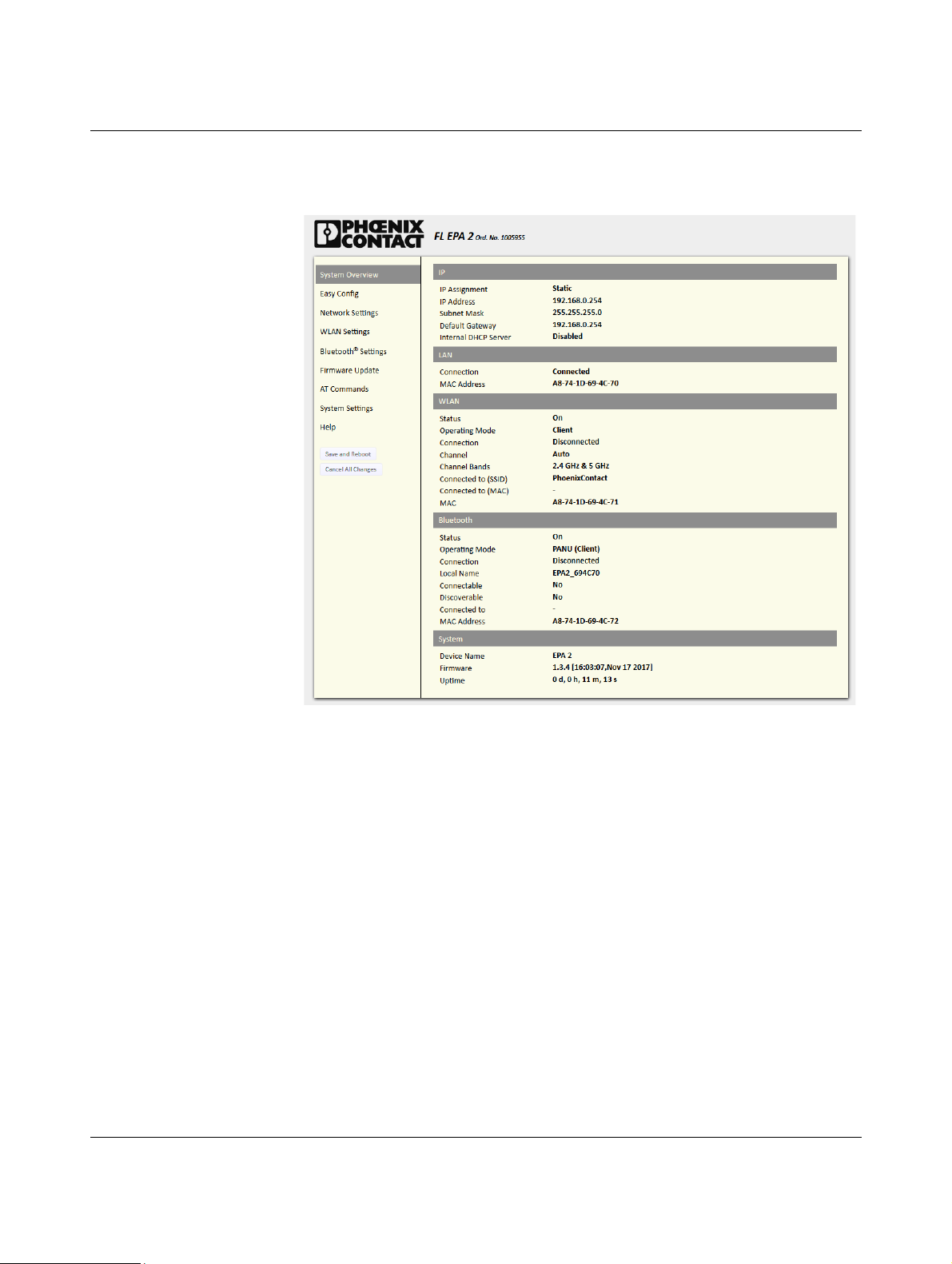

4.1.1 System overview .................................................................................... 2

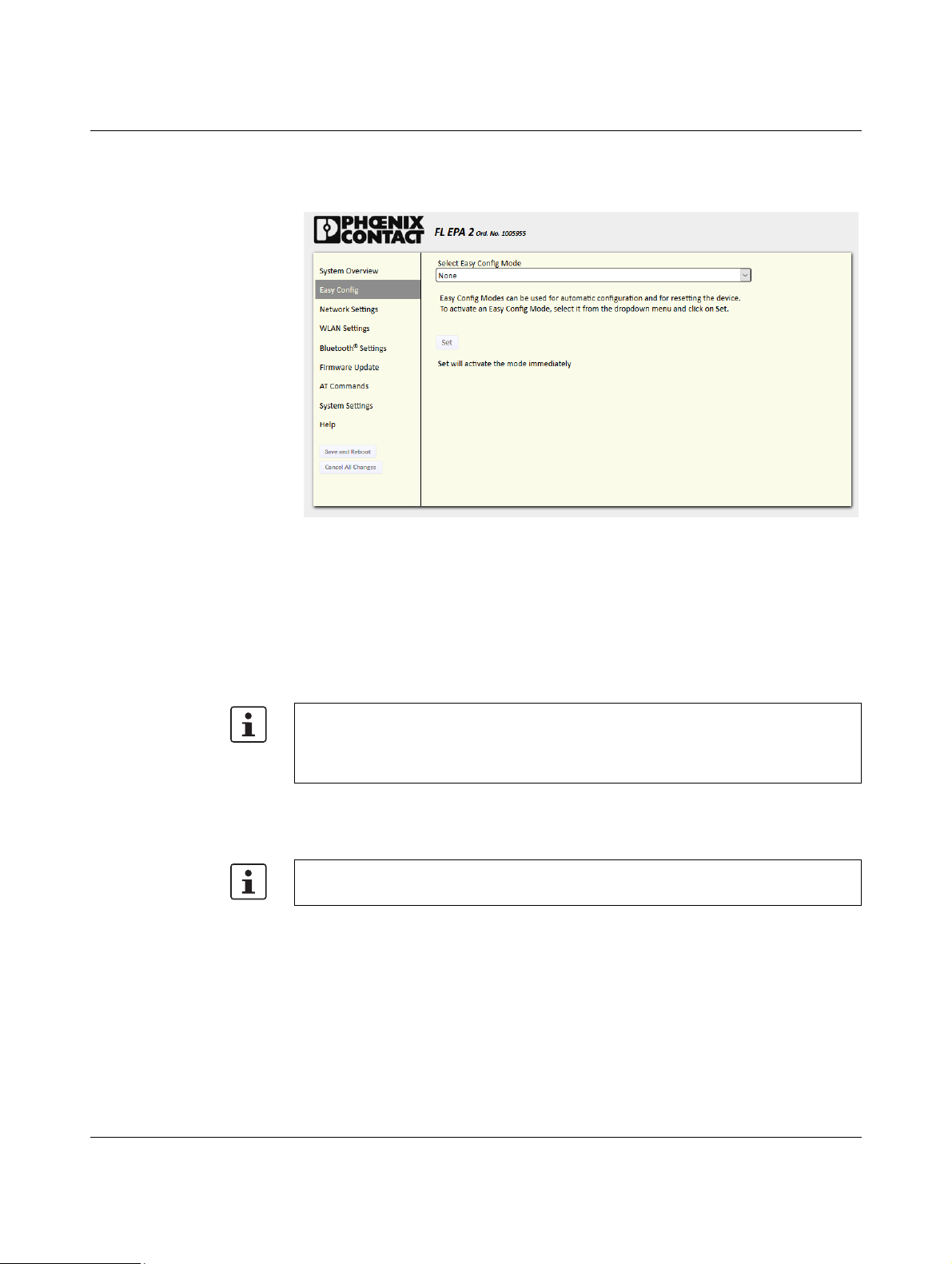

4.1.2 Easy Config ........................................................................................... 3
4.1.3 Network settings .................................................................................... 3
4.1.4 WLAN settings – Client mode ................................................................ 4
4.1.5 WLAN settings - Access Point mode .....................................................6
4.1.6 Bluetooth settings - General ................................................................... 7
4.1.7 Bluetooth settings - Mode-specific ......................................................... 8
4.1.8 Firmware update .................................................................................. 12
4.1.9 AT commands ...................................................................................... 12
4.1.10 System settings ................................................................................... 13
4.2 Restoring the factory defaults..............................................................................13
4.3 PROFINET communication ................................................................................. 14
5 Technical data ...........................................................................................................................1

FL EPA 2
6 / 20 PHOENIX CONTACT 108452_en_00

FL EPA 2
108452_en_00 PHOENIX CONTACT 1-7
1FLEPA2
1.1 Properties
The FL EPA 2 is an industrial wireless module for the wireless integration of industrial Ether-
net and PROFINET devices in wired networks via WLAN and/or Bluetooth.
Typical applications for the FL EPA 2 include:
•Wireless network connection for industrial machines, devices and vehicles
•Ethernet cable replacement between moving machine parts
WLAN or Bluetooth?
WLAN is the preferred technology when it is important to integrate multiple devices with high
data throughput and fast roaming.
Bluetooth offers particular advantages for applications requiring highly robust wireless con-
nections or if precise channel planning is not possible.
1.1.1 Device versions
Three device versions are available:
– FL EPA 2 Internal antenna, WLAN and Bluetooth Order No. 1005955
– FL EPA 2 RSMA External antenna, WLAN and Bluetooth Order No. 1005957
– FL BT EPA 2 Internal antenna, Bluetooth (one device) Order No. 1005869
Depending on the model, not all of the properties described above are available.
1.2 FL WLAN EPA ... country approvals
An up-to-date list of the country approvals can be found in the e-shop at
phoenixcontact.com.
There are different ways of implementing the Bluetooth PAN profile in mobile devices. The
implementation may be incompatible with the FL EPA 2. A Bluetooth PAN connection
must be individually tested.
5 GHz WLAN cannot be used at the same time as 2.4 GHz WLAN or Bluetooth.

FL EPA 2
1-8 PHOENIX CONTACT 108452_en_00

Installation
108452_en_02 PHOENIX CONTACT 2-9
2 Installation
2.1 General
CAUTION:
This device emits radio frequency (RF) energy in the ISM (Industrial, Scientific, Medical)
band. Make sure that all medical devices used in proximity to this device meet appropriate
susceptibility specifications for this type of RF energy.
NOTE:
This product is recommended for use in both industrial and domestic environments. 
Functional ground needs to be connected in industrial environments to comply with im-
munity requirements. For domestic environments the functional ground must be omitted
if a shielded Ethernet cable is used, in order to meet the emission requirements.
NOTE:
This product contains parts that can be damaged by electrostatic discharge (ESD). Take
appropriate protective measures against electrostatic discharge.
NOTE:
The product may only be installed, started up, and maintained by qualified specialist per-
sonnel who have been authorized to do so by the system operator. An electrician is some-
one who because of their education, experience, and instruction and their knowledge of
relevant standards is able to assess all planned activities and recognize any possible dan-
gers. Specialist personnel is also required to read and understand this document and fol-
low the instructions.
Observe the applicable national regulations regarding the operation, function tests, re-
pair, and maintenance of electronic devices.
NOTE:
Observe the permitted operating temperatures of the EPA when using it outdoors. The de-
vice is suitable for installation in protected outdoor areas (e.g., under a porch). Direct sun-
light may lead to overheating and permanent damage of the device.
Observe the applicable regulations for using wireless devices outdoors.

FL WLAN EPA
2-10 PHOENIX CONTACT 108452_en_02
2.2 Mechanical installation
Figure 2-1 Assembly drawing (all dimensions in mm, antenna connection for the
FL EPA 2 RSMA only)

Installation
108452_en_02 PHOENIX CONTACT 2-11
2.2.1 DIN rail mounting
The FL EPA RMS mounting kit (Order No. 2701133) is available as an accessory for mount-
ing the device on a 35 mm DIN rail.

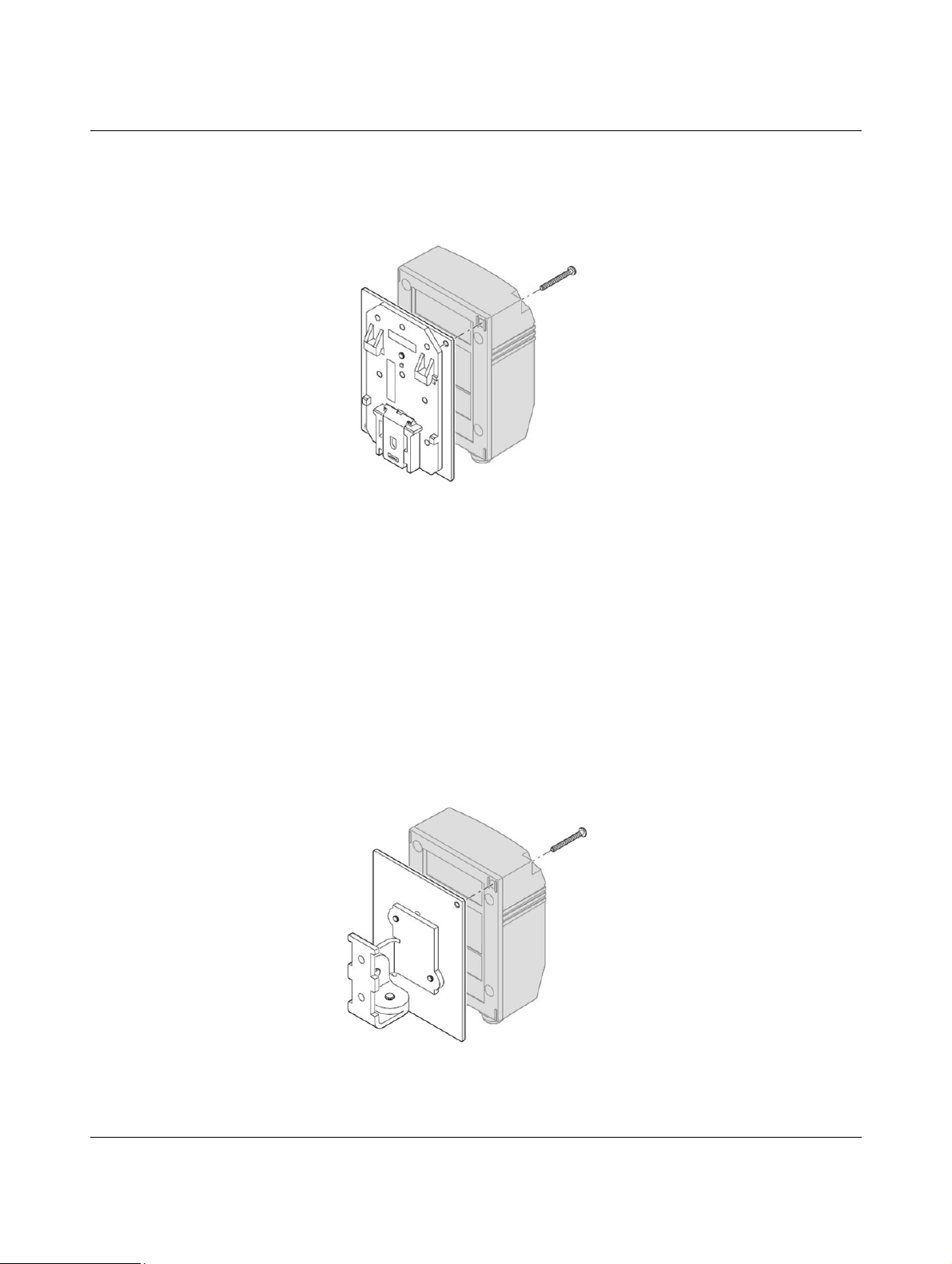

Figure 2-2 Fixing the EPA to the mounting kit for the DIN rail
•Use the two screws provided to fix the EPA to the base plate.
•Place the EPA with the adapter on the top edge of the DIN rail.
•Push the EPA towards the DIN rail until it snaps into place.
•For releasing the adapter from the DIN rail, pull the latch downwards using a screw-
driver and simultaneously remove the EPA from the DIN rail.
2.2.2 Wall or mast mounting
The FL EPA WMS (Order No. 2701134) mounting kit can be used for EPA wall or mast
mounting.
Figure 2-3 Fixing the EPA to the mounting kit for wall/mast mounting

FL WLAN EPA
2-12 PHOENIX CONTACT 108452_en_02
•Use the two screws provided to fix the EPA to the base plate.
•The two 4.5 mm bore holes can be used for mounting. Two steel clamps are provided
for mounting the EPA to a mast (25 mm ... 85 mm).
2.2.3 Connectors
Figure 2-4 M12 connectors
Power connectors (M12 connectors, A-coded)
Table 2-1 M12 power connectors
Graphic Pin Function
1 Power supply + (9 V DC ... 30 V DC)
2 Digital input ground
3 Power ground
4 Digital input + (9 V DC ... 30 V DC)
5 Functional ground
NOTE:
The signal line for the digital input must be carried in the same cable as power supply and
functional ground if the line length exceeds 3 meters.
Table 2-2 LAN power connectors
Graphic Pin Function Color coding (T568B)
1 Transmit Orange/white
2 Receive Green/white
3 Transmit Orange
4 Receive Green

Installation
108452_en_02 PHOENIX CONTACT 2-13
2.3 Antenna connection (FL EPA 2 RSMA only)
Avoid the use of long and/or low-quality antenna cables. They cause additional attenuation
and may reduce the range.
Torque the antenna cable to 1 Nm. Excessively high torques may damage the device.
2.4 LED indicators
Figure 2-5 LED indicators
The device is provided with an RSMA (female) antenna socket. Only use suitable antenna
cables and adapters. The antenna socket may be damaged when trying to screw on
wrong connectors.
Table 2-3 Meaning of the LED indicators
LED Color Meaning
PWR Off No power
Green Normal operation
WLAN Off WLAN deactivated
Flashing blue Access Point mode: WLAN activated, no client connected
Blue Access Point mode: Connected to at least one client
Client mode: Connected to Access Point
Flashing blue
rapidly
WLAN data activity (when connected)
Flashing pur-
ple
Client mode: Scanning for Access Points
Purple Client mode: Connecting to a detected Access Point
Red Unrecoverable error
LAN Off No Ethernet connection
Yellow Ethernet link present
Flashing yel-
low rapidly
Ethernet data activity (when connected)

FL WLAN EPA
2-14 PHOENIX CONTACT 108452_en_02
BT Off Bluetooth deactivated
Flashing blue NAP mode: Bluetooth activated, no client connected
Blue NAP mode: Connected to at least one PANU client
PANU mode: Connected to NAP
Flashing blue
rapidly
Bluetooth data activity (when connected)
Purple PANU mode: Trying to connect to NAP
Red Unrecoverable error
A-B-C-D Green RSSI (received signal strength) or link quality
Table 2-4 Received signal strength indication via A-B-C-D LEDs
RSSI (WLAN client) / link quality (Bluetooth PANU) A B C D
No connection
RSSI/link quality low
RSSI/link quality sufficient
RSSI/link quality good
RSSI/link quality excellent
Table 2-3 Meaning of the LED indicators (Fortsetzung)
LED Color Meaning

Configuration
108452_en_02 PHOENIX CONTACT 3-15
3 Configuration
There are different ways of configuring the EPAs for operation:
Easy Config (“MODE” button)
Typical operating modes, such as direct connection of two EPAs as a “wireless Ethernet ca-
ble”, can be directly activated via the “MODE” button on the EPA without the need for a PC.
A detailed description can be found in Section 3.1 “Easy Config (“MODE” button)” on
page 3-1.
Web-based management (WBM)
To use all the important options, the device has a web-based management using a web
browser. This means that the current operating state can simply be displayed without the
use of special software or the device can be configured.
For parameter description, please refer to Section “Web-based management” on page 4-1.
AT commands
All the EPA parameters can be modified or transmitted to the EPA in an automated manner,
for example from a program of a controller. For development or testing purposes, AT com-
mands can also be transmitted to the EPA via the web-based management using the web
browser.
The AT command reference can be found, for example, in the web-based management ap-
plication under the “Help” menu item.
3.1 Easy Config (“MODE” button)
Figure 3-1 Control panel
The “MODE” button can be used to configure or reset the device.
The respective function is carried out when releasing the button (“falling edge”).

FL WLAN EPA
3-16 PHOENIX CONTACT 108452_en_02
3.1.1 Using the “MODE” button
1. Switch on the device and wait for the Link Quality LEDs to light up and go out again.
Then press and release the “MODE” button.
Step 1 must be carried out within 5 seconds after switching on the device.
2. Press the “MODE” button repeatedly to cycle through the Easy Config modes until the
desired mode is indicated by the A-B-C-D LEDs.
Mode 2 is the first mode. Only suitable LED combinations are shown.
3. Press and hold the “MODE” button for at least two seconds, then release the button.
This will confirm the selected mode and restart the device.
Step 3 must be carried out within 20 seconds after step 2. Otherwise the device will exit
Easy Config setup and return to the previous settings.
3.1.2 Easy Config modes
Modes 5 ... 8 are used for defining the operating mode of the network (WLAN/Bluetooth,
with or without optimization for PROFINET operation). Set the device which will later act as
an Access Point/NAP to the desired mode.
Configure the clients for mode 4. The Access Point or NAP then configures the devices in
mode 4, matching the selected operating mode. As soon as a device is configured as a cli-
ent, the device is restarted.
Table 3-1 Received signal strength indication via the A-B-C-D LEDs
Mode Role RSSI (WLAN client) / link quality (Blue-
tooth PANU)
A B C D
2 --- Reset configuration to factory defaults
3 --- Reset IP settings to factory defaults
4 Client Wait for discovery and configuration
5 WLAN AP Configure the device as an Access Point, then
discover devices in mode 4 and configure
them accordingly as clients
6 Bluetooth NAP Configure the device as an Access Point, then
discover devices in mode 4 and configure
them accordingly as clients
7WLANAPwith
PROFINET
optimizations
Configure the device as an Access Point, then
discover devices in mode 4 and configure
them accordingly as clients
8 BluetoothNAP
with PROF-
INET optimiza-
tions
Configure the device as an Access Point, then
discover devices in mode 4 and configure
them accordingly as clients
10 Add PROF-
INET optimiza-
tions only
Configure the device as an Access Point, then
discover devices in mode 4 and configure
them accordingly as clients

Configuration
108452_en_02 PHOENIX CONTACT 3-17
The Access Point scans for configurable devices for 120 s (the scan can be canceled by
switching it off and on). The device is then also restarted. The connection is established au-
tomatically.
Figure 3-2 “Easy Config” web page
The Access Point retains the configured IP address. The clients/PANU are assigned the IP
addresses in ascending order or - if not possible - in descending order.
Example: Based on the factory settings, the AP/NAP IP address is 192.168.0.254. The IP
addresses 192.168.0.253, 252, … are then assigned to the clients.
If the AP has previously been configured to 192.168.3.50, it will retain this address.
192.168.3.51, 52, … are then assigned to the clients/PANU.
A WLAN connection is established on channel 6. The channel can also be changed subse-
quently using the Access Point web interface.
The connection is layer 2-transparent and thus also suitable for PROFINET.
If several radio sets are used within a common backbone network, configuration via Easy
Config may lead to the double assignment of IP addresses. This is due to the fact that
each radio set starts with 192.168.0.254. In this case, assign unique addresses before-
hand or subsequently using the web interface.
For functionally safe communication, refer to the information in Section “Safety-related
communication (PROFISafe/SafetyBridge)” on page 4-15.

FL WLAN EPA
3-18 PHOENIX CONTACT 108452_en_02

Web-based management
108452_en_00 PHOENIX CONTACT 4-19
4 Web-based management
4.1 General
The web-based management is accessed by pointing a web browser to the EPA IP address.
The default IP address is 192.168.0.254. The computer accessing the web-based manage-
ment must be in the same IP subnet as the wireless bridge.
Figure 4-1 “System Overview” web page
The web-based management is designed for the current versions of Internet Explorer,
Chrome, Firefox and Safari. Other browsers may not support the full functionality of the
web-based management.
All changes are activated using the “Safe and Reboot” button. The button will only be ac-
tive if parameters have been changed. This also applies to changes made to the device
on other web pages during this session. Selecting another menu item within the configu-
ration pages does not discard the changes that have been made to the configuration.
However, unsaved changes will be lost when closing the connection without pressing the
“Safe and Reboot” button.
Using the “Cancel All Changes” button, all settings that have not yet been saved via “Safe
and Reboot” will be discarded.

FL WLAN EPA 2
4-20 PHOENIX CONTACT 108452_en_00
4.1.1 System overview
The “System Overview” page provides an overview of the current settings and connections.
Figure 4-2 “System Overview” web page
