Phoenix Contact FL WLAN 1000 Series User manual

User manual
Mounting and installation of
FL WLAN 1000/2000 product family

2019-09-04
PHOENIX CONTACT GmbH & Co. KG • Flachsmarktstraße 8 • 32825 Blomberg • Germany
phoenixcontact.com
109064_en_00
Mounting and installation of FL WLAN 1000/2000 product family
Designation Order No.
FL WLAN 1100 2702534
FL WLAN 1101 2702538
FL WLAN 2100 2702535
FL WLAN 2101 2702540
User manual
This user manual is valid for:
UM EN FL WLAN 1000/2000 Mounting and installation, Revision 00

Table of contents
109064_en_00 PHOENIX CONTACT 3 / 40
Table of contents
1 For your safety ...........................................................................................................................5
1.1 Identification of warning notes ...............................................................................5
1.2 Qualification of users .............................................................................................5
1.3 Field of application of the product..........................................................................5
1.3.1 Product changes ....................................................................................6
1.4 Safety and installation instructions.........................................................................6
1.5 Industrial security...................................................................................................6
2 Technical description .................................................................................................................9
2.1 General description ...............................................................................................9
2.1.1 Product versions ..................................................................................10
2.2 Country approvals and standards FL WLAN 110x/210x ......................................10
2.2.1 FL WLAN 1100/2100 ...........................................................................10
2.2.2 FL WLAN 1101/2101 ...........................................................................11
2.3 Firmware..............................................................................................................13
3 Mounting / Antenna configuration ............................................................................................15
3.1 Connections and operating elements ..................................................................15

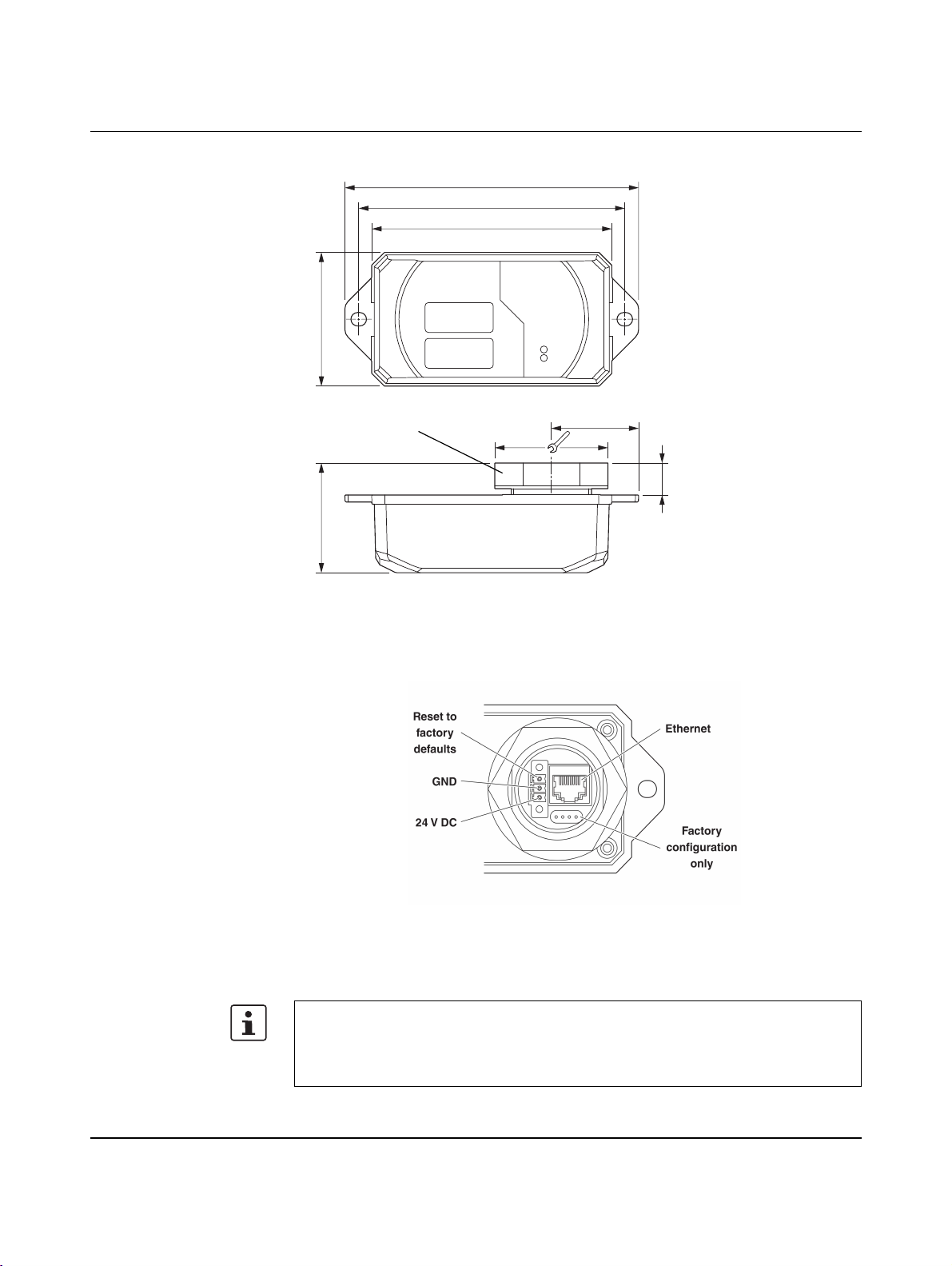

3.1.1 Housing dimensions .............................................................................15
3.1.2 Electrical connection ............................................................................16

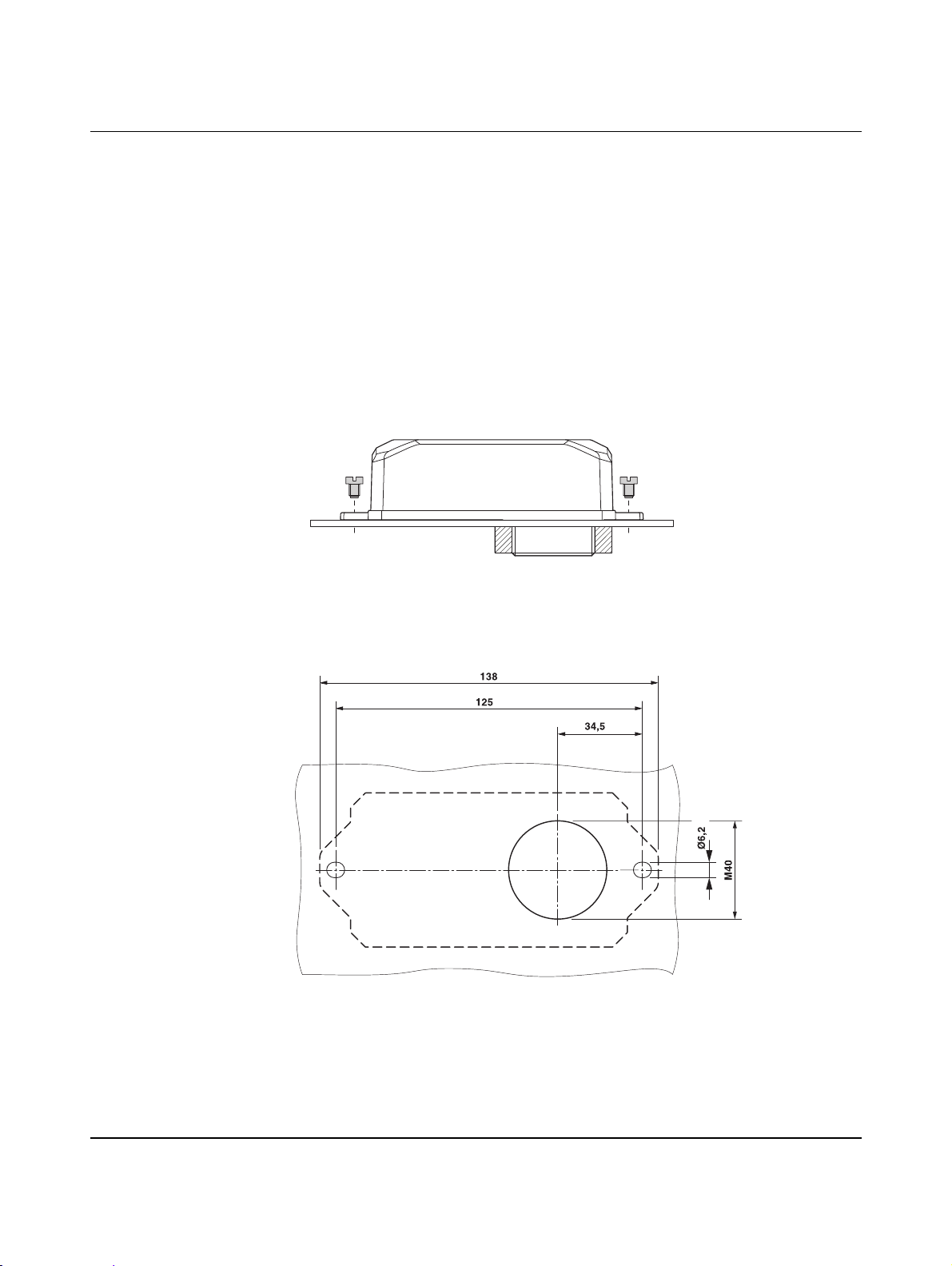

3.1.3 Mounting the device on a level surface ................................................18
3.1.4 Mounting the device with cable feed-through and seal ........................19
4 Startup and configuration .........................................................................................................23
4.1 Delivery state / Factory settings...........................................................................23
4.1.1 Meaning of diagnostic and status indicators ........................................23
4.1.2 General sequence for startup ..............................................................24
4.1.3 Assigning the IP address via BootP (with IPAssign) .............................25
4.1.4 Assigning the IP address using IPAssign.exe ......................................25
4.1.5 Reset to the factory settings .................................................................27
5 Technical data .........................................................................................................................29
5.1 Ordering data.......................................................................................................32
A Appendixes...............................................................................................................................35
A 1 List of figures .......................................................................................................35
A 2 List of tables ........................................................................................................37

FL WLAN 1000/2000
4 / 40 PHOENIX CONTACT 109064_en_00

For your safety
109064_en_00 PHOENIX CONTACT 5 / 40
1 For your safety
Read this user manual carefully and keep it for future reference.
1.1 Identification of warning notes
1.2 Qualification of users
The use of products described in this user manual is oriented exclusively to electrically
skilled persons or persons instructed by them. The users must be familiar with the relevant
safety concepts of automation technology as well as applicable standards and other regu-
lations.
1.3 Field of application of the product
This product is recommended for use in both industrial and domestic environments.
Functional ground needs to be connected in industrial environments to comply with immu-
nity requirements. For domestic environments, functional ground must be omitted if a
shielded Ethernet cable is used, in order to meet the emission requirements.
Observe the permitted operating temperatures of the wireless module when using it out-
doors. The device is suitable for installation in protected outdoor areas (e.g., under a porch
roof). Direct sunlight may lead to overheating and permanent damage of the device.
Observe the applicable regulations for using wireless devices outdoors.
This symbol indicates hazards that could lead to personal injury.
There are three signal words indicating the severity of a potential injury.
DANGER
Indicates a hazard with a high risk level. If this hazardous situation is not
avoided, it will result in death or serious injury.
WARNING
Indicates a hazard with a medium risk level. If this hazardous situation is not
avoided, it could result in death or serious injury.
CAUTION
Indicates a hazard with a low risk level. If this hazardous situation is not avoided,
it could result in minor or moderate injury.
This symbol together with the NOTE signal word warns the reader of actions
that might cause property damage or a malfunction.
Here you will find additional information or detailed sources of information.

FL WLAN 1000/2000
6 / 40 PHOENIX CONTACT 109064_en_00
1.3.1 Product changes
Modifications to hardware and firmware of the device are not permitted.
Incorrect operation or modifications to the device can endanger your safety or damage the
device. Do not repair the device yourself. If the device is defective, please contact
Phoenix Contact.
1.4 Safety and installation instructions
1.5 Industrial security
VORSICHT: Noise susceptibility of medical equipment
This device emits radio frequency (RF) energy in the ISM (Industrial, Scientific, Medical)
band. Make sure that all medical devices used in proximity to this device meet appropriate
noise susceptibility specifications for this type of RF energy.
NOTE: Radio interference in residential areas
This is a Class A item of equipment. This equipment can cause radio interference in resi-
dential areas; in this case, the operator may be required to implement appropriate mea-
sures.
ACHTUNG: Electrostatic discharge
This product contains parts that can be damaged by electrostatic discharge (ESD). Take
appropriate protective measures against electrostatic discharge.
ACHTUNG: Requirements for the power supply
The module is designed exclusively for operation with safety extra-low voltage (SELV) in
accordance with EN/IEC 60950-1 and VDE 0805.
ACHTUNG: Requirements for the current source
This device should only be operated with power supplies that meet the requirements of
EN/IEC 60950-1 for limited power sources. Otherwise, the device is to be operated in a
housing that meets the requirements for fire protection enclosure according to EN/IEC
60950-1.
ACHTUNG: Statement regarding RF emission
This device should be operated with a minimum distance of 20 cm between the emit-
ter/antenna and your body.
ACHTUNG: Risk of unauthorized network access
To prevent unauthorized network access, please read the following notes.

For your safety
109064_en_00 PHOENIX CONTACT 7 / 40
Connecting devices to a network via Ethernet entails the danger of unauthorized access to
the network.
If possible, deactivate unused communication channels.
Assign passwords such that third parties cannot access the wireless module and make un-
authorized changes.
Due to its communication interfaces, the wireless module should not be used in safety-crit-
ical applications unless additional security appliances are used.
Please take additional protective measures in accordance with the IT security requirements
and the standards applicable to your application (e.g., virtual networks (VPN) for remote
maintenance access, firewalls, etc.) for protection against unauthorized network access.
On first request, you shall release Phoenix Contact and the companies associated with
Phoenix Contact GmbH & Co. KG, Flachsmarktstrasse 8, 32825 Blomberg in accordance
with §§15ff. AktG (German Stock Corporation Act), hereinafter collectively referred to as
“Phoenix Contact”, from all third-party claims made due to improper use.
For the protection of networks for remote maintenance via VPN, Phoenix Contact offers the
mGuard product range as security appliances, which is described in the latest
Phoenix Contact catalog (phoenixcontact.net/products).
Additional measures for protection against unauthorized network access can be found in
the AH EN INDUSTRIAL SECURITY application note. The application note can be down-
loaded at phoenixcontact.net/products.

FL WLAN 1000/2000
8 / 40 PHOENIX CONTACT 109064_en_00

Technical description
109064_en_00 PHOENIX CONTACT 9 / 40
2 Technical description
2.1 General description
Robust, compact WLAN module with integrated antennas:
– Turnkey solution with integrated antenna and wireless module in a single device
– Saves space in the control cabinet, optimized for direct mounting on machines, mobile
units, or control cabinets
– Fast and reliable wireless communication, thanks to powerful MIMO antennas
– Quick and easy connection, thanks to single-hole mounting
– Extremely robust housing, shock-proof in acc. with IK08
– Operation as a WLAN access point, client, or repeater
– Supports WLAN 802.11 standards a, b, g, and n
– Operation in the 2.4 GHz and 5 GHz band

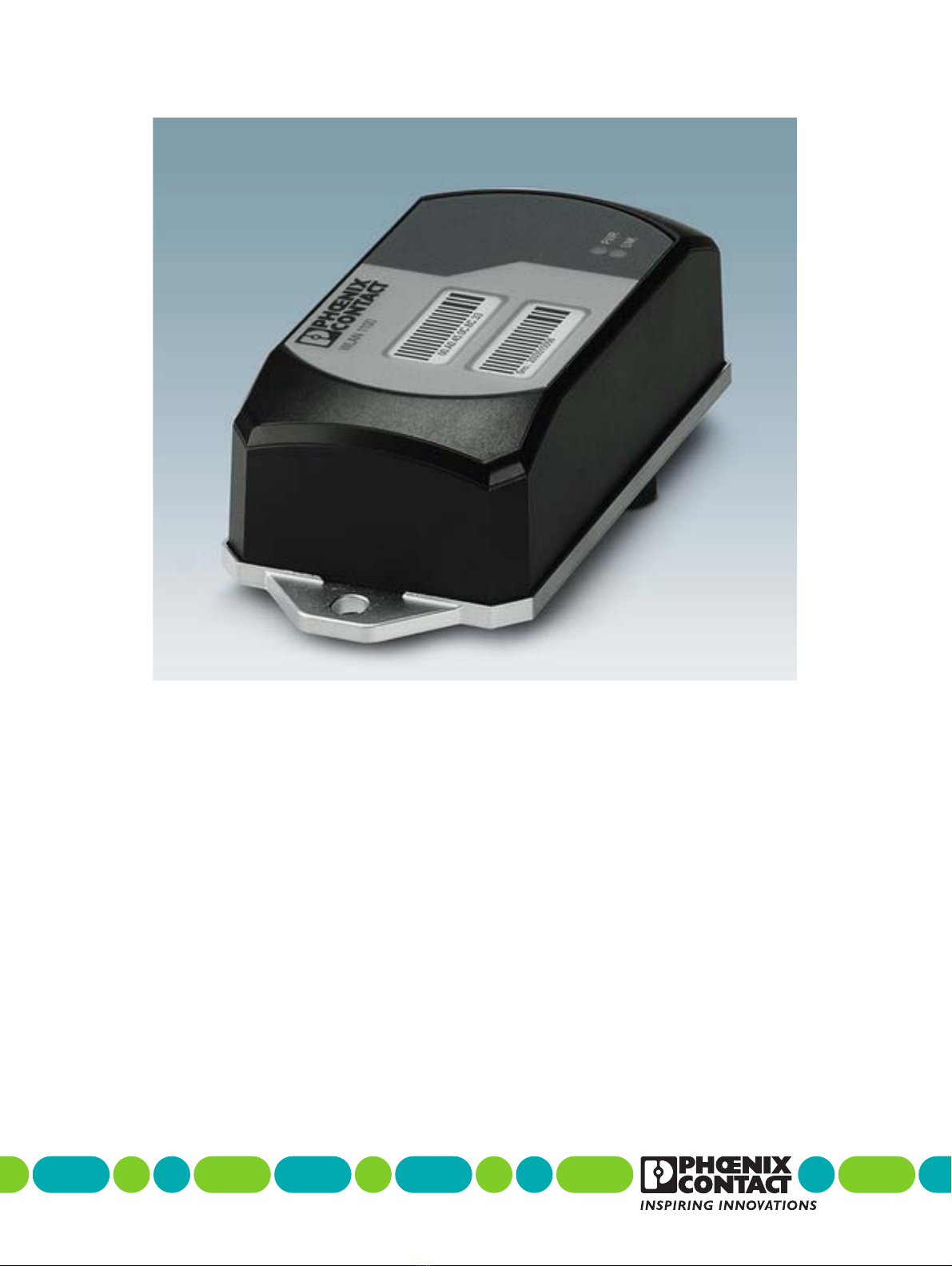

Figure 2-1 FL WLAN 110x/210x
Unless otherwise expressly stated, all information provided in this user manual always ap-
plies.

FL WLAN 1000/2000
10 / 40 PHOENIX CONTACT 109064_en_00
2.1.1 Product versions
2.2 Country approvals and standards
FL WLAN 110x/210x
2.2.1 FL WLAN 1100/2100
The FL WLAN 1100/2100 is a WLAN device with access point and client functionality. The
device uses the WLAN standard in the license-free 2.4 GHz and 5 GHz bands, which are
free of charge.
The device satisfies all the requirements of Directive 2014/53/EU:
– Further information is available in the manufacturer‘s declaration in the e-shop at phoe-
nixcontact.net/products.
Depending on the maximum possible transmission power, device operation must be ap-
proved or registered in some countries. Furthermore, there may be a usage restriction for
the transmission power.
Approvals for other countries are available on request.
Phoenix Contact hereby declares that this wireless system complies with the basic require-
ments and other relevant regulations specified in Directive 2014/53/EU. The EU Declaration
of Conformity is to be found in the “Download” area via the following link phoenixcon-
tact.net/products.
Table 2-1 Product versions
Device Characteristics
FL WLAN 1100
2702534
– Protection class IP54 (when mounted on a level surface, such as
control box or similar)
– Temperature range 0°C…60°C
– Approval for Europe and other countries
FL WLAN 1101
2702538
– Like FL WLAN 1100, with approval only for USA and Canada
FL WLAN 2100
2702535
– Protection class IP65/66/67/68 (when mounted on a level surface,
such as control box or similar)
– Temperature range -40°C…60°C
– Approval for Europe and other countries
FL WLAN 2101
2702540
– Like FL WLAN 2100, with approval only for USA and Canada
An up-to-date list of approvals for countries can be found in the e-shop under phoenixcon-
tact.net/products.
Make sure you observe the regulations of the relevant regulatory body for device opera-
tion in all countries.

Technical description
109064_en_00 PHOENIX CONTACT 11 / 40
2.2.2 FL WLAN 1101/2101
Furthermore, the following approvals have been performed and passed for the
FL WLAN 1101 device:
– FCC/CFR 47, Part 15 (USA)
– Radiocommunication Act R.S.C., 1985, c. R-2
2.2.2.1 FCC information
Note: This equipment has been tested and found to comply with the limits for a Class A dig-
ital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide rea-
sonable protection against harmful interference when the equipment is operated in a com-
mercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required to correct
the interference at his own expense.
NOTICE:
This Class A digital apparatus complies with the Canadian standard ICES-003. Cet appareil
numérique de la classe A est conforme à la norme NMB-003 du Canada.
NOTICE:
This device complies with Part 15 of the FCC Rules and with Industry Canada licence-ex-
empt RSS standard(s).
Operation is subject to the following two conditions:
1this device may not cause harmful interference, and
2this device must accept any interference received, including interference that may
cause undesired operation.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes:
1l'appareil ne doit pas produire de brouillage, et
2l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.
Europe (ETSI)
Frequency range Maximum transmission power at
antenna output
2400 ... 2483 MHz 20 dBm (EIRP)
5150 ... 5725 MHz 19 dBm (EIRP)
The devices FL WLAN 1101 (Order No. 2702538) and FL WLAN 2101 (Order No.
2702540) can be used in USA and Canada. They do not have CE approval and may not
be operated in Europe.

FL WLAN 1000/2000
12 / 40 PHOENIX CONTACT 109064_en_00
NOTICE:
Changes or modifications made to this equipment not expressly approved by
Phoenix Contact GmbH & Co. KG may void the FCC authorization to operate this equip-
ment.
Information on radio frequency radiation exposure:
This equipment complies with FCC and IC radiation exposure limits set forth for an uncon-
trolled environment. This equipment should be installed and operated with minimum dis-
tance of 20 cm between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter.
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour
un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum
de 20 cm de distance entre la source de rayonnement et votre corps.
Ce transmetteur ne doit pas etre place au meme endroit ou utilise simultanement avec un
autre transmetteur ou antenne.

Technical description
109064_en_00 PHOENIX CONTACT 13 / 40
2.3 Firmware
For additional information on the firmware of the devices, refer to the separate user man-
ual under phoenixcontact.net/products.

FL WLAN 1000/2000
14 / 40 PHOENIX CONTACT 109064_en_00

Mounting / Antenna configuration
109064_en_00 PHOENIX CONTACT 15 / 40
3 Mounting / Antenna configuration
3.1 Connections and operating elements
Figure 3-1 Connections and operating elements of the device
1. Mounting holes
2. Marking fields
3. Status and diagnostic LEDs
4. Ethernet connection in RJ45 format with 100 Mbps
5. Connections for supply voltage and one digital input via COMBICON
6. Two integrated WLAN antennas
3.1.1 Housing dimensions
The outside dimensions of the FL WLAN 110x and FL WLAN 210x devices are 62.8 mm x
36.5 mm x 113.2 mm (width x height x depth).

FL WLAN 1000/2000
16 / 40 PHOENIX CONTACT 109064_en_00
Figure 3-2 Housing dimensions and distances
3.1.2 Electrical connection
Figure 3-3 Connection of the supply voltage, Ethernet, and the “Reset to Factory De-
faults” input
The supplied connector is an FMC 1,5/ 3-STF-3,5 (Order No. 1966101).
A cable with a cross section of 0.75 mm2and a trapezoidal or square crimped ferrule that
is 10 mm long is recommended.
Always use the appropriate conductor cross section and ferrules to ensure that the cable
is fixed securely.
 






M40

Mounting / Antenna configuration
109064_en_00 PHOENIX CONTACT 17 / 40
3.1.2.1 Assignment of the RJ45 Ethernet connectors
3.1.2.2 Grounding of device 
FL WLAN 110x and FL WLAN 210x: Ground the base plate of the device by connecting the
mounting screws to a grounded metal surface (functional earth ground/FE).
Table 3-1 Connection data for the male connector
Conductor cross section solid/stranded min. 0.2 mm2
Conductor cross section solid/stranded max. 1.5 mm2
Conductor cross section, stranded, with ferrule without plastic
sleeve, minimum
0.25 mm2
Conductor cross section, stranded, with ferrule without plastic
sleeve, maximum
1.5 mm2
Conductor cross section, stranded, with ferrule with plastic
sleeve, minimum
0.25 mm2
Conductor cross section, stranded, with ferrule with plastic
sleeve, maximum
0.75 mm2
Conductor cross section AWG min. 24
Conductor cross section AWG max. 16
Conductor cross section AWG min. according to UL/CUL 24
Conductor cross section AWG max. according to UL/CUL 16
Table 3-2 Pin assignment of RJ45 connectors
Pin number 10Base-T / 10 Mbps 100Base-T / 100 Mbps
1 TD+ (transmit) TD+ (transmit)
2 TD- (transmit) TD- (transmit)
3 RD+ (receive) RD+ (receive)
4- -
5- -
6 RD- (receive) RD- (receive)
7- -
8- -
Grounding protects people and machines against hazardous voltages. To avoid these
dangers to the greatest extent possible, correct grounding, taking the local conditions into
account, is vital.
Functional grounding of the device:
The device must be connected to ground (functional earth ground) via the metal part of
the housing. If this is not possible, ensure a low-resistance ground connection (functional
earth ground) for the shielding of the Ethernet cable.

FL WLAN 1000/2000
18 / 40 PHOENIX CONTACT 109064_en_00
If this is not possible, e.g., because the device is installed on a plastic surface, make sure
that the Ethernet cable is properly shielded during mounting. This is particularly important if
the housing is not grounded by other means, e.g., via the base plate.
3.1.3 Mounting the device on a level surface
The devices in the FL WLAN 110x/210x series are suitable for external mounting on control
cabinets, machines, automatic guided vehicle (AGV) systems, or similar equipment.
To mount the device on a level surface, a bore hole is required for the mounting flange
(40 mm in diameter). You have to tighten the nut (8-10 Nm maximum) to ensure a tight seal.
You can secure the device additionally to the surface with two screws (M6). When using this
additional screw connection, make sure that the entire system is sealed tight.
You can install the device in any mounting position.
Figure 3-4 Mounting on a level surface
3.1.3.1 Drill hole template
Figure 3-5 Drill hole template


Mounting / Antenna configuration
109064_en_00 PHOENIX CONTACT 19 / 40
3.1.4 Mounting the device with cable feed-through and seal
When mounting the device outside the control cabinet (e.g., on a mounting bracket), you
can use a cable feed-through with seal to seal the connection dome for the supply line.
Screw the metal cable feed-through (FL M32 ADAPTER, Order No. 2702544) into the M32
internal thread of the FL WLAN 110x/210x connection dome. The FL WLAN 110x/210x is
therefore sealed acc. to IP54 even outdoors.
Figure 3-6 Mounting on a mounting bracket
If the device is not mounted directly on a control cabinet, use the FL M32 ADAPTER (Order
No. 2702544) to create the seal.
In this case, use for example the items 1421126, 1413163 or comparable RJ45 connectors
as connectors for the Ethernet cable.

FL WLAN 1000/2000
20 / 40 PHOENIX CONTACT 109064_en_00
3.1.4.1 Handling the FL M32 ADAPTER
Figure 3-7 Handling the FL M32 ADAPTER
3.1.4.2 Tightness of seal, retention, and strain relief (in accordance with EN
50262)
Tightening torque (double nipple): 15 Nm for M32
Tightening torque (pressure screw): 20 Nm for PG29
Tightness of seal for 7 mm hole pattern and 8.5 mm for cable:
IP65 degree of protection is achieved in accordance with DIN EN 60529(2014.09) if the dif-
ference between the cable diameter and hole is less than 10%.
If both are the same, IP68 can be achieved up to 10 bar with defined “retention” in accor-
dance with EN 50262 Class A. The tightness of seal and strain relief depend on the cable
used.
3.1.4.3 Mounting, taking the internal antennas into account
The FL WLAN 110x/210x has two internal antennas that transmit through the plastic hous-
ing. Take the following into account when mounting the device: In order to ensure that the
WLAN signal can be transmitted via the built-in antennas, the device should not be installed
inside control cabinets or other metal housings.
During the disassembly, make sure that no torsion forces act on the cables. For this, first
loosen the double nipple (1). Then remove the seal (2,3). Do not turn the pressure screw
(4) against the housing of the WLAN device beforehand.
The devices of the FL WLAN 110x/210x series contain internal antenna for WLAN com-
munication. You should therefore mount the device on the outside of metal objects to en-
sure that the WLAN signal can be transmitted.





