CONTROL UNIT CU458-2
Installation Instructions
(Translation of the original installation instructions)

CU458-2 Foreword
93728 1.0 3
Foreword
Document revision history
Version Date Modification, change
1.0 03/2020 First release
Disclaimer and exclusion of liability
DewertOkin is not responsible for damage resulting from:
•failure to observe these instructions,
•changes made to this product which have not been approved by DewertOkin, or
•the use of replacement parts which have not been approved or manufactured by DewertOkin.
We reserve the right to make unannounced technical changes in the course of our continual
product improvement process!
Creation of a complete operating instruction manual for the entire end product
These instructions are only intended to be used by the end-product manufacturer. They should not
be given to the operator of the end product. The factual information contained within may be used
as a basis when creating the end-product manual.
The warning and danger notices are best suited for use in the end product's manual. However, it is
not sufficient to simply follow these notices. You should also carry out an internal risk assessment
for your end product. This can then be used as the basis for the safety notices in your manual.
These installation instructions do not contain all information required to safely operate the end
product. They only describe the installation and operation of the product as partially completed ma-
chinery.
The instructions are intended for the technicians responsible for manufacturing an end product and
not for the operators of the end product.

Table of Contents CU458-2
4 93728 1.0
Table of Contents
Foreword 3
Document revision history 3
Disclaimer and exclusion of liability 3
Creation of a complete operating instruction manual for the entire end product 3
Table of Contents 4
1. General Information 5
1.1 Configurations 5
1.2 About these installation instructions 5
1.3 Conventions used 5
2. Safety notices 6
2.1 Proper and intended usage 6
2.2 Selection and qualification of personnel 7
2.3 Ratings plate 8
3. Possible combinations 9
4. Description 10
4.1 Components 10
5. Technical specifications 11
6. Installation 13
6.1 Safety notices to observe during installation 13
6.2 Installation procedure 13
7. Information about creating your Operating Manual 16
7.1 General information 16
7.2 Configuring the hand-held remote and app 17
8. Troubleshooting 19
9. Maintenance 20
9.1 Cleaning and care 20
10. Disposal 21
10.1 Packaging material 21
10.2 Components in the control unit 21
Additional information 22

CU458-2 General Information
93728 1.0 5
1. General Information
1.1 Configurations
The designation CONTROL UNIT is used in these installation instructions to refer to the CONTROL
UNIT CU458-2.
1.2 About these installation instructions
In order to install the CONTROL UNIT successfully and safely in the end product, these installation
instructions must be observed. These instructions are not an operating manual for the end product.
These instructions will help you to minimize danger, repair costs and down times. They will also
help you to increase the reliability and lifespan of the device.
CAUTION
The notices in these instructions must be followed! Following the guidelines during installation
and connection procedures will help to minimize:
•the risk of accident and injury, and
•damage to the CONTROL UNIT or the end product.
These installation instructions have been written with due care and attention. However, we cannot
guarantee that the data, images and drawings are complete and correct nor do we accept any lia-
bility for the information contained therein, unless required by law.
1.3 Conventions used
Notices which do not relate to safety are indicated in these instructions with a symbol:
Triangular notice symbol
Explanations of warning notices
CAUTION
CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moder-
ate injury.
NOTICE
NOTICE is used to address practices which are not related to personal injury but may result in
damage to the product or surroundings.

Safety notices CU458-2
6 93728 1.0
2. Safety notices
2.1 Proper and intended usage
The CONTROL UNIT is intended for use:
•as a control unit for suitable DewertOkin drive systems,
•for HOME applications (in beds, reclining chairs, etc.).
CAUTION
Risk of accident
This CONTROL UNIT should only be used for the applications described above. Any other use
is forbidden. Improper usage can lead to accidents or destruction of the unit. Such non-approved
applications will lead immediately to the expiration of all guarantee and warranty claims on the
part of the end-product manufacturer against the manufacturer.
2.1.1 Improper usage
Be sure to follow the notices below concerning improper usage. You should include them in your
product manual in order to inform the users of your end product.
The CONTROL UNIT should not be used:
•in any environment where combustible or explosive gases or vapours (e.g., anaesthesiology)
may be present,
•in the proximity of open fires or other heat sources (such as furnaces, ovens or direct sunlight),
•as a power source for toys or games,
•in any application that will be cleaned with an automated washing system,
•in a moist environment, or
•outdoors.
The CONTROL UNIT can be used by children of 8 years and older, persons with reduced physical,
sensory or mental capabilities, or persons with lack of experience or knowledge when they are su-
pervised or instructed concerning the safe use of the device and when they understand the result-
ing risks. Do not allow children to play with this device. The cleaning and user maintenance must
not be carried out by children without supervision.
You should only use spare parts which have been manufactured or approved by DewertOkin.
Only these parts will guarantee a sufficient level of safety.

CU458-2 Safety notices
93728 1.0 7
2.2 Selection and qualification of personnel
The installation of the CONTROL UNIT in the end product may only be performed by qualified per-
sonnel.
2.2.1 Electrical safety
CAUTION
Electric shock
Be careful; there is a risk of electrical shock! Before installing, make sure that you disconnect the
external DewertOkin power supply for the CONTROL UNIT from the power outlet!
The CONTROL UNIT should not be used! You must properly dispose of malfunctioning or broken
units.
2.2.2 Floor (under-bed) lighting
The CONTROL UNIT is equipped with two floor (under-bed) LEDs.
CAUTION
Do not look straight into the LED and do not aim the LED at persons.

Safety notices CU458-2
8 93728 1.0
2.3 Ratings plate
The ratings plate shown is an example; The specifications for your CONTROL UNIT may differ
from this illustration.
Figure 1 Ratings plate for the CONTROL UNIT (example)
CU458-2 Model name
xxxxx Article number
Model No. Model number
24 – 29 V 6.00 A Input voltage and current consumption
Duty cycle: 2 min ON / 18 min OFF Intermittent operations: 2 minutes / 18 minutes
Prod. Date Calendar week / year
2.4GHz Radio frequency
Serial No. Serial number
FCC ID: O3YCU458-2 Federal Communications Commission ID
IC:10744A-CU4582 Industry Canada identifier
IP20 Protection degree
Use in dry rooms only!
Always follow the instructions in the manual!
Follow all special disposal instructions!

CU458-2 Possible combinations
93728 1.0 9
3. Possible combinations
The CONTROL UNIT can be used together with multiple drives, vibration motors and accessories
that have been approved by DewertOkin.
A tailored system consists of the combination of control unit, drive, vibration motor, accessories,
and hand-held remote.
DewertOkin has separate system instruction manuals containing the additional information and in-
structions needed for these systems.
Detailed information on combination possibilities can be requested directly from DewertOkin.

Description CU458-2
10 93728 1.0
4. Description
The CONTROL UNIT is a control unit and for one or more DewertOkin vibration motors. An exter-
nal DewertOkin power supply unit is used to connect the CONTROL UNIT to the mains power.
4.1 Components
The housing of the CONTROL UNIT has a connection for an external DewertOkin drive system,
as well as connections for vibration motors and various accessories. Multiple drives (e.g. the Del-
ta drive and Alpha drive) and vibration motors can be connected to the CONTROL UNIT.

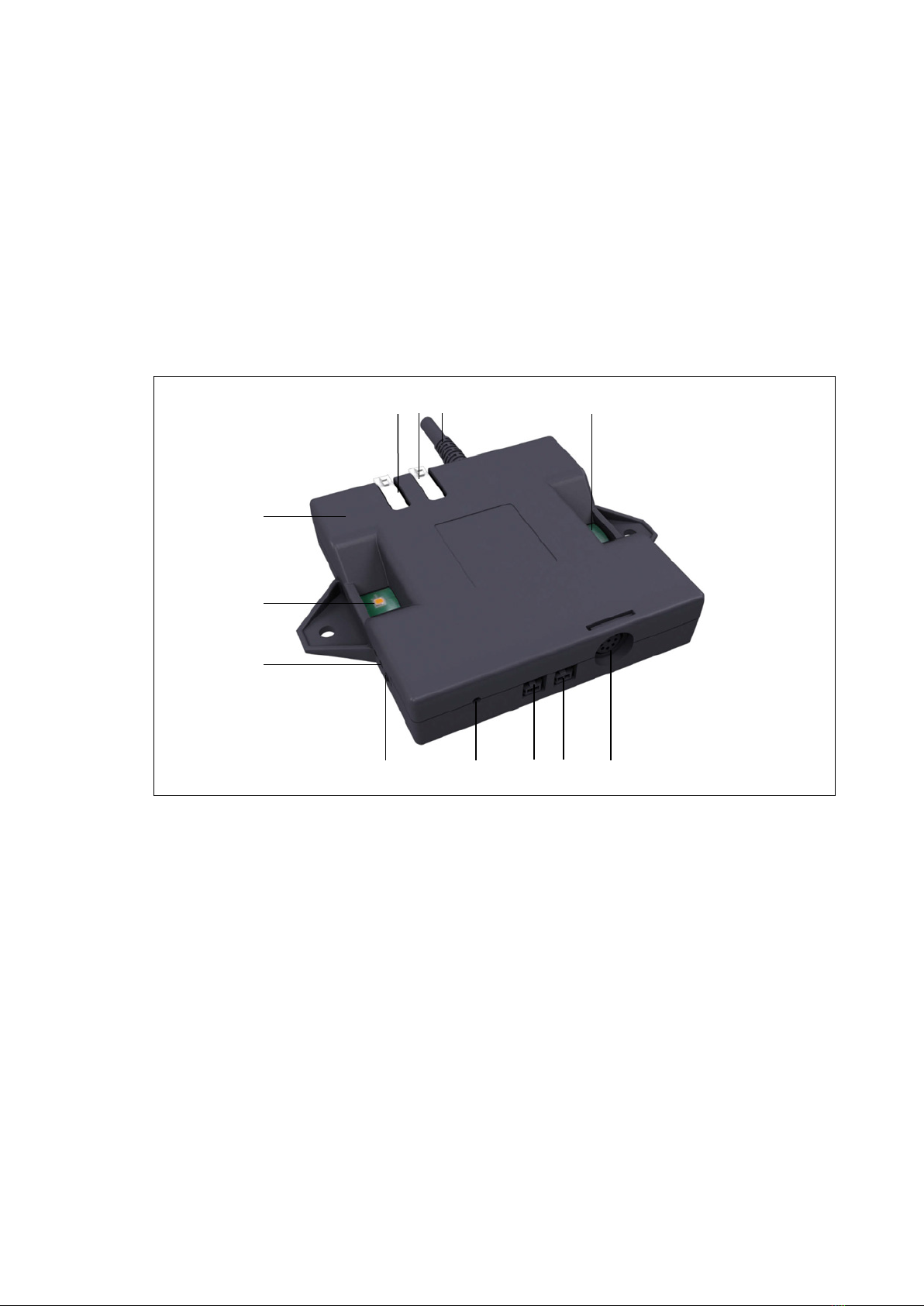

Figure 2 Connections and ports on the CONTROL UNIT CU458-2
A CONTROL UNIT CU458-2
B Port for vibration motor
C Port for vibration motor
D Port for supply voltage to drives
E Floor (under-bed) lighting
F Multi-functional port (MFP)
G Port for accessories
H Port for accessories
I Power LED (lights up whenever the
CONTROL UNIT is connected to power)
J Reset button / Pairing button
K Pairing LED
B
F
E
E
J
G
I
H
D
A
C
K

CU458-2 Technical specifications
93728 1.0 11
5. Technical specifications
Input voltage 24 – 29 V DC
Current consumption at nominal operations Max. 6 A in intermittent operations
Mode of operations1Intermittent duty 2 min./18 min.
Protection class III
Protection degree IP20
Dimensions and weight
Length x width x height 182 mm x 135 mm x 30 mm
Weight Approx. 300 g
Ambient conditions for operation, storage and transport
Transport / storage temperature From -20 °C to +50 °C
From -4 °F to +122 °F
Operating temperature From +10 °C to +40 °C
From +50 °F to +104 °F
Relative humidity From 30% to 75%
Air pressure From 800 hPa to 1060 hPa
Height < 2000 m
1) Mode of operation: intermittent duty 2 minutes/18 minutes. This means that after the unit is operated with
its rated load for up to two minutes it must then be paused for 18 minutes. The system can malfunction if
this pause is not observed!

Technical specifications CU458-2
12 93728 1.0

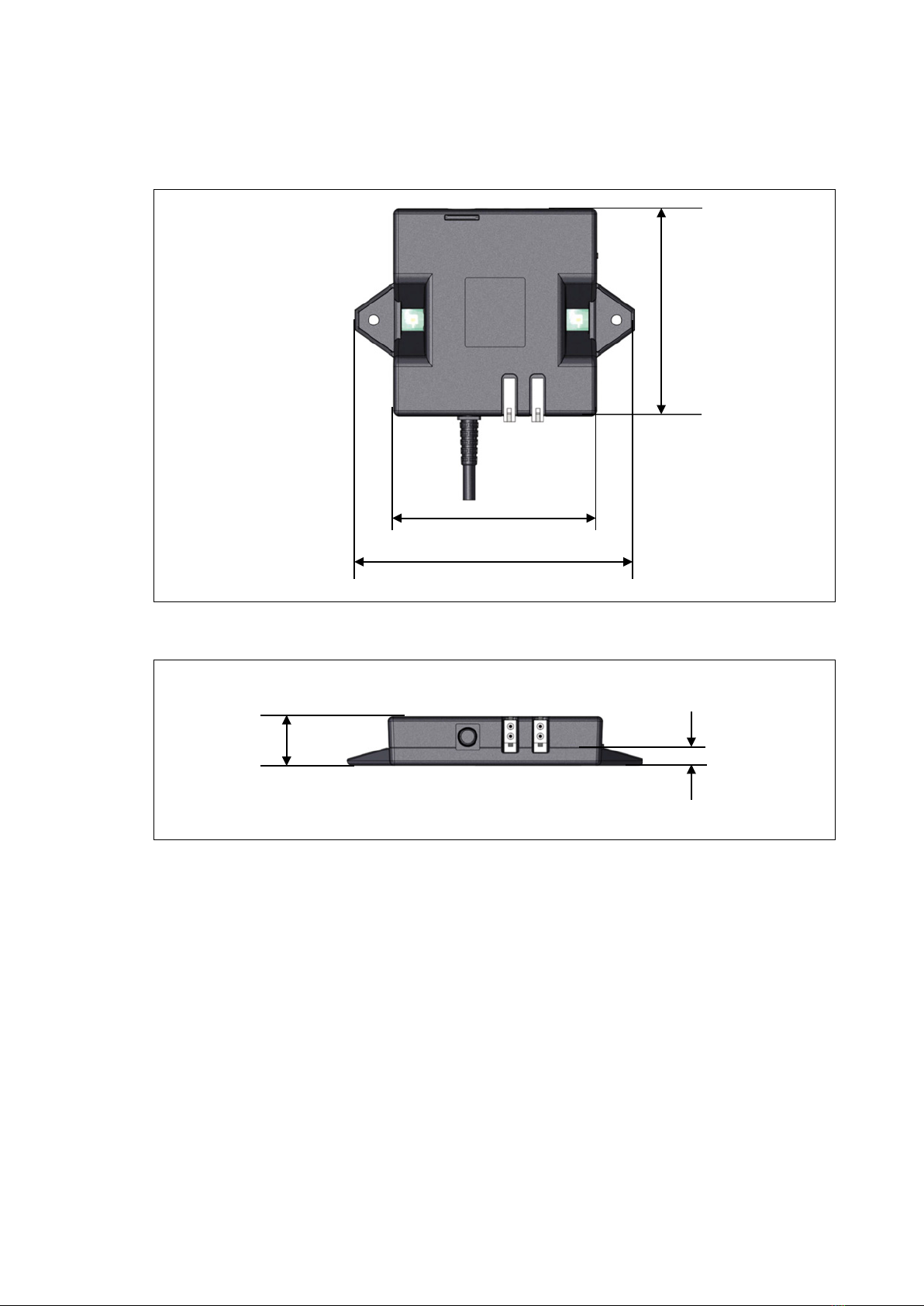

Figure 3 Dimensions of the CONTROL UNIT, top view (in mm)
Figure 4 Dimensions of the CONTROL UNIT, side view (in mm)
11
132
135
30
182

CU458-2 Installation
93728 1.0 13
6. Installation
6.1 Safety notices to observe during installation
Basic safety rules must be followed in order to ensure that the end product can be continually op-
erated in a safe manner. These rules must be observed while using the end product and while in-
stalling the CONTROL UNIT in the end product.
6.1.1 Ensuring operational reliability during installation
The safety and reliability of the end product containing DewertOkin components can be ensured by
using the proper construction methods as described below.
6.2 Installation procedure
Before installing and connecting the CONTROL UNIT, make sure that you are observing all of the
safety notices found in the "Safety notices to observe during installation" section.
6.2.1 Mounting the CONTROL UNIT to the end product
Two screws should be used at the two mounting points to attach the CONTROL UNIT to the end
product.
The drilling dimensions shown in Figure 5 only illustrate an example and are not necessarily au-
thoritative for all applications.
Figure 5 Drilling dimensions (example): Mounting points on the CONTROL UNIT (in mm)
Ø 7
158

Installation CU458-2
14 93728 1.0
CAUTION
You should only connect and disconnect the cables when they are completely disconnected from
any live current!
Pull out the power supply plug from the plug socket.
Screw the control unit onto the end product (as shown in Figure 6). Use the mounting holes shown
in Figure 5 located on the control unit. Use screws meeting the requirements of DIN 7049 with 4.8
mm diameter and of suitable length (5 mm plus the screw-in depth into the end product).
Proceed with the installation as follows:
1 Mark the drill holes.
2 Drill the two holes for the screws in the end product.
3 Screw in the two screws so the CONTROL UNIT is securely mounted to the end product.
Figure 6 Installing the CONTROL UNIT
1
3
2

CU458-2 Installation
93728 1.0 15
6.2.2 Electrical connection
CAUTION
Electric shock
Electrical components should be connected or disconnected only when the power supply is un-
plugged.
There is a delay after the supply voltage is applied before the device actually turns on. Wait at
least 2 seconds before initial commissioning.
Routing the electrical cables
When routing the cables, be sure that:
•the cables cannot get jammed,
•no mechanical load (such as pulling, pushing or bending) will be put on the cables, and
•the cables cannot be damaged in any way.
Fasten all cables (especially the connecting cables) to the end product using sufficient kink preven-
tion methods. Be sure that the design of the end product prevents the connecting cables from com-
ing into contact with the floor during transport.
Connecting the vibration motors, the additional drives and the optional accessories
Make sure that you disconnect the components from all power sources before connecting them to
the CONTROL UNIT (refer to Figure 2 for the proper connection for each component).
CAUTION
Electric shock
You should only connect and disconnect the cables when they are completely disconnected from
any live current!
Pull out the power supply plug from the plug socket.

Information about creating your Operating Manual CU458-2
16 93728 1.0
7. Information about creating your Operating Manual
The factual information contained within may be used when you are creating the end-product man-
ual. The installation instructions do not contain all information required for the safe operation of the
end product. They only describe the assembly and operation of the CONTROL UNIT as a partially
assembled piece of machinery.
When creating the operating instructions, remember that the installation instructions are intend-
ed for qualified specialists and are not for typical users of the end product.
7.1 General information
You should only connect drives, vibration motors and accessories from DewertOkin to the
CONTROL UNIT. Only DewertOkin components have been verified to work when combined to-
gether.
Delayed start-up
Please note the following after plugging the power plug into the power outlet:
There is a delay after the supply voltage is applied before the device actually turns on. Wait at
least 2 seconds before initial commissioning.
Power-on time / intermittent operations
The CONTROL UNIT has been designed for intermittent operations. Intermittent operation is an op-
erational mode where the drive must pause after a specified maximum period of operation (power-on
time). This protects the drive from overheating. Extreme overheating can cause a malfunction.
The ratings plate specifies the maximum power-on time and the required pause intervals.
Avoiding electrical risks
CAUTION
Electric shock
Make sure that no live (current-carrying) parts of the control system and power supply can be
touched. In particular, be sure that unused power and control unit connections are covered ade-
quately.
CAUTION
Risk of accident
Please follow these operating instructions carefully. You could be injured by fire or electrical
shock if you do not follow these assembly instructions.

CU458-2 Information about creating your Operating Manual
93728 1.0 17
Shutting down the CONTROL UNIT in the event of an emergency
In an emergency, disconnect the mains power plug from its socket in order to shut off the connect-
ed drive, the accessory, and the vibration motors. The power plug must always be accessible dur-
ing operations so that it is possible to shut down the CONTROL UNIT.
Avoiding cable damage
Be sure that your operating instructions inform the user about the possible cable risks.
CAUTION
Risk of accident
The cables (particularly the connecting cable) should not be run over. In order to prevent injuries
or damage to the drive and CONTROL UNIT, no mechanical strain should be placed on the ca-
bles.
7.2 Configuring the hand-held remote and app
The hand-held remote and app can be paired automatically (see chapter 7.2.1, page 17) or manu-
ally (see chapter 7.2.2, page 18).
In order to use the hand-held remote RF1058 or a Bluetooth®device, establish the radio link with
the CONTROL UNIT. Requirement: To operate your system with a Bluetooth®device (e.g.:
smartphone/tablet), download the "OKIN" app from the appropriate platform and install it on your
device.
7.2.1 Automatic configuration
The floor lighting will flash twice to acknowledge successful completion of the process.
1 Insert the power plug into a power outlet.
The CONTROL UNIT remains in pairing mode for 120 seconds. The pairing mode is split as fol-
lows:
•A RF1058 hand-held remote can be paired in the first 60 seconds.
•A Bluetooth®device can be paired in the second 60 seconds.
During the RF1058 pairing phase, the floor (under-bed) LED and the paring LED on the CON-
TROL UNIT light up.
2 Press the + buttons on the RF1058 hand-held remote simultaneously (see RF1058
hand-held remote instructions). A successful pairing will be acknowledged.
The floor lighting will switch off after the pairing process for the hand-held remote RF1058 is fin-
ished. The pairing LED for pairing a Bluetooth®device starts flashing.
The pairing LED switches off when the Bluetooth®pairing process has timed out or when the
device has connected successfully. A successful pairing will be acknowledged.

Information about creating your Operating Manual CU458-2
18 93728 1.0
3 If, during the RF1058 remote's pairing process, you press any button on an already paired
RF1058 hand-held remote, then it switches to the Bluetooth®pairing mode.
If the RF1058 remote or a Bluetooth®device is discovered during the pairing phase, then this
pairing mode is automatically ended. The floor lighting and the pairing LED switch off.
4 If automatic configuration must be repeated: Remove the plug from the power supply and wait
60 seconds. Then insert the plug back into the power supply. You can then start the new pairing
process.
NOTICE
Only start one system at a time. Never configure multiple systems simultaneously.
7.2.2 Manual configuration
The floor lighting will flash twice to acknowledge successful completion of the process.
1 Insert the power plug into a power outlet.
2 Press the Reset button on the CONTROL UNIT twice in quick succession (see Figure 2, page
10). The floor lighting and the pairing LED light up.
The CONTROL UNIT remains in pairing mode for 120 seconds. The pairing mode is split as fol-
lows:
•A RF1058 hand-held remote can be paired in the first 60 seconds.
•A Bluetooth®device can be paired in the second 60 seconds.
During the RF1058 pairing phase, the floor (under-bed) LED and the paring LED on the CON-
TROL UNIT light up.
3 Press the + buttons on the RF1058 hand-held remote simultaneously (see RF1058
hand-held remote instructions). A successful pairing will be acknowledged.
The floor lighting will switch off after the pairing process for the hand-held remote RF1058 is fin-
ished. The pairing LED for pairing a Bluetooth®device starts flashing.
The pairing LED switches off when the Bluetooth®pairing process has timed out or when the
device has connected successfully. A successful pairing will be acknowledged.
NOTICE
Only start one system at a time. Never configure multiple systems simultaneously.

CU458-2 Troubleshooting
93728 1.0 19
8. Troubleshooting
This chapter describes troubleshooting methods for fixing problems. If you experience an error that
is not listed in this table, please contact your supplier.
Only qualified specialists who have received electrician training should carry out troubleshooting
and repairs.
Problem Possible cause Solution
The drive, accessory
or vibration motor is
not functioning.
There is no mains supply voltage. Connect the mains power.
The vibration motor or accessory is
defective.
Please contact your supplier or
sales agent.
Hand-held remote not paired. Pair the hand-held remote.
The hand-held remote batteries are
empty.
Replace the batteries.
The drive or vibration
motors are suddenly
not capable of
movement.
The unit's fuse may have been trig-
gered.
Please contact your supplier or
sales agent.
The hand-held remote batteries are
empty.
Replace the batteries.
Radio interference Try to re-establish the wireless
connection.
There is no mains supply voltage. Connect the mains power.
A cable has been disconnected (to
the mains power, vibration motors,
drives or accessory).
Check the cables and reinsert
them, if required.

Maintenance CU458-2
20 93728 1.0
9. Maintenance
The CONTROL UNIT requires no maintenance.
9.1 Cleaning and care
The CONTROL UNIT was designed so that it would be easy to clean. Its smooth surfaces simplify
the cleaning process.
Clean the CONTROL UNIT as needed using a dry cloth.
NOTICE
•Always disconnect the power supply plug before you start to clean!
•Never clean the CONTROL UNIT in an automated washing system or with a high-pressure
cleaner. Do not allow fluids to penetrate the lighting. Damage to the system could result.
•Do not use a cleanser that contains benzene, alcohol or similar solvents.
•Be sure that you do not damage the connecting cables during the cleaning.
