Phoenix Mecano Dewert Okin HE200 User manual

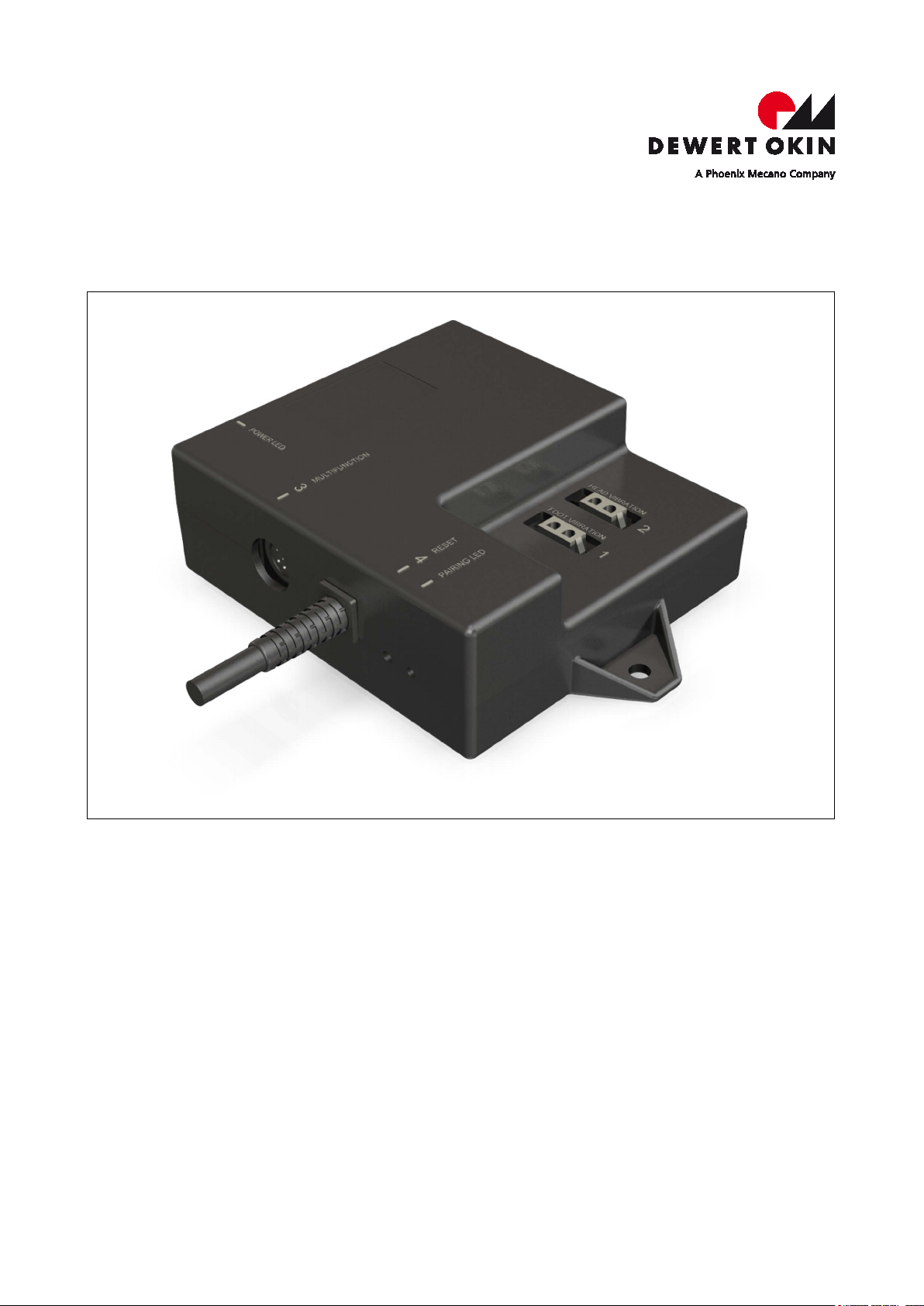

CONTROL UNIT HE200
Installation Instructions
(Translation of the original installation instructions)

CONTROL UNIT HE200 Foreword
82687(-) 3
Foreword
Disclaimer and exclusion of liability
DewertOkin is not responsible for damage resulting from:
•failure to observe these instructions,
•changes made to this product which have not been approved by DewertOkin, or
•the use of replacement parts which have not been approved or manufactured by DewertOkin.
We reserve the right to make unannounced technical changes in the course of our continual
product improvement process!
Creation of a complete operating instruction manual for the entire end product
These instructions are only intended to be used by the end-product manufacturer. They should not
be given to the operator of the end product. The factual information contained within may be used
as a basis when creating the end-product manual.
The warning and danger notices are best suited for use in the end product's manual. However it is
not sufficient to simply follow these notices. You should also carry out an internal risk assessment
for your end product. This can then be used as the basis for the safety notices in your manual.
These installation instructions do not contain all information required to safely operate the end
product. They only describe the installation and operation of the product as partially completed ma-
chinery.
The instructions are intended for the technicians responsible for manufacturing an end product and
not for the operators of the end product.

Table of contents CONTROL UNIT HE200
4 82687(-)
Table of contents
Foreword 3
Disclaimer and exclusion of liability 3
Creation of a complete operating instruction manual for the entire end product 3
Table of contents 4
1. General Information 5
1.1 About these installation instructions 5
1.2 Conventions used 5
2. Safety notices 6
2.1 Proper and intended usage 6
2.2 Selection and qualification of personnel 7
2.3 Ratings plate 8
3. Possible combinations 9
4. Description 10
4.1 Components 10
5. Technical specifications 11
6. Installation 13
6.1 Safety notices to observe during installation 13
6.2 Installation procedure 13
7. Information about creating your Operating Manual 16
7.1 General information 16
8. Troubleshooting 18
9. Maintenance 19
9.1 Cleaning and care 19
10. Disposal 20
10.1 Packaging material 20
10.2 Components in the control unit 20
EU Declaration of Conformity 21

CONTROL UNIT HE200 General Information
82687(-) 5
1. General Information
1.1 About these installation instructions
In order to install the CONTROL UNIT HE200 successfully and safely in the end product, these in-
stallation instructions must be observed. These instructions are not an operating manual for the
end product.
These instructions will help you to minimize danger, repair costs and down times. They will also
help you to increase the reliability and lifespan of the device.
CAUTION
The notices in these instructions must be followed! Following the guidelines during installation
and connection procedures will help to minimize:
•the risk of accident and injury, and
•damage to the CONTROL UNIT HE200 or the end product.
These installation instructions have been written with due care and attention. However, we cannot
guarantee that the data, images and drawings are complete and correct nor do we accept any li-
ability for the information contained therein, unless required by law.
1.2 Conventions used
Notices which do not relate to safety are indicated in these instructions with a symbol:
Triangular notice symbol
Explanations of warning notices
CAUTION
CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moder-
ate injury.
NOTICE
NOTICE is used to address practices which are not related to personal injury but may result in
damage to the product or surroundings.

Safety notices CONTROL UNIT HE200
6 82687(-)
2. Safety notices
2.1 Proper and intended usage
The CONTROL UNIT HE200 is intended for use:
•as a control unit for suitable DewertOkin drive systems,
•for HOME applications (in beds, reclining chairs, etc.),
CAUTION
Risk of accident
This CONTROL UNIT HE200 should only be used for the applications described above. Any
other use is forbidden. Improper usage can lead to accidents or destruction of the unit. Such
non-approved applications will lead immediately to the expiration of all guarantee and warranty
claims on the part of the end-product manufacturer against the manufacturer.
2.1.1 Improper usage
Be sure to follow the notices below concerning improper usage. You should include them in your
product manual in order to inform the users of your end product.
The CONTROL UNIT HE200 should not be used:
•in any environment where combustible or explosive gases or vapours (e.g., anaesthesiology)
may be present,
•in the proximity of open fires or other heat sources (such as furnaces, ovens or direct sunlight),
•as a power source for toys or games,
•in any application that will be cleaned with an automated washing system,
•in a moist environment, or
•outdoors.
The CONTROL UNIT HE200 can be used by children of 8 years and older, persons with reduced
physical, sensory or mental capabilities, or persons with lack of experience or knowledge when
they are supervised or instructed concerning the safe use of the device and when they understand
the resulting risks. Do not allow children to play with this device. The cleaning and user mainte-
nance must not be carried out by children without supervision.
You should only use spare parts which have been manufactured or approved by DewertOkin.
Only these parts will guarantee a sufficient level of safety.

CONTROL UNIT HE200 Safety notices
82687(-) 7
2.2 Selection and qualification of personnel
The installation of the CONTROL UNIT HE200 in the end product may only be performed by quali-
fied personnel.
2.2.1 Electrical safety
CAUTION
Electric shock
Be careful; there is a risk of electrical shock! Before installing, make sure that you disconnect the
external DewertOkin power supply for the CONTROL UNIT HE200 from the power outlet!
The CONTROL UNIT HE200 should not be used: You must properly dispose of malfunctioning or
broken units.

Safety notices CONTROL UNIT HE200
8 82687(-)
2.3 Ratings plate
The ratings plate shown is an example; The specifications for your CONTROL UNIT HE200
may differ from this illustration.

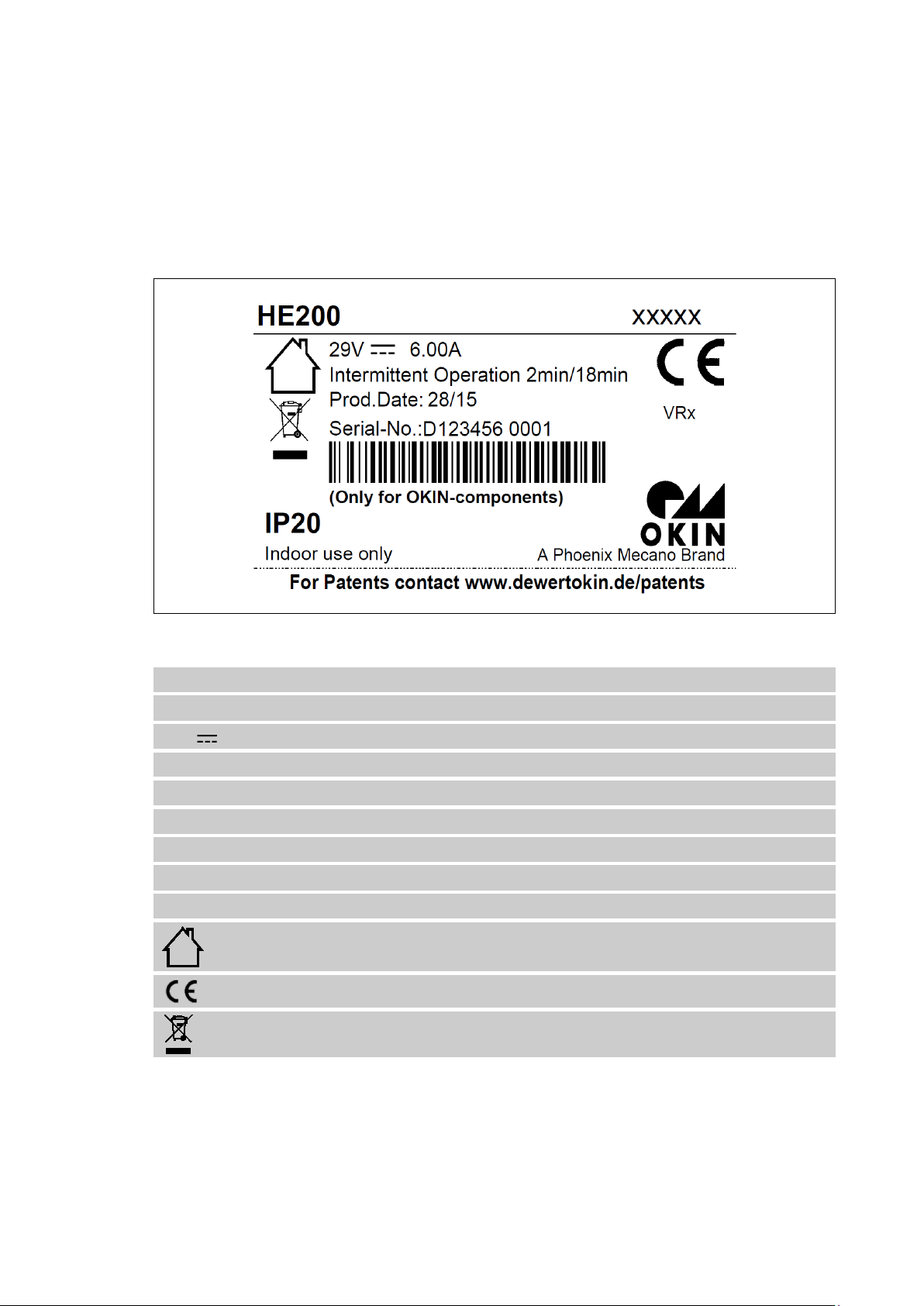

Figure 1 Ratings plate for the CONTROL UNIT HE200 (example)
HE200 Model name
xxxxx Article number
29V Input voltage
6.00A Permitted power consumption
Intermittent Operation 2min/18min Mode of operation
Prod.date Calendar week / year
Serial No. CONTROL UNIT HE200 serial number
VRx Software version
IP20 Protection degree
Use in dry rooms only!
Conformity mark
Follow all special disposal instructions!

CONTROL UNIT HE200 Possible combinations
82687(-) 9
3. Possible combinations
The CONTROL UNIT HE200 can be used together with multiple individual drives, massage motors
and accessories that have been approved by DewertOkin.
A tailored system consists of the combination of control unit, single drive, massage motor, accesso-
ries, and hand-held remote.
DewertOkin has separate system instruction manuals containing the additional information and in-
structions needed for these systems.
Detailed information on combination possibilities can be requested directly from DewertOkin.

Description CONTROL UNIT HE200
10 82687(-)
4. Description
The CONTROL UNIT HE200 is a control unit and for one or more DewertOkin massage motors. An
external DewertOkin power supply unit is used to connect the CONTROL UNIT HE200 to the
mains power. The CONTROL UNIT HE200 is equipped with built-in radio receiver.
4.1 Components
The housing of the CONTROL UNIT 258-4 has a connection for an external DewertOkin drive
system, as well as connections for massage motors and various accessories.

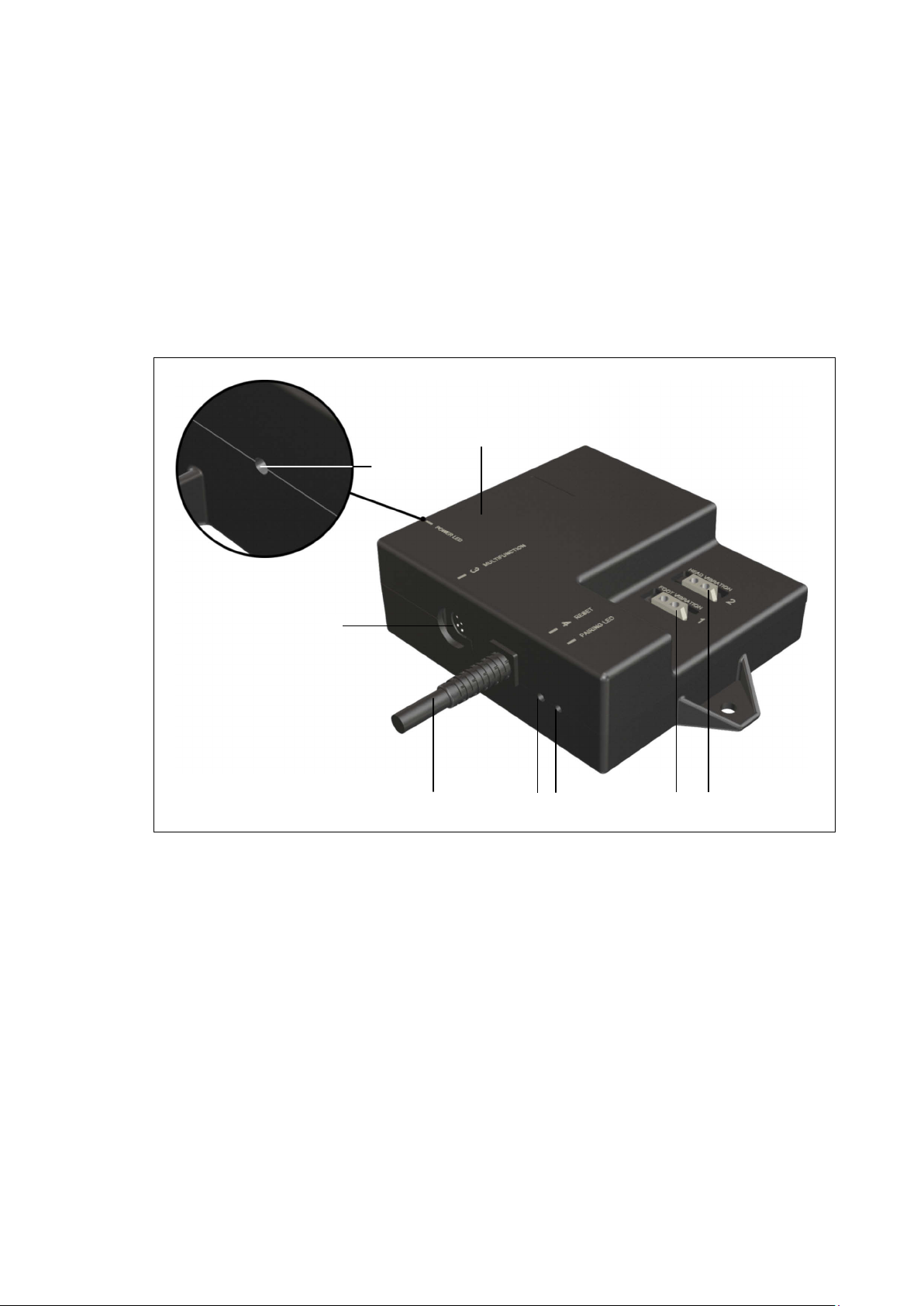

Figure 2 Control Unit HE200
A Multi-function port for optional accessories
B Power LED
C Control Unit HE200 D Port for massage motor at head side
E Port for massage motor at foot side F Pairing LED
G Reset button / Pairing button
H Connection for the external drive system
C
F
A
D
E
G
H
B

CONTROL UNIT HE200 Technical specifications
82687(-) 11
5. Technical specifications
Input voltage 24 – 29 V
Permissible total current consumption
under nominal operating conditions
Max. 6 A in intermittent duty, 2 min. ON / 18 min. OFF
Current consumption from the massage
motor
Max. 1.0 A in continuous operations
Operating mode 1) Intermittent duty 2 min./18 min.
Protection class III
Protection degree IP20
Dimensions and weight
Length x width x height 182 mm x 101 mm x 50 mm
Weight Approx. 400 g
Ambient conditions for operation, storage and transport
Transport / storage temperature From -20 °C to +50 °C
From -4 °F to +122 °F
Operating temperature From +10 °C to +40 °C
From +50 °F to +104 °F
Relative humidity From 30% to 75%
Air pressure From 800 hPa to 1060 hPa
Height < 2000 m
1Mode of operation: intermittent duty 2 min./18 min. This means that after the unit is operated with its rated
load for up to two minutes it must then be paused for 18 minutes. The system can malfunction if this pause
is not observed!

Technical specifications CONTROL UNIT HE200
12 82687(-)
Figure 3 Dimensions of the CONTROL UNIT HE200, top view (in mm)
Figure 4 Dimensions of the CONTROL UNIT HE200, side view (in mm)
50
101
140
182

CONTROL UNIT HE200 Installation
82687(-) 13
6. Installation
6.1 Safety notices to observe during installation
Basic safety rules must be followed in order to ensure that the end product can be continually op-
erated in a safe manner. These rules must be observed while using the end product and while in-
stalling the CONTROL UNIT HE200 in the end product.
6.1.1 Ensuring operational reliability during installation
The safety and reliability of the end product containing DewertOkin components can be ensured by
using the proper construction methods as described below.
6.2 Installation procedure
Before installing and connecting the CONTROL UNIT HE200, make sure that you are observing all
of the safety notices found in the "Safety notices to observe during installation" section.
6.2.1 Mounting the CONTROL UNIT HE200 to the end product
Two screws should be used at the two mounting points to attach the CONTROL UNIT HE200 to
the end product.
The drilling dimensions shown in Figure 5 only illustrate an example and are not necessarily au-
thoritative for all applications.
Figure 5 Drilling dimensions (example): Mounting points on the CONTROL UNIT HE200,
(in mm)
Ø 7
158

Installation CONTROL UNIT HE200
14 82687(-)
CAUTION
You should only connect and disconnect the cables when they are completely disconnected from
any live current!
Screw the control unit onto the end product (as shown in Figure 6 ). Use the mounting holes shown
in Figure 5 located on the control unit. Use screws meeting the requirements of DIN 7049 with 4.8
mm diameter and of suitable length (5 mm plus the screw-in depth into the end product).
Proceed with the installation as follows:
1 Mark the drill holes.
2 Drill the two holes for the screws in the end product.
3 Screw in the two screws so the CONTROL UNIT HE200 is securely mounted to the end product.
Figure 6 Installing the CONTROL UNIT HE200
1
3
2

CONTROL UNIT HE200 Installation
82687(-) 15
6.2.2 Electrical connection
CAUTION
Electric shock
Electrical components should be connected or disconnected only when the power supply cord is
unplugged.
There is a delay after the supply voltage is applied before the device actually turns on. Wait at
least 7 seconds before initial commissioning.
Routing the electrical cables
When routing the cables, be sure that:
•the cables cannot get jammed,
•no mechanical load (such as pulling, pushing or bending) will be put on the cables, and
•the cables cannot be damaged in any way.
Fasten all cables (especially the connecting cables) to the end product using sufficient kink preven-
tion methods. Be sure that the design of the end product prevents the connecting cables from com-
ing into contact with the floor during transport.
Connecting the massage motors, the additional drives and the optional accessories
Make sure that you disconnect the components from all power sources before connecting them to
the CONTROL UNIT HE200 (refer to Figure 2 for the proper connection for each component).
CAUTION
Electric shock
You should only connect and disconnect the cables when they are completely disconnected from
any live current!

Information about creating your Operating Manual CONTROL UNIT HE200
16 82687(-)
7. Information about creating your Operating Manual
The factual information contained within may be used when you are creating the end-product man-
ual. The installation instructions do not contain all information required for the safe operation of the
end product. They only describe the assembly and operation of the CONTROL UNIT HE200 as a
partially assembled piece of machinery.
When creating the operating instructions, remember that the installation instructions are in-
tended for qualified specialists and are not for typical users of the end product.
7.1 General information
You should only connect drives, massage motors and accessories from DewertOkin to the
CONTROL UNIT HE200. Only DewertOkin components have been verified to work when com-
bined together.
Delayed start-up
After plugging the power plug into the power outlet:
There is a delay after the supply voltage is applied before the device actually turns on. Wait at
least 7 seconds before initial commissioning.
Power-on time / intermittent operations
The CONTROL UNIT HE200 has been designed for intermittent operations. Intermittent operation
is an operational mode where the drive must pause after a specified maximum period of operation
(power-on time). This protects the drive from overheating. Extreme overheating can cause a mal-
function.
The ratings plate specifies the maximum power-on time and the required pause intervals.
Avoiding electrical risks
CAUTION
Electric shock
Make sure that no live (current-carrying) components and connections on the control unit can be
touched.
CAUTION
Risk of accident
Please follow these operating instructions carefully. You could be injured by fire or electrical
shock if you do not follow these assembly instructions.

CONTROL UNIT HE200 Information about creating your Operating Manual
82687(-) 17
Shutting down the CONTROL UNIT HE200 in the event of an emergency
In an emergency, disconnect the mains power plug from its socket in order to shut off the con-
nected drive, the accessory, and the massage motors. The power plug must always be accessible
during operations so that it is possible to shut down the CONTROL UNIT HE200.
Avoiding cable damage
Be sure that your operating instructions inform the user about the possible cable risks.
CAUTION
Risk of accident
The cables (particularly the connecting cable) should not be run over. In order to prevent injuries
or damage to the drive and CONTROL UNIT HE200, no mechanical strain should be placed on
the cables.

Troubleshooting CONTROL UNIT HE200
18 82687(-)
8. Troubleshooting
This chapter describes troubleshooting methods for fixing problems. If you experience an error that
is not listed in this table, please contact your supplier.
Only qualified specialists who have received electrician training should carry out troubleshooting
and repairs.
Problem Possible cause Solution
The drive, accessory
or massage motor is
not functioning.
There is no mains supply voltage. Connect the mains power.
The massage motor or accessory is
defective.
Please contact your supplier or
sales agent.
The hand-held remote control has
not been programmed with the
teach-in.
Carry out the teach-in routine for
the hand-held remote.
The hand-held remote batteries are
empty.
Replace the batteries.
The drive or massage
motors are suddenly
not capable of
movement.
The system protective circuit
breaker has triggered.
Allow the system to rest for 20 to
30 minutes with the mains power
unplugged.
If this does not resolve the prob-
lem, contact your supplier or dis-
tributor.
The unit's fuse may have been trig-
gered.
Please contact your supplier or
sales agent.
The hand-held remote batteries are
empty.
Replace the batteries.
Radio interference Try to re-establish the wireless
connection.
There is no mains supply voltage. Connect the mains power.
A cable has been disconnected (to
the mains power, massage motors,
drives or accessory).
Check the cables and reinsert
them, if required.

CONTROL UNIT HE200 Maintenance
82687(-) 19
9. Maintenance
The CONTROL UNIT HE200 requires no maintenance.
9.1 Cleaning and care
The CONTROL UNIT HE200 was designed so that it would be easy to clean. Its smooth surfaces
simplify the cleaning process.
Clean the CONTROL UNIT HE200 as needed using a dry cloth.
NOTICE
•Always disconnect the mains power plug from the DewertOkin external power supply before
you start to clean it.
•Never clean the CONTROL UNIT HE200 in an automated washing system or with a high-
pressure cleaner. Do not allow fluids to penetrate the lighting. Damage to the system could
result.
•Do not use a cleanser that contains benzene, alcohol or similar solvents.
•Be sure that you do not damage the connecting cables during the cleaning.

Disposal CONTROL UNIT HE200
20 82687(-)
10. Disposal
10.1 Packaging material
The packaging material should be sorted into recyclable components and then disposed of in ac-
cordance with the appropriate national environmental regulations (in Germany according to the re-
cycling law KrWG from 01.06.2012; internationally according to the EU Directive 2008/98/EC
(Waste Framework Directive WFD as of 12.12.2008)).
10.2 Components in the control unit
The CONTROL UNIT HE200 consists of electronic components, cables and metal and plastic
parts. You should observe all corresponding national and regional environmental regulations when
disposing of the system.
The disposal of the end product is regulated in Germany by Elektro-G, internationally by the EU
Directive 2012/19/EC (WEEE), or by any applicable national laws and regulations.
The CONTROL UNIT HE200 should not be disposed of with normal household waste!
