Phonak Audeo P-R Fit User manual

Phonak Audéo FitTM
User Guide
Phonak Audéo P-R Fit
Phonak Audéo P-R Fit Trial

2
Wireless hearing aids
Phonak Audéo P90-R Fit
Phonak Audéo P70-R Fit
Phonak Audéo P-R Fit Trial
Non wireless charging accessories
Phonak Charger Case Combi
Phonak Power Pack
This user guide is valid for:
Note that instructions for the activity and
heart rate tracking functions can be found in
the myPhonak User Guide.

3
Your hearing aid & charger details
Hearing aid models Earpieces
cAudéo P-R Fit (P90/P70) cOpen Dome
cAudéo P-R Fit Trial cVented
Dome Clear
cSensor cShell
cCap Dome
Charging accessories
cCharger Case Combi*
cPower Pack
If no box is checked and you do not know the
model of your hearing aid or charging accessories,
please ask your hearing care professional.
The hearing aids described in this user guide
contain a built-in and non-removable rechargeable
lithium-ion battery.
The Power Pack contains a built-in and non-
removable rechargeable lithium-polymer battery.
Please also read safety information regarding
handling rechargeable hearing aids (chapter 23).
* Incl. power supply and USB cable (< 3 m)
Only these domes can
be used with Audéo Fit.
The smoke colored
Vented Dome should
not be used.

4
Your hearing aids and chargers have been developed by
Phonak – the world leader in hearing solutions based in
Zurich, Switzerland.
These premium products are the result of decades of
research and expertise and are designed with your
well-being in mind. We thank you for making such a great
choice and wish you many years of listening pleasure.
Please read the User Guide carefully to make sure that
you understand and get the best out of hearing aids.
Training is not required for handling of this device.
A hearing care professional will help setup this hearing
aid to your individual preferences during the sales
consultation.

5
For more information regarding features, benets, setup,
use and maintenance or repairs of your hearing aid and
accessories – contact your hearing care professional or
manufacturer representative.
Additional information can be found in the Data Sheet of
your product.
Phonak - life is on
www.phonak.com

6
Contents
Your hearing aid and charger
1. Quick guide
2. Parts of the hearing aid & charger
Using the charger
3. Preparing the charger
4. Charging the hearing aids
Using the hearing aid
5. Left & right hearing aid markings
6. Putting on the hearing aid
7. Removing the hearing aid
8. Multi-function button
9. On/O
10. Tap control
11. Connectivity overview
12. myPhonak App overview
13. Initial pairing
14. Phone calls
15. Flight mode
16. Rebooting your hearing aid
8
10
14
15
24
25
26
27
28
29
30
31
32
34
39
42

7
Further information
17. Operating, transport and storage conditions
19. Care and maintenance
19. Exchanging the earwax protection
20. Service and warranty
21. Compliance information
22. Information and description of symbols
23. Troubleshooting
24 Important safety information
43
45
46
53
55
62
68
74

8
1. Quick guide
Left & right hearing aid markings
Charging your hearing aids
Blue marking for left
hearing aid.
Red marking for
right hearing aid.
After placing your hearing aid
in the charger, the indicator
light will show the charging
state of the battery until the
hearing aid is fully charged.
When fully charged the
indicator light will be
constantly on, i.e. solid
green light.
Before using your hearing aid for the rst time, it is
recommended to charge it for 3 hours.

9
Multi-function button with indicator light
The button has several functions. It
functions as an on/o switch, a volume
control and/or a program change depending
on the hearing aid programming. This is
indicated in your individual instructions.
Phone calls: If paired with a Bluetooth®
enabled phone, a short press will accept
and a long press will reject an incoming call.
On/O: Firmly press the lower part of the button for
3 seconds until the indicator light blinks.
On: indicator light is solid green
O: indicator light is solid red
Enter ight mode: When device is o, press the lower part
of the button for 7 seconds until the solid orange light
appears. Then release the button.
Tap Control (only available for models P90 and P70)
If paired with a Bluetooth enabled device, multiple functions
can be accessed using tap control, please refer to chapter 10.
This is also indicated in your individual instructions.
To use tap control tap the top of your ear twice.

10
2. Parts of the hearing aid & charger
The following pictures show the hearing aid model and
charger accessories described in this user guide. You can
identify your personal models by:
• checking “Your hearing aid & charger details” on
page 3.
• comparing your earpieces, hearing aid and charger with
the following models.
Charging contacts
Anchor (optional) Speaker with sensors
(without earpiece attached)
Multi-function button with built-in indicator light
Audéo P-R Fit
Audéo P-R Fit Trial
Tube
Possible earpieces
Sensor cShellDomes:
Open,
Cap,
Vented Clear

11
Charging contacts
Space for earpieces
Space for drying
capsule (cover open)
Drying capsule
(optional)
Hearing aid charging inserts with left/right indicators
Space for drying capsule
(cover closed)

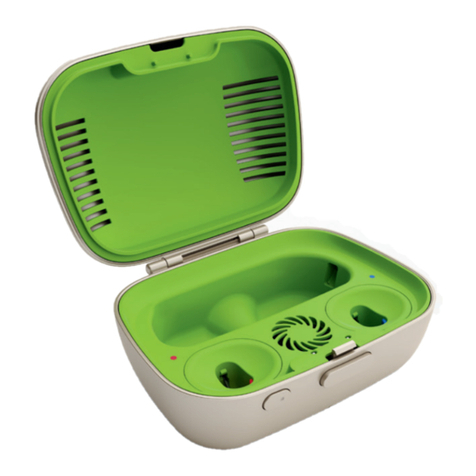

Charger Case Combi

12
Charger Case Combi with optional Power Pack
Charger Case Combi
Indicator light for power
Power Pack

13
micro-USB connection to external power supply
Power Pack
Indicator light for battery status
and external power
Battery check button
Power Pack lock and release
USB cable (< 3 m) Power supply
External power supply

14
3. Preparing the charger
a) Plug the larger end of the charging cable into the power
supply.
b)Plug the smaller end into the USB port on the charger.
c) Plug the power supply into a power outlet.
d)The indicator light is green when the charger
is connected to the power supply.
Connecting the power supply
ab
d
c
Power supply specication
Power supply output voltage 5 VDC +/-10%, current 1 A
Power supply input voltage 100-240 VAC, 50/60Hz, current 0.25 A
Charger input voltage 5 VDC +/-10%, current 500 mA
USB cable specications 5 V min. 1 A, USB-A to USB-C,
maximum length 3 m

15
4. Charging the hearing aids
Low power: You will hear two beeps when the
battery is low. You will have approximately
60 minutes before you have to charge the hearing
aids (this can vary, depending on the hearing aid
settings).
The hearing aid contains a built-in and non-
removable rechargeable lithium-ion battery.
Before using your hearing aid for the rst time, it
is recommended to charge it for 3 hours.
The hearing aid must be dry before charging,
see chapter 17.
Please ensure to charge and use the hearing aid
within operating temperature range: +5° to +40°
Celsius (41° to 104° Fahrenheit).

16
4.1 Using the Charger Case Combi
Please refer to chapter 3 for how to set up the charger.
1.
Insert the hearing aid into the charging inserts.
Make sure the left and right hearing aid markings match
the left (blue), right (red) indicators next to the charging
inserts. The hearing aids will automatically be switched o
when inserted into the charger.

17

18
2.
The indicator light will show the charging state of the
battery until the hearing aid is fully charged. When fully
charged the indicator light will remain on, i.e. solid
green light.
The charging process will automatically stop when the
batteries are fully charged, so the hearing aids can be
safely left in the charger. It can take up to 3 hours to
charge the hearing aids. The charger covers can be closed
while charging.

19
Indicator light Charging state Approx. charging times
0 – 10%
11 – 80%
30 min (30%)
60 min (50%)
90 min (80%)
81 – 99%
100% 3 h
Charging times

20
3.
Remove the hearing aids from the charging inserts by
1. pulling the hearing aids gently toward yourself and
2. lifting them out of the charger.
Do not hold the tubes to remove the hearing aids
from the charger as this can damage the tubes.
The hearing aid switches on automatically when removed
from the charger. The indicator light starts blinking.
The solid green light indicates the hearing aid is ready.
If you unplug the charger while the hearing aid is
charging inside, please make sure to turn o the hearing
aid to prevent discharge.
